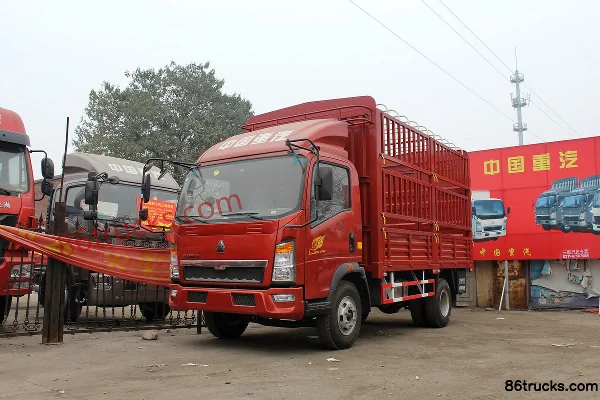

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck

Export reference
From $20,556
MSRP ¥14.8M CNY
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Chaochai4SK
Transmission: WLY
Curb Weight:: 5.87ton
seating capacity: 3Personnel
Rated payload: 8.06ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck is a Light Truck featuring 5.75m cargo length, Stake type cargo body, 3Personnel volume and 8.06t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Chaochai4SK engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5147CCYH451CE1
Type: stake truck
Drive type: 4X2
Wheelbase: 4500mm
Box length class: 5.8m
engine: ChaochaiCY4SK151
transmission: WLYWLY6T53
Cab length: 7.445m
Cab width: 2.498m
Cab height: 3.7m
Front track width: 1805mm
rear track: 1800mm
Curb Weight: 5.87ton
Rated payload: 8.06ton
GVWR: 14.06ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Remarks: Metal cab, front underrun guard; optional: front disc/rear drum (MAN axle), chassis wax spray, large fuel tank
Front/rear suspension: 1.24/2.005m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4SK151
Engine info: Chaochai4SK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Inline 4-cylinder, water-cooled, turbocharged & intercooled, electronic high-pressure common rail, SCR
Technology route: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: WLYWLY6T53
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.75m
Cargo box width: 2.4m
Cargo box height: 2.3m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4350kg
rear axle allowable load: 9710kg
Leaf spring count: 11/9+7,9/12+9,11/11+7
Tire
Tire Size: 8.25R20,9.00R20
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Parking brake: Spring brake
Exhaust brake:
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck, and what does it include?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Key specs of Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4SK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck suited for?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck differ from other variants in the same series?

Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 170hp 4X2(6 wheels) 5.75m semi-sleeper stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
