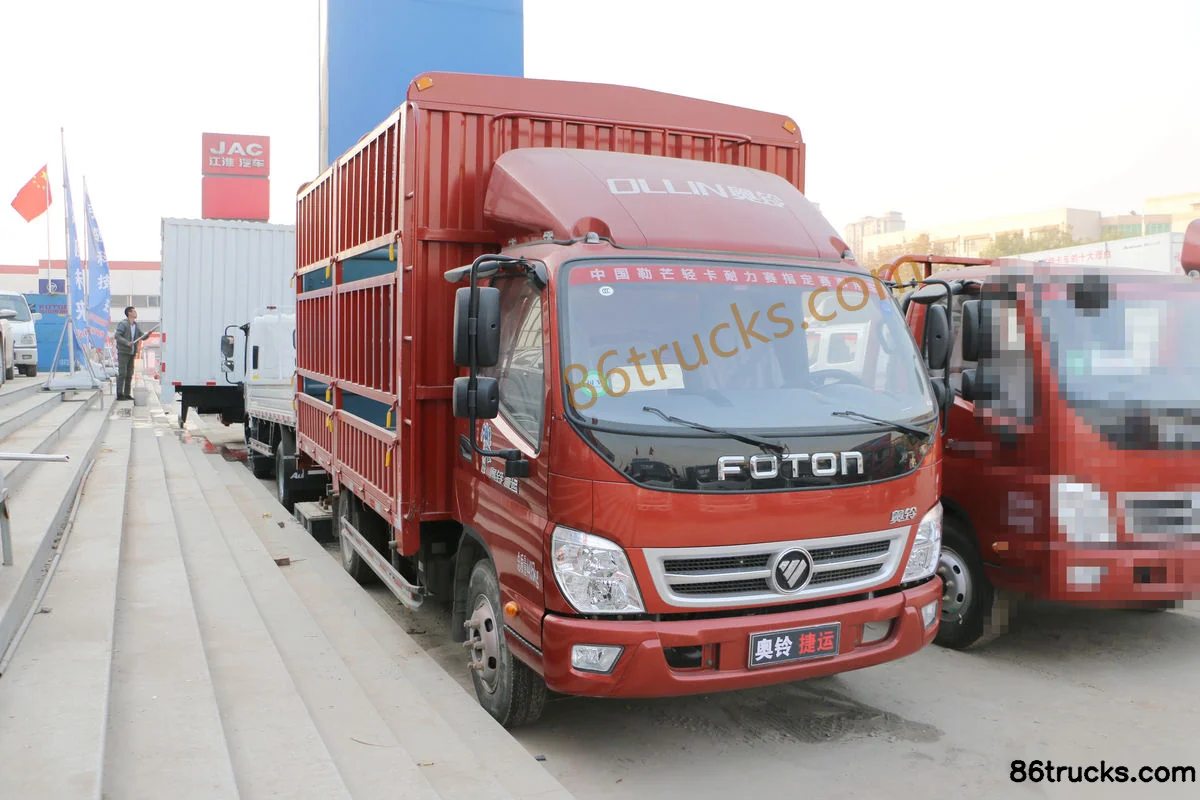

Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck

Export reference
From $15,278
MSRP ¥11M CNY
Horsepower: 143
Emission: China V
Fuel: Diesel
Engine: Chaochai4BK
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck is a Light Truck featuring 4.23m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Chaochai4BK engine, 143 hp, 4X2 (6 wheels) drive and China V emissions.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049CCY-FM
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: ChaochaiCY4BK151
transmission: WLYWLY6T120
Cab length: 5.995m
Cab width: 2.15m
Cab height: 3.27m
Front track width: 1665mm
rear track: 1630mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.12/1.515m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK151
Engine info: Chaochai4BK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR
Transmission Parameters
Transmission Model: WLYWLY6T120
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.23m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Leaf spring count: 9/11+7,6+1/9+7
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
AC control type: Optional manual.
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
standard instrument cluster:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

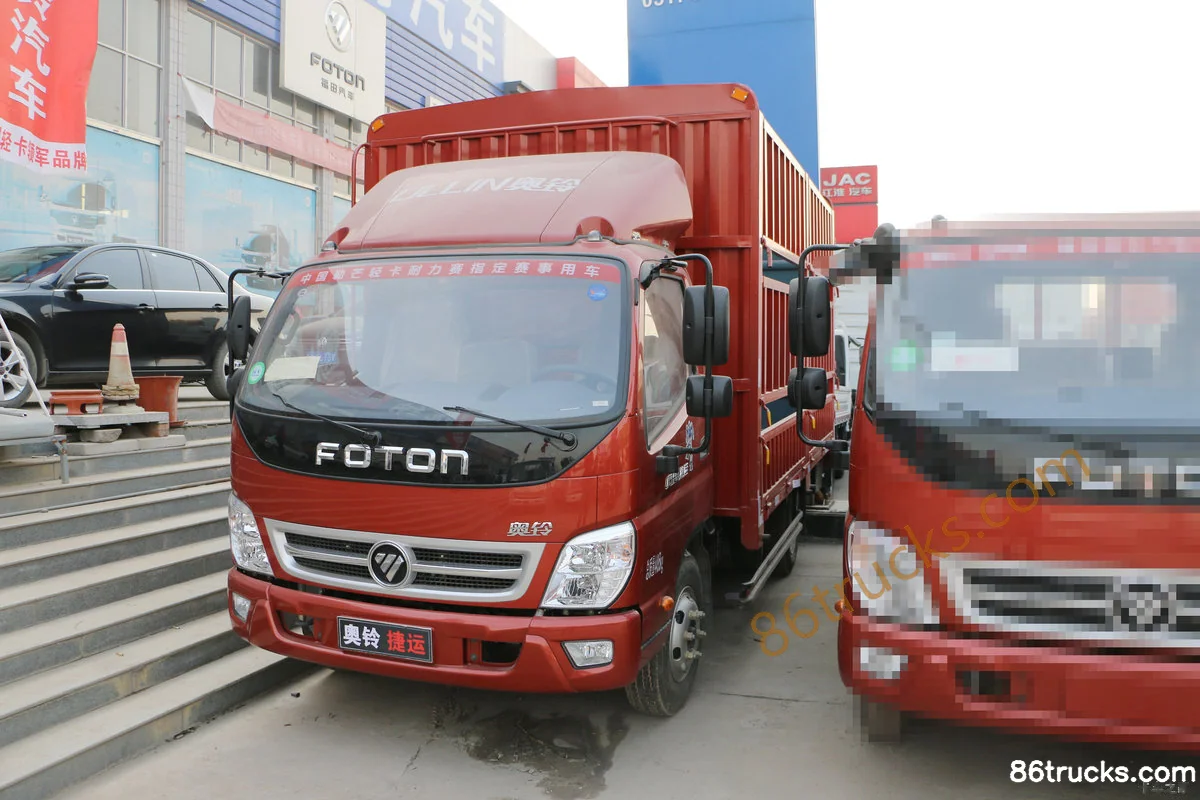

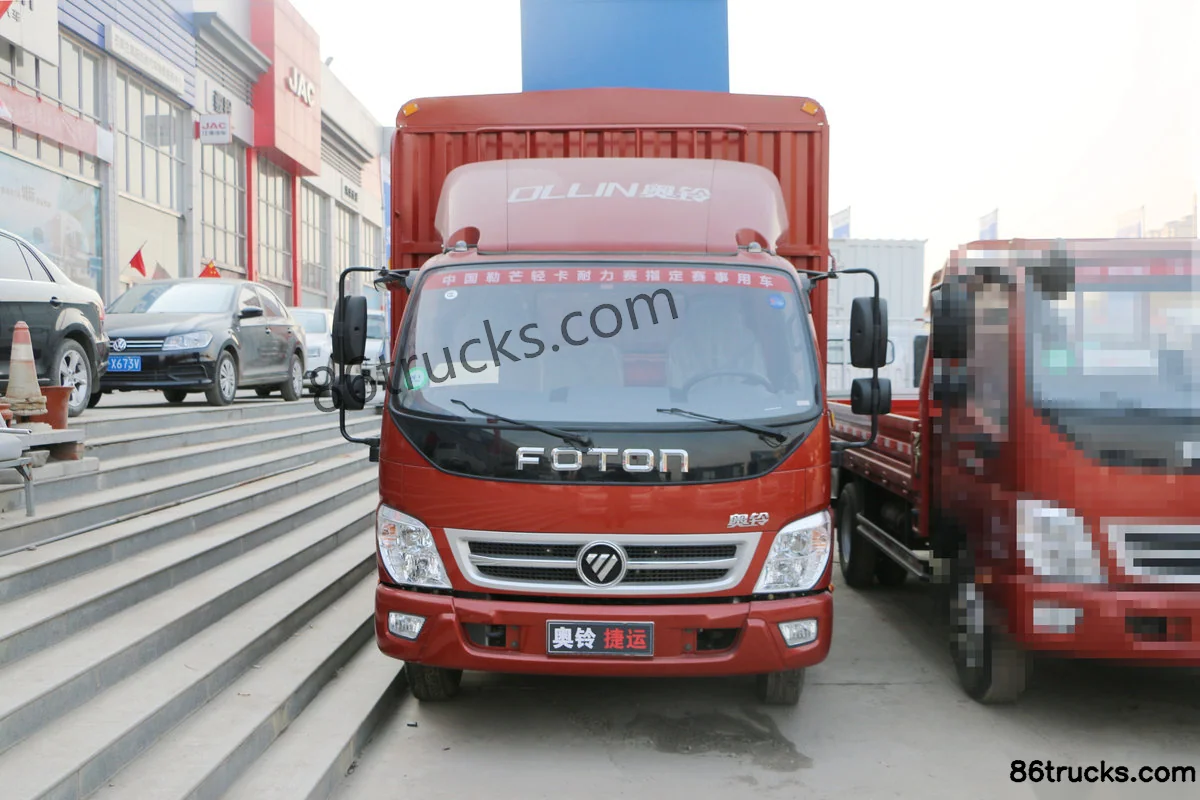

Exterior3

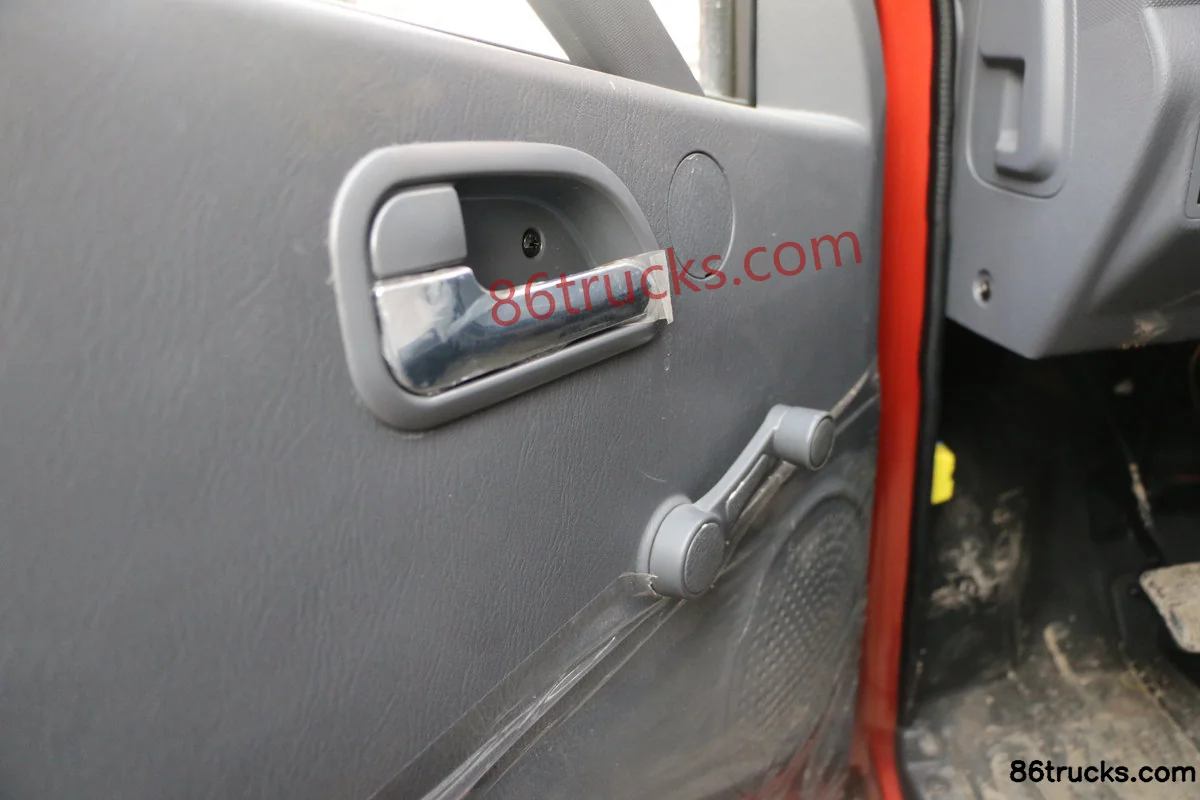

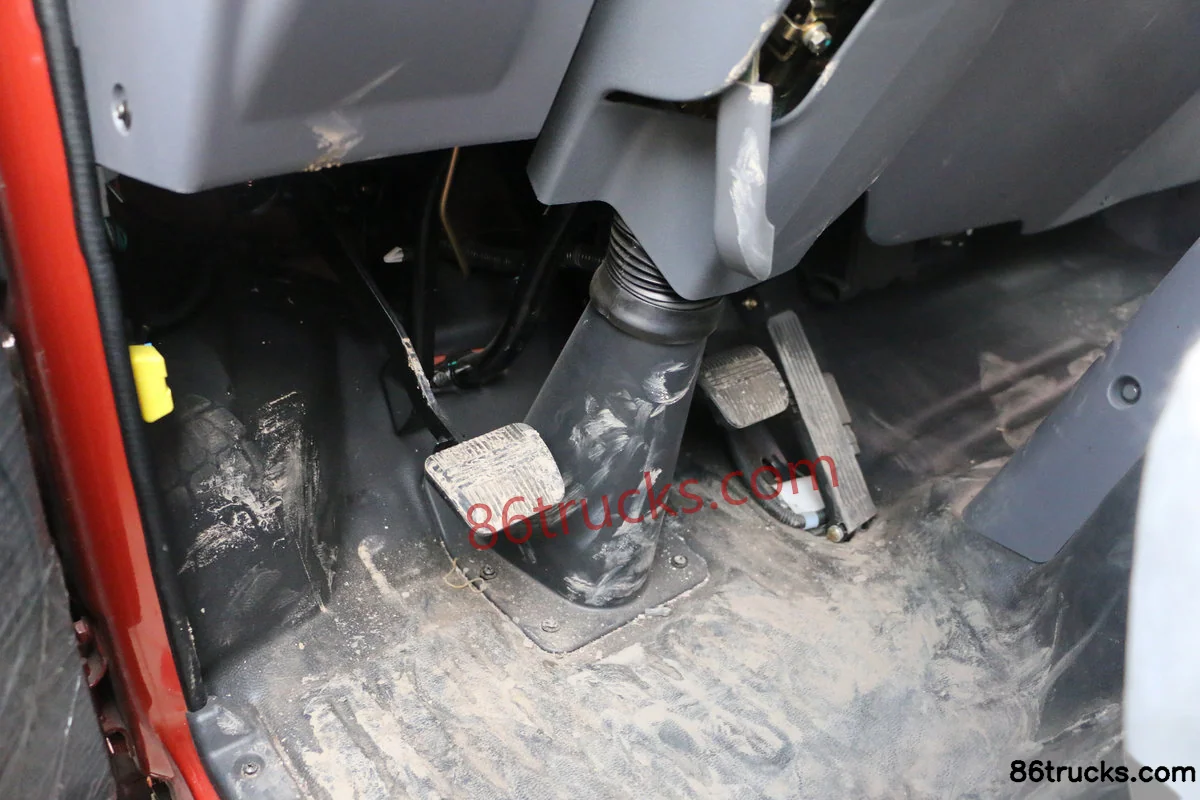

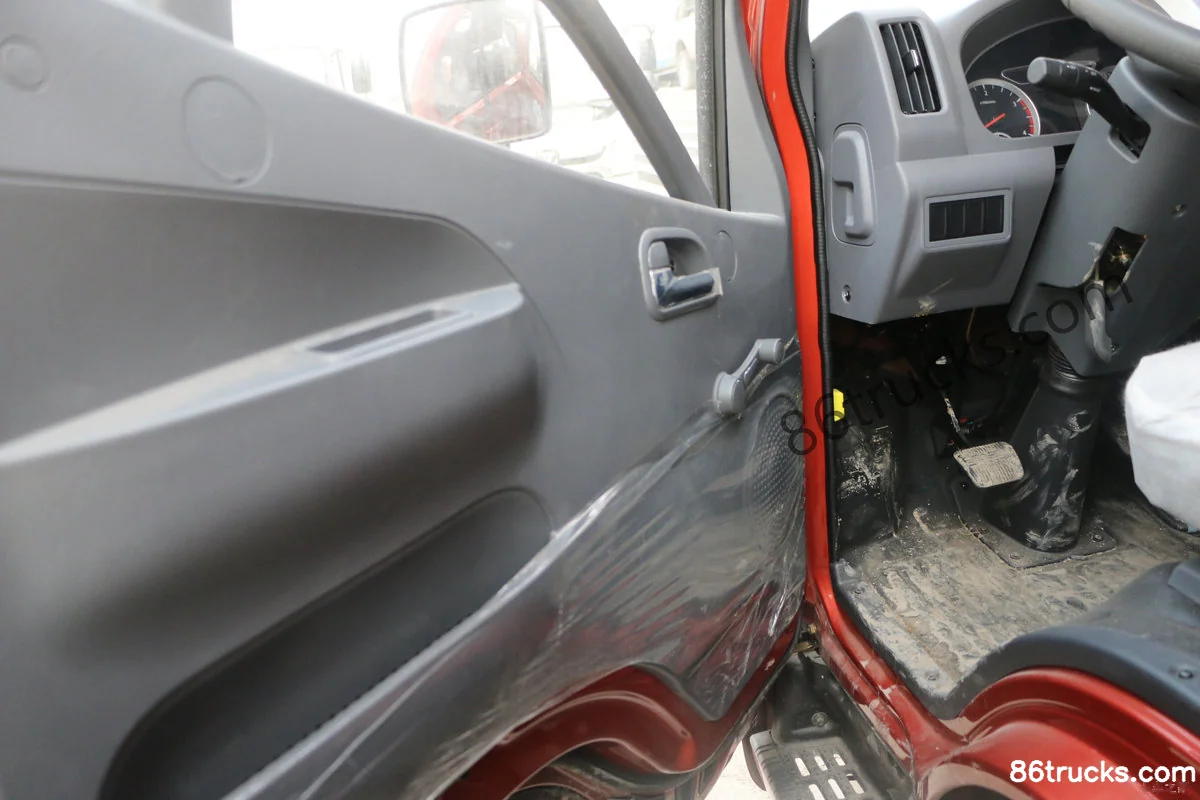

Cab3

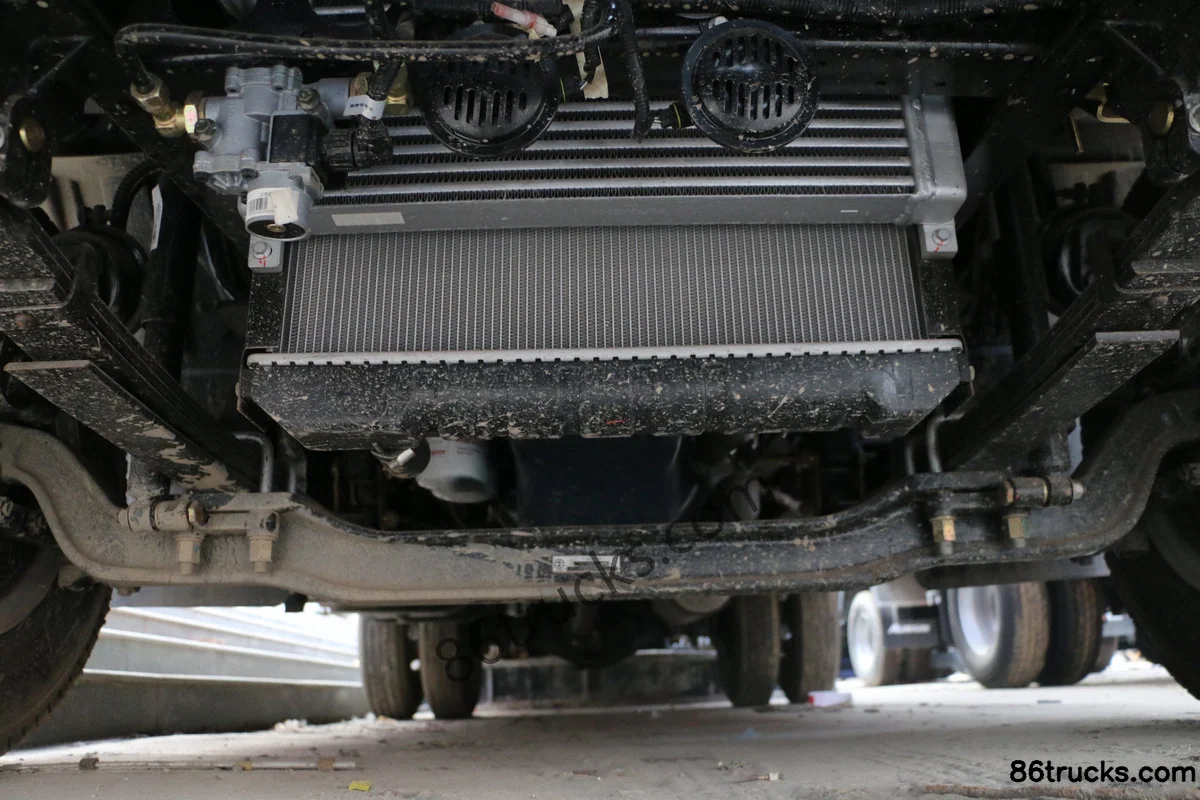

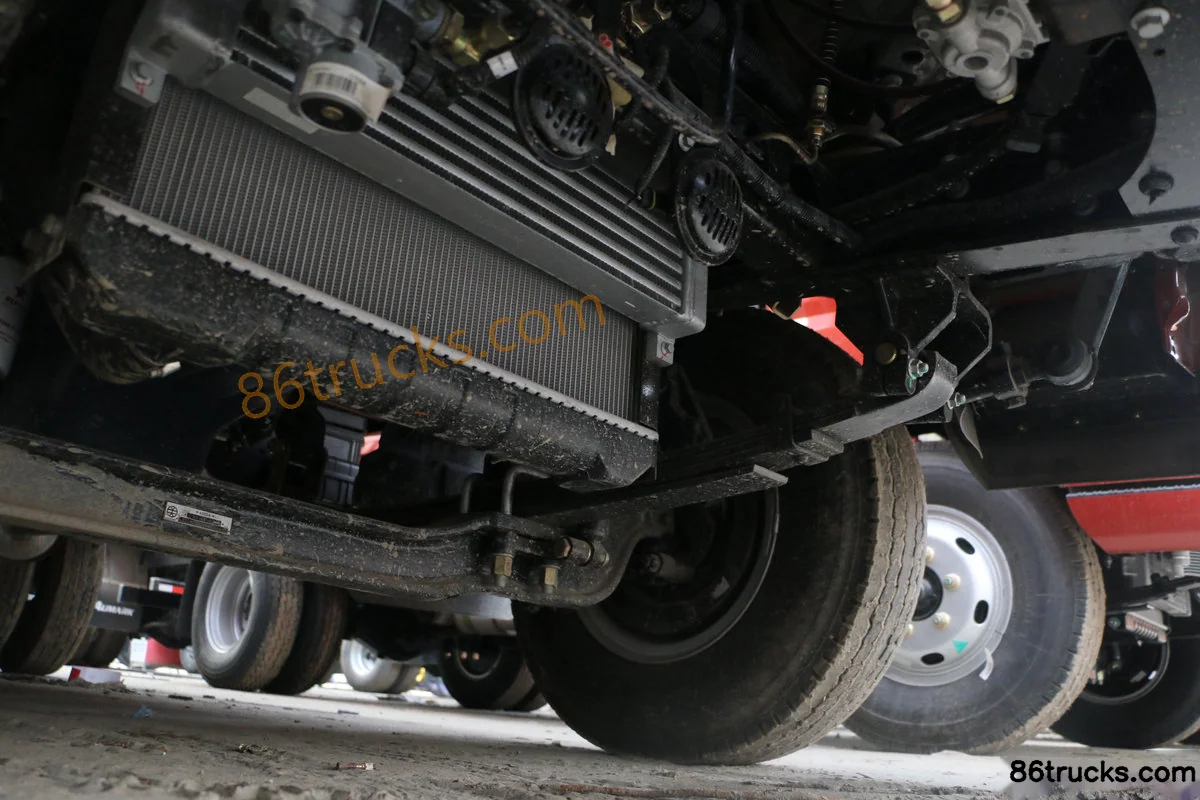

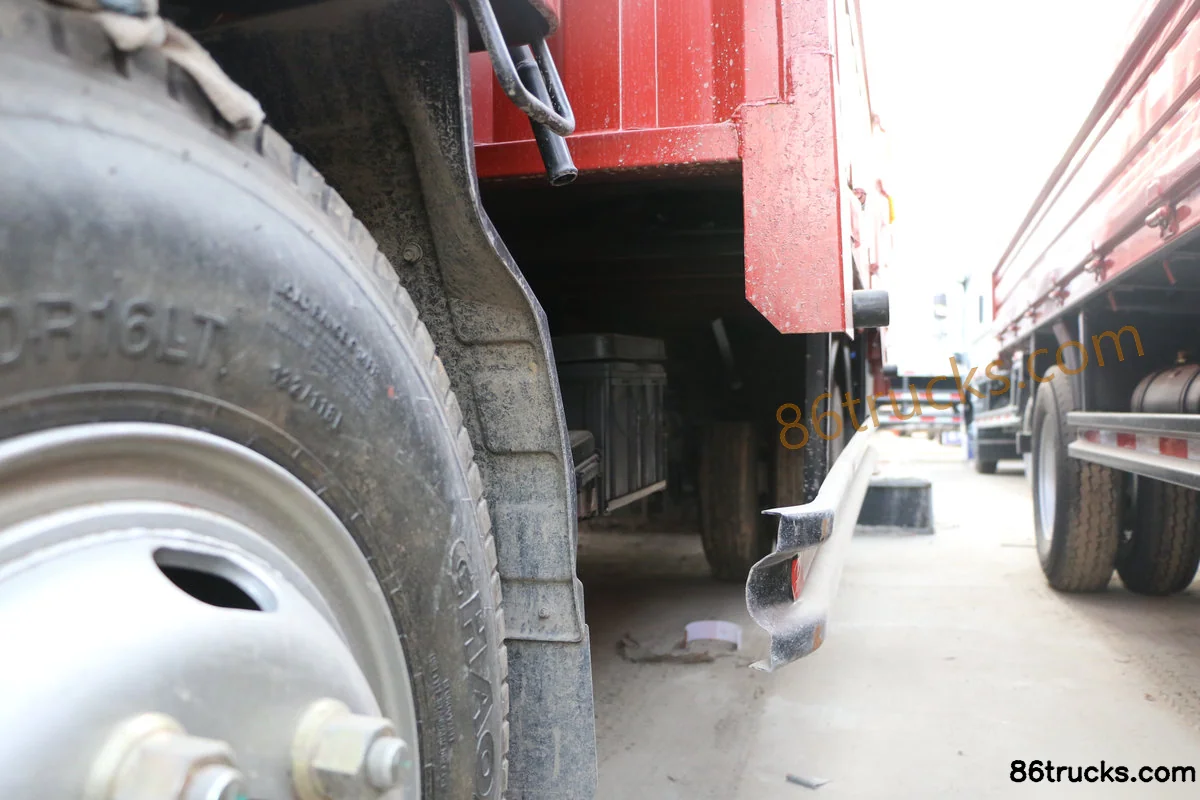

Chassis3

9 photos

FAQ

What is the export price of Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck, and what does it include?

Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck export reference is about From $15,278; MSRP is ¥11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck?

Key specs of Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck: Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4BK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck suited for?

Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck differ from other variants in the same series?

Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin Jiyun Classic Edition 143 hp 4X2(6 wheels) 4.23m Single Row Fence Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
