SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh)

Export reference
From $12,889
MSRP ¥9.28M CNY
Wheelbase:: 2925mm
Cargo box volume:: 5.28
Model code (announced):: JKC5030XXY-FXBEV
Cab length:: 4.495m
GVWR:: 2.51ton
Max. speed:: 90km/h
CLTC range: 300km
Motor 1 Brand: Dadihe
Curb Weight: 1.35ton
Rated payload: 1.03ton

Overview

The SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) is a Electric Panel Van featuring 300km battery/range, Dadihe motor, 1.03t payload and 5.28 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5030XXY-FXBEV
Wheelbase: 2925mm
Cab length: 4.495m
Cab width: 1.68m
Cab height: 1.99m
CLTC range: 300km
Curb Weight: 1.35ton
Rated payload: 1.03ton
GVWR: 2.51ton
Max. speed: 90km/h
Version: Fortune Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ210XSR41
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total peak torque: 200N·m
Battery/Charging
Battery Brand: Bike
Charging method: Fast charge, slow charge (6.6kW)
Battery type: NMC lithium battery pack
Battery capacity: 42.2kWh
Energy Density: 141.79
Battery total voltage: 350.4V
Body parameters
Cargo box volume: 5.28
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 175/70 R14C
Rear Wheel Specification: 175/70 R14C
Control configuration
ABS:
interior configuration
AC control type: Automatic

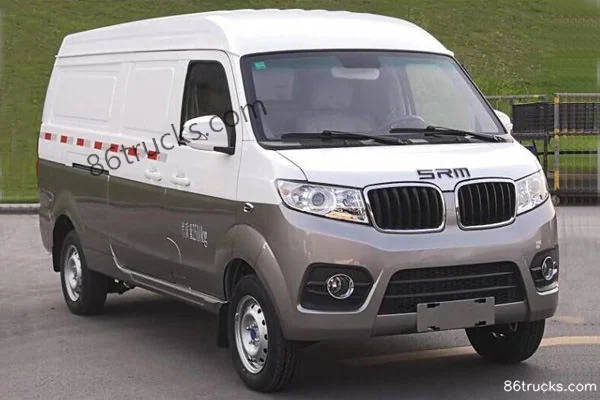

Photos

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh), and what does it include?

SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) export reference is about From $12,889; MSRP is ¥9.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) suited for?

SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) differ from other variants in the same series?

SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh) belongs to Huajin Xinyuan Jinbei Good Luck 1 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan Haoyun 1-300 (Hiace X30L) Chuangfu Edition Pure Electric Panel Van (Battery Heating 42.2kWh)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
