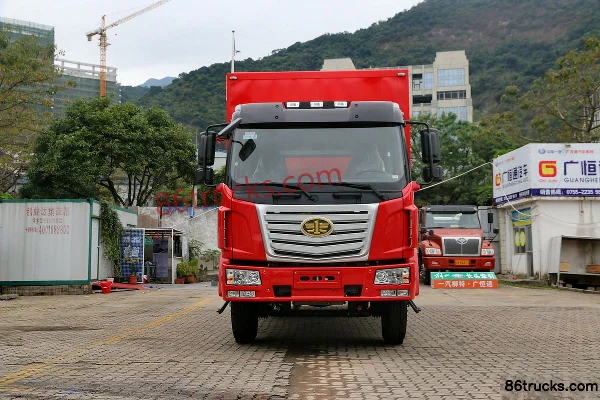

FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286)

Export reference
From $19,444
MSRP ¥14M CNY
Horsepower: 170
Emission: China IV
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.8ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai 4-cylinder engine, 170 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1160PK2E4L3A95
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: XichaiCA4DF4-17E4
transmission: Fast Gear8JS75C
Rear Axle Ratio: 5.286
Cab length: 9m
Cab width: 2.495m
Cab height: 2.805m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 5.8ton
Rated payload: 9.8ton
GVWR: 15.795ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Building materials, agricultural products
Remarks: Cab color: Uros Red; automatic air conditioning; mechanical semi-floating device; suspension seat; manual windows; external sun visor; manual hydraulic tilting mechanism; aluminum radiator; high-efficiency single-stage air filter; power steering; exhaust brake; air handbrake; air dryer; cold start; air-to-air intercooler; full-length constant-width straight frame rail; 160L iron fuel tank; distribution box (with master power switch); air horn; ABS
Front/rear suspension: 1.4/2.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DF4-17E4
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.75L
Emission standard: China IV
Max output power: 127kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 0.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 142 single front axle
Front axle allowable load: 5800kg
Frame Dimensions: Single-layer, full-length straight beam 237*75*7mm
rear axle description: 385 stamped-welded single rear axle
rear axle allowable load: 9995kg
Axle ratio: 5.286
Leaf spring count: 7/7+6
clutch: Φ395
Tire
Tire Size: 9.00R20 16-ply rating
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286), and what does it include?

FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) export reference is about From $19,444; MSRP is ¥14M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286)?

Key specs of FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286): Drive: 4x2; Horsepower: 170 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) suited for?

FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) differ from other variants in the same series?

FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286) belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jinlu Medium Truck 170hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (Ratio: 5.286)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
