Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck

Export reference
From $54,167
MSRP ¥39M CNY
Emission: China III / Euro III
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 13.69ton
Wheelbase:: 1800+4200+1350mm
Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck exterior
View more photos (2)
Rated payload: 17.18ton
Drive 8X4 (12 wheels)
Cargo box type: stake body
Horsepower 336

Overview

The SAIC Hongyan Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck is a Heavy-duty cargo trucks featuring 9.1m cargo length, stake body cargo body, 17.18t payload and 1800+4200+1350mm wheelbase. On the powertrain side, it comes with a WeichaiWP10 engine, 336 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 336 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CQ1314HTG426
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1800+4200+1350mm
Cab length: 11.379m
Cab width: 2.5m
Cab height: 3.838m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 13.69ton
Rated payload: 17.18ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Remarks: 1. Optional cab side windows and bumper (front combination lamp position unchanged); 2. Optional high-roof cab; 3. This model can also be used without trailer. When without trailer, ABS optional. With trailer, ABS mandatory; 4. When overall length 11379mm: cargo interior length 8800mm, interior height 800 or 600mm, rear overhang 2594mm, approach/departure angle 19/12, curb weight 13690kg, rated payload 17180kg, payload utilization factor 1.26; When overall length 11679mm: cargo interior length 9100mm, interior height 800 or 600mm, rear overhang 2894mm, approach/departure angle 19/12, curb weight 13740kg, rated payload 17130kg, payload utilization factor 1.25; When overall length 11939mm: cargo interior length 9560mm, interior height 800 or 600mm, rear overhang 3154mm, approach/departure angle 19/10, curb weight 13870kg, rated payload 17000kg, payload utilization factor 1.23;
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast GearRT-11509C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.1m
Cargo box width: 2.368m
Cargo box height: 0.8m
*Cargo box interior width: 2.3680000305176
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Leaf spring count: L14/R13/L14/R13/12,3/3/4,3/3/12
Tire
Tire Size: 11.00-20，11.00R20，12.00-20,12.00R20
Number of tires: 12pcs

Photos

Exterior2

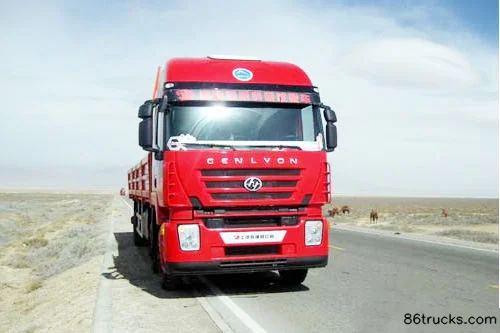

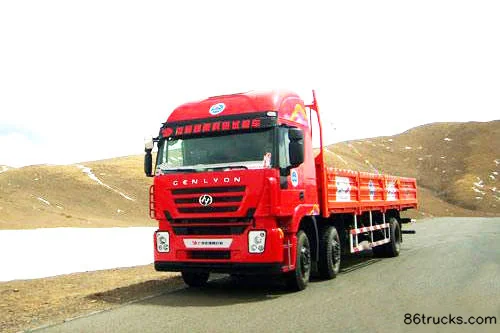

Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck Exterior (1) | 86Trucks Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck Exterior (2) | 86Trucks

2 photos

FAQ

What is the export price of Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck, and what does it include?

Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck export reference is about From $54,167; MSRP is ¥39M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck?

Key specs of Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck suited for?

Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck differ from other variants in the same series?

Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Genlyon 336 hp 8X4(12 wheels) Side Guard Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
