Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Engine: Yangchai4102
Transmission: WLY
Curb Weight:: 2.735ton
Wheelbase:: 3360mm
Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis exterior
View more photos (4)
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 113

Overview

The Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume and 3360mm wheelbase. On the powertrain side, it comes with a Yangchai4102 engine, 113 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 113 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR1080H30D-E
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
Min. turning diameter: 14m
engine: YangchaiYZ4DA2-40
transmission: WLYWLY5S100
Cab length: 5.94m
Cab width: 2m
Cab height: 2.32m
Front track width: 1680mm
rear track: 1525mm
Curb Weight: 2.735ton
GVWR: 8.18ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 23°
departure angle: 15°
Remarks: Standard: antenna, steel rims, full-size spare tire (steel rim), body-color front bumper, black front grille (with chrome trim), body-color headlight trim, black mirrors, black exterior door handles, cab tilt mechanism, cab lock mechanism, cab badge + rear badge, side guard, rear guard, body-color wind deflector, interior rearview mirror, full interior trim, door-trim-colored interior door handles, driver sun visor, passenger sun visor, door panel driver safety handle, 3 grab handles, multifunction instrument cluster, PVC carpet, front door step pedal, cigarette lighter and ashtray, full metal semi-monocoque body, high-strength two-door anti-intrusion bars, adjustable collapsible energy-absorbing steering column, steering column lock, rear fog light, front two sets of 3-point seat belts, driver seat manual 4-way adjustment, passenger seat manual 2-way adjustment, driver seat integrated headrest, manual door locks, front power windows, interior dome light, door-controlled light switch, dual-tone horn, 2 speakers
Front/rear suspension: 1.125/1.465m
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yangchai
Engine Model: YangchaiYZ4DA2-40
Engine info: Yangchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.66L
Emission standard: China IV
Max output power: 83kW
Max hp: 113Horsepower
Max torque: 300N·m
Max torque speed: 1000-1600rpm
Rated speed: 2900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: WLYWLY5S100
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 5T
Leaf spring count: 8/4+6
Suspension (front/rear): Front independent suspension: multi-leaf spring with shock absorber; rear independent suspension: two-stage rate spring, main and auxiliary springs both multi-leaf with shock absorber
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

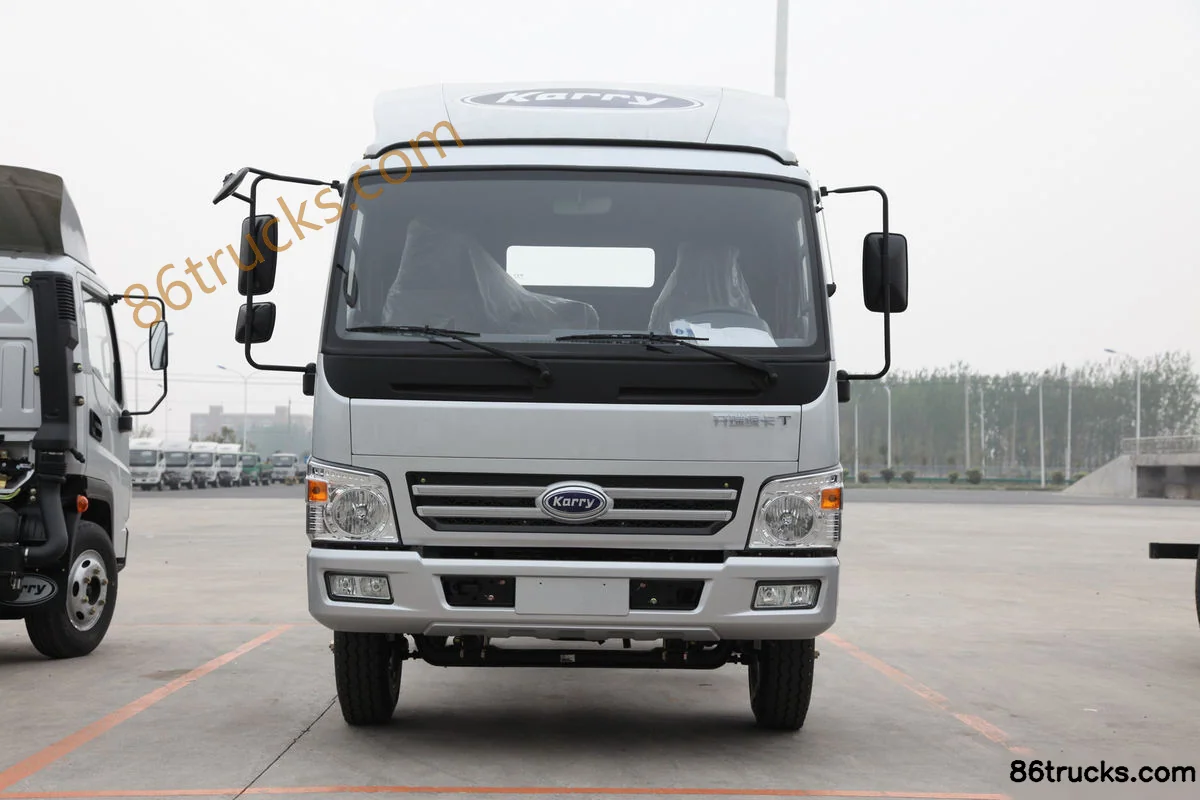

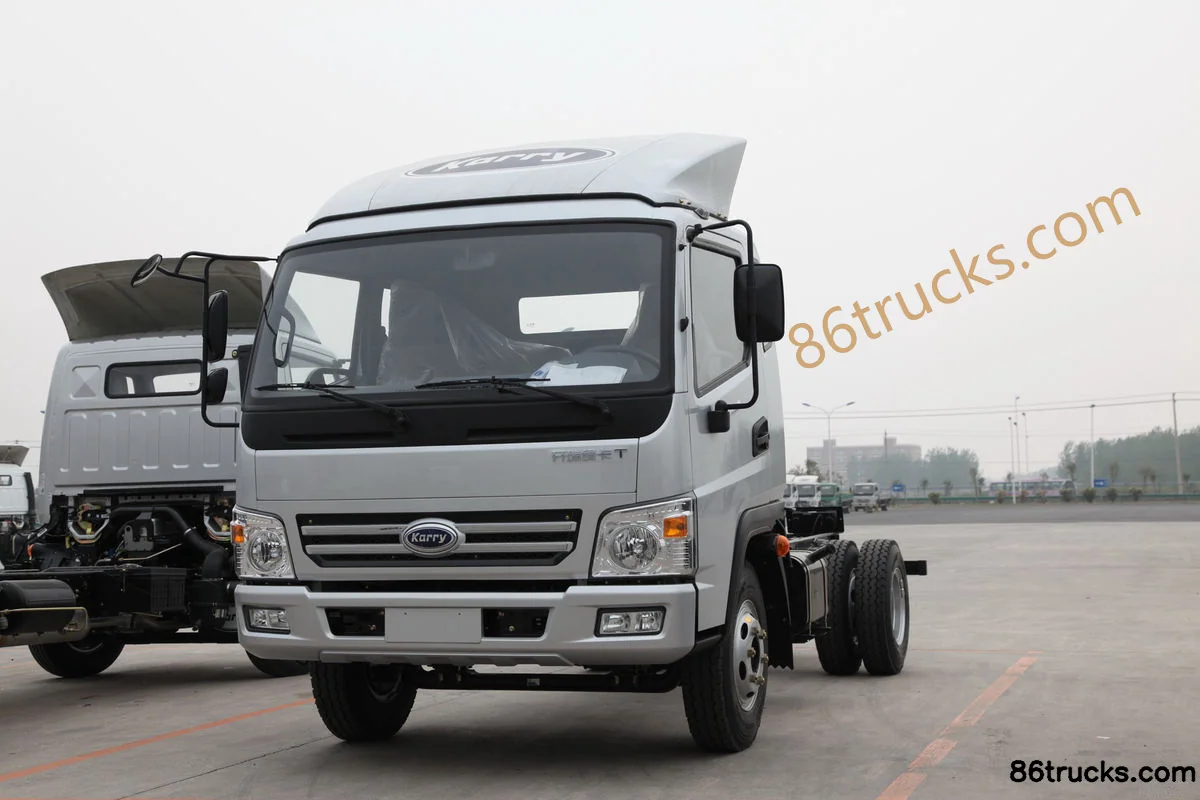

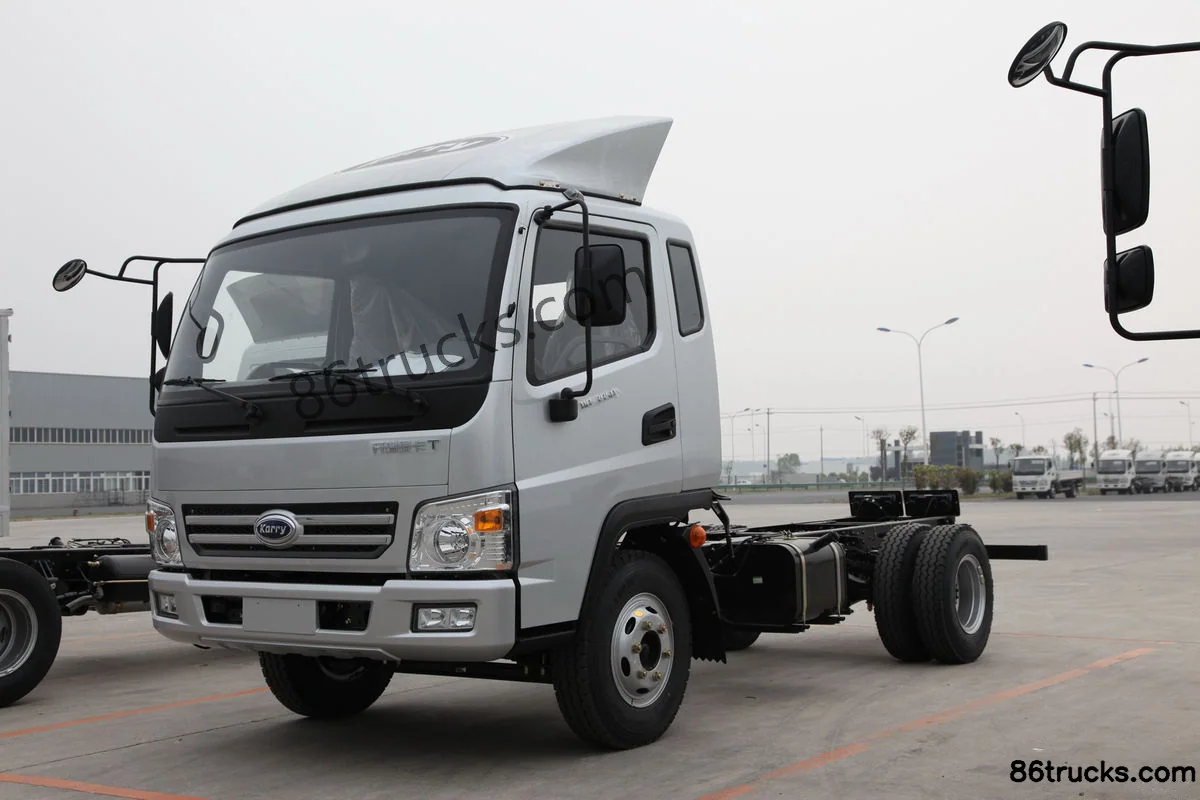

Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis Exterior (1) | 86Trucks Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis Exterior (2) | 86Trucks Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis Exterior (3) | 86Trucks

Cab1

Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis Cab (1) | 86Trucks

4 photos

FAQ

What emission standard does Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis?

Key specs of Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis: Drive: 4x2; Horsepower: 113 hp; Emission: China IV; Fuel: Diesel; Engine: Yangchai4102; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis suited for?

Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis differ from other variants in the same series?

Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis belongs to Karry Green Card T Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Green Card T Deluxe 113hp 4X2(6 wheels) 3360mm Wheelbase Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
