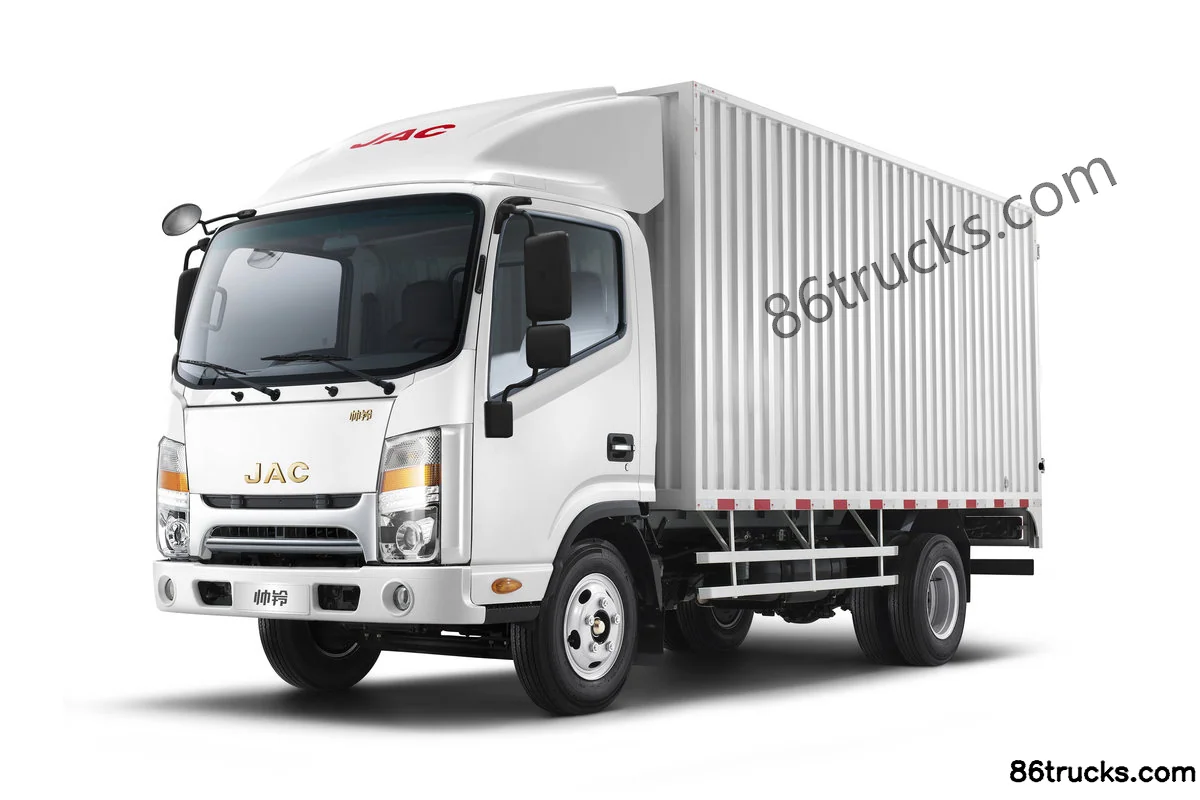

JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck

Export reference
From $13,194
MSRP ¥9.5M CNY
Horsepower: 120
Emission: China V
Fuel: Diesel
Engine: JAC493
Transmission: Lu'an
Curb Weight:: 2.705ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck is a Light Truck featuring 4.13m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYP73K2C3V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JACHFC4DA1-2D
transmission: Lu'an LC5T28
Cab length: 5.995m
Cab width: 2m
Cab height: 3.035m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 2.705ton
Rated payload: 1.495ton
GVWR: 4.33ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Urban Distribution
Remarks: Equipped with MP3, cargo box volume 16 cubic meters
Front/rear suspension: 1.11/1.525m
Version: Trade All-round
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2D
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 1.9m
Cargo box height: 2m
Cargo box material: Steel
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1560kg
rear axle allowable load: 2770kg
Leaf spring count: 3/3+4
Tire

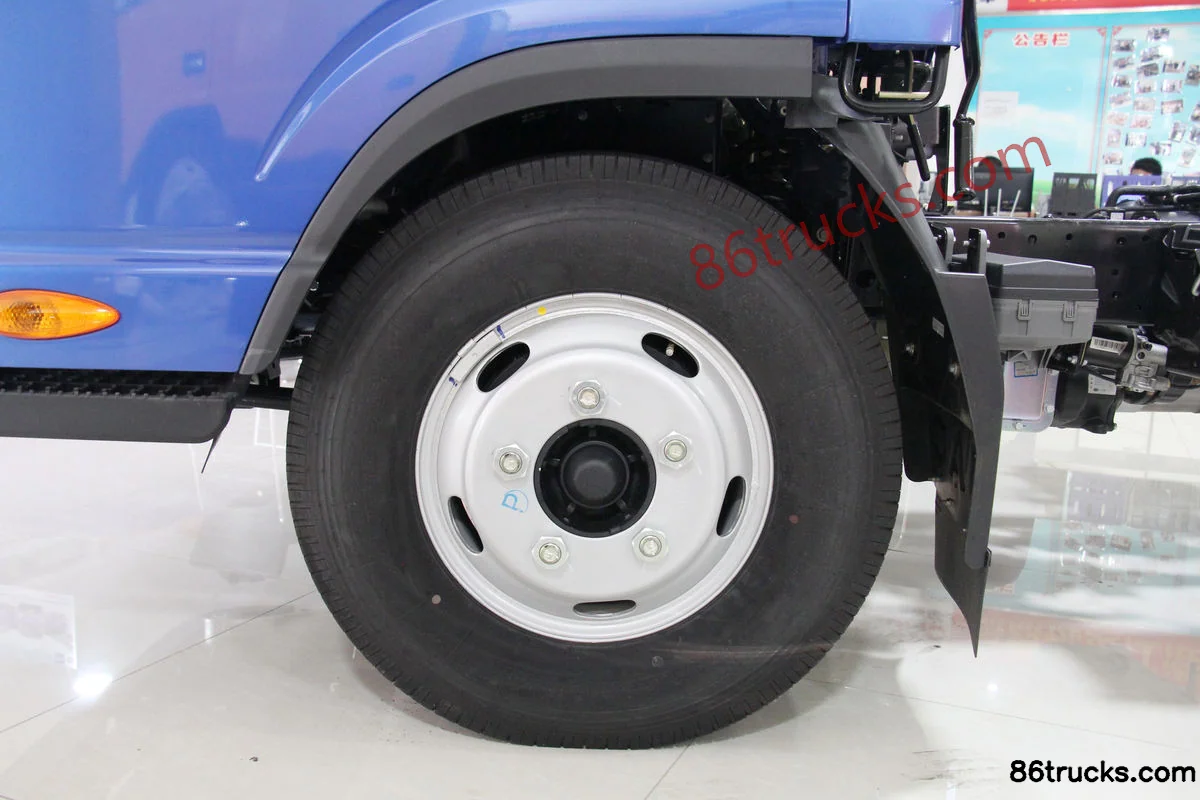

Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual

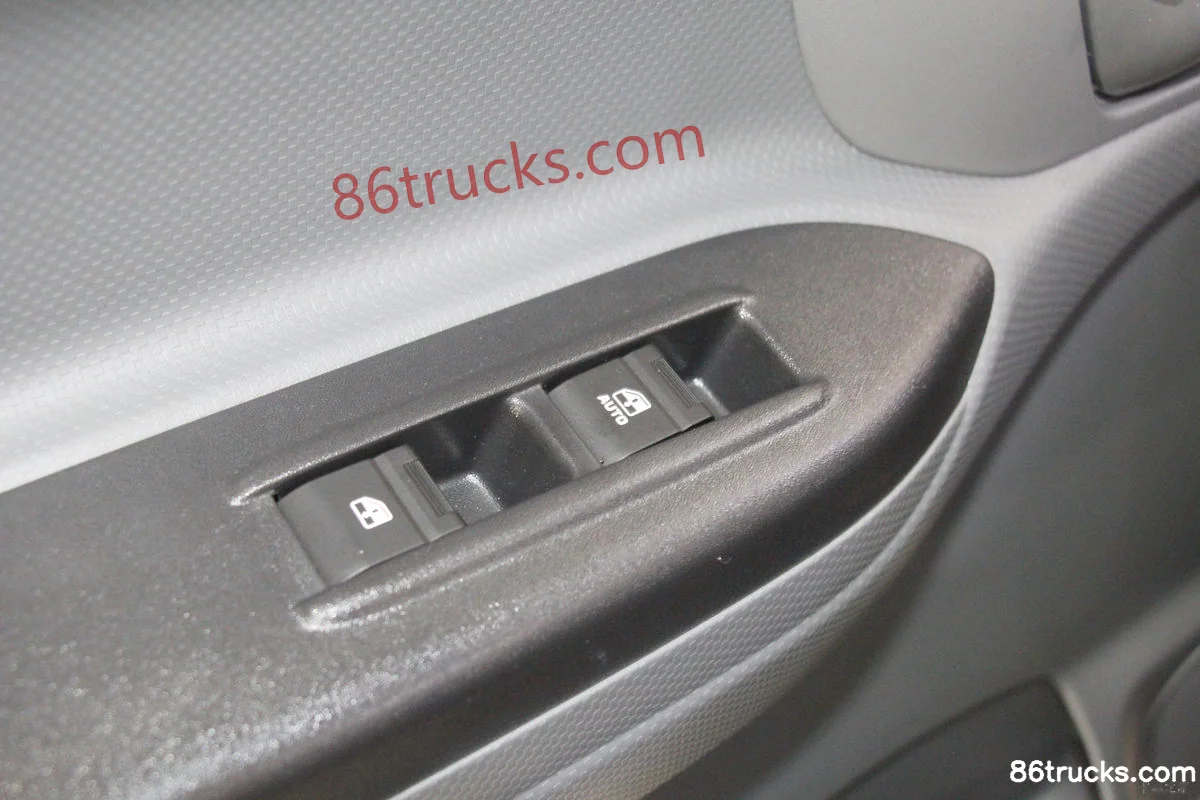

Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Radio:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

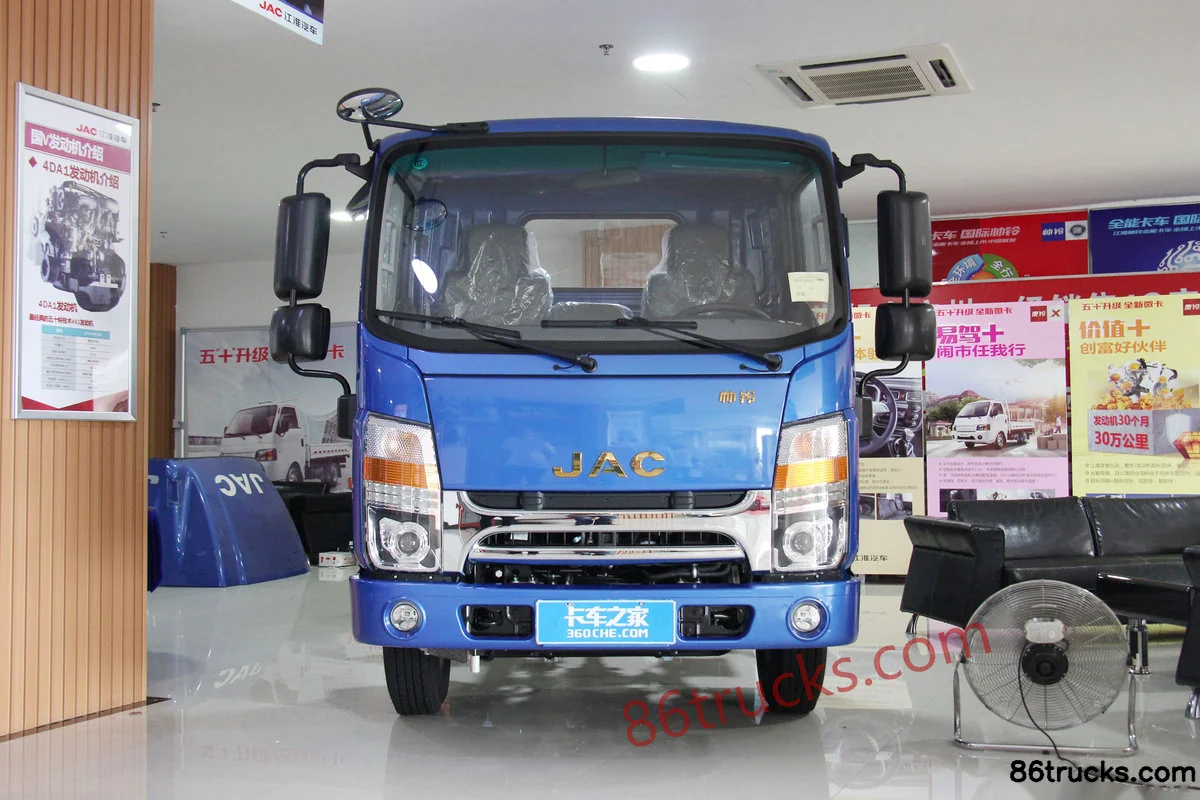

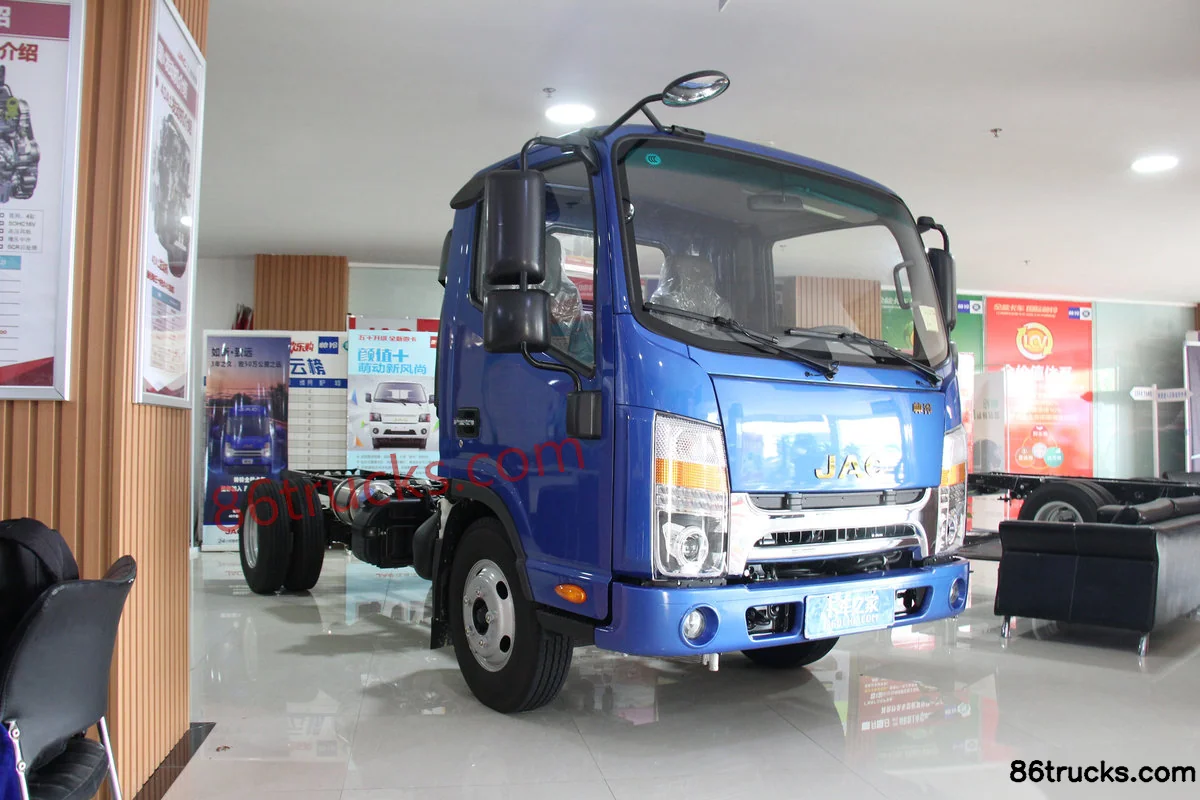

Exterior3

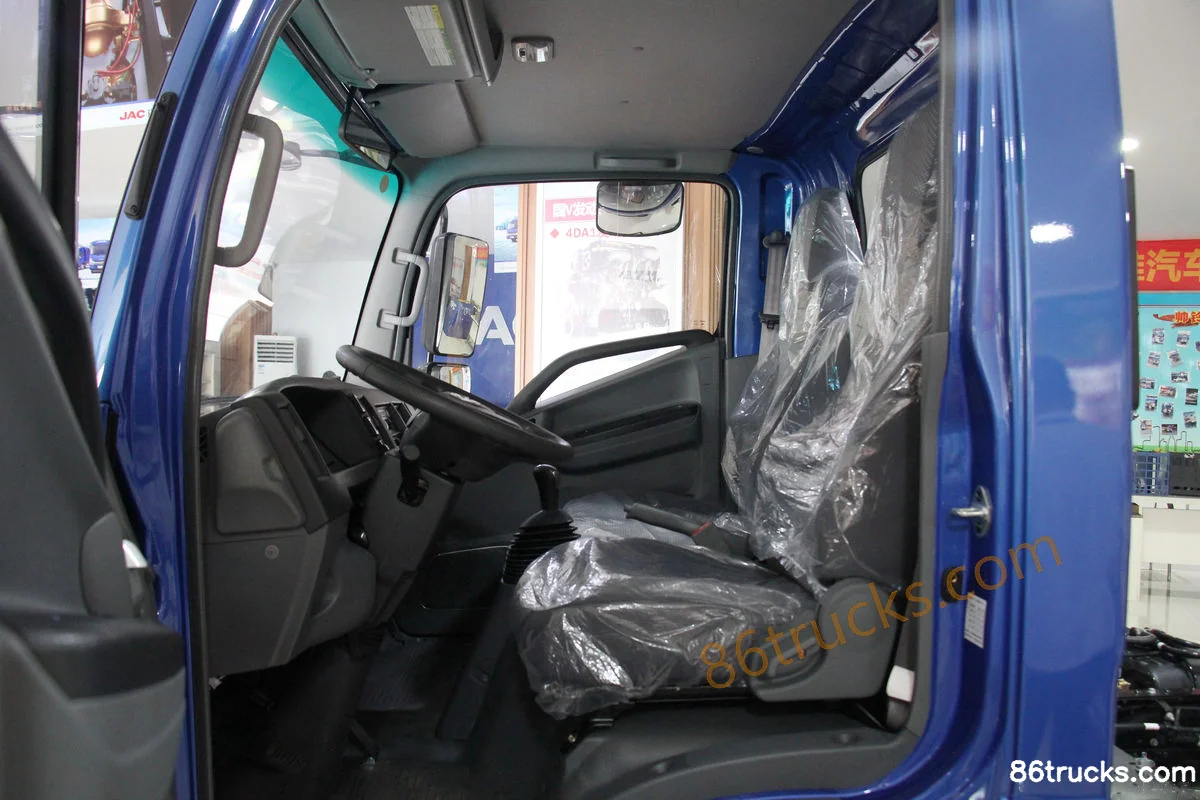

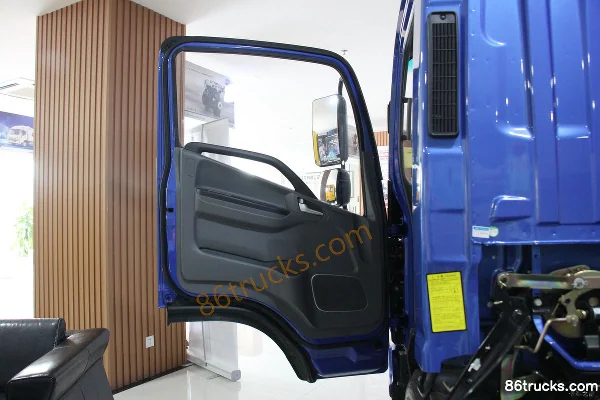

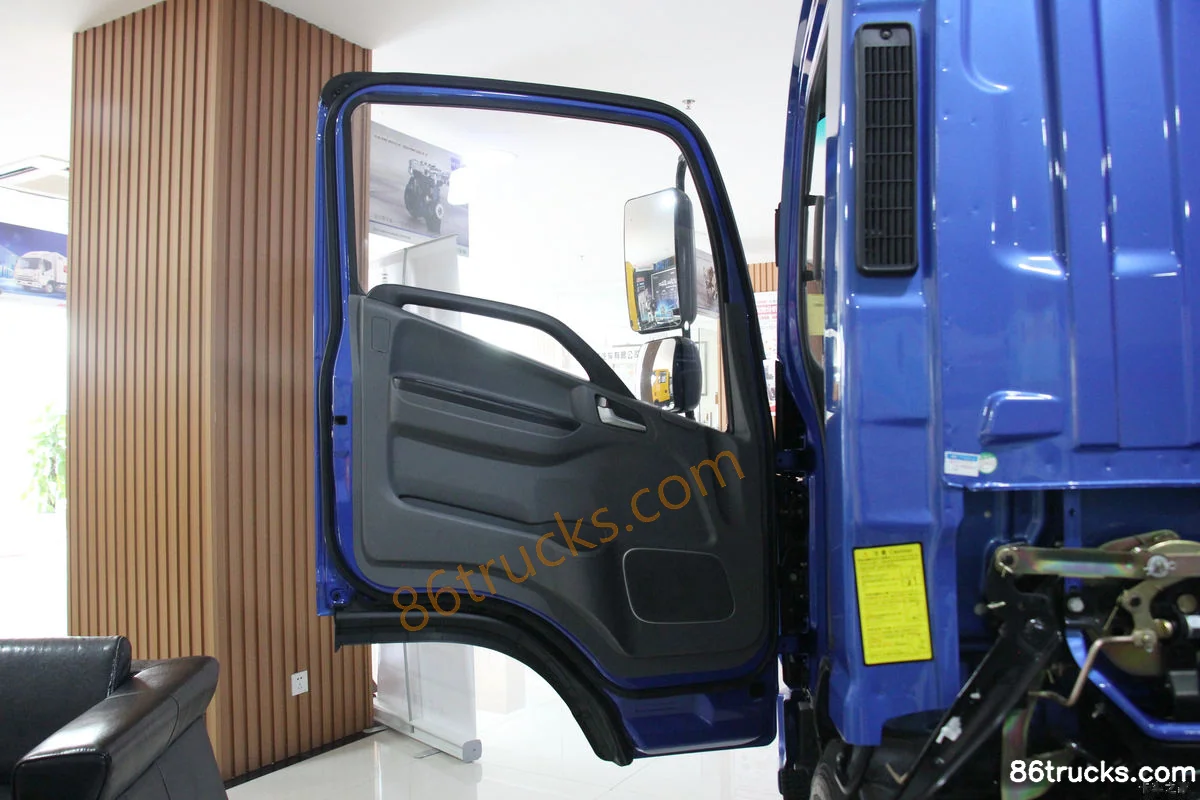

Cab3

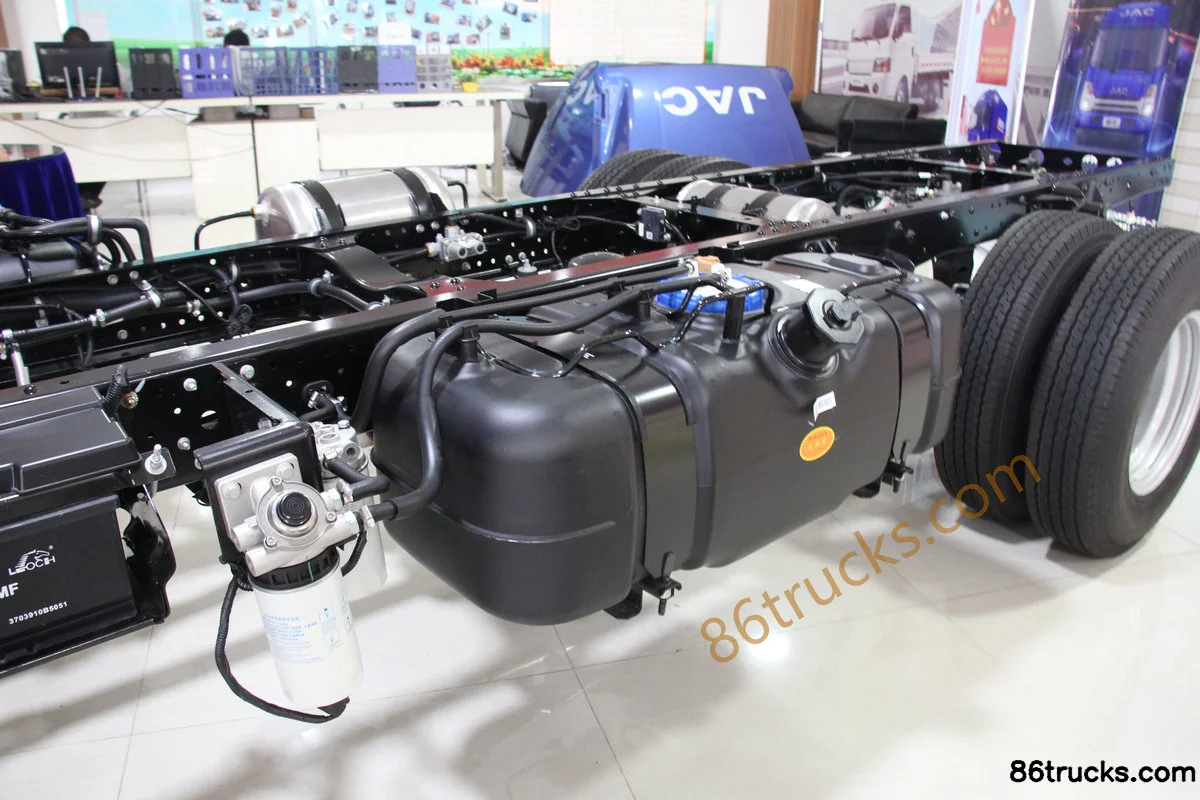

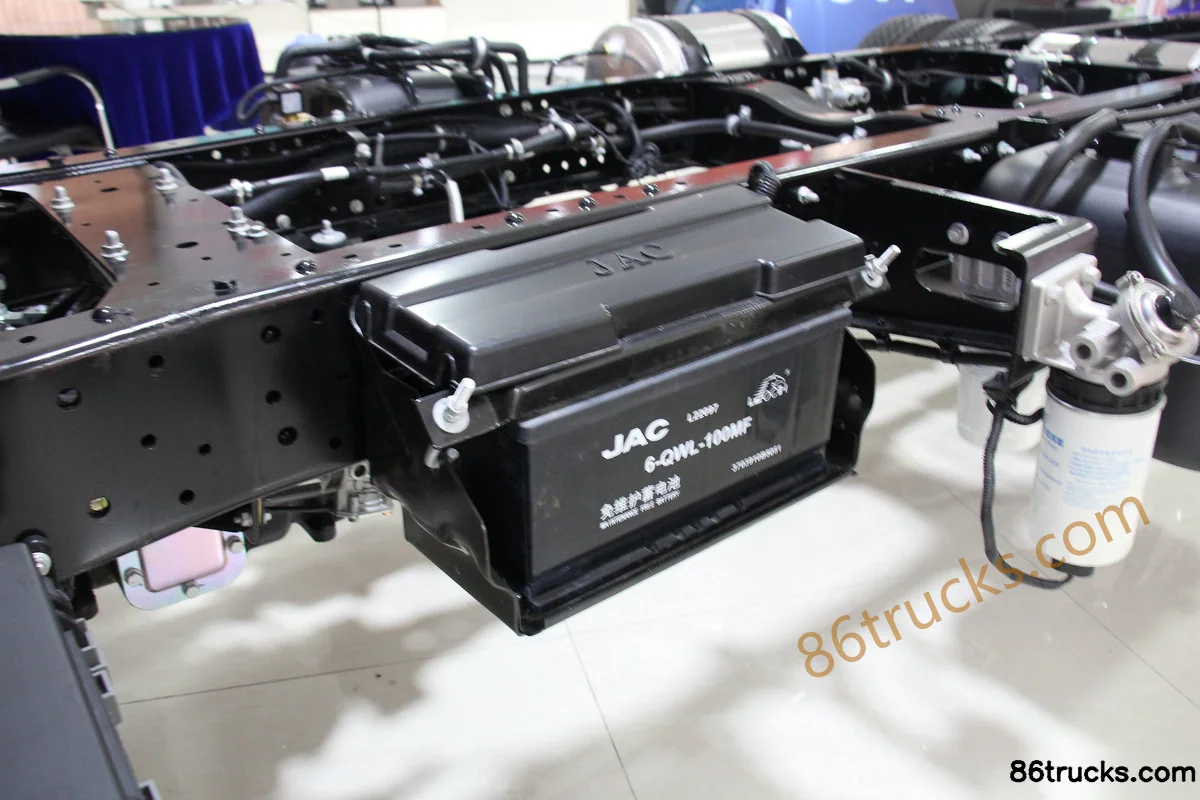

Chassis3

9 photos

FAQ

What is the export price of JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck, and what does it include?

JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck export reference is about From $13,194; MSRP is ¥9.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck?

Key specs of JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: JAC493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck suited for?

JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck differ from other variants in the same series?

JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck belongs to JAC Q3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing K340 All-Business Edition 120 hp 4X2(6 wheels) 4.13m single-row box van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
