FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck

Export reference
From $37,500
MSRP ¥27M CNY
Horsepower: 320
Emission: China V
Fuel: Diesel
Engine: Xichai8L
Transmission: FAW Jiefang
Curb Weight:: 11ton
seating capacity: 2Personnel
Rated payload: 13.87ton
Drive 6X2 (8 wheels)
Cargo box type: Wing Van

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Wing Van cargo body, 2Personnel volume and 13.87t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Xichai8L engine, 320 hp, 6X2 (8 wheels) drive and China V emissions.

China V 320 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5250XXYP26K1L7T3E5A80
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.5m
engine: XichaiCA6DL1-32E5
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.1
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2020/2020mm
rear track: 1878mm
Curb Weight: 11ton
Rated payload: 13.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 12°
market segment: Urban Distribution
Front/rear suspension: 1.495/3m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E5
Engine info: Xichai8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.5m
Cargo box width: 2.5m
Cargo box height: 2.55m
*Cargo box interior width: 2.5
Cab parameters
Cab: JH6 Raised Floor Crew Cab High Roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6750/6750kg
Frame Dimensions: 300*80*8mm
rear axle description: 457 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.1
Leaf spring count: 3/3/10+9,3/3/4+3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Power Windows:
Power Mirrors:

Photos

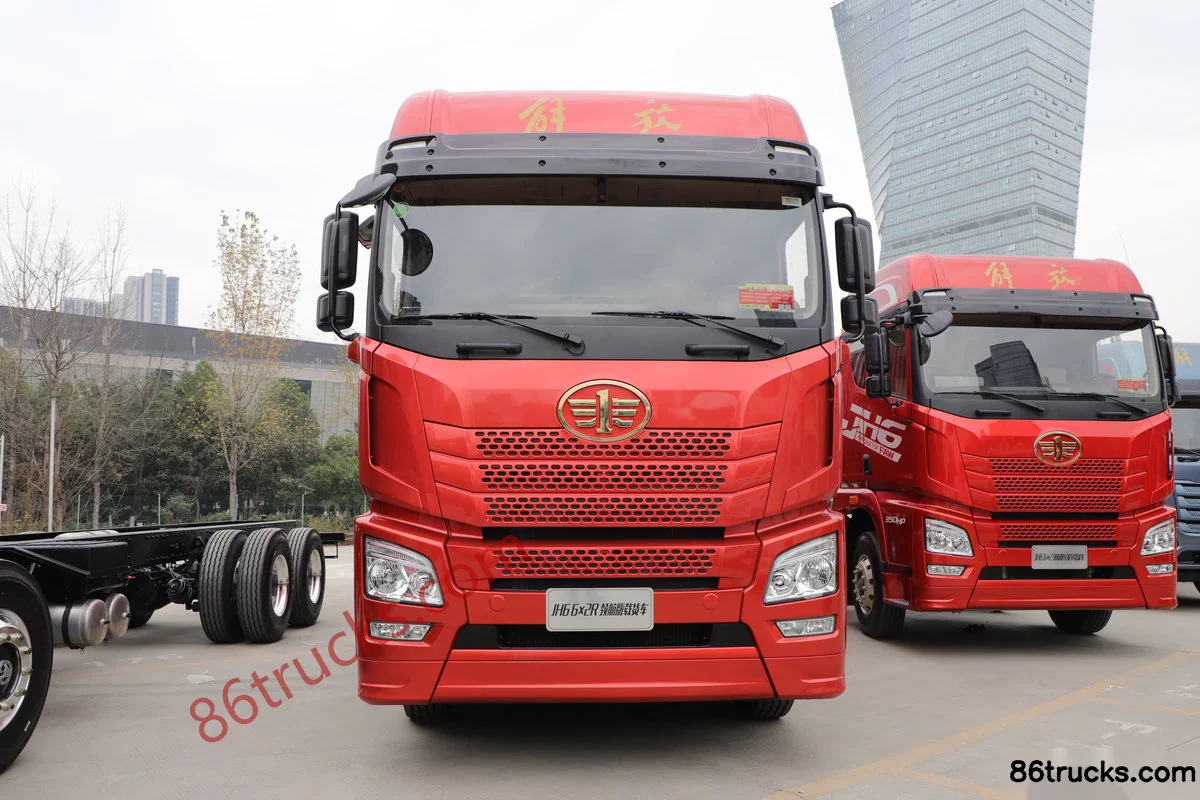

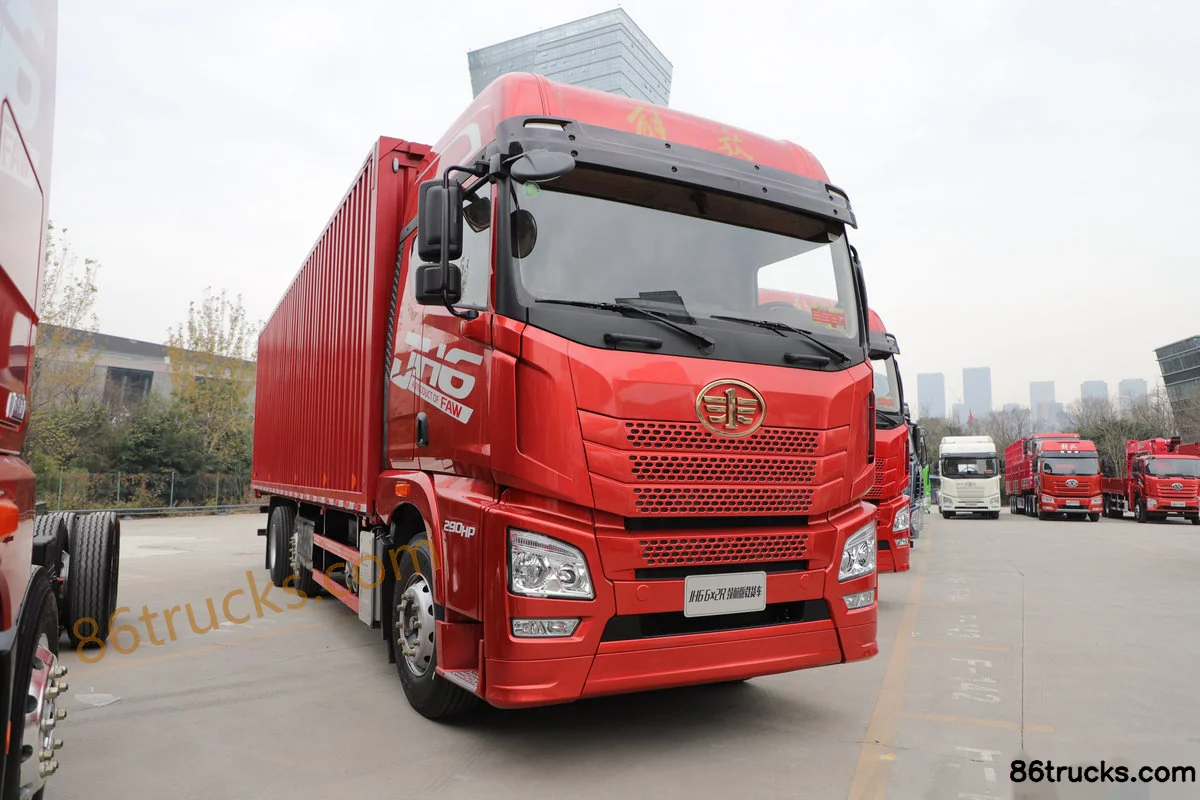

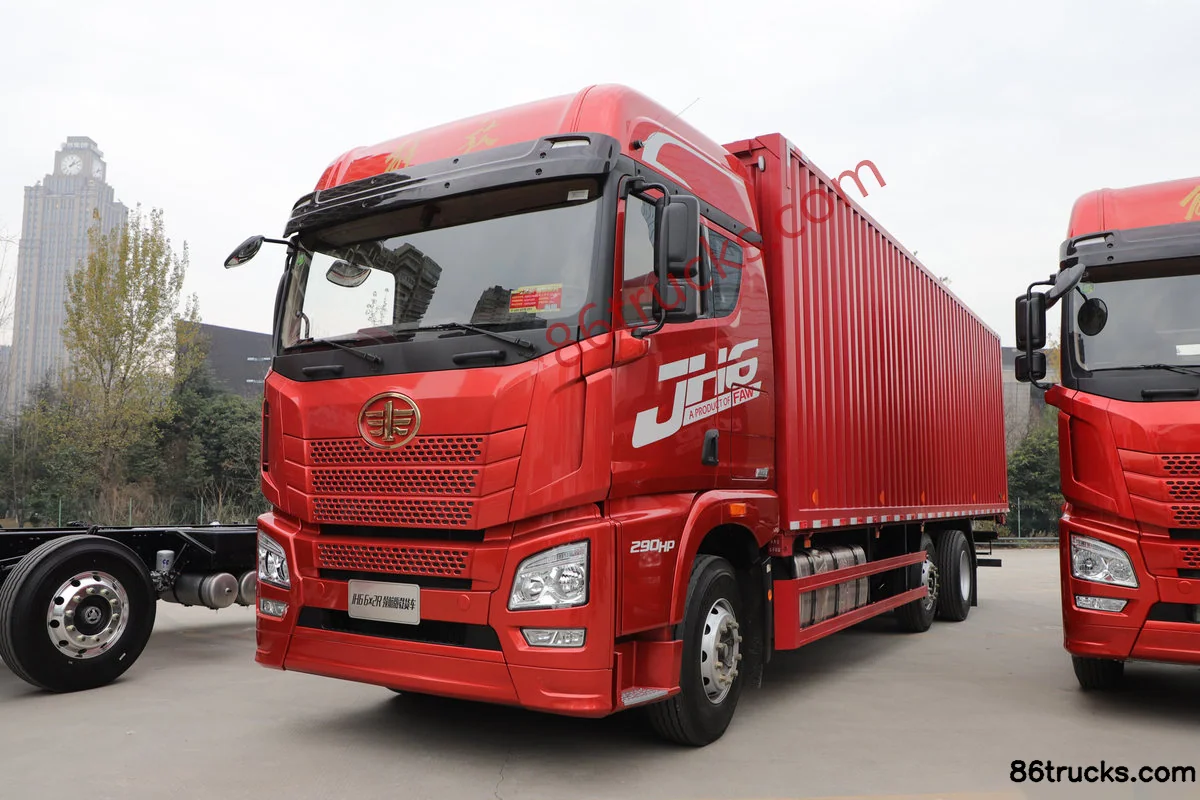

Exterior3

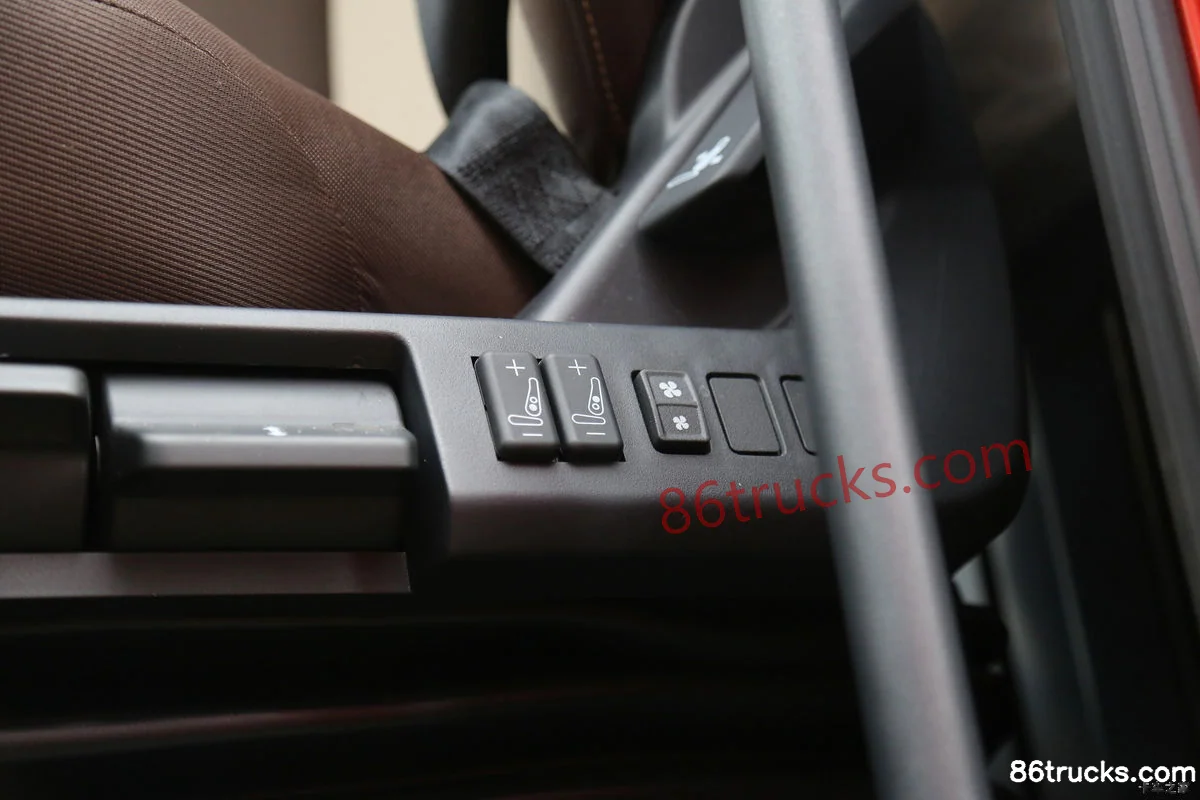

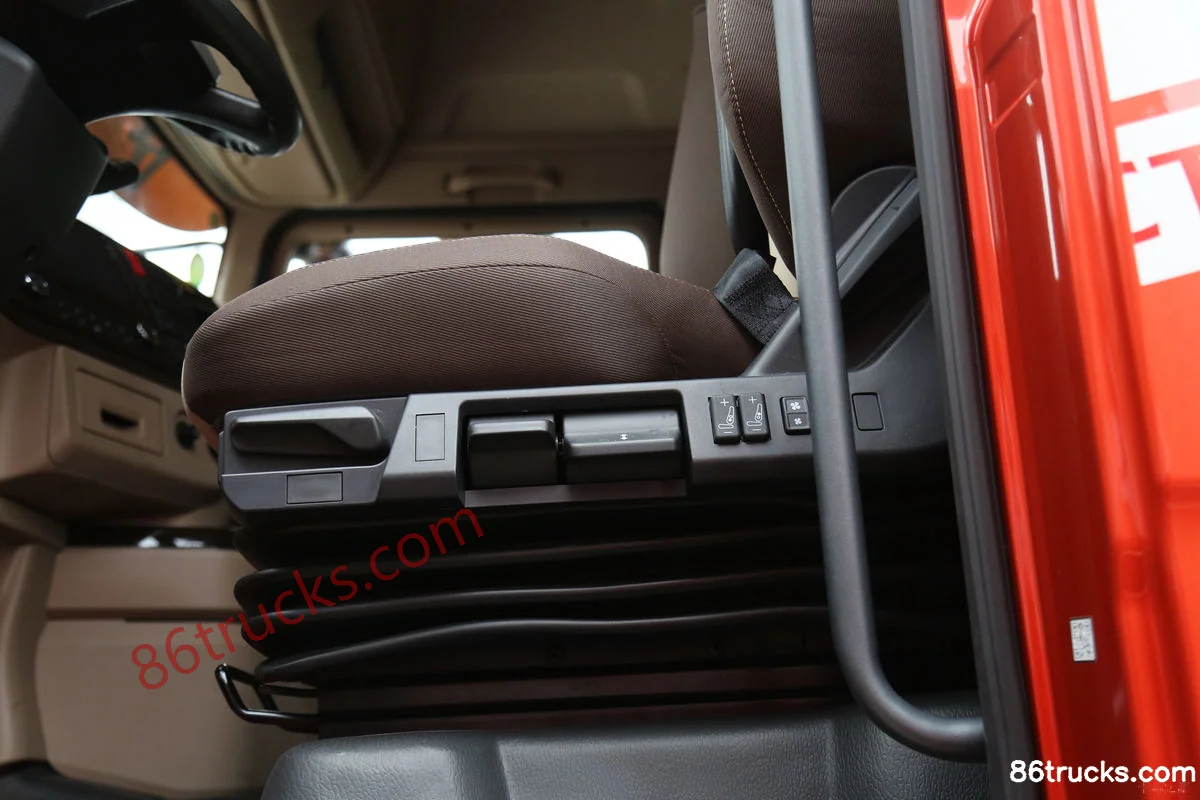

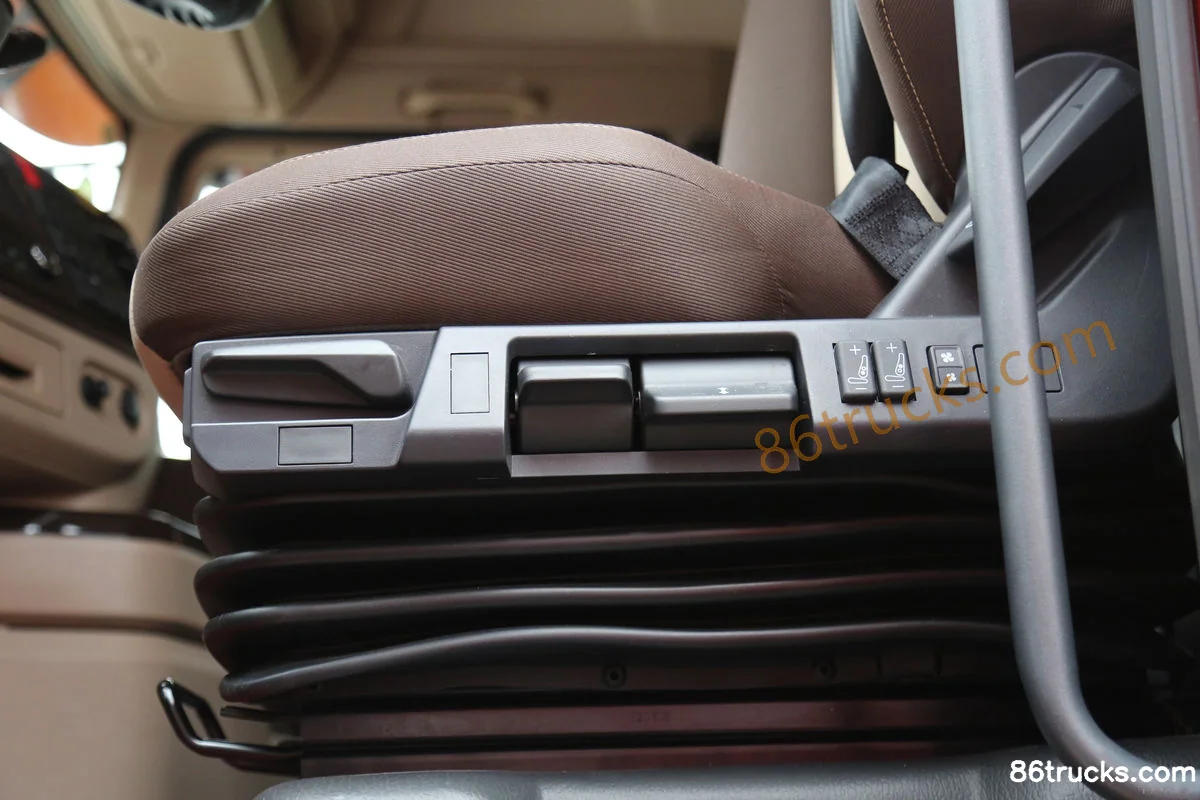

Cab3

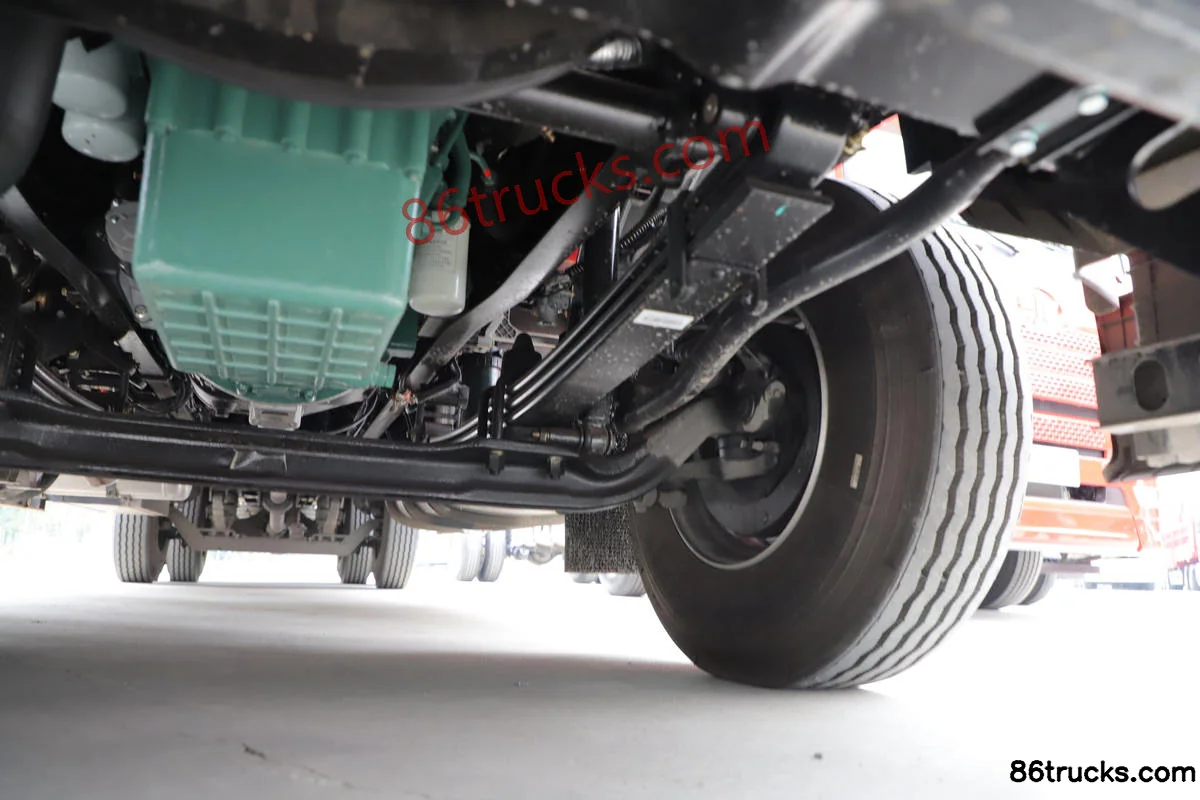

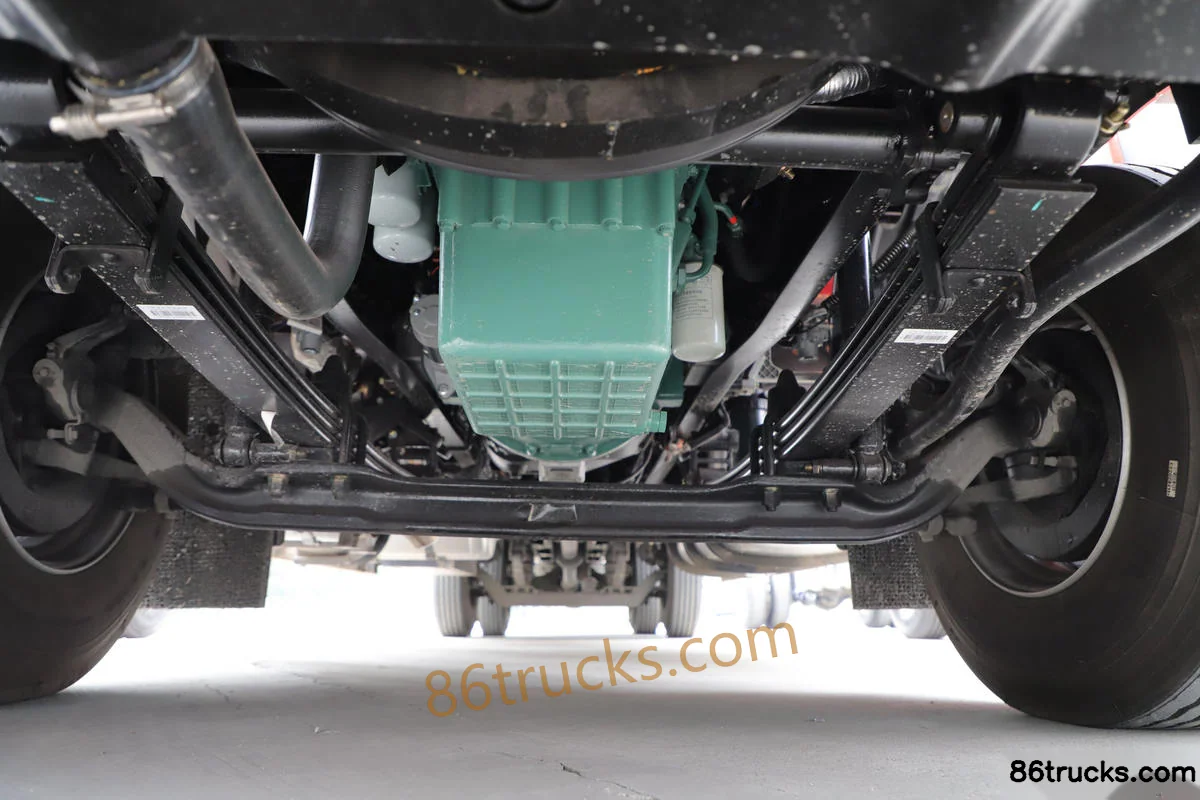

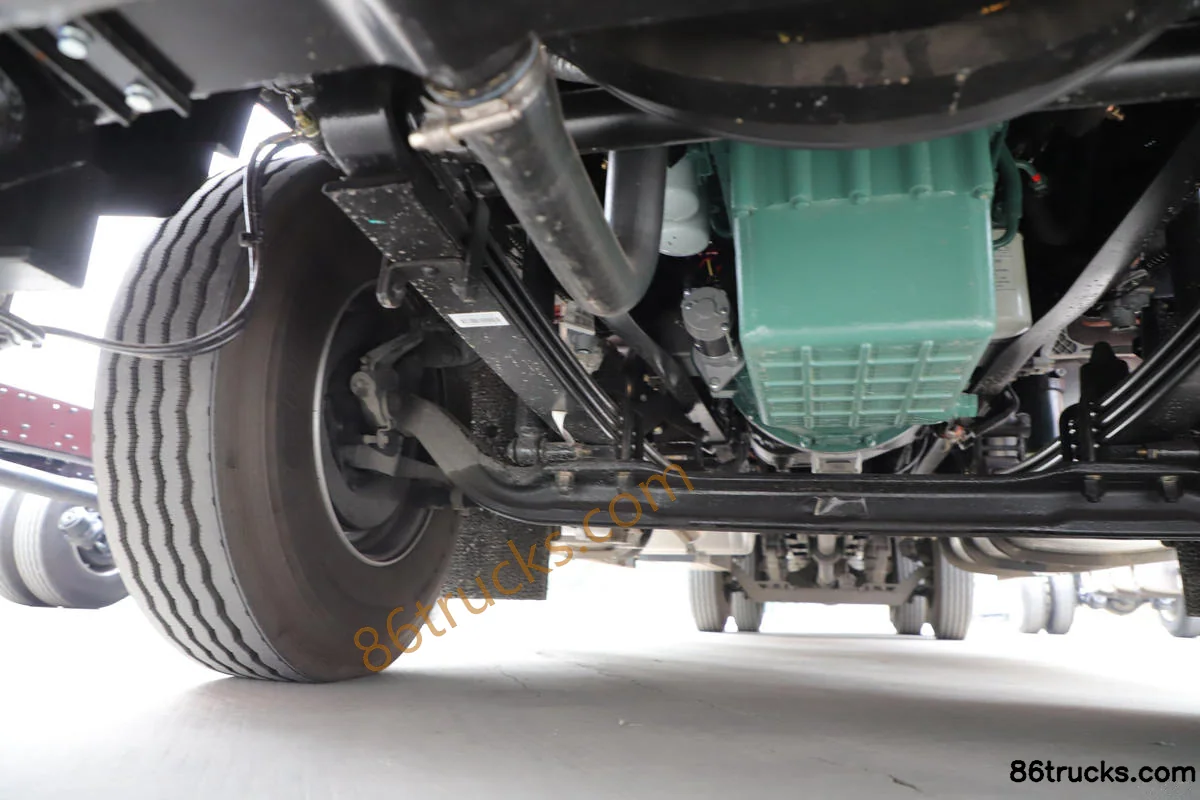

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck, and what does it include?

FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck export reference is about From $37,500; MSRP is ¥27M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck: Drive: 6x2; Horsepower: 320 hp; Emission: China V; Fuel: Diesel; Engine: Xichai8L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck suited for?

FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck belongs to FAW Jiefang Qingdao JH6 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck 320 hp 6X2(8 wheels) 9.5m Wing Opening Box Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
