Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh

Export reference
From $36,222
MSRP ¥26.08M CNY
Rated payload:: 1.045ton
Wheelbase:: 3360mm
Cargo box width:: 2.1m
Model code (announced):: SH5047XLCMFEVMZ5
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 245km
Motor 1 Brand: SAIC MAXUS
Curb Weight: 3.22ton

Overview

The Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh is a Electric Refrigerated Truck featuring 245km battery/range, SAIC MAXUS motor, 4X2 (6 wheels) drive and 1.045t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5047XLCMFEVMZ5
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.16m
CLTC range: 245km
Curb Weight: 3.22ton
Rated payload: 1.045ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanjing, Jiangsu
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC MAXUS
Motor 1 Model: TZ210XS104
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.07kWh
Chassis Specs
Chassis Series: Dana T1
Chassis Model: SH1047MFEVMZY5
Leaf spring count: 3/9+7
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Safety features
Remote key:
Tire

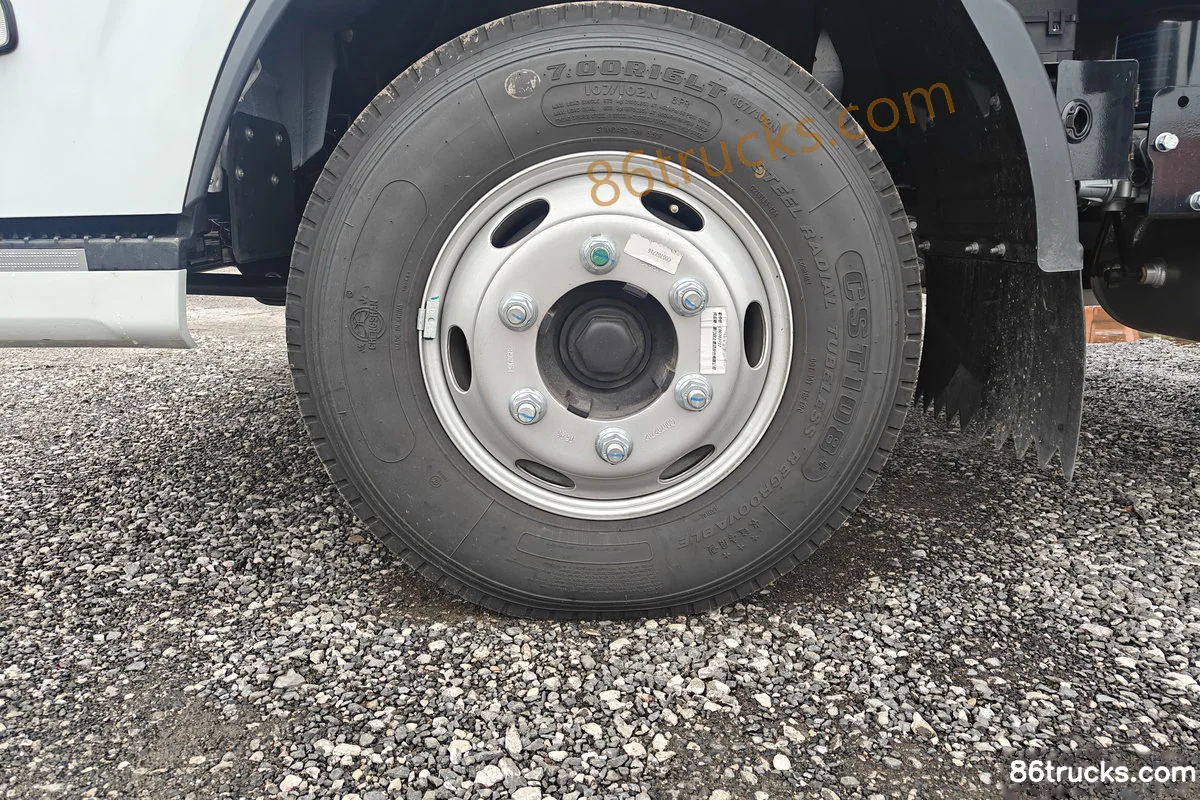

Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Reverse Radar:
Reverse Camera:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

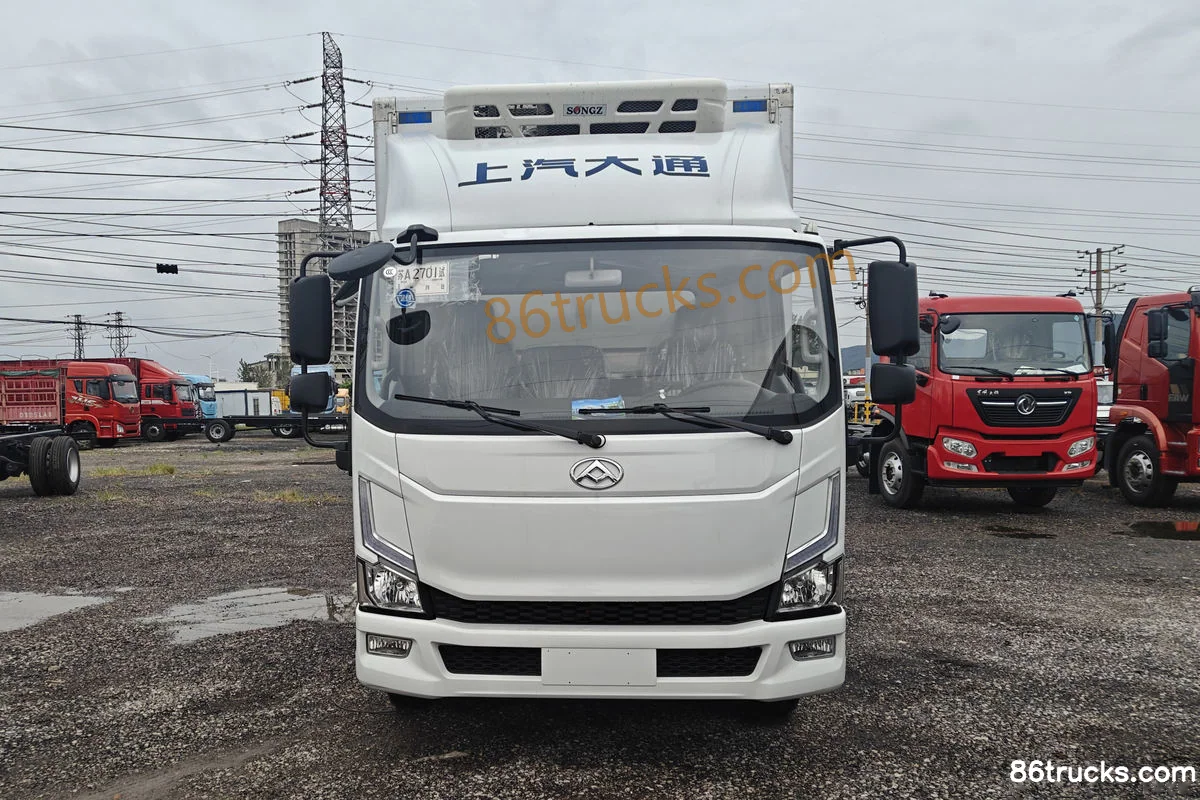

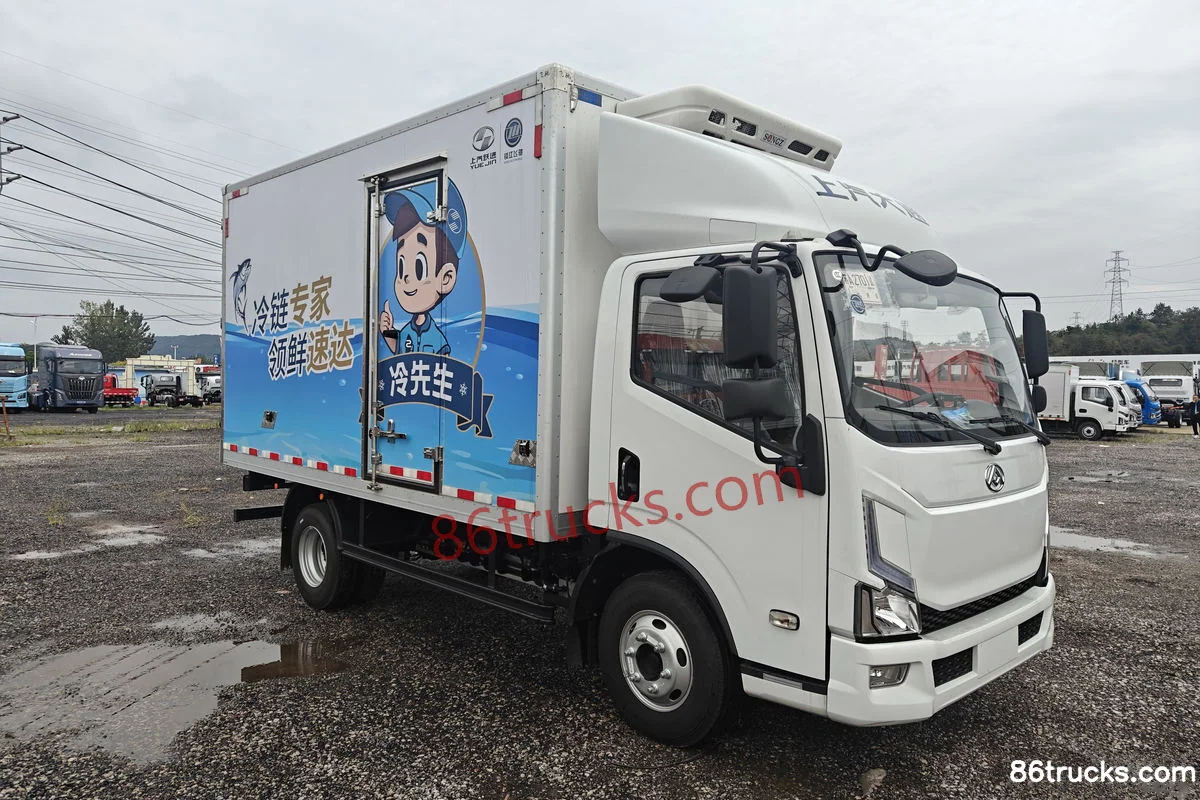

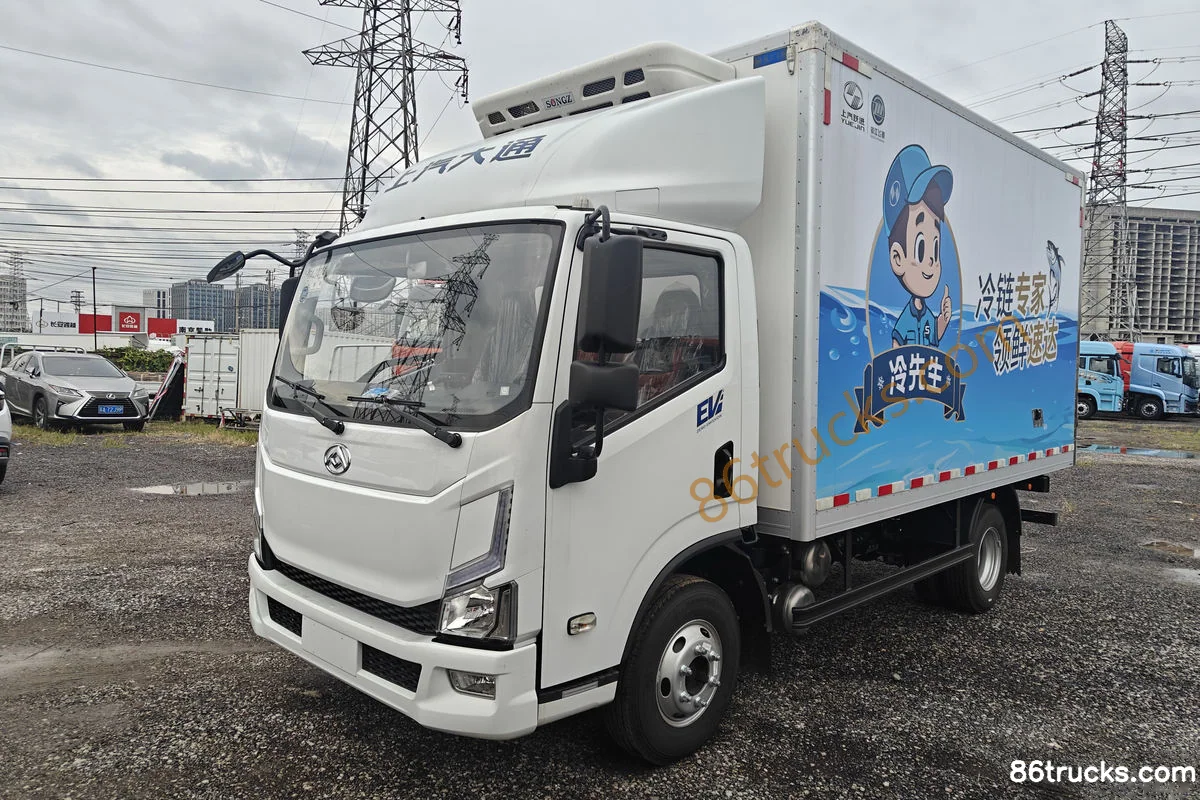

Exterior3

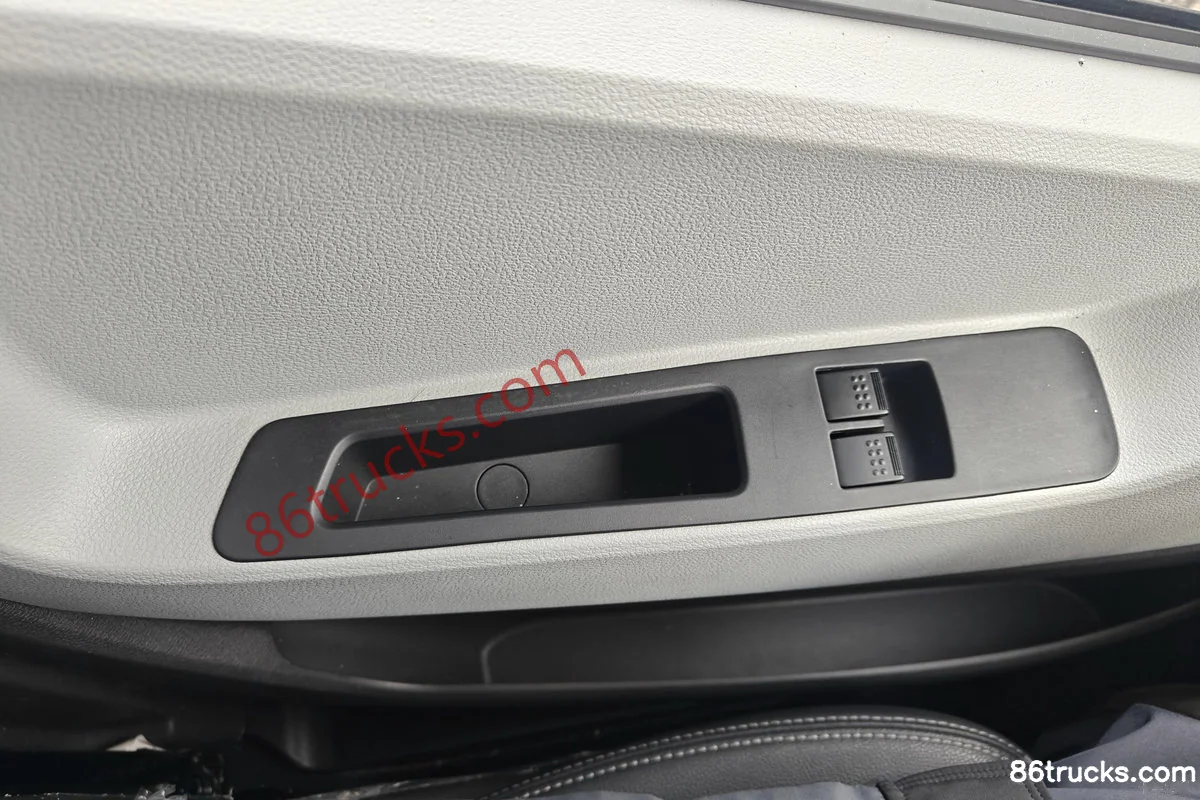

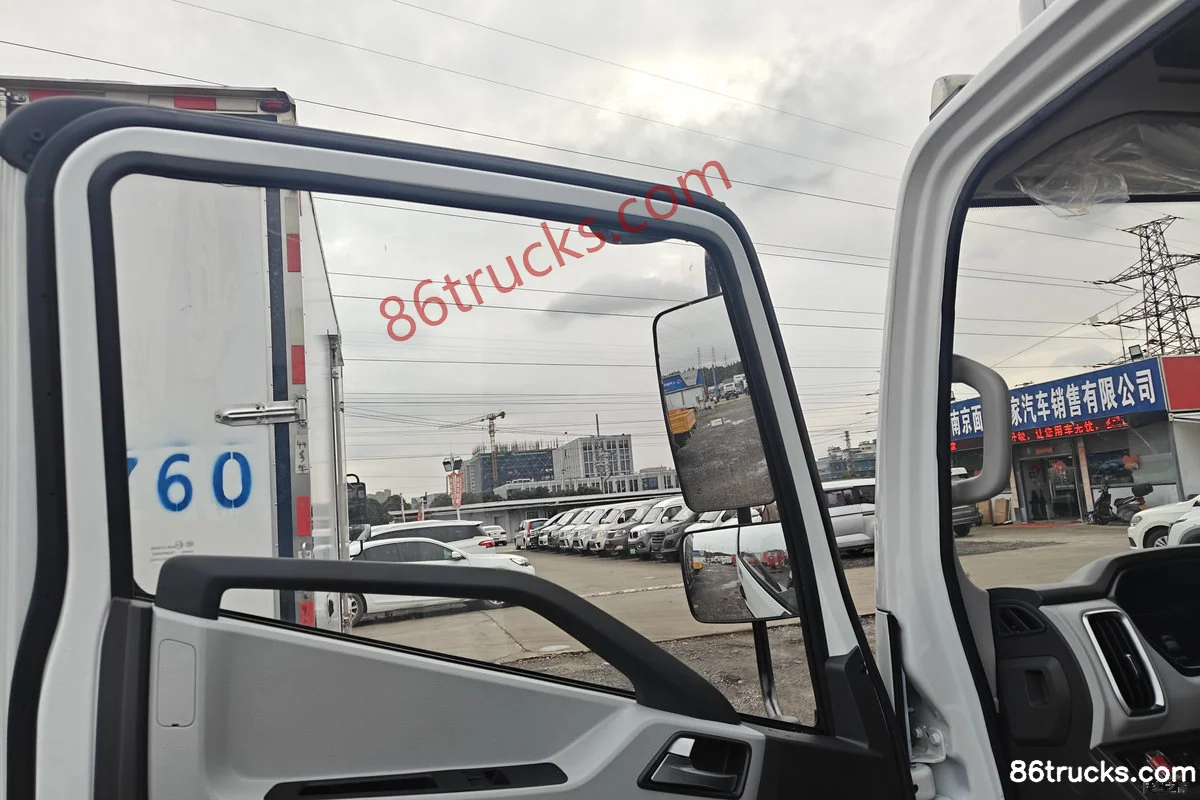

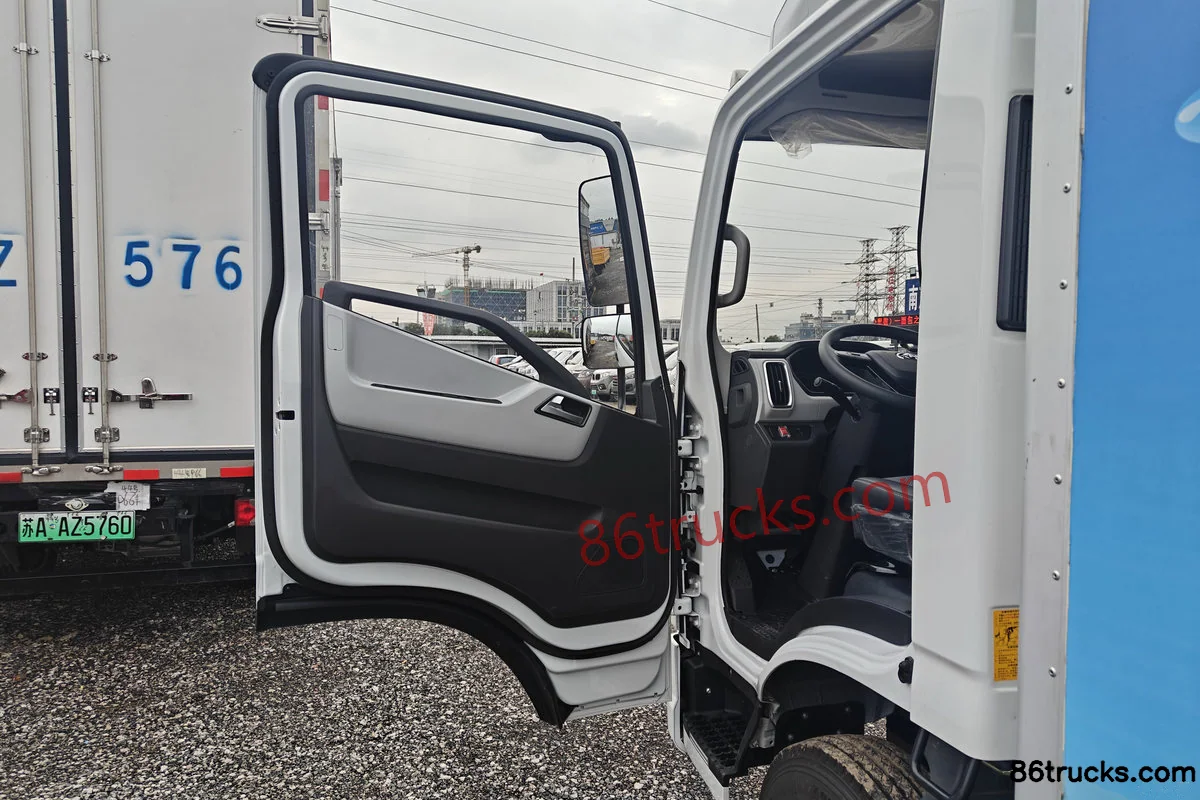

Cab3

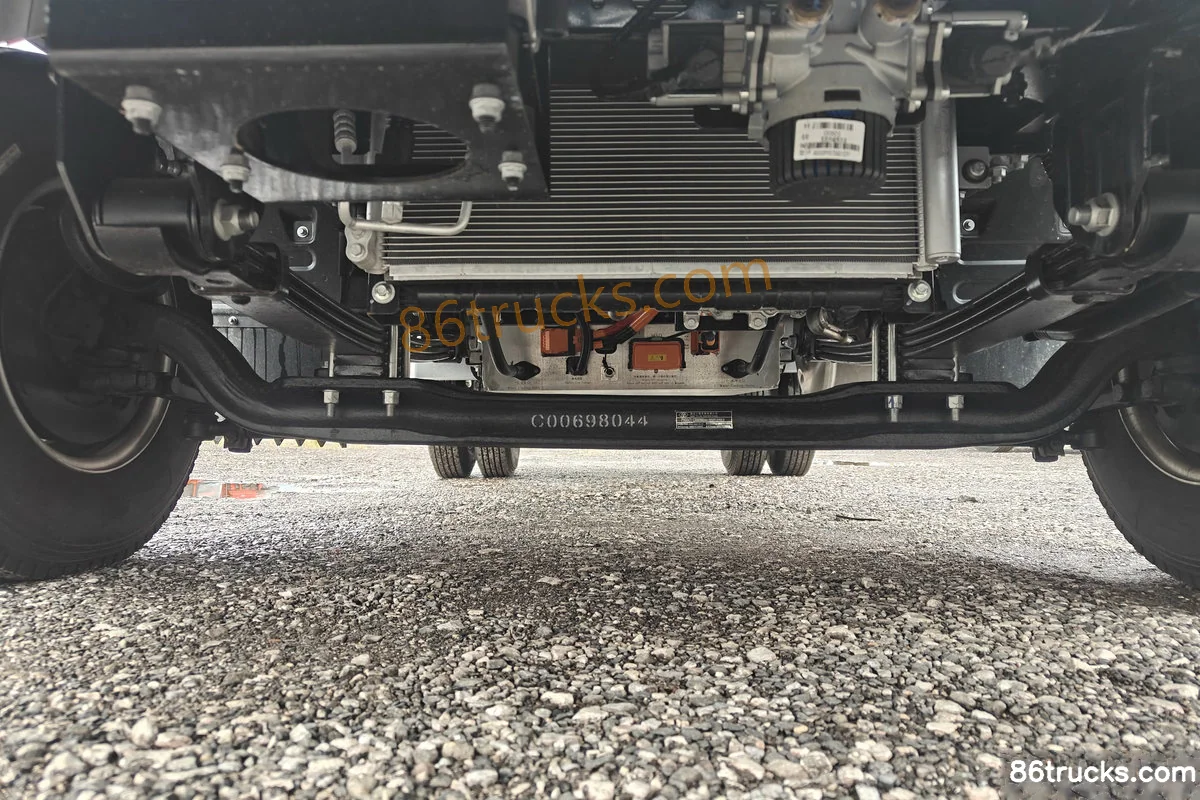

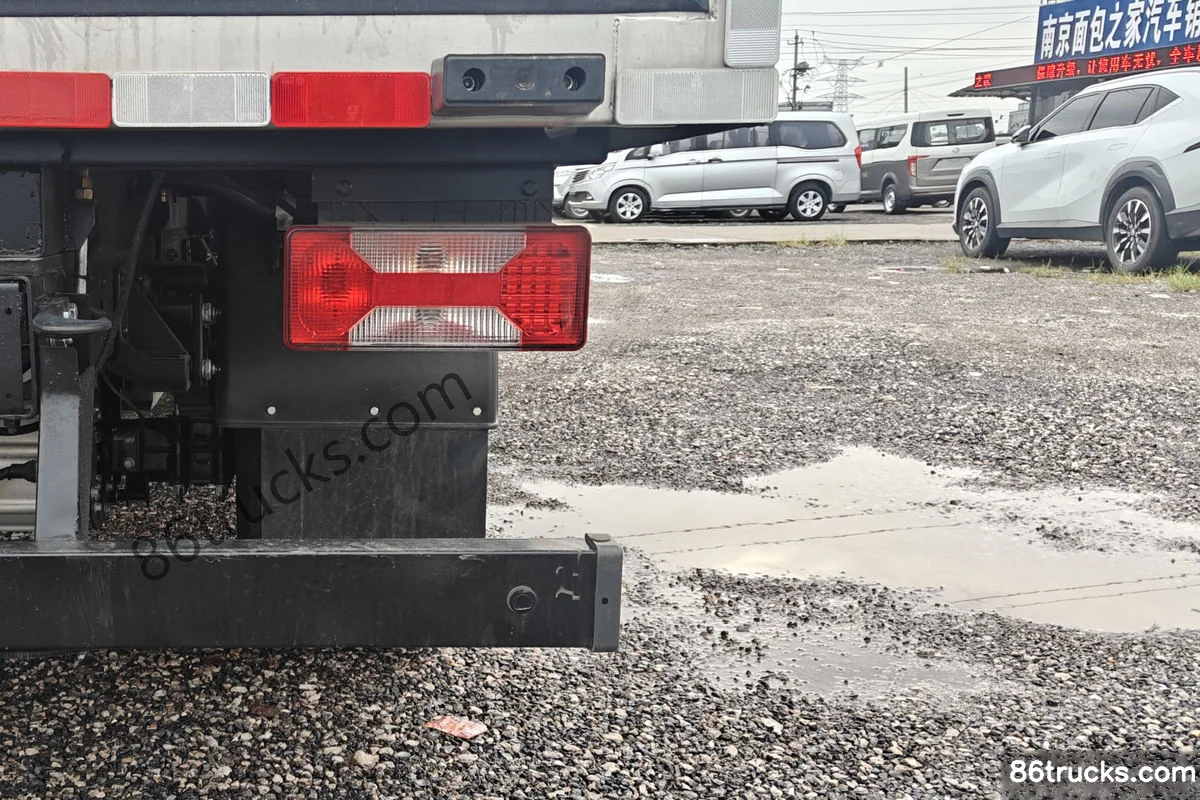

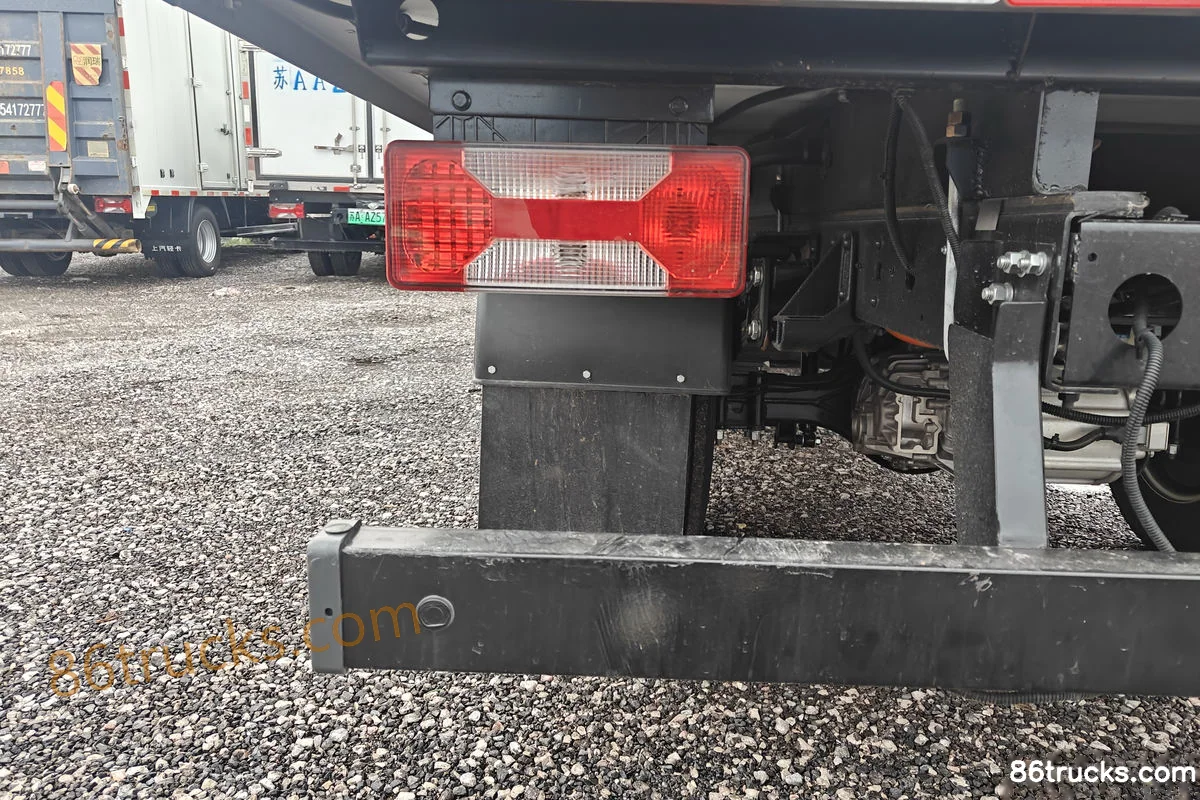

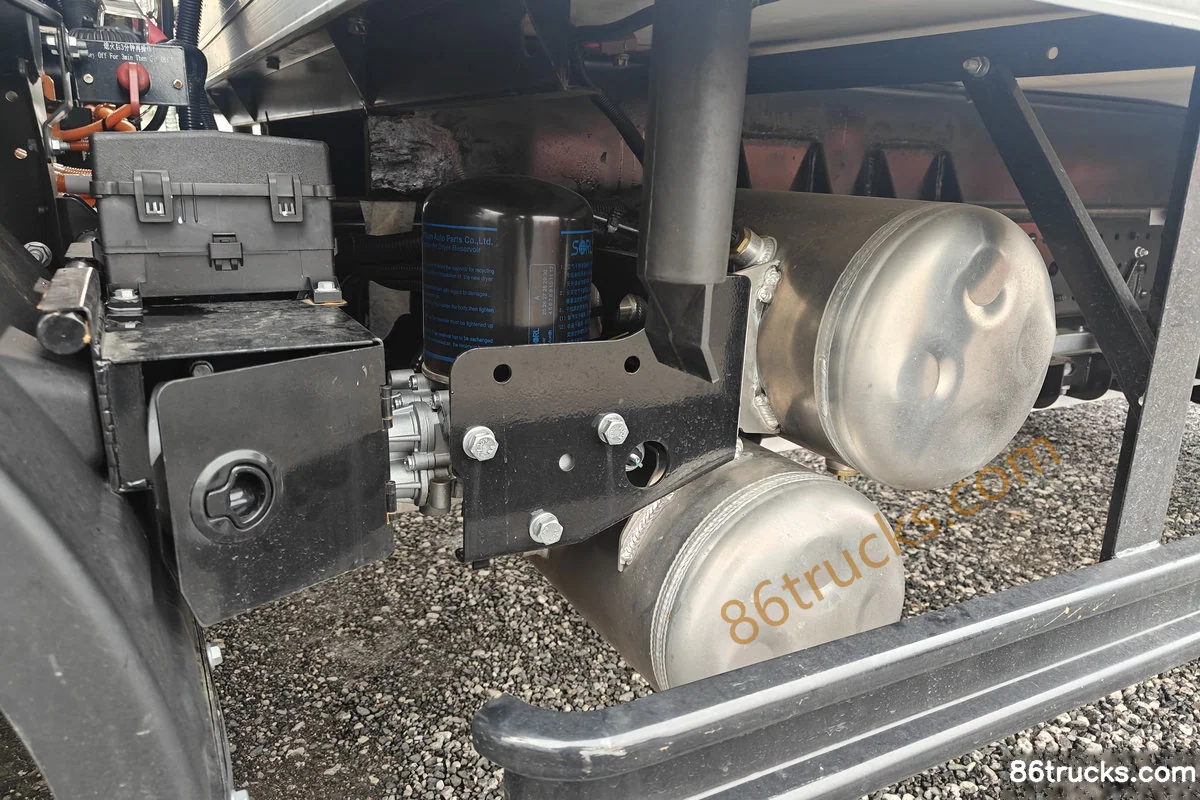

Chassis3

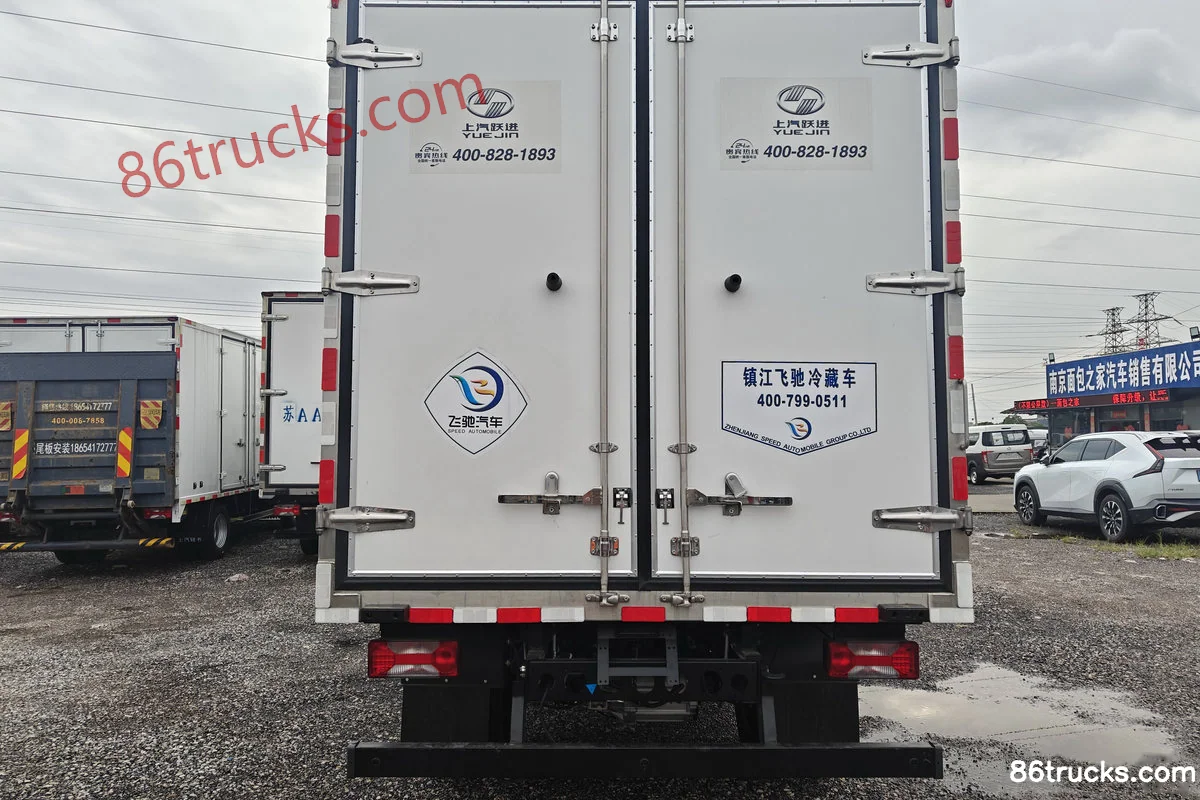

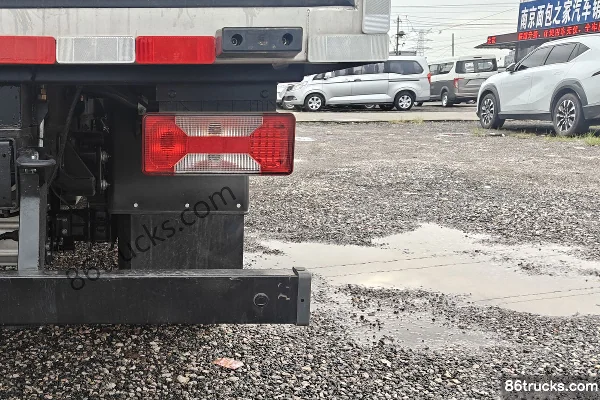

Body3

12 photos

FAQ

What is the export price of Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh, and what does it include?

Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh export reference is about From $36,222; MSRP is ¥26.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh?

Key specs of Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh suited for?

Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh differ from other variants in the same series?

Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh belongs to SAIC MAXUS Dana T1 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Dana T1 Tianxing Edition 4X2(6 wheels) 4.09m Single Row Pure Electric Refrigerated Truck CATL 100.07kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
