XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck

Export reference
From $34,444
MSRP ¥24.8M CNY
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Yuchai6.9L
Transmission: Fast Gear
Curb Weight:: 9.45ton
seating capacity: 2Personnel
Rated payload: 15.42ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Van body cargo body, 2Personnel volume and 15.42t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.9L engine, 240 hp, 6X2 (8 wheels) drive and China V emissions.

China V 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NXG5250XXY5
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1950+5250mm
Box length class: 9.6m
engine: YuchaiYC6JA240-50
transmission: Fast Gear8JS118A
Rear Axle Ratio: 4.444
Cab length: 12m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 1940/1940mm
rear track: 1860mm
Curb Weight: 9.45ton
Rated payload: 15.42ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Nanjing, Jiangsu
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 11°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: Transmission: optional Fast Gear 8JS105TA, options: mid-roof cab, air suspension seat, electric tilt, 10R22.5, middle seat
Front/rear suspension: 1.485/3.315m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
Engine info: Yuchai6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS118A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.42m
Cargo box height: 2.6m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: High roof cab
Cab suspension: 4-point mechanical suspension
seating capacity: 2Personnel
Cab tilting: Manual
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500kg
Frame Dimensions: 280mm
rear axle description: 457
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 3/3/4+3,9/9/9+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Multimedia features
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:

Photos

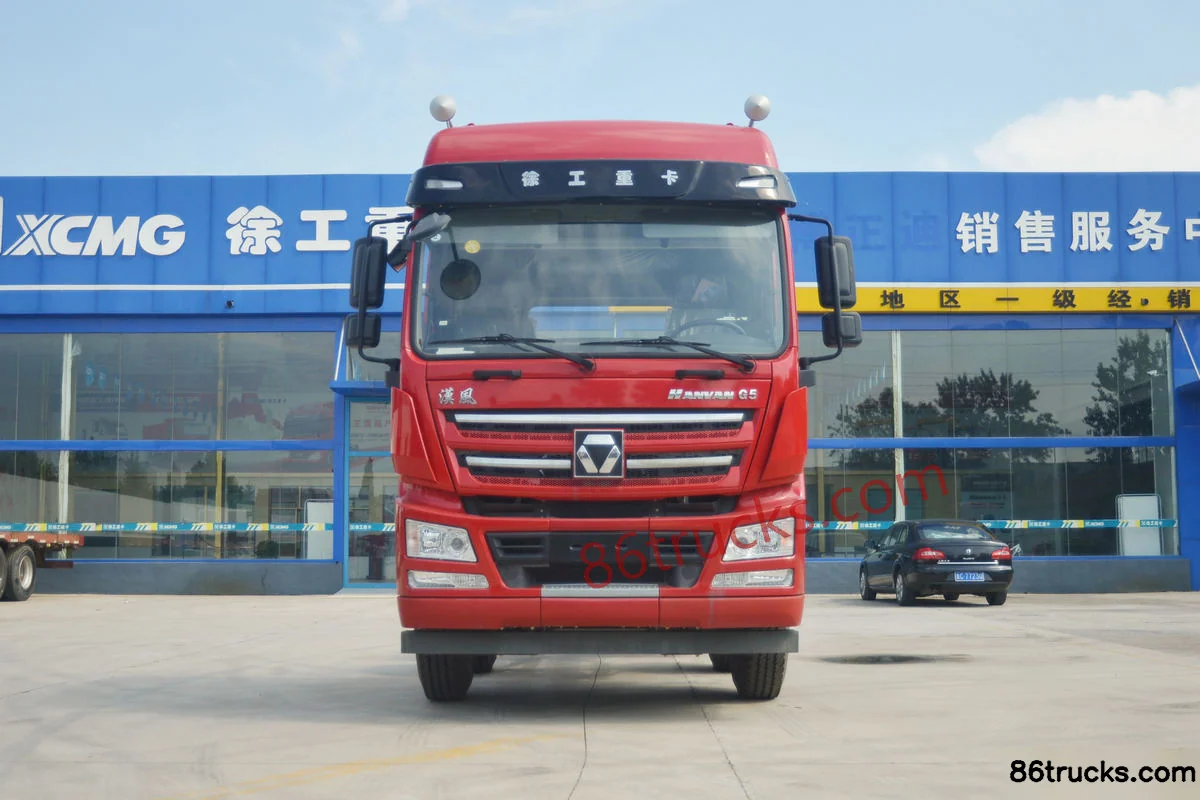

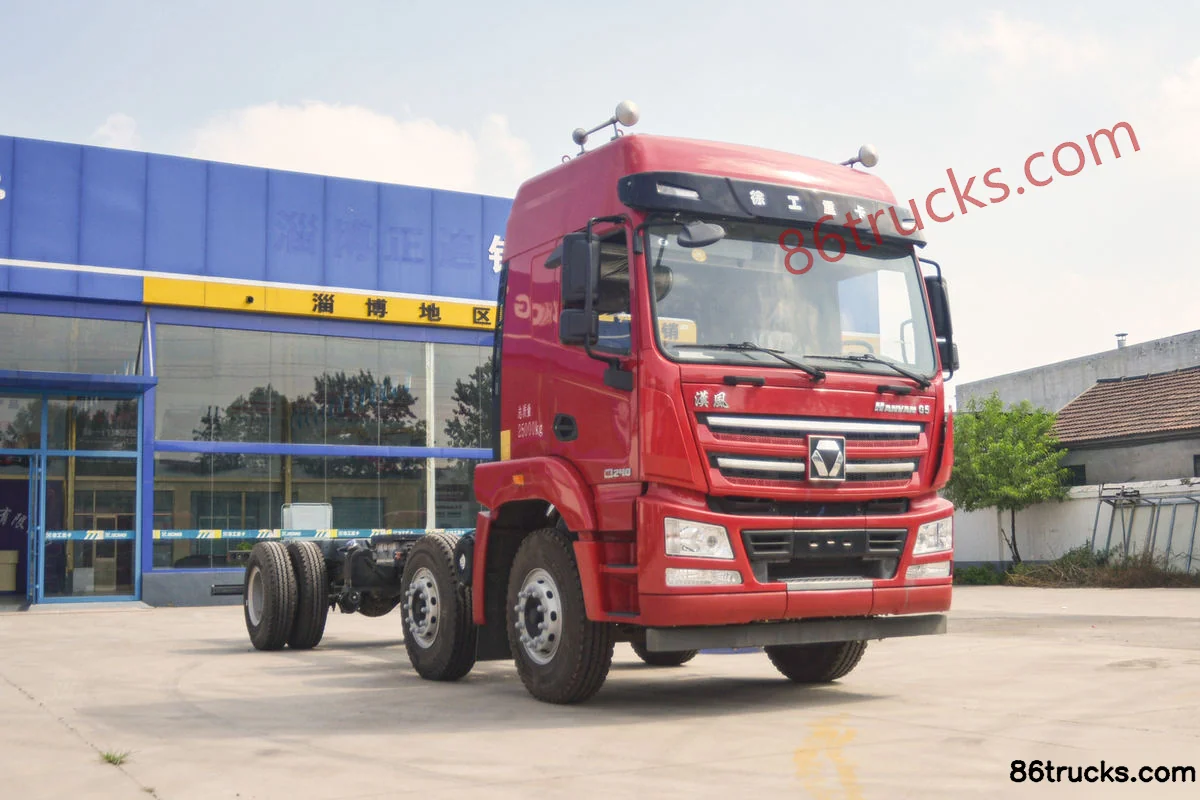

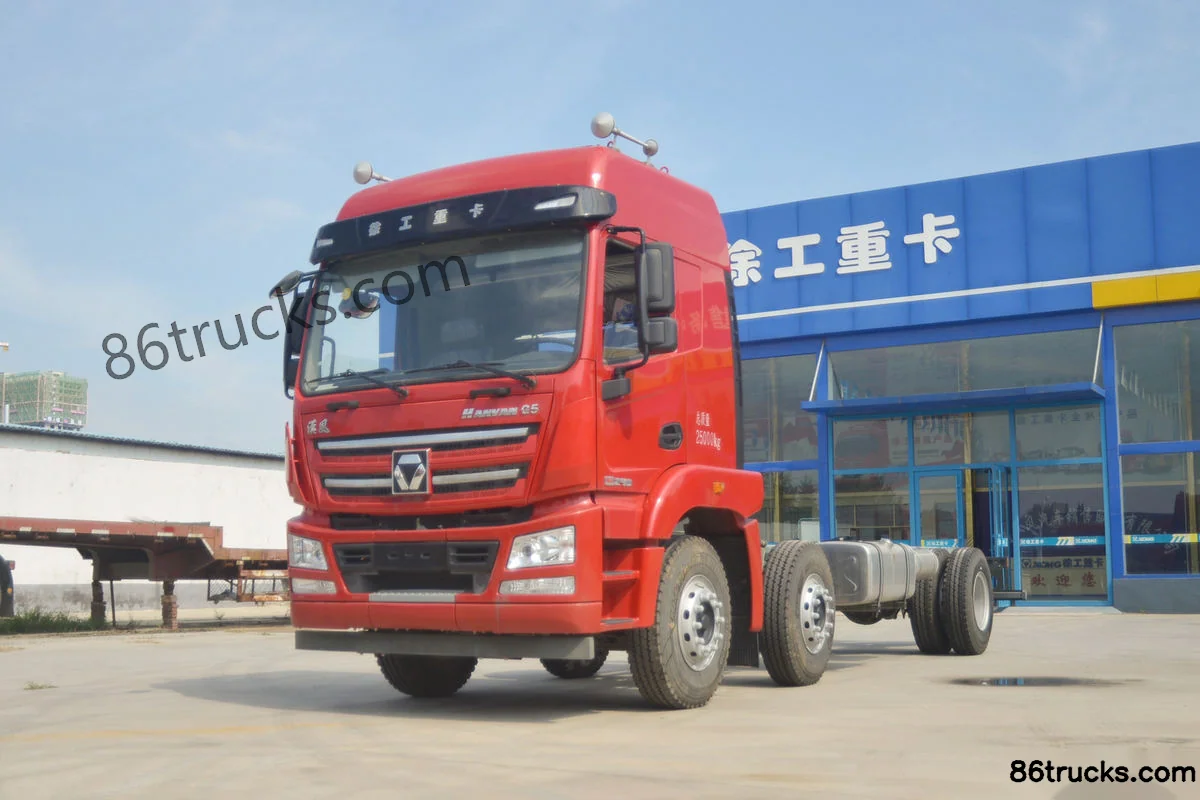

Exterior3

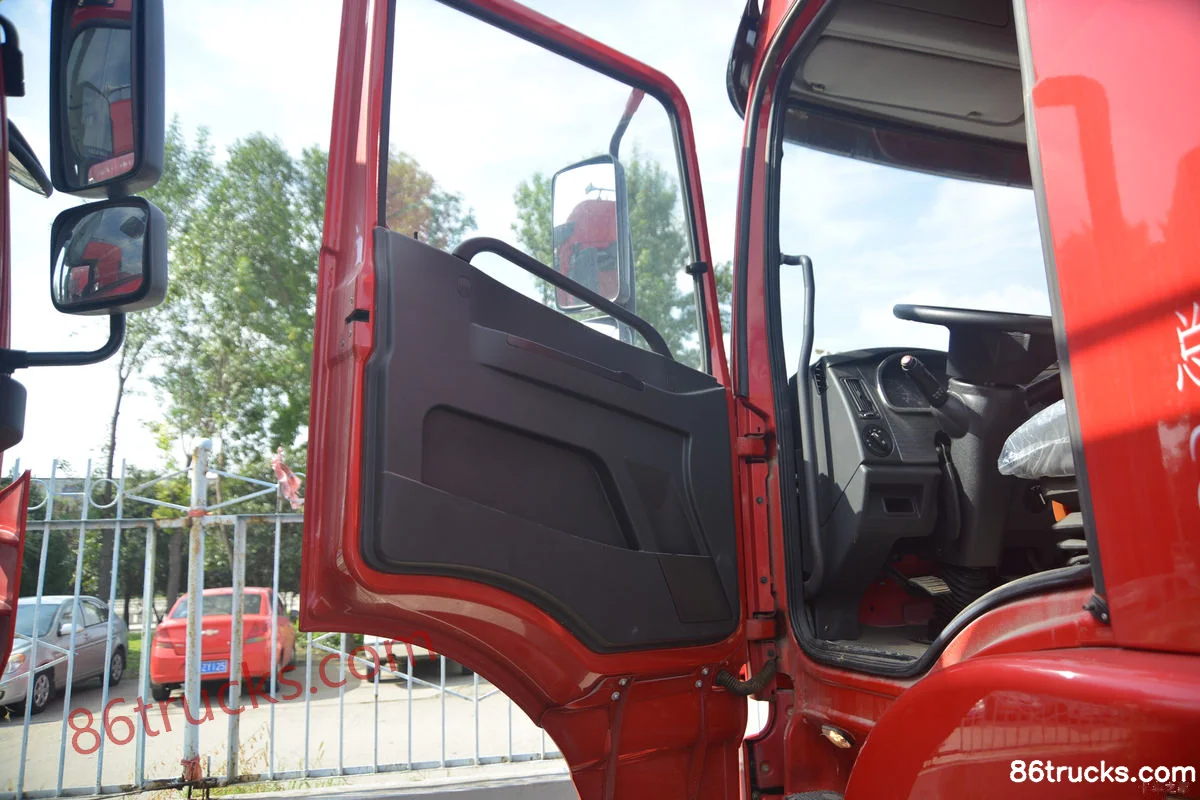

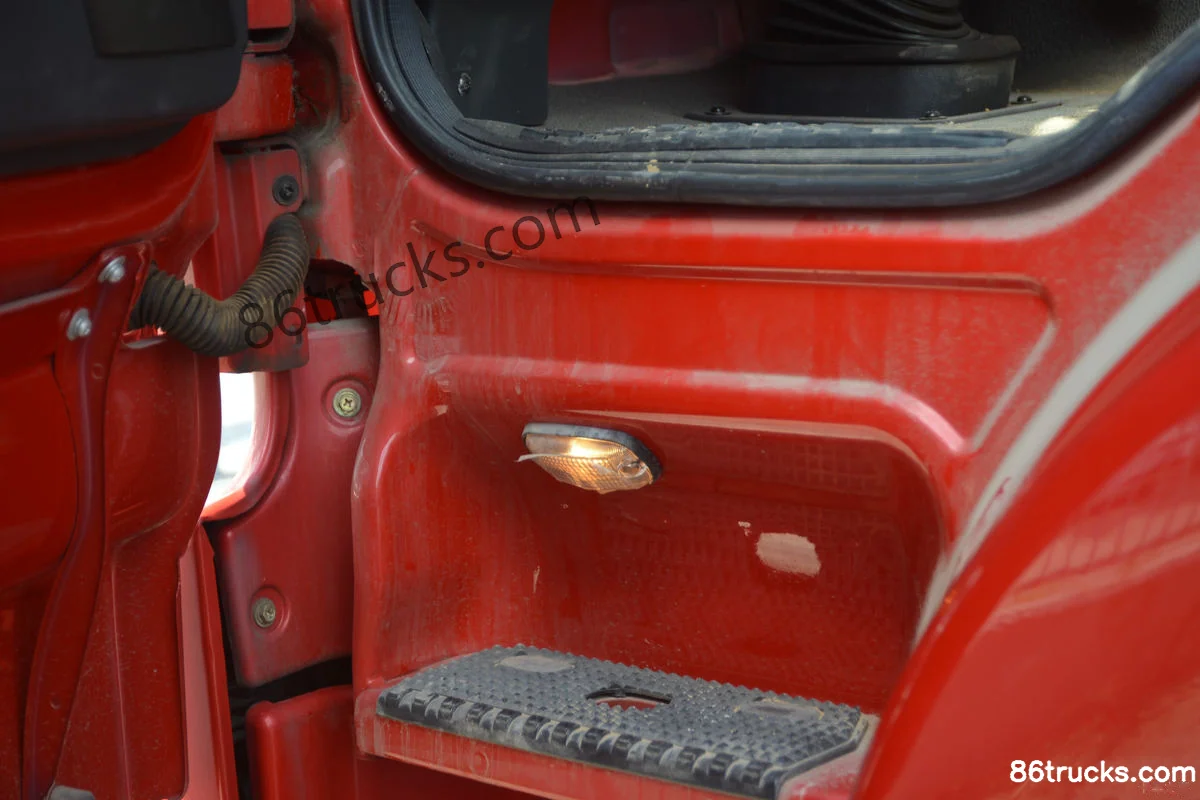

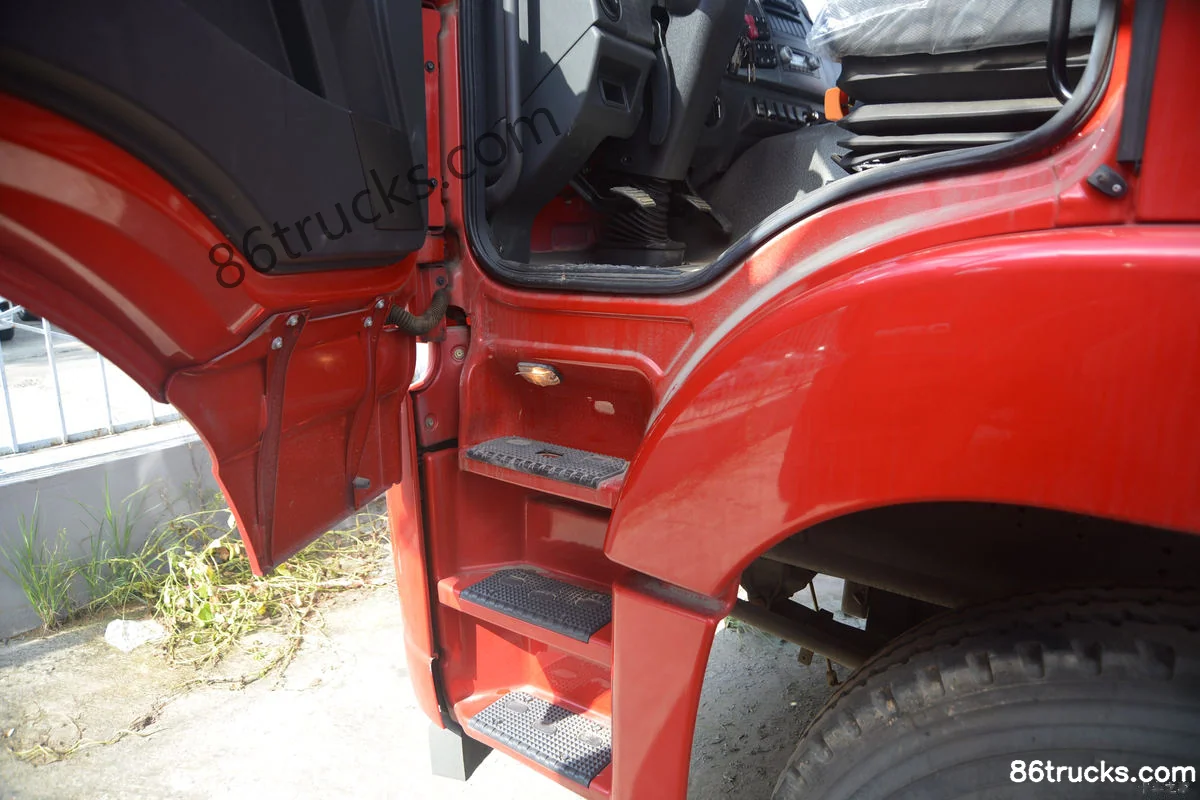

Cab3

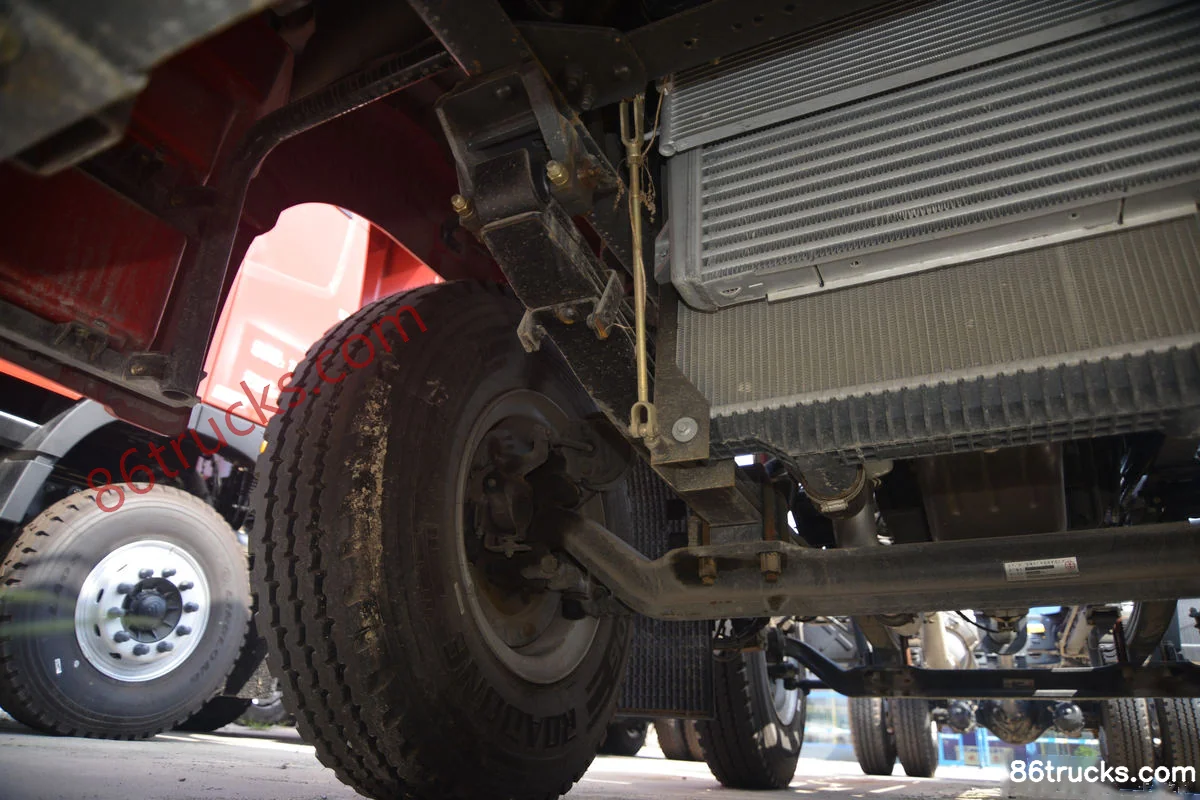

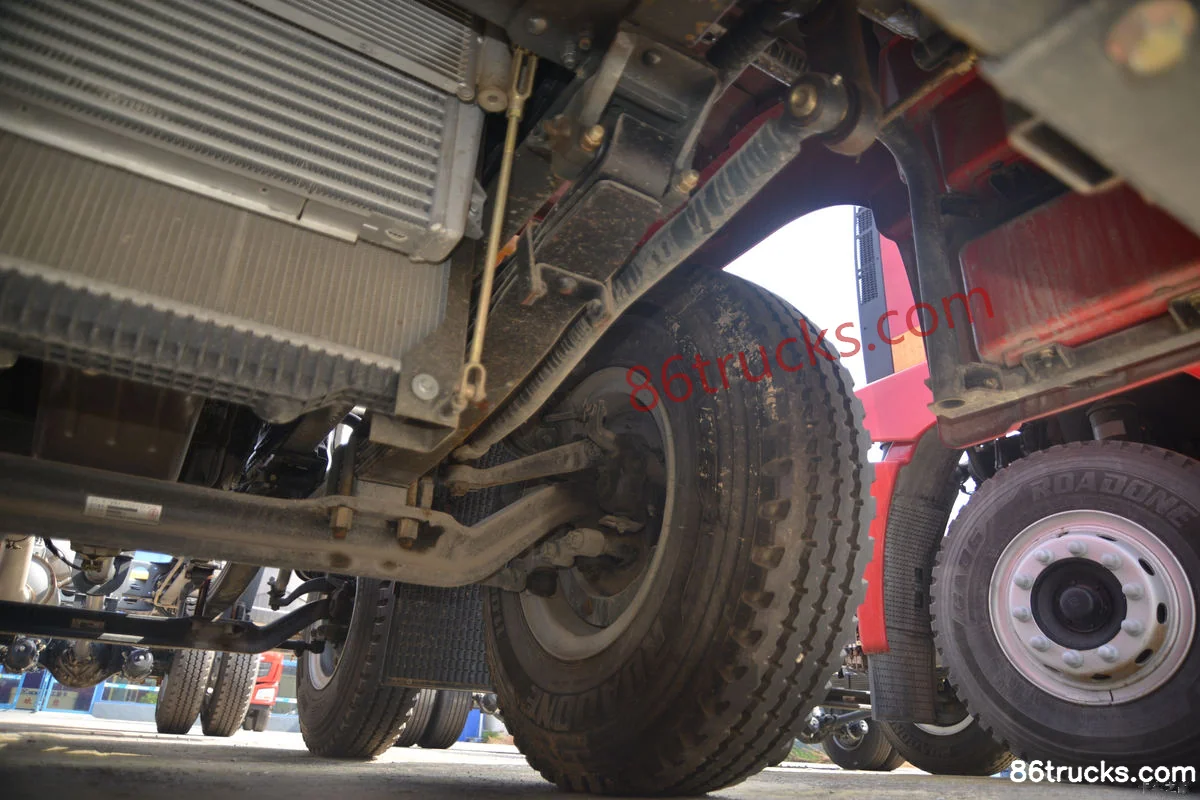

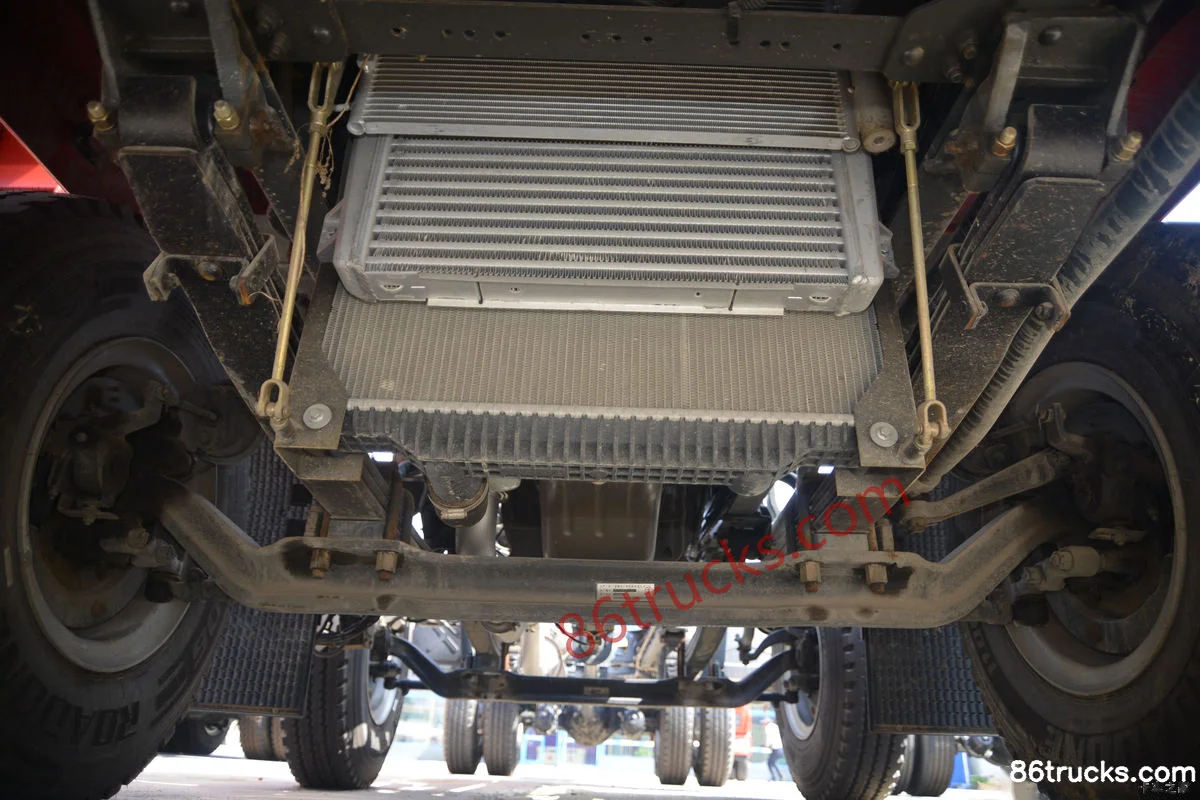

Chassis3

9 photos

FAQ

What is the export price of XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck, and what does it include?

XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck export reference is about From $34,444; MSRP is ¥24.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Key specs of XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck: Drive: 6x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck suited for?

XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck differ from other variants in the same series?

XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck belongs to XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5 240 hp 6X2(8 wheels) 9.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
