FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis

Export reference
MSRP N/A
Horsepower: 108
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: WLY
Curb Weight:: 2.31ton
FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis is a Light Truck featuring 4.21m cargo length, Chassis cargo body, 3Personnel volume and 1.99t payload. On the powertrain side, it comes with a Dachai498 engine, 108 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 108 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA5043XXYP40K2L1E4A84-3
Type: Chassis
Drive type: 4X2
Wheelbase: 3300mm
engine: DachaiCA4DC2-10E4
transmission: WLYWLY5-35
Rear Axle Ratio: 5.125
Cab length: 5.998m
Cab width: 2.035m
Cab height: 2.91m
Front track width: 1650mm
rear track: 1525mm
Curb Weight: 2.31ton
Rated payload: 1.99ton
GVWR: 4.495ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.115/1.583m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-10E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 79kW
Max hp: 108Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY5-35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 4.21m
Cargo box width: 1.91m
Cargo box height: 1.9m
*Cargo box interior width: 1.9099999666214
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: DD030
Front axle allowable load: 2050kg
rear axle description: 249 rear axle
rear axle allowable load: 2445kg
Axle ratio: 5.125
Leaf spring count: 3/3+4,7/10+3
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

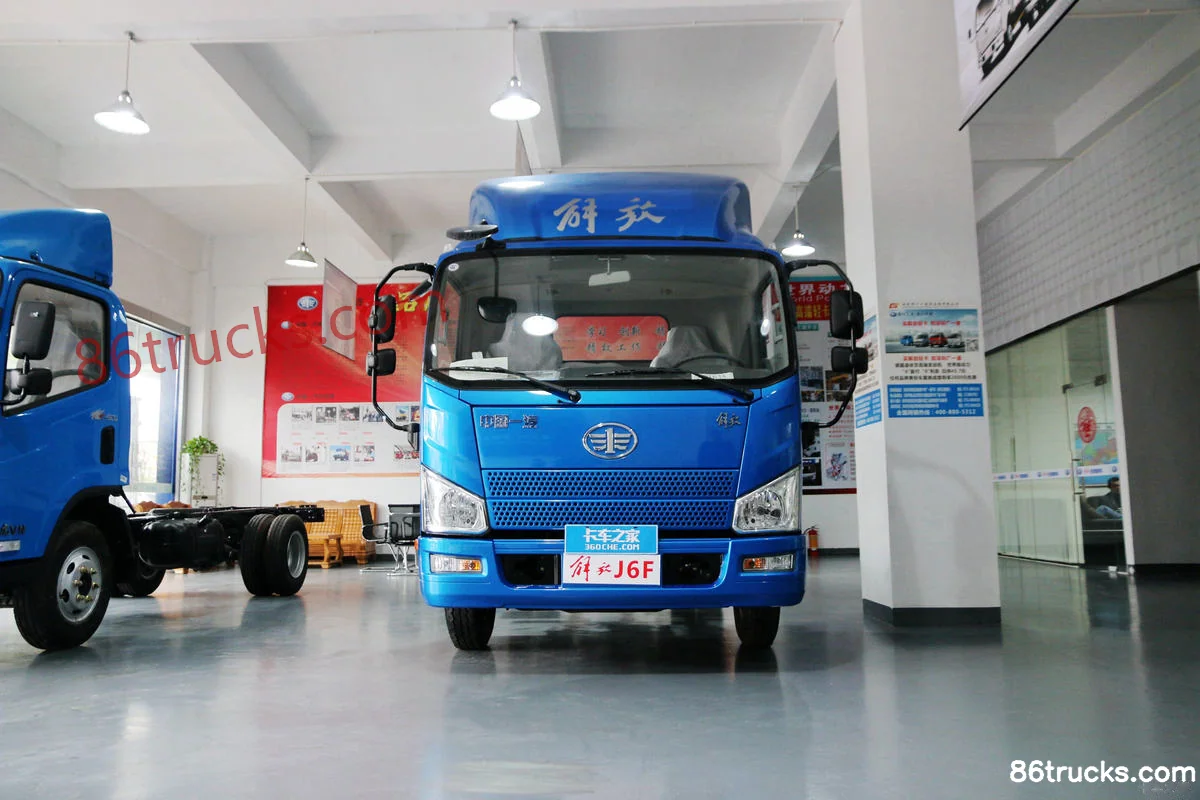

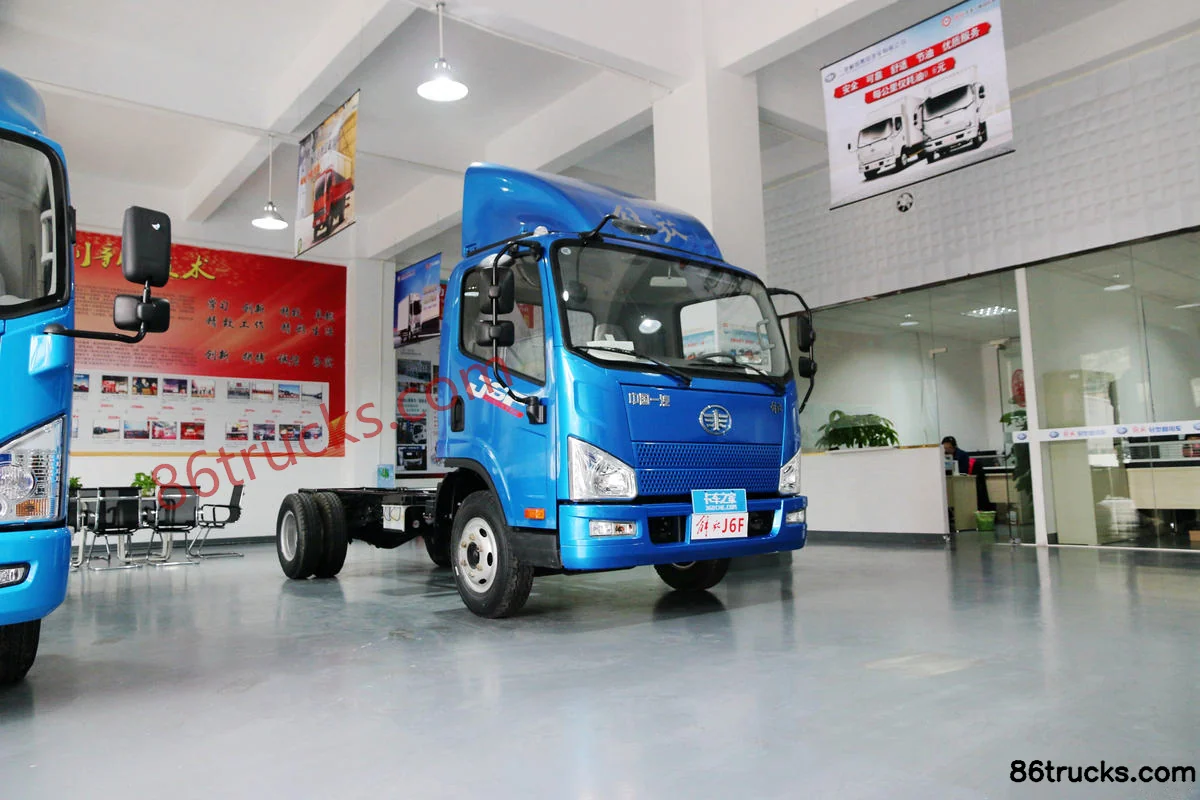

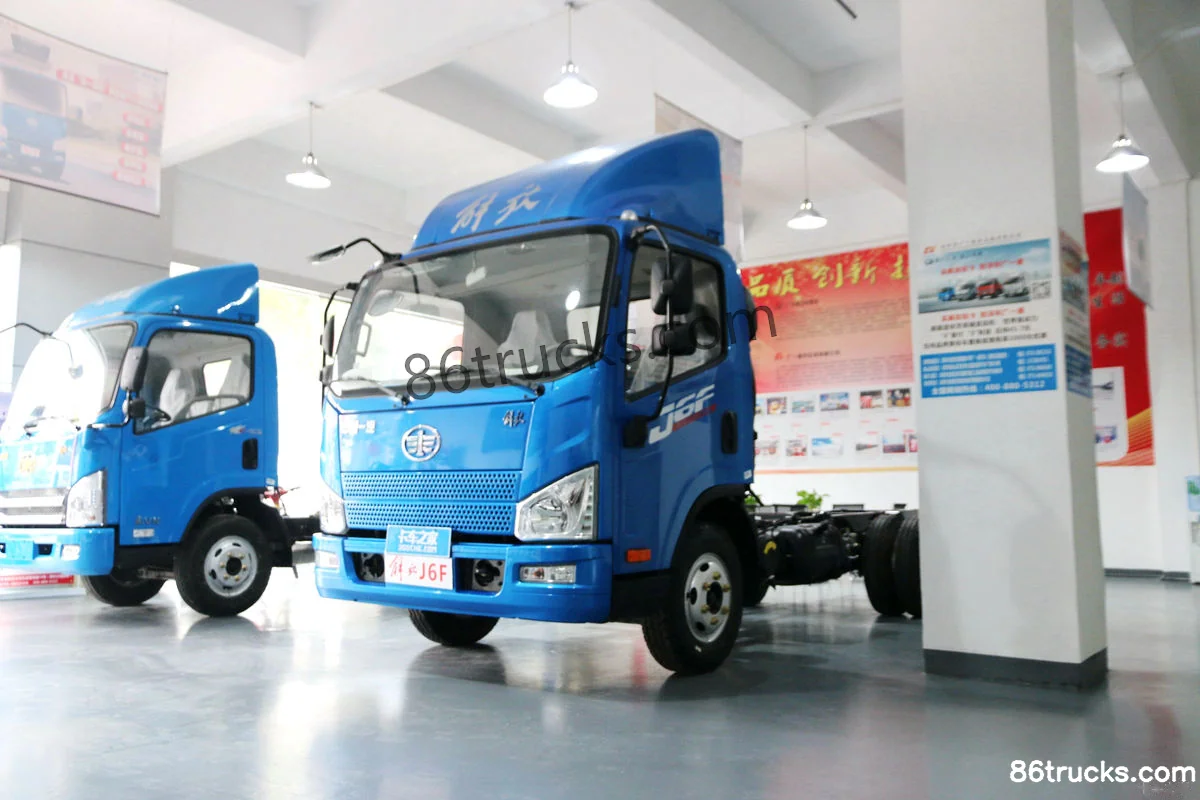

FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (1) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (2) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (3) | 86Trucks

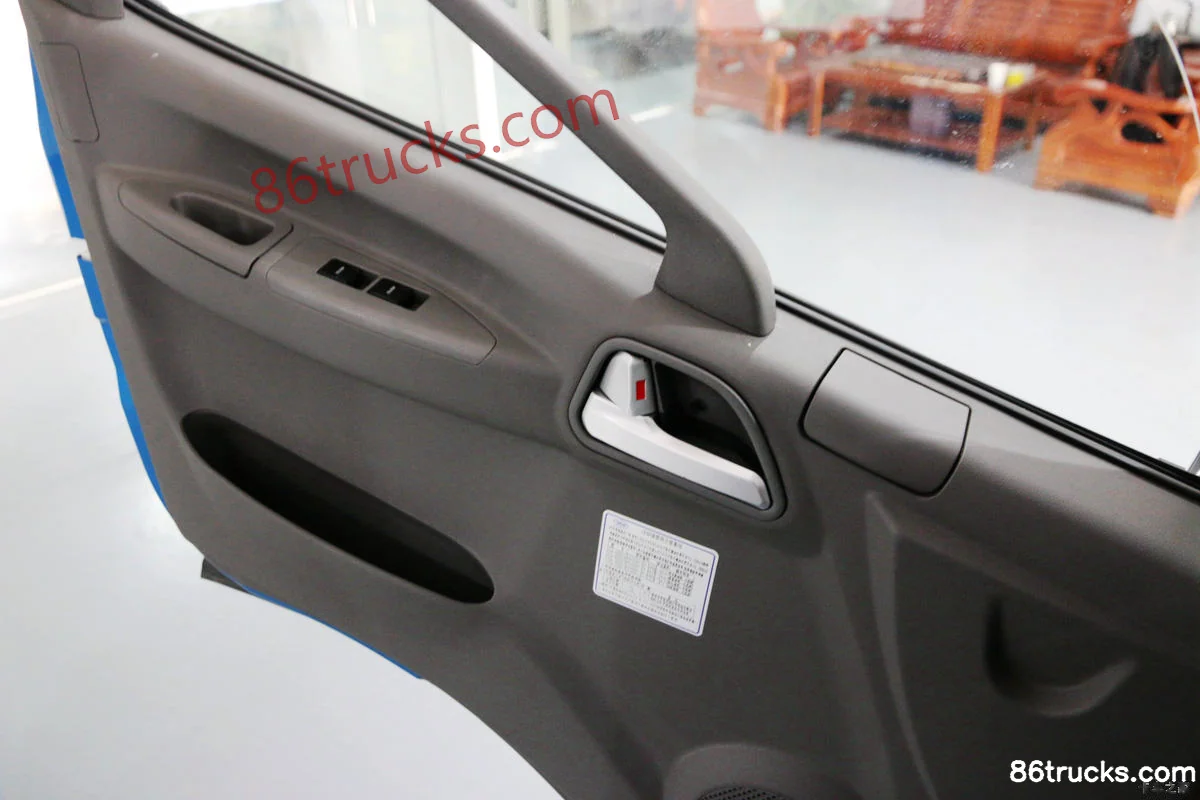

Cab3

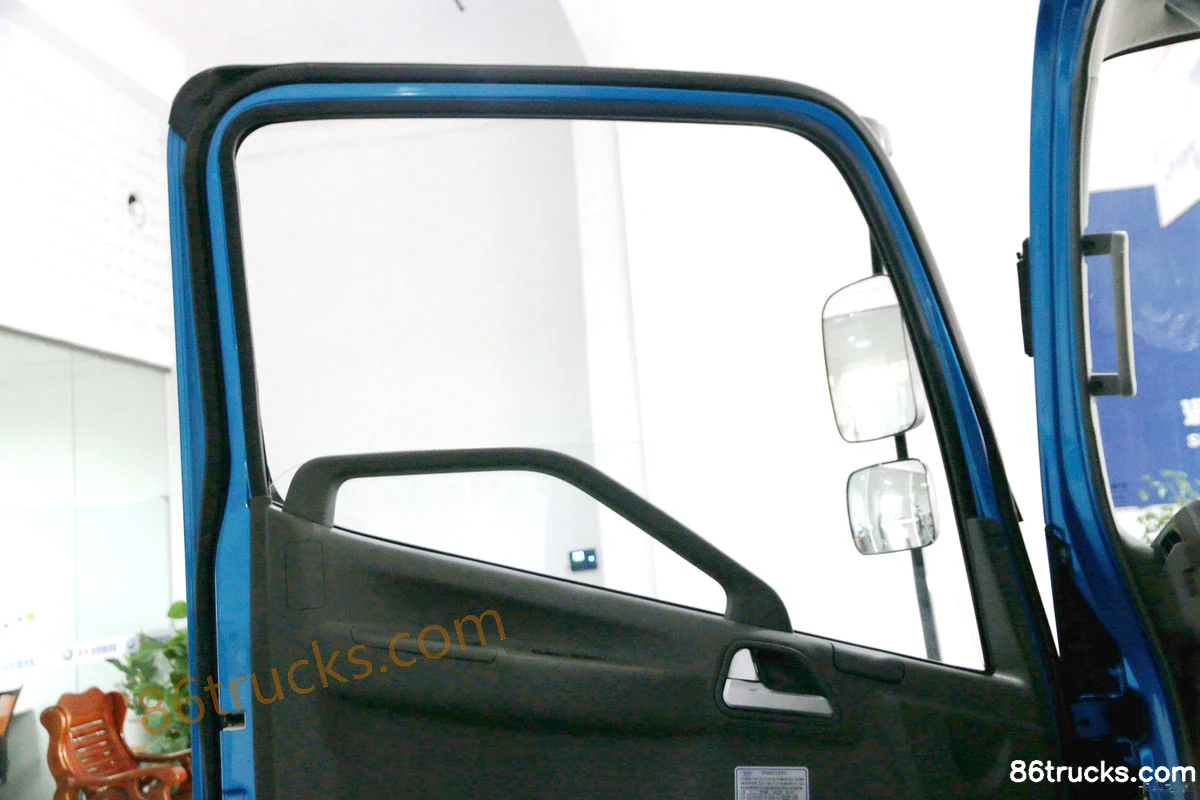

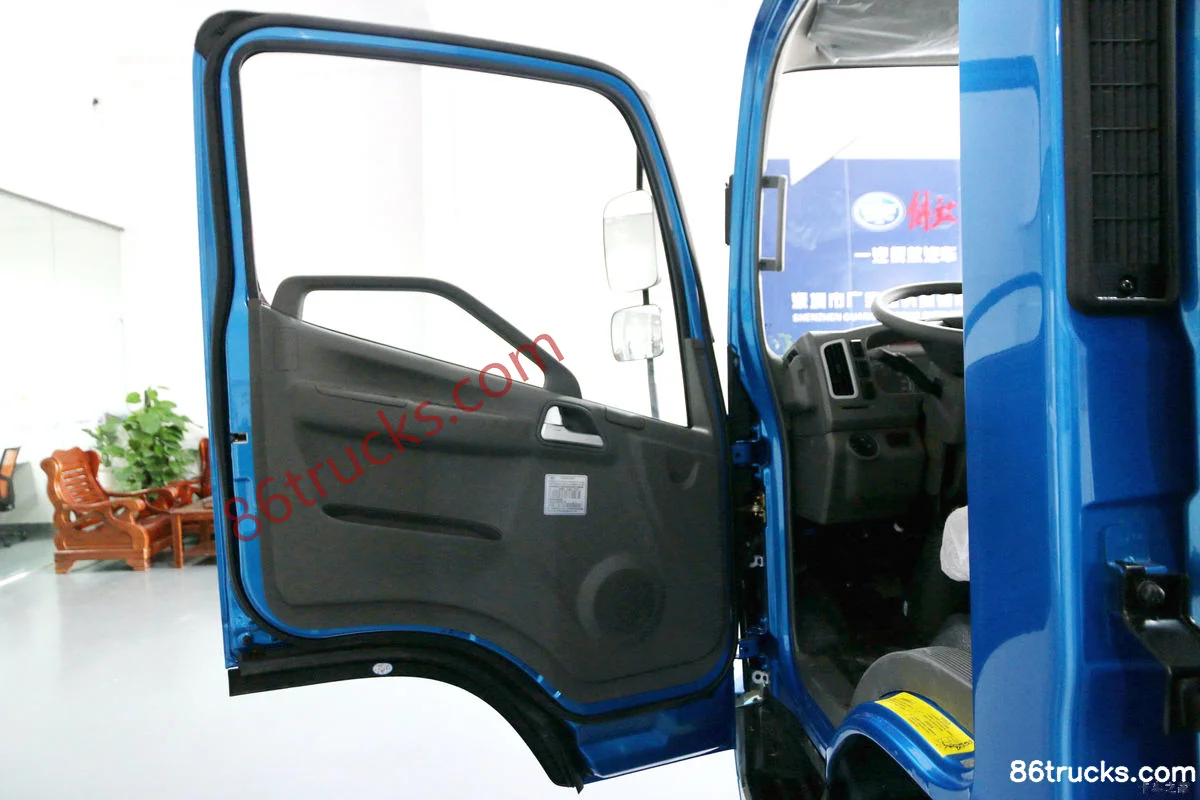

FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (1) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (2) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (3) | 86Trucks

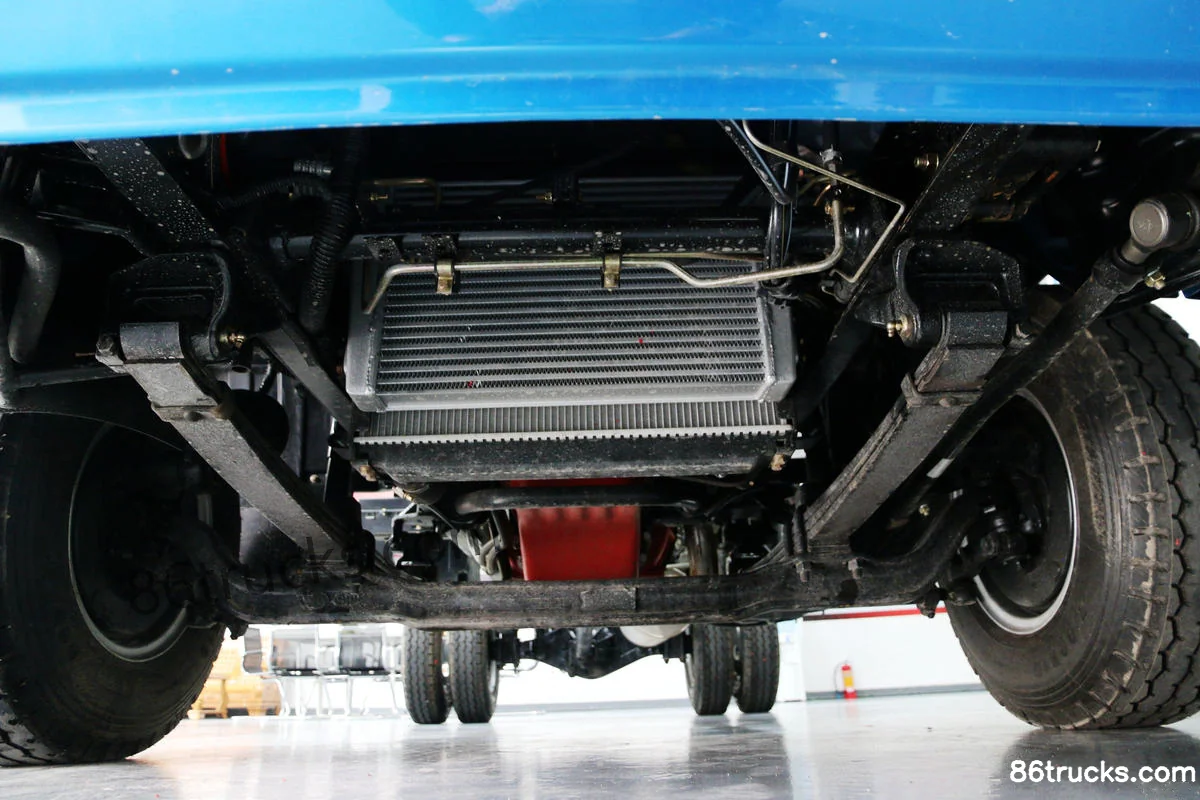

Chassis3

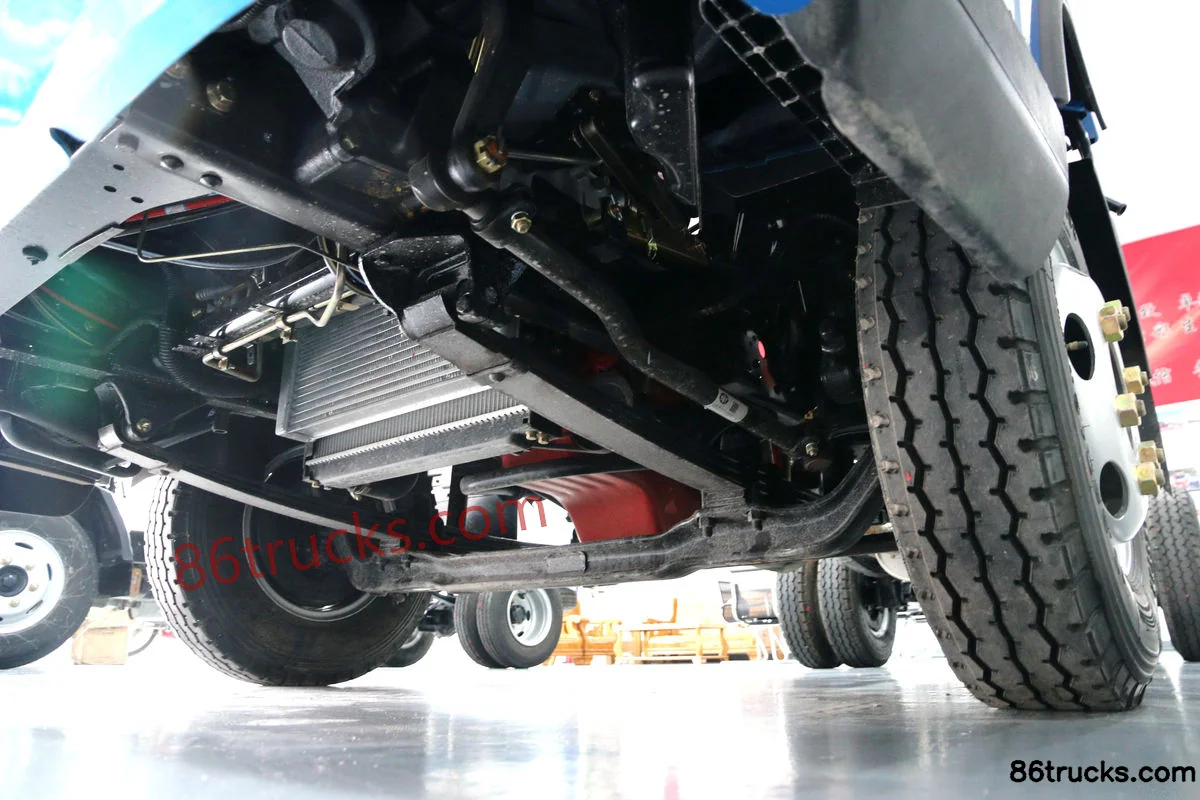

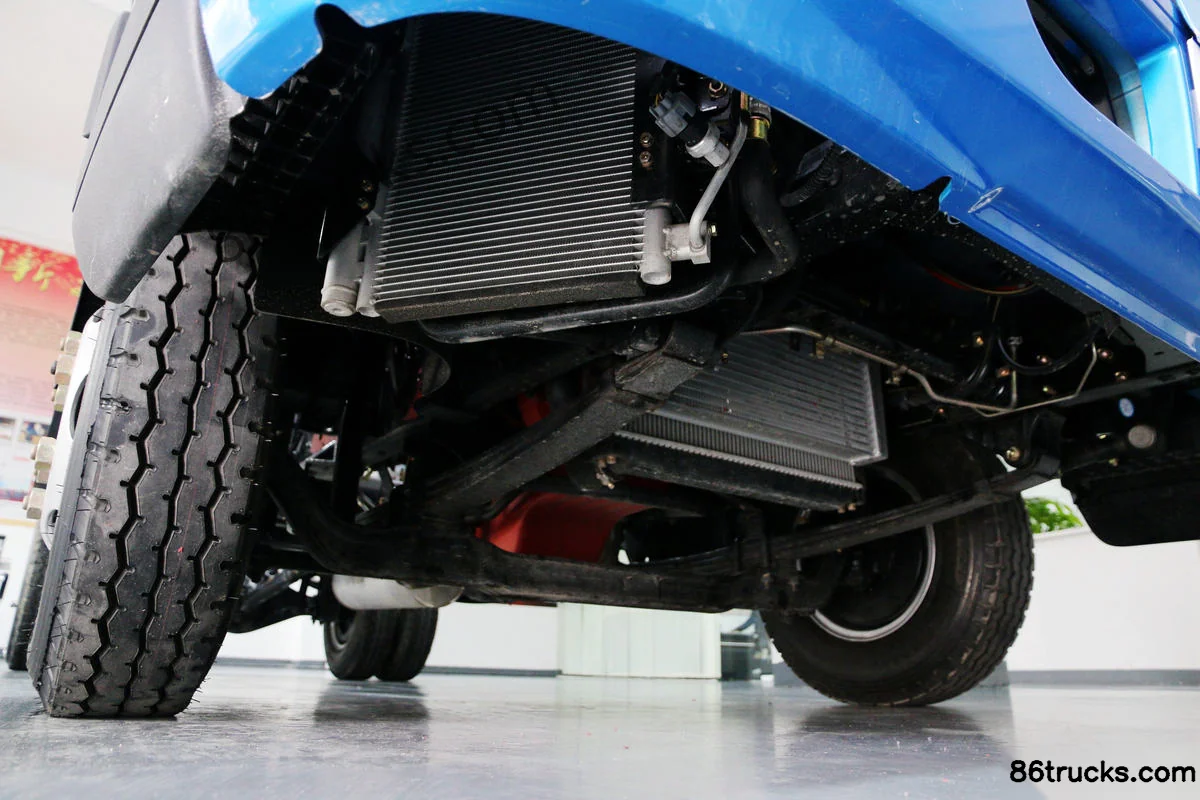

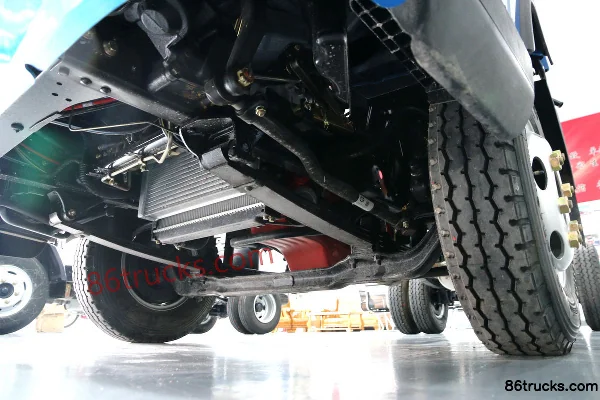

FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis (1) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis (2) | 86Trucks FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis?

Key specs of FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis: Drive: 4x2; Horsepower: 108 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis suited for?

FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis differ from other variants in the same series?

FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis belongs to FAW Jiefang J6F Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 108hp 4X2(6 wheels) Single Row Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
