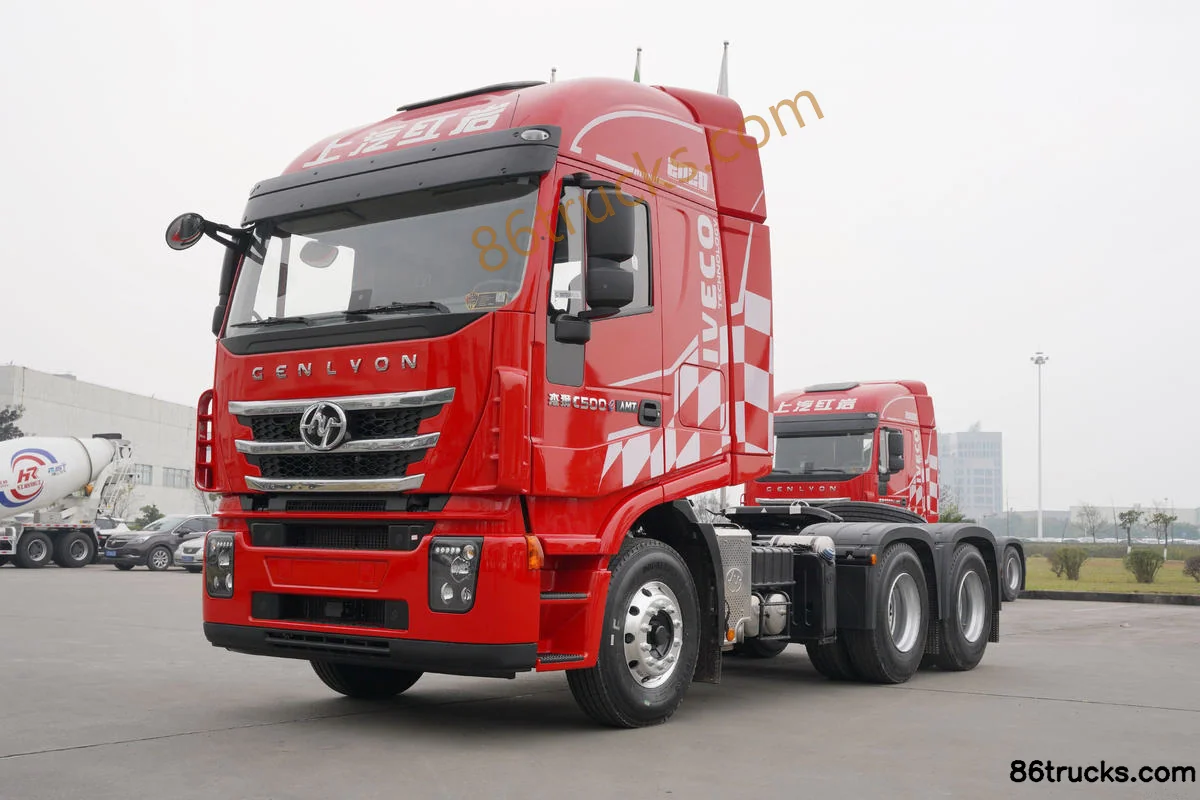

SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck

Export reference
MSRP N/A
Gross Trailer Weight:: 40ton
Wheelbase:: 3285+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.88L
Model code (announced):: CQ4256HYVG334B
Drive 6X4 (10 wheels)
Horsepower 520
Emission China V
Fuel Diesel

Overview

The SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 520 hp, 25t GVW and China V emissions. Its segment focus covers Logistics and Coal Transport, matching those duty cycles. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanF3HCE611G*L engine, Automatic transmission transmission and Diesel fuel.

China V 520 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4256HYVG334B
Drive type: 6X4
Wheelbase: 3285+1400mm
engine: SAIC Fiat Powertrain HongyanF3HCE611G*L
transmission: Automatic transmission
Cab length: 6.895m
Cab width: 2.525m
Cab height: 3.115m
Front track width: 2006mm
Gross Trailer Weight: 40ton
rear track: 1850/1850mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Chongqing
tonnage class: Heavy truck
market segment: Logistics, Coal Transport
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF3HCE611G*L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.88L
Emission standard: China V
Max output power: 386kW
Max hp: 520Horsepower
Transmission Parameters
shift method: AMT manual/auto
fuel tank
Fuel tank/air tank material: aluminum alloy
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 2/3
Tire

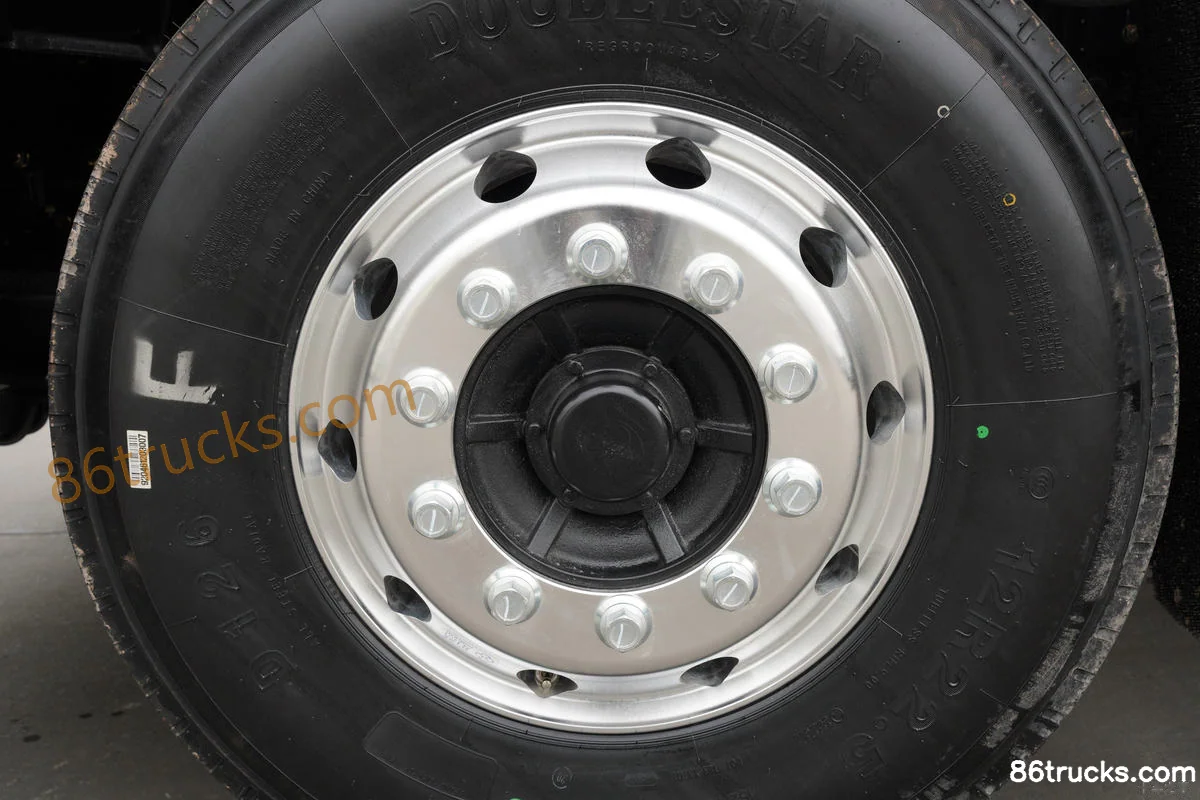

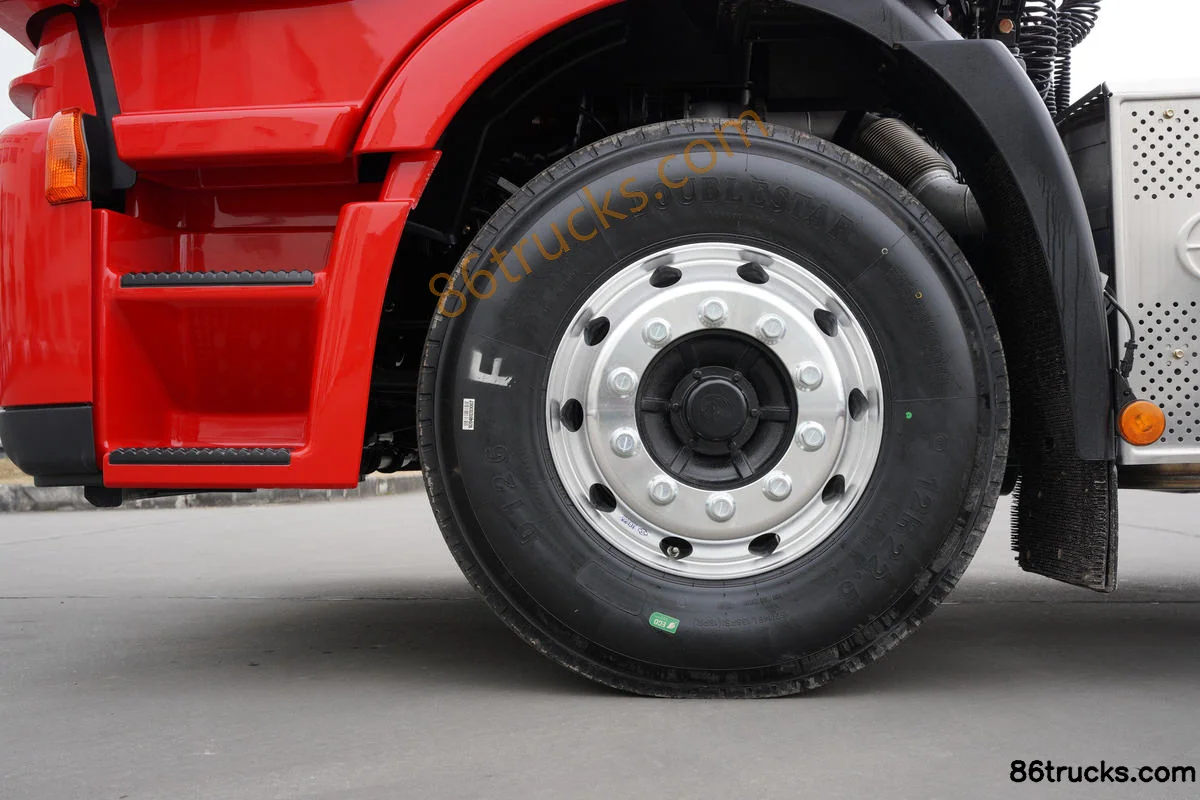

Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

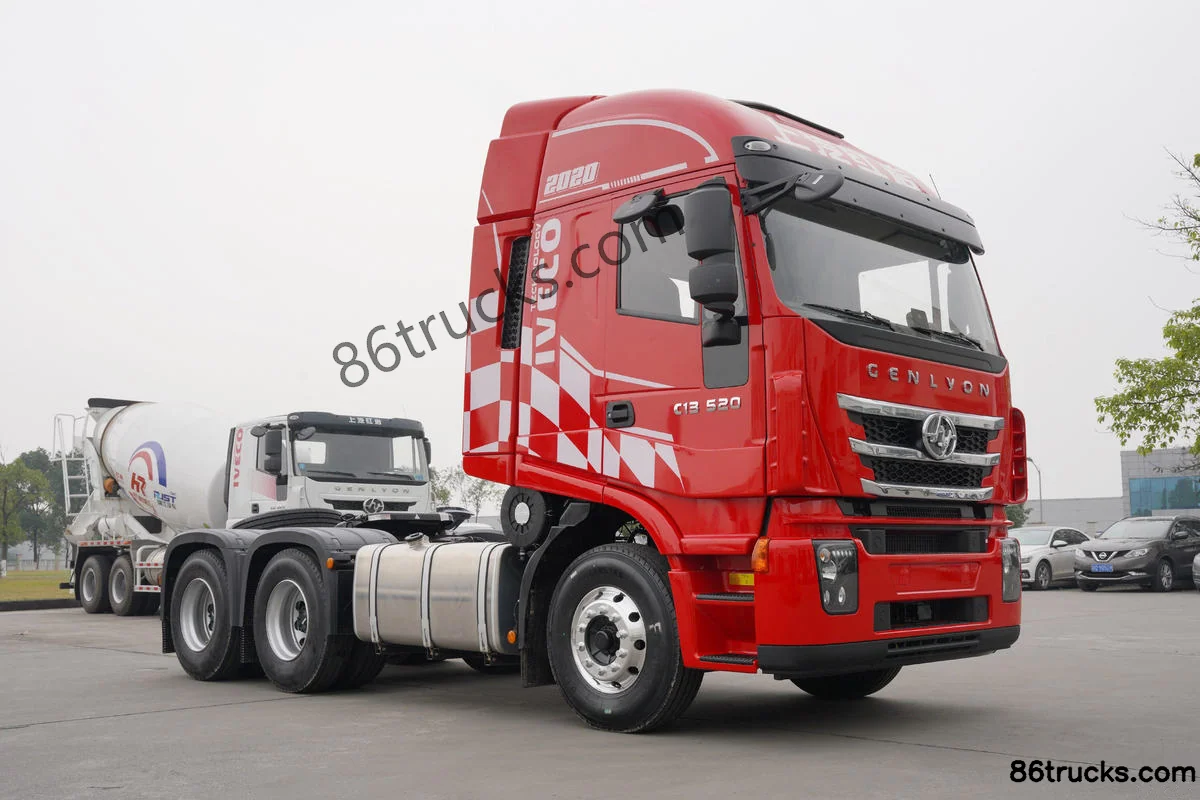

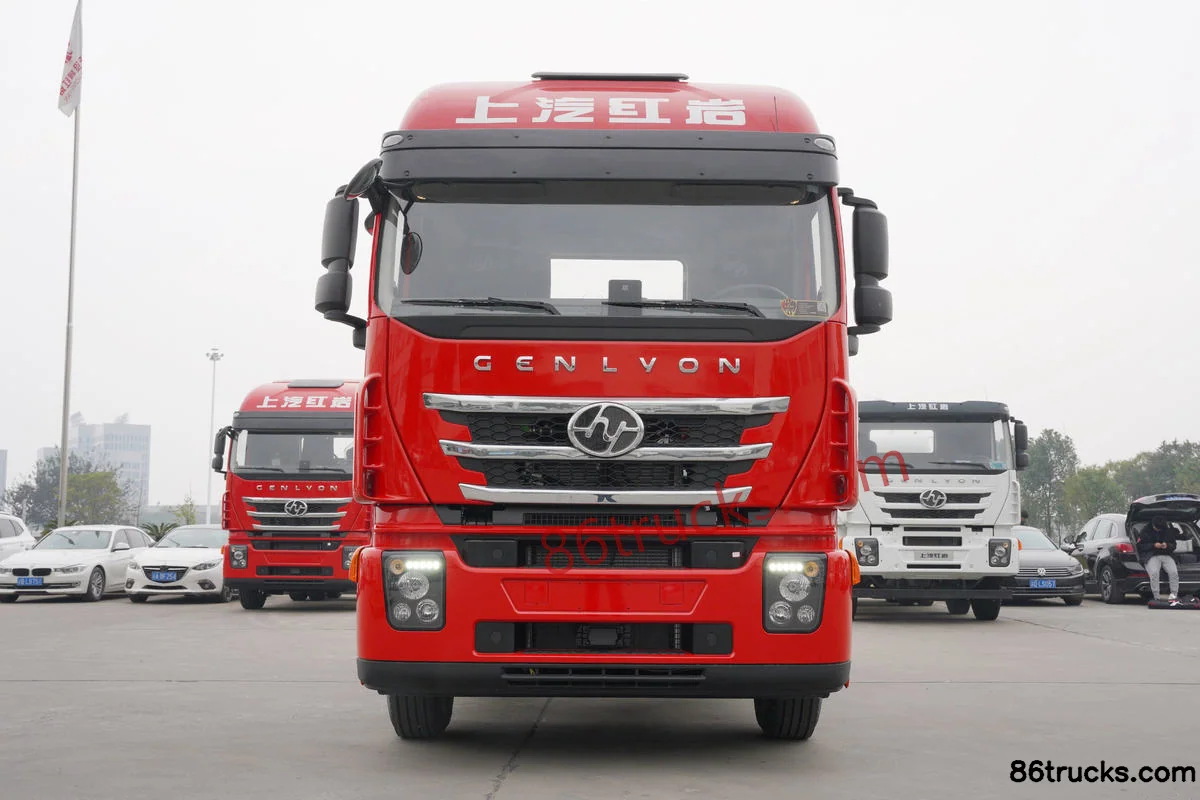

Exterior3

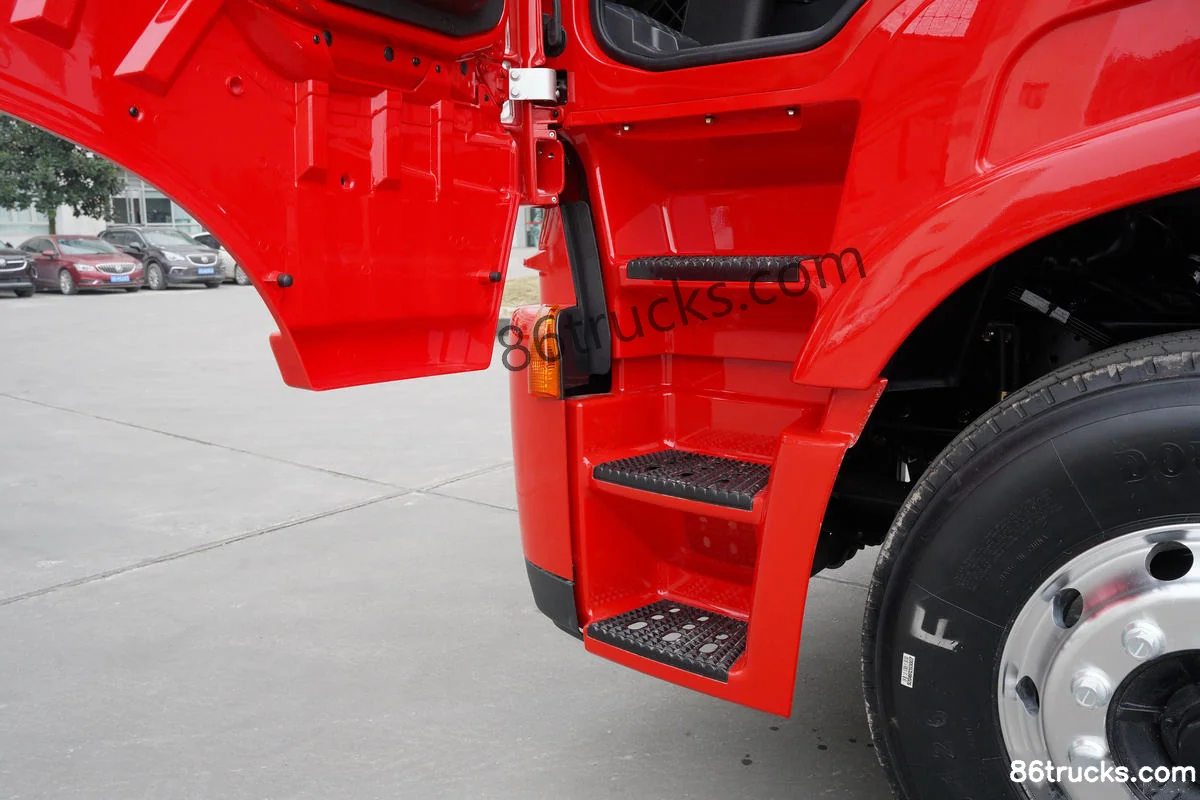

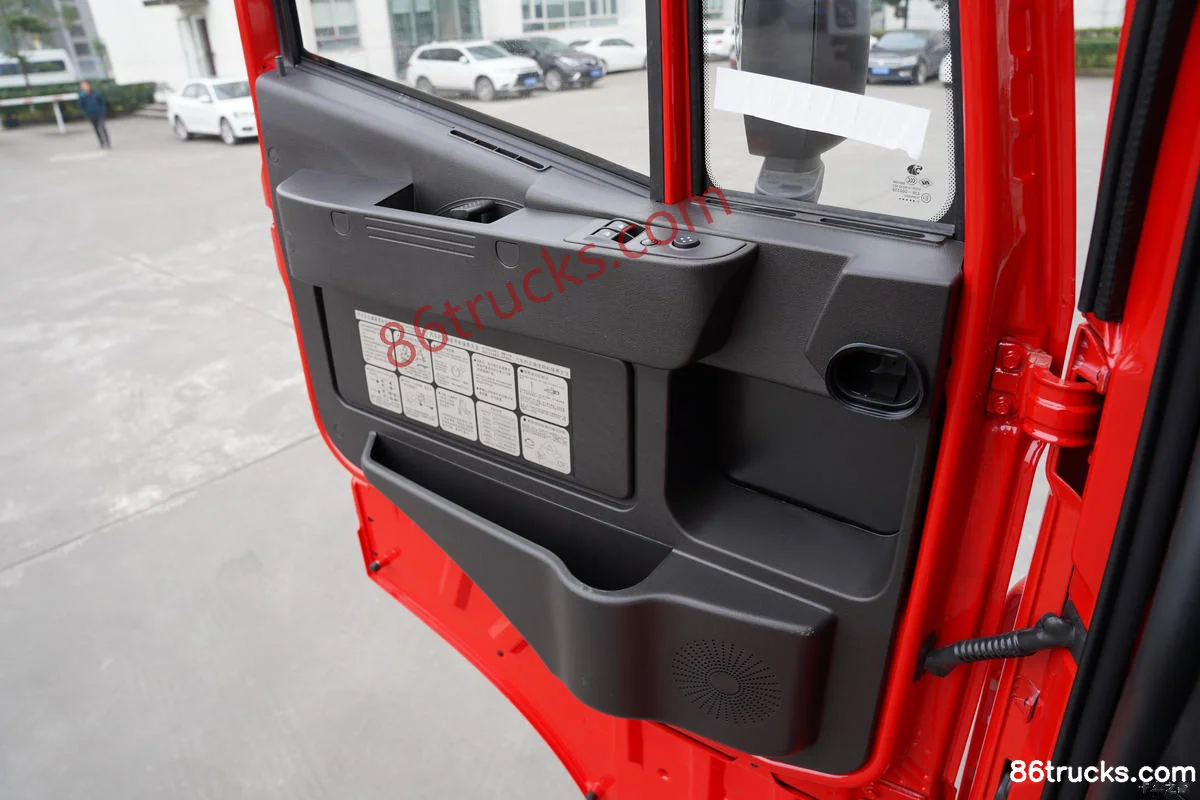

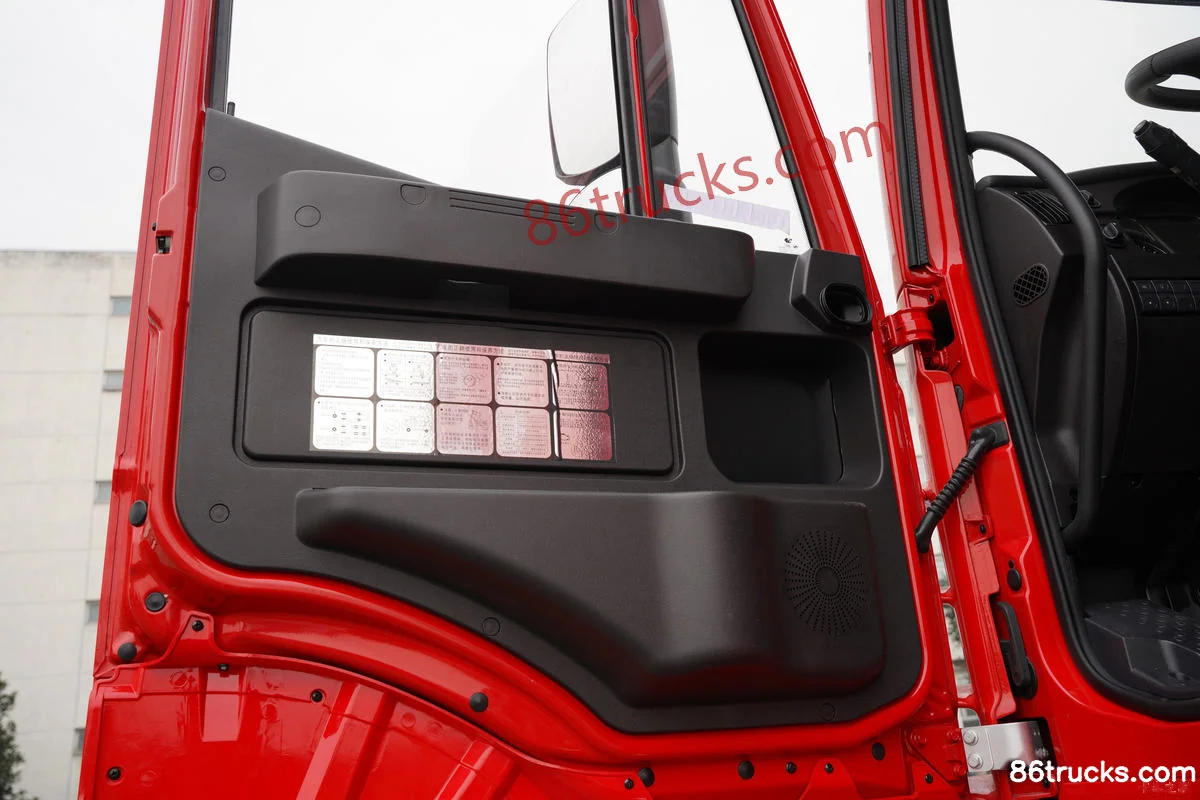

Cab3

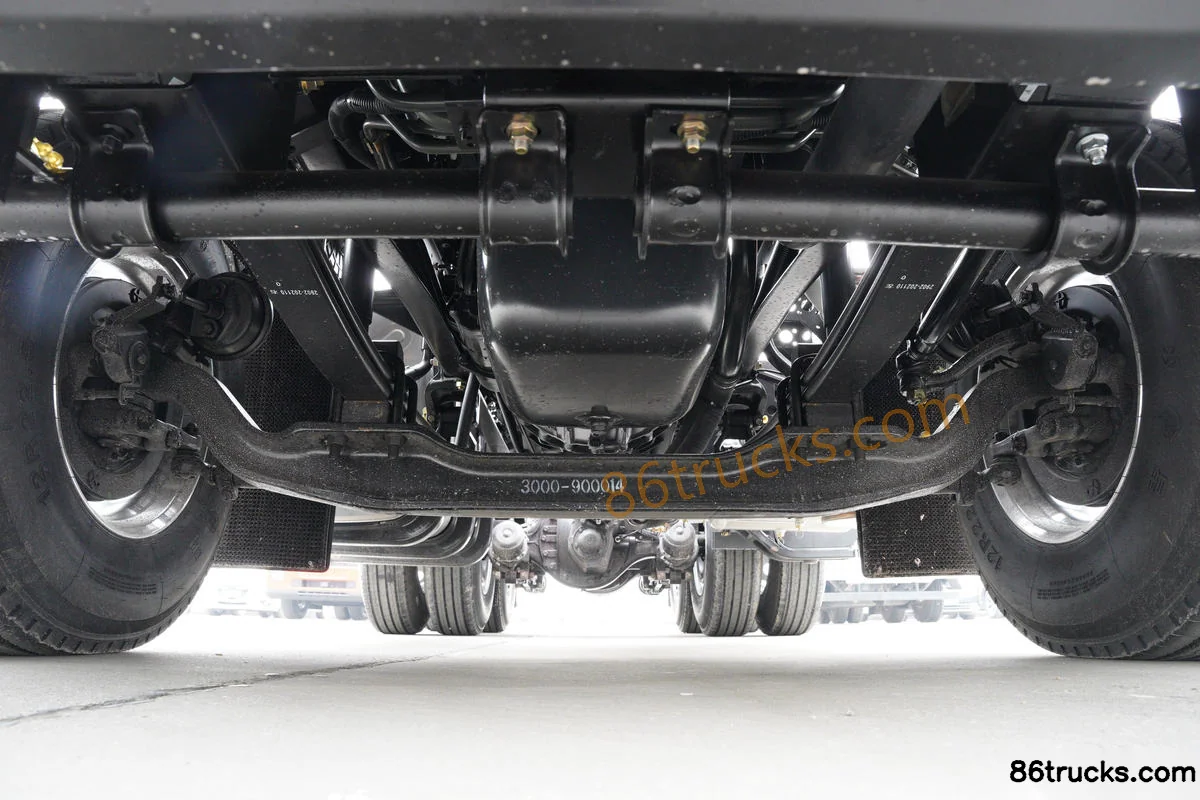

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Key specs of SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck: Drive: 6x4; Horsepower: 520 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck suited for?

SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C500 Heavy Truck 2020 Model 520hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
