Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis

Export reference
From $7,194
MSRP ¥5.18M CNY
Horsepower: 112
Emission: China V
Fuel: gasoline
Engine: Dongan gasoline 1.5L
Transmission: Dongan
Curb Weight:: 1.36ton
seating capacity: 2Personnel
Rated payload: 1.9ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis is a mini truck featuring Chassis cargo body, 2Personnel volume, 1.9t payload and 2750mm wheelbase. On the powertrain side, it comes with a Dongan gasoline 1.5L engine, 112 hp, 4X2 (6 wheels) drive and China V emissions.

China V 112 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1030V5JV2-AX
Type: Chassis
Drive type: 4X2
Wheelbase: 2750mm
engine: DonganDAM15L
transmission: DonganDAT18R
Rear Axle Ratio: 4.875
Cab length: 4.87m
Cab width: 1.665m
Cab height: 1.9m
Front track width: 1320mm
rear track: 1280mm
Curb Weight: 1.36ton
Rated payload: 1.9ton
GVWR: 3.39ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 22°
departure angle: 20°
Front/rear suspension: 1.075/1.045m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM15L
Engine info: Dongan gasoline 1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.498L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Transmission Parameters
Transmission Model: DonganDAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab width: 1520mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1185kg
rear axle description: BJ121 integral banjo type rear axle
rear axle allowable load: 2205kg
Axle ratio: 4.875
Leaf spring count: 3/5
Tire
Tire Size: 175R14LT 8PR
Number of tires: 6pcs
Control configuration
Power steering:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc

Photos

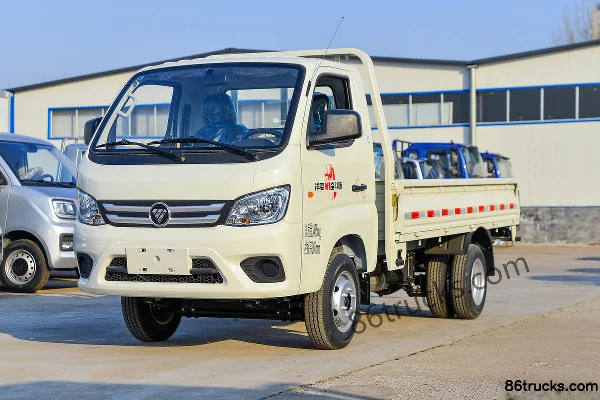

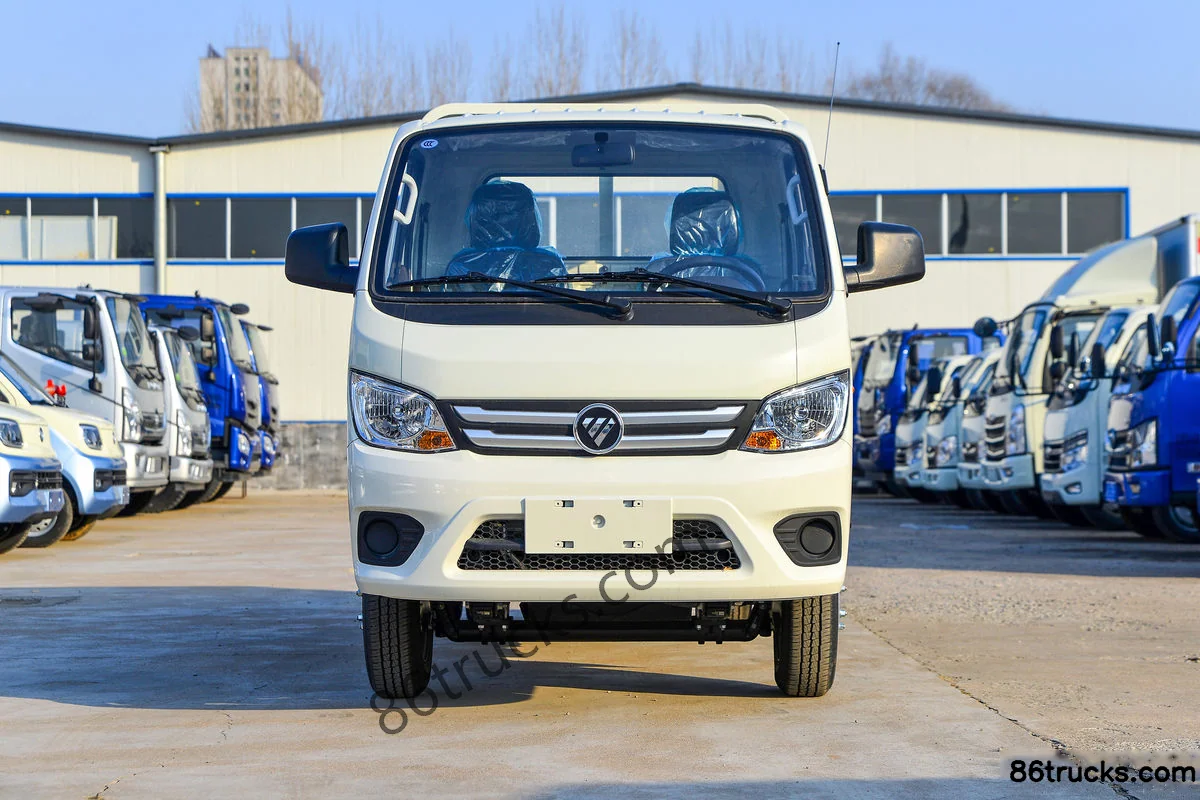

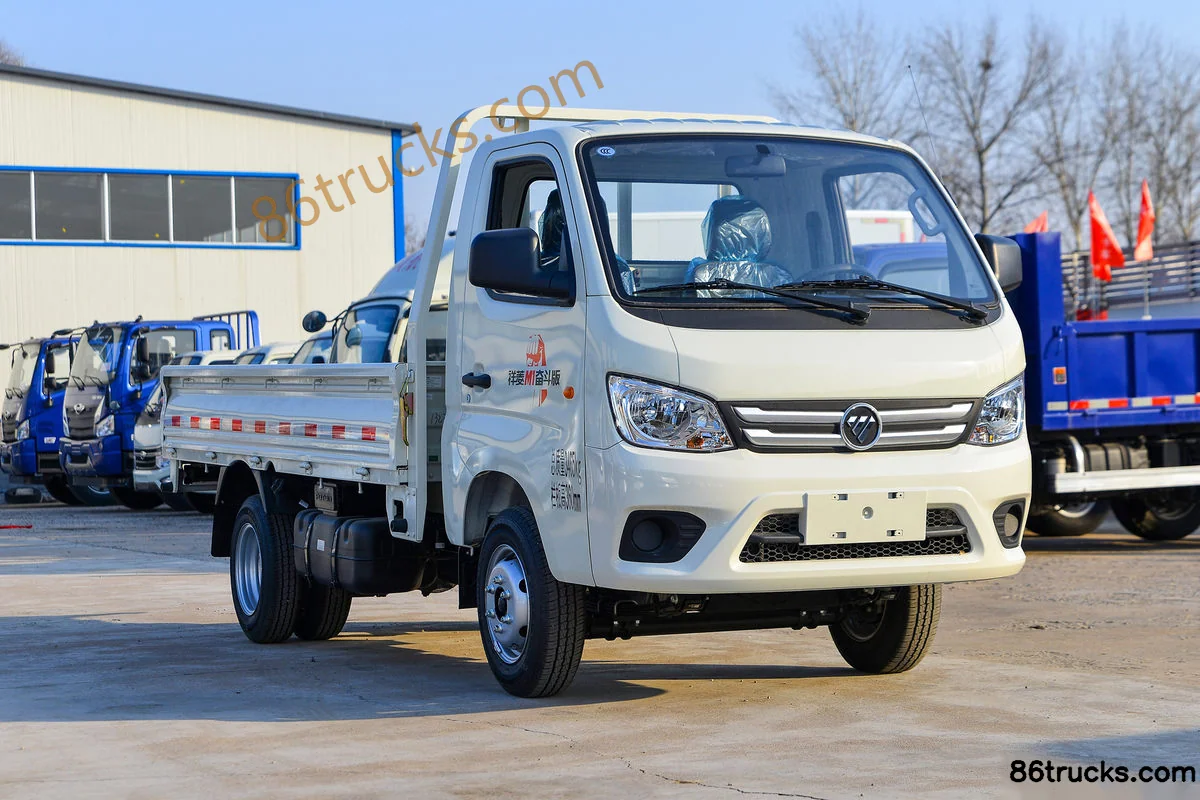

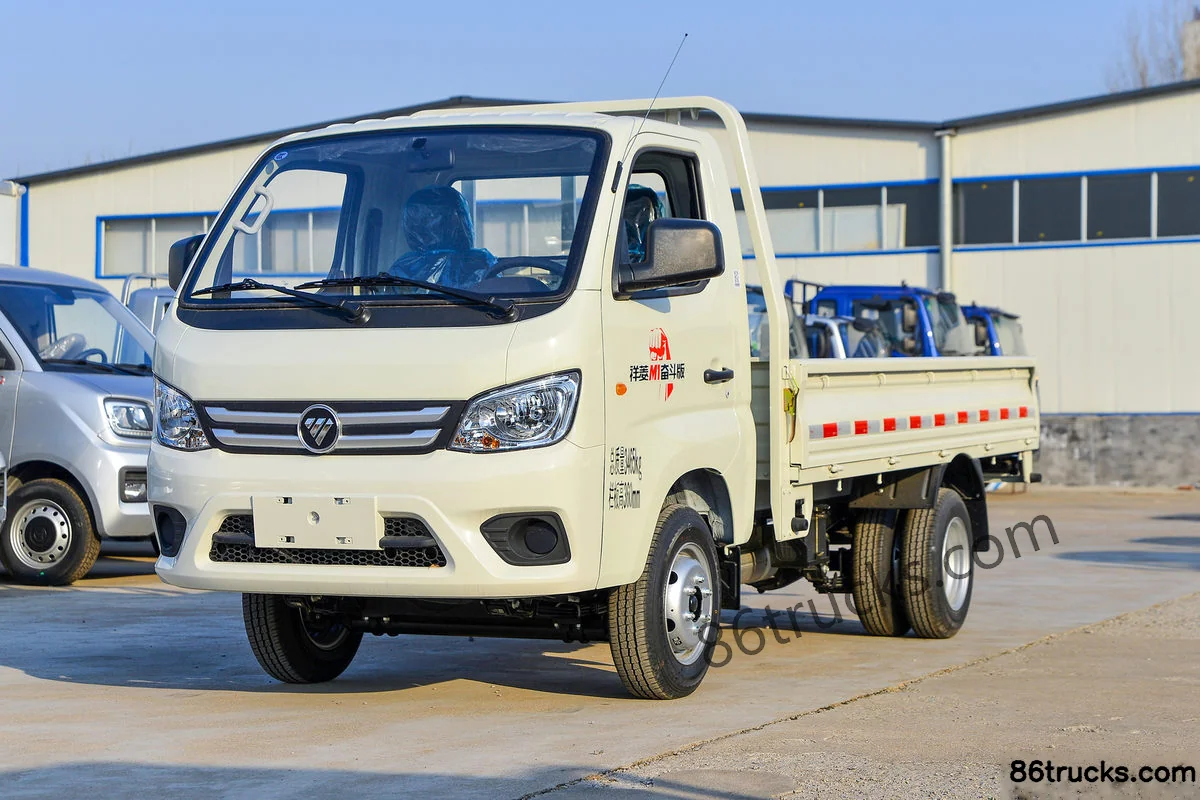

Exterior3

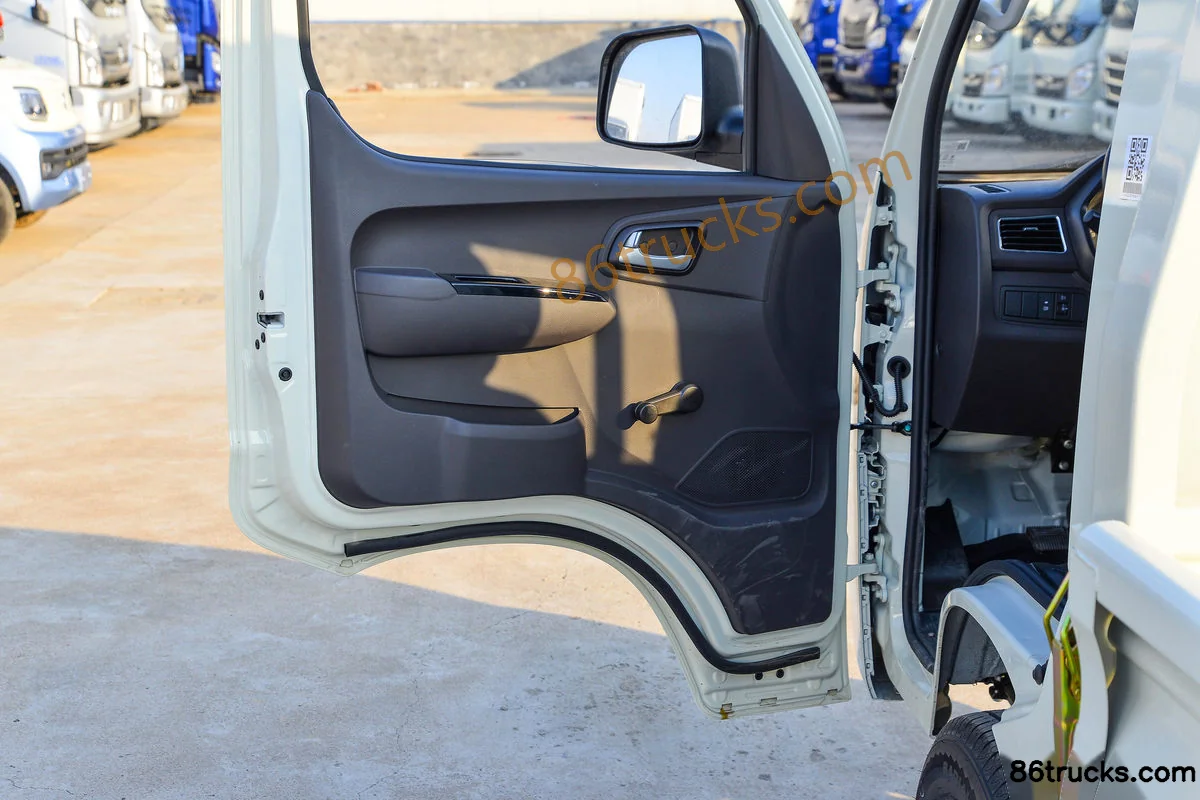

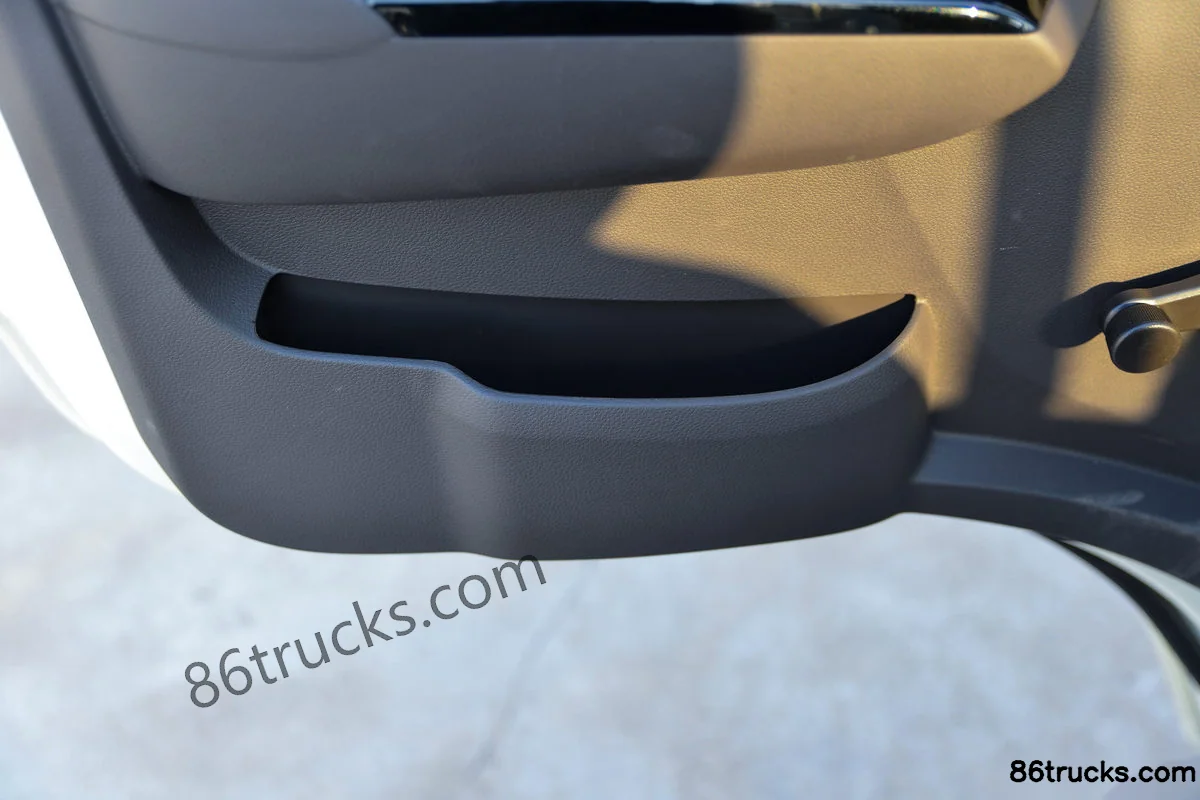

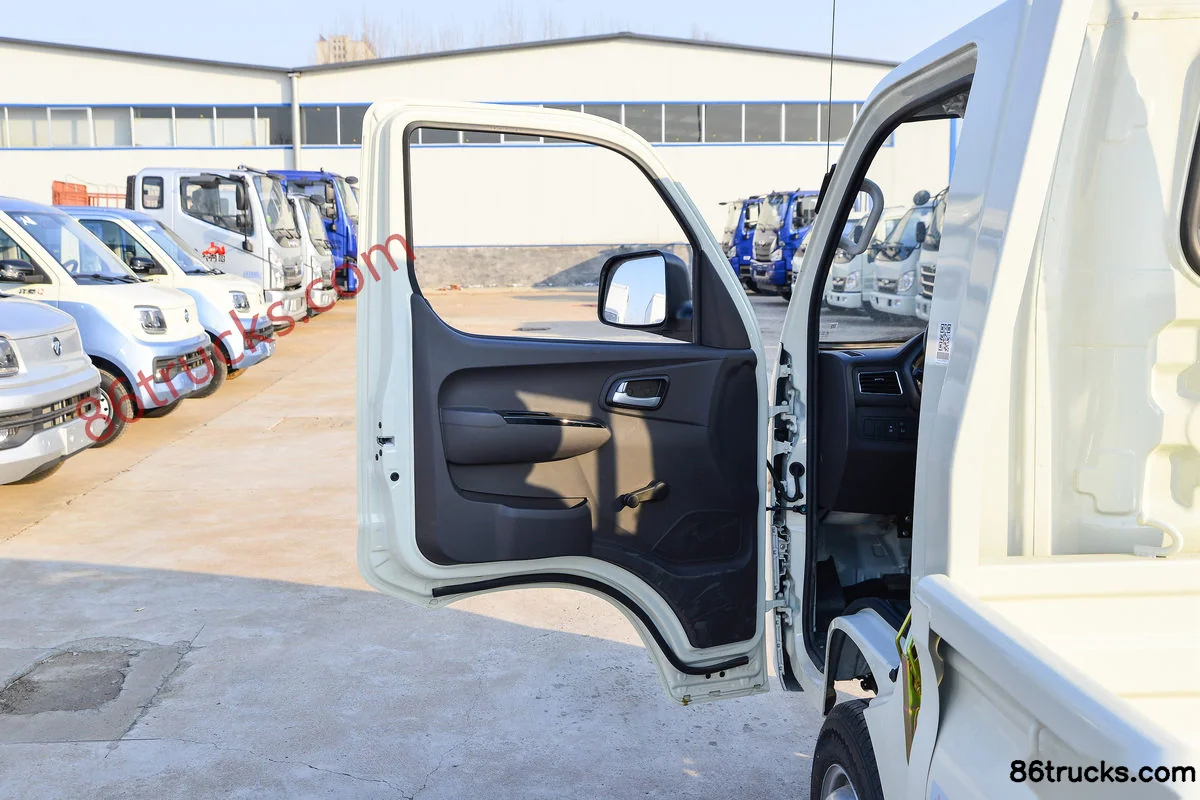

Cab3

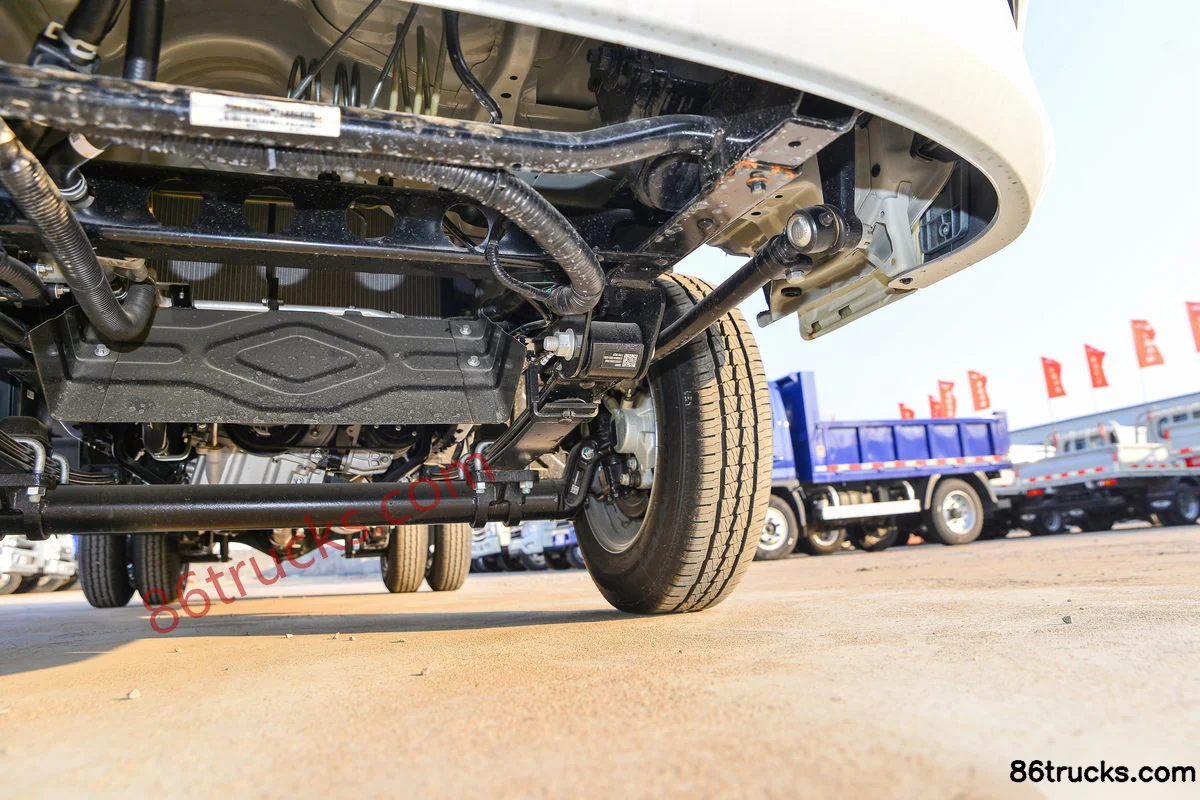

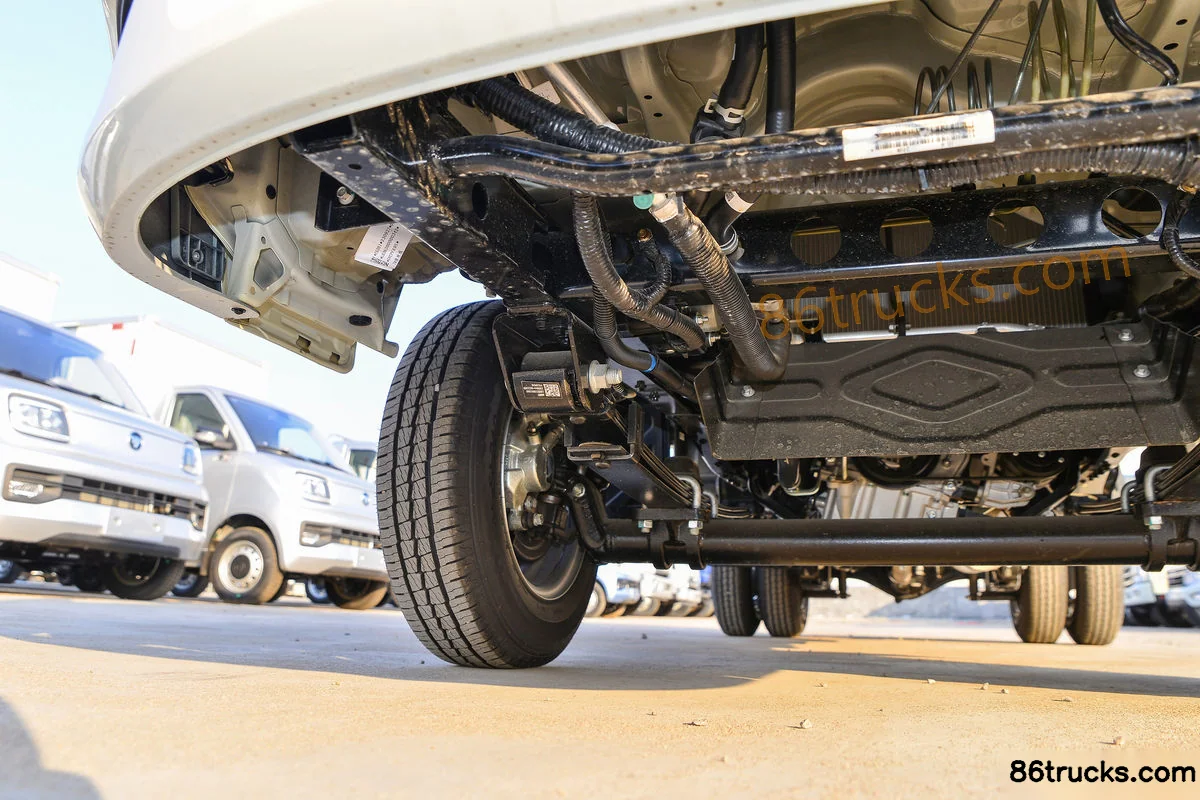

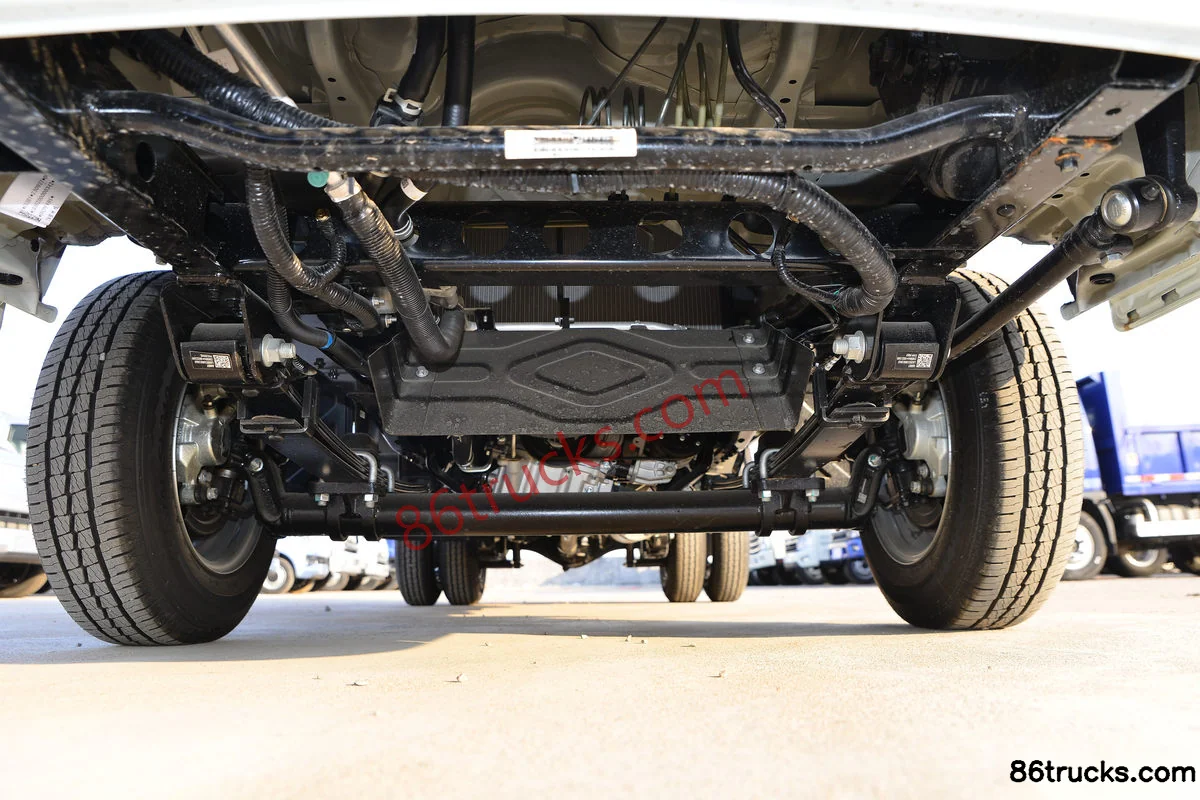

Chassis3

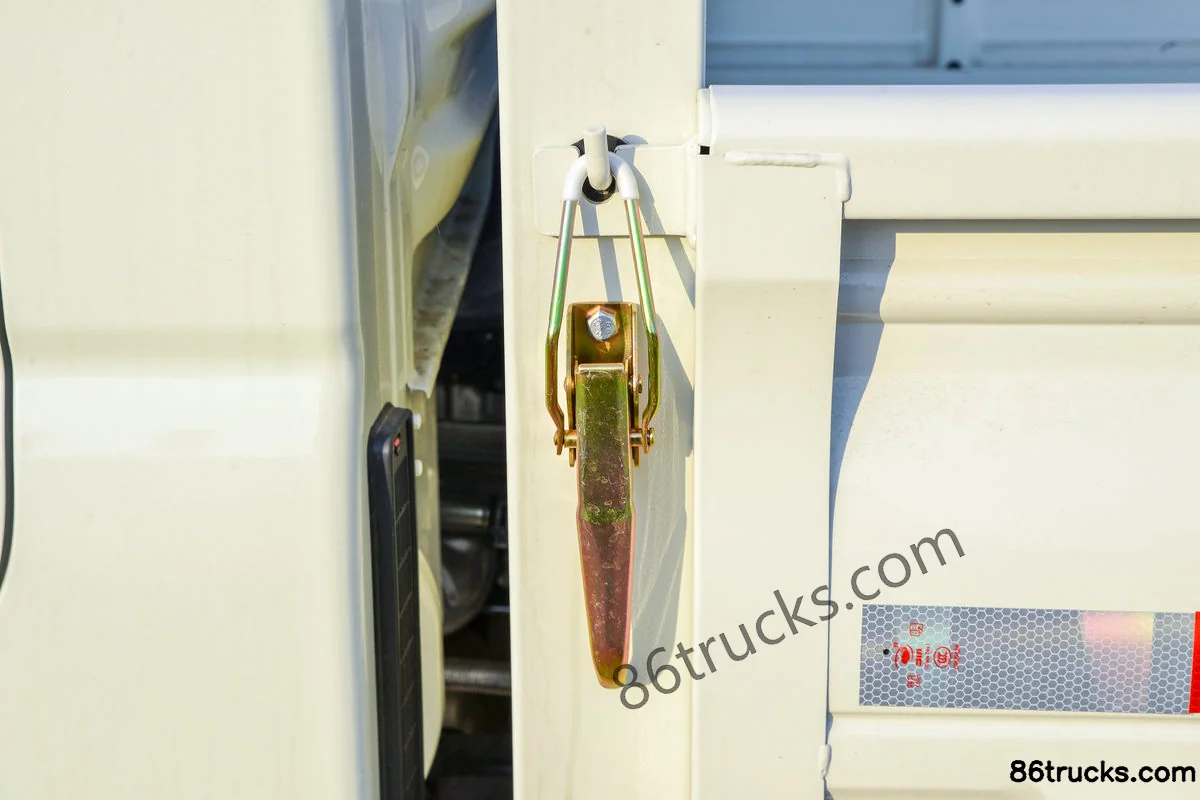

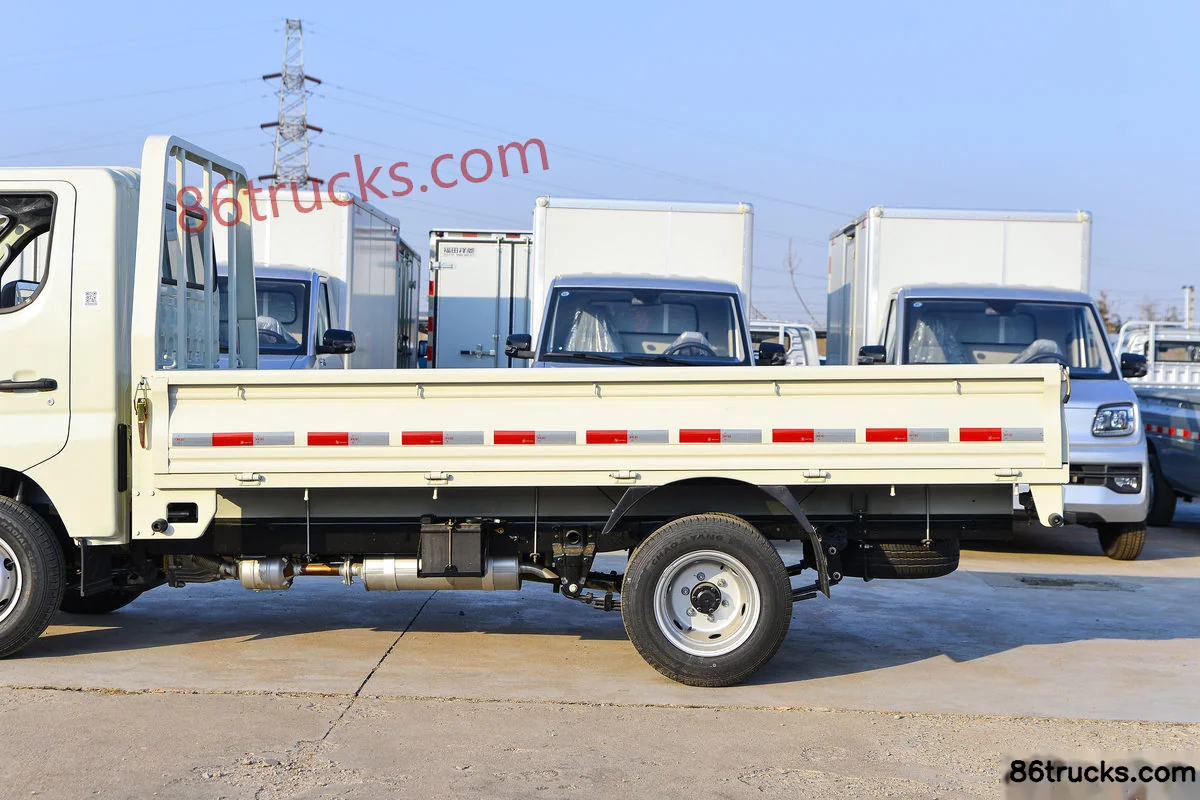

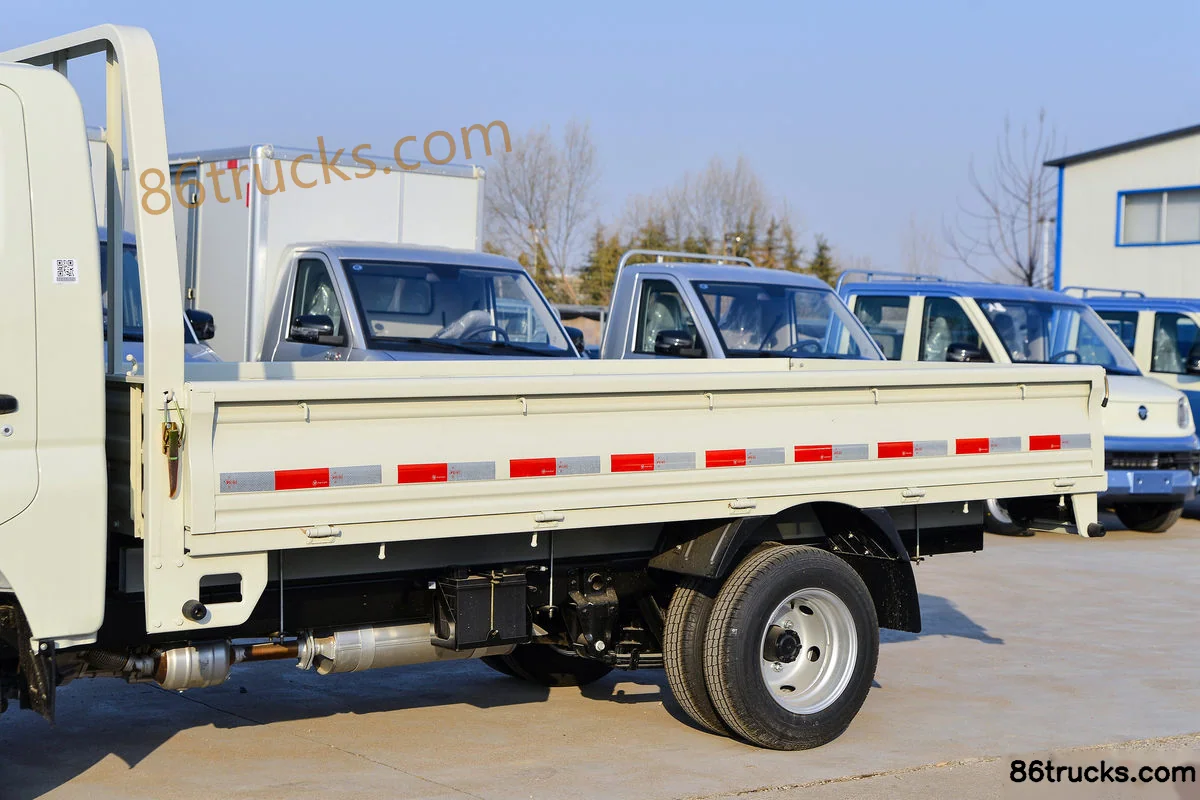

Body3

12 photos

FAQ

What is the export price of Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis, and what does it include?

Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis export reference is about From $7,194; MSRP is ¥5.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis?

Key specs of Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis: Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: gasoline; Engine: Dongan gasoline 1.5L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis suited for?

Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis differ from other variants in the same series?

Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis belongs to Foton M1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling M1 1.5L 112 hp 4X2(6 wheels) gasoline single-row micro truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
