Proton Auto 4X2(6 wheels) Fuel Cell Tractor Truck 76.63kWh

Export reference
MSRP N/A
Front axle allowable load:: 6500kg
Wheelbase:: 4300mm
Model code (announced):: SX4187MJ1XFCEV1
Front/rear track width:: 2011/1860mm
Cab length:: 6.875m
GVWR:: 18ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Zhide
Gross Trailer Weight: 31.47ton

Overview

The Proton Auto 4X2(6 wheels) Fuel Cell Tractor Truck 76.63kWh is a Heavy truck featuring CATL battery/range, Zhide motor, 4X2 (6 wheels) drive and 6500kg payload. Its segment focus covers Standard Load Transport (Steel, Sand & Gravel and Finished Profiles, matching those duty cycles.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4187MJ1XFCEV1
Drive type: 4X2
Front/rear track width: 2011/1860mm
Wheelbase: 4300mm
Cab length: 6.875m
Cab width: 2.55m
Cab height: 3.9m
Gross Trailer Weight: 31.47ton
Curb Weight: 10.4ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Standard Load Transport (Steel/Sand & Gravel/Finished Profiles/Containers/Fixed-Scene Short-Haul Transport)
Remarks: Standard: hydrogen supply system 4×385L (35MPa), electric tilting cab, 4-speed AMT
Energy Type: Hydrogen
electric motor
Motor 1 Brand: Zhide
Motor 1 Model: TZ460XS035
Max torque: 2400N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hydrogen
total rated power: 270kW
Peak power: 410kW
total rated torque: 1400N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 76.63kWh
Cab parameters
Cab: G extended high roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500kg
rear axle description: 13T
rear axle allowable load: 11500kg
Axle ratio: 5.286
Tire
Tire Size: 12R22.5 18PR
Number of tires: 6pcs
Control configuration
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Electric Heated Rearview Mirror:
smart configuration
Forward Collision Warning (FCW):

Photos

Exterior3

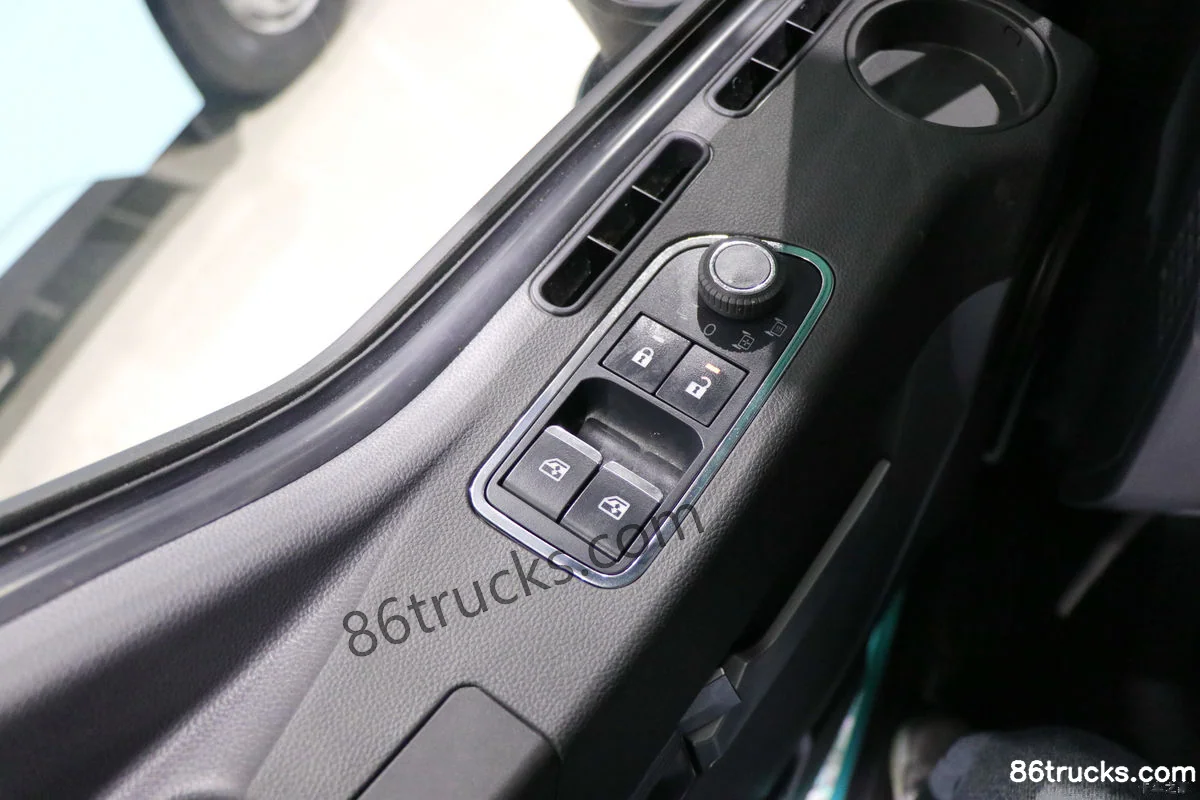

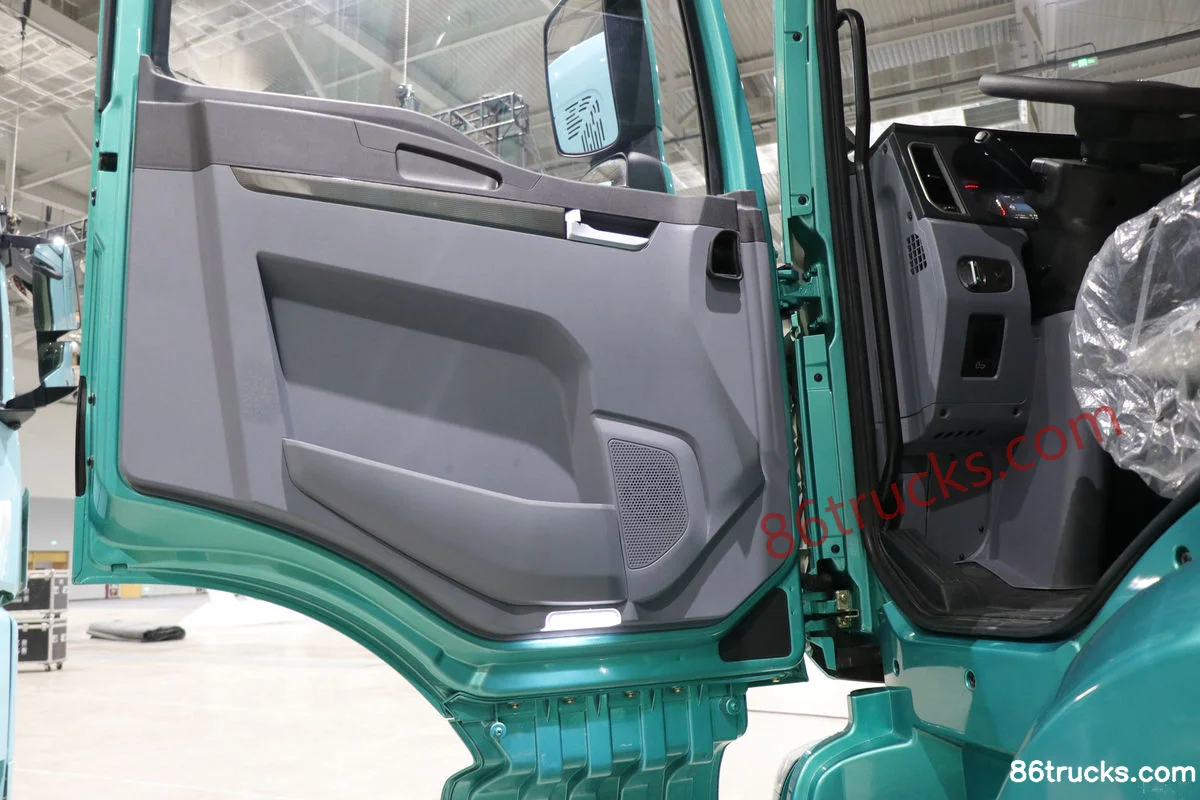

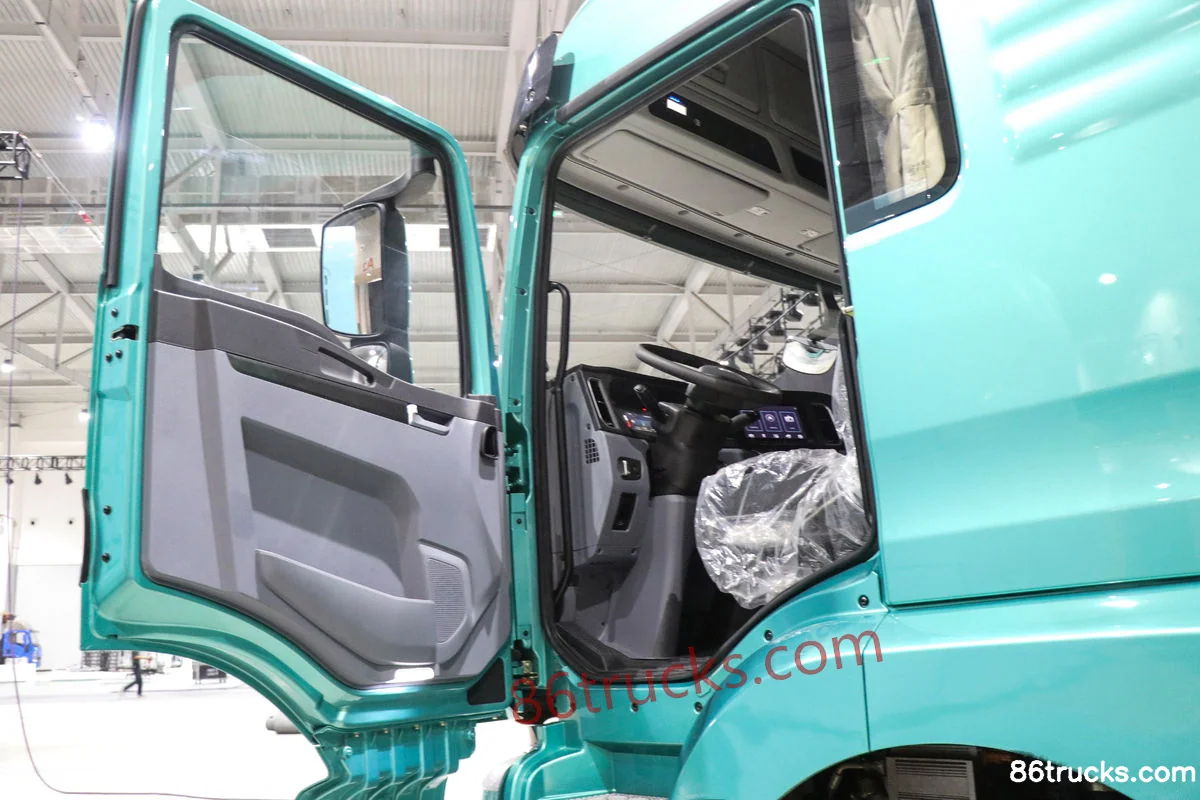

Cab3

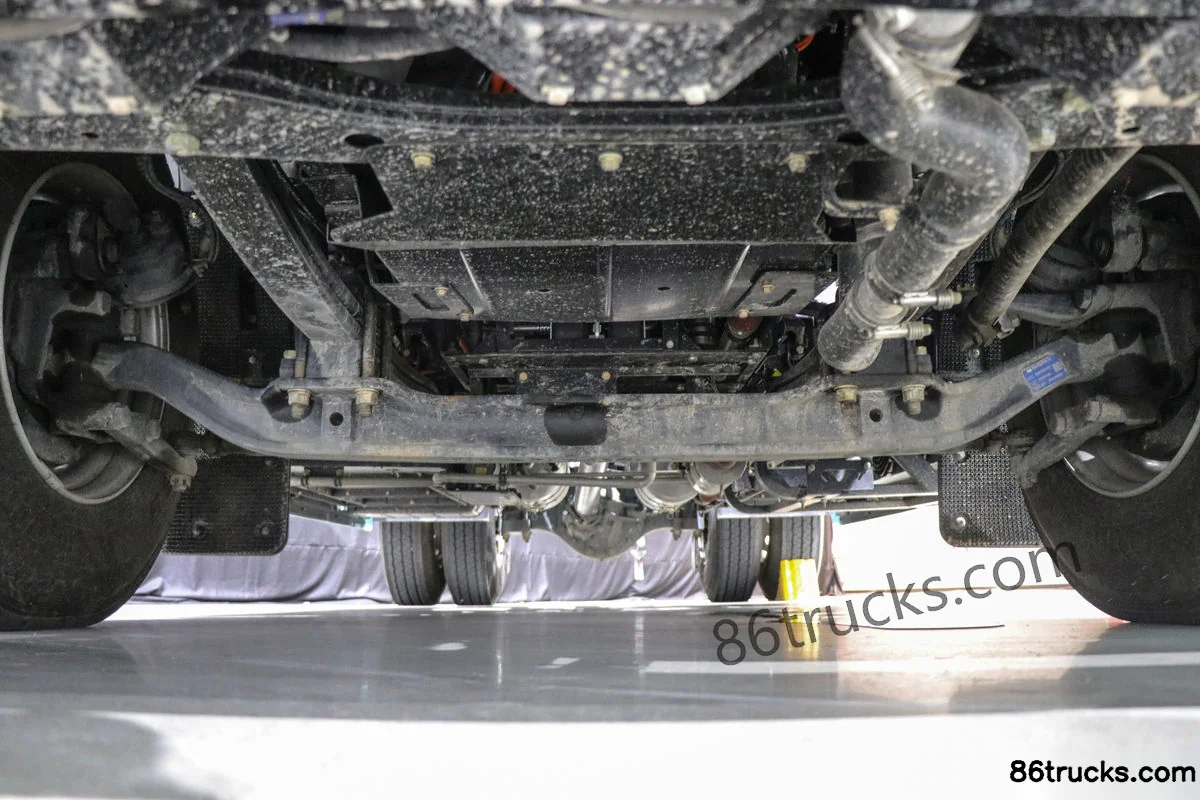

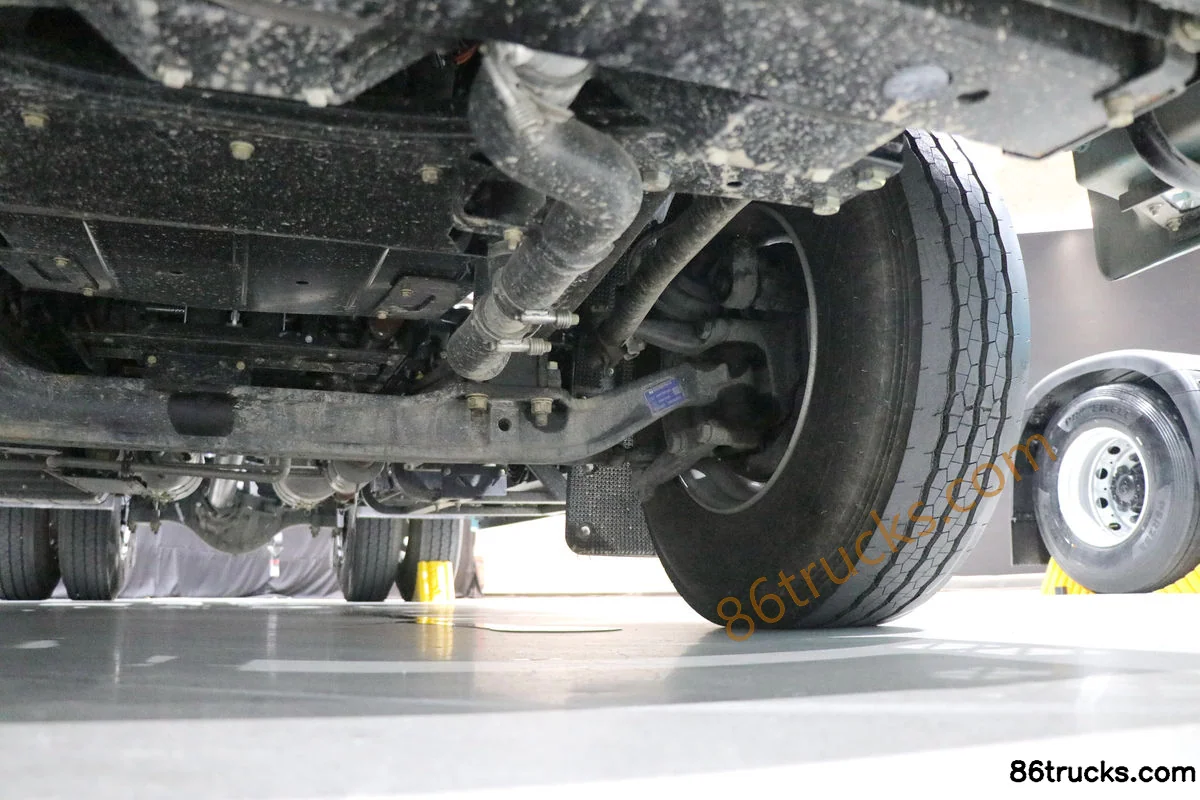

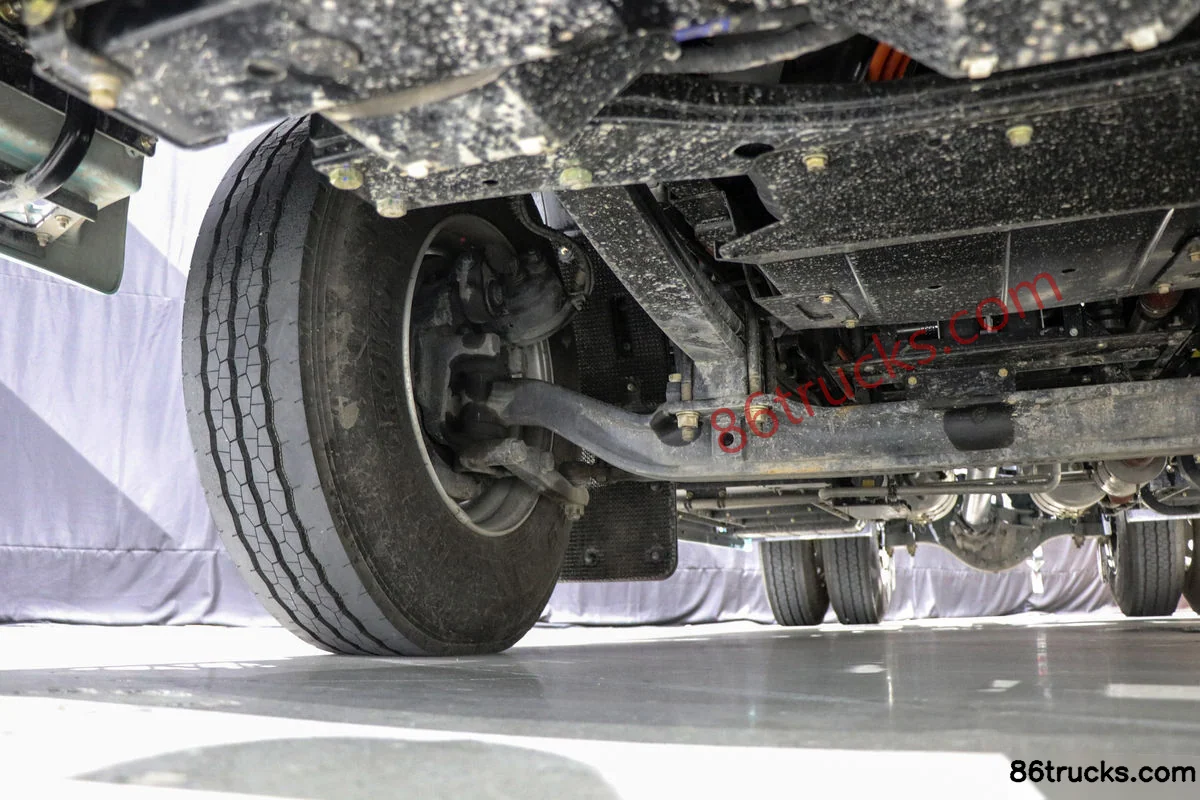

Chassis3

9 photos
