Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck

Export reference
From $20,833
MSRP ¥15M CNY
Horsepower: 189
Emission: China VI
Fuel: Diesel
Engine: Foton2.5L
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck is a Light Truck featuring 3.83m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a Foton2.5L engine, 189 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 189 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1045V9JBA-F4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: Foton4F25TC45
transmission: WLY6S468TO
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.33m
Front track width: 1730mm
rear track: 1710mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
Front/rear suspension: 1.12/1.515m
Version: Changying Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: 4F25TC45
Engine info: Foton2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 139kW
Max hp: 189Horsepower
Transmission Parameters
Transmission Model: 6S468TO
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.83m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Axle ratio: 4.875
Leaf spring count: 3/8+6
Frame Type: Straight-through frame
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

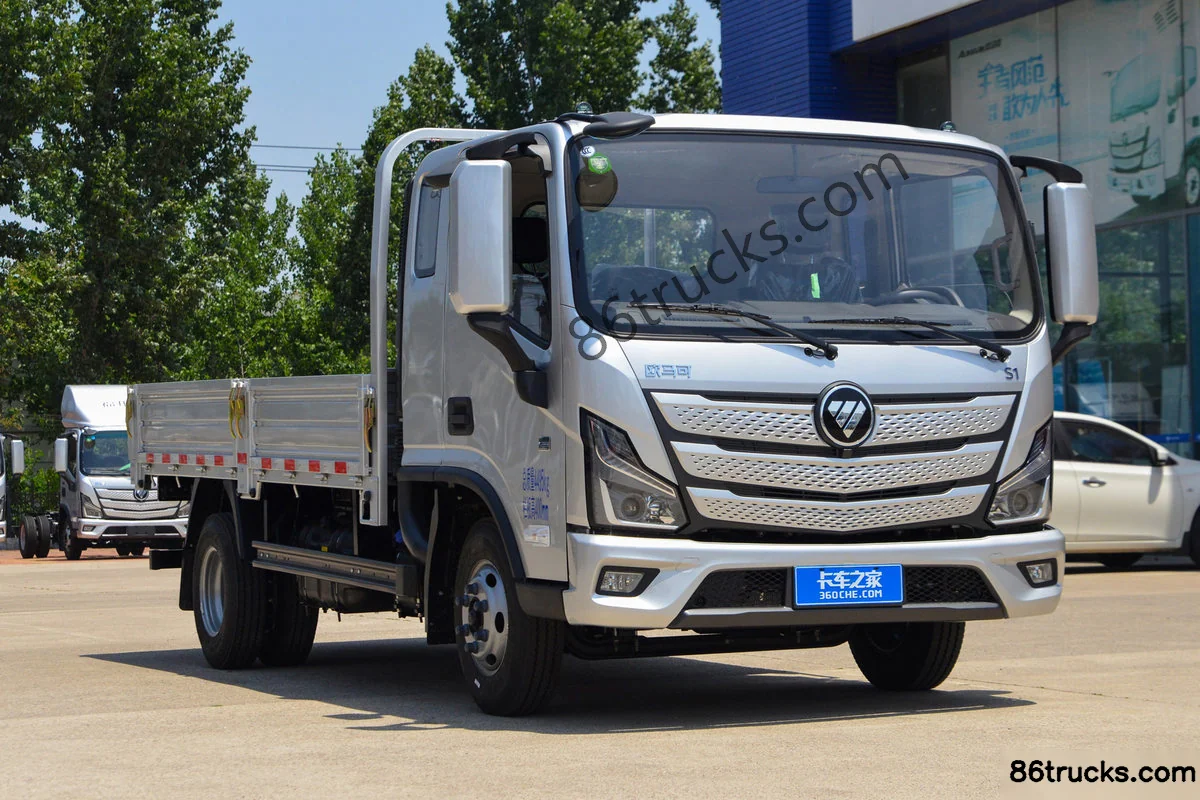

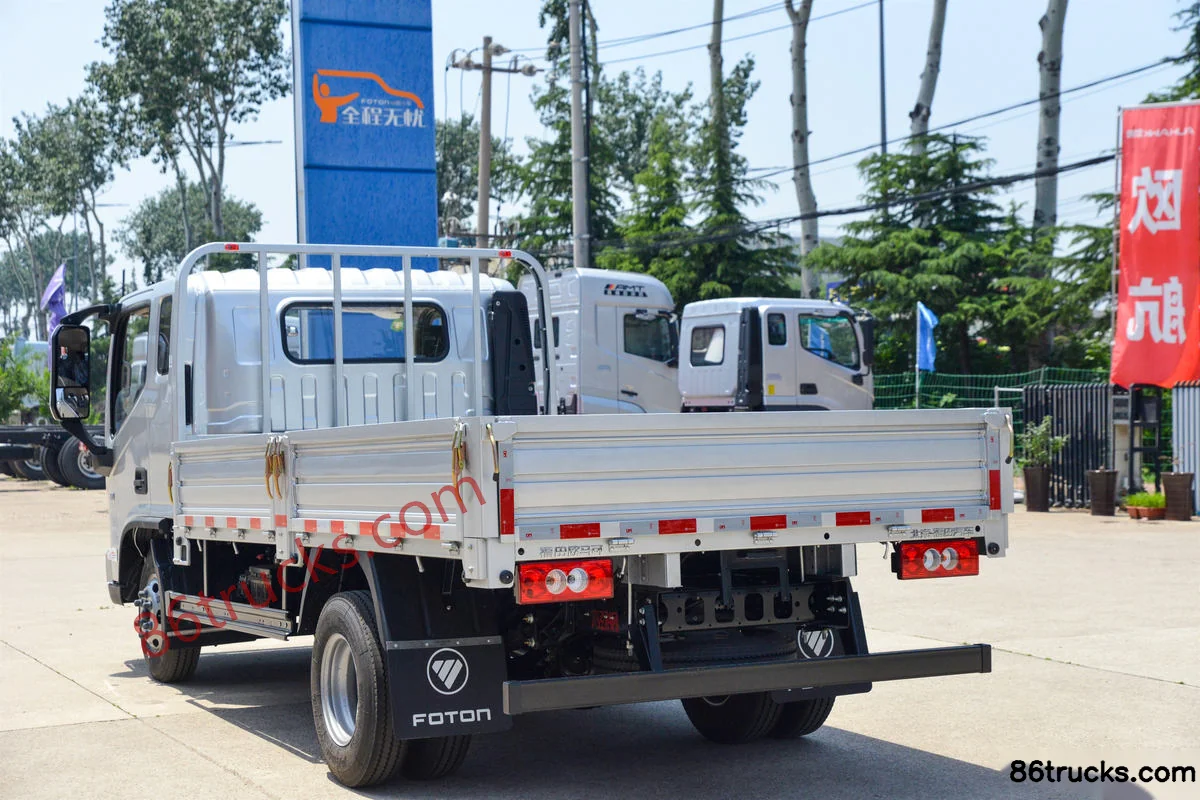

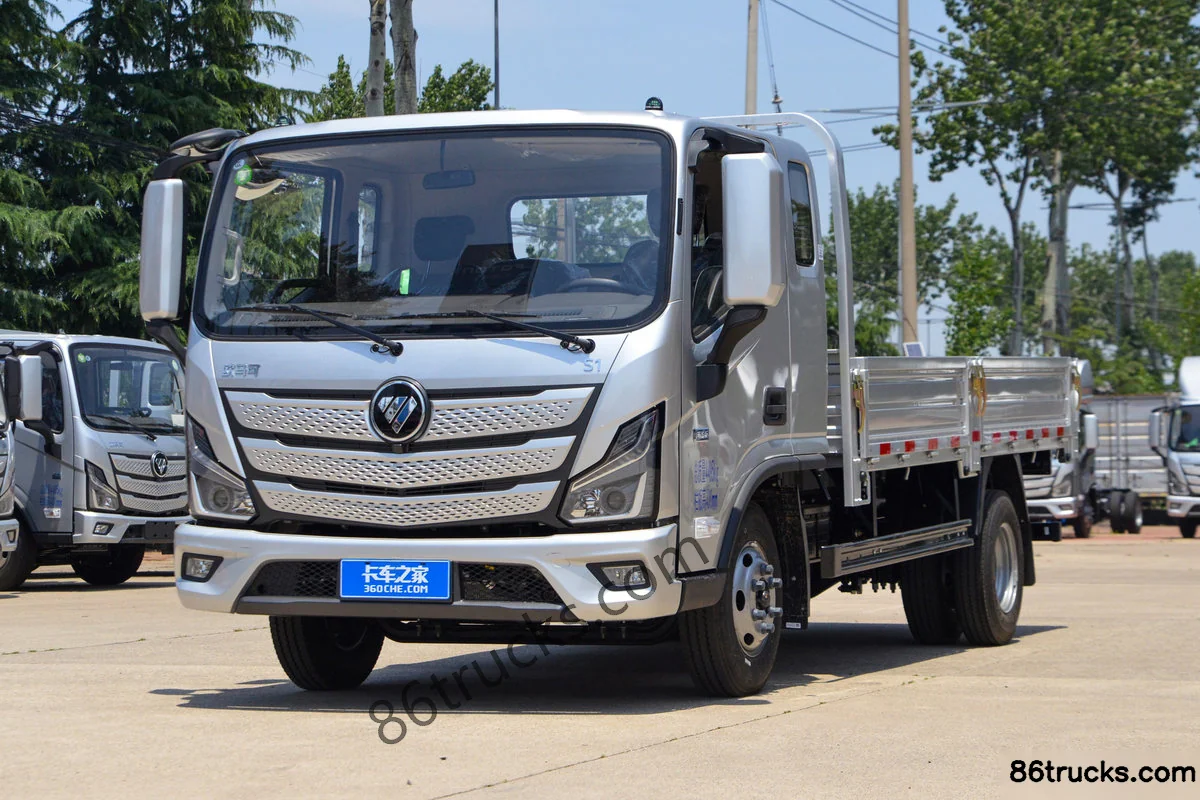

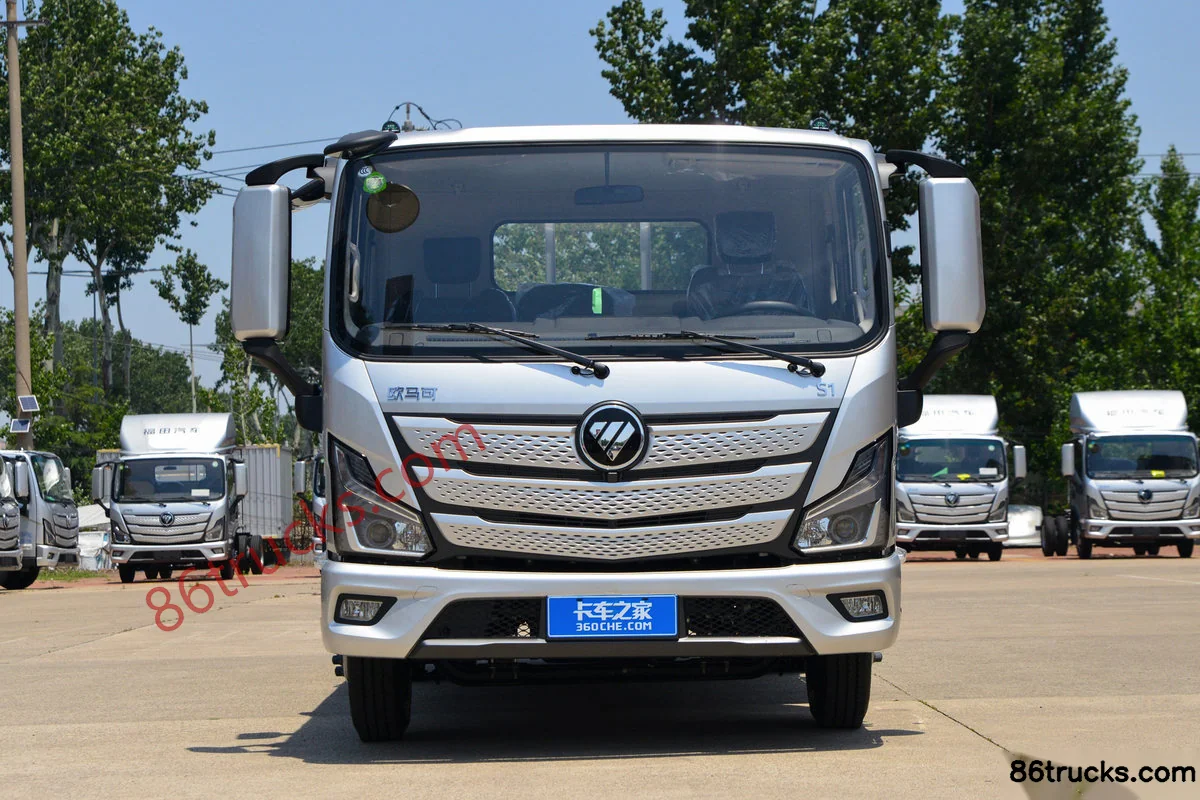

Exterior3

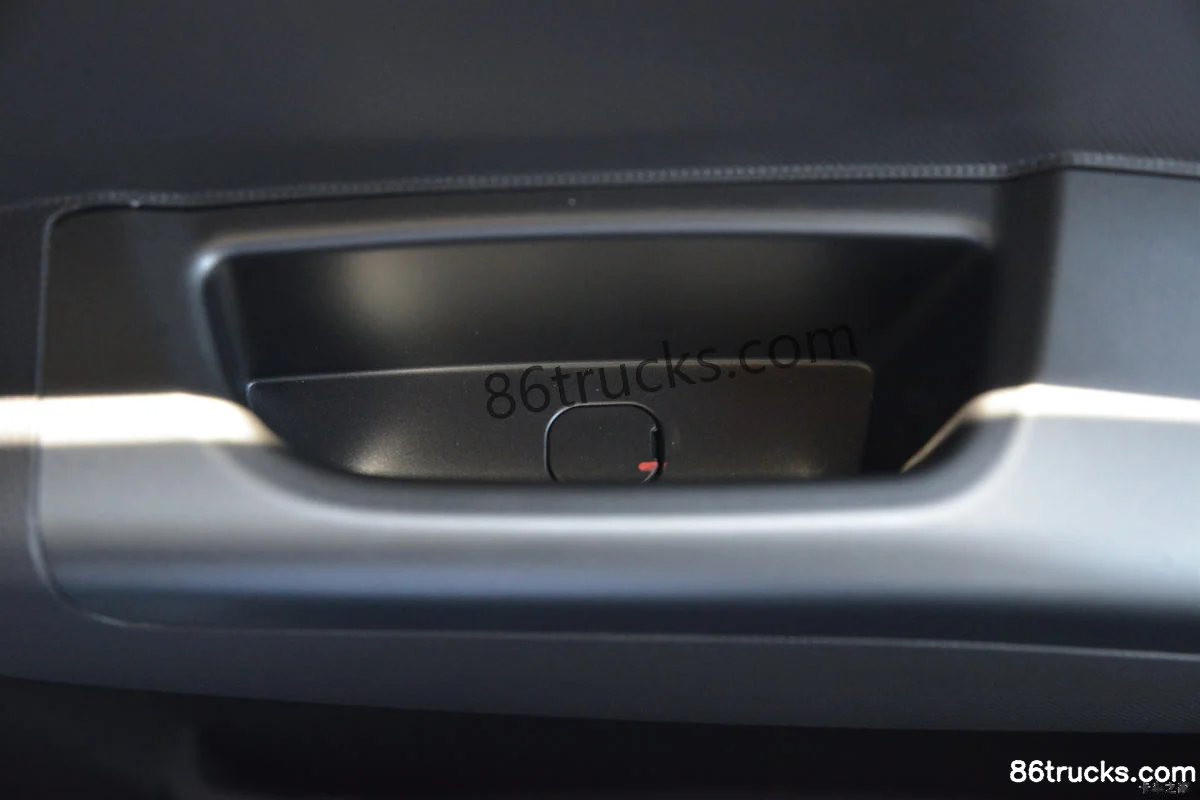

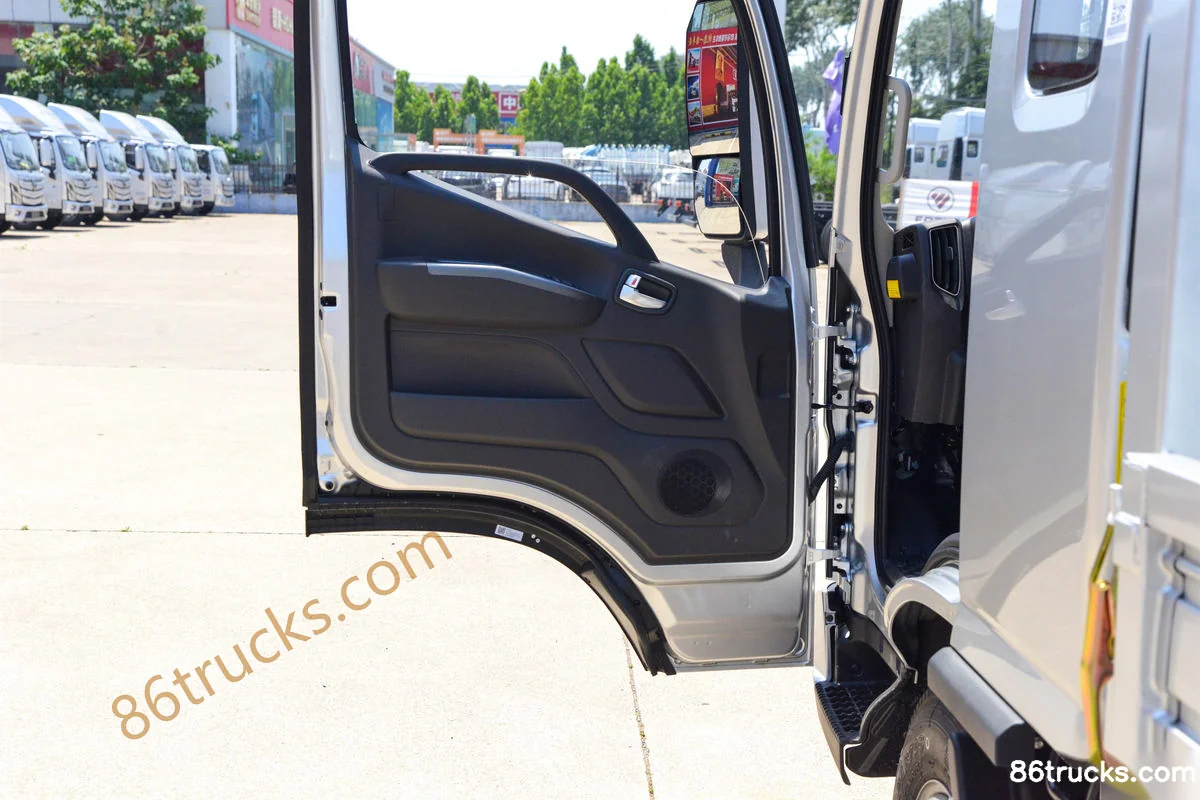

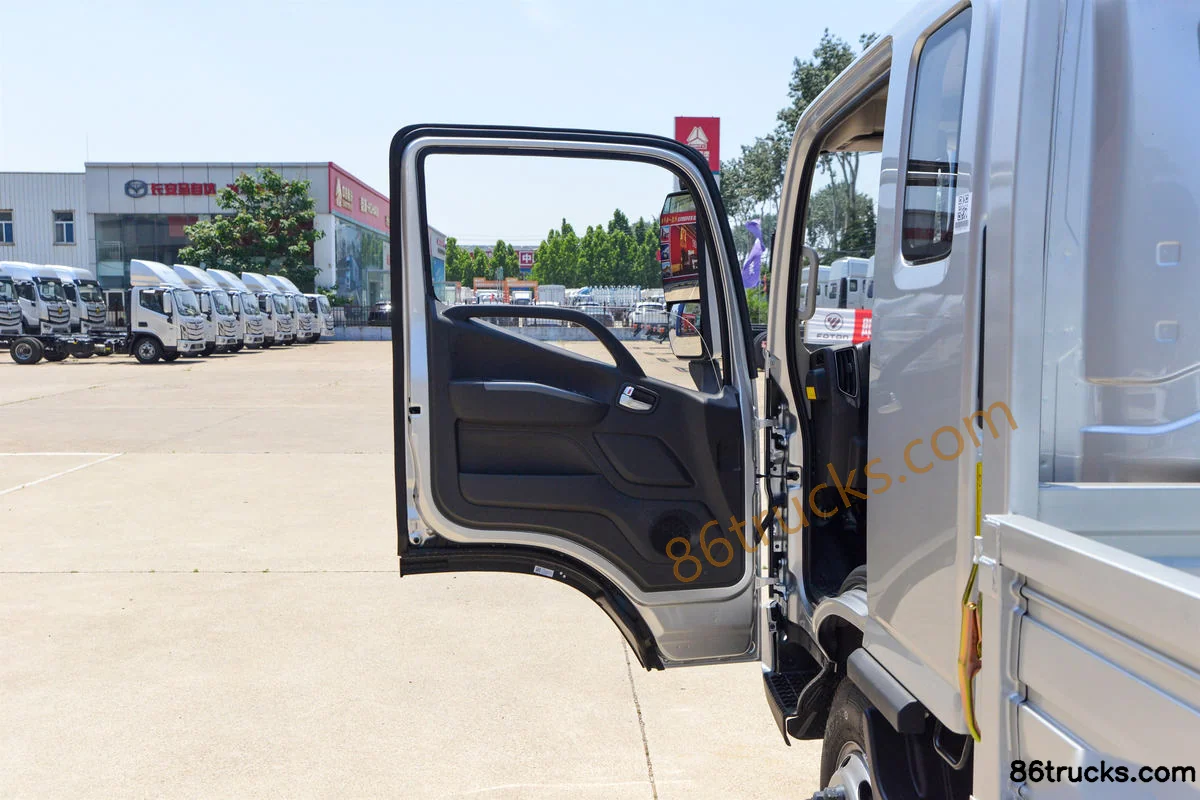

Cab3

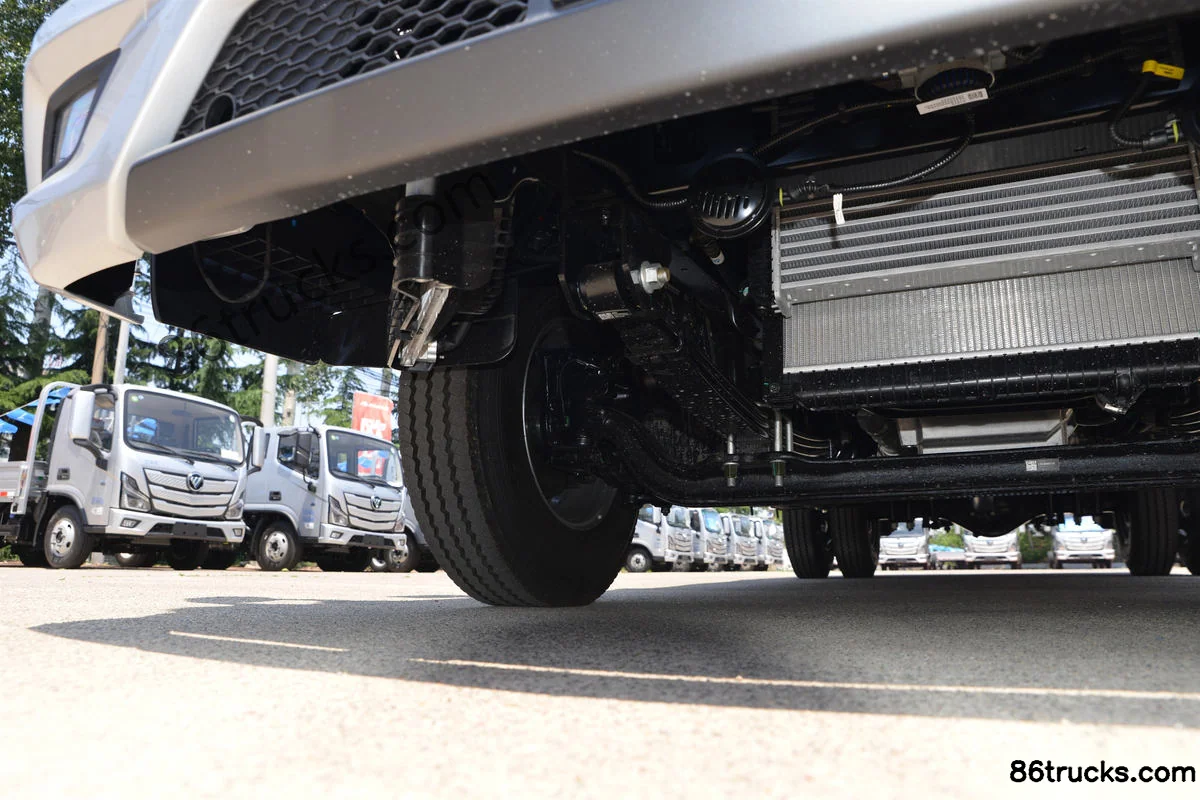

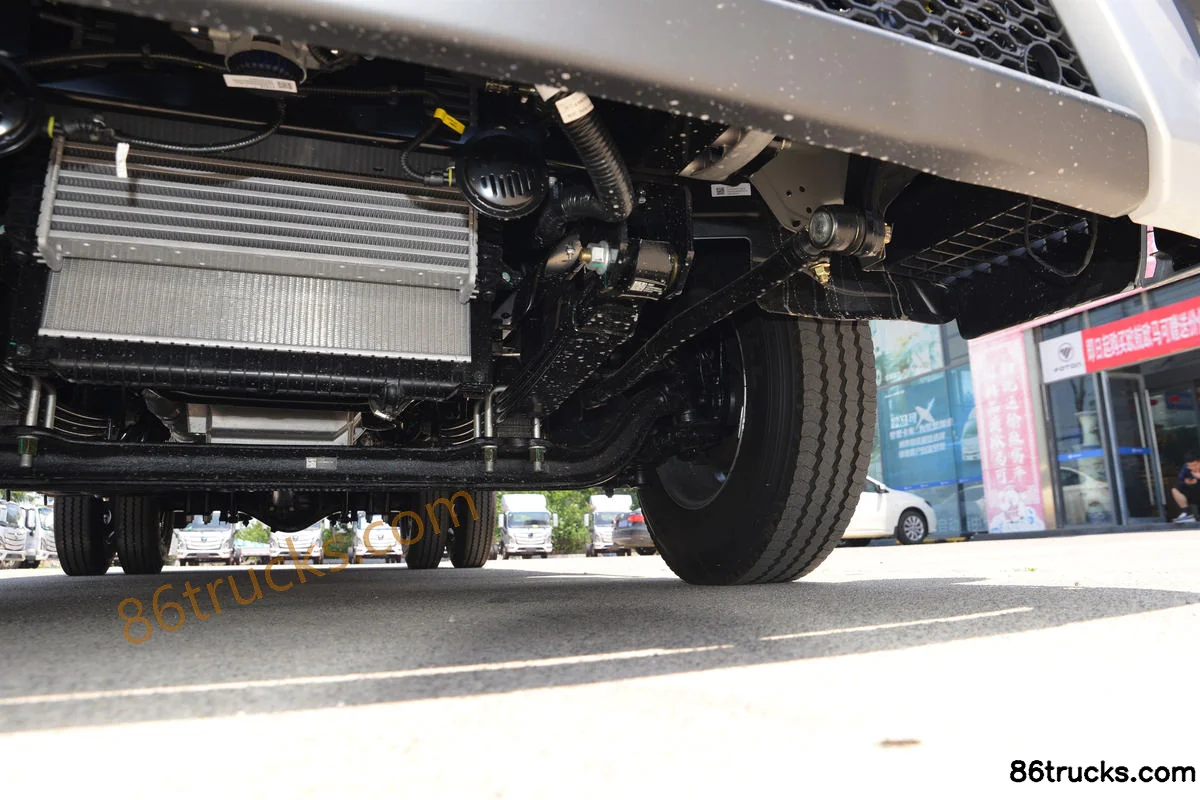

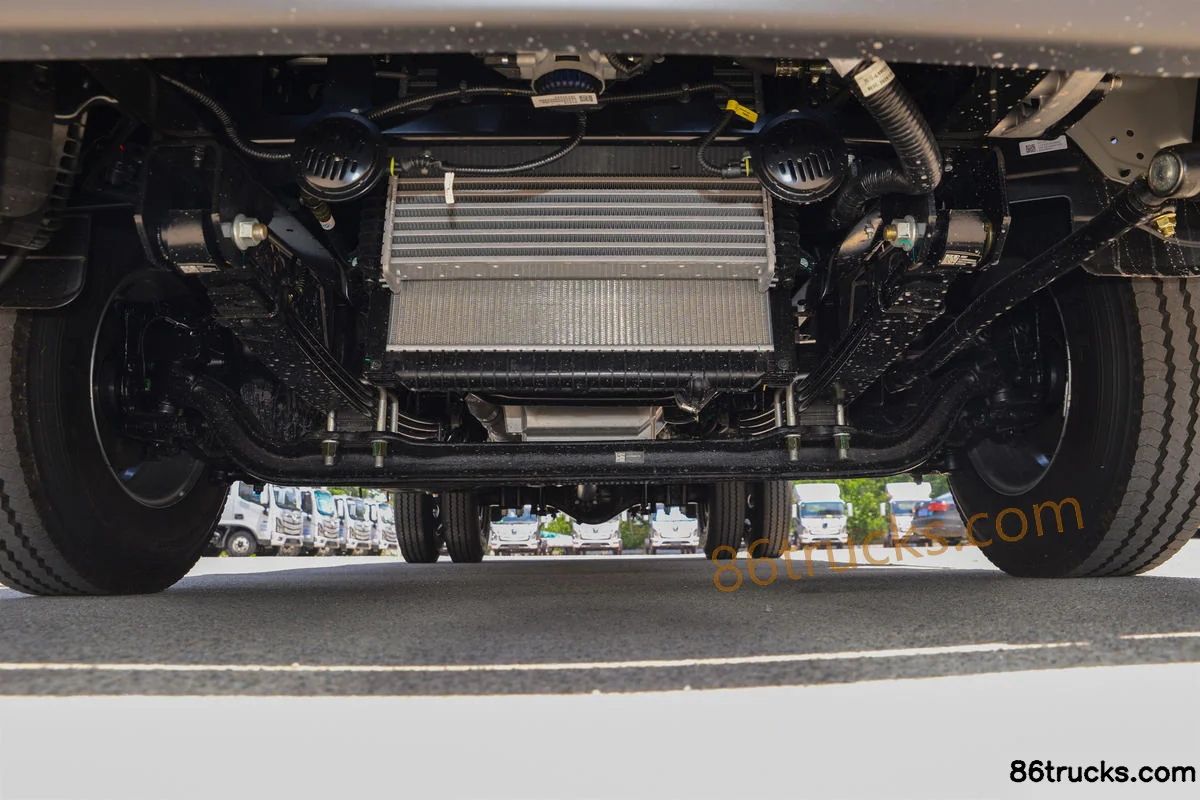

Chassis3

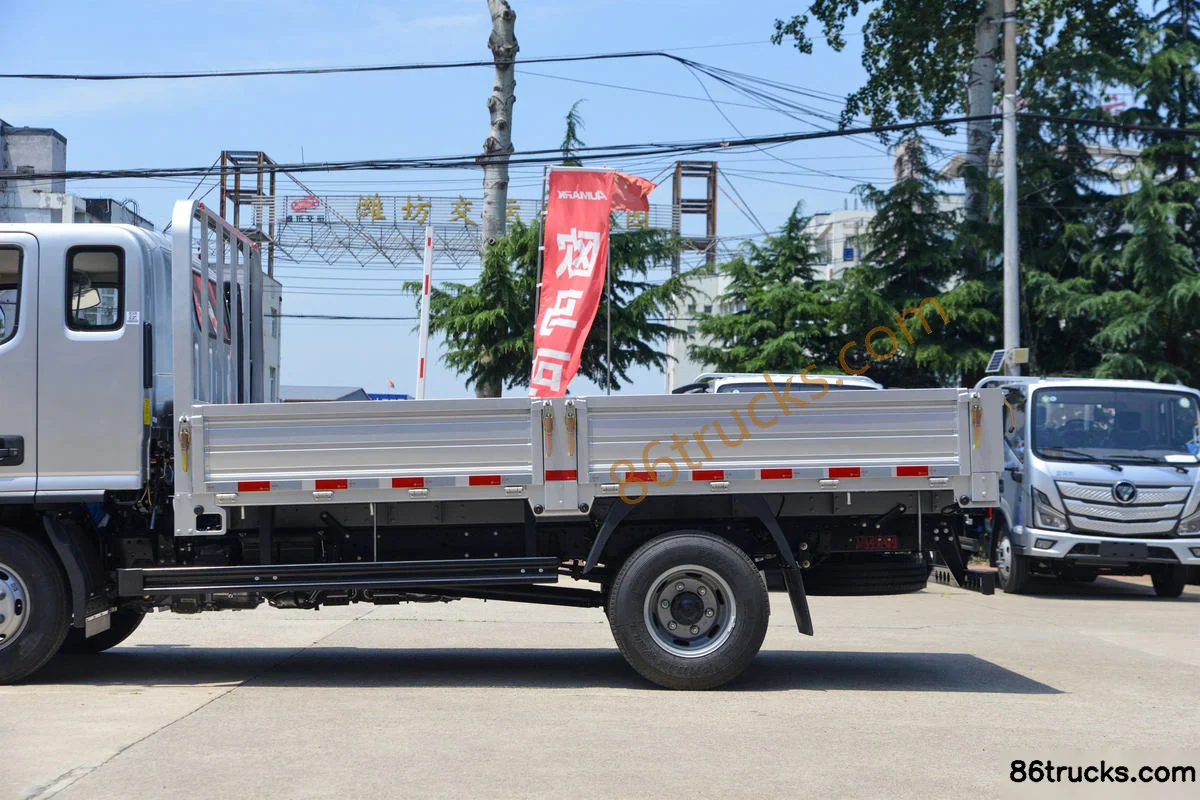

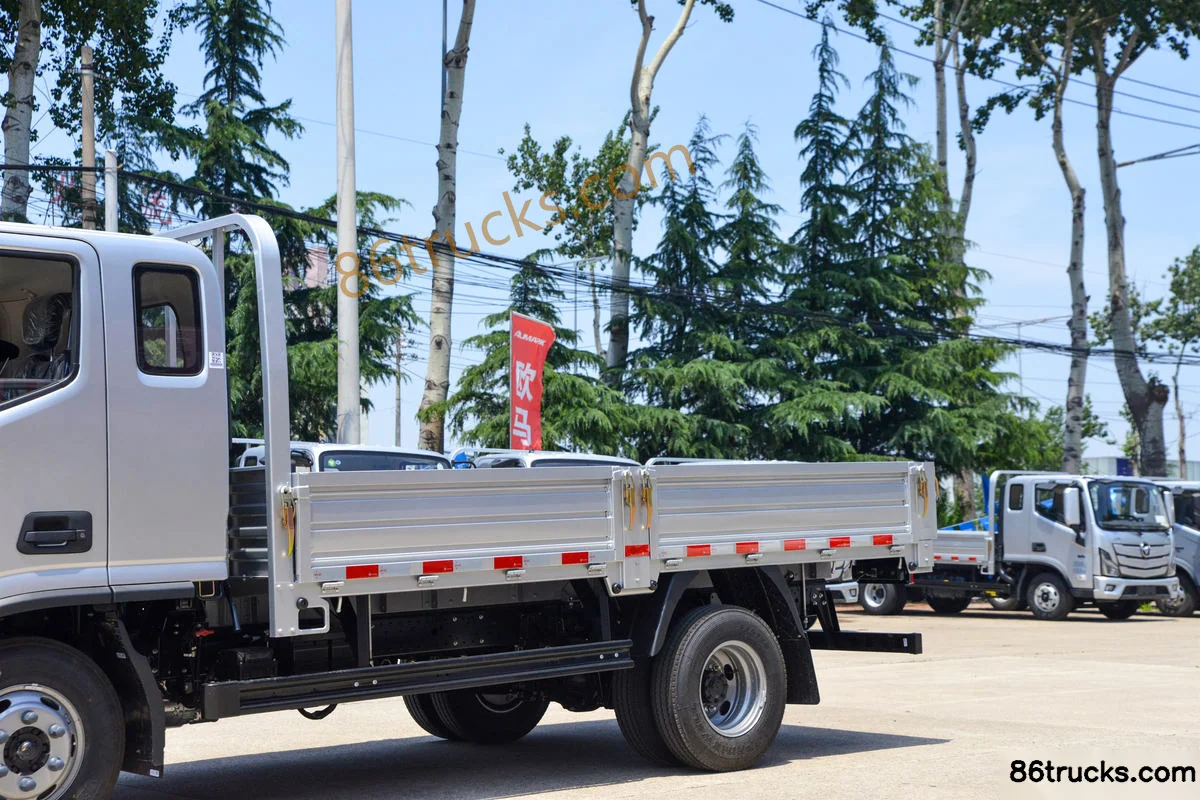

Body3

12 photos

FAQ

What is the export price of Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck, and what does it include?

Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck?

Key specs of Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck: Drive: 4x2; Horsepower: 189 hp; Emission: China VI; Fuel: Diesel; Engine: Foton2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck suited for?

Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck differ from other variants in the same series?

Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck belongs to Foton S1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton S1 Changying Edition 2.5L Diesel 189 hp 4X2(6 wheels) WLY 6-speed Air Brake 3.83m Semi-row Panel Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
