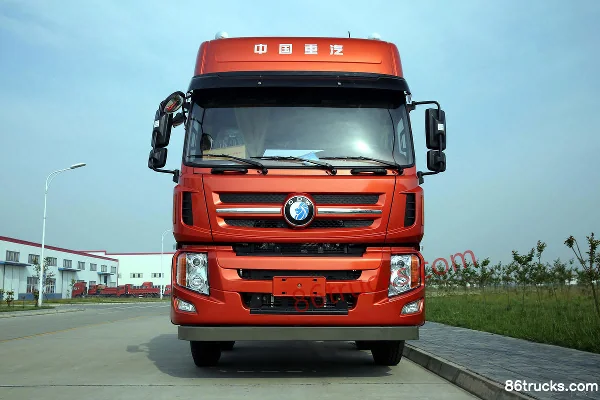

Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle)

Export reference
From $40,556
MSRP ¥29.2M CNY
Horsepower: 310
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 12.575ton
seating capacity: 3Personnel
Rated payload: 18.295ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 18.295t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 310 hp, 8X4 (12 wheels) drive and China V emissions.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5310CCYA1T5
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: SinotrukMC07.31-50
transmission: SinotrukHW19712CL
Rear Axle Ratio: 4.44
Cab length: 12m
Cab width: 2.5m
Cab height: 4m
Front track width: 2020/2020mm
rear track: 1800/1800mm
Curb Weight: 12.575ton
Rated payload: 18.295ton
GVWR: 31ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle:
market segment: Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel
Front/rear suspension: 1.55/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19712CL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 435 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.44
Leaf spring count: 4/4/5
Suspension (front/rear): Leaf spring
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle), and what does it include?

Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) export reference is about From $40,556; MSRP is ¥29.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle)?

Key specs of Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle): Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) suited for?

Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) differ from other variants in the same series?

Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle) belongs to Sinotruk Wangpai W5B near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk W5B-H heavy truck 310 hp 8X4(12 wheels) 9.6m stake truck (435 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
