Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 7.68ton
Wheelbase:: 5200mm
Tire Size:: 295/80R22.5 18PR
Cab dimensions:: 9.17×2.6×3.98m
Truck Type:: Refrigerated Truck
Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck exterior
View more photos (12)
Rated payload: 10.125ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 6.9×2.45×2.5m
Horsepower 330

Overview

The Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck is a Refrigerated Truck featuring 6.9×2.45×2.5m cargo body, 10.125t payload, 9.17×2.6×3.98m cab and 5200mm wheelbase. On the powertrain side, it comes with 330 hp, 4X2 (6 wheels) drive and Diesel fuel.

330 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 9.17×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5200mm
Vehicle origin: Shandong Zhangqiu
Front track width: 1950mm
rear track: 1850mm
Curb Weight: 7.68ton
Rated payload: 10.125ton
GVWR: 18ton
Max. speed: 89km/h
Front/rear suspension: 1.45/2.52m
Energy Type: Diesel
Engine parameters
Engine Model: MC07H.33-61
fuel type: Diesel
Displacement: 7.36L
Max output power: 240kW
Max hp: 330Horsepower
Max torque: 1400N·m
Rated speed: 2200rpm
Cargo box parameters
Cargo box dimensions: 6.9×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: ZZ5186XLCN521GF1
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK G5
Chassis Model: ZZ1186N501GF1
Leaf spring count: 3/7+3
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

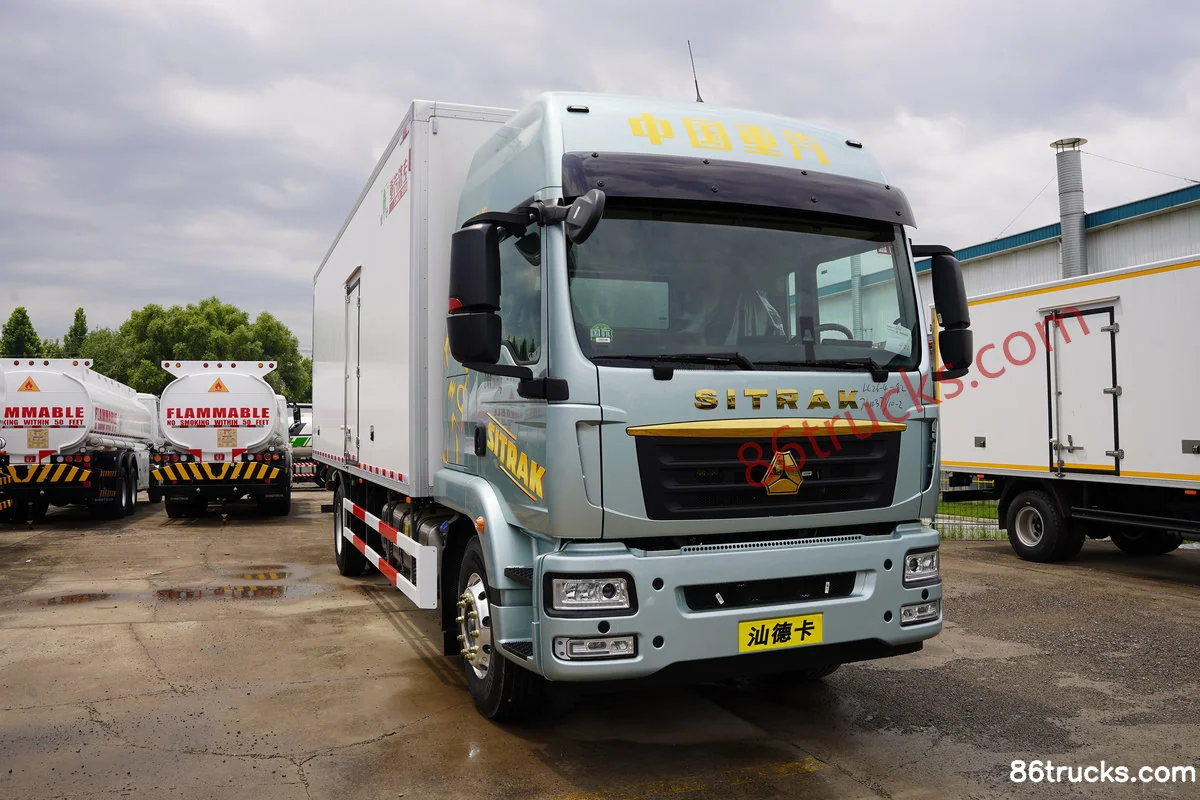

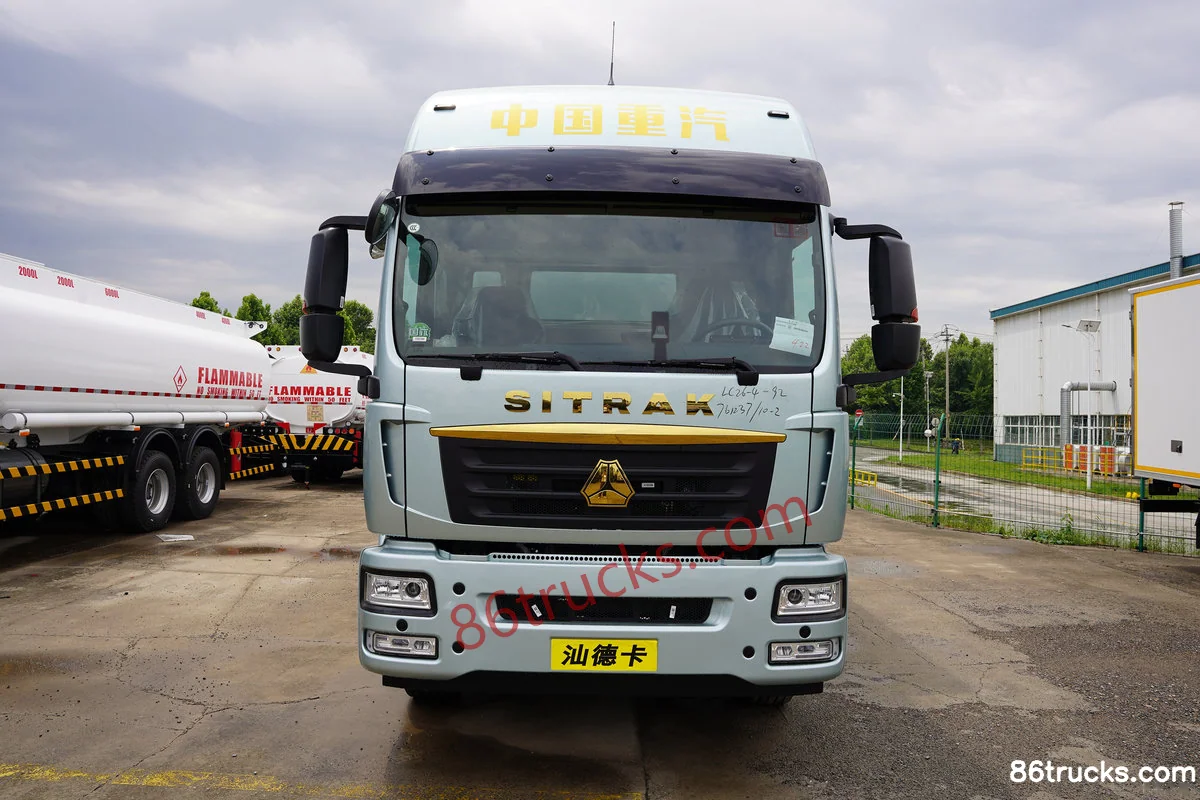

Exterior3

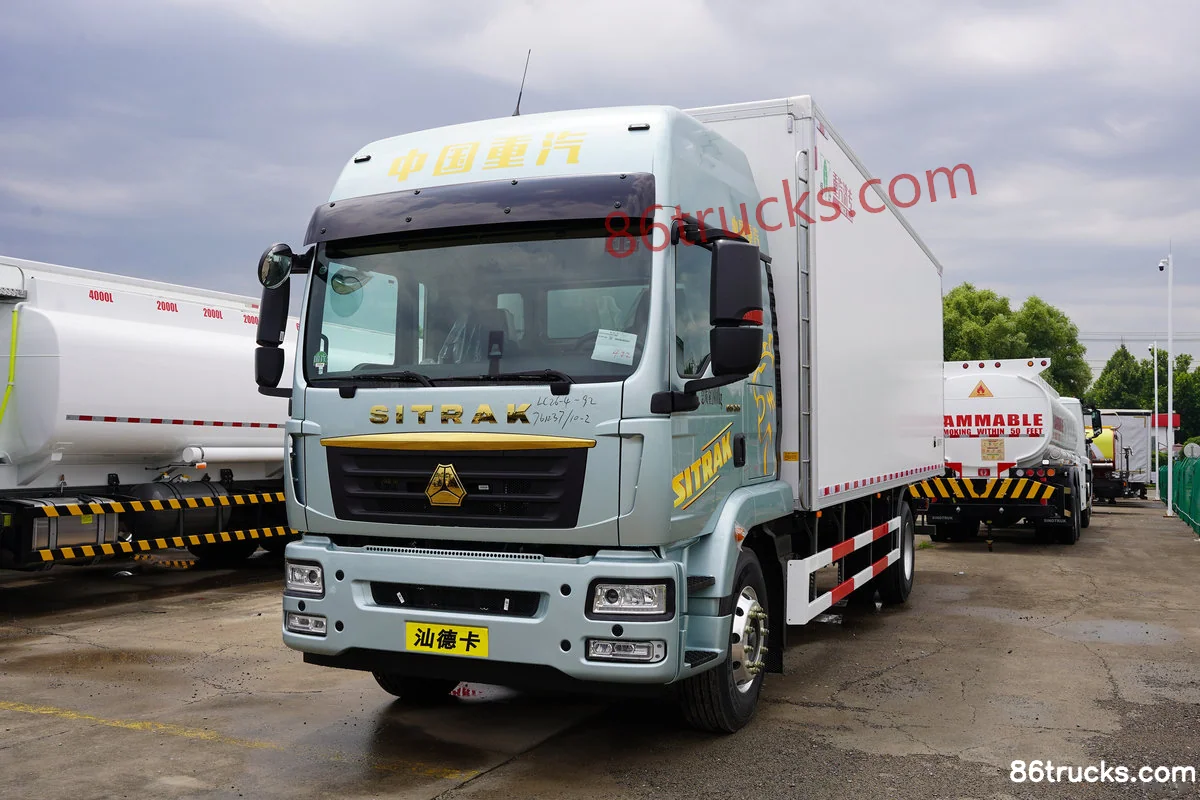

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Exterior (1) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Exterior (2) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Exterior (3) | 86Trucks

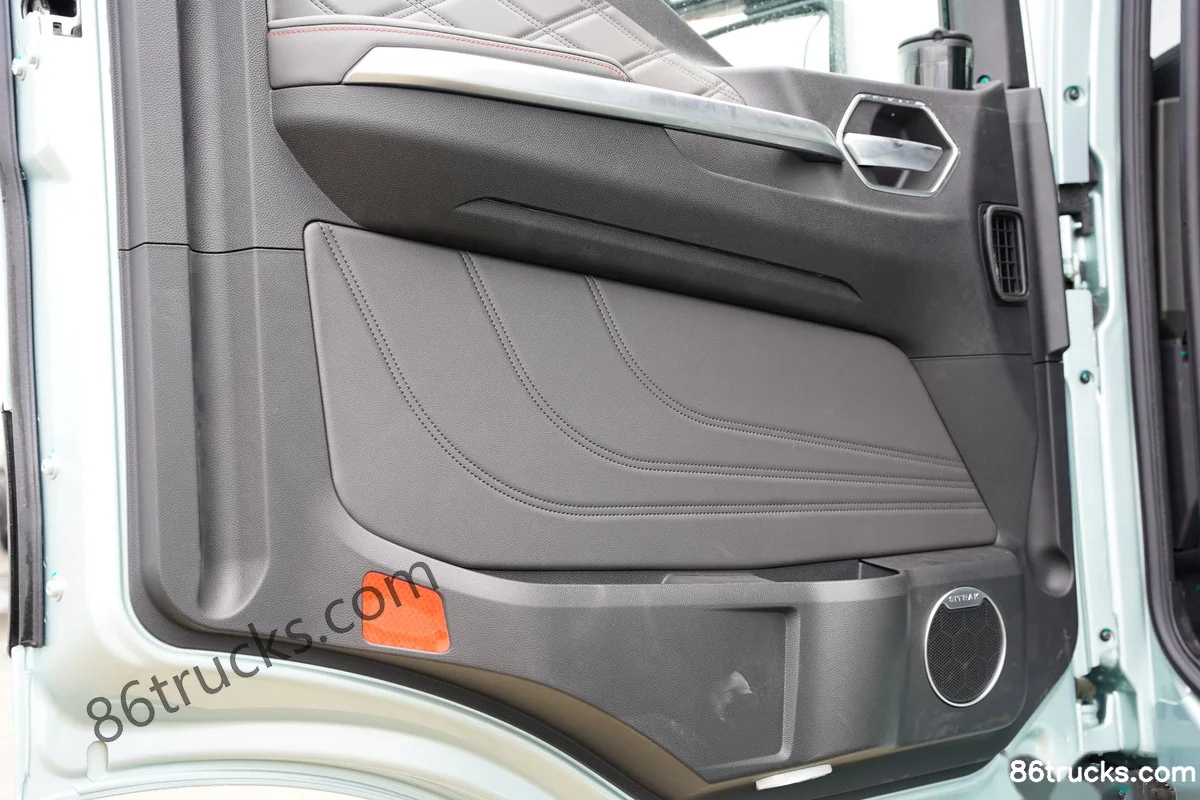

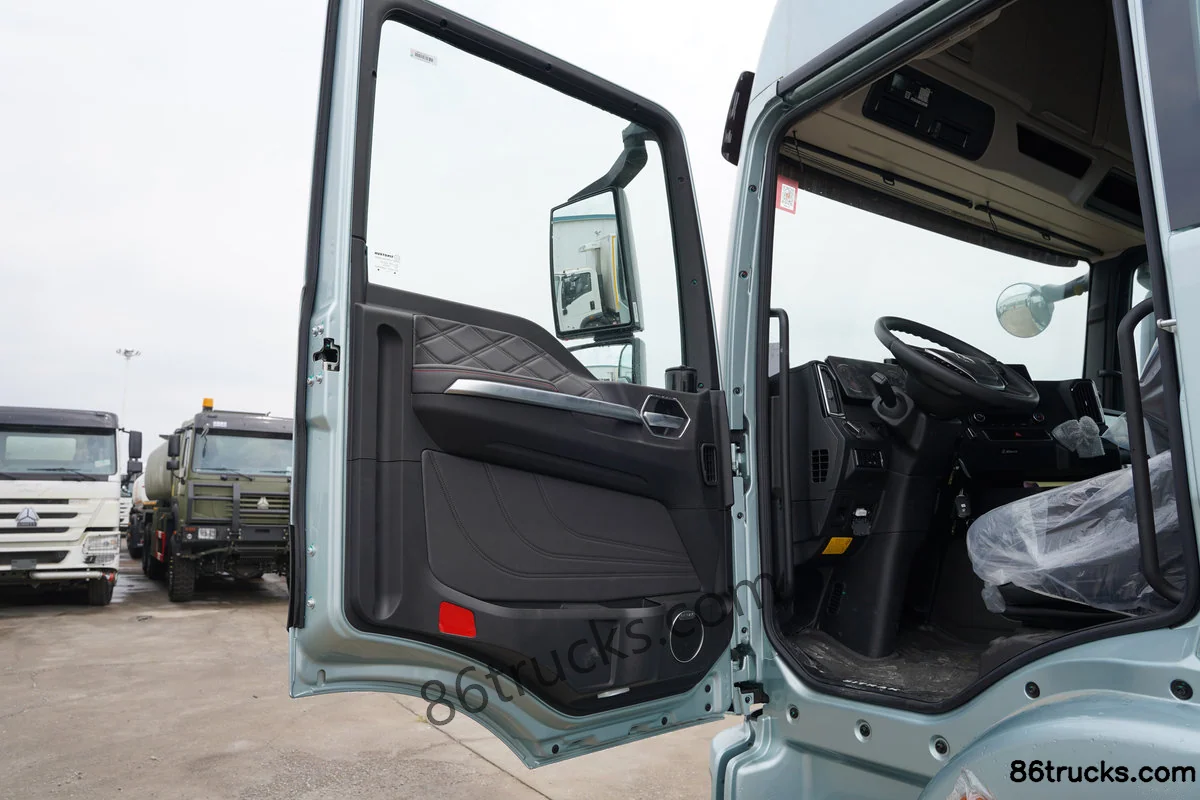

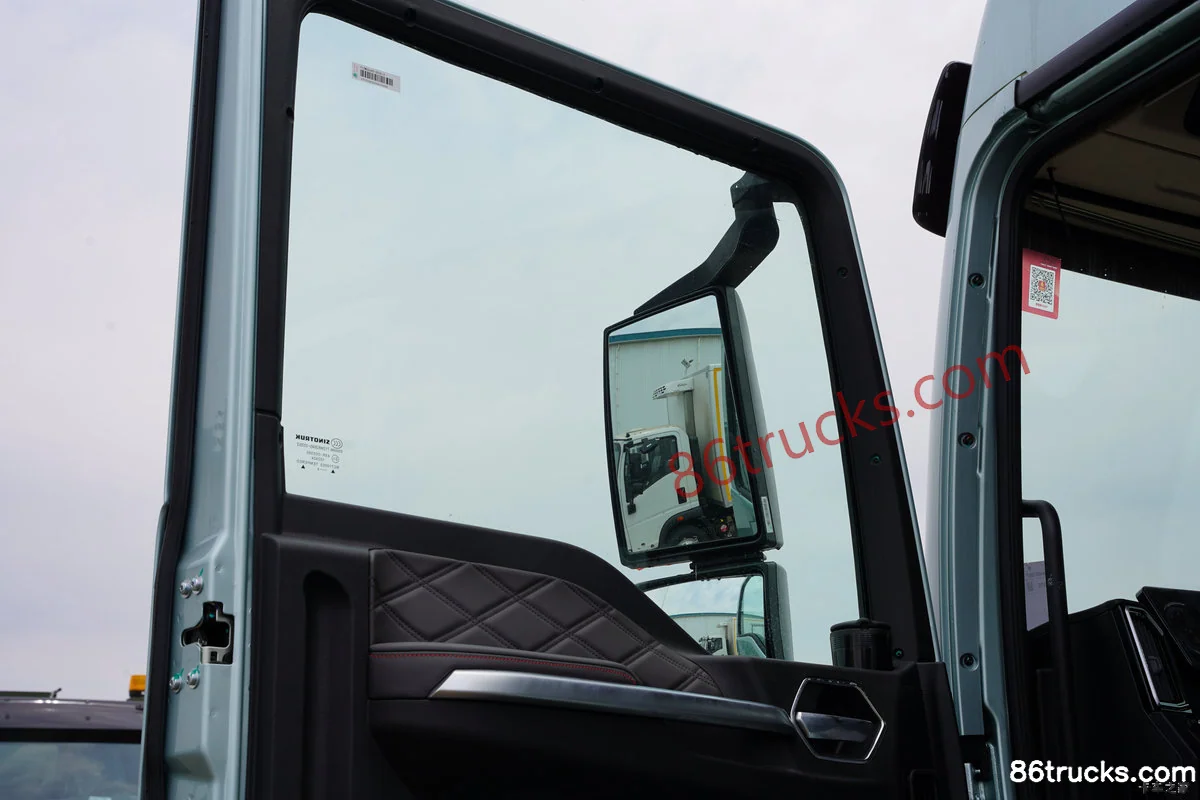

Cab3

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Cab (1) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Cab (2) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Cab (3) | 86Trucks

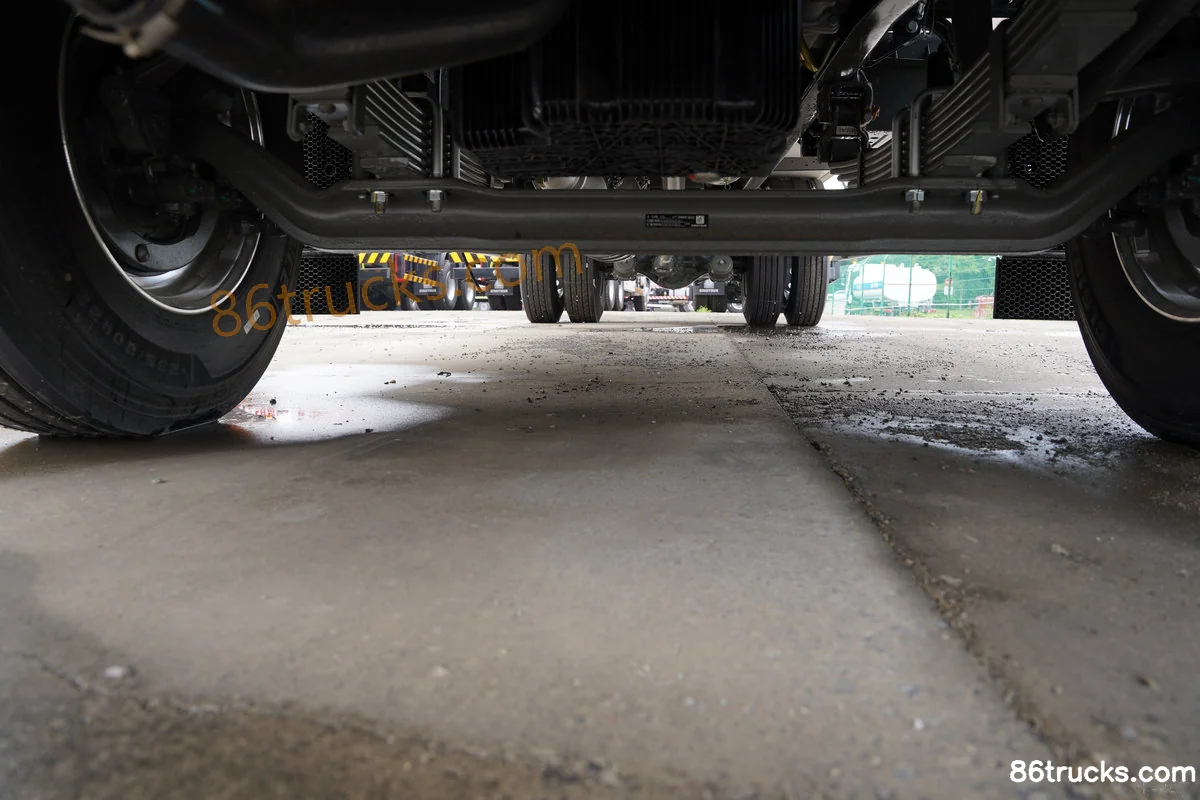

Chassis3

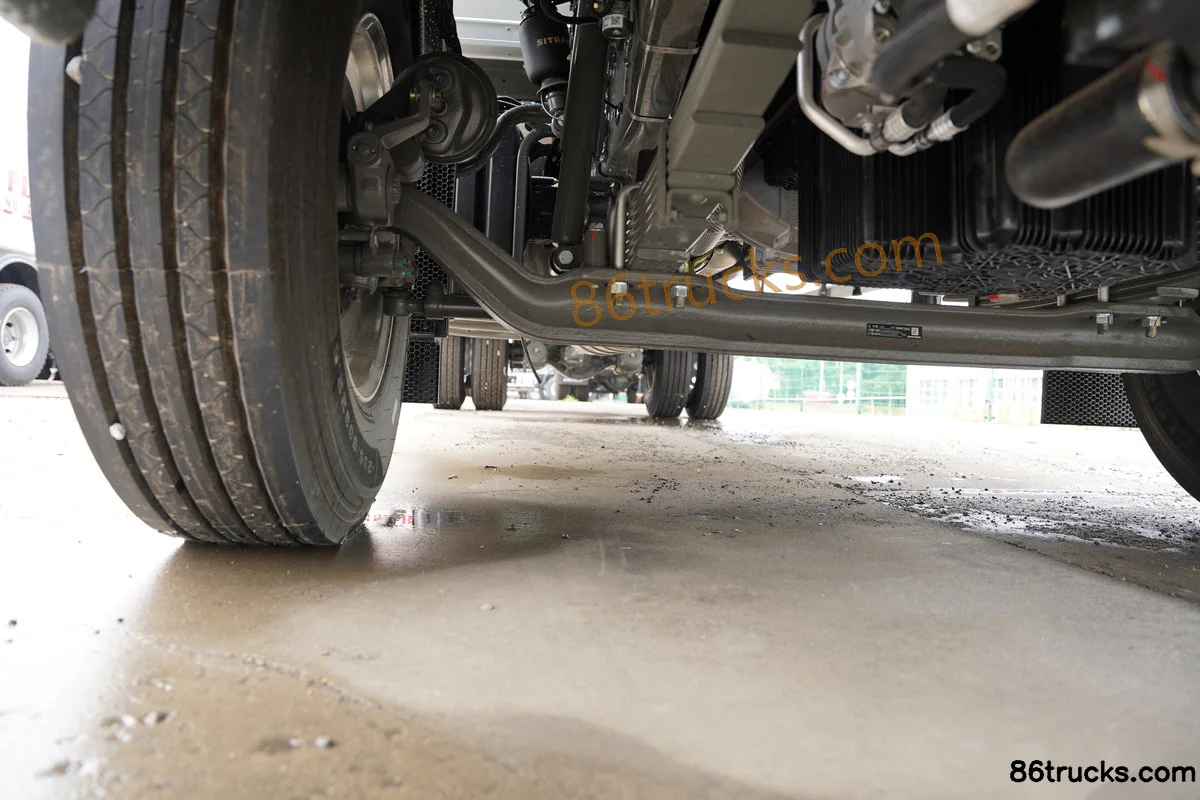

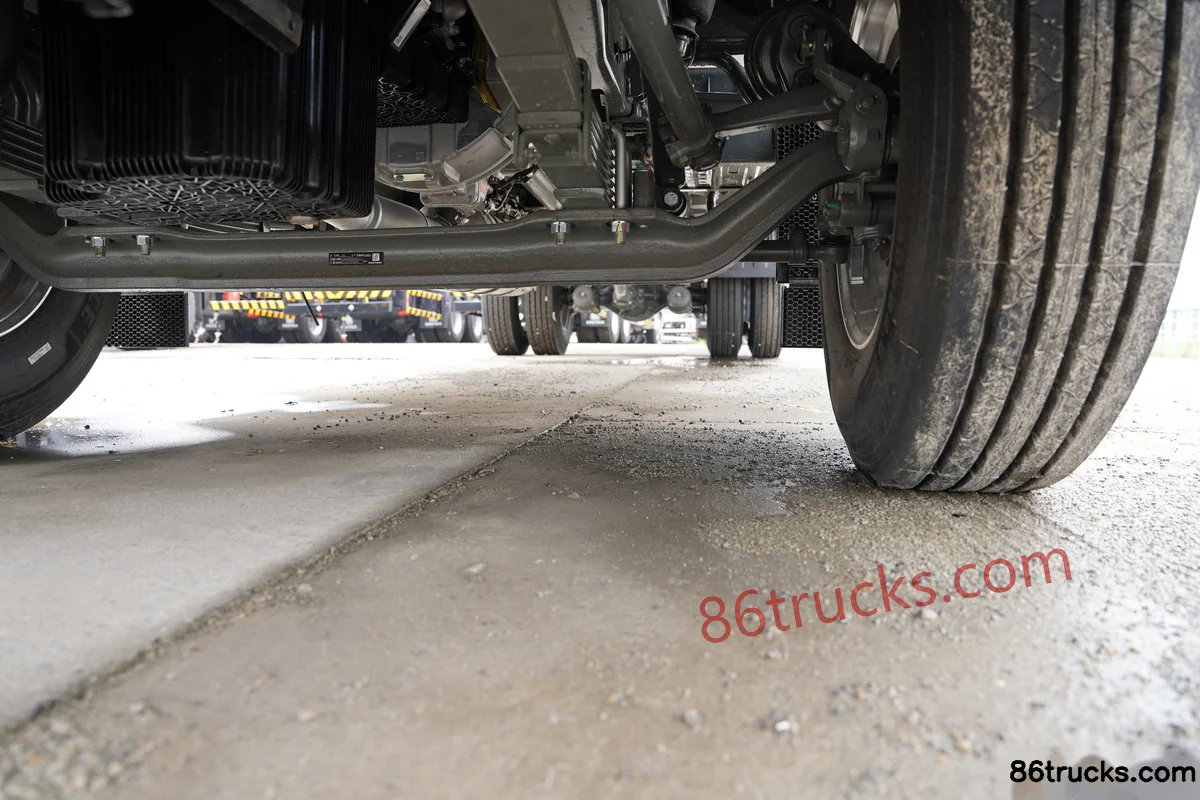

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Chassis (1) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Chassis (2) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Chassis (3) | 86Trucks

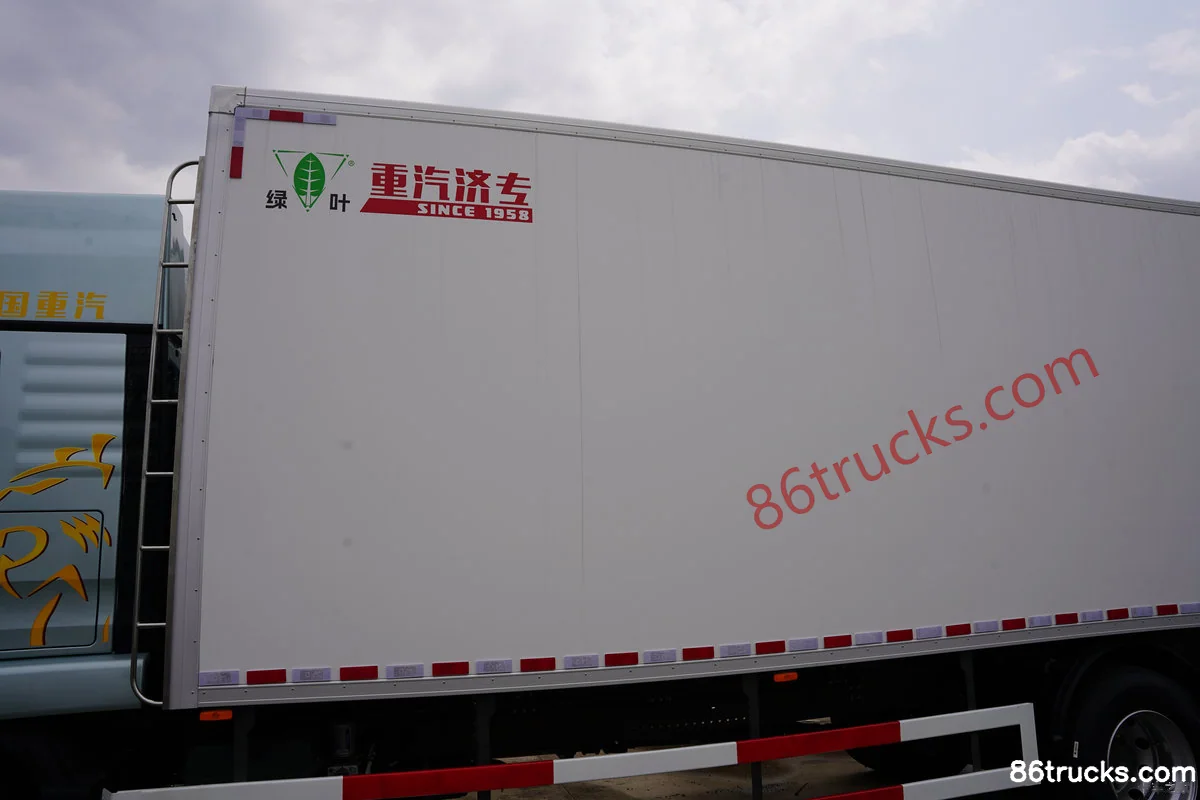

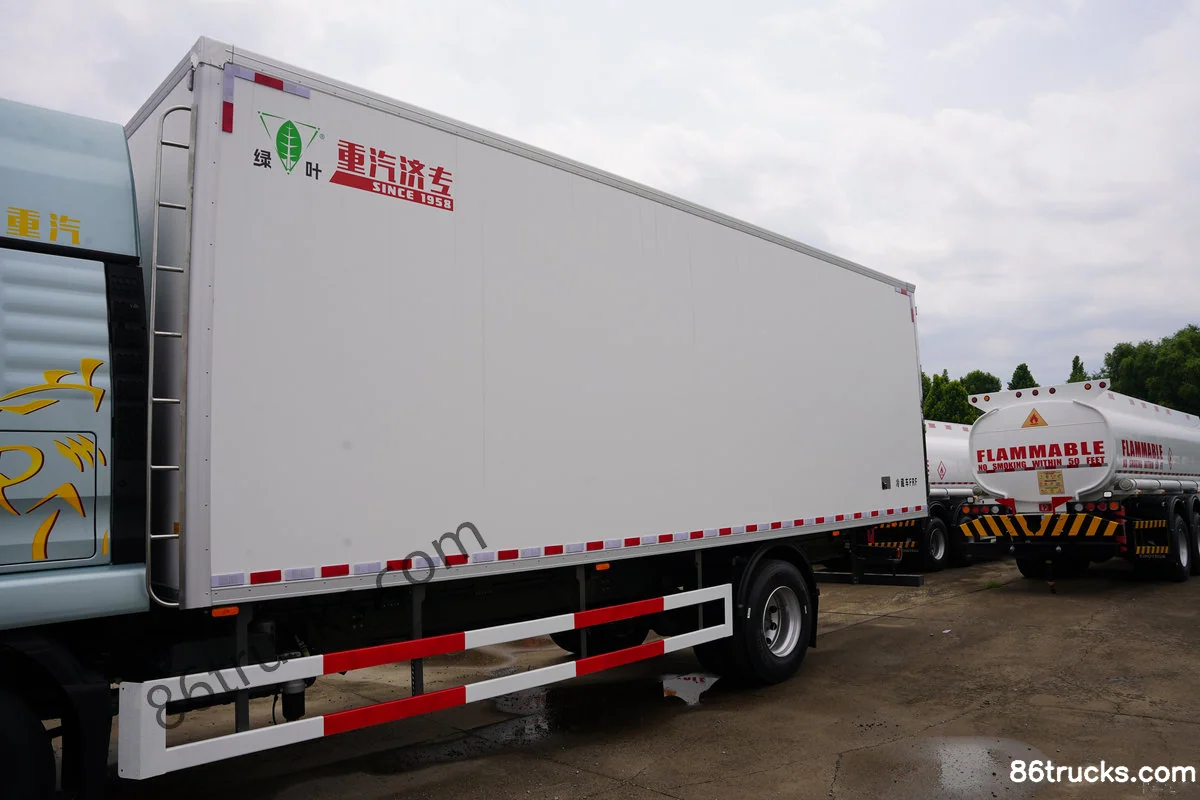

Body3

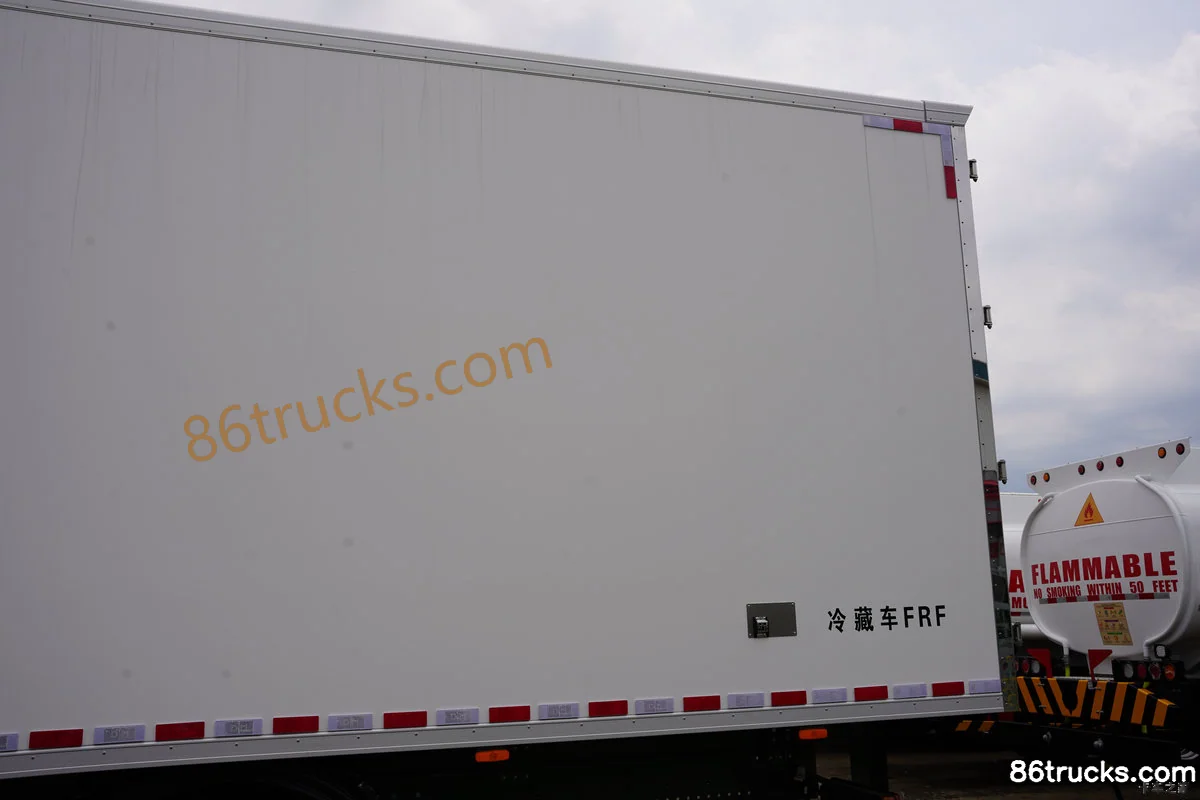

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Body (1) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Body (2) | 86Trucks Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck?

Key specs of Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck: Drive: 4x2; Horsepower: 330 hp; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck suited for?

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck differ from other variants in the same series?

Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck belongs to Sitrak G5 heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sitrak G5 330 hp 4X2(6 wheels) Diesel AMT Automatic 6.9m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
