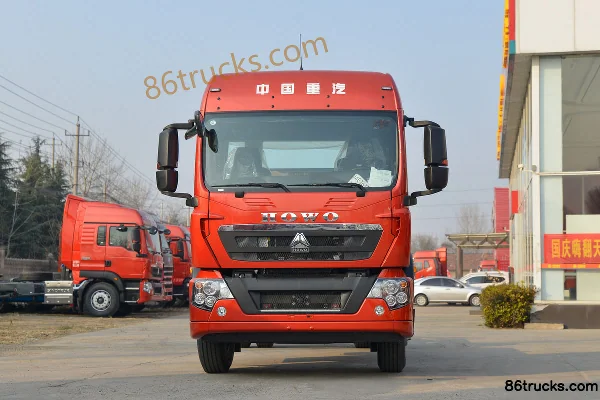

Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI)

Export reference
MSRP N/A
Horsepower: 290
Emission: China VI
Fuel: Diesel
Engine: SinotrukMC07
Transmission: Sinotruk
Curb Weight:: 8.82ton
seating capacity: 2Personnel
Rated payload: 16.05ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) is a Medium-duty truck featuring 7.8m cargo length, Stake type cargo body, 2Personnel volume and 16.05t payload. Its segment focus covers General dry cargo and green channel, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC07 engine, 290 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 290 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5257CCYM46CGF1
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+4600mm
Box length class: 7.8m
engine: SinotrukMC07.29-60
transmission: SinotrukHW13709XSTC
Rear Axle Ratio: 4.11
Cab length: 10.04m
Cab width: 2.55m
Cab height: 4m
Front track width: 1950/1950mm
rear track: 1860mm
Curb Weight: 8.82ton
Rated payload: 16.05ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 10°
market segment: General dry cargo, green channel
Remarks: Optional: flagship cab, four-way camera, 600L fuel tank
Front/rear suspension: 1.43/2.21m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.29-60
Engine info: SinotrukMC07
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China VI
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW13709XSTC
Transmission Brand: Sinotruk
shift method: AMT manual/auto
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.8m
Cargo box width: 2.47m
*Cargo box interior width: 2.4700000286102
Cab parameters
Cab: TX-U
Cab width: 2280mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/7000kg
Frame Dimensions: 7+4/250mm
rear axle description: MCJ11BG
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 3/3/10+9
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI)?

Key specs of Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI): Drive: 6x2; Horsepower: 290 hp; Emission: China VI; Fuel: Diesel; Engine: SinotrukMC07; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) suited for?

Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) differ from other variants in the same series?

Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI) belongs to SinotrukHOWOHOWO TX7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX 290 hp 6X2(8 wheels) 7.8m Stake Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
