Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck

Export reference
From $17,375
MSRP ¥12.51M CNY
Horsepower: 156
Emission: China VI
Fuel: Diesel
Engine: Fukang F2.8
Transmission: ZF
Curb Weight:: 2.565ton
Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck is a Light Truck featuring 3.83m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang F2.8 engine, 156 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1048V9JD6-F3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonF2.8NS6B156
transmission: ZFZF6S558
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.4m
Cab height: 2.35m
Front track width: 1730mm
rear track: 1800mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Building materials, agricultural products
Remarks: air brake, brake lining wear alarm, electronic throttle pedal, no speed limiter, no load-sensing valve
Front/rear suspension: 1.11/1.525m
Version: Southwest Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF2.8NS6B156
Engine info: Fukang F2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China VI
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 440N·m
Max torque speed: 1500-2400rpm
Rated speed: 2900rpm
Technology route: SCR+DOC+DPF (Euro VI)
Transmission Parameters
Transmission Model: ZFZF6S558
Transmission Brand: ZF
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.83m
Cargo box width: 2.3m
Cargo box height: 0.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.85T
Front axle allowable load: 1850kg
Frame Dimensions: 214×65×5mm
rear axle description: 6T
rear axle allowable load: 2645kg
Axle ratio: 4.875
Leaf spring count: 3/4+2
Tire
Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

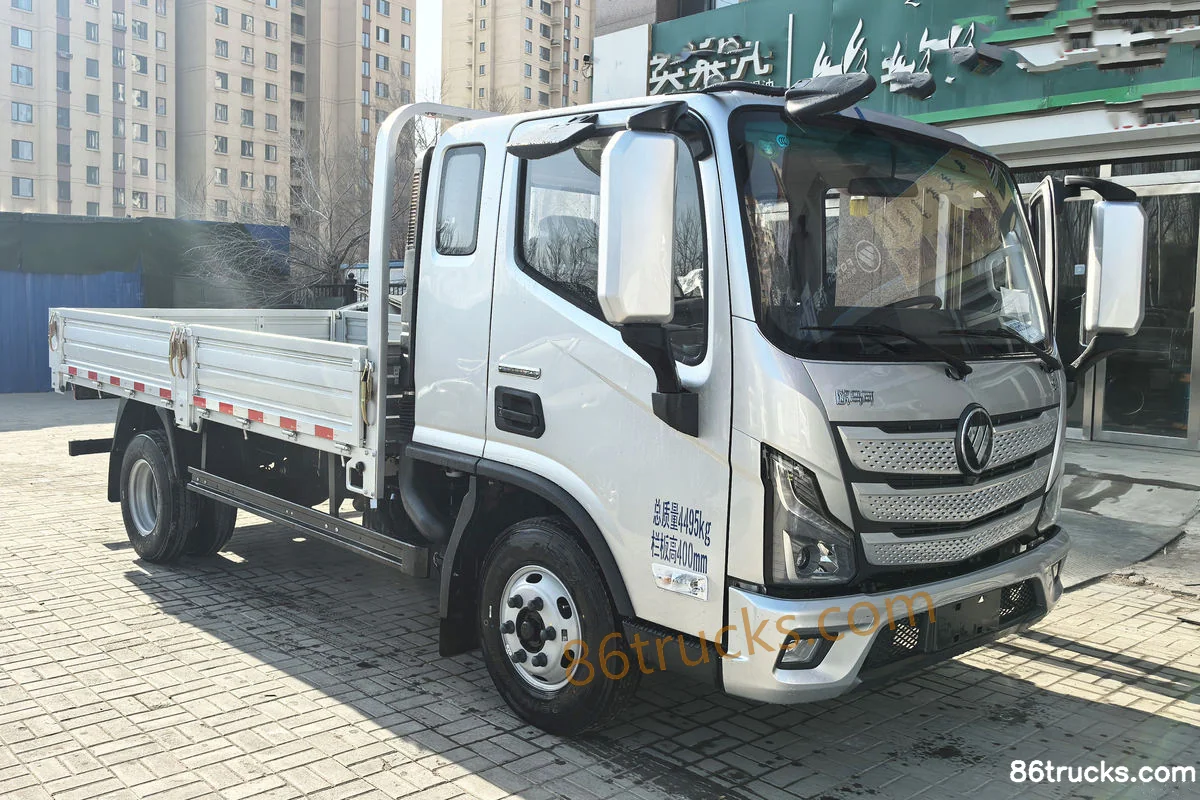

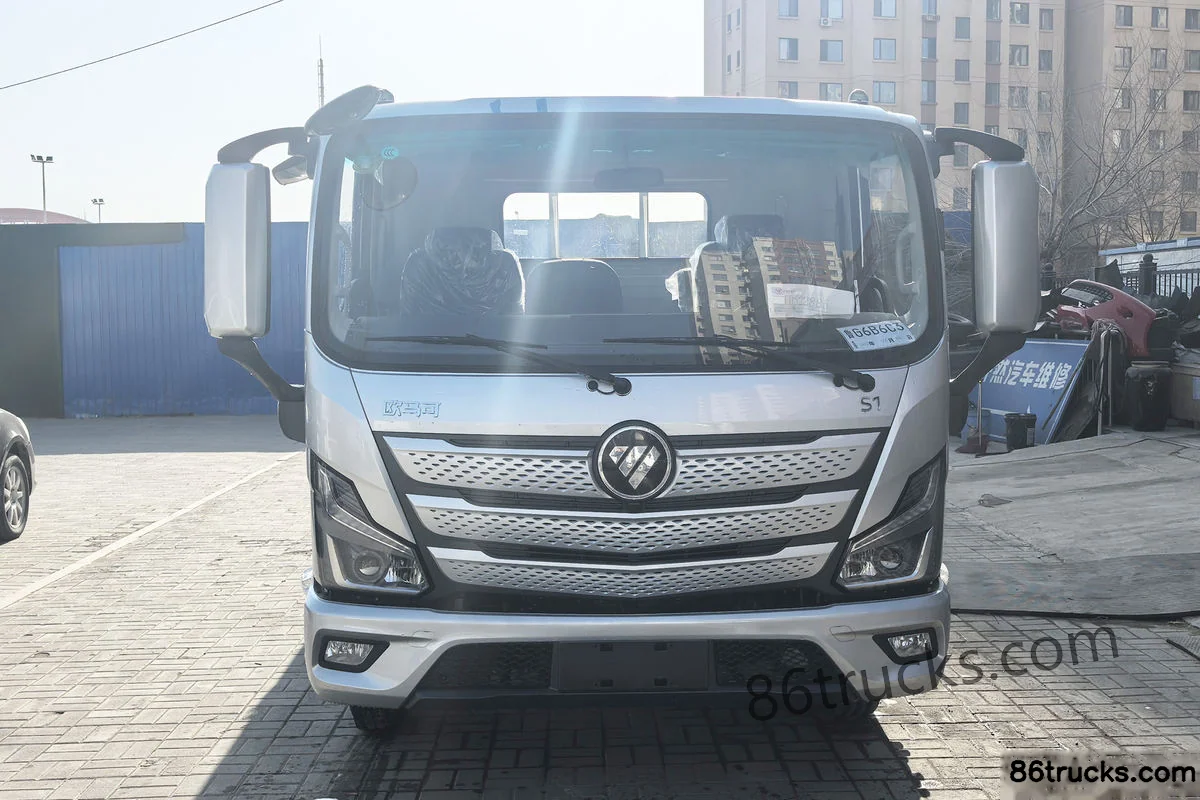

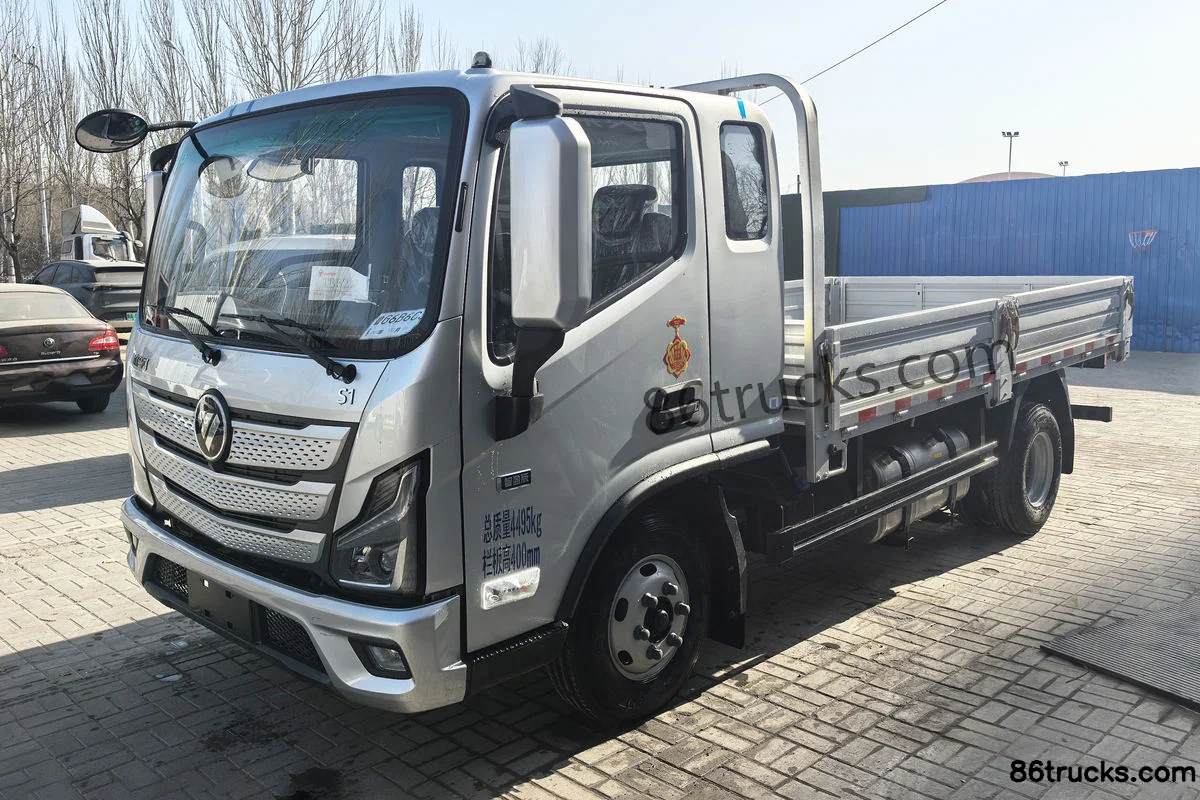

Exterior3

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Exterior (1) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Exterior (2) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Exterior (3) | 86Trucks

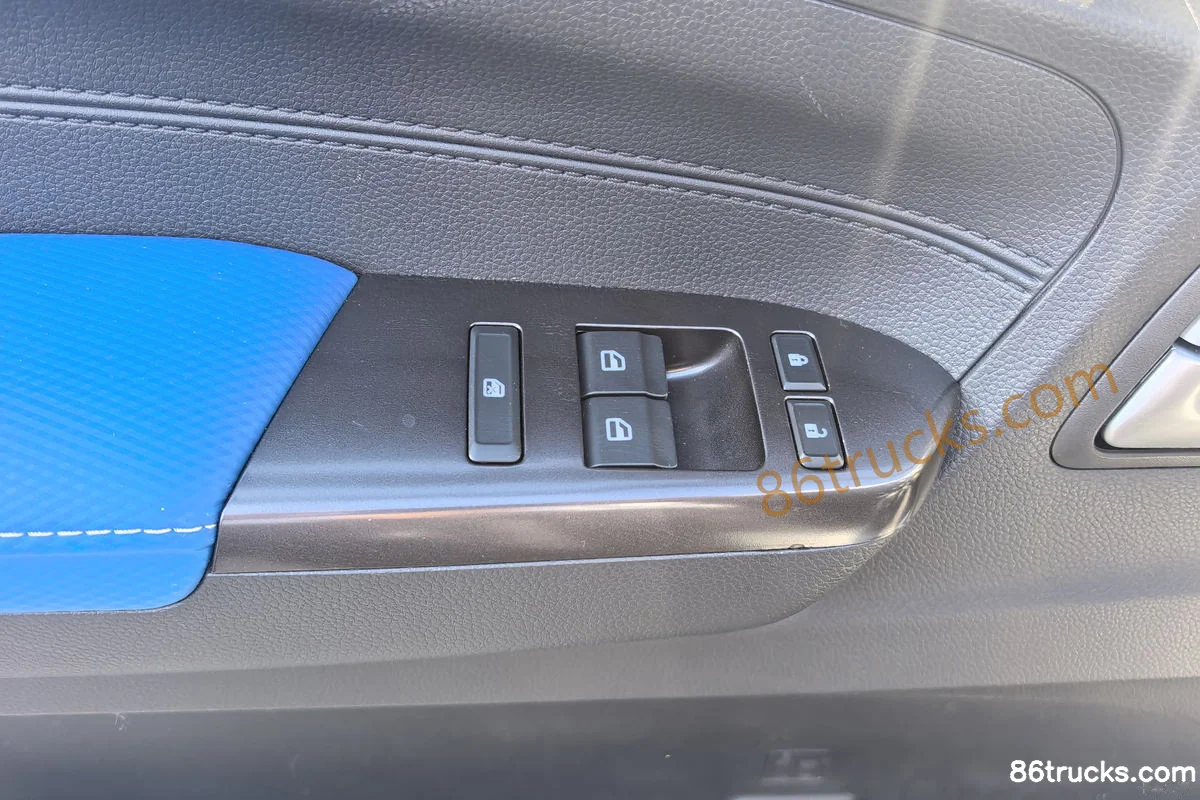

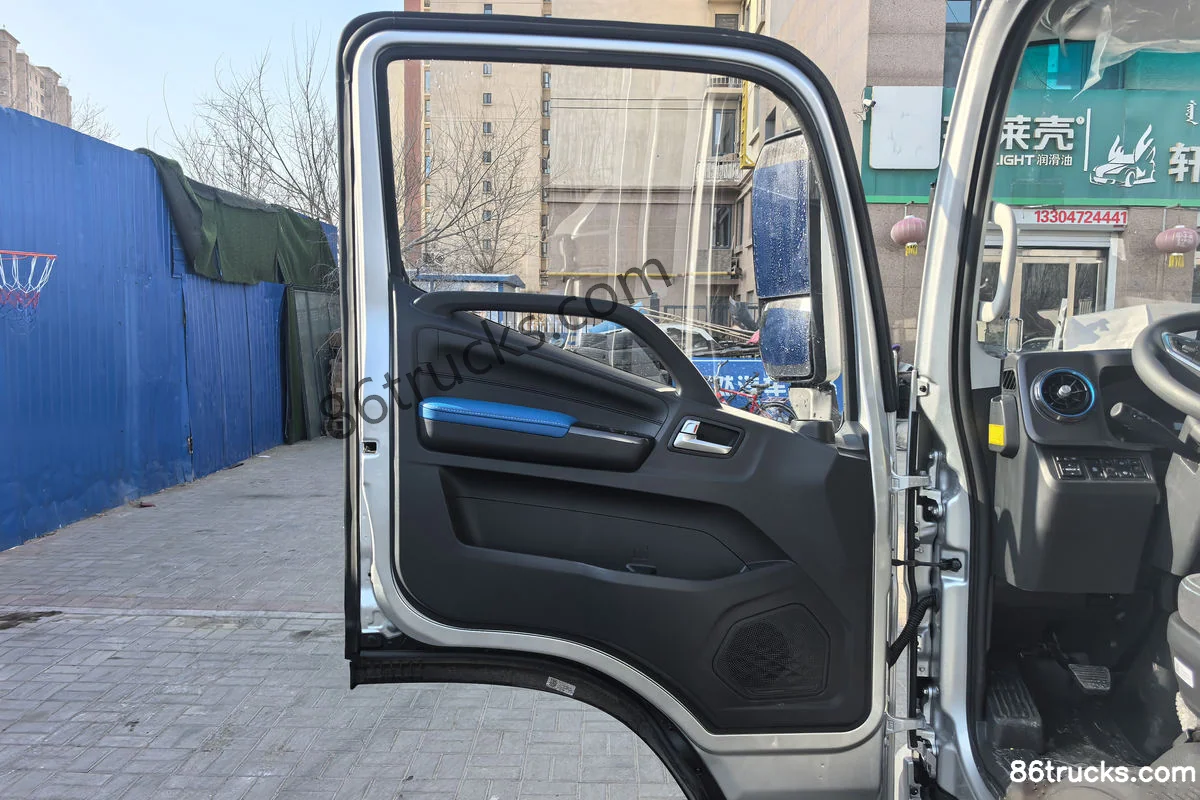

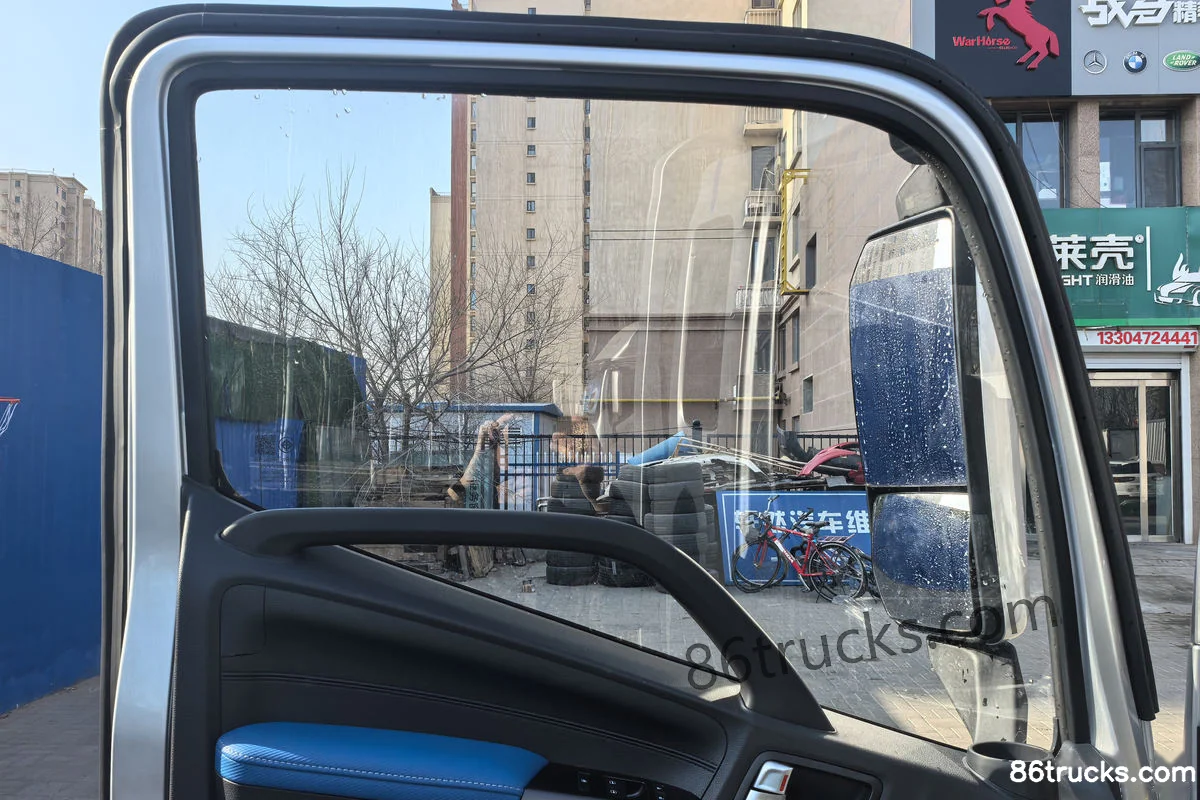

Cab3

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Cab (1) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Cab (2) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Cab (3) | 86Trucks

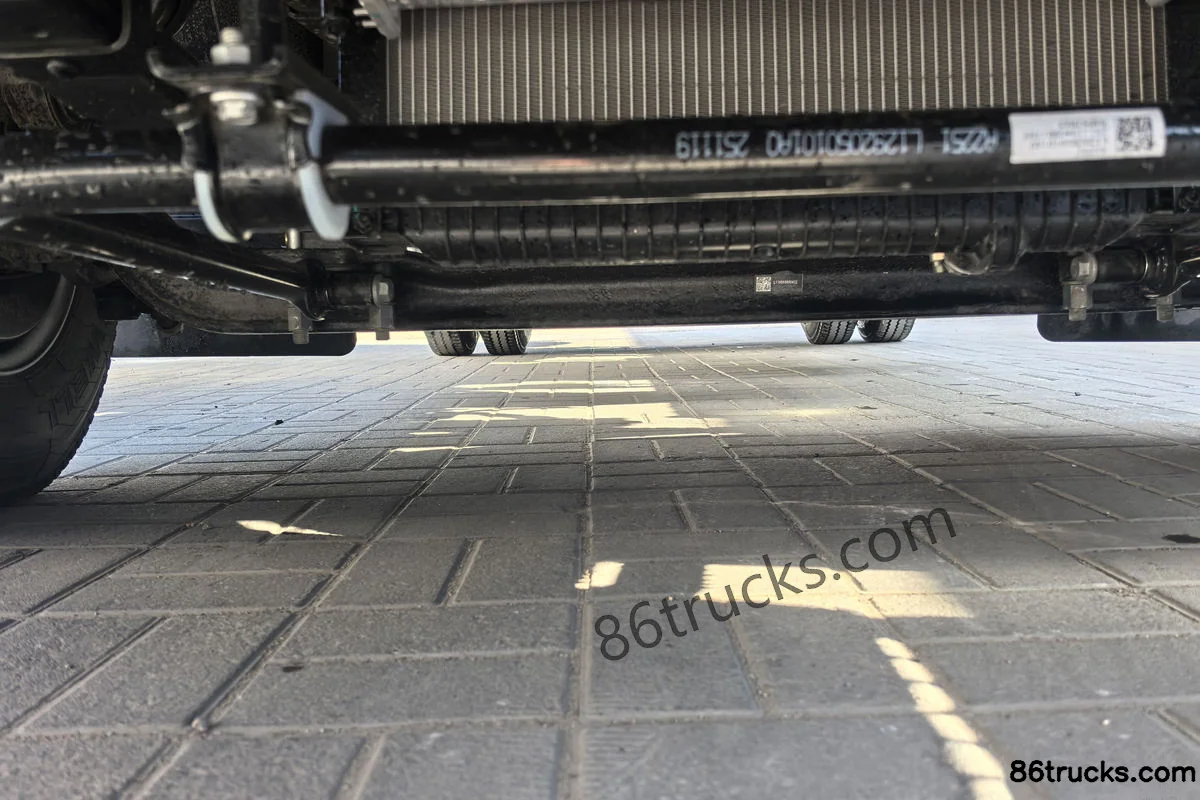

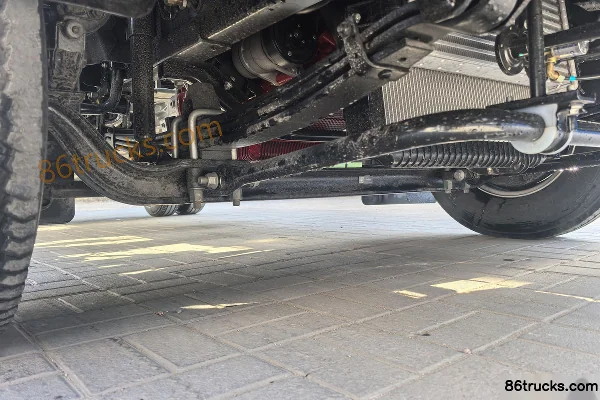

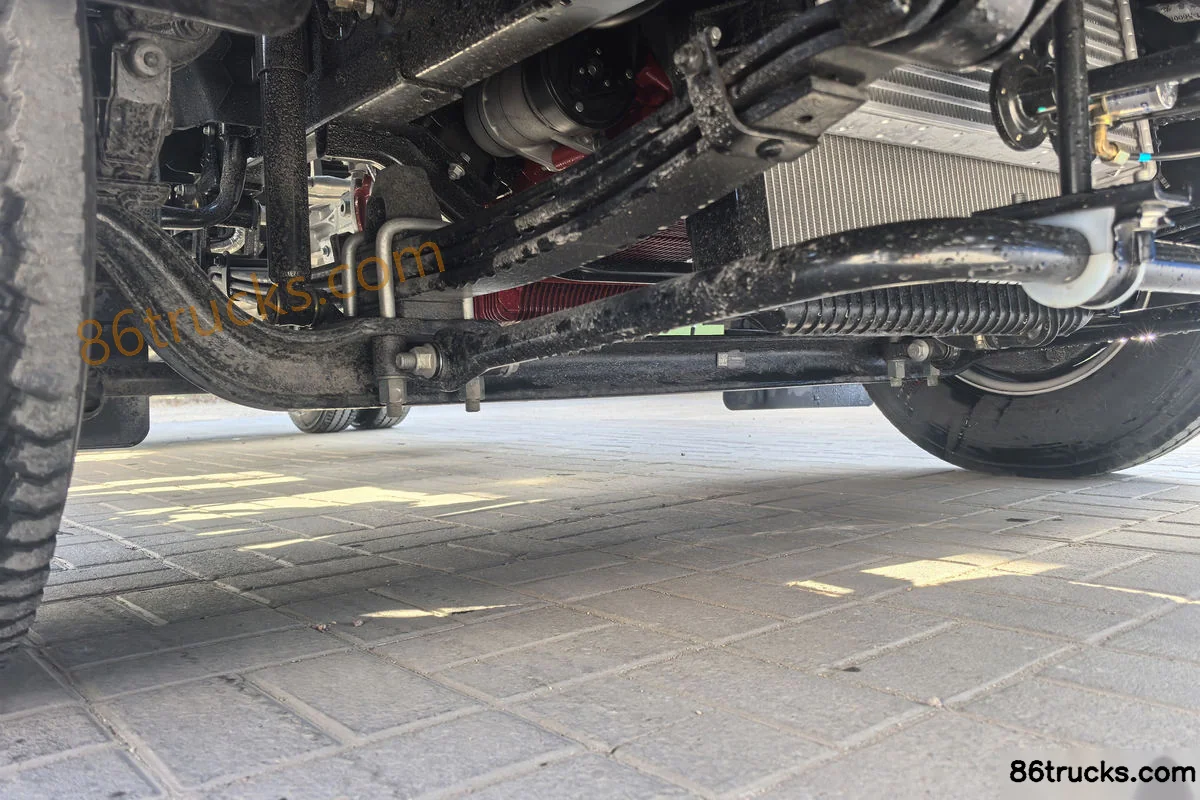

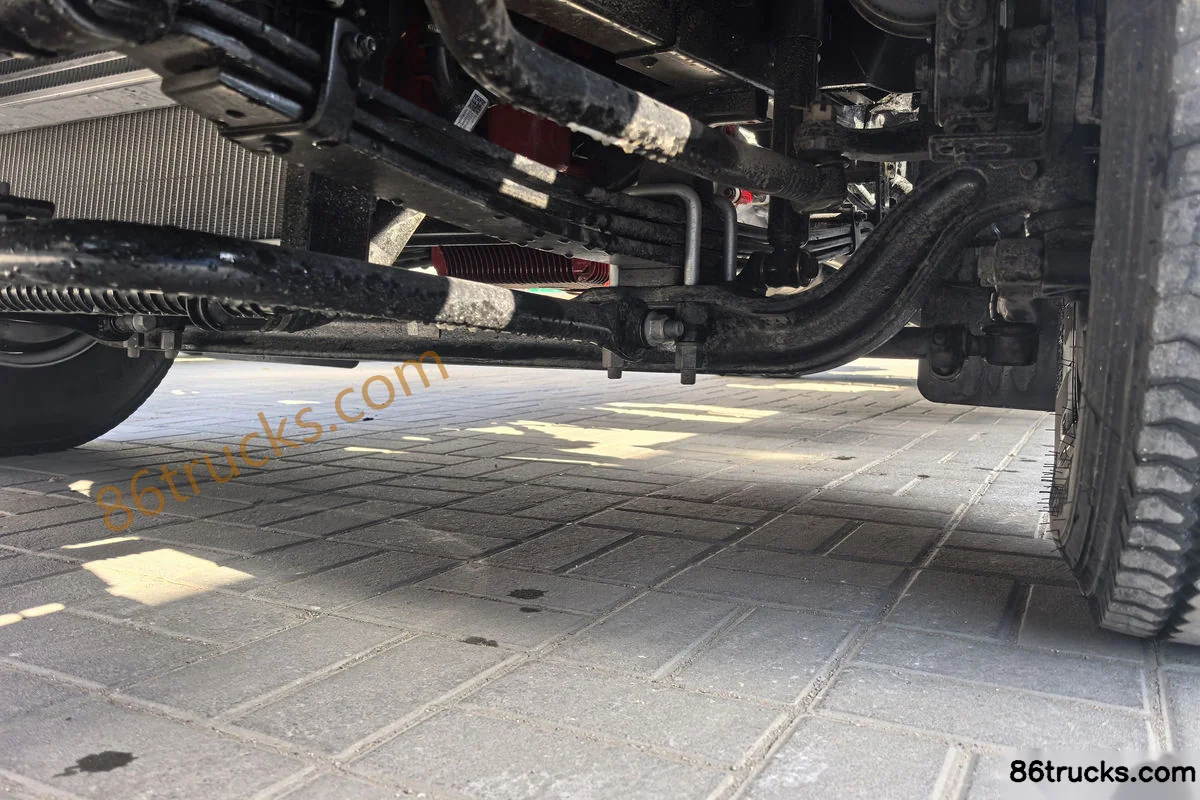

Chassis3

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Chassis (1) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Chassis (2) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Chassis (3) | 86Trucks

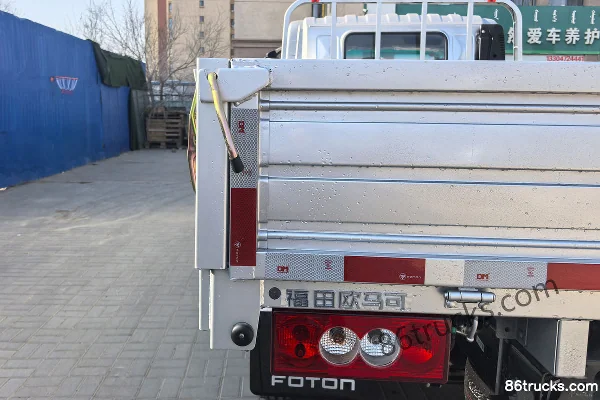

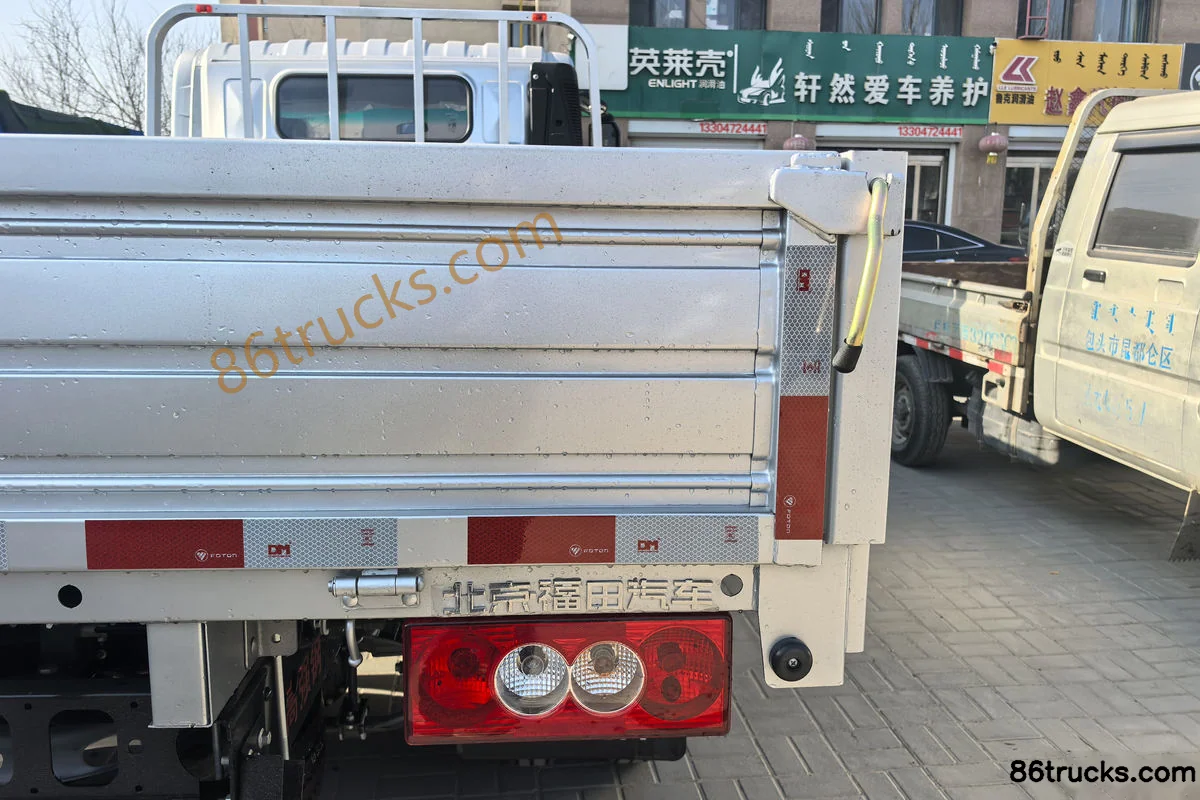

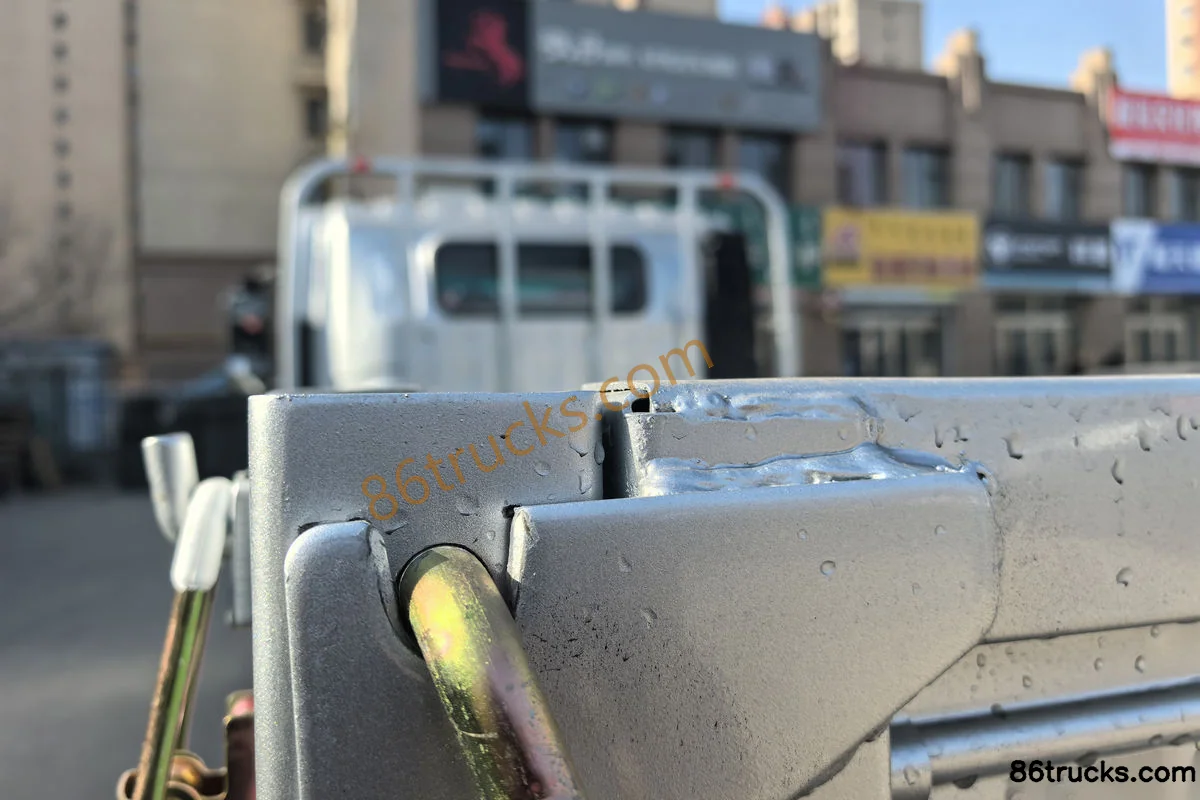

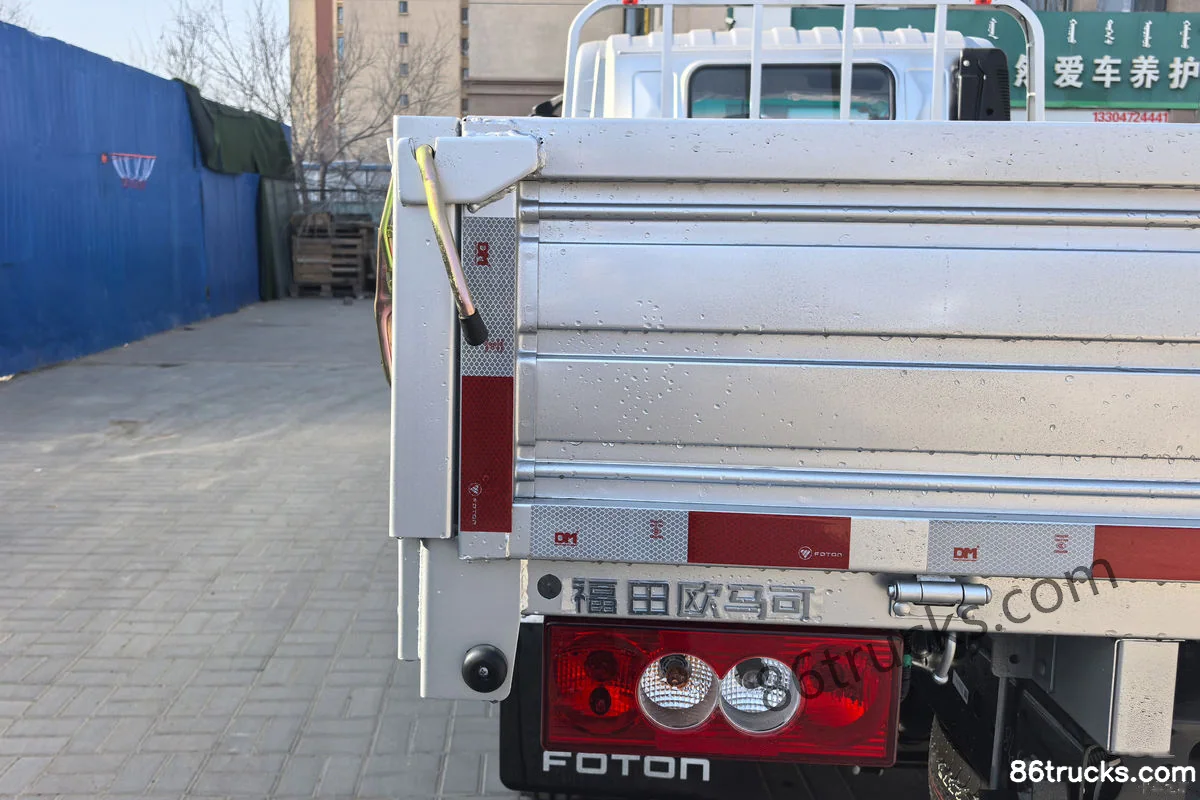

Body3

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Body (1) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Body (2) | 86Trucks Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck, and what does it include?

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck export reference is about From $17,375; MSRP is ¥12.51M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Key specs of Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck: Drive: 4x2; Horsepower: 156 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang F2.8; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck suited for?

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck differ from other variants in the same series?

Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck belongs to Foton S1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark S1 Southwest Edition 156hp 4X2(6 wheels) 3.83m semi-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
