JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck

Export reference
From $16,556
MSRP ¥11.92M CNY
Horsepower: 156
Emission: China VI
Fuel: Diesel
Engine: JMC2.5L
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 6Personnel
Rated payload: 1.54ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck is a Light Truck featuring 3.2m cargo length, stake body cargo body, 6Personnel volume and 1.54t payload. On the powertrain side, it comes with a JMC2.5L engine, 156 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1044TSGC26
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: JMCNB25C6H
transmission: WLY6GS36
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.02m
Cab height: 2.455m
Front track width: 1615mm
rear track: 1570mm
Curb Weight: 2.565ton
Rated payload: 1.54ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 15°
Front/rear suspension: 1.115/1.52m
Version: mid-body
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: NB25C6H
Engine info: JMC2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.498L
Emission standard: China VI
Max output power: 115kW
Max hp: 156Horsepower
Transmission Parameters
Transmission Model: 6GS36
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.2m
Cargo box width: 1.94m
Cargo box height: 0.38m
Cab parameters
Cab width: 1890mm
seating capacity: 6Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1765kg
Frame Dimensions: 800*180*65*4.5mm
rear axle allowable load: 2730kg
Axle ratio: 4.875
Leaf spring count: 3/3+3,5/5+6
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Seat material: Fabric
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Bluetooth / hands-free calling:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
daytime running lights:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

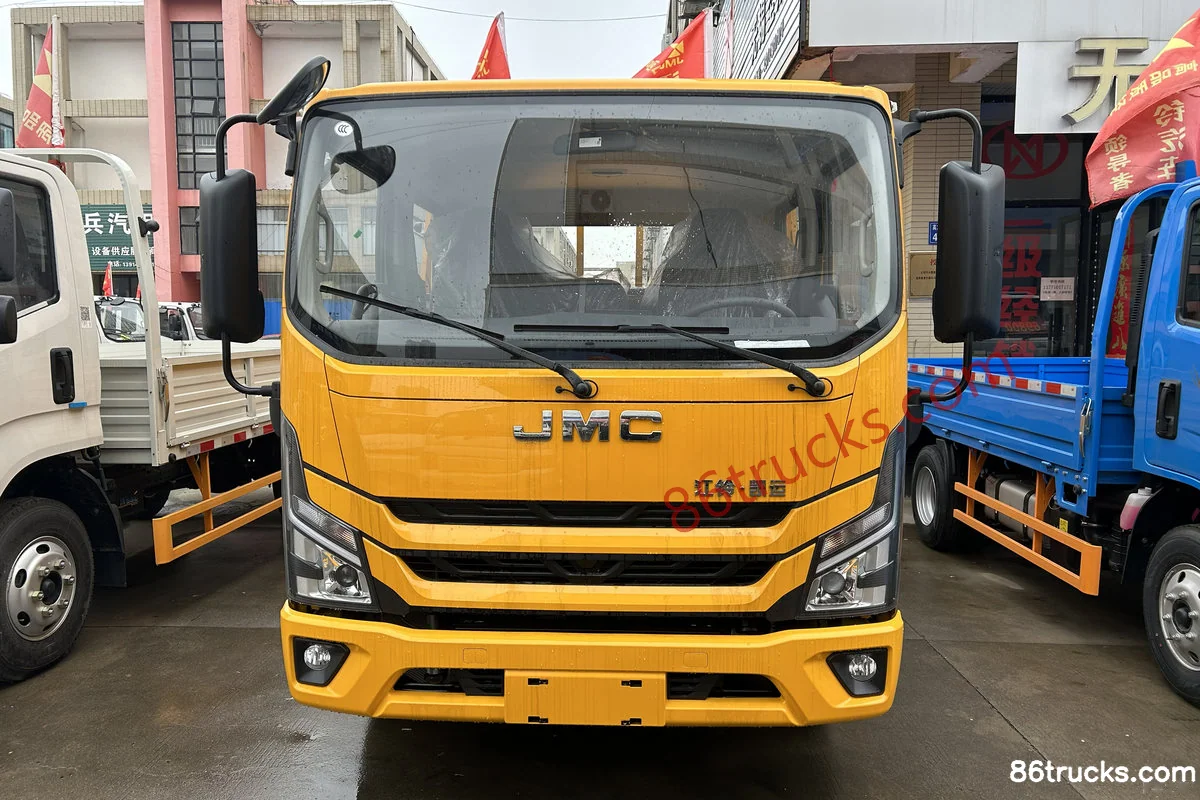

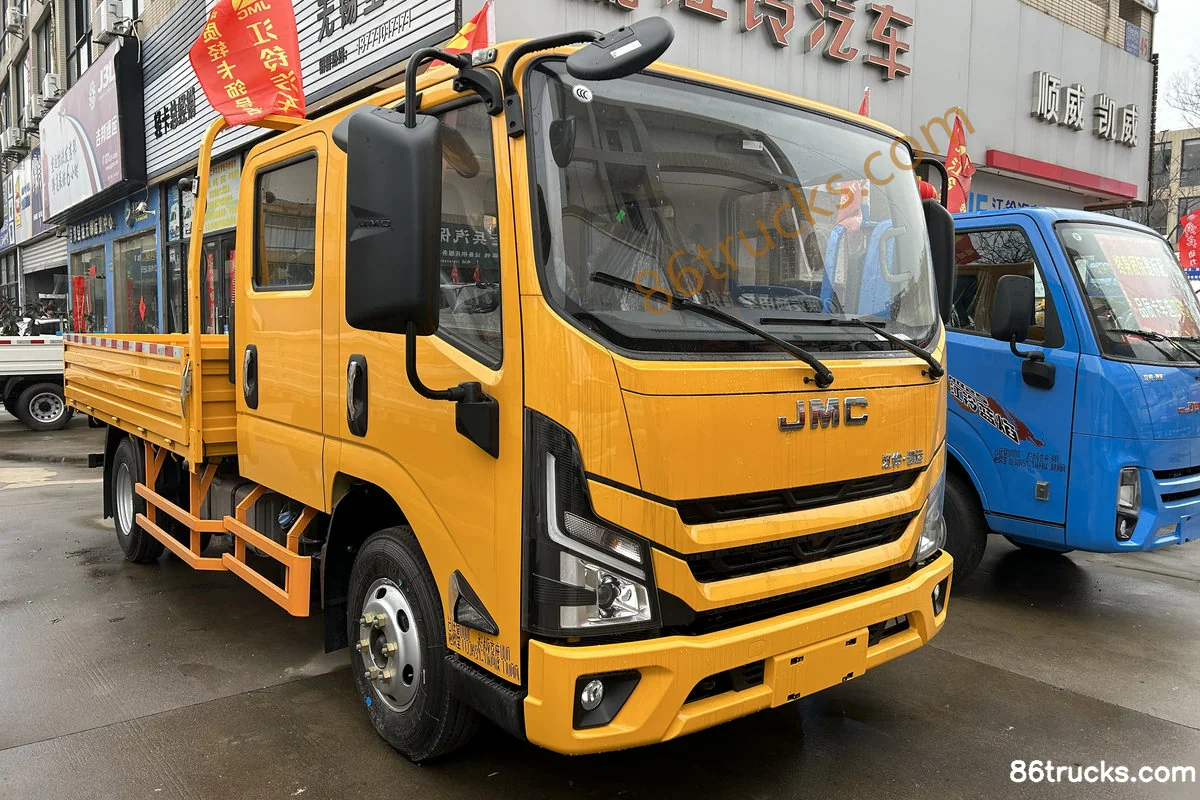

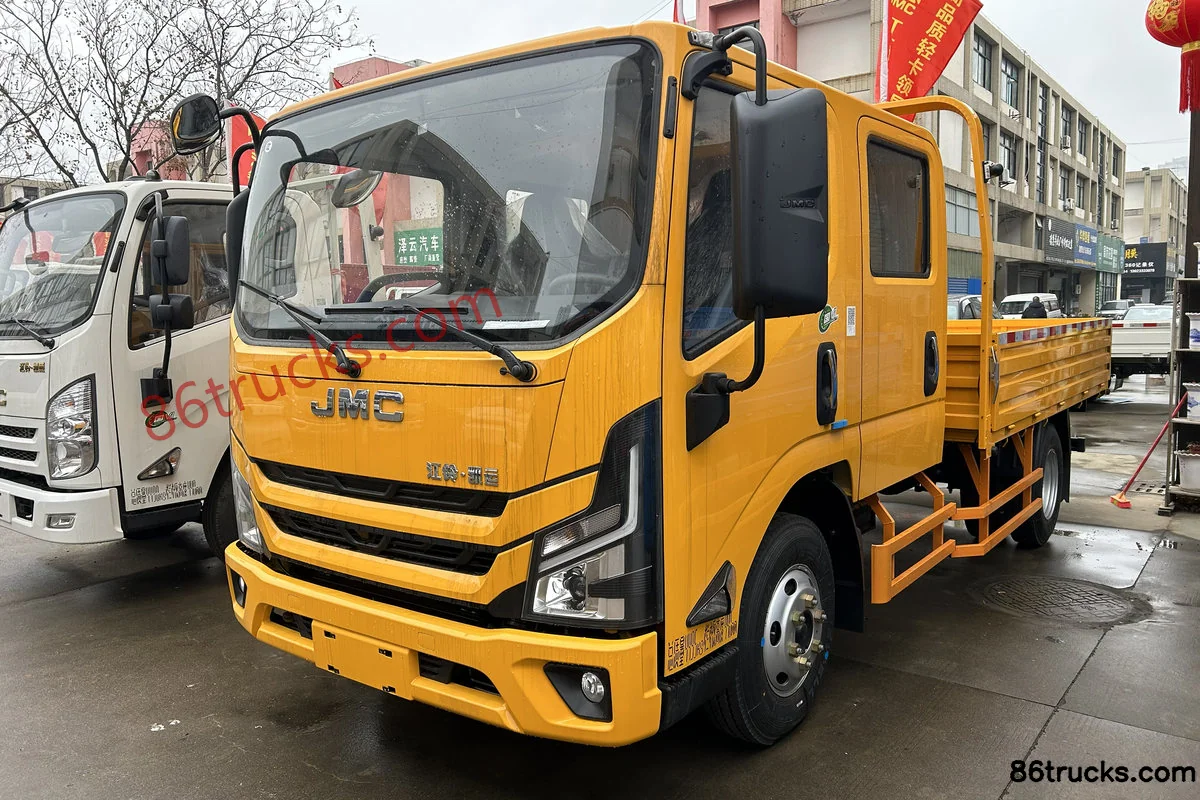

Exterior3

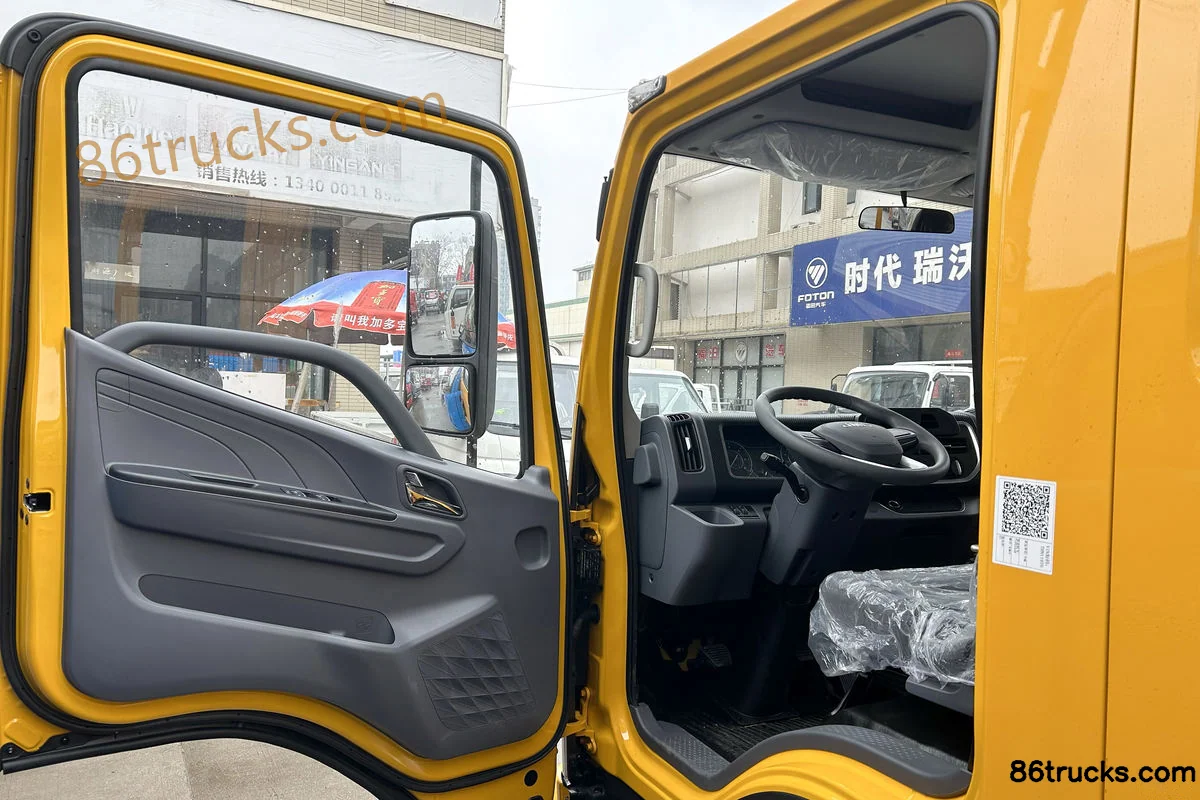

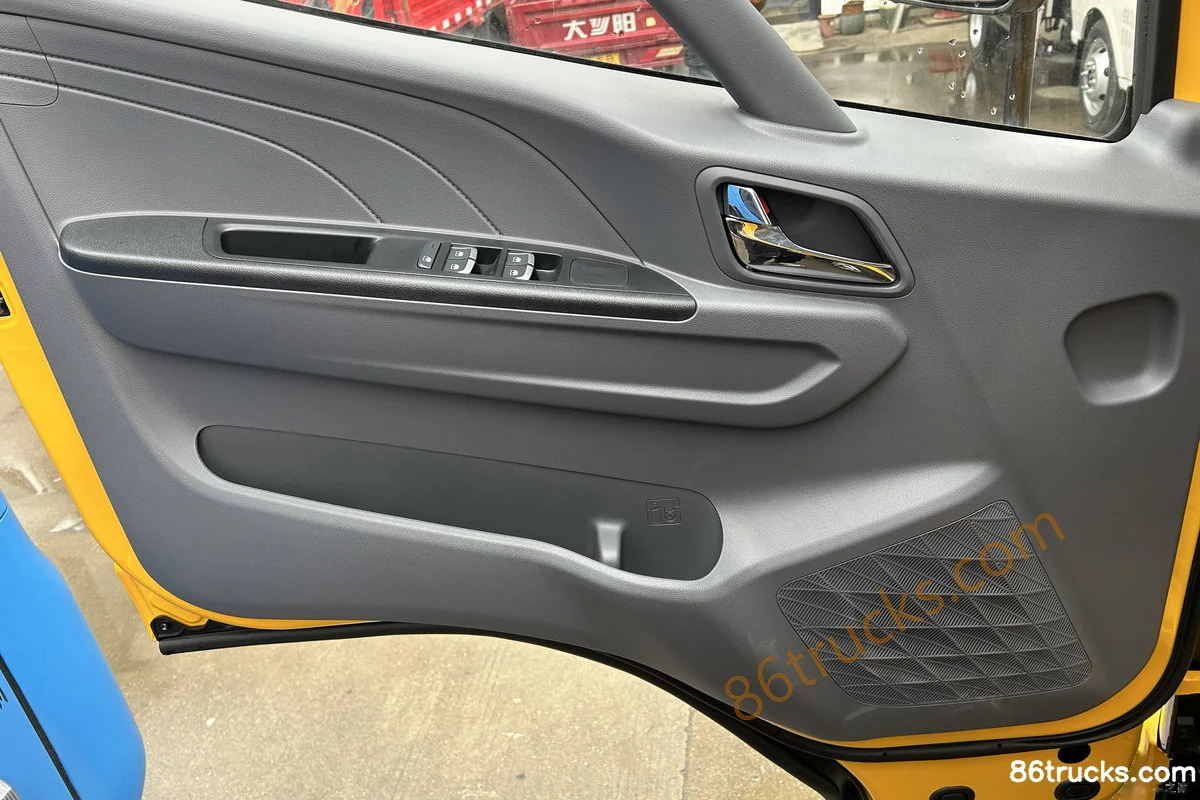

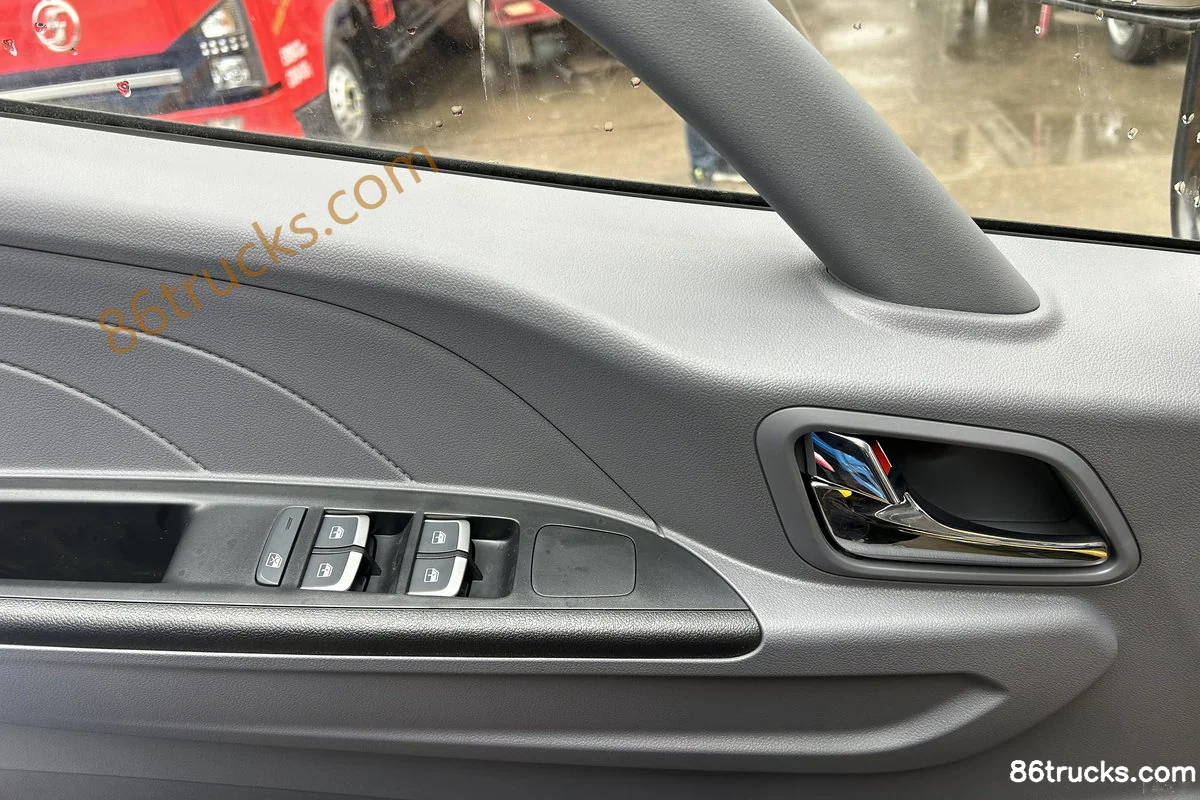

Cab3

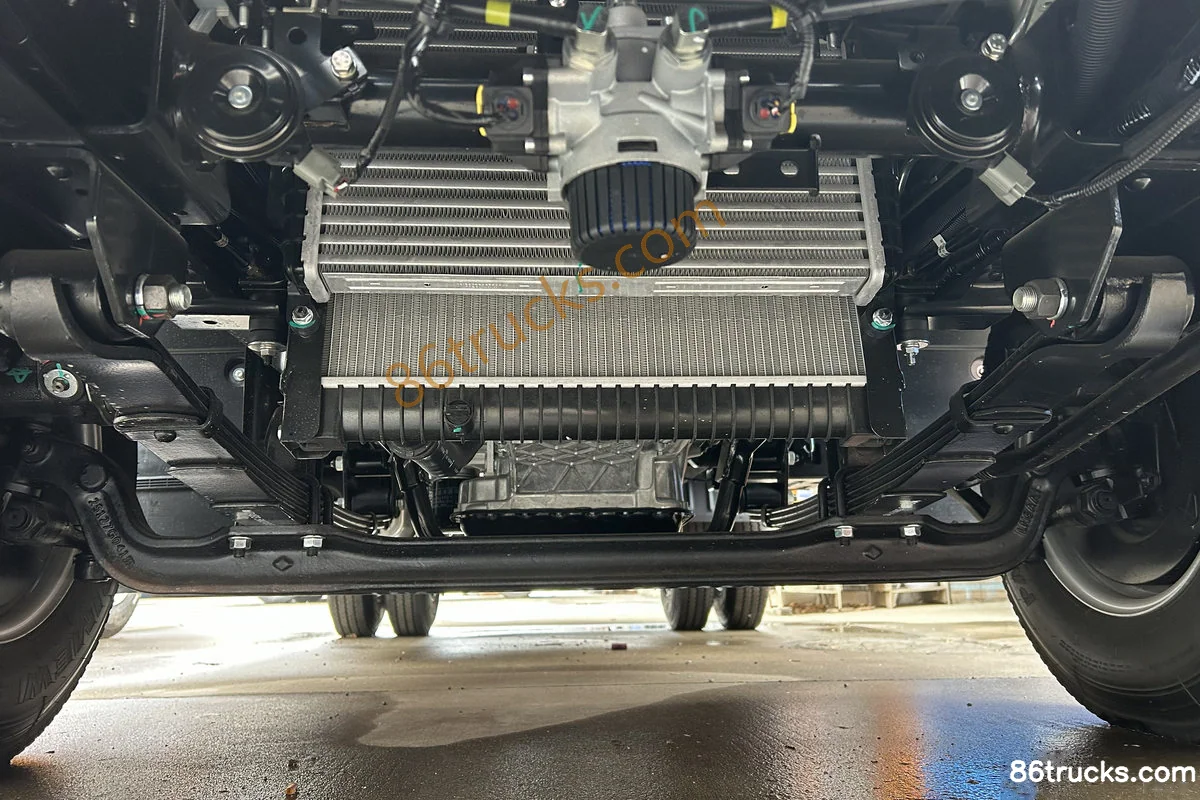

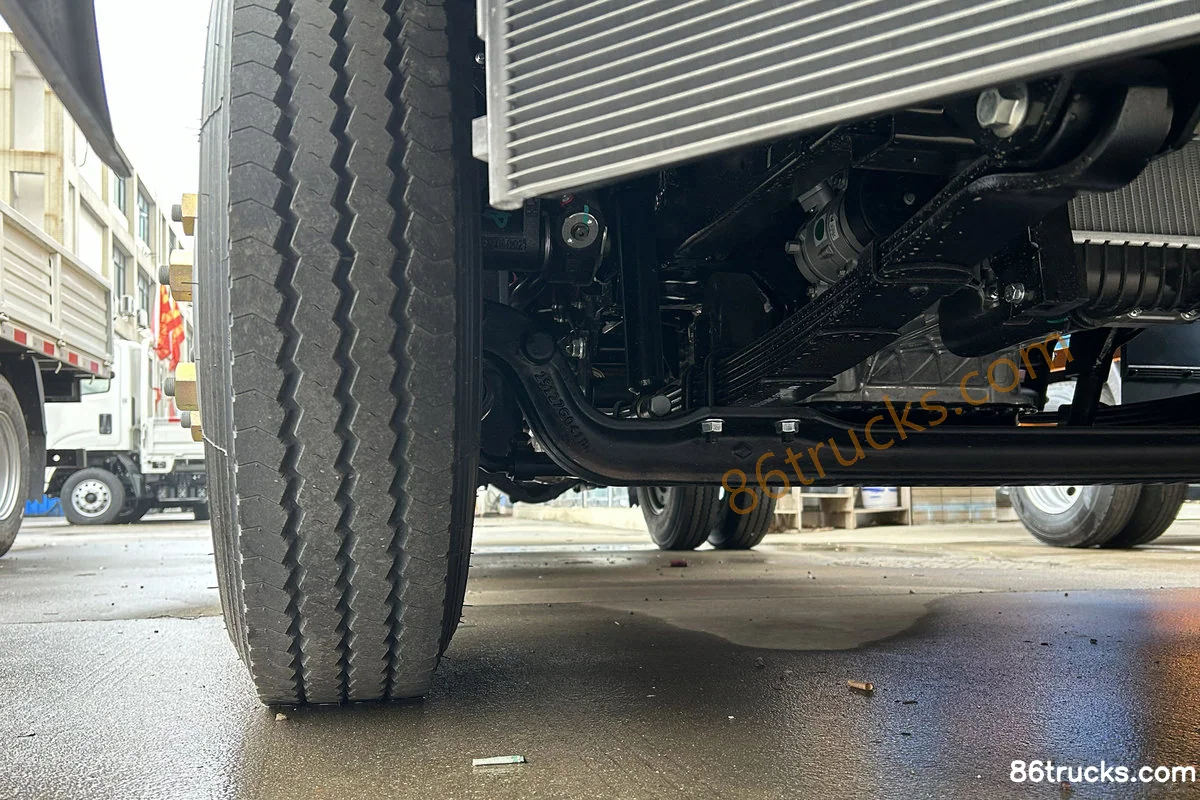

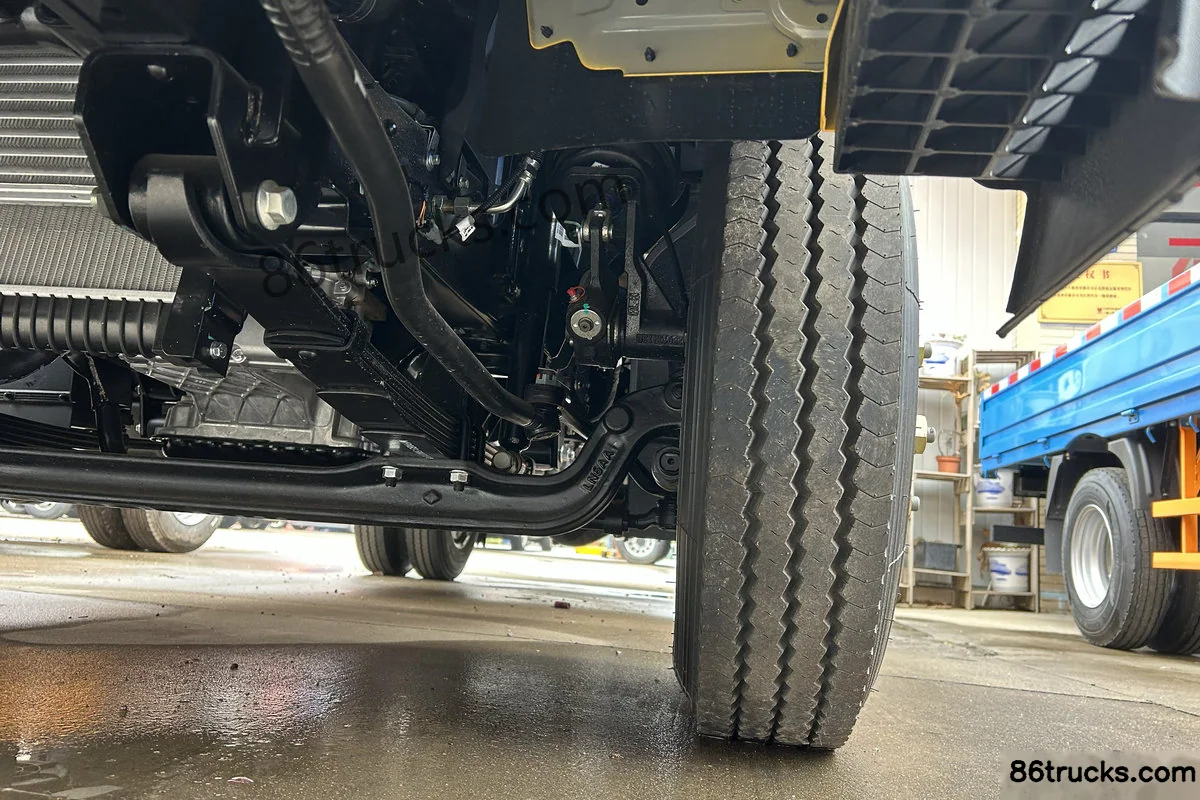

Chassis3

9 photos

FAQ

What is the export price of JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck, and what does it include?

JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck export reference is about From $16,556; MSRP is ¥11.92M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck?

Key specs of JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China VI; Fuel: Diesel; Engine: JMC2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck suited for?

JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck differ from other variants in the same series?

JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck belongs to JMC Kaiyun+ (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun+ Medium Body 2.5L Diesel 156hp 4X2(6 wheels) WLY 6-Speed Air Brake 3.2m Double Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
