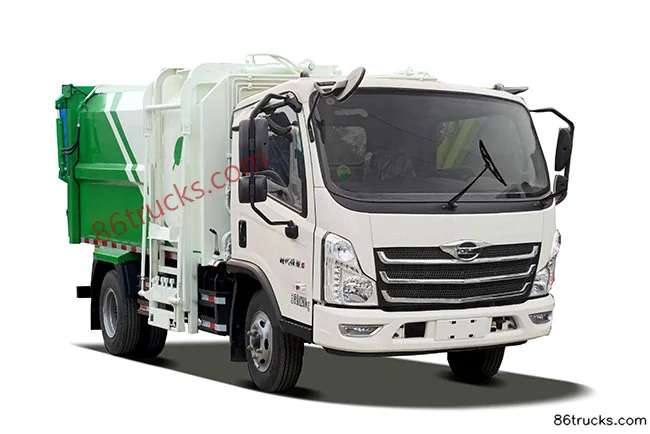

Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 5.995×2.52×2.66m
Type:: self-loading garbage truck
Front/rear track width:: Front: 1715mm; Rear: 1670
Box volume: 10m³
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 2.735ton

Overview

The Foton Forland Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) is a garbage truck featuring 10m³ tank capacity, 10m³ volume, 8.28t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.52×2.66m
Type: self-loading garbage truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front: 1715mm; Rear: 1670
Rated mass: 2.735ton
GVWR: 8.28ton
Front/rear suspension: 1.135/1.5m
Energy Type: Diesel
Engine parameters
Engine Model: WeichaiWP3NQ160E61
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 3000rpm
Cargo box parameters
Box volume: 10m³
Body Parameters
Vehicle certification code: BJ5086ZZZDJDA-01
Body Brand: Foton brand
Chassis Specs
Chassis Brand: Foton Forland
Chassis Series: Forland Linghang 6
Chassis Model: BJ1086VDJDA-01
Frame Dimensions: 192×60×60-865mm
rear axle description: EQ1080
Leaf spring count: 4/9+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6G55
Tire
Tire Size: 7.50R16 14PR
Number of tires: 6pcs

Photos

Exterior1

1 photos

FAQ

What emission standard does Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI)?

Key specs of Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) suited for?

Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) differ from other variants in the same series?

Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) belongs to Foton Forland Linghang 6 Light Truck (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Pilot 6 160 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
