FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3800+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 13.2L
Drive 6X4 (10 wheels)
Horsepower 530
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 530 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6SM7-53E61N engine, FAW Jiefang transmission and LNG (liquefied natural gas) fuel.

China VI 530 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4259P25K2T1NE6A81
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: XichaiCA6SM7-53E61N
transmission: FAW JiefangCA12TAX260SRT
Rear Axle Ratio: 3.7
Cab length: 7.415m
Cab width: 2.55m
Cab height: 3.91m
Front track width: 2042mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SM7-53E61N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 13.2L
Emission standard: China VI
Max output power: 392kW
Max hp: 530Horsepower
Transmission Parameters
Transmission Model: CA12TAX260SRT
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs

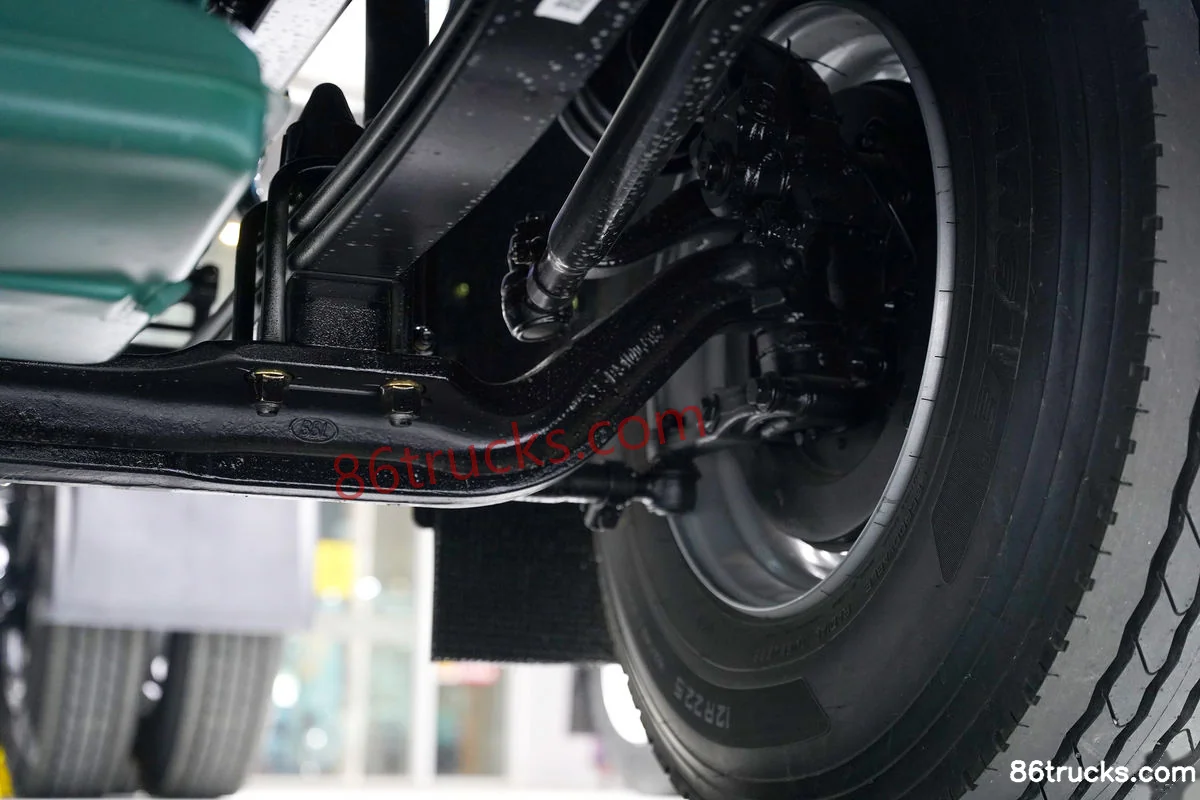

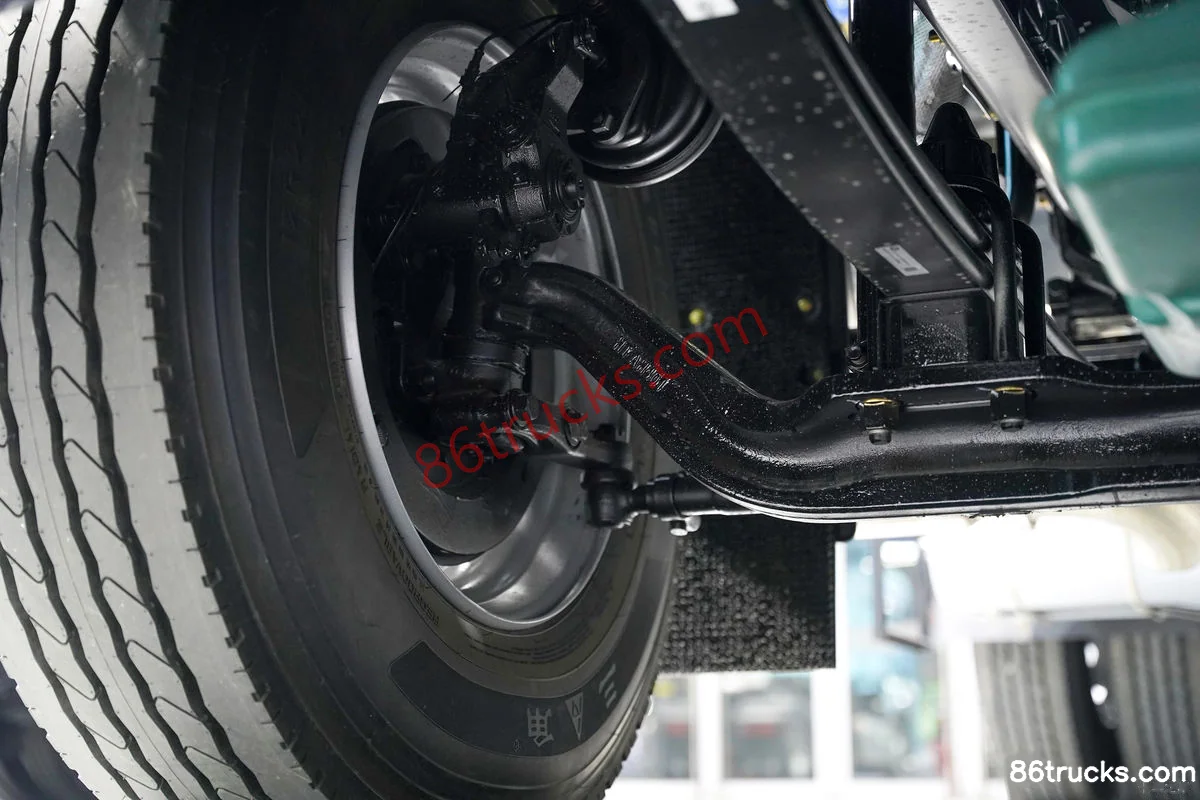

Front axle description: DH401 front axle
Front axle allowable load: 7000kg
Frame Dimensions: 280 single-layer platemm
rear axle description: 425 axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Headlight height adjustment:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Fatigue driving monitoring:

Photos

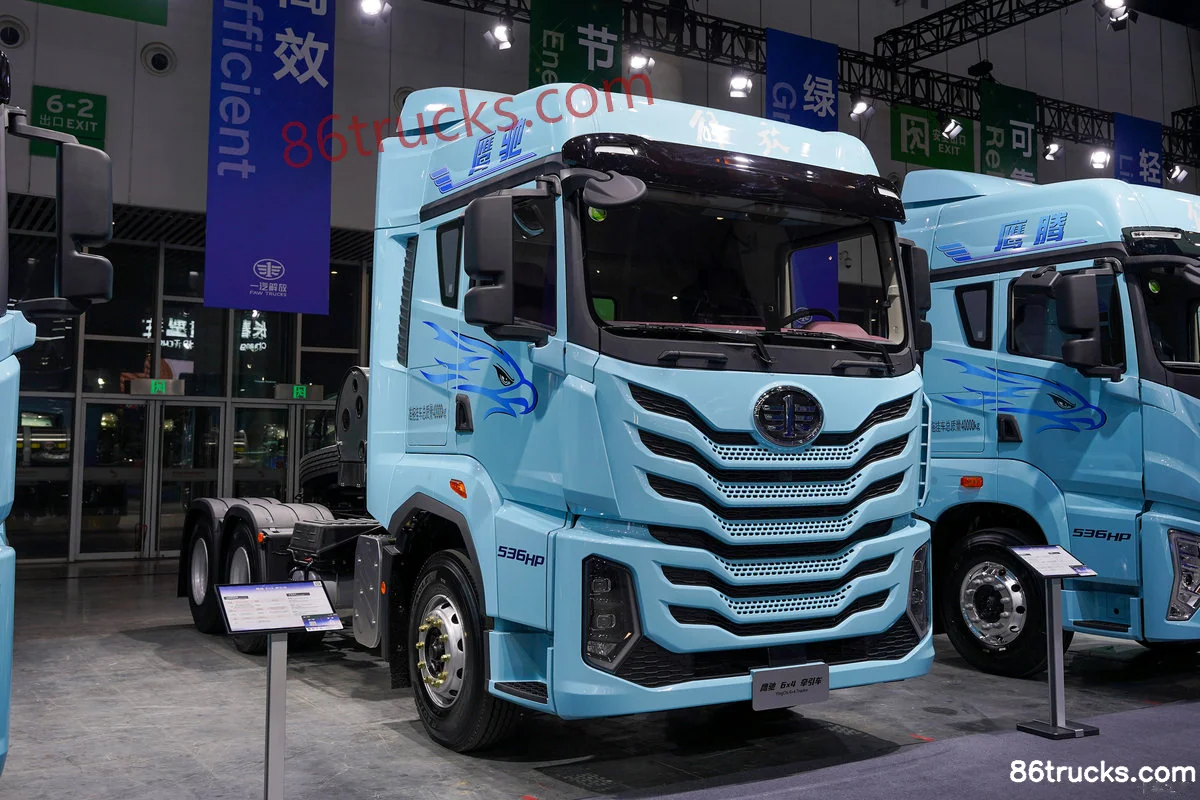

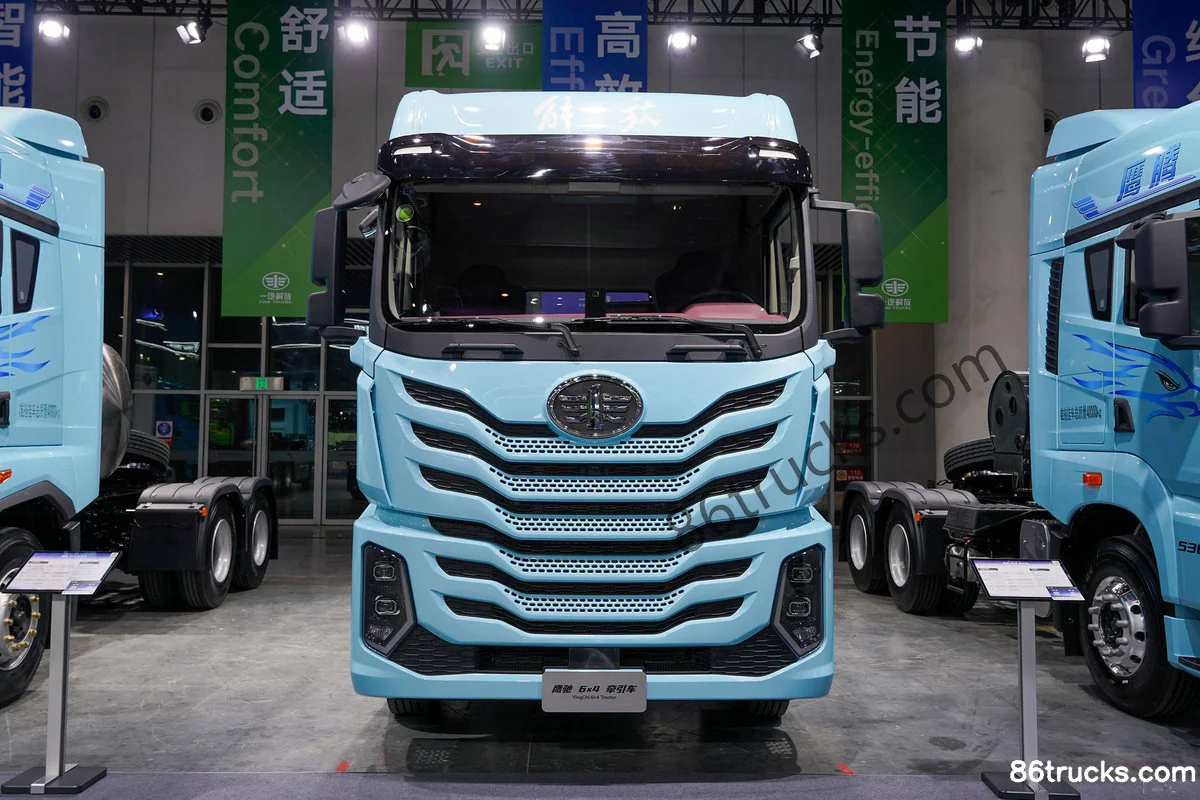

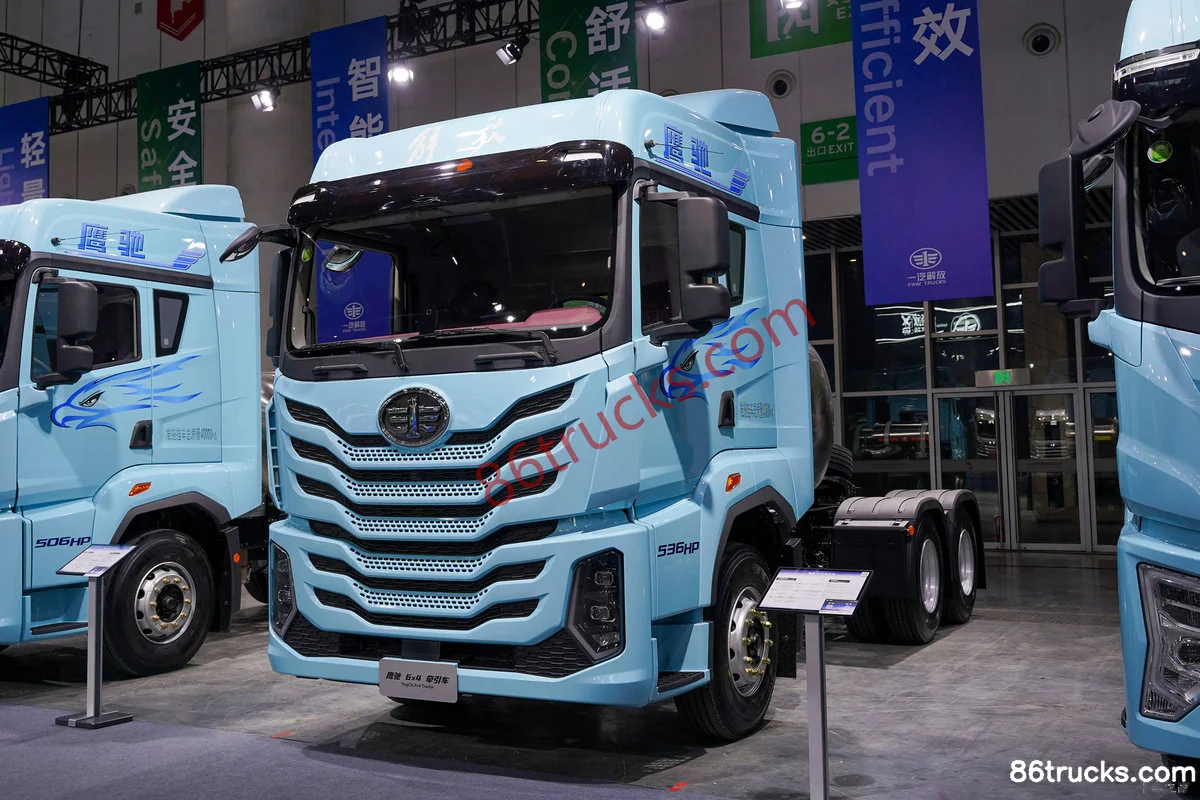

Exterior3

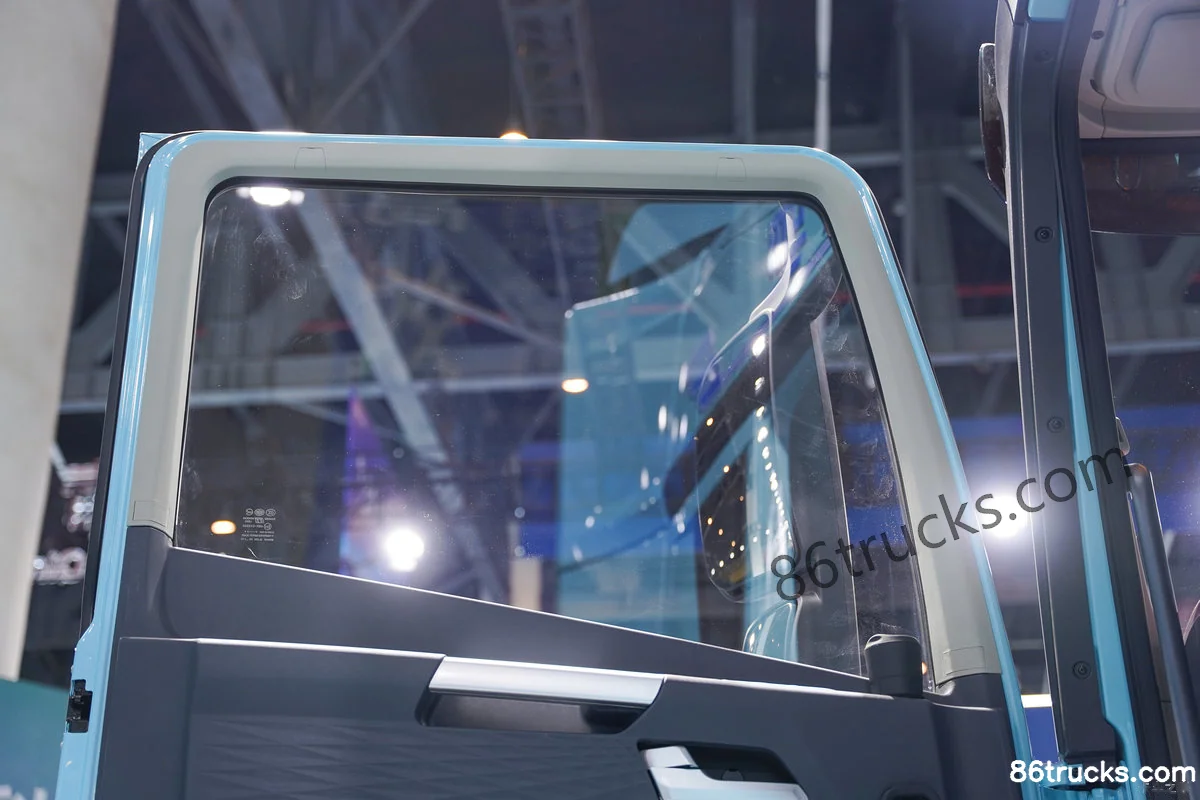

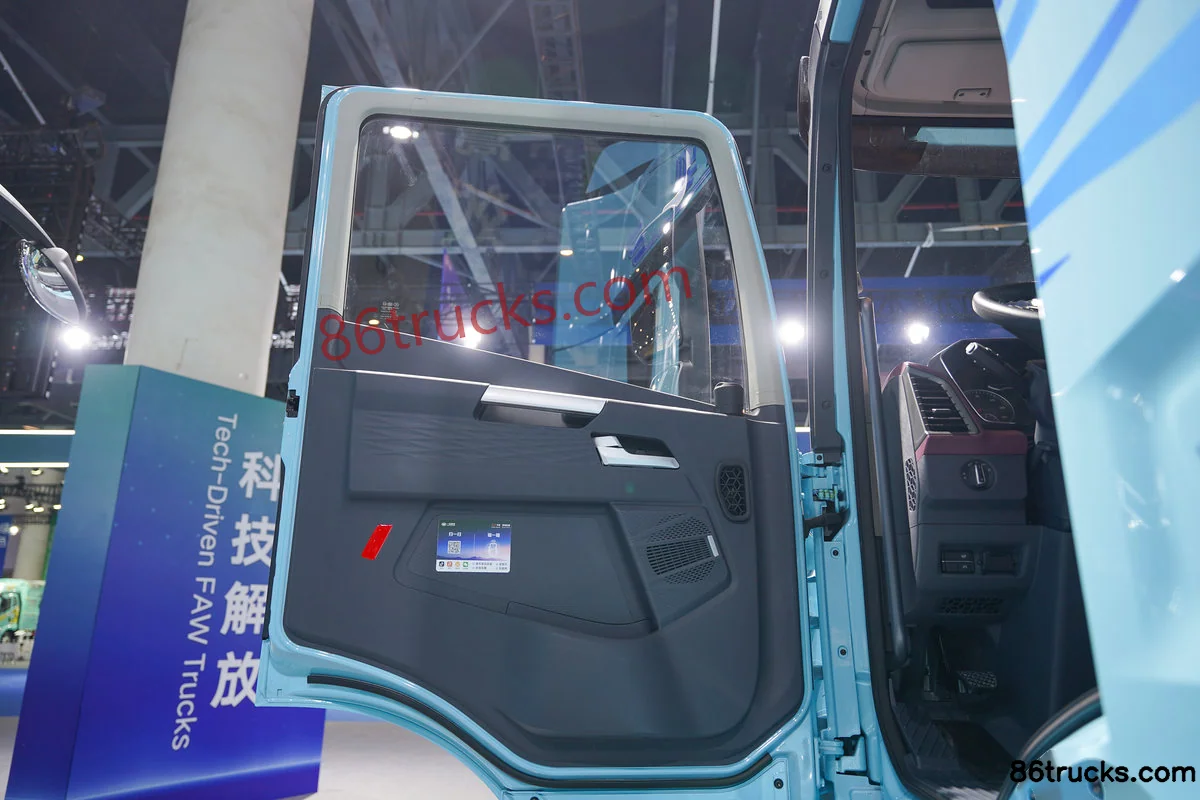

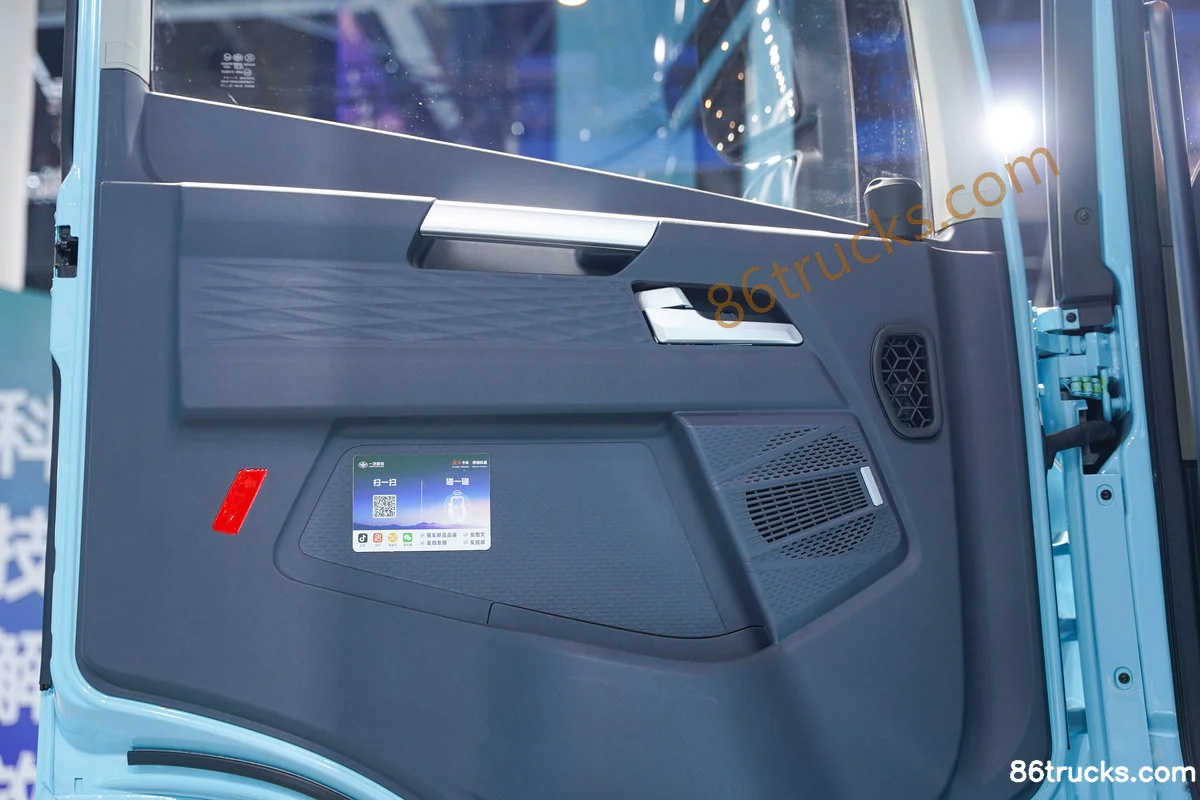

Cab3

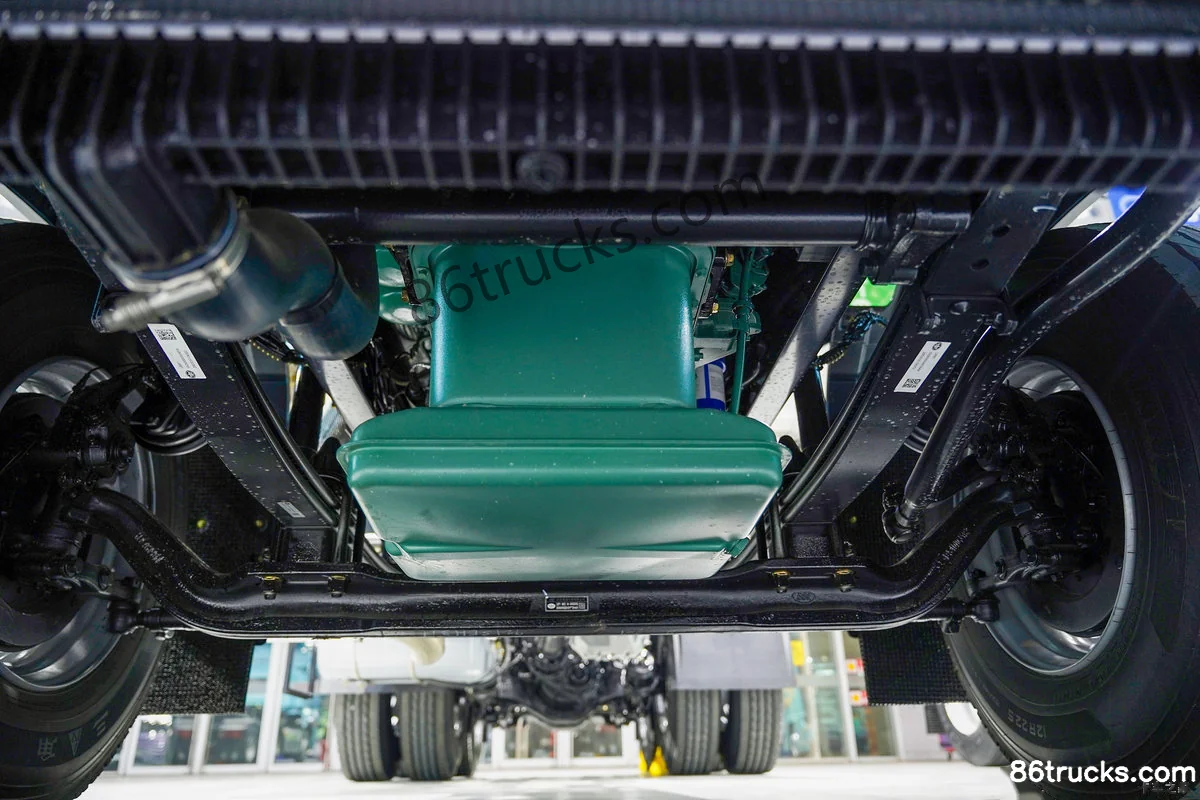

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck?

Key specs of FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck: Drive: 6x4; Horsepower: 530 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck suited for?

FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck differ from other variants in the same series?

FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck belongs to FAW Jiefang Qingdao Yingchi Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Yingchi 13.2L LNG 530hp 6X4(10 wheels) FAW Jiefang 12-speed tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
