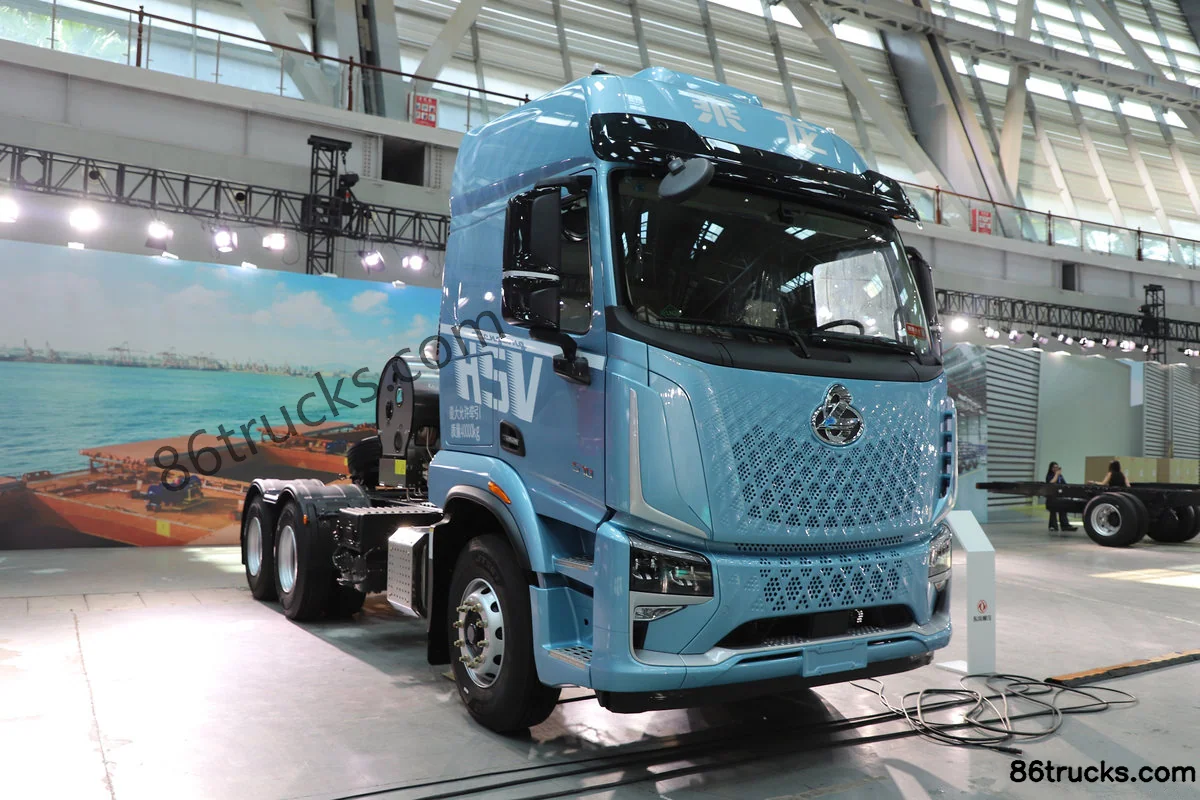

Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3900+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 13.26L
Drive 6X4 (10 wheels)
Horsepower 570
Emission China VI
Transmission Fast Gear

Overview

The Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 570 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a WeichaiWP13NG570E60 engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 570 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4253H7DM
Drive type: 6X4
Wheelbase: 3900+1350mm
engine: WeichaiWP13NG570E60
transmission: Fast Gear 12-speed
Rear Axle Ratio: 3.7
Cab length: 7.49m
Cab width: 2.525m
Cab height: 3.69m
Front track width: 2080mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WP13NG570E60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 13.26L
Emission standard: China VI
Max output power: 419kW
Max hp: 570Horsepower
Max torque: 2600N·m
Transmission Parameters
Transmission Model: 12-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: 1350L
Cab parameters
Cab: H5V
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
Fifth wheel: 50#
Frame Dimensions: 282 single-layer framemm
rear axle description: 2*440 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/-
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Tire Type: Front aluminum, rear lightweight
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

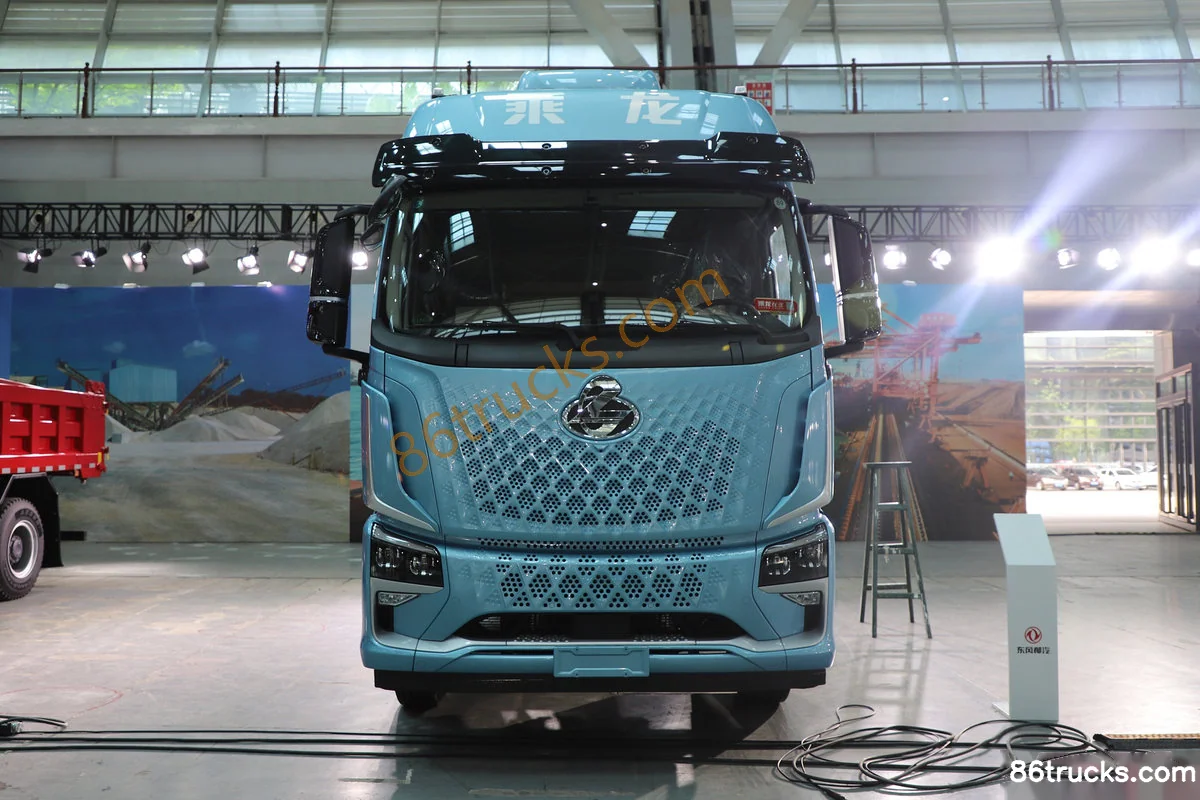

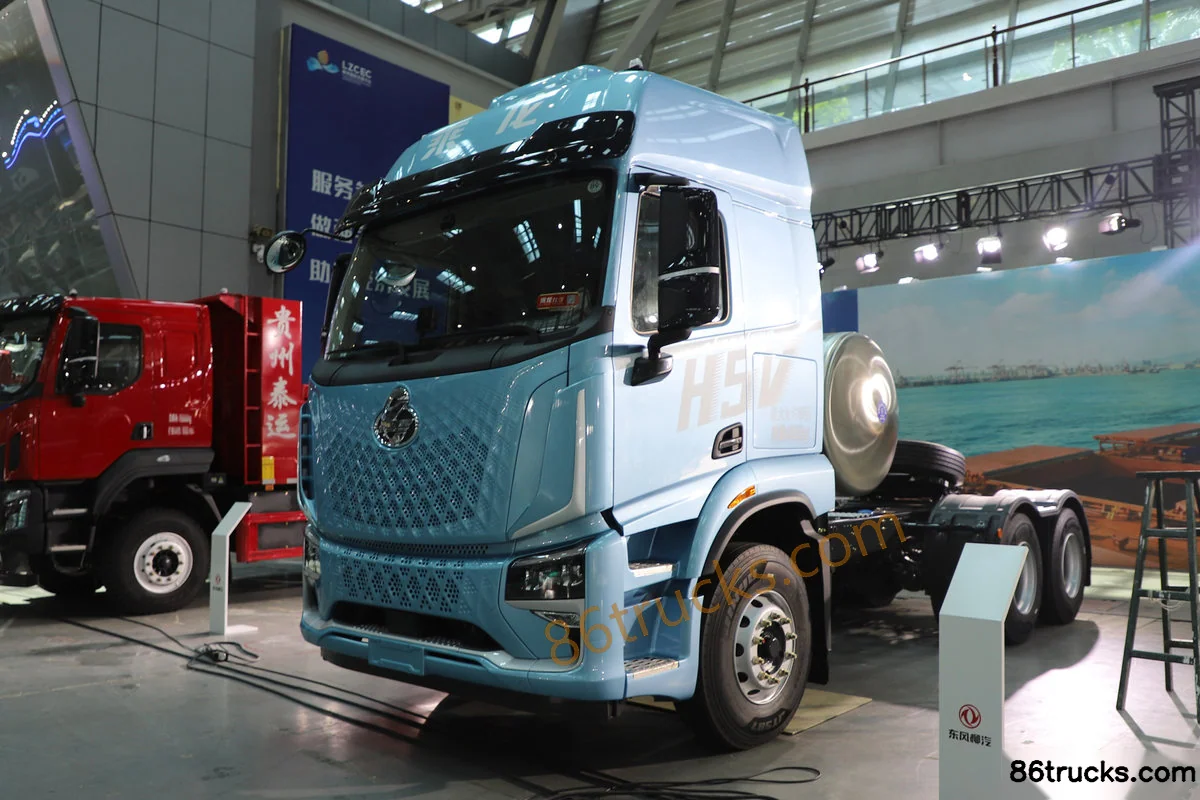

Exterior3

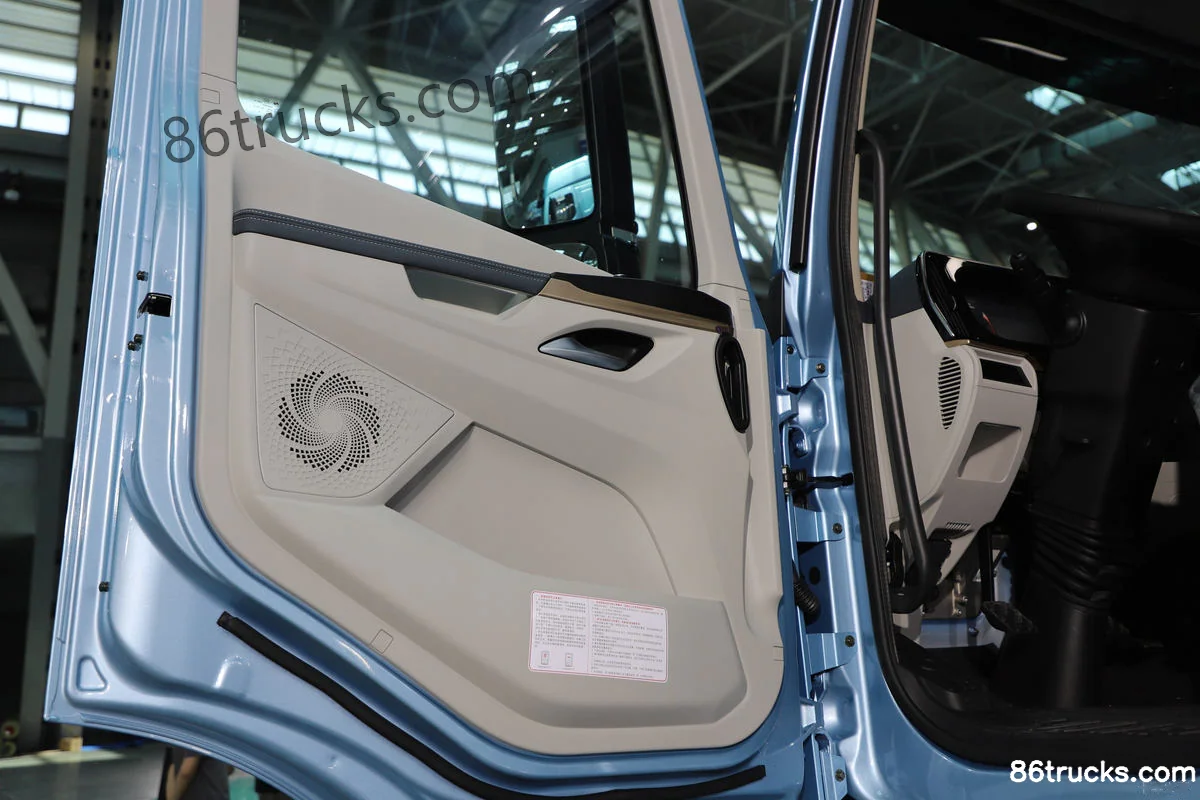

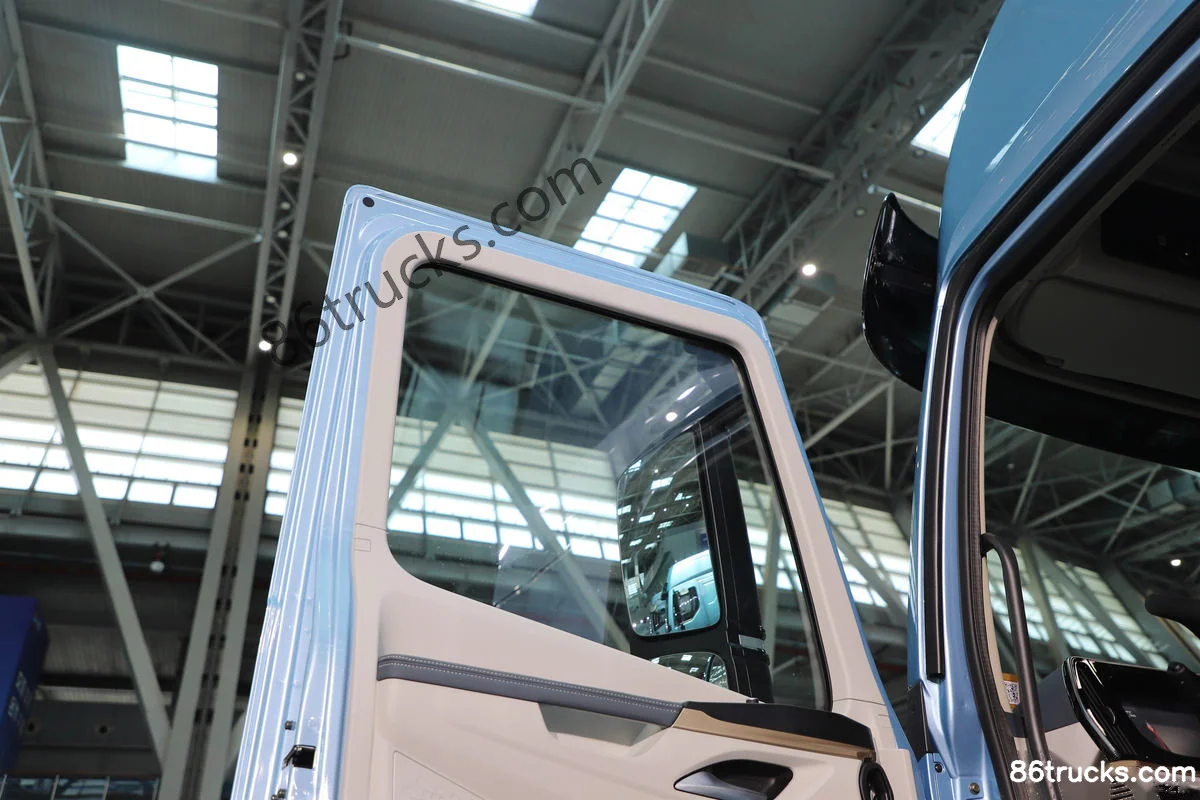

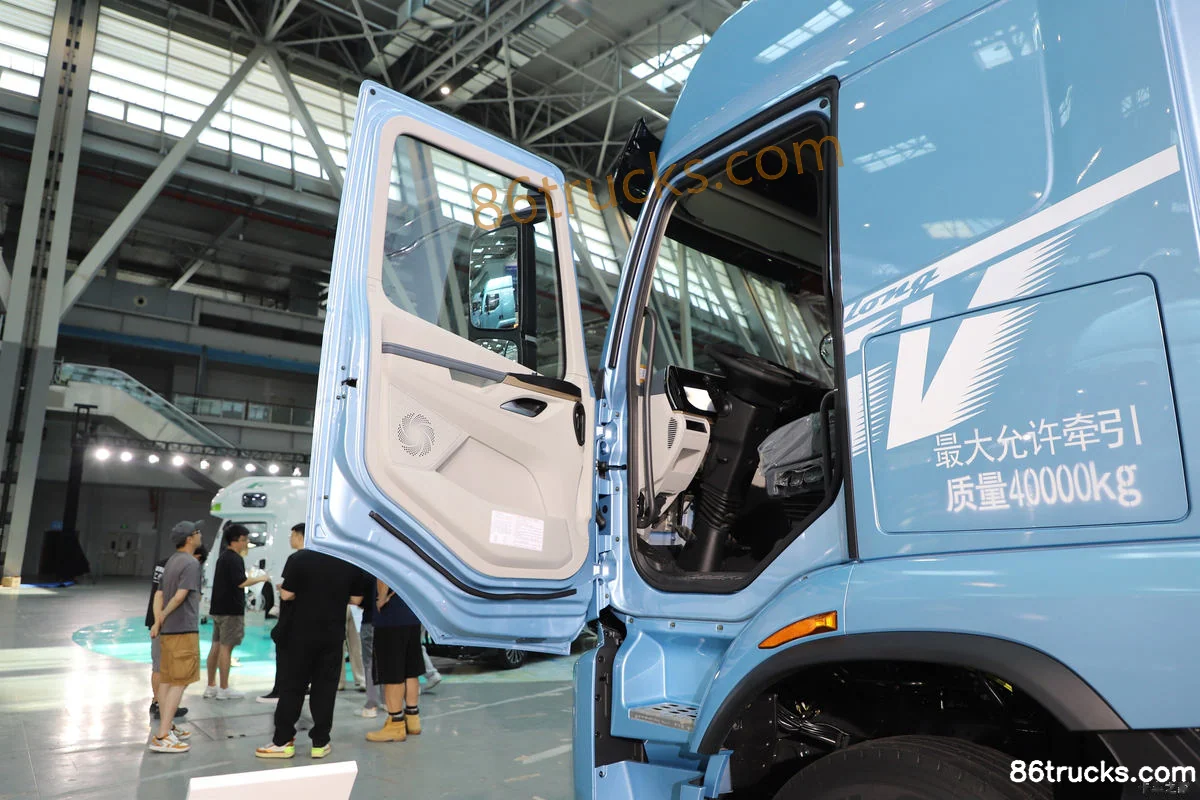

Cab3

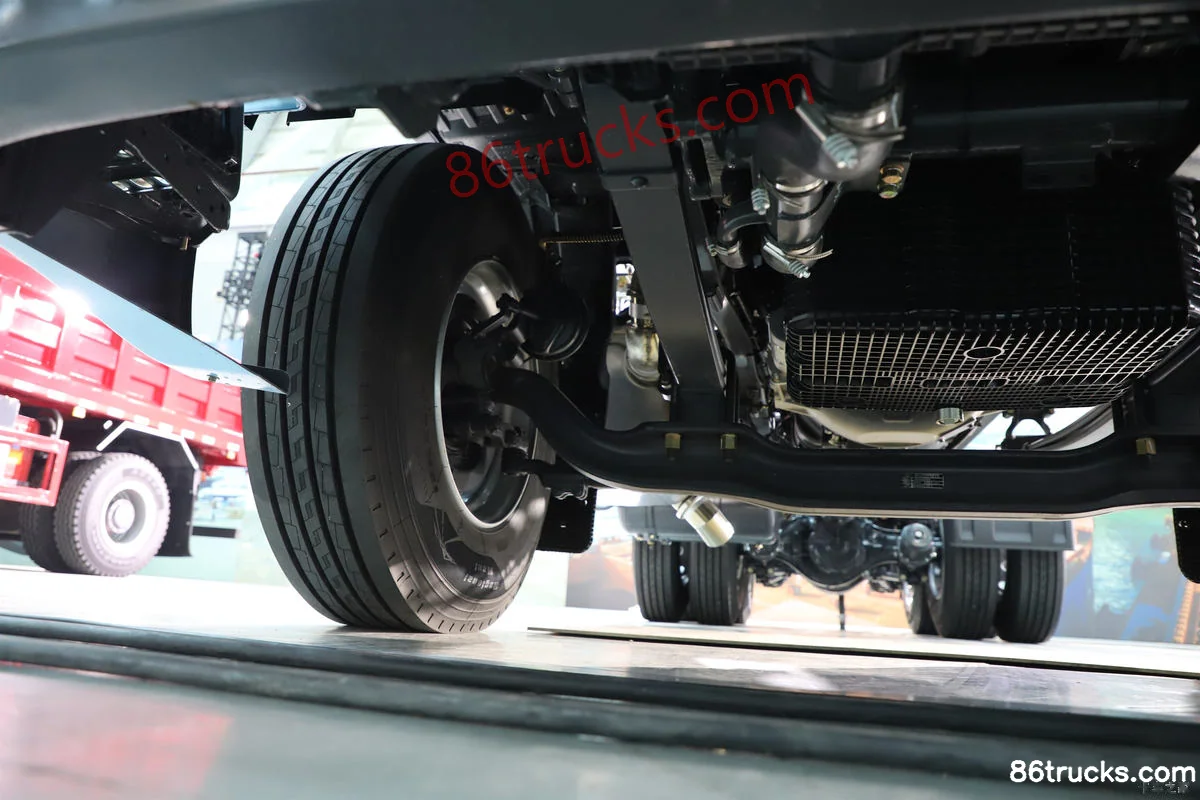

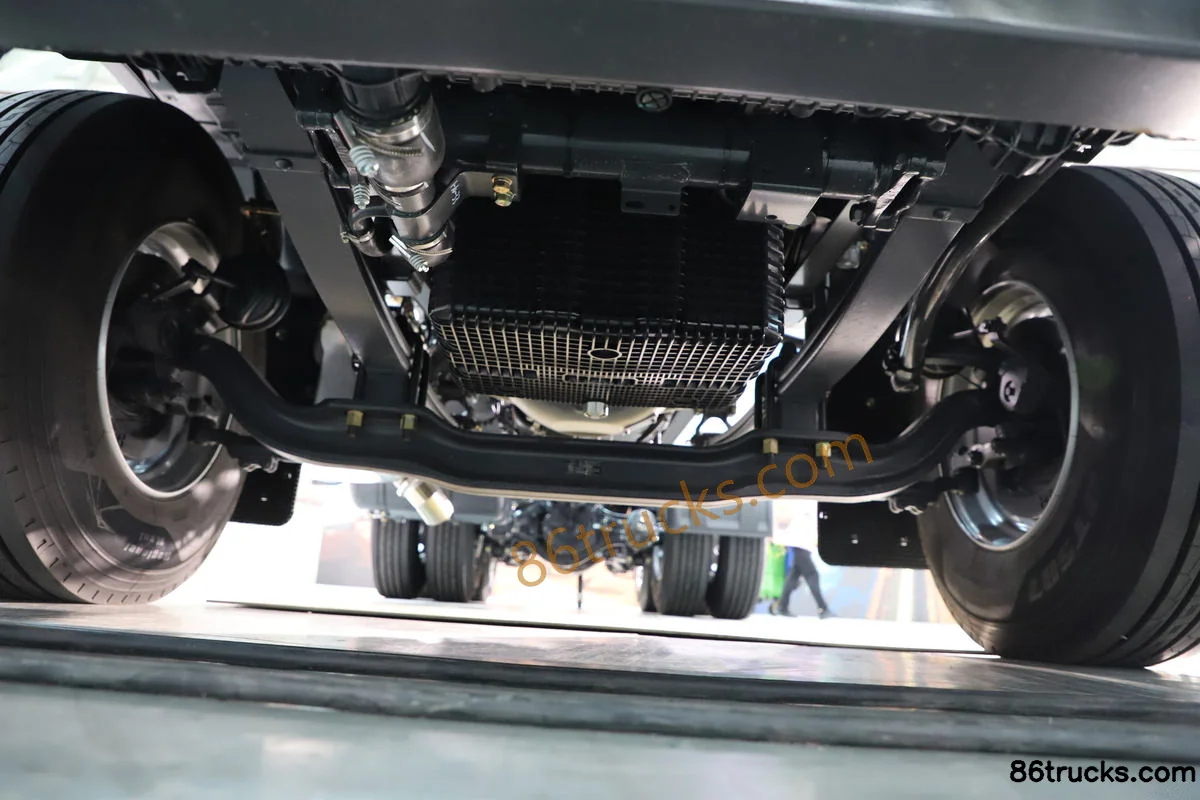

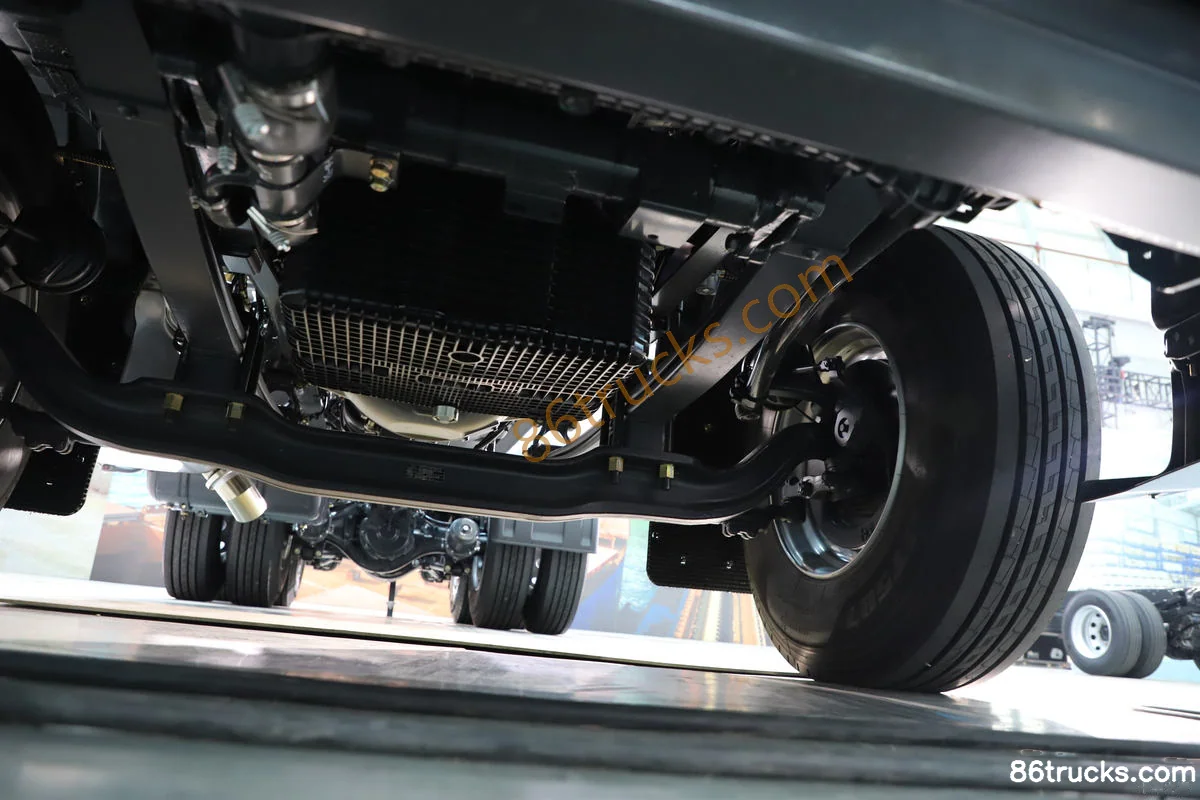

Chassis3

9 photos

FAQ

What emission standard does Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck?

Key specs of Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck: Drive: 6x4; Horsepower: 570 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck suited for?

Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck differ from other variants in the same series?

Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck belongs to DongfengH5V (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5V 13.3L LNG 570 hp 6X4(10 wheels) Fast Gear 12-speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
