Shantui SR22M Single Drum Roller

Export reference
MSRP N/A
Model:: SR22M
Engine Model:: roller
Front axle load distribution:: 10ton
Front static line load:: 490N/cm
Machine dimensions:: 6.14×2.41×3.262mm
Min ground clearance:: 395cm
Shantui SR22M Single Drum Roller exterior
View more photos (3)
Operating mass: 22ton
Working width / drum width: 2140mm
Max output power: 136kW
Wheelbase: 3140mm

Overview

The Shantui SR22M Single Drum Roller is a roller featuring 22ton GVW, 2140mm tank capacity and 136kW power. On the powertrain side, it comes with a roller engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: SR22M
Engine Model: roller
Operating mass: 22ton
Wheelbase: 3140mm
Front axle load distribution: 10ton
Front static line load: 490N/cm
Machine dimensions: 6.14×2.41×3.262mm
Min ground clearance: 395cm
Compaction Parameters
vibration frequency: 28/32Hz
nominal amplitude: 1.8/0.9mm
exciting force: 395/230kN
Working width / drum width: 2140mm
Vibratory drum diameter: Φ1550mm
Maneuverability
Low Speed Travel Speed: 2.55km/h
Highway cruising speed: 8.3/5.03km/h
Theoretical Gradeability: 30
Tire model: 20.5-25-16PR
Min turning outer radius: 6100m
Engine parameters
Engine Brand: SDEC
Engine Model: SDECD6114ZG11B
Max output power: 136kW

Photos

Exterior3

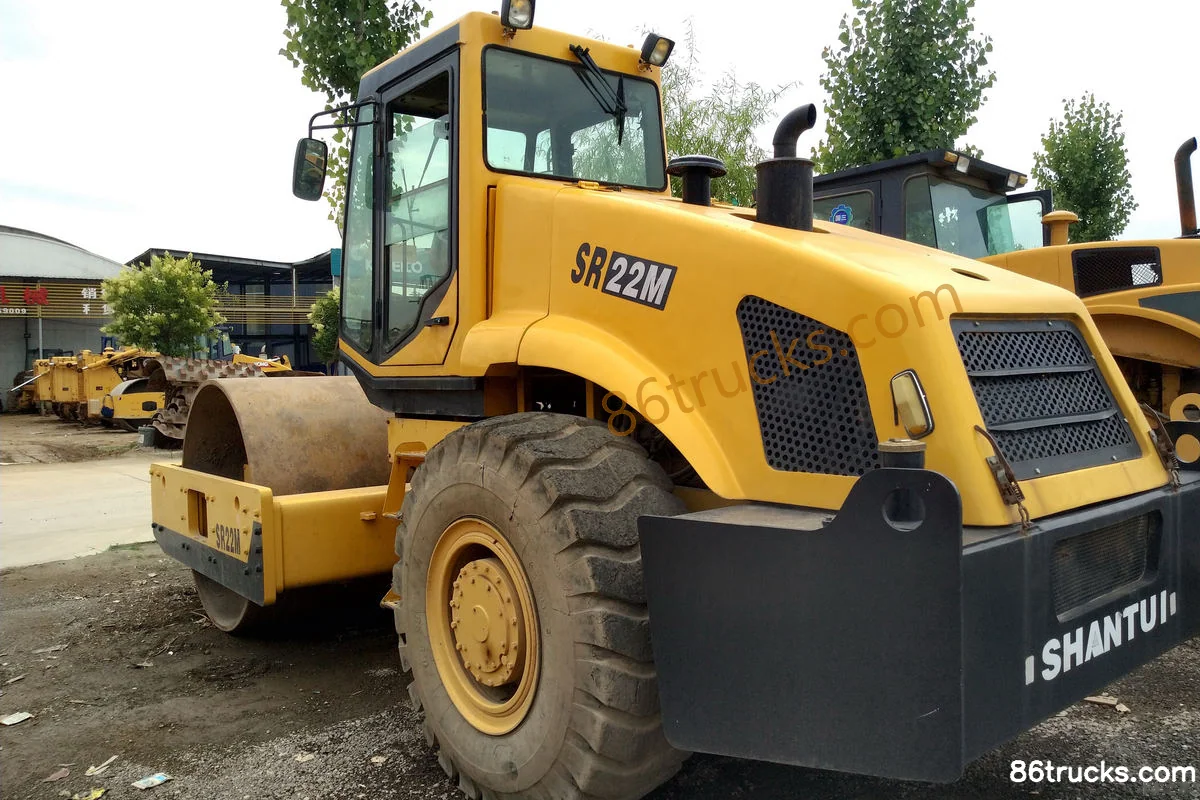

Shantui SR22M Single Drum Roller Exterior (1) | 86Trucks Shantui SR22M Single Drum Roller Exterior (2) | 86Trucks Shantui SR22M Single Drum Roller Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Shantui SR22M Single Drum Roller suited for?

Shantui SR22M Single Drum Roller is a roller model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Shantui SR22M Single Drum Roller differ from other variants in the same series?

Shantui SR22M Single Drum Roller belongs to Shantui Shantui roller (roller). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shantui SR22M Single Drum Roller?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shantui SR22M Single Drum Roller?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
