JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.2ton
Wheelbase:: 3365mm
Cargo box type:: Stake type
Model code (announced):: HFC5042CCYEV7
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Bosch
Curb Weight: 3.1ton

Overview

The JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels) is a Light Truck featuring 260km battery/range, Bosch motor, 4X2 (6 wheels) drive and 1.2t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5042CCYEV7
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
Cab length: 5995m
Cab width: 2.2m
Cab height: 3.18m
CLTC range: 260km
Curb Weight: 3.1ton
Rated payload: 1.2ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XS001
Max torque: 420N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 90kW
Peak power: 167kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 86.55kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.1m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1900kg
rear axle allowable load: 2595kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

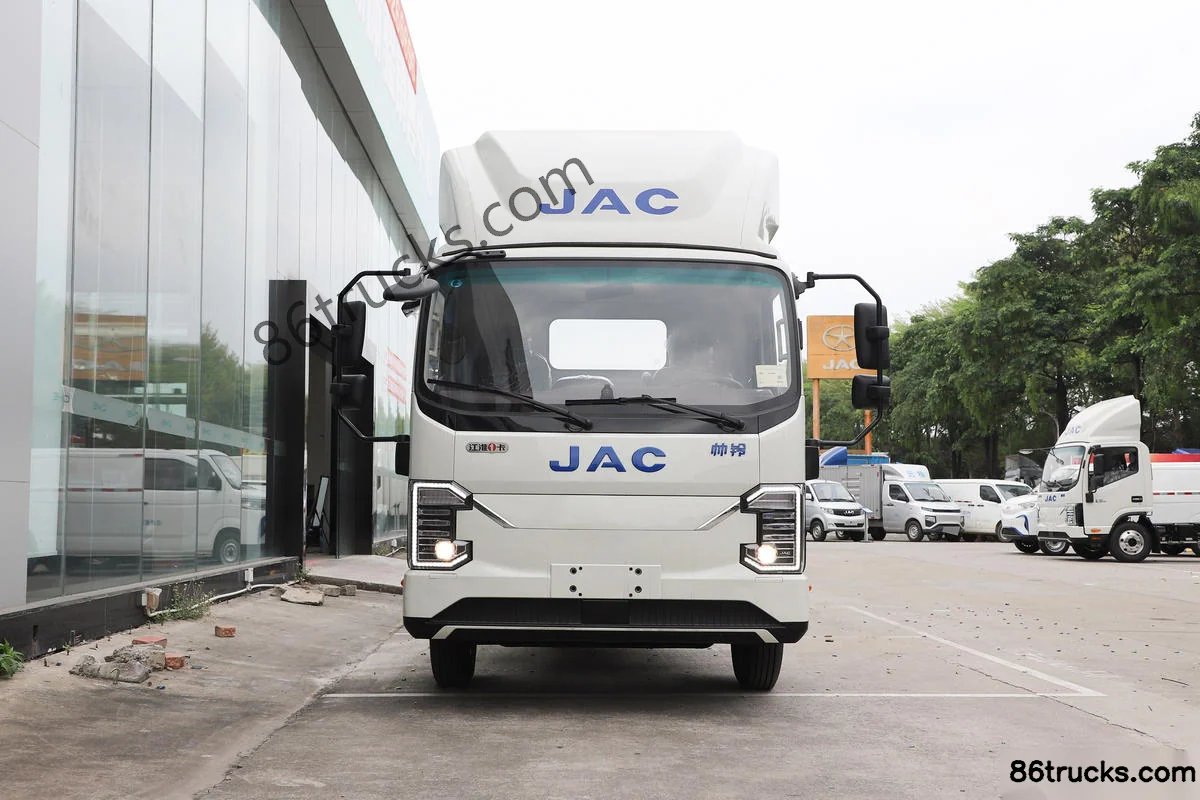

Exterior1

1 photos

FAQ

What are the key specs of JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels)?

Key specs of JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels) suited for?

JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels) belongs to JACES6 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing ES6 4.5T 4.15m Single Row Pure Electric Cage Light Truck 86.55kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
