Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh

Export reference
From $21,250
MSRP ¥15.3M CNY
Wheelbase:: 3380mm
Cargo box volume:: 7
Model code (announced):: GXA5030XXYBEVC
Cab length:: 5.43m
GVWR:: 3ton
Max. speed:: 80km/h
Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh exterior
View more photos (12)
CLTC range: 230km
Motor 1 Brand: Tongyu
Curb Weight: 1.48ton
Rated payload: 1.39ton

Overview

The Wuling New Energy Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh is a Electric Panel Van featuring 230km battery/range, Tongyu motor, 1.39t payload and 7 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): GXA5030XXYBEVC
Wheelbase: 3380mm
Cab length: 5.43m
Cab width: 1.76m
Cab height: 2.05m
CLTC range: 230km
Curb Weight: 1.48ton
Rated payload: 1.39ton
GVWR: 3ton
Max. speed: 80km/h
Remarks: Standard: electric heater system, creep function, energy recovery; Optional: 10.1-inch center console entertainment system
Front/rear suspension: 0.753/1.297m
Version: Business Cabin Luxury
Energy Type: Electric
electric motor
Motor 1 Brand: Tongyu
Motor 1 Model: TZ210XSTY4209
Max torque: 240N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 40kW
Peak power: 80kW
Battery/Charging
Charging method: Fast charge, optional slow charge
Battery Brand: Jiangxi Anchi
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 38.016kWh
Body parameters
Cargo box volume: 7
Max body depth: 3.05
Max body width: 1.605
Cargo Box Height: 1.435
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
side door type: sliding door
Tailgate type: split doors
side door opening: 0.86°
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15LT 12PR
Rear Wheel Specification: 185/65R15LT 12PR
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:

Photos

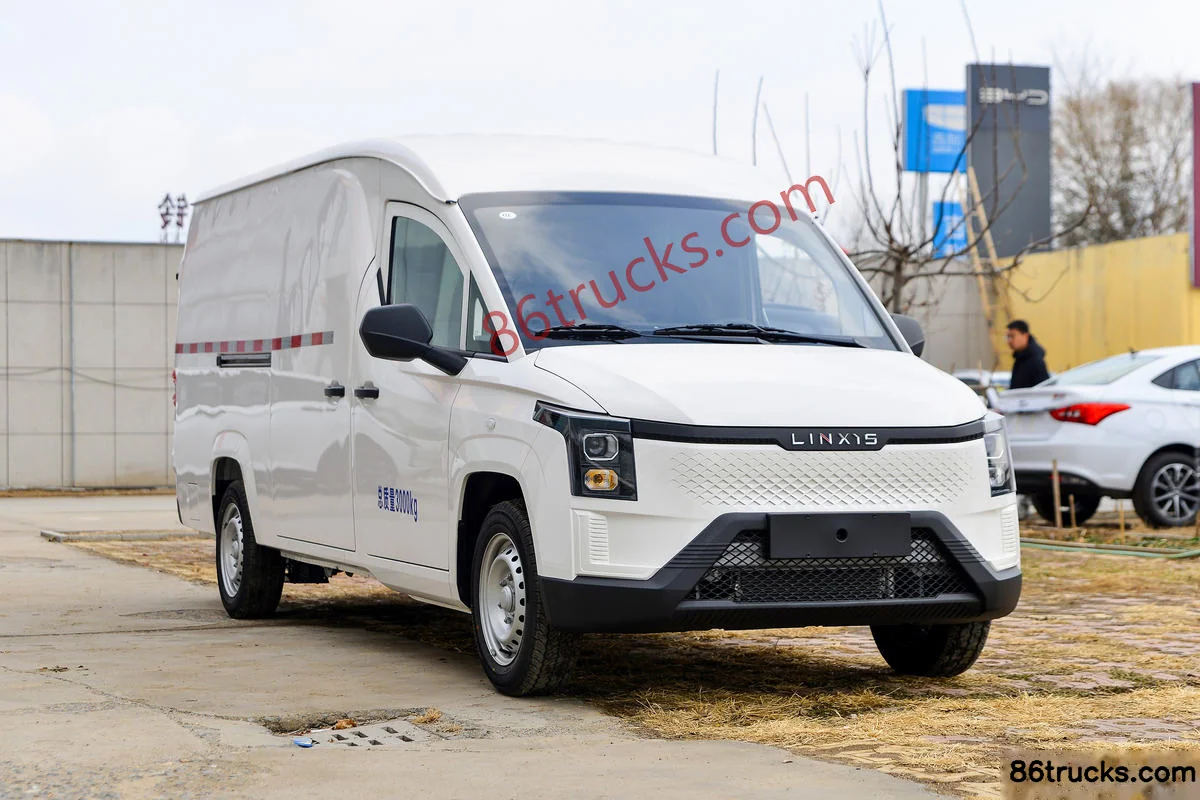

Exterior3

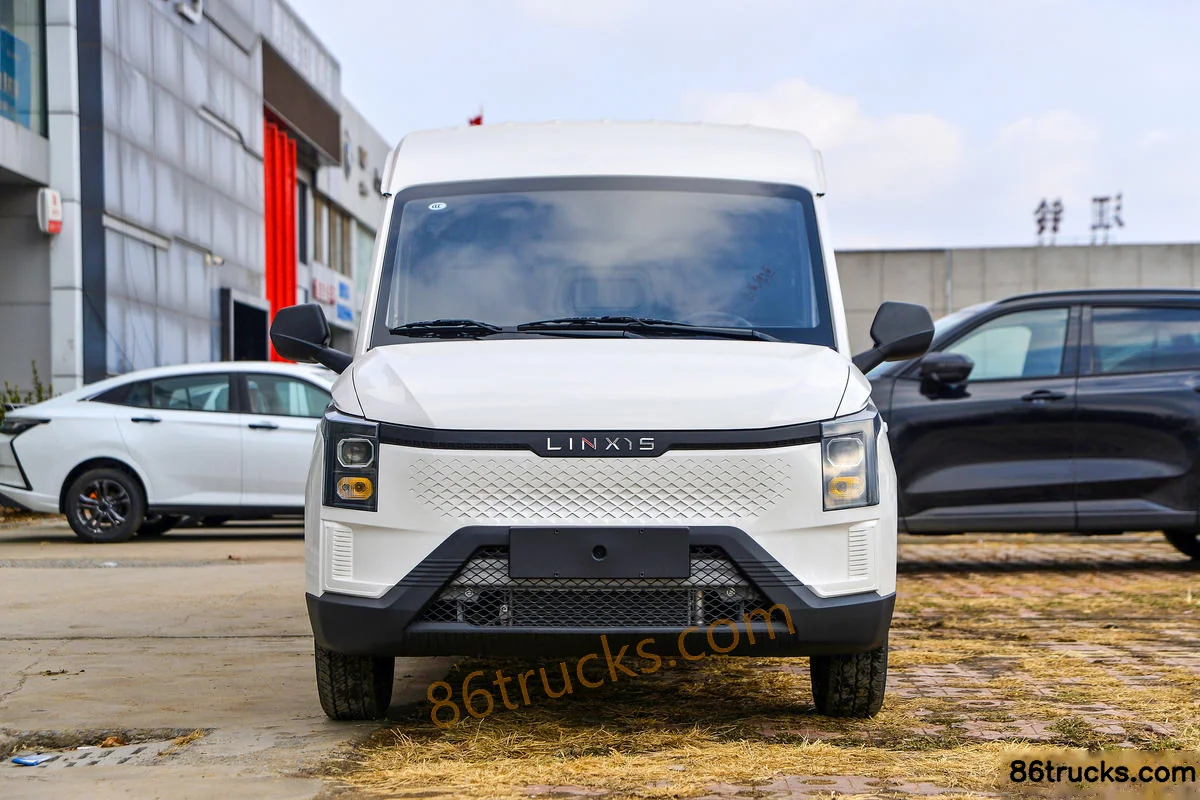

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Exterior (1) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Exterior (2) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Exterior (3) | 86Trucks

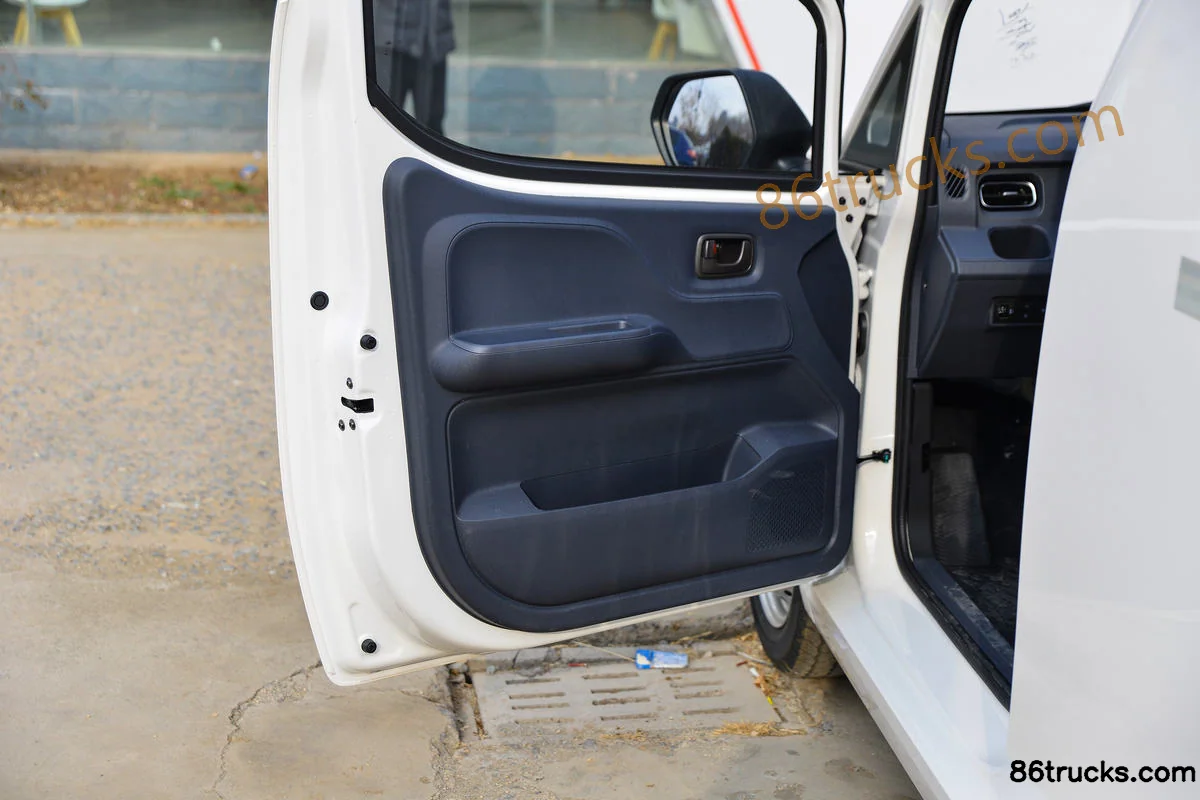

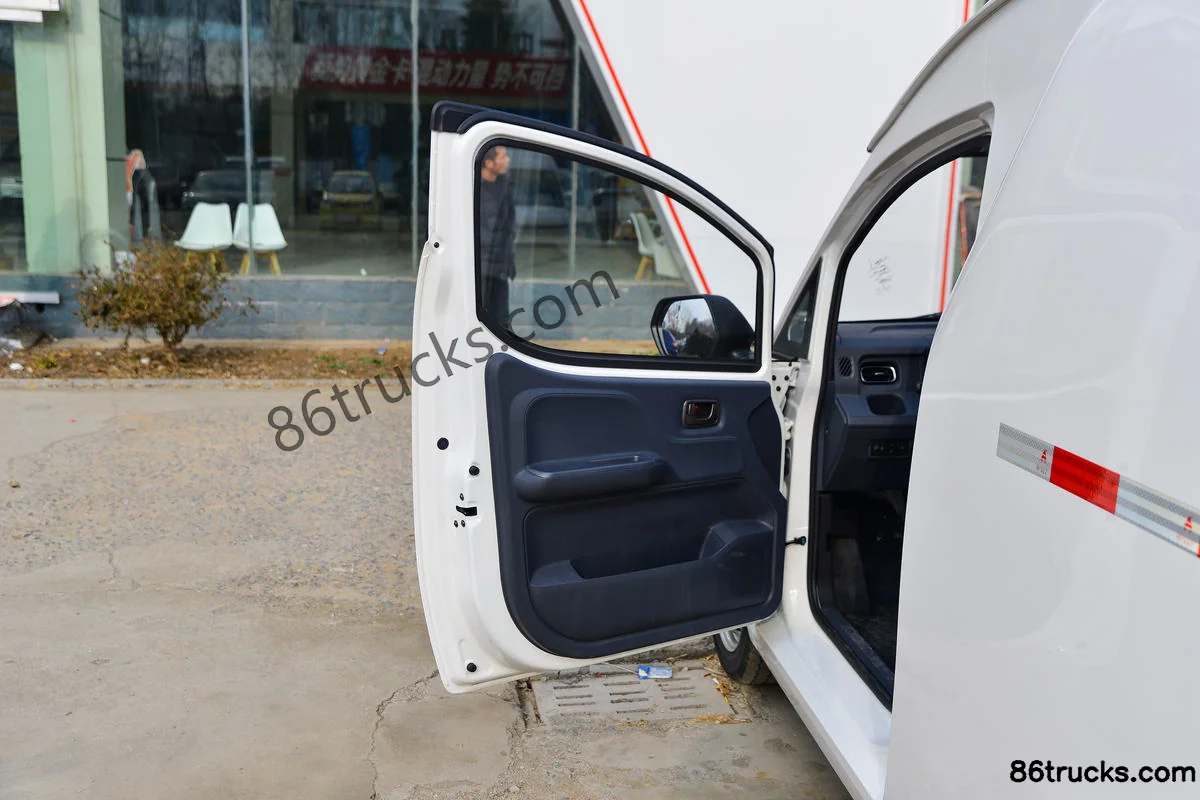

Cab3

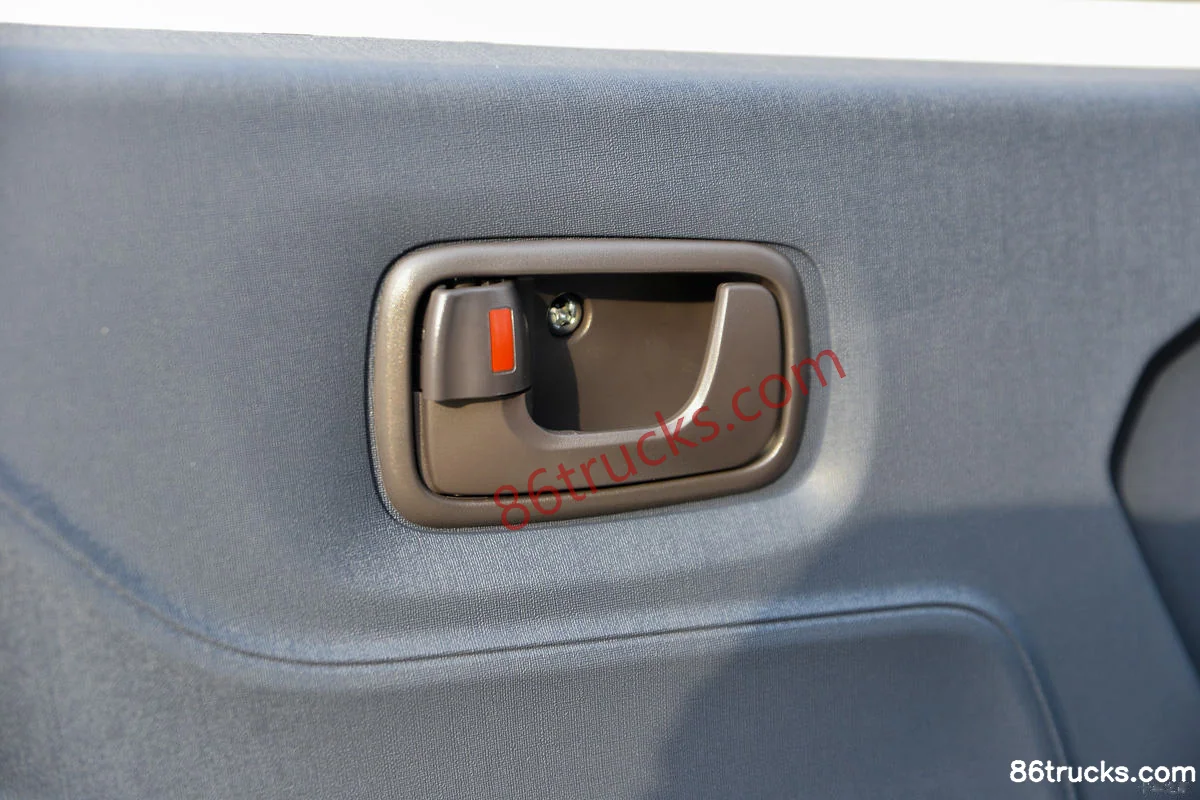

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cab (1) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cab (2) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cab (3) | 86Trucks

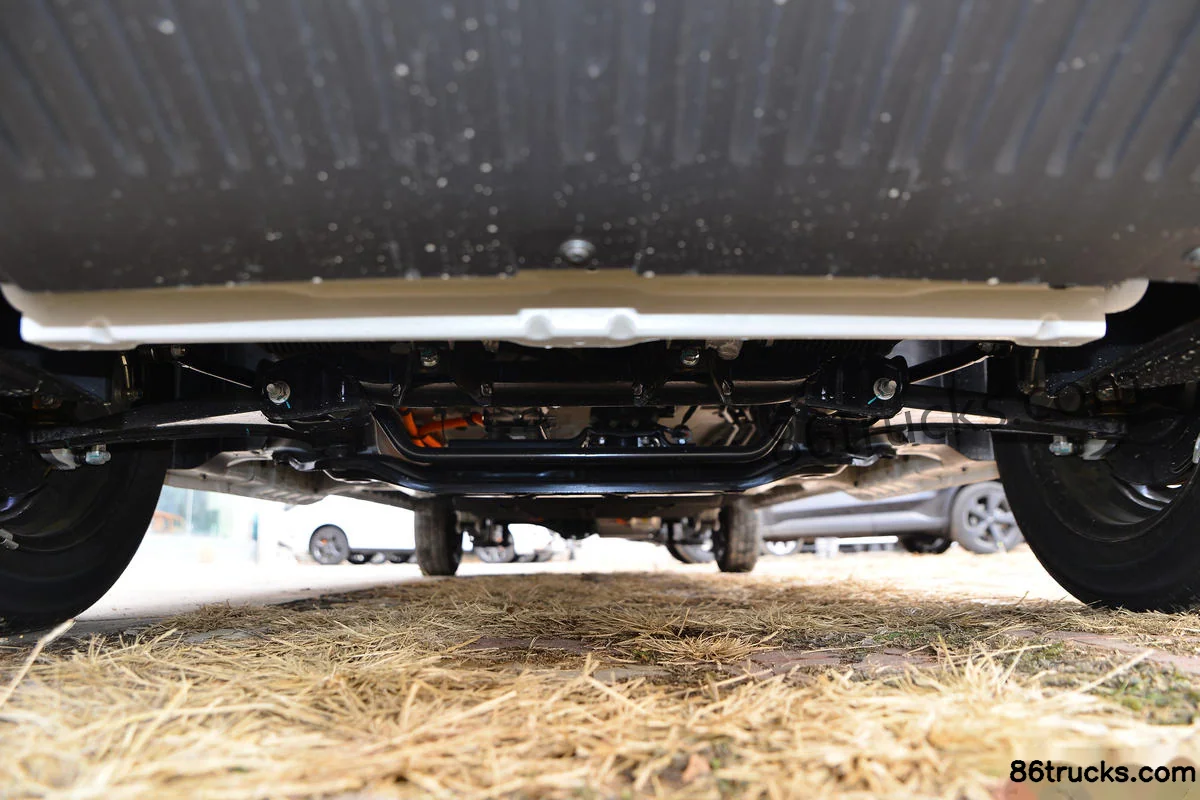

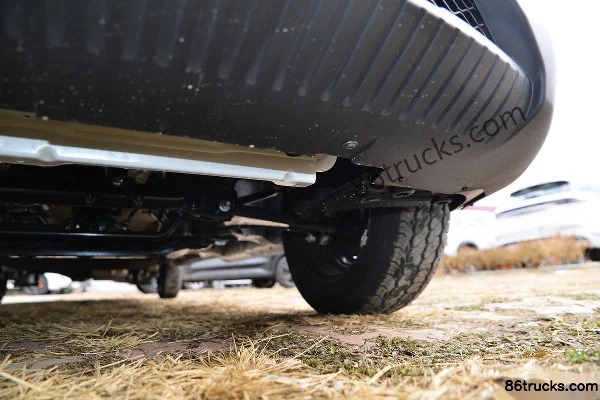

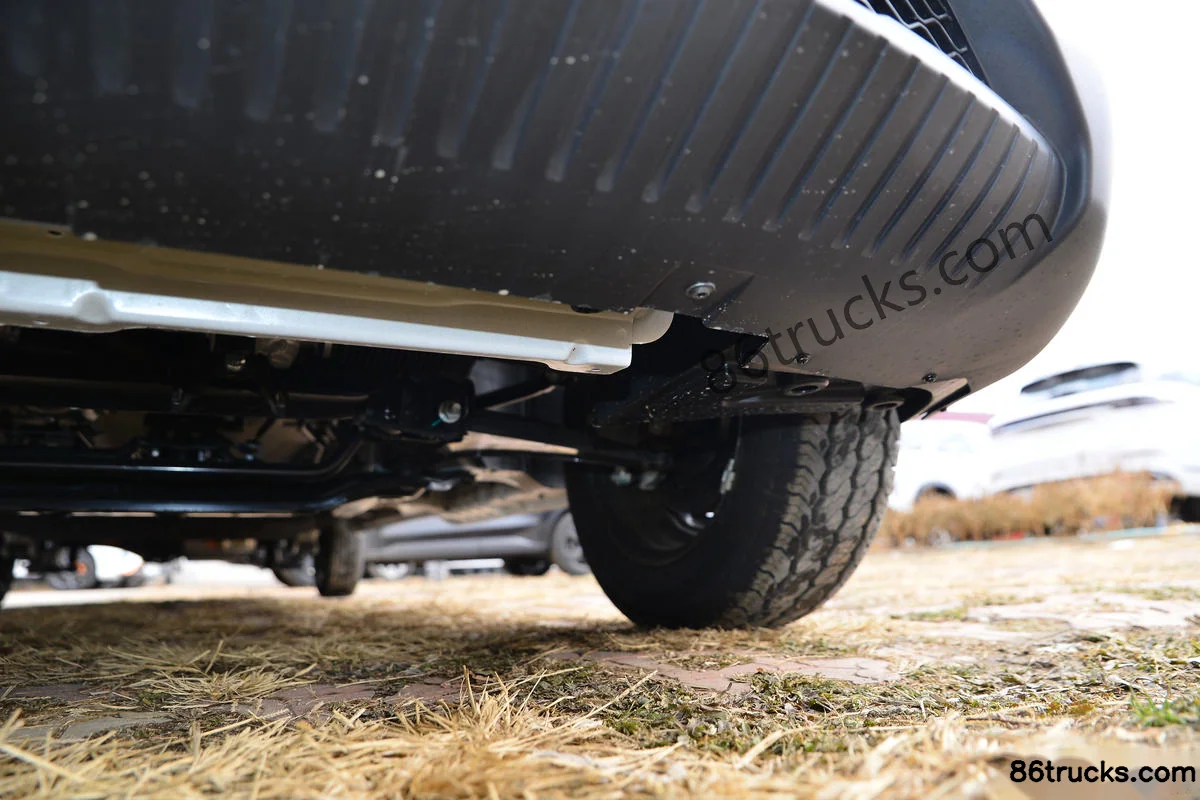

Chassis3

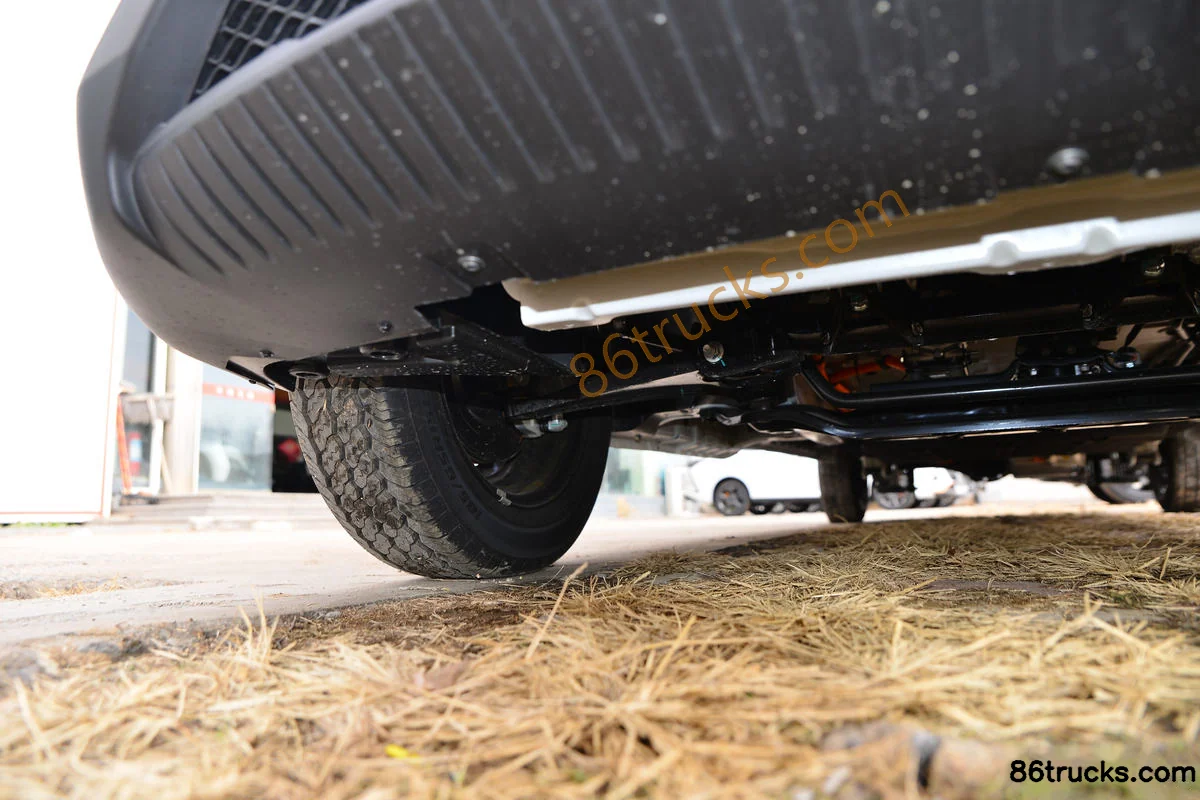

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Chassis (1) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Chassis (2) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Chassis (3) | 86Trucks

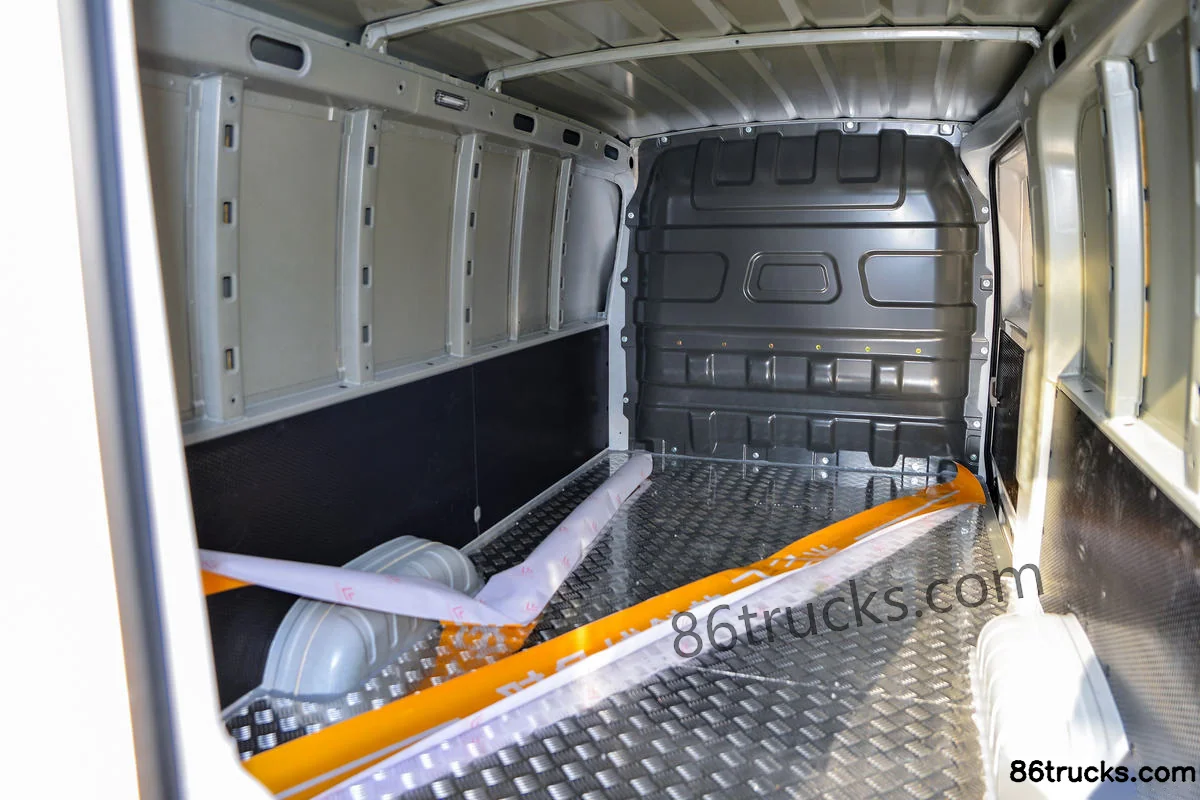

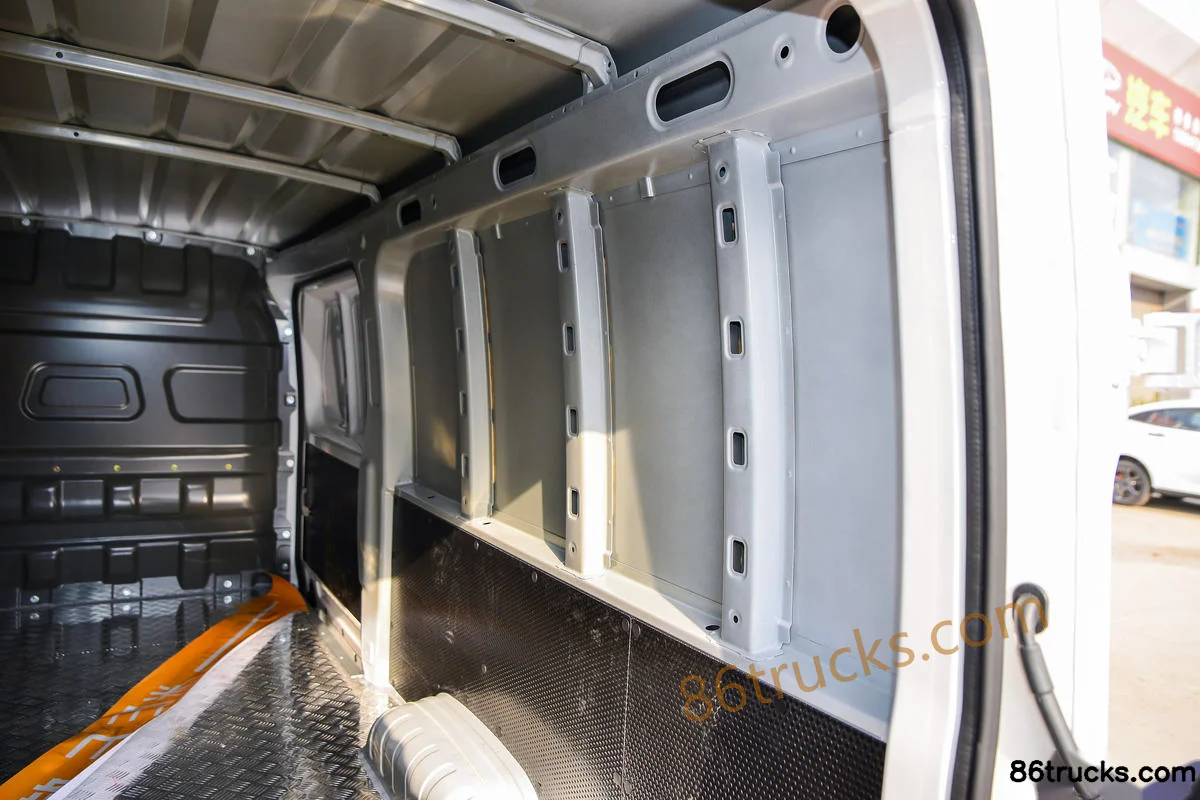

Cargo Box3

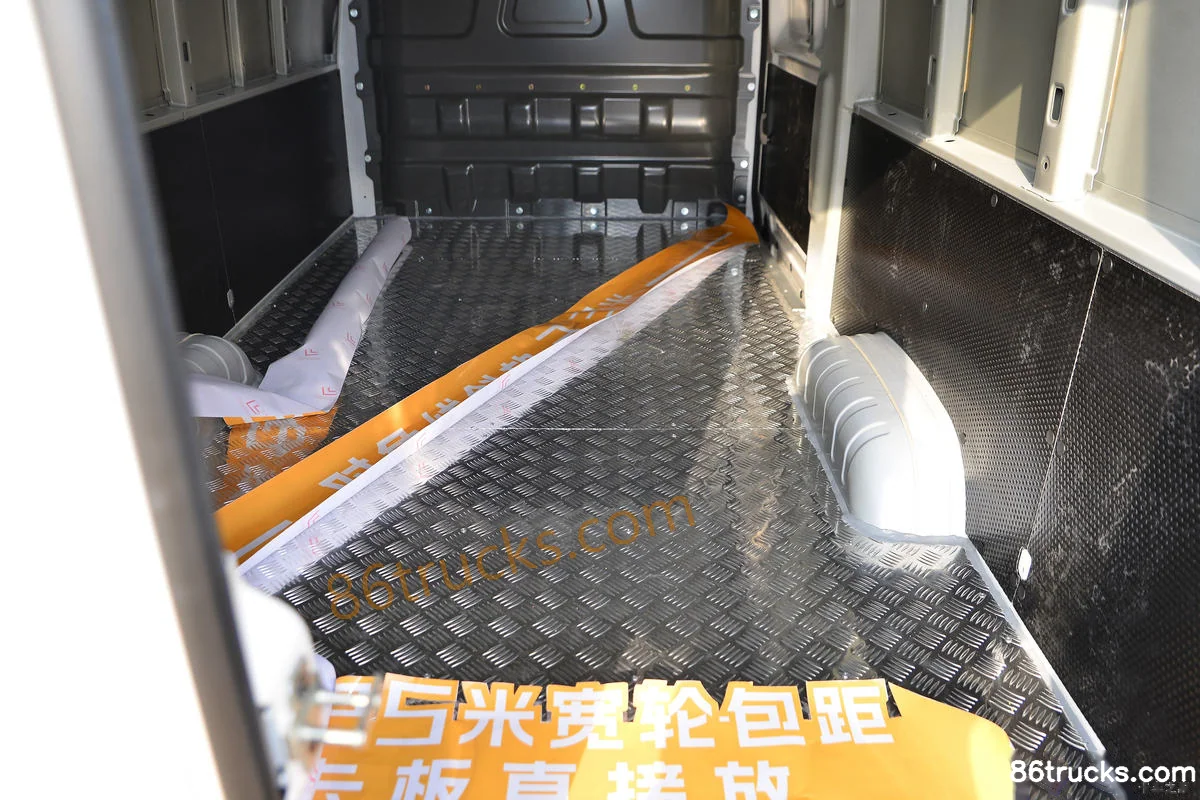

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cargo Box (1) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cargo Box (2) | 86Trucks Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh, and what does it include?

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh export reference is about From $21,250; MSRP is ¥15.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh suited for?

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh differ from other variants in the same series?

Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh belongs to Lingshi Auto Golden Cargo (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Lingshi Auto Gold Warehouse Business Warehouse Luxury 3T 2-Seat 5.43m Electric Panel Van 38.016kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
