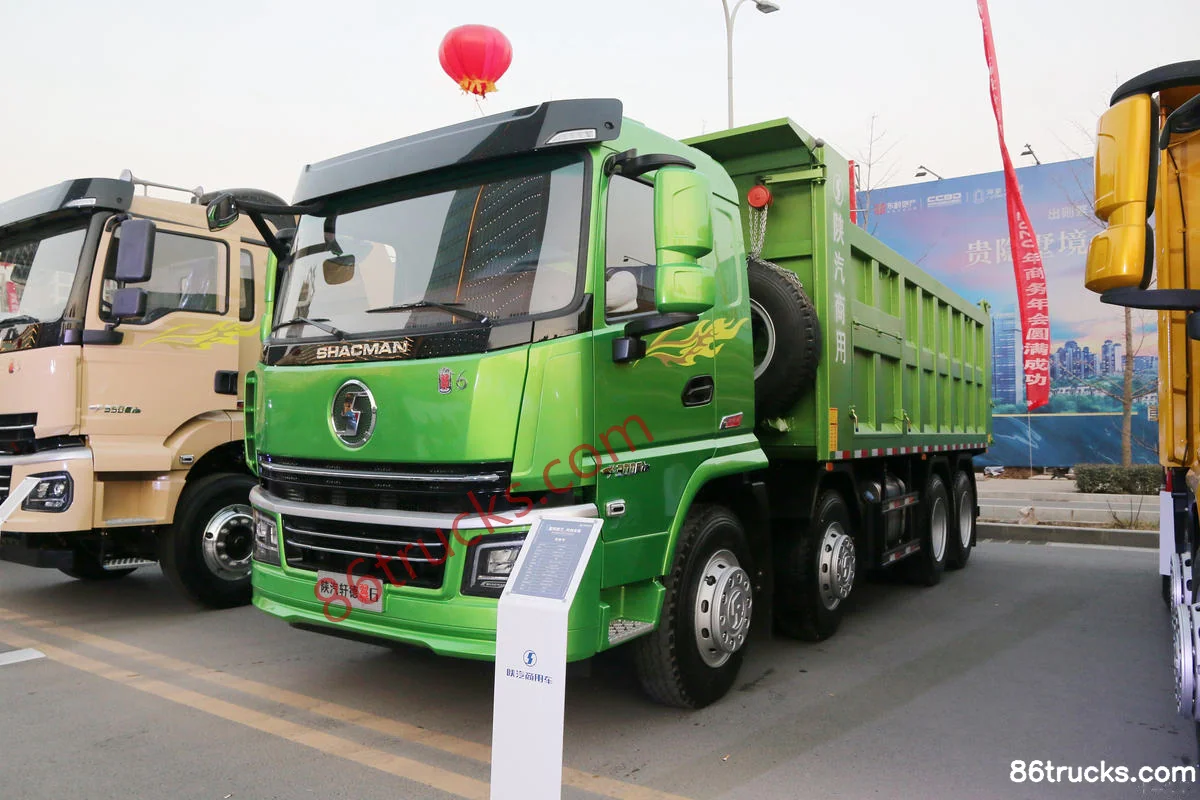

SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck

Export reference
From $40,028
MSRP ¥28.82M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.8ton
Wheelbase:: 2050+2500+1300mm
Tire Size:: 11R22.5 18PR
Rated payload: 20.07ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box length: 6.2m

Overview

The SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck is a Heavy truck featuring 20.07t payload, 31t GVW, 6.2m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP7.300E61 engine, 300 hp, China VI emissions and Fast Gear transmission.

China VI 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3310GP6256
Drive type: 8X4
Wheelbase: 2050+2500+1300mm
engine: WeichaiWP7.300E61
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 5.571
Cab length: 8.86m
Cab width: 2.5m
Cab height: 2.85m
Front track width: 2011/2011mm
rear track: 1850/1850mm
Curb Weight: 10.8ton
Rated payload: 20.07ton
GVWR: 31ton
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 20°
Remarks: Optional: ventilated/heated driver seat, electric tilting, ultra-low roof cab, oil-bath air filter, water tank underguard, iron air tank
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7.300E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.5L
Emission standard: China VI
Max output power: 220kW
Max hp: 300Horsepower
Max torque: 1300N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: CR+EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 6.2m
Cargo box width: 2.35m
Cargo box height: 1.35m
Cab parameters
Cab: Yi6 semi-high roof
Cab suspension: 4-point mechanical suspension
Cab width: 2220mm
Cab tilting: Manual
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 3.2t dual front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280/6+4 double-layermm
rear axle description: HDZ10t/Single-stage Dual-axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Leaf spring count: 9/9/10
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:

Photos

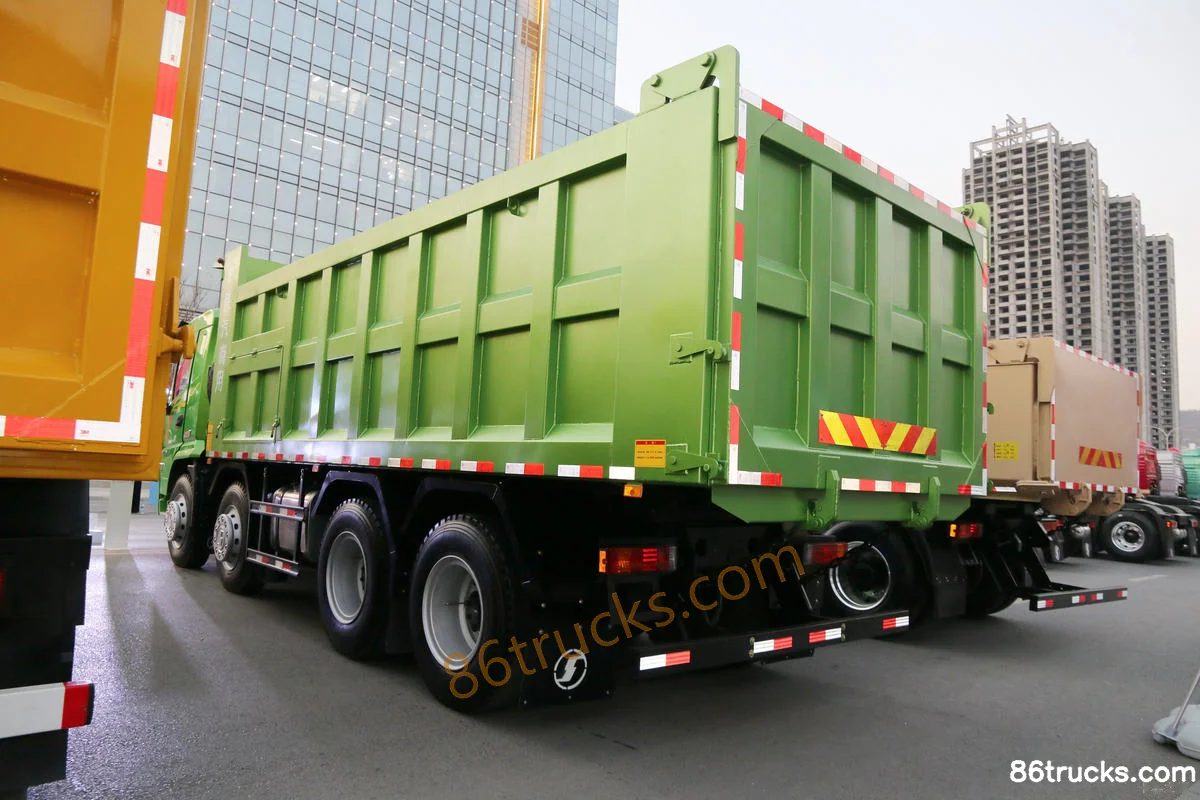

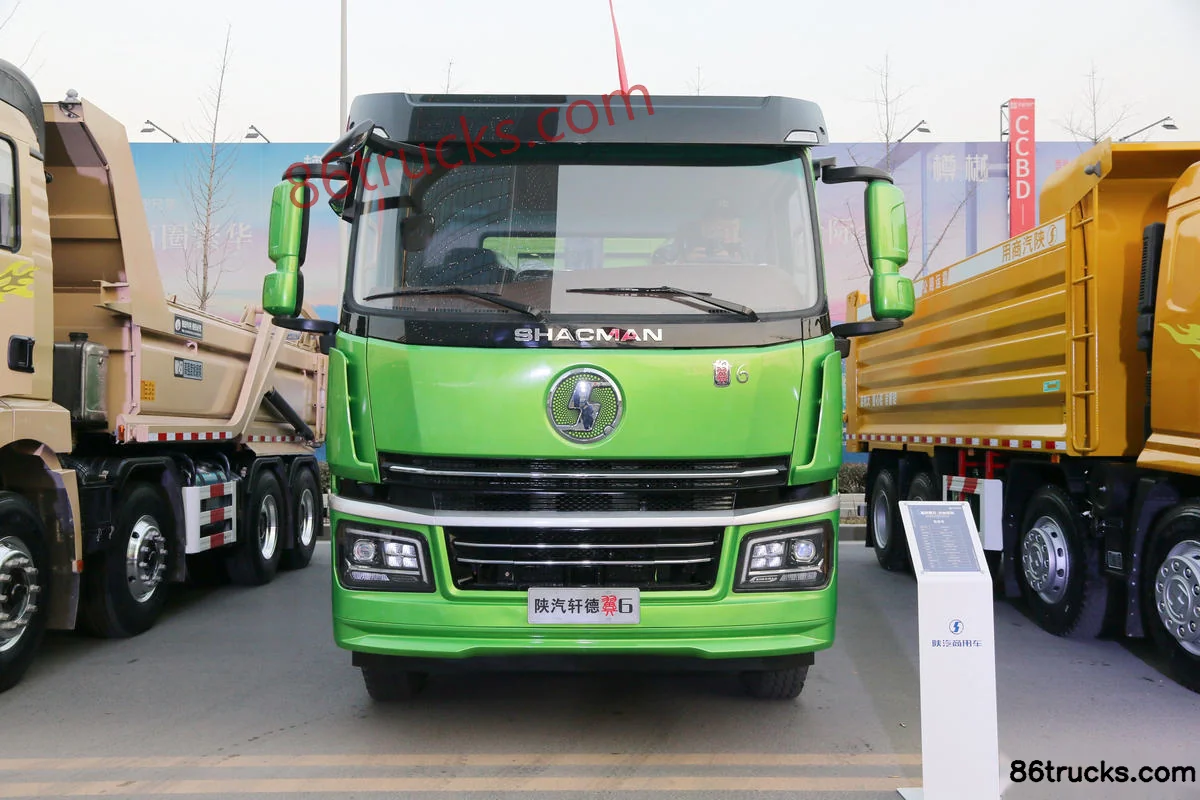

Exterior3

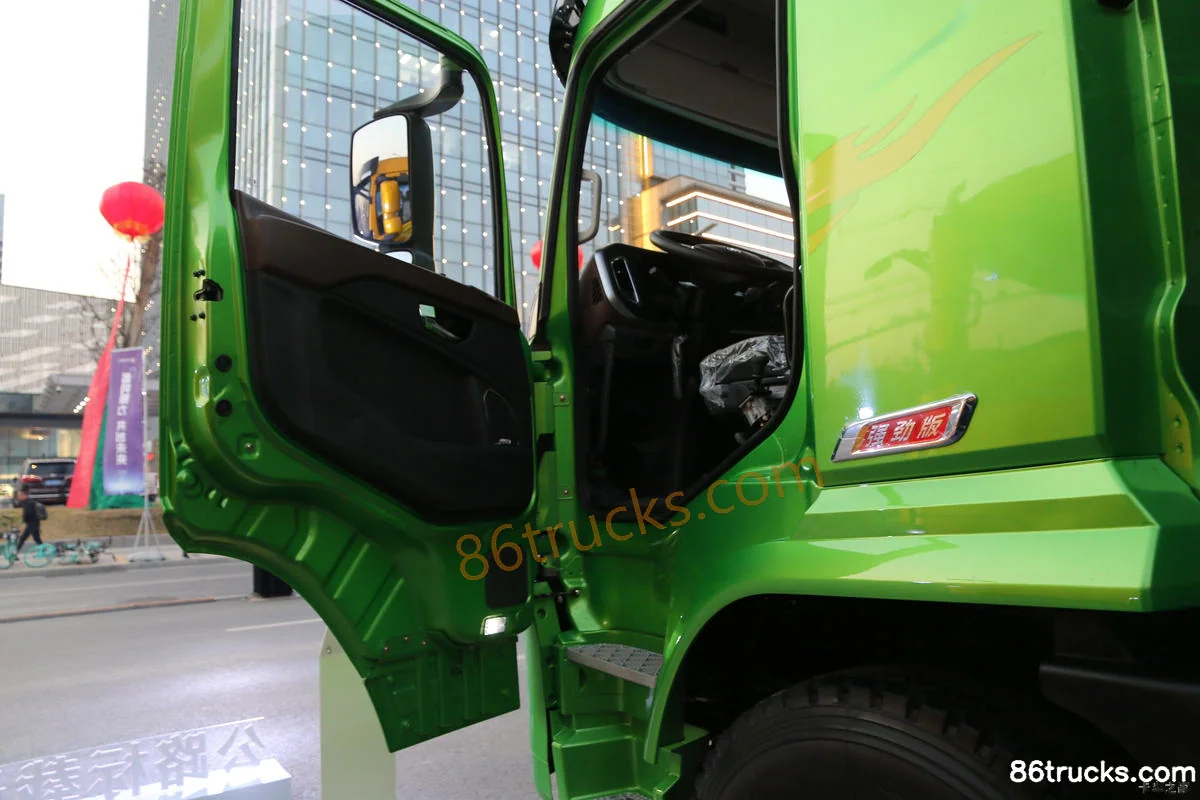

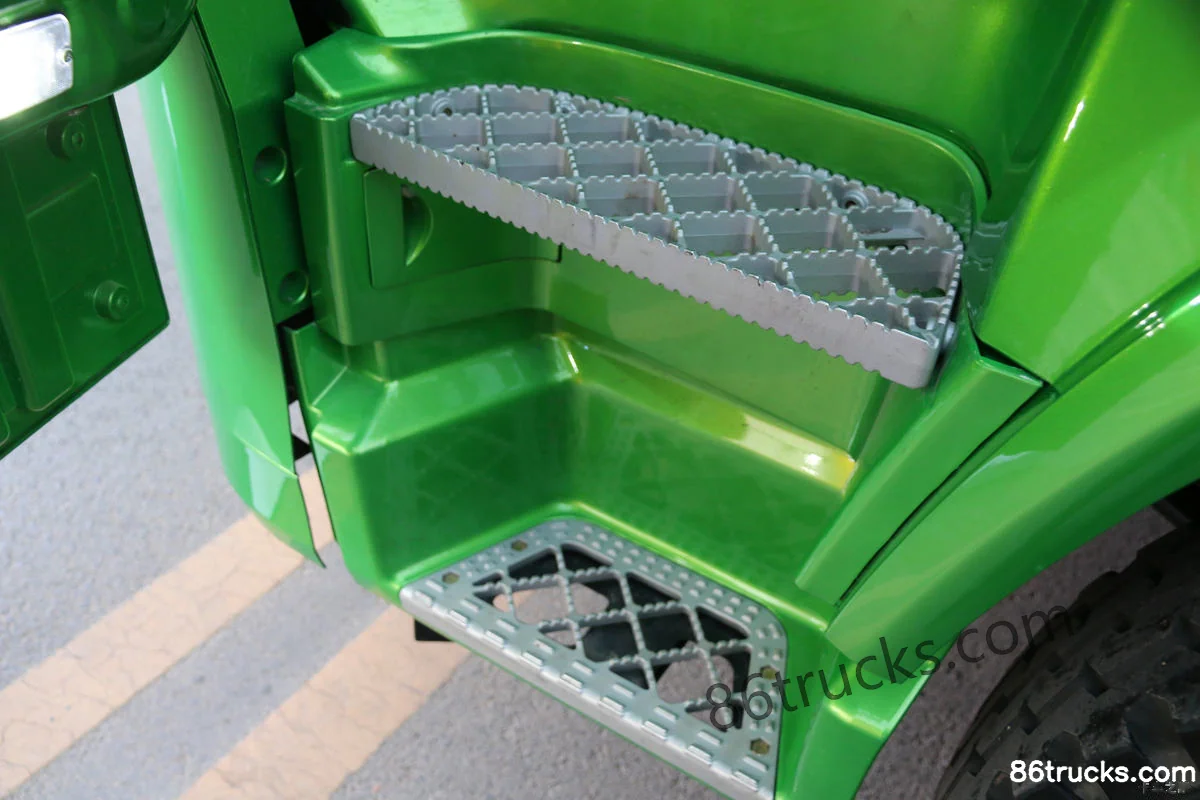

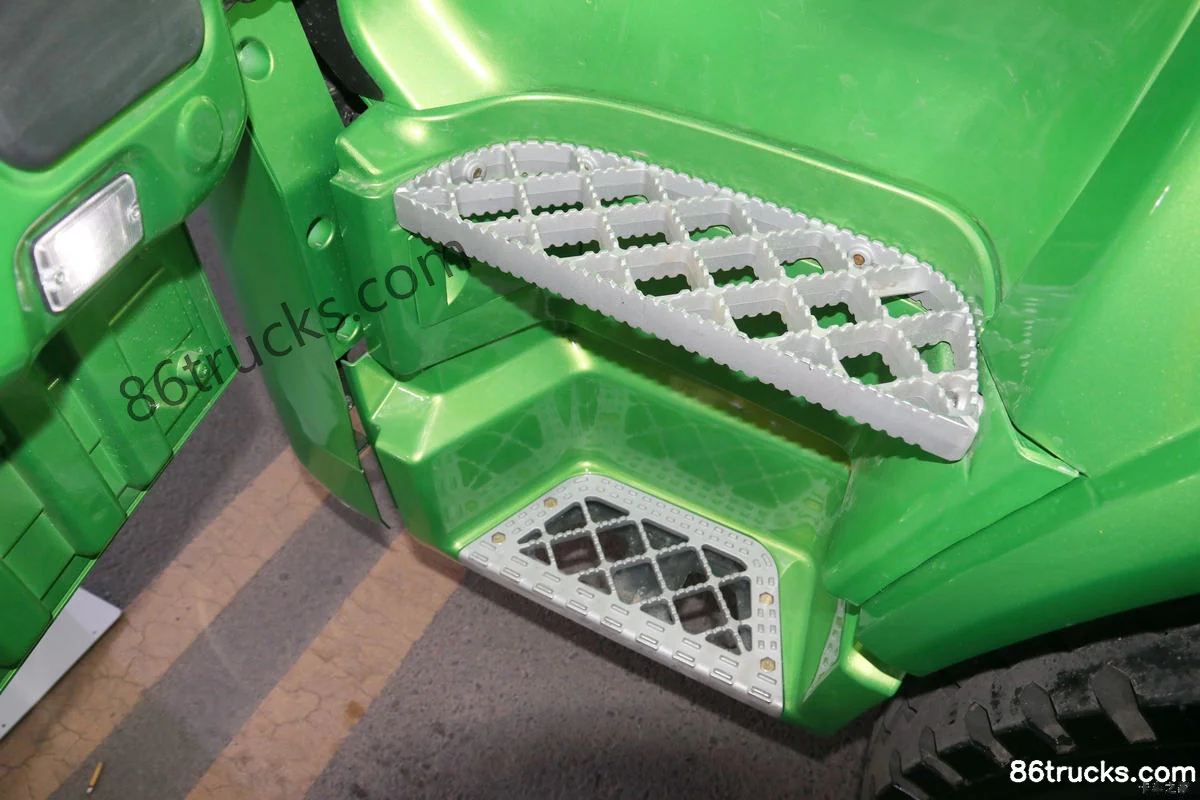

Cab3

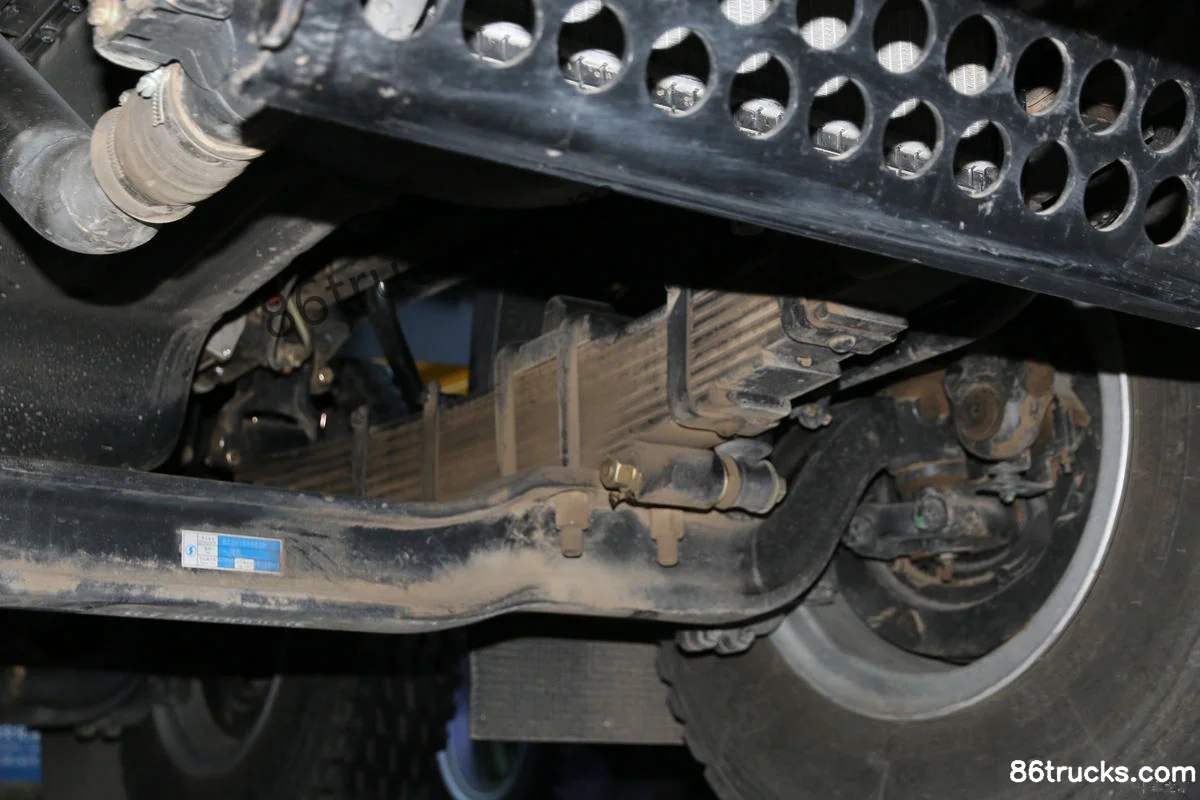

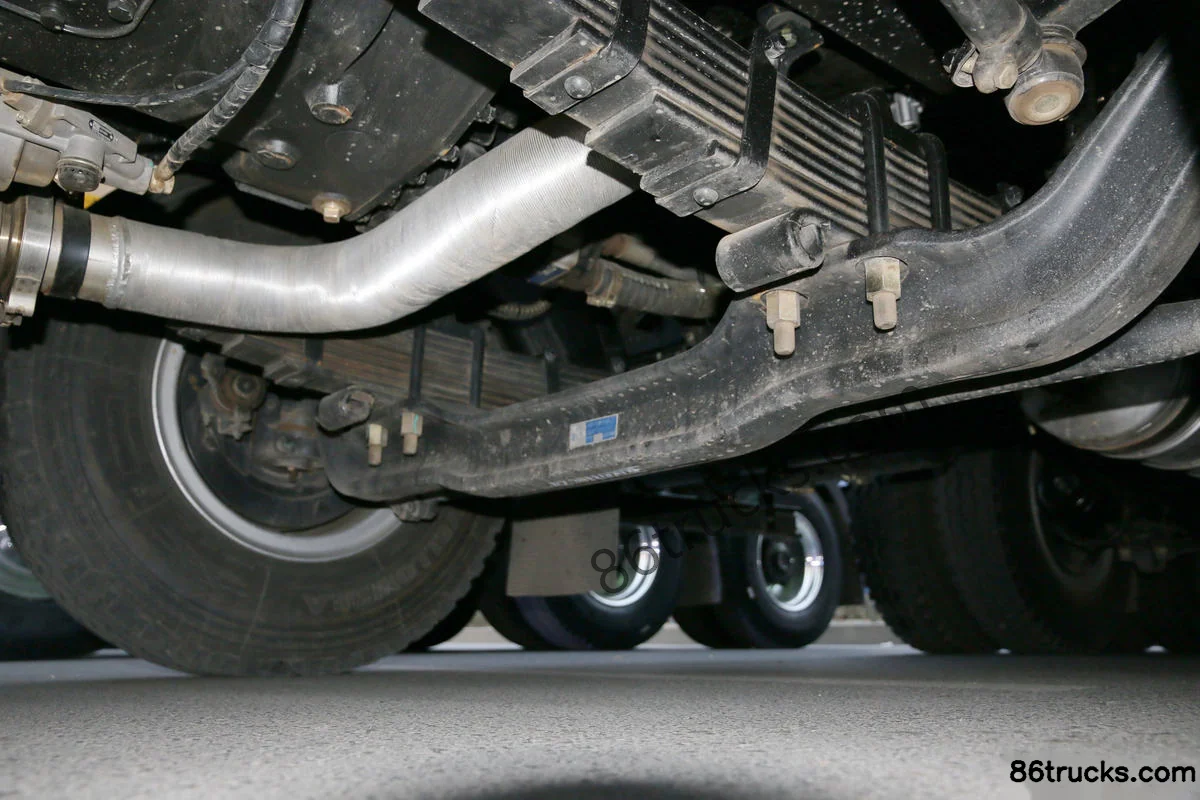

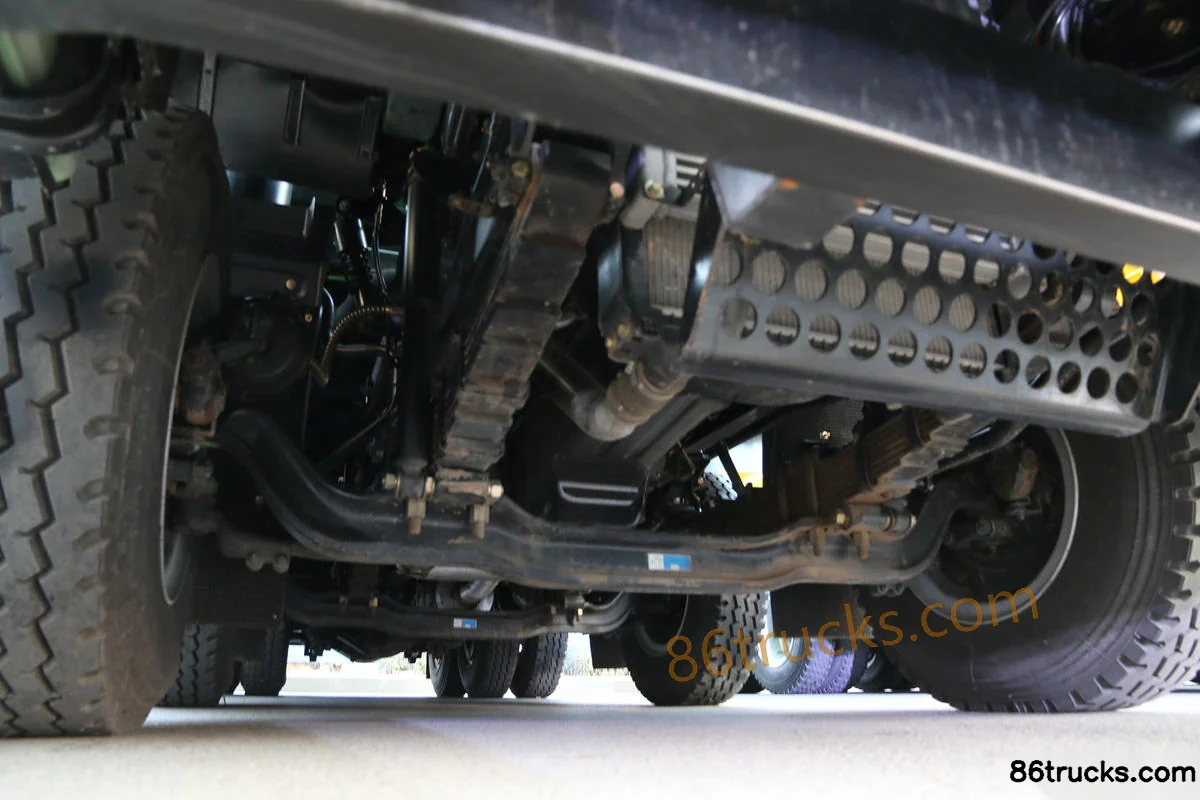

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck export reference is about From $40,028; MSRP is ¥28.82M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck: Drive: 8x4; Horsepower: 300 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck belongs to SHACMAN Commercial Vehicle Xuande Yi 6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi6 Lightweight Edition 300 hp 8X4(12 wheels) 6.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
