JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck

Export reference
From $12,056
MSRP ¥8.68M CNY
Horsepower: 162
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.5L
Transmission: Xingrui
Curb Weight:: 2.72ton

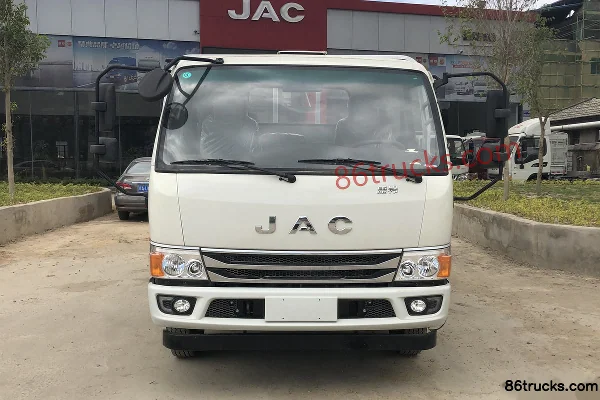

JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck exterior
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. On the powertrain side, it comes with a Quanchai2.5L engine, 162 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 162 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5043CCYP31K1C4NS
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 3.8m
engine: QuanchaiQ25A-162E60
transmission: Xingrui LC6T450B
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.85m
Front track width: 1695mm
rear track: 1620mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 24°
departure angle: 16°
Remarks: Optional ratio 4.33, optional rear track 1705
Front/rear suspension: 1.075/1.555m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ25A-162E60
Engine info: Quanchai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.496L
Emission standard: China VI
Max output power: 116kW
Max hp: 162Horsepower
Max torque: 450N·m
Max torque speed: 1600-2000rpm
Engine Oil Change Interval: 20,000 km
Transmission Parameters
Transmission Model: Xingrui LC6T450B
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Transmission oil change interval: 60,000 km
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 2.1m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle description: 2.5T
Front axle allowable load: 1620kg
Frame Dimensions: 180×65×4.5mm
rear axle description: 5T
rear axle allowable load: 2875kg
Axle ratio: 4.875
Leaf spring count: 4/5+6
Frame Type: Dovetail beam
Aluminum wheels:
rear axle oil change interval: 60,000 km
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What is the export price of JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck, and what does it include?

JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck export reference is about From $12,056; MSRP is ¥8.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck?

Key specs of JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck: Drive: 4x2; Horsepower: 162 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.5L; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck suited for?

JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck differ from other variants in the same series?

JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck belongs to JACH7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC H7 2.5L Diesel 162 hp 4X2(6 wheels) Xingrui 6-speed Manual Air Brake 3.85m Semi-sleeper Stake Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
