Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand)

Export reference
From $26,111
MSRP ¥18.8M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3280mm
Cab dimensions:: 5.995×2.35×3.1m
Type:: Truck with crane
GVWR:: 4.495ton
Lifting capacity: 0.5ton
Drive 4X2 (6 wheels)
Horsepower 143
Rated mass: 0.36ton

Overview

The Yunda Group (Tieyun) Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) is a truck-mounted crane featuring 0.5ton tank capacity, 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 143 hp, China V emissions and Diesel fuel.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.35×3.1m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3280mm
Rated mass: 0.36ton
GVWR: 4.495ton
Front/rear suspension: 1.16/1.555m
Energy Type: Diesel
Body Parameters
Crane model: SQ5
Lifting capacity: 0.5ton
crane self-weight: 1.38ton
Vehicle certification code: MQ5040JSQZ5
Body Brand: Tieyun brand
Engine parameters
Injection System: Common Rail
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK151
fuel type: Diesel
Displacement: 3.856L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan
Chassis Model: ZZ1047F3315E145
Axle ratio: 4.875
Leaf spring count: 3/5+3,8/9+6
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6TS40
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs

Photos

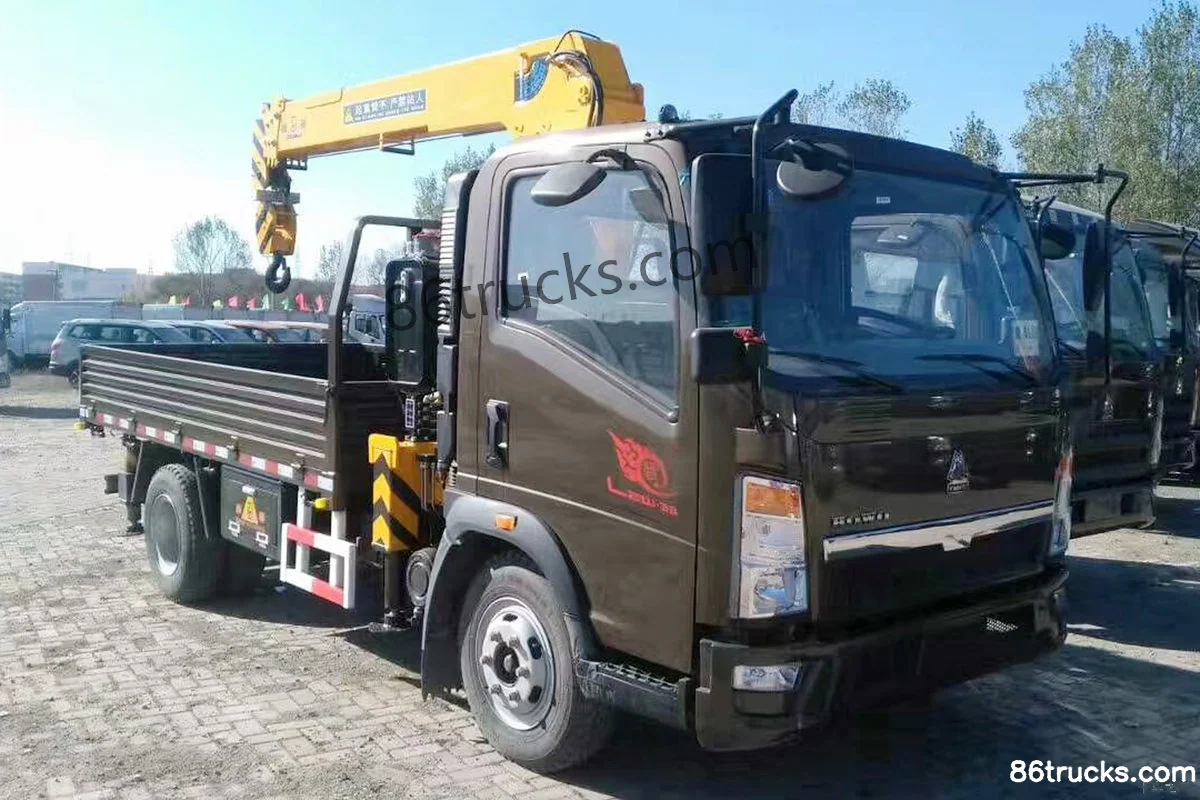

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand), and what does it include?

Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) export reference is about From $26,111; MSRP is ¥18.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand)?

Key specs of Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand): Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) suited for?

Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand) belongs to Yunda Group (Tieyun) Sinotruk Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) truck-mounted crane (Tieyun brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
