Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck

Export reference
From $12,764
MSRP ¥9.19M CNY
Horsepower: 122
Emission: China VI
Fuel: Diesel
Engine: De Wei D20
Transmission: WLY
Curb Weight:: 2.28ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck is a mini truck featuring 4.17m cargo length, Van body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a De Wei D20 engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5044XXY9JA5-AA2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Yunnei PowerD20TCIF15
transmission: WLYWLY5G32
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 1.95m
Cab height: 2.79m
Front track width: 1496mm
rear track: 1420mm
Curb Weight: 2.28ton
Rated payload: 1.995ton
GVWR: 4.405ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 16°
departure angle: 13°
Remarks: Optional 4.33 ratio, mechanical-suspension driver seat.
Front/rear suspension: 1.115/1.52m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF15
Engine info: De Wei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.999L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 1.85m
Cargo box height: 1.9m
*Cargo box interior width: 1.85
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 70L
Chassis Specs
Front axle description: 1.5t
Front axle allowable load: 1585kg
Frame Dimensions: 714/760-140×50×4mm
rear axle description: 2.85t/220 single reduction drive axle
rear axle allowable load: 2820kg
Axle ratio: 4.875
Leaf spring count: 3/3+2
Aluminum wheels:
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

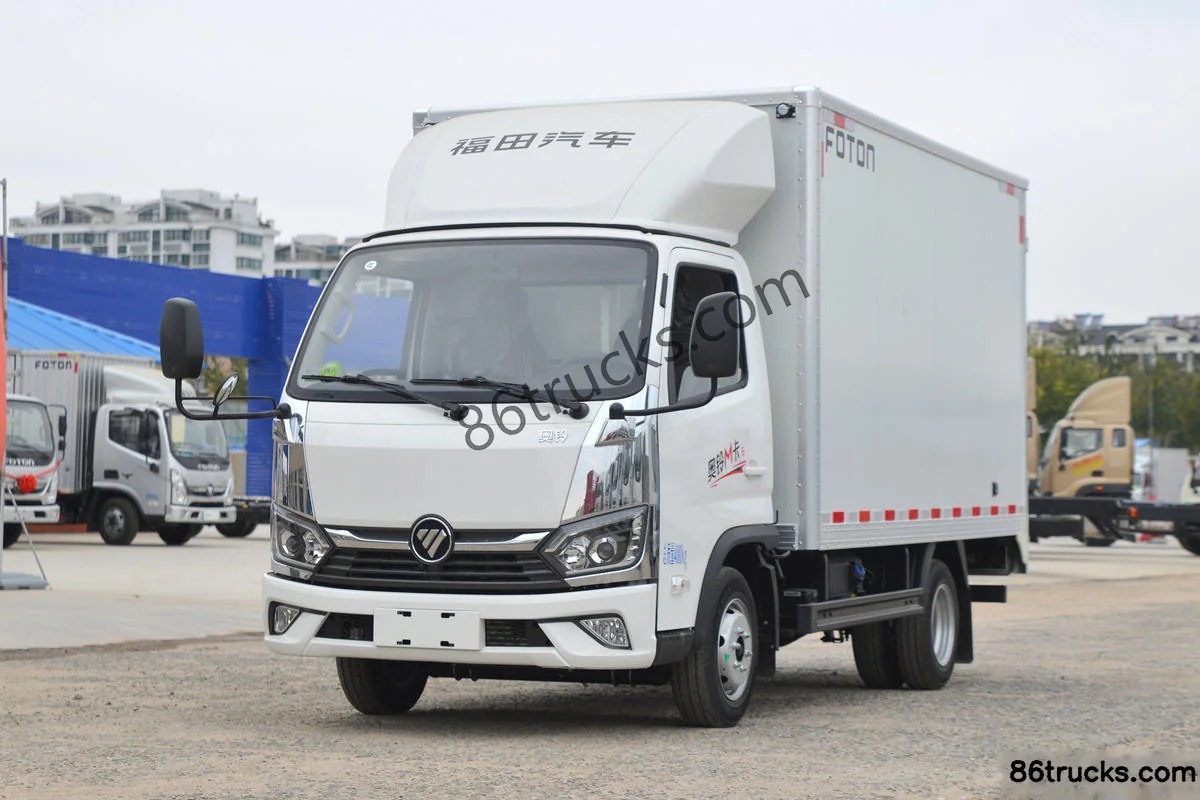

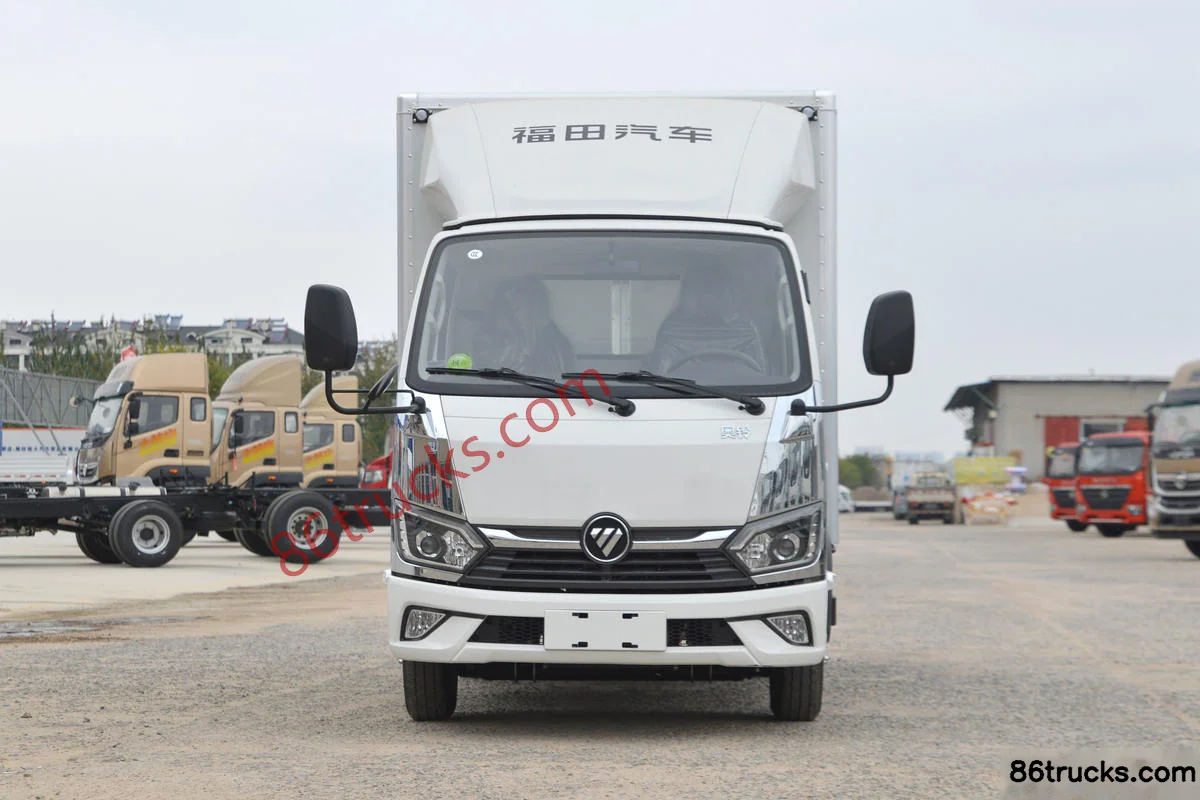

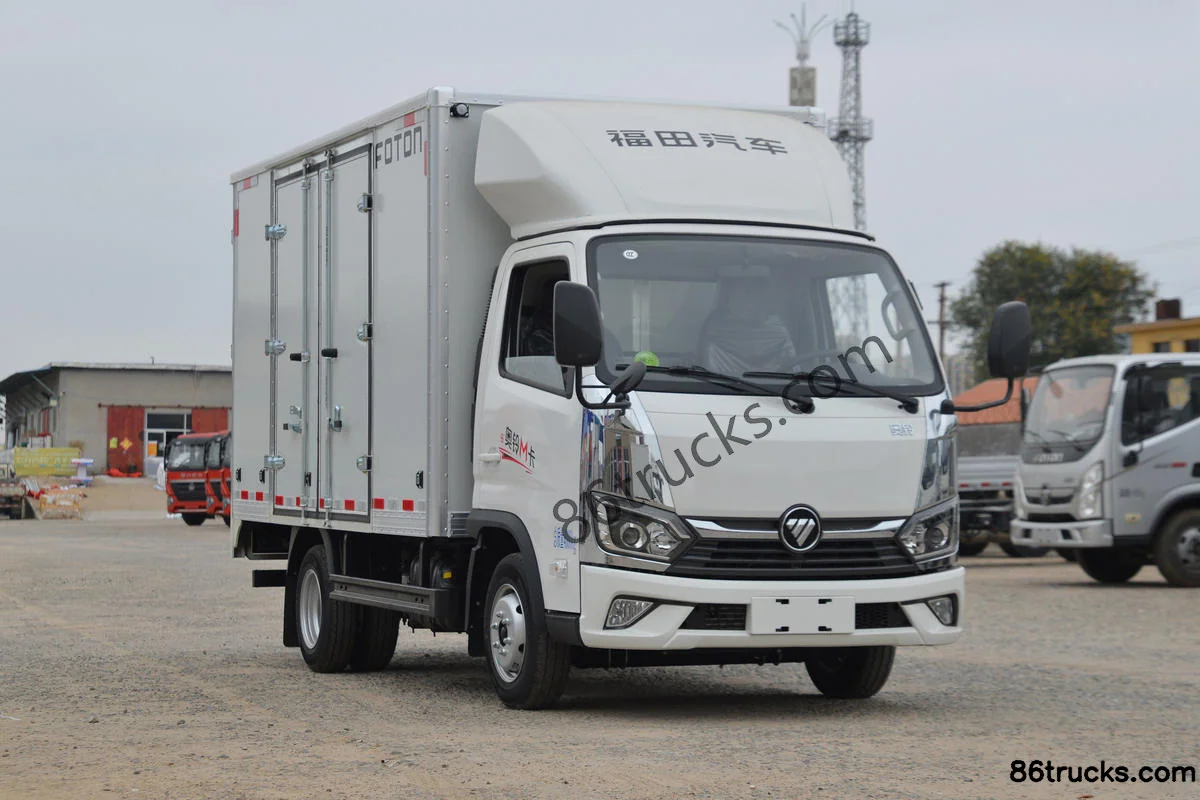

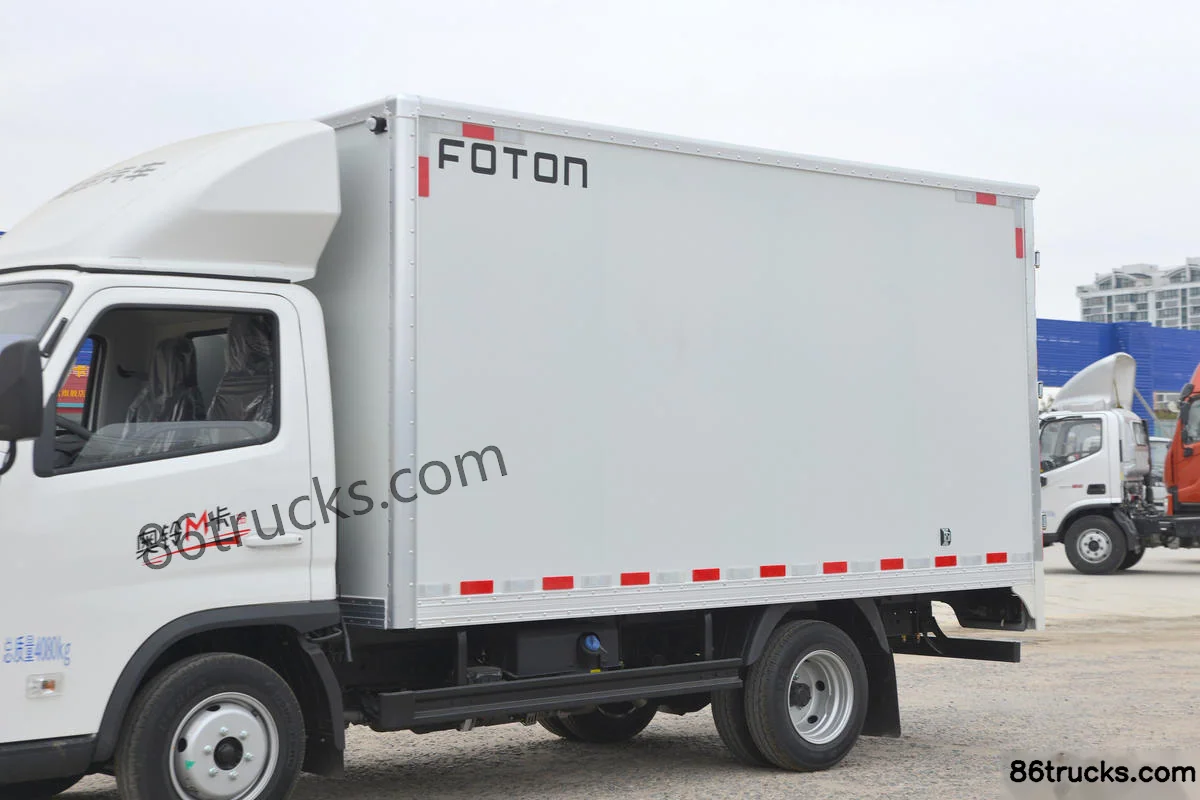

Exterior3

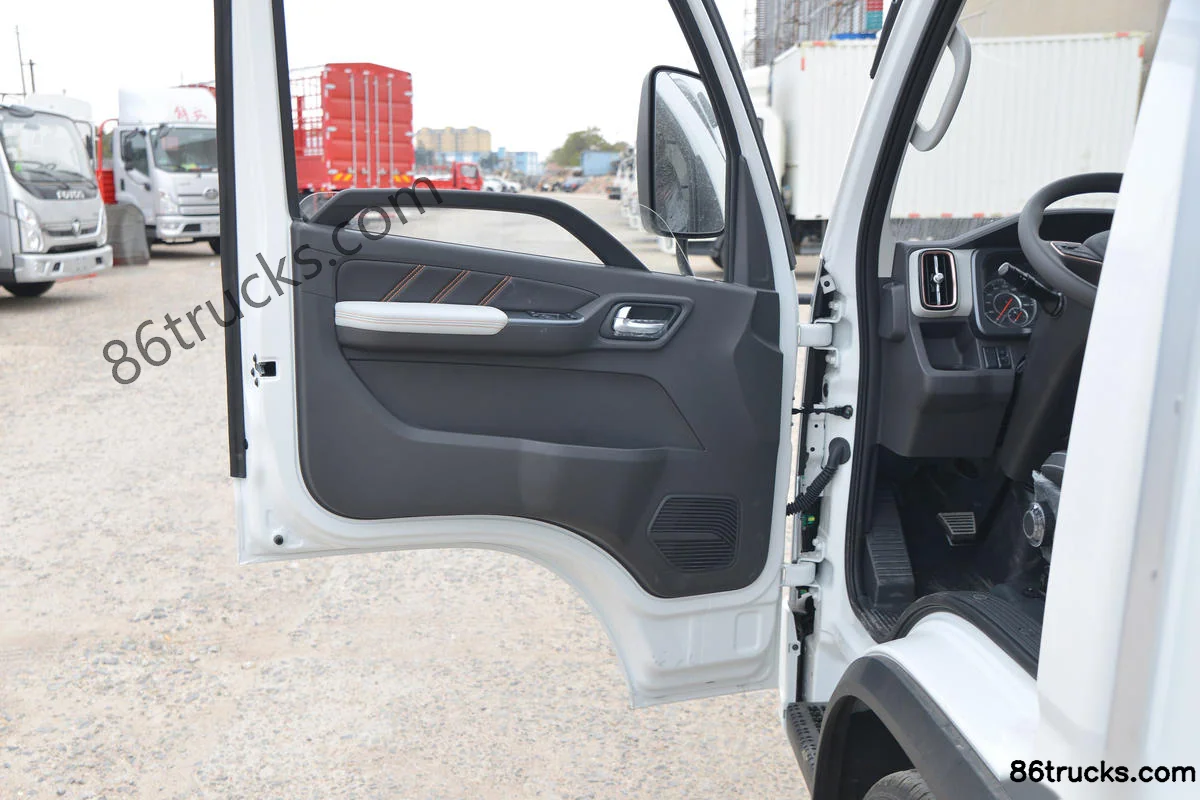

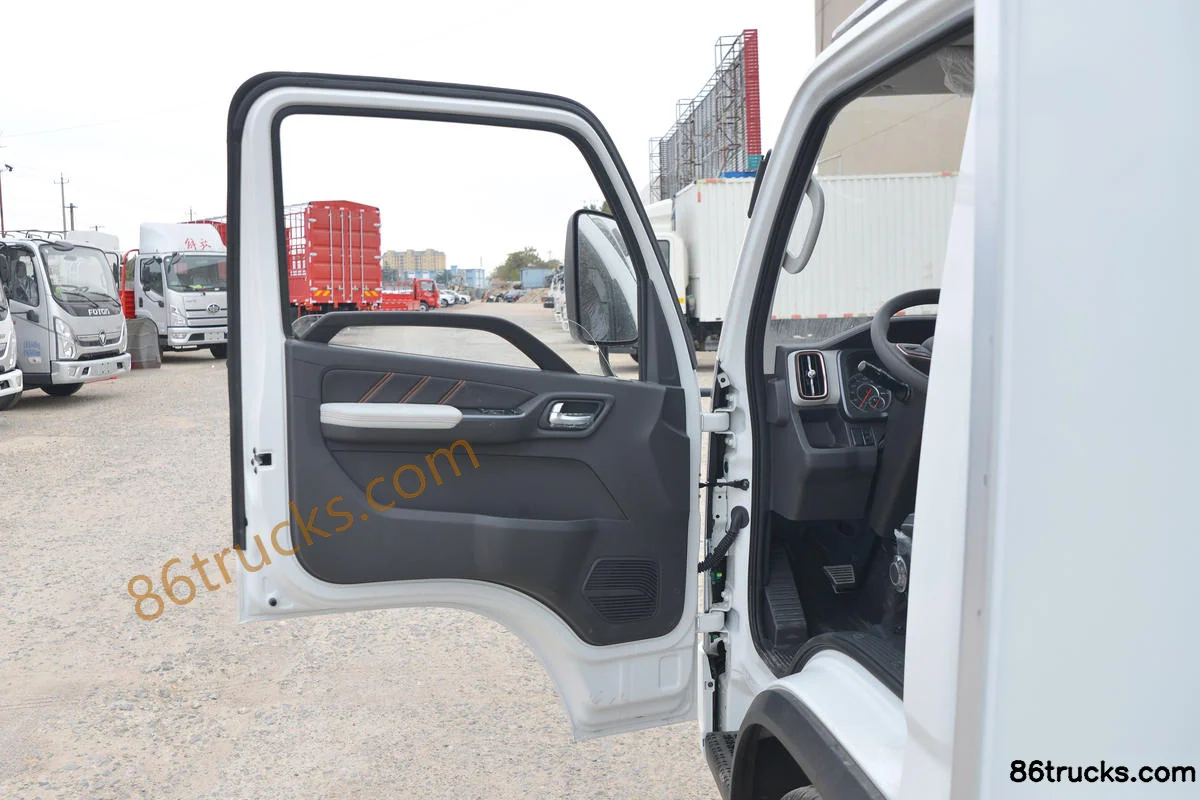

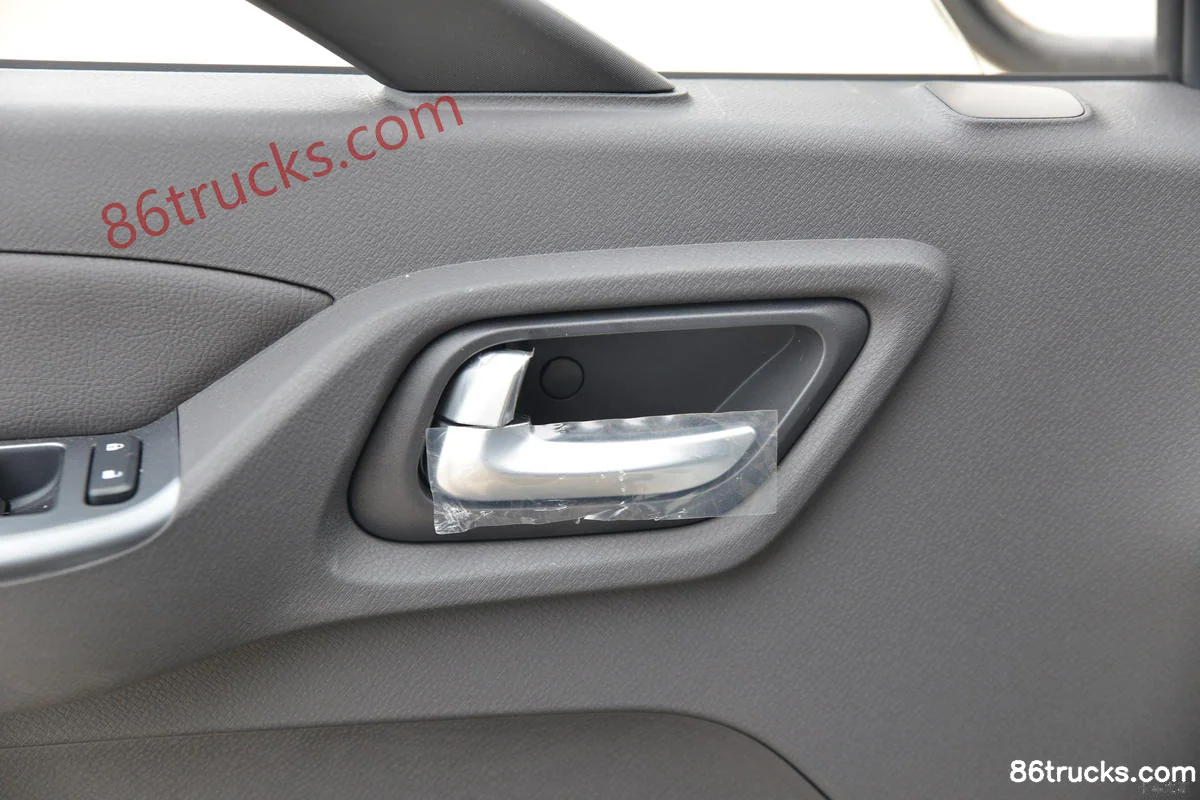

Cab3

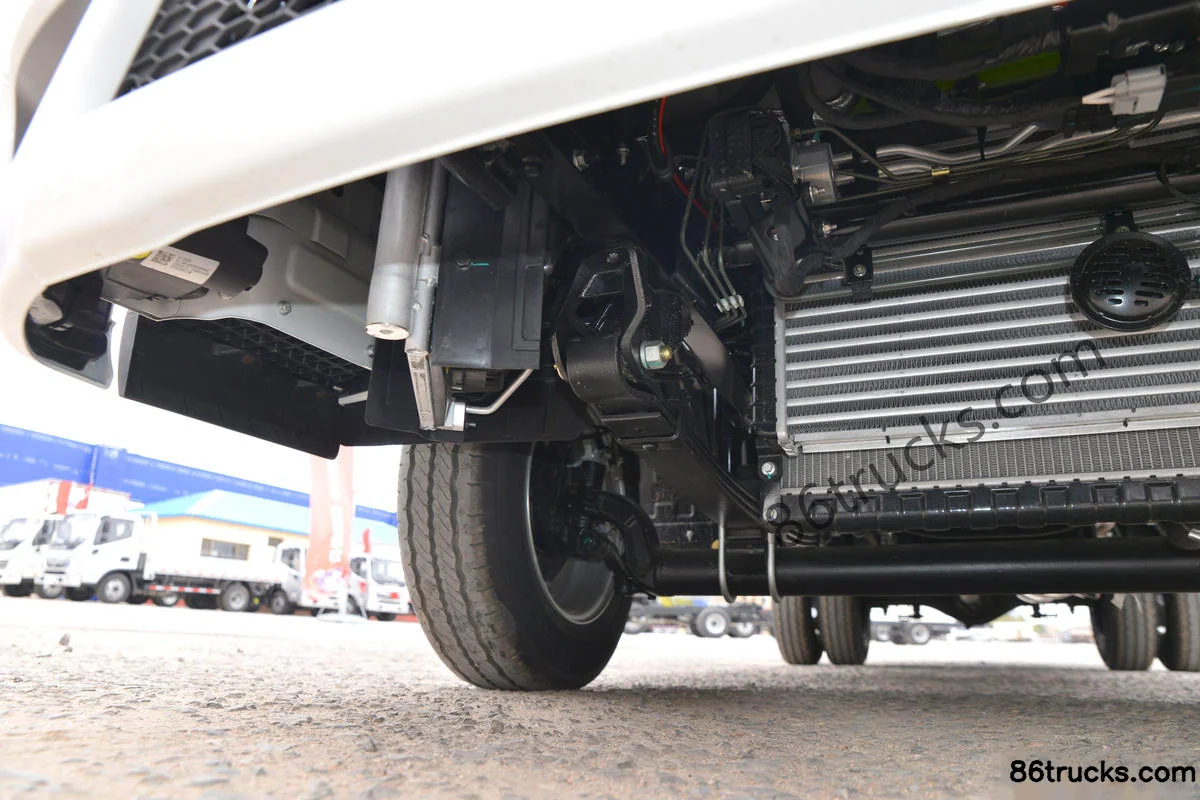

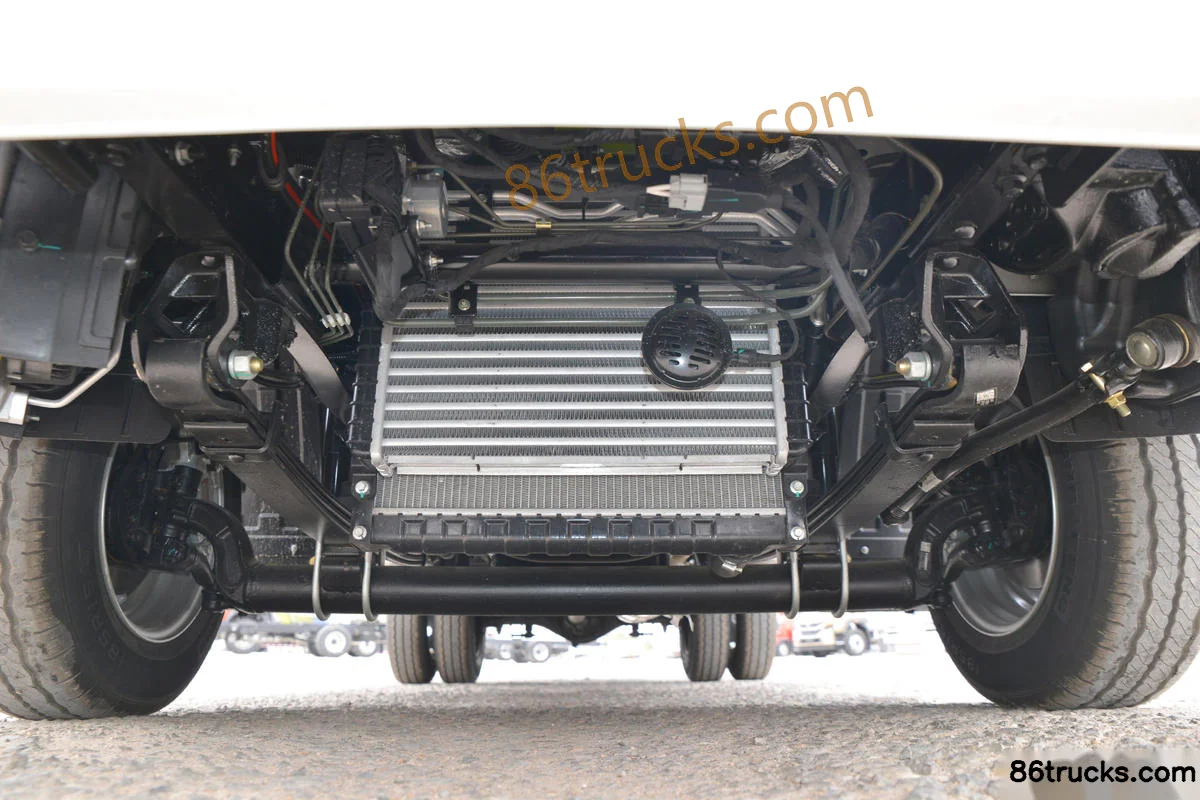

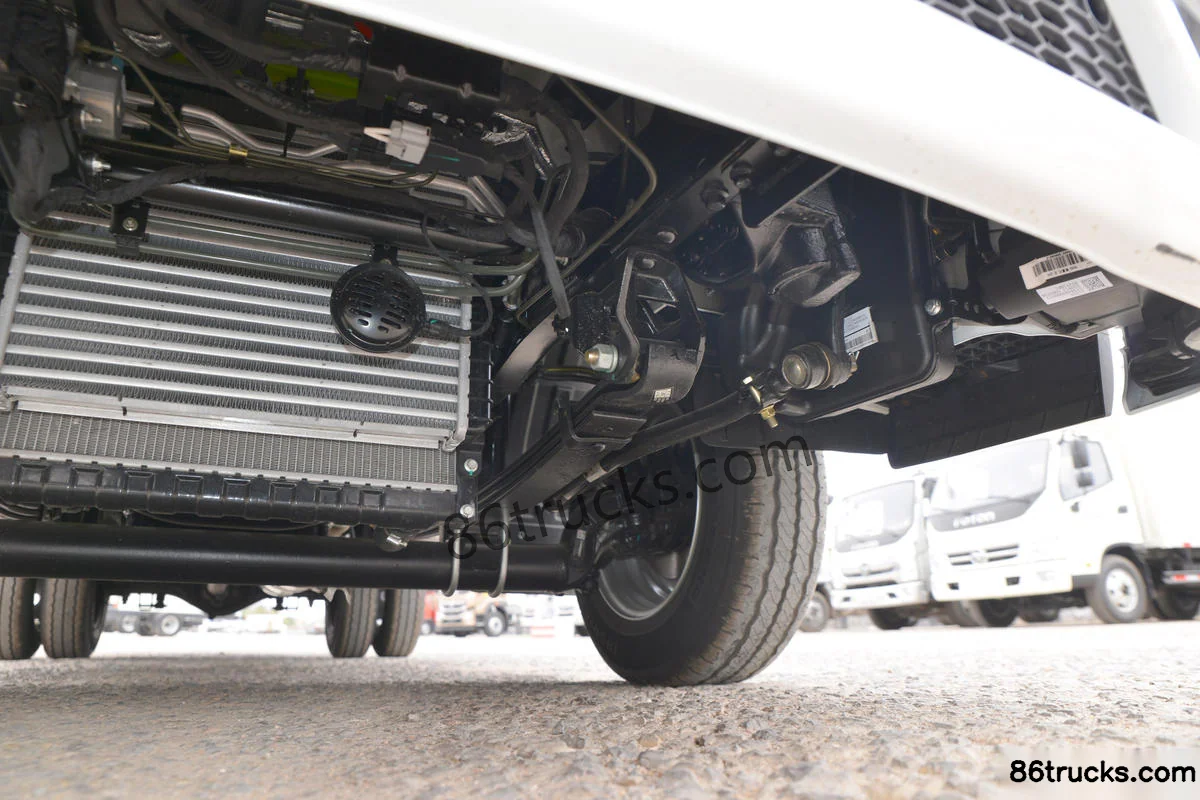

Chassis3

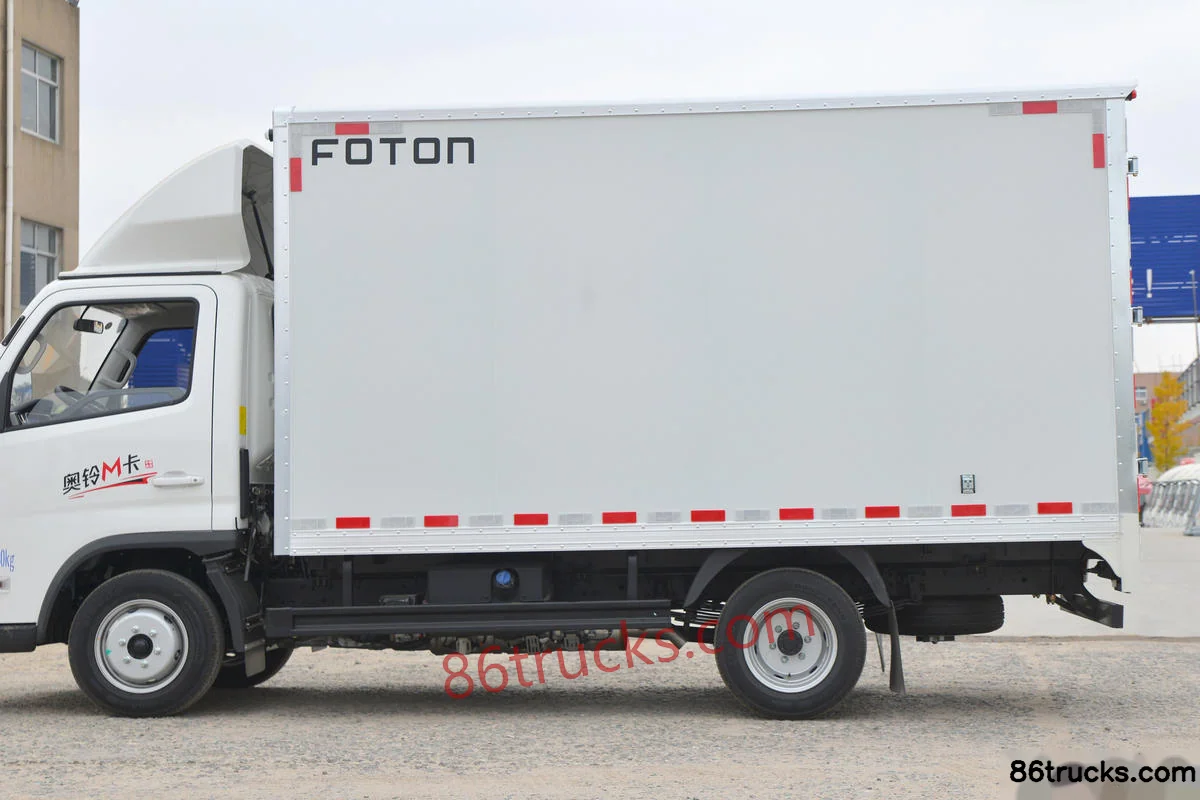

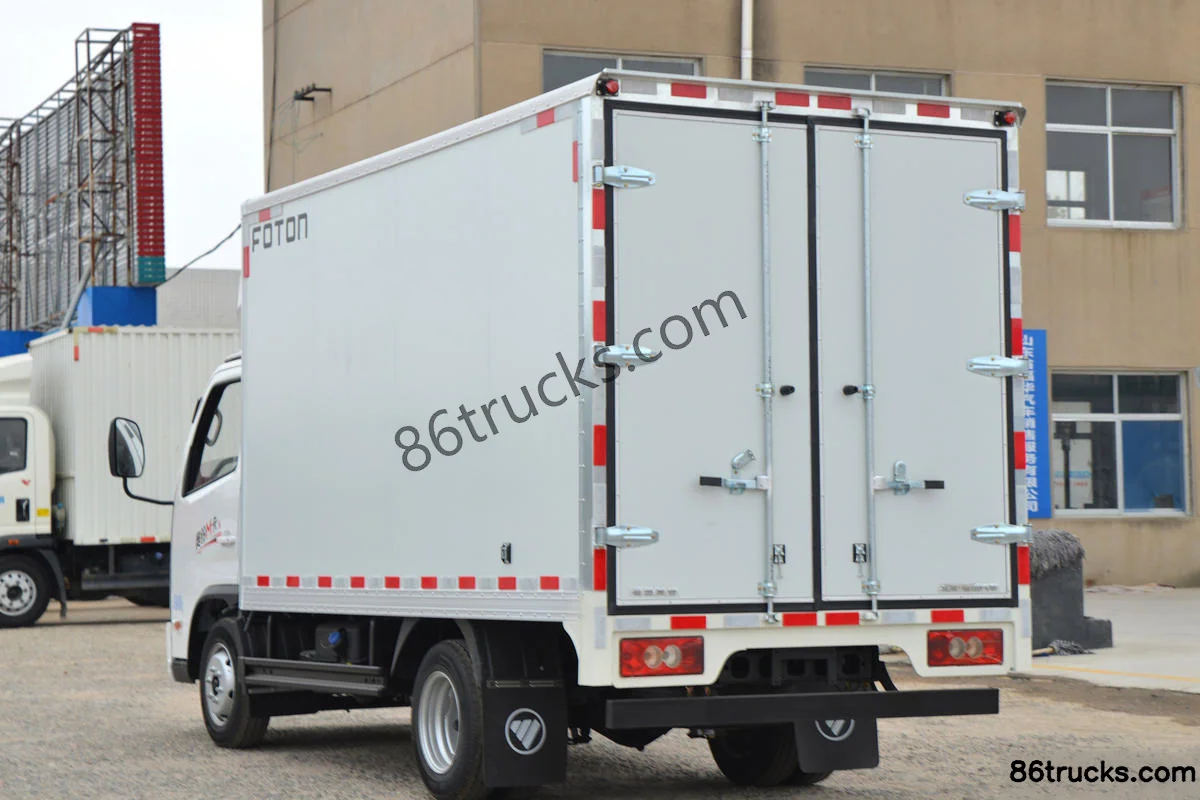

Body3

12 photos

FAQ

What is the export price of Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck, and what does it include?

Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck export reference is about From $12,764; MSRP is ¥9.19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck?

Key specs of Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck: Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D20; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck suited for?

Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck differ from other variants in the same series?

Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck belongs to Foton M Card Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark M Card 122hp 4X2(6 wheels) 4.17m Single Row Van Small Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
