Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh

Export reference
From $23,583
MSRP ¥16.98M CNY
Wheelbase:: 3450mm
Cargo box volume:: 7.3
Model code (announced):: SH5041XXYU6BEV-J51
Cab length:: 5.25m
GVWR:: 3.5ton
Max. speed:: 130km/h
Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh exterior
View more photos (12)
CLTC range: 320km
Motor 1 Brand: Inbol
Curb Weight: 1.75ton
Rated payload: 1.62ton

Overview

The SAIC MAXUS Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh is a Electric Panel Van featuring 320km battery/range, Inbol motor, 1.62t payload and 7.3 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SH5041XXYU6BEV-J51
Wheelbase: 3450mm
Cab length: 5.25m
Cab width: 1.87m
Cab height: 1.96m
CLTC range: 320km
Curb Weight: 1.75ton
Rated payload: 1.62ton
GVWR: 3.5ton
Max. speed: 130km/h
Remarks: Optional: dual sliding side doors, split rear doors
Front/rear suspension: 0.65/1.15m
Energy Type: Electric
electric motor
Motor 1 Brand: Inbol
Motor 1 Model: TZ180XSSQC
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
total rated torque: 115N·m
Battery/Charging
Battery Brand: SAIC Times
Charging method: Fast charge, slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 51kWh
fast charge time: 0.6h
Body parameters
Cargo box volume: 7.3
Max body depth: 3.155
Max body width: 1.774
Cargo Box Height: 1.48
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 3Seats
Door Parameters
side door type: Sliding side door
Tailgate type: split doors
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195/70R15LT
Rear Wheel Specification: 195/70R15LT
Safety features
Driver airbag:
Anti-theft alarm:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:

Photos

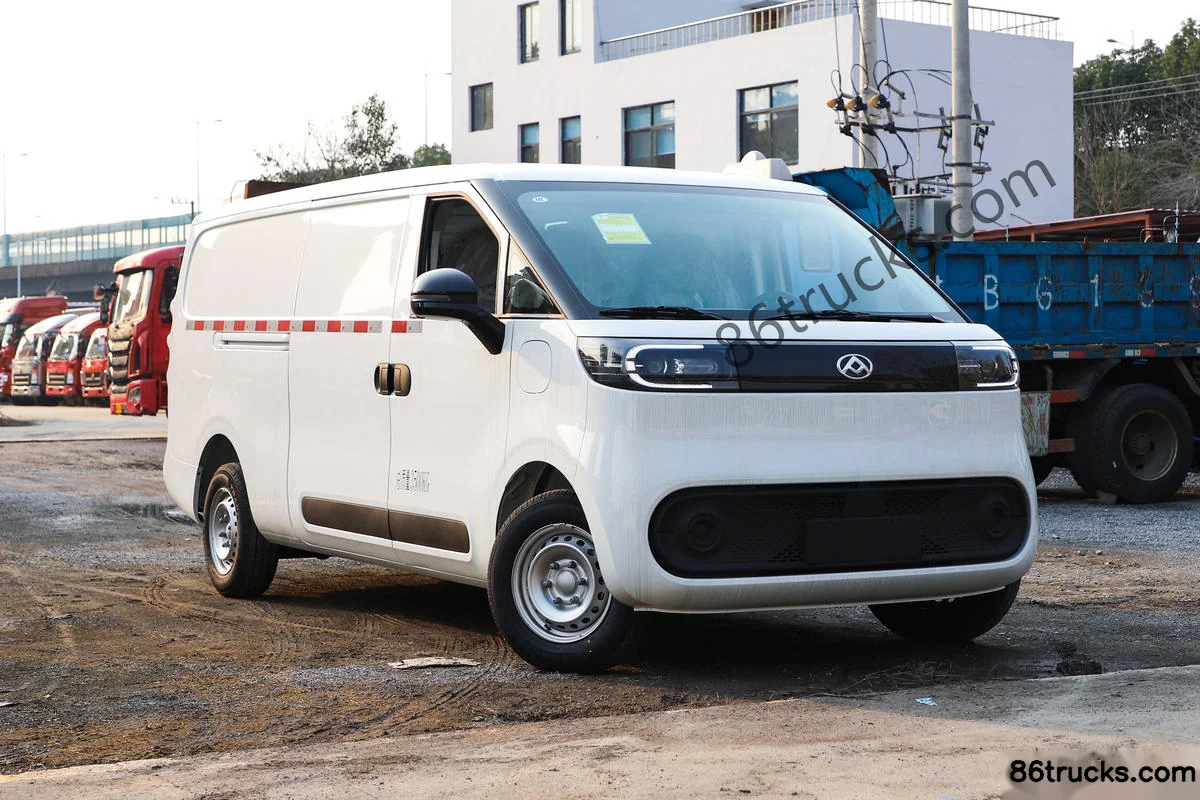

Exterior3

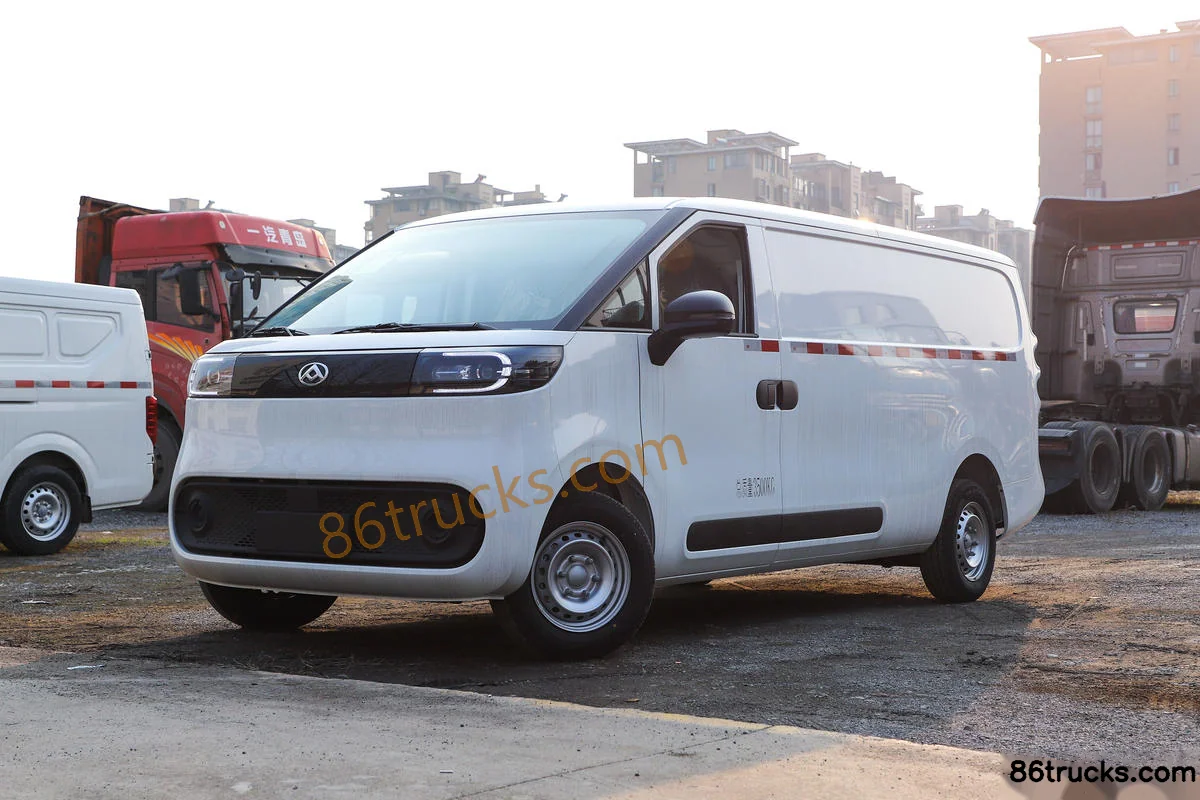

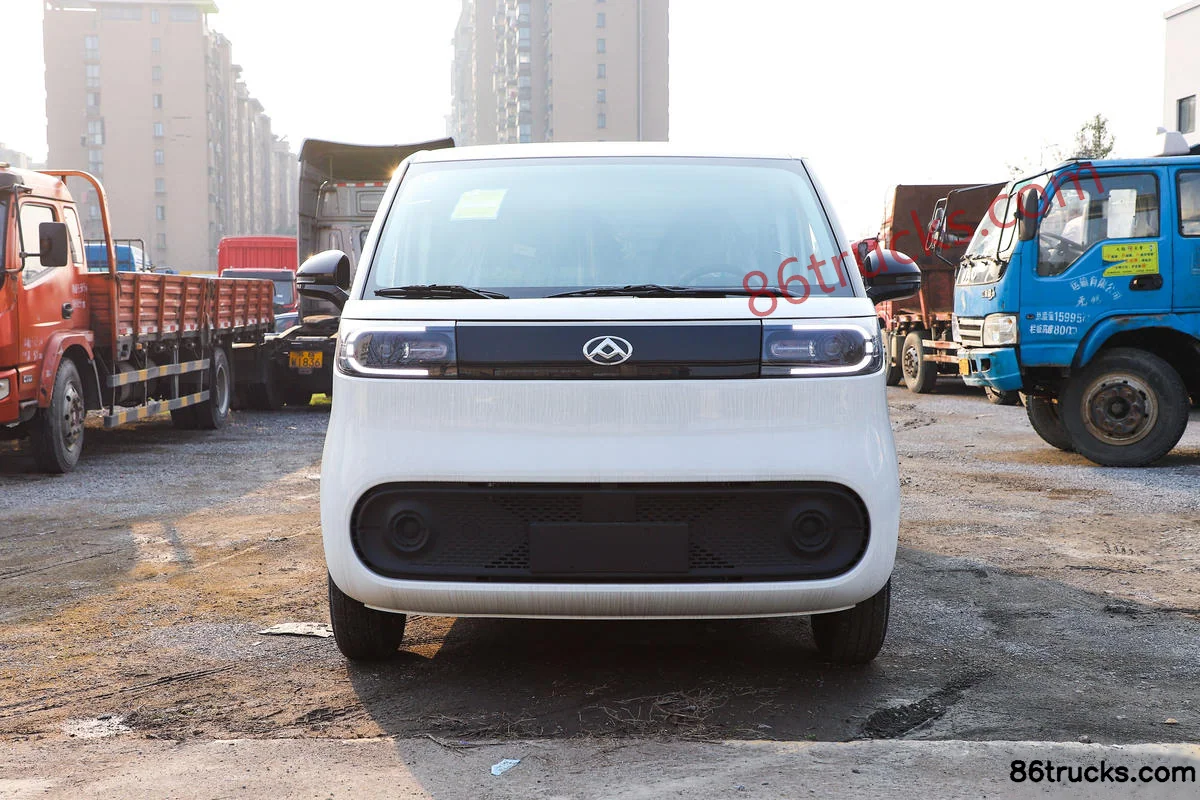

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Exterior (1) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Exterior (2) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Exterior (3) | 86Trucks

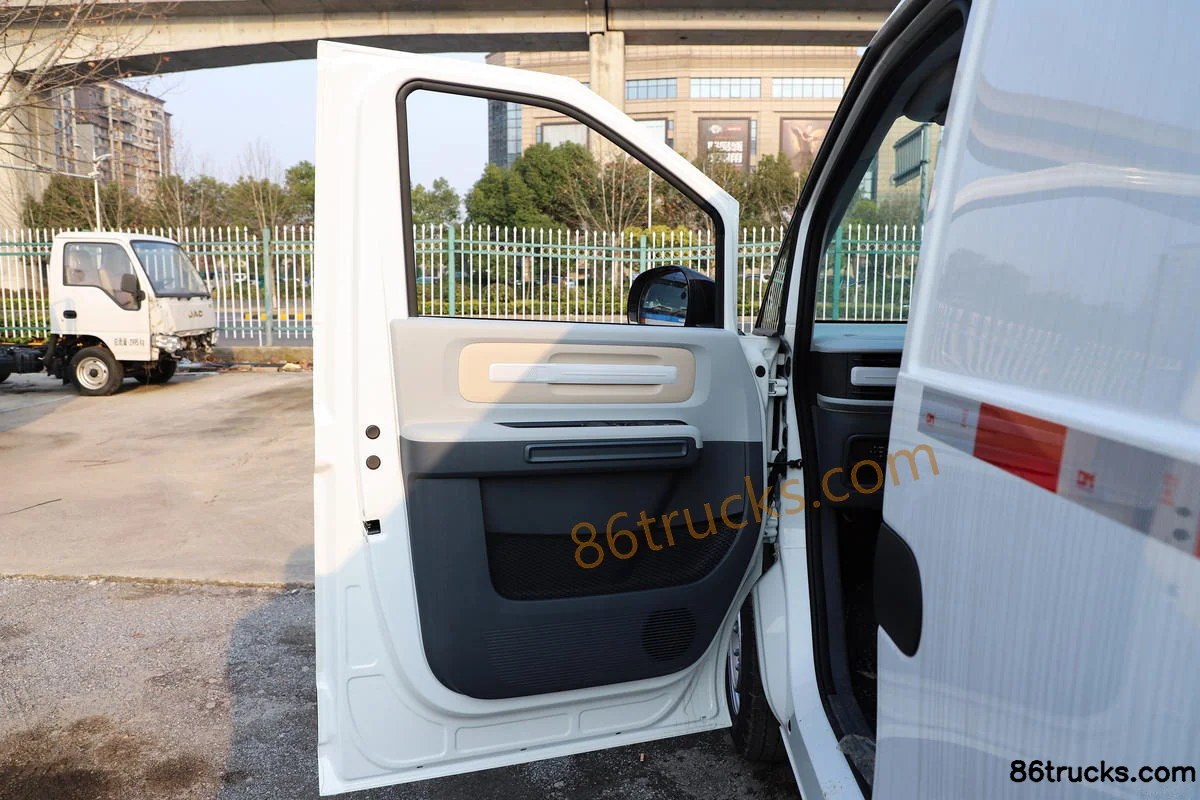

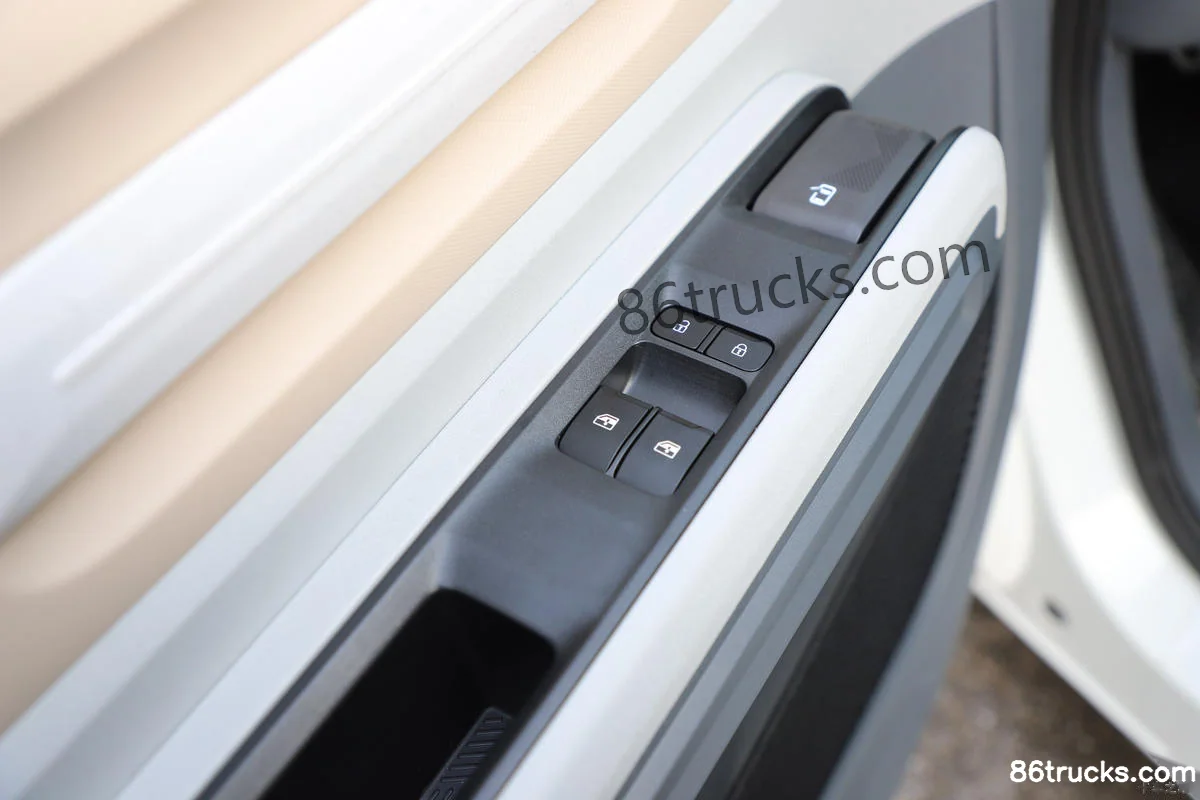

Cab3

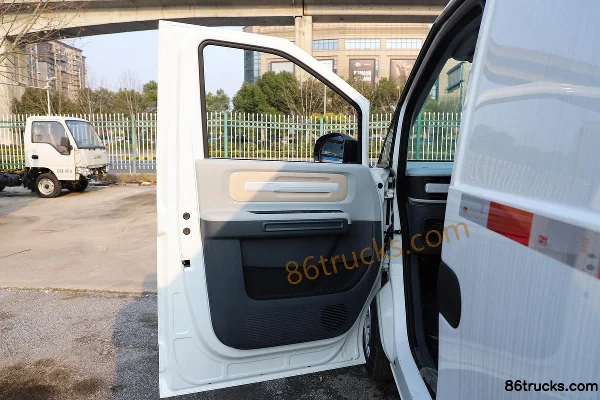

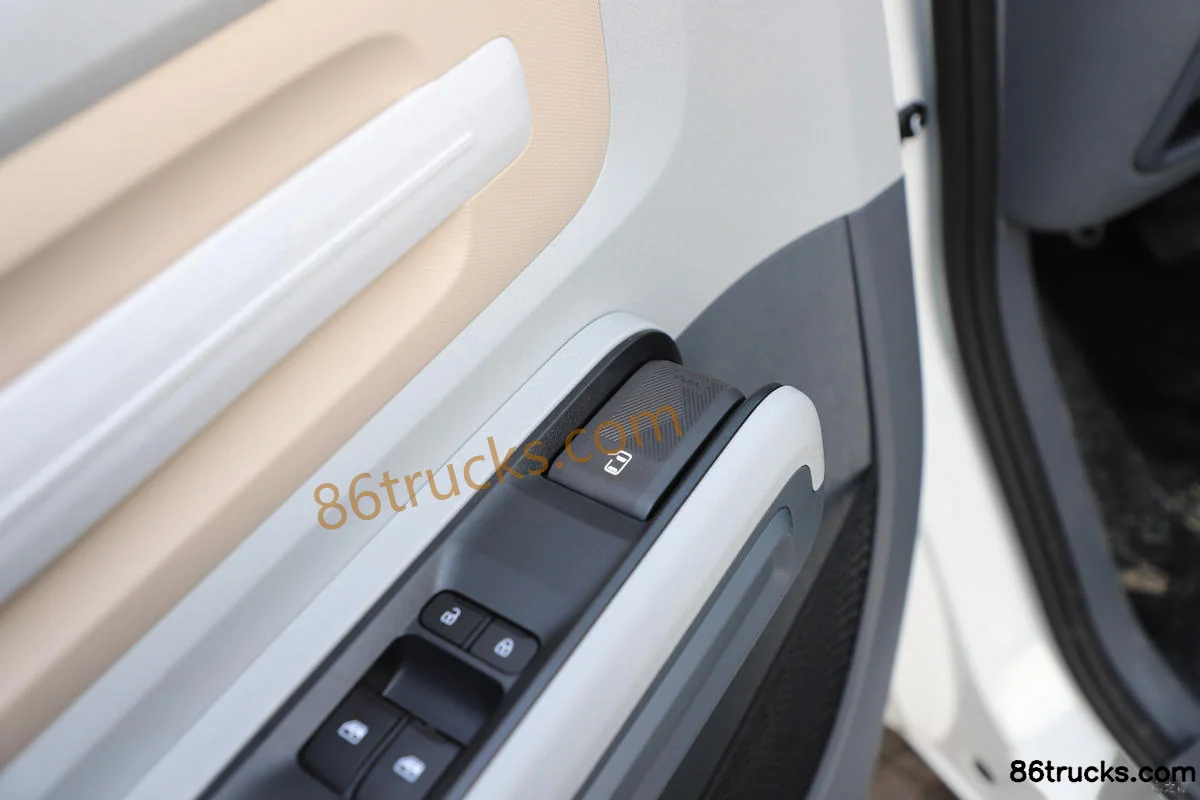

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cab (1) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cab (2) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cab (3) | 86Trucks

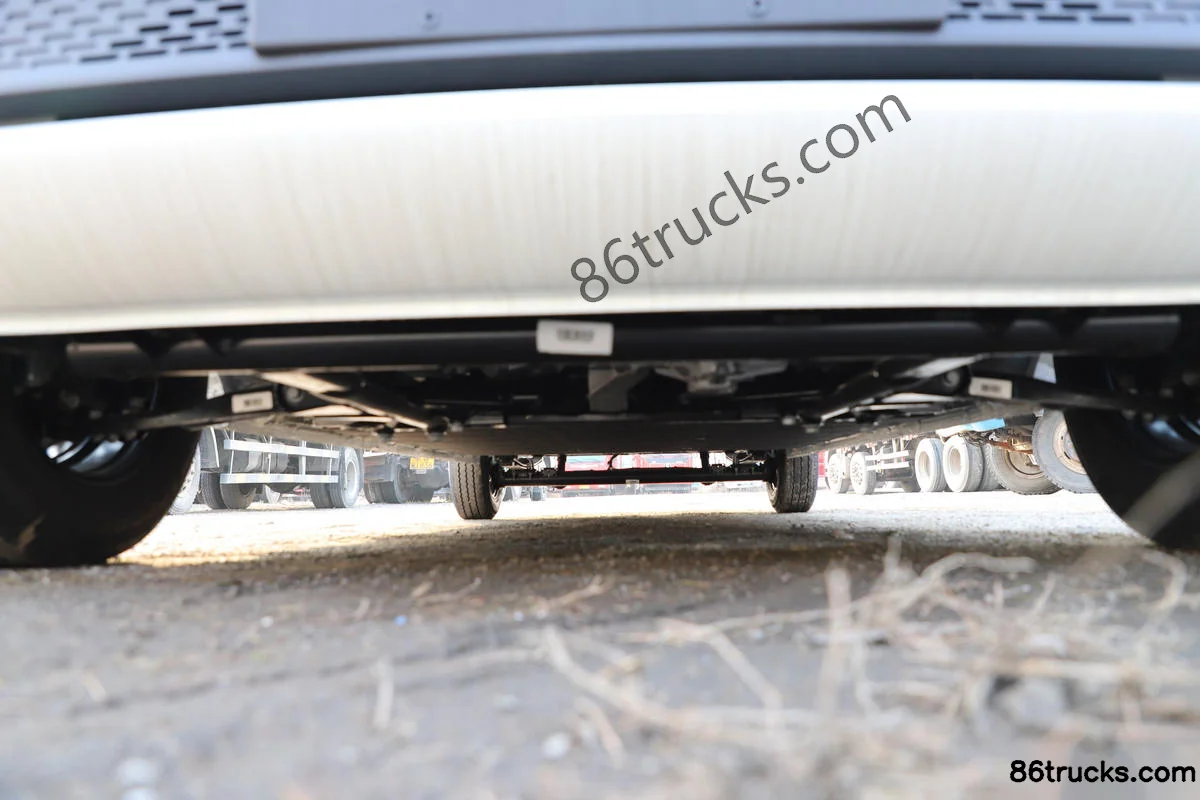

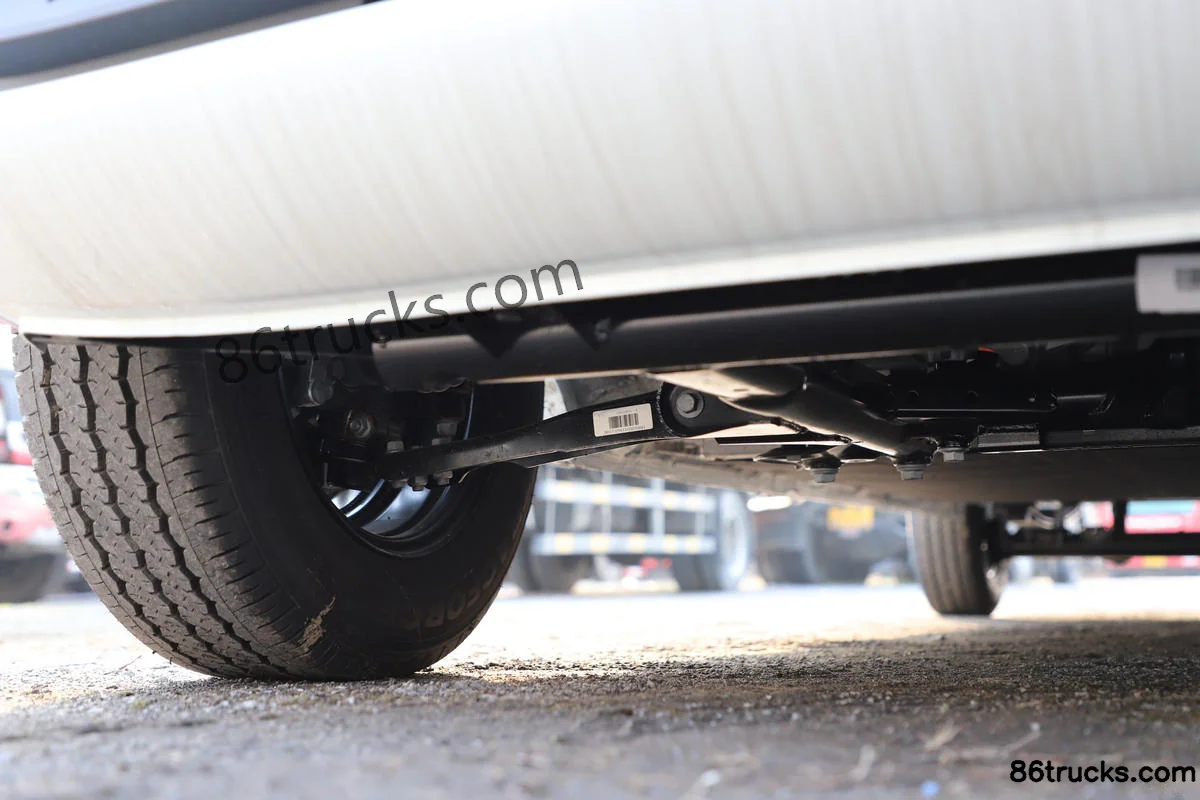

Chassis3

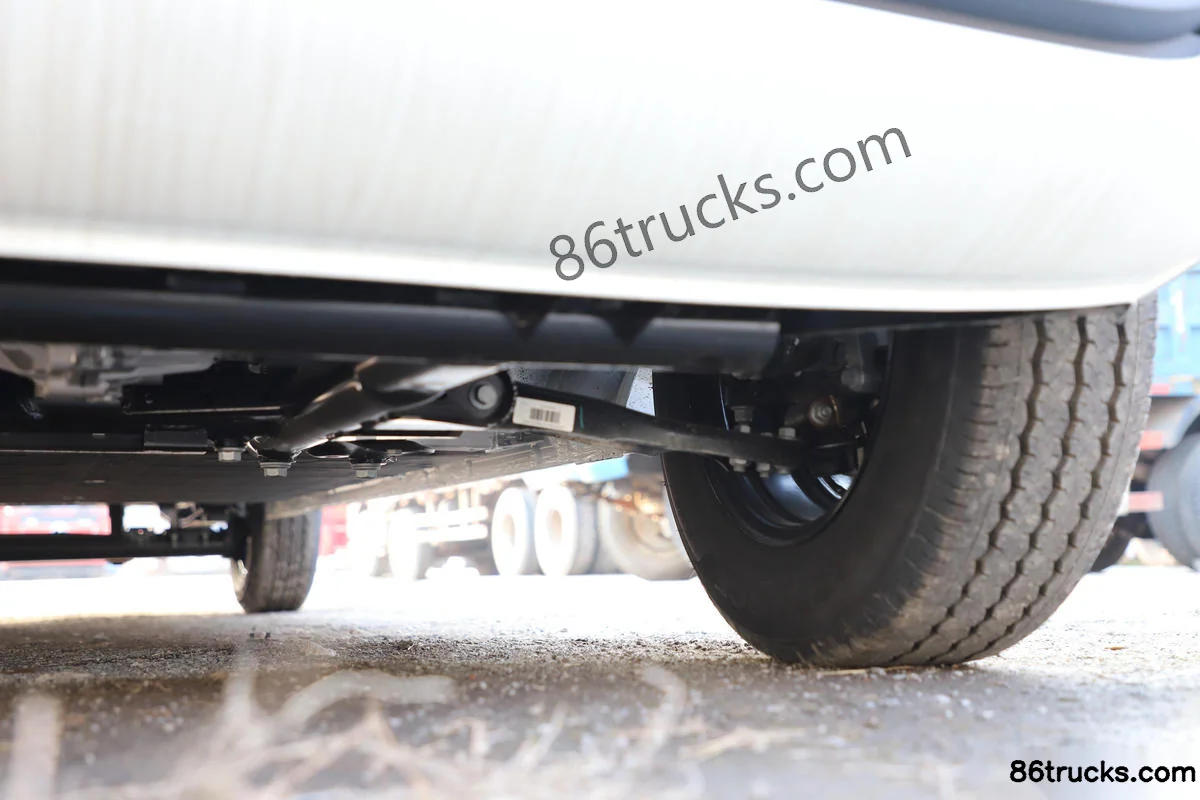

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Chassis (1) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Chassis (2) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Chassis (3) | 86Trucks

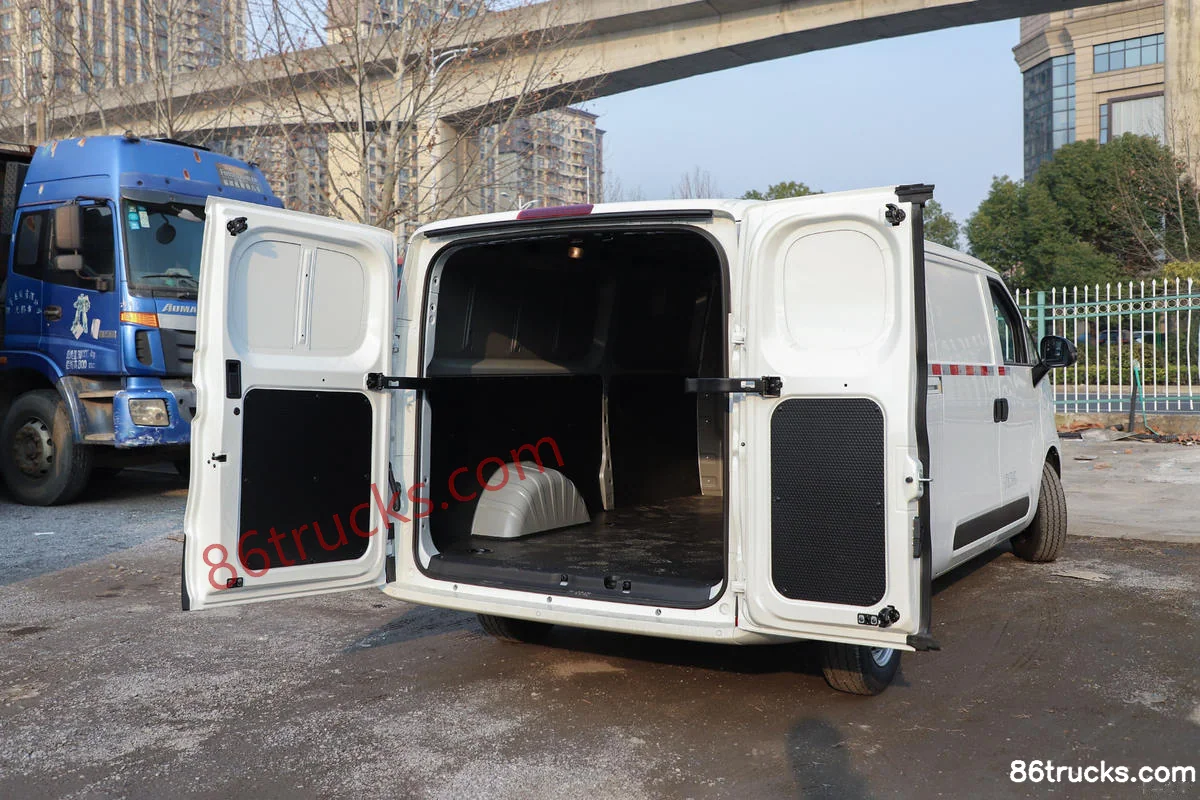

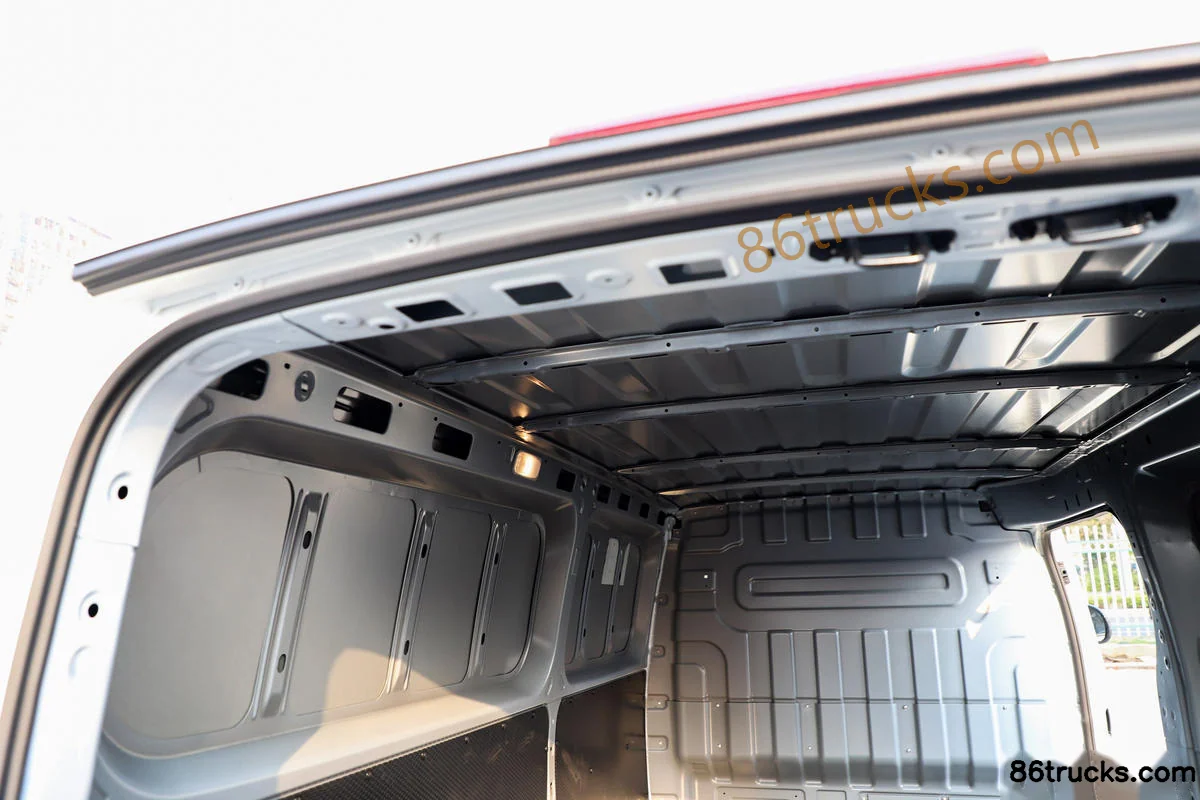

Cargo Box3

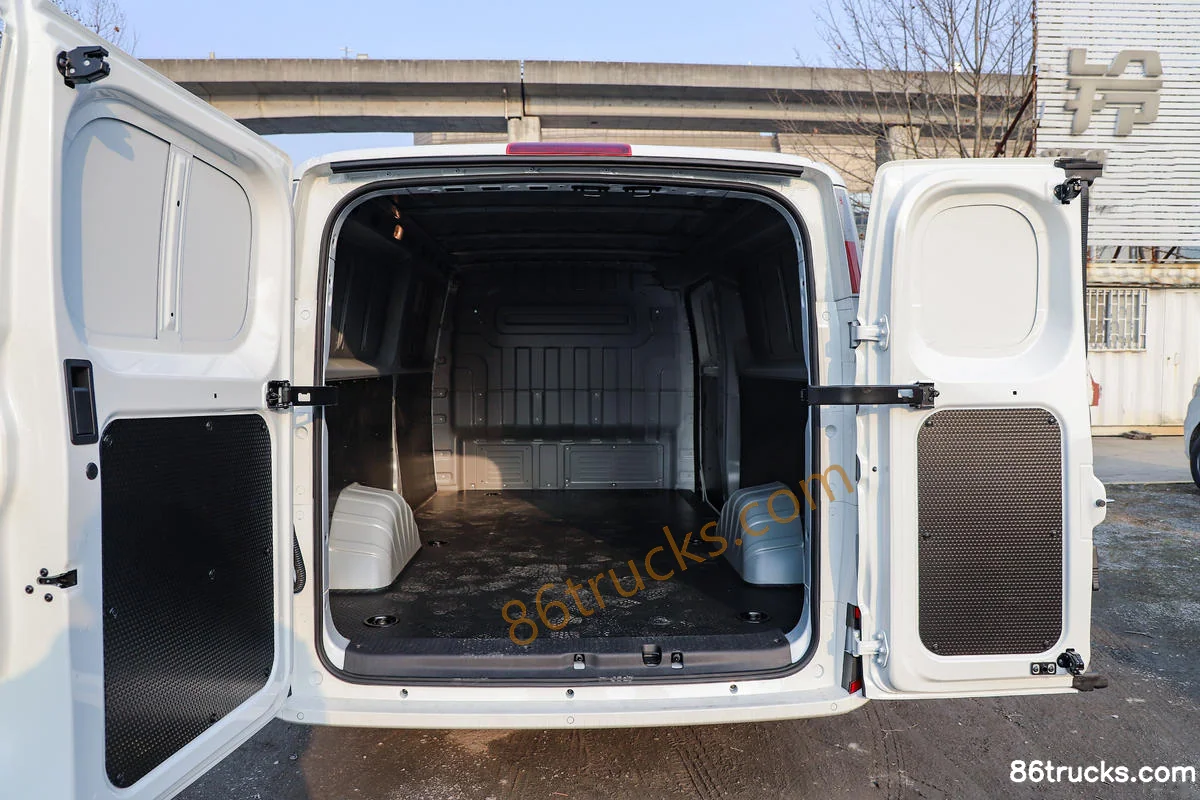

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cargo Box (1) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cargo Box (2) | 86Trucks Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh, and what does it include?

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh export reference is about From $23,583; MSRP is ¥16.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh suited for?

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh differ from other variants in the same series?

Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh belongs to SAIC MAXUS Dana V (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Maxus Dawan V1 2024 3-seat pure electric long wheelbase low roof panel van 51kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
