Luoxiang 13m Straight Beam Flatbed Semi-Trailer

Export reference
MSRP N/A
Cab width:: 2.55m
suspension:: Maintenance-free or air suspension
Fifth Wheel Pin:: 90#
Design load capacity:: 34ton
Cab height:: 2.7m
Wheel brand:: Better, Hengye, Rishang
Axle Brand: Fuwa, bpw, Zhongqi
Curb Weight: 6ton
Cab length: 13m
Spare Tire Carrier: 2pcs

Overview

The Luoxiang Trailer Luoxiang 13m Straight Beam Flatbed Semi-Trailer is a flatbed semi-trailer featuring Fuwa, bpw, Zhongqi-axle setup, 6ton GVW, 13m length and 34ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 34ton
Cab length: 13m
Cab width: 2.55m
Cab height: 2.7m
Curb Weight: 6ton
Chassis Specs
Axle Brand: Fuwa, bpw, Zhongqi
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Wheel brand: Better, Hengye, Rishang
Number of wheels: 12
suspension: Maintenance-free or air suspension
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 90#
Brake chamber: 2 single 4 double
Outrigger: aluminum alloy
Toolbox: aluminum alloypcs
Spare Tire Carrier: 2pcs
ABS: Kemi, WABCO
Body Parameters
Frame material: Thick High-Strength Steel
Web Plate: 5mm
frame rail height: 500mm
upper wing panel: 8mm
Box panel:
Lower Wing Plate: 10mm
Side beam: 3
Cargo box parameters
Cargo box length: 12.85m
Cargo box width: 2.45m
Cargo box height: 0.6m
Other notes
Lead time for customization: 15 days
warranty period: 12 months
warranty method: Three guarantees policy
Tire
Tire brand: Goodyear, Dunlop, Chaoyang
Tire Size: 12R22.5 12PR
Number of tires: 12pcs

Photos

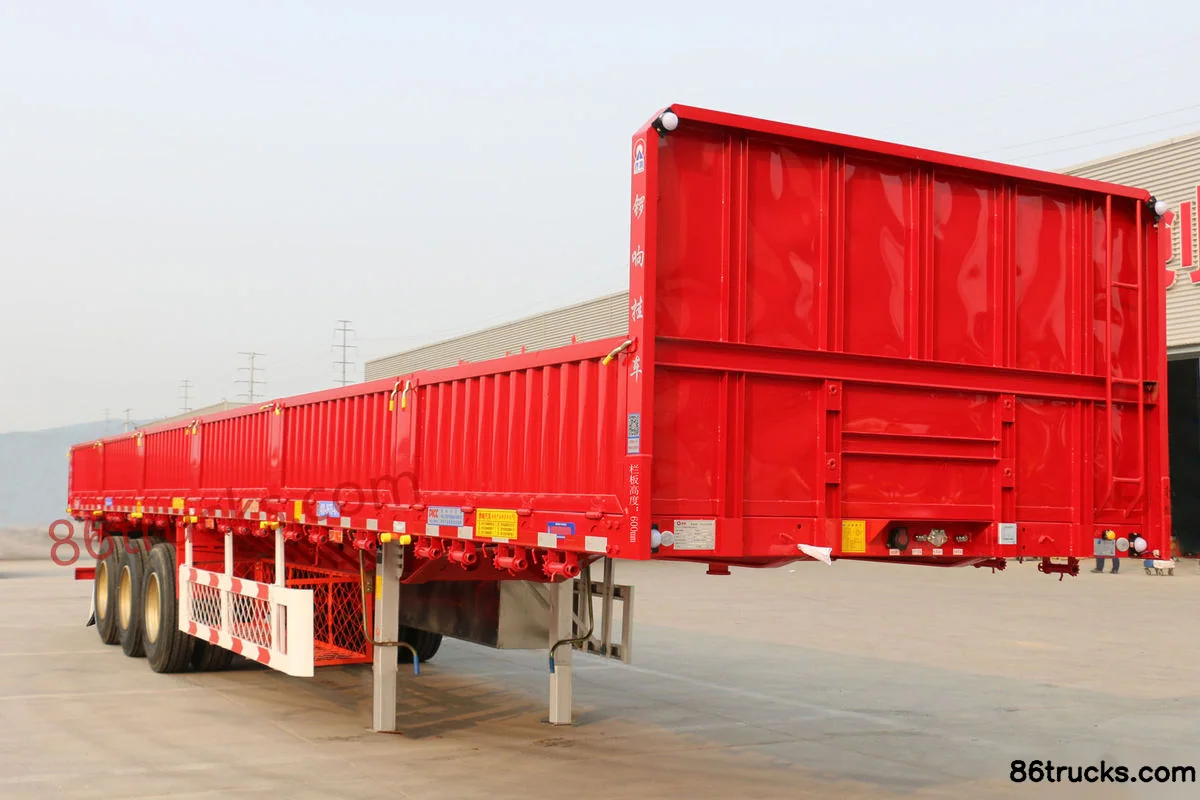

Exterior1

1 photos

FAQ

What transport jobs is Luoxiang 13m Straight Beam Flatbed Semi-Trailer suited for?

Luoxiang 13m Straight Beam Flatbed Semi-Trailer is a flatbed semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Luoxiang 13m Straight Beam Flatbed Semi-Trailer differ from other variants in the same series?

Luoxiang 13m Straight Beam Flatbed Semi-Trailer belongs to Luoxiang Trailer 13m Series (flatbed semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Luoxiang 13m Straight Beam Flatbed Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Luoxiang 13m Straight Beam Flatbed Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
