Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Wheelbase:: 4600+1350mm
Cab dimensions:: 9.3×2.55×3.45m
Type:: Dump refuse truck
Front/rear track width:: Front track: 2020mm; Rear track: 1847/1847mm
GVWR:: 25ton
Drive 6X4 (10 wheels)
Horsepower 380
Rated mass: 12.37ton
Emission China V

Overview

The Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck is a garbage truck featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 380 hp, China V emissions and LNG (liquefied natural gas) fuel.

China V 380 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.3×2.55×3.45m
Type: Dump refuse truck
Drive type: 6X4
Wheelbase: 4600+1350mm
Front/rear track width: Front track: 2020mm; Rear track: 1847/1847mm
Rated mass: 12.37ton
GVWR: 25ton
Front/rear suspension: 1.55/1.8m
Energy Type: LNG (liquefied natural gas)
Engine parameters
Injection System: Natural gas
Engine Model: SinotrukT12.38-50
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China V
Max output power: 279kW
Max hp: 380Horsepower
Rated speed: 2000rpm
Body Parameters
Vehicle certification code: CDW5250ZLJA2S5L
Body Brand: 重汽王牌
Chassis Specs
Chassis Brand: 重汽王牌
Chassis Series: Wangpai W5G
Chassis Model: CDW3250A2S5L
Frame Dimensions: 300×85×(8+8)mm
rear axle description: AC16 cast steel
Axle ratio: 5.45
Leaf spring count: 11/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: SinotrukHW19712+HW70
Cab parameters
Cab: 2480mm wide semi-high roof single bunk cab
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs

Photos

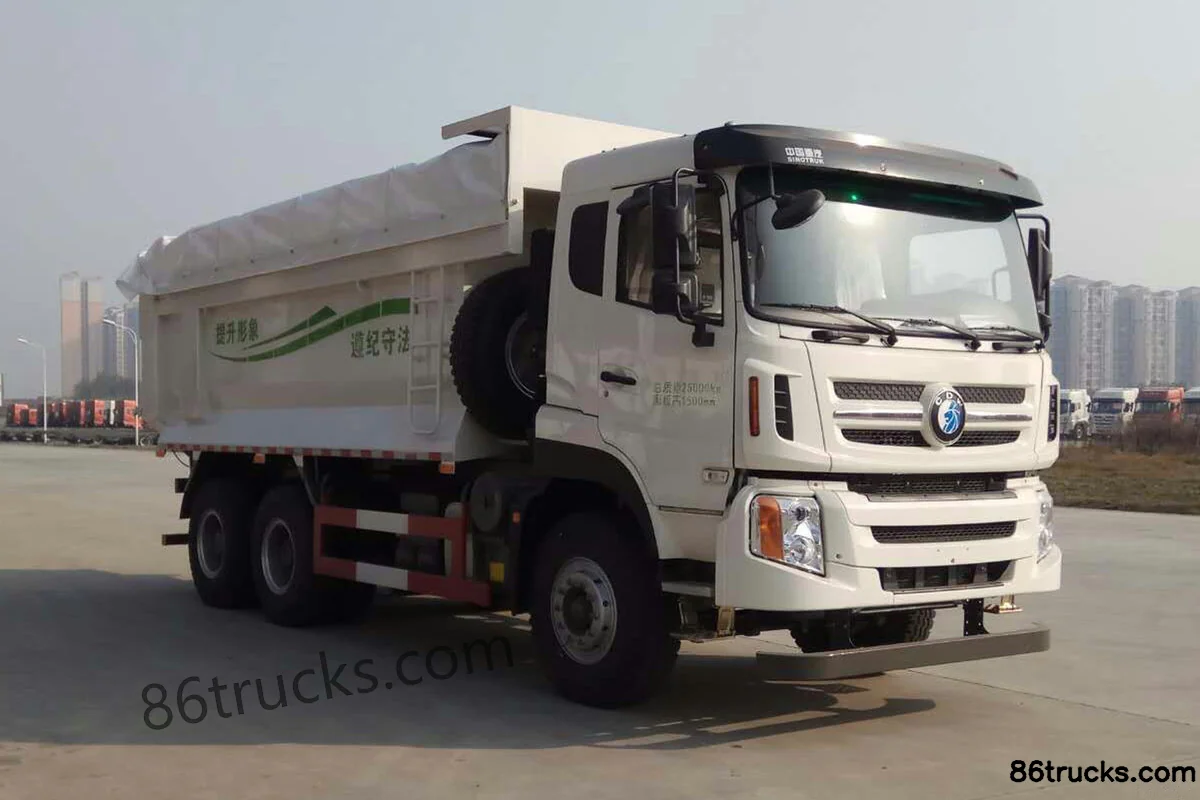

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck?

Key specs of Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck: Drive: 6x4; Horsepower: 380 hp; Emission: China V; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck suited for?

Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck differ from other variants in the same series?

Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck belongs to Sinotruk Wangpai W5G near-heavy truck (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W5G 380hp 6X4(10 wheels) 6.5m LNG dump garbage truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
