Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane

Export reference
From $36,806
MSRP ¥26.5M CNY
Fuel: Diesel
Wheelbase:: 4200mm
Cab dimensions:: 7.7×2.4×3.8m
Type:: truck-mounted crane
GVWR:: 14ton
Front/rear suspension:: 1.46/2.04m
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 9.25ton
Emission China V

Overview

The Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane featuring 14t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 160 hp, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.7×2.4×3.8m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4200mm
Rated mass: 9.25ton
GVWR: 14ton
Front/rear suspension: 1.46/2.04m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Body Parameters
Vehicle certification code: STQ5149JSQN5
Body Brand: Sanhuan Shitong
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Chuangke
Chassis Model: STQ1149L07Y2N5
Leaf spring count: 8/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Shaanxi Gear 8JS85E
Cab parameters
Cab: T3 Creator
Tire
Tire Size: 8.25R20 16PR,9.00R20 16PR
Number of tires: 6pcs

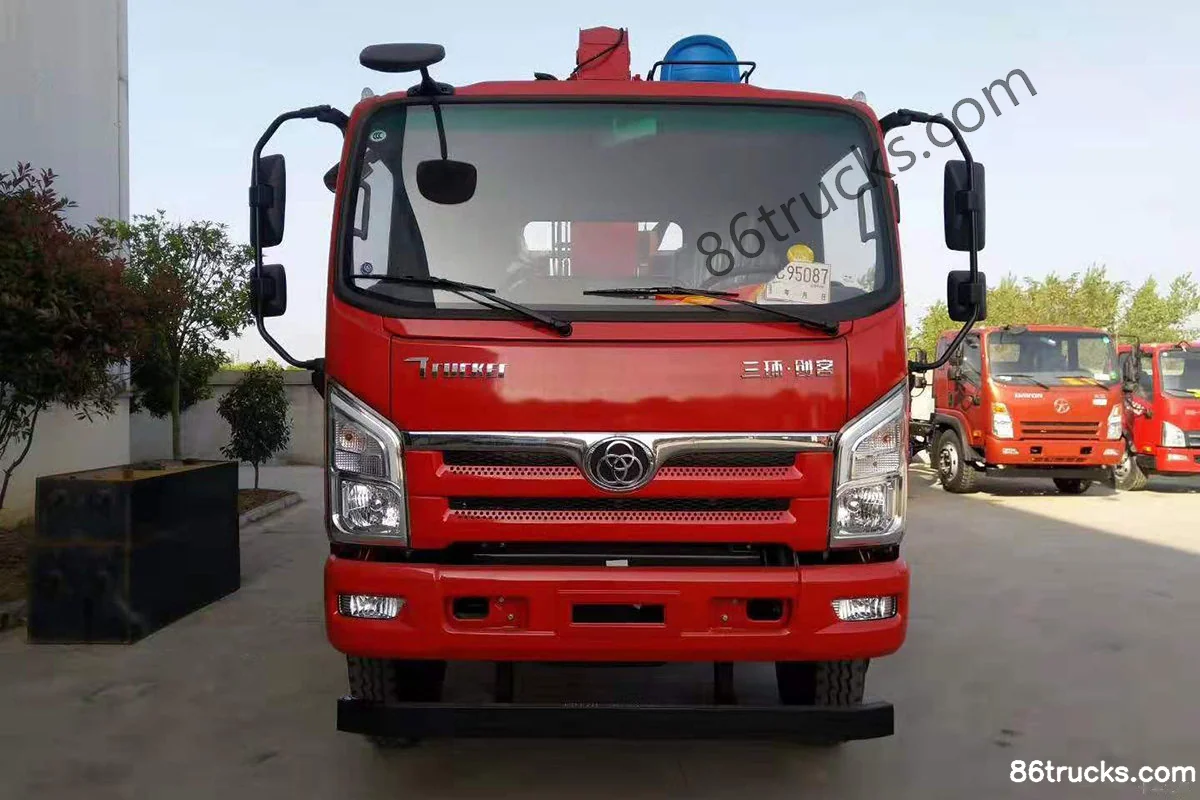

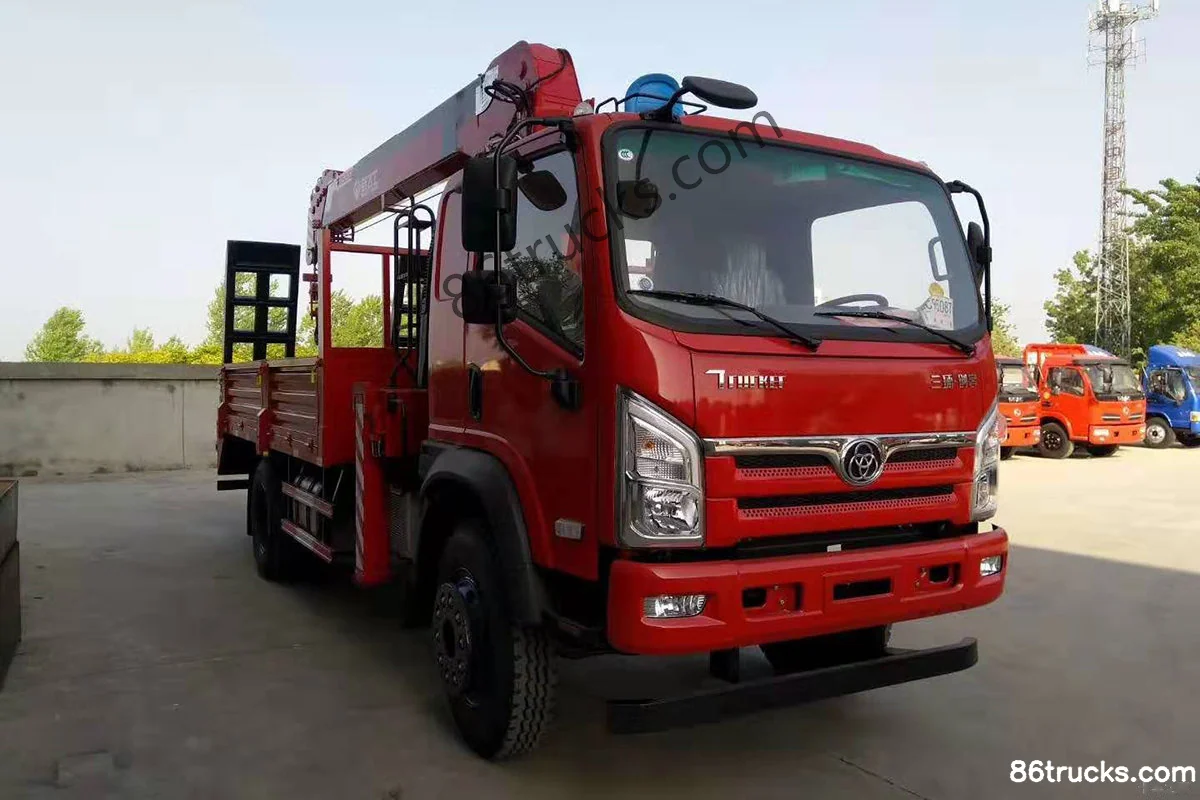

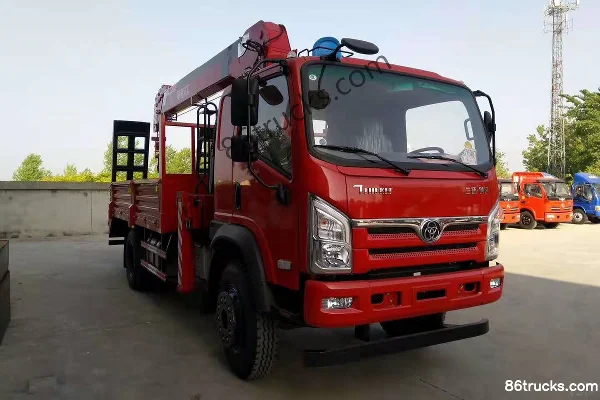

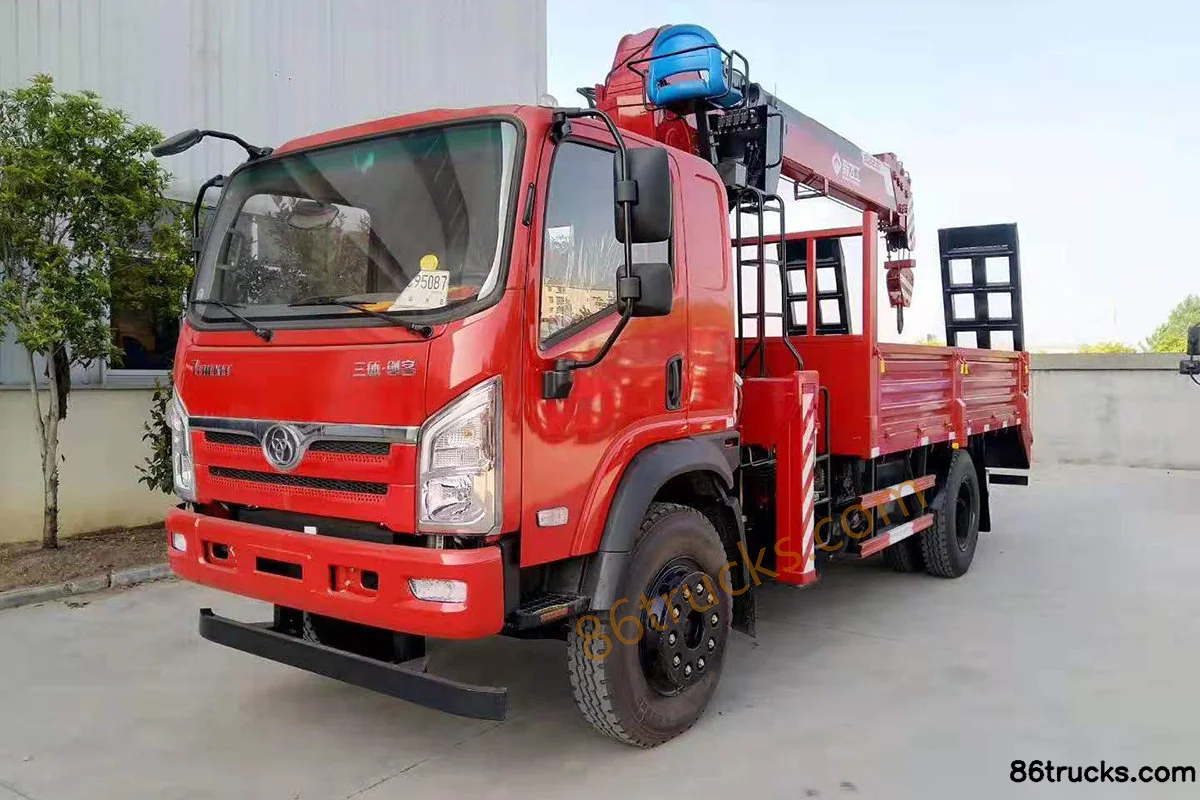

Photos

Exterior3

3 photos

FAQ

What is the export price of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane, and what does it include?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane export reference is about From $36,806; MSRP is ¥26.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane?

Key specs of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane suited for?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane belongs to Sanhuan Shitong Chuanke Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
