JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand)

Export reference
MSRP N/A
Wheelbase:: 3360mm
Cab dimensions:: 5.995×1.9×2.85m
Type:: Double cab aerial work truck
Front/rear track width:: Front track: 1385mm; Rear track: 1425mm
GVWR:: 4.495ton
Front/rear suspension:: 1.065/1.57m
JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Horsepower 115
Curb Weight: 4.17ton
Emission China V

Overview

The JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) is a aerial work truck featuring 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 115 hp, China V emissions and Diesel fuel.

China V 115 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 5.995×1.9×2.85m
Type: Double cab aerial work truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front track: 1385mm; Rear track: 1425mm
Curb Weight: 4.17ton
GVWR: 4.495ton
Front/rear suspension: 1.065/1.57m
Energy Type: Diesel
Body Parameters
Other special notes: This vehicle is used for emergency repair of power, communications, street lighting, and other aerial work. Main components: lifting platform, working arm. Cab can be selected as per chassis. Side and rear guards: carbon steel/Q235B, welded connection. Rear guard cross-section (width × height) (mm): 100×50, ground clearance 390 mm
Vehicle certification code: SCS5040JGKJX
Body Brand: Runzhixing Brand
Engine parameters
Engine Model: JMCJX493ZLQ5
Displacement: 2.8L
Emission standard: China V
Max output power: 85kW
Max hp: 115Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda
Chassis Model: JX1041TSG25
Leaf spring count: 7/4+6,7/5+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed manual
Tire
Tire Size: 7.00R16LT 8PR,7.00R16LT 10PR
Number of tires: 6pcs

Photos

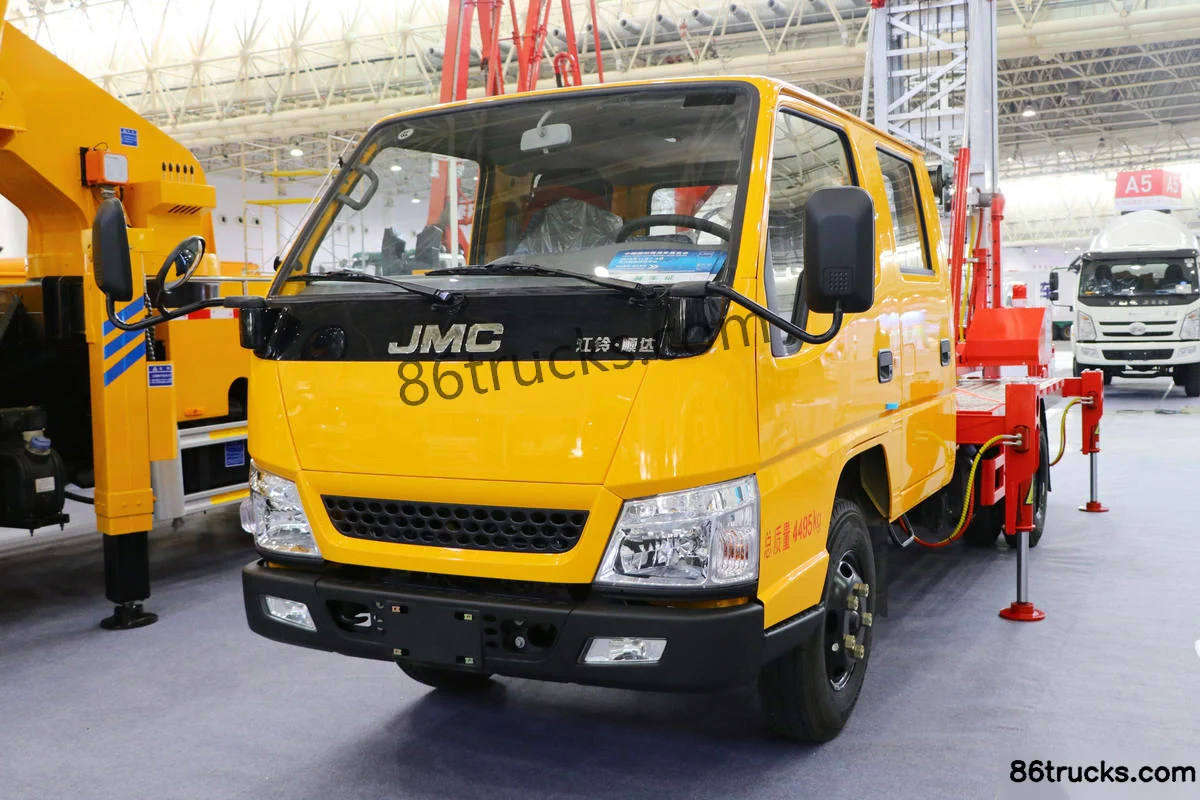

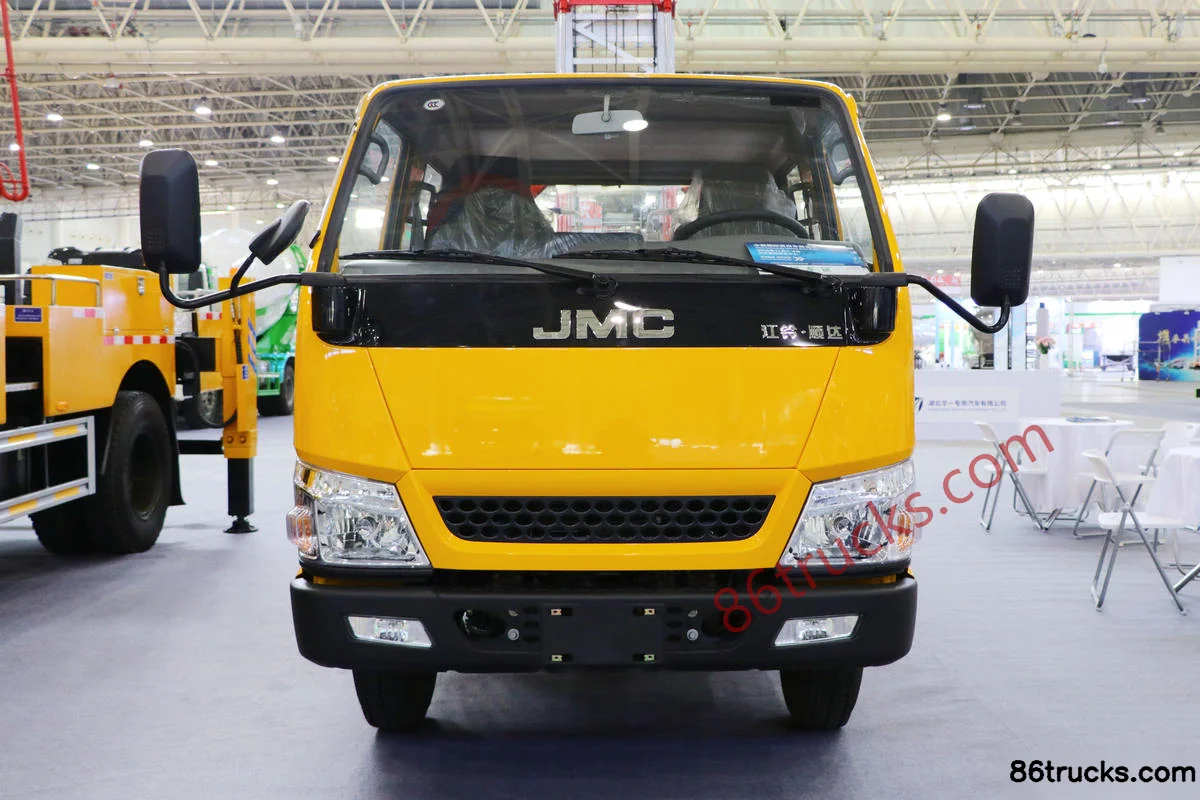

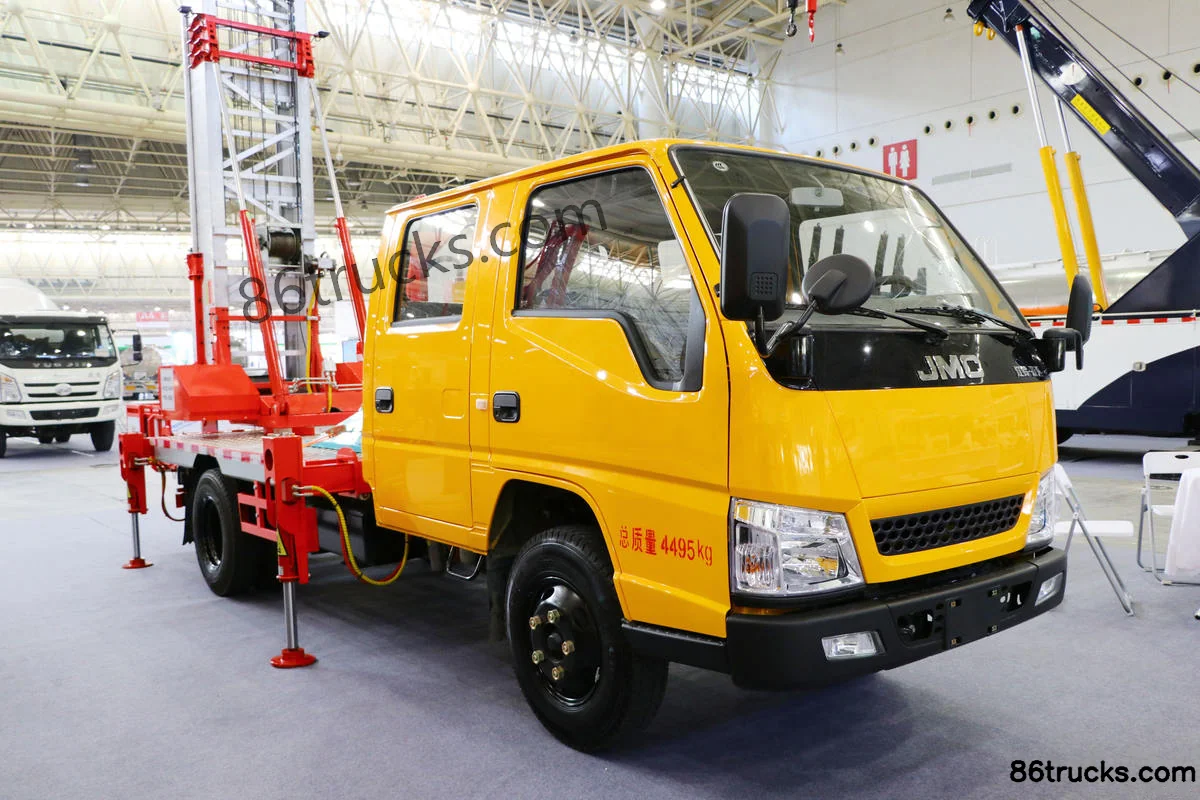

Exterior3

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Exterior (1) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Exterior (2) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Exterior (3) | 86Trucks

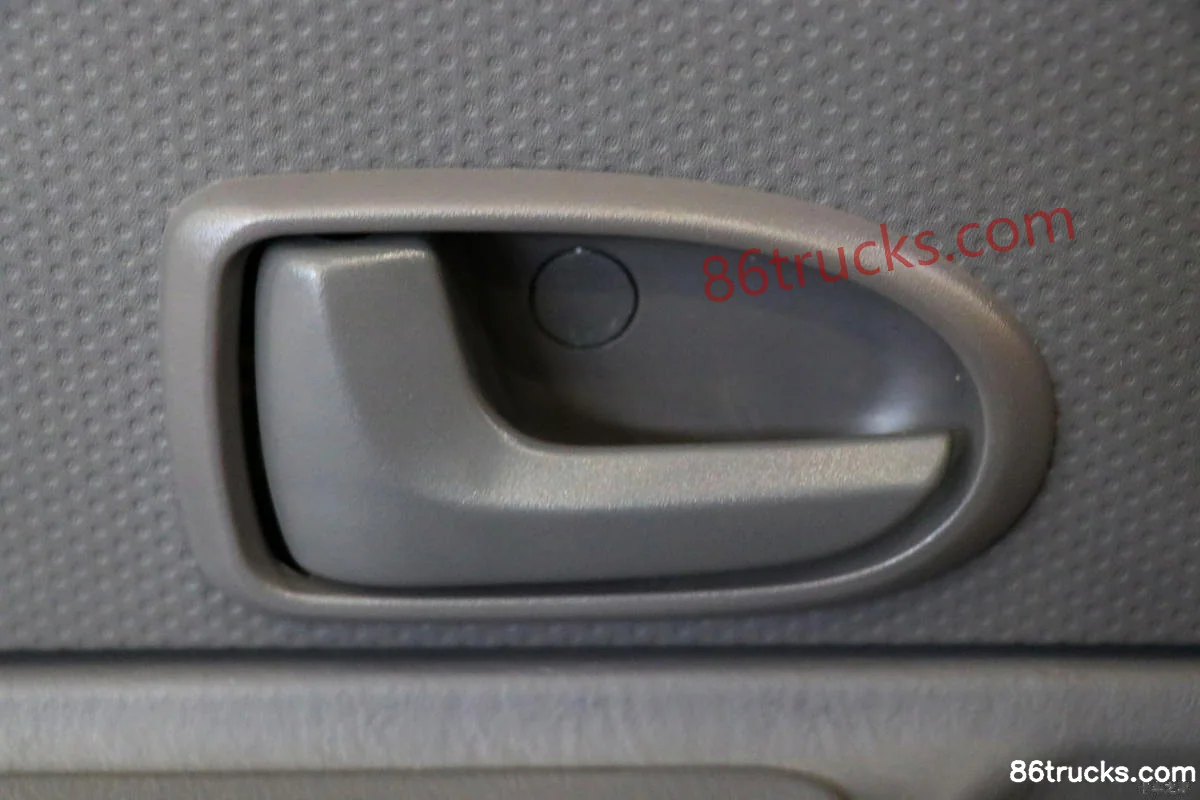

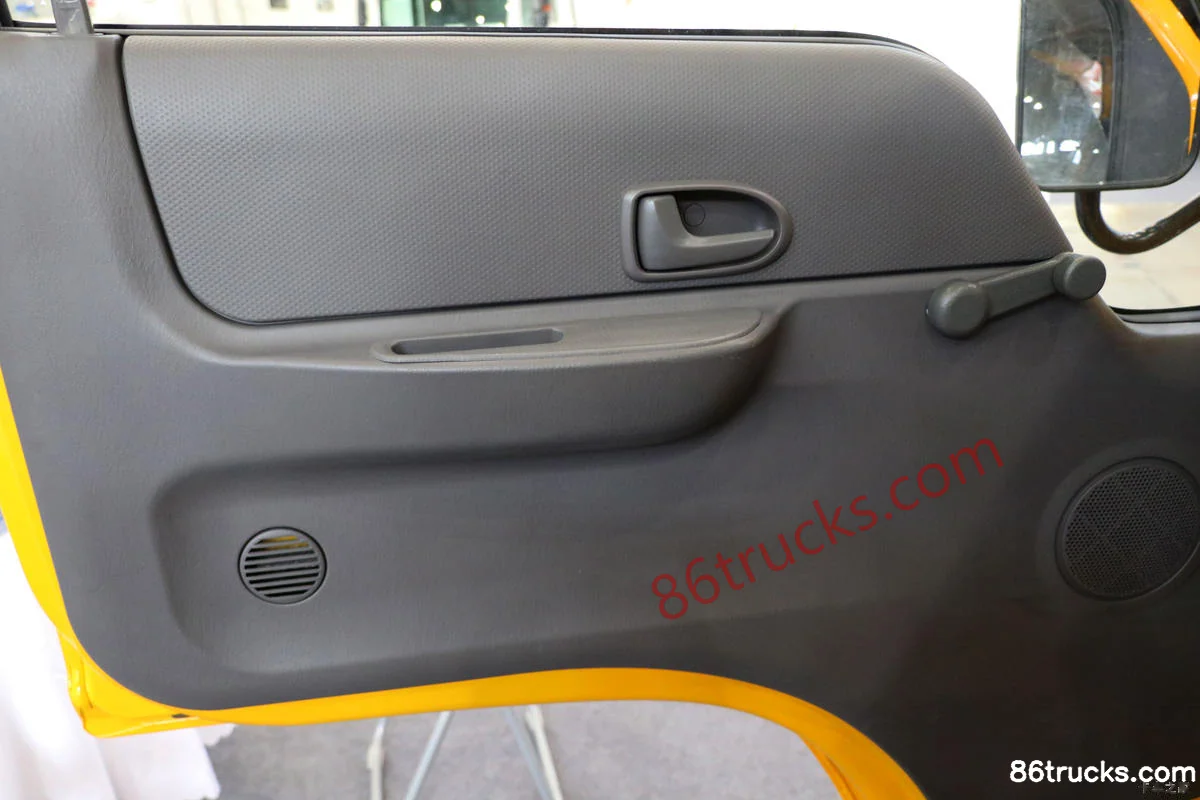

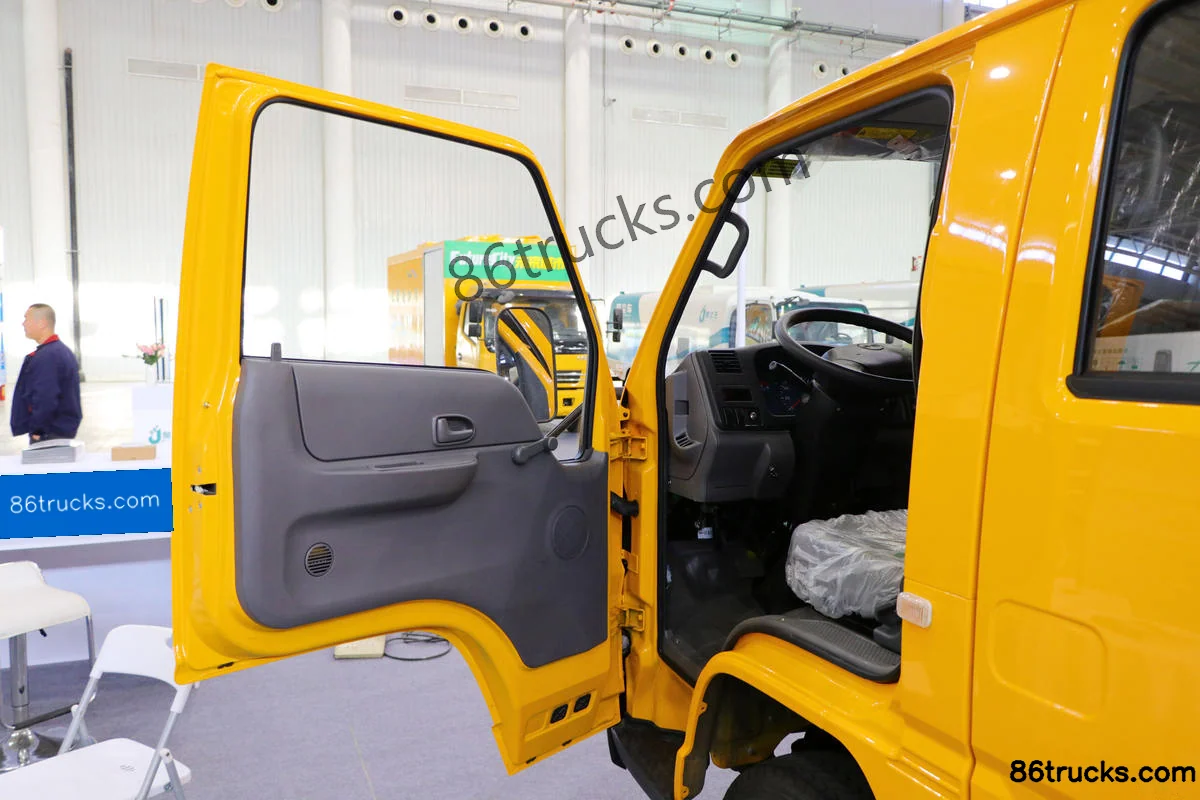

Cab3

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Cab (1) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Cab (2) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Cab (3) | 86Trucks

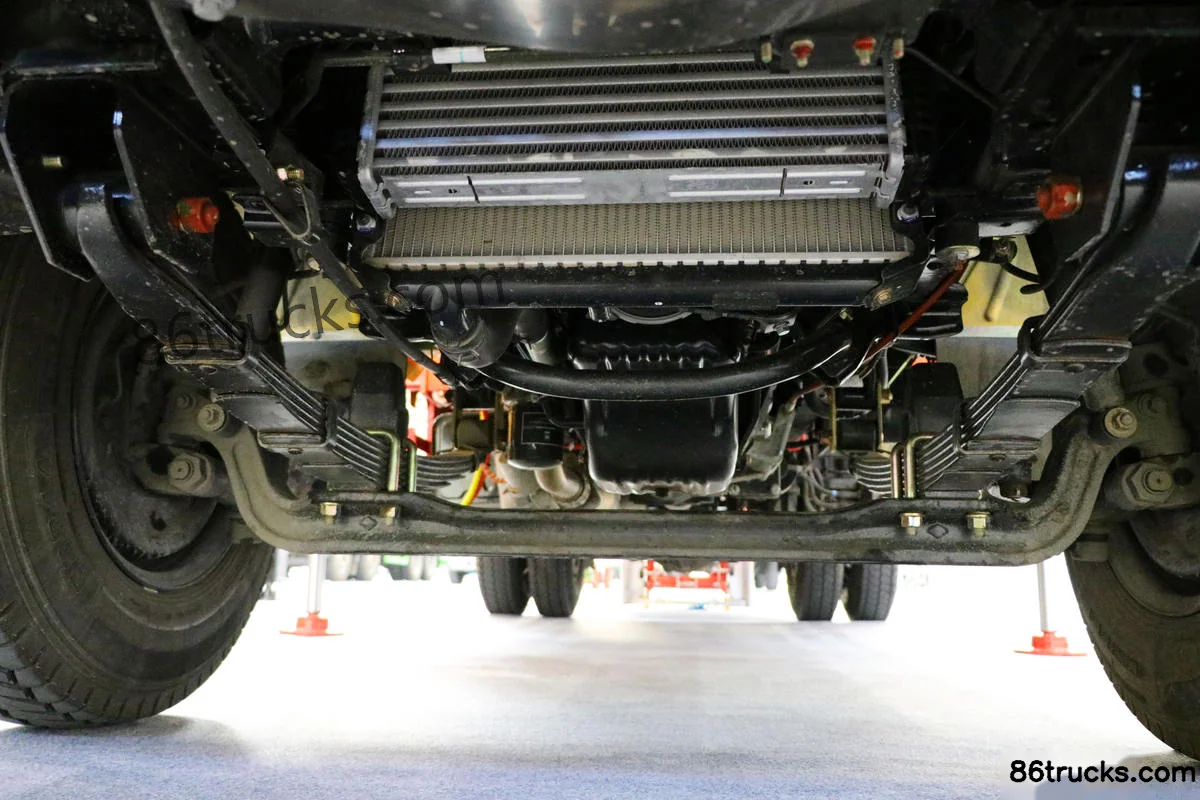

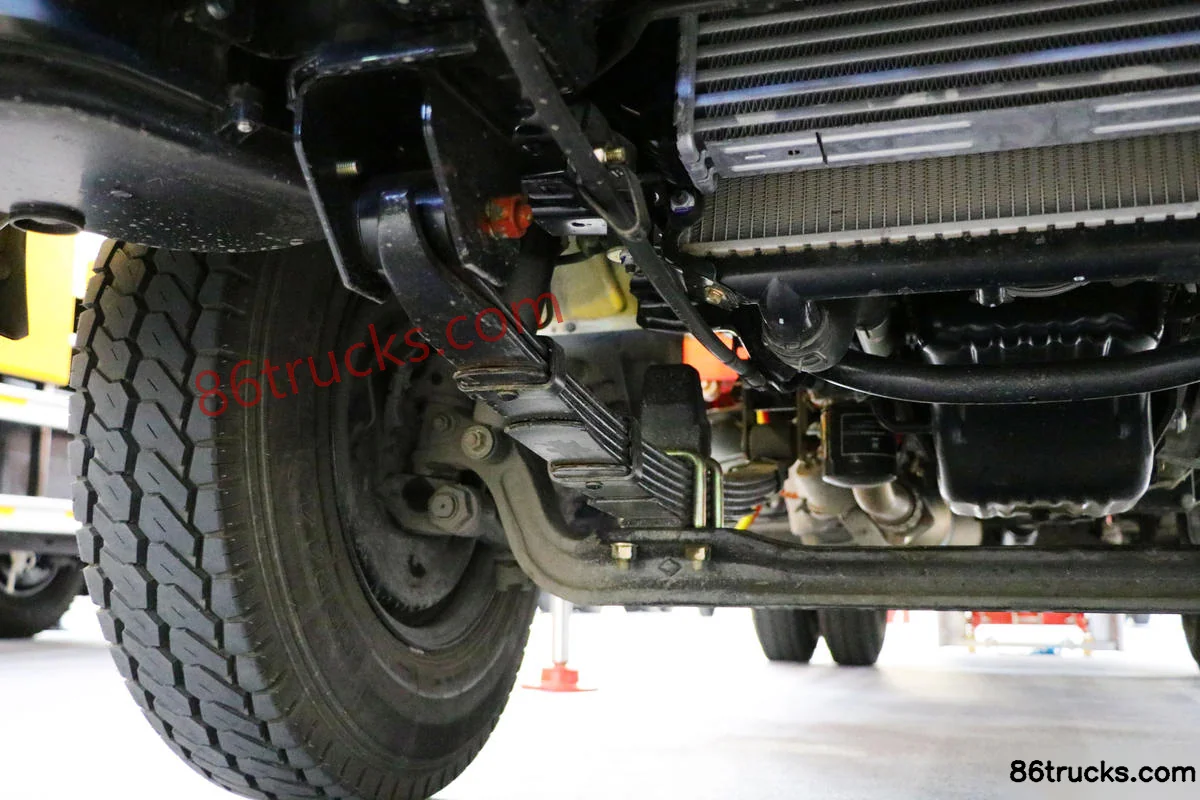

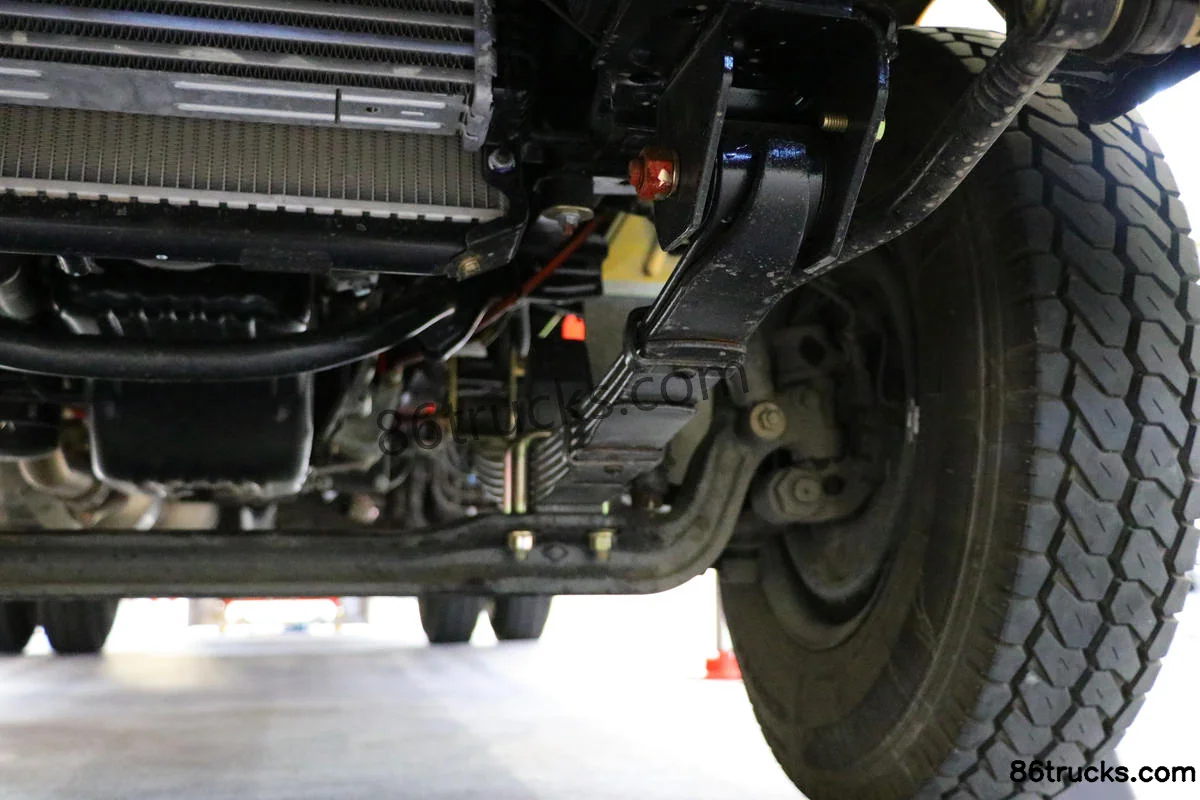

Chassis3

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Chassis (1) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Chassis (2) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Chassis (3) | 86Trucks

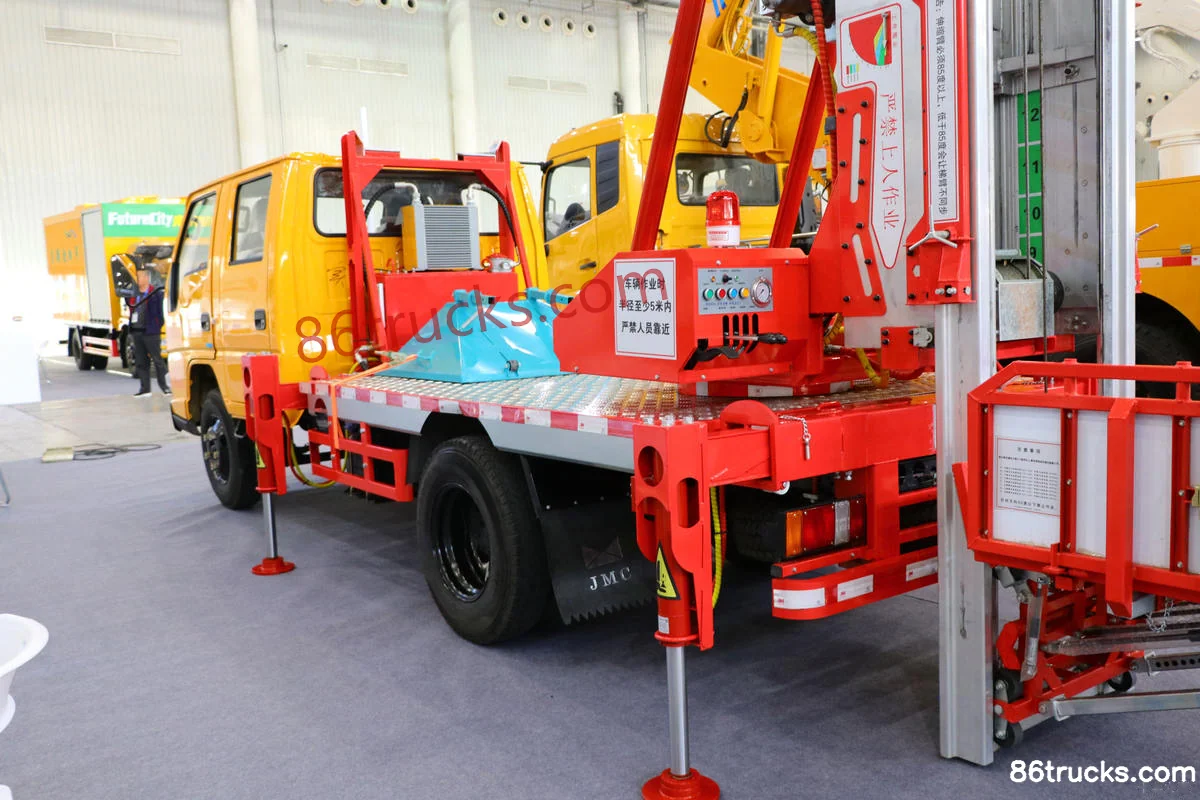

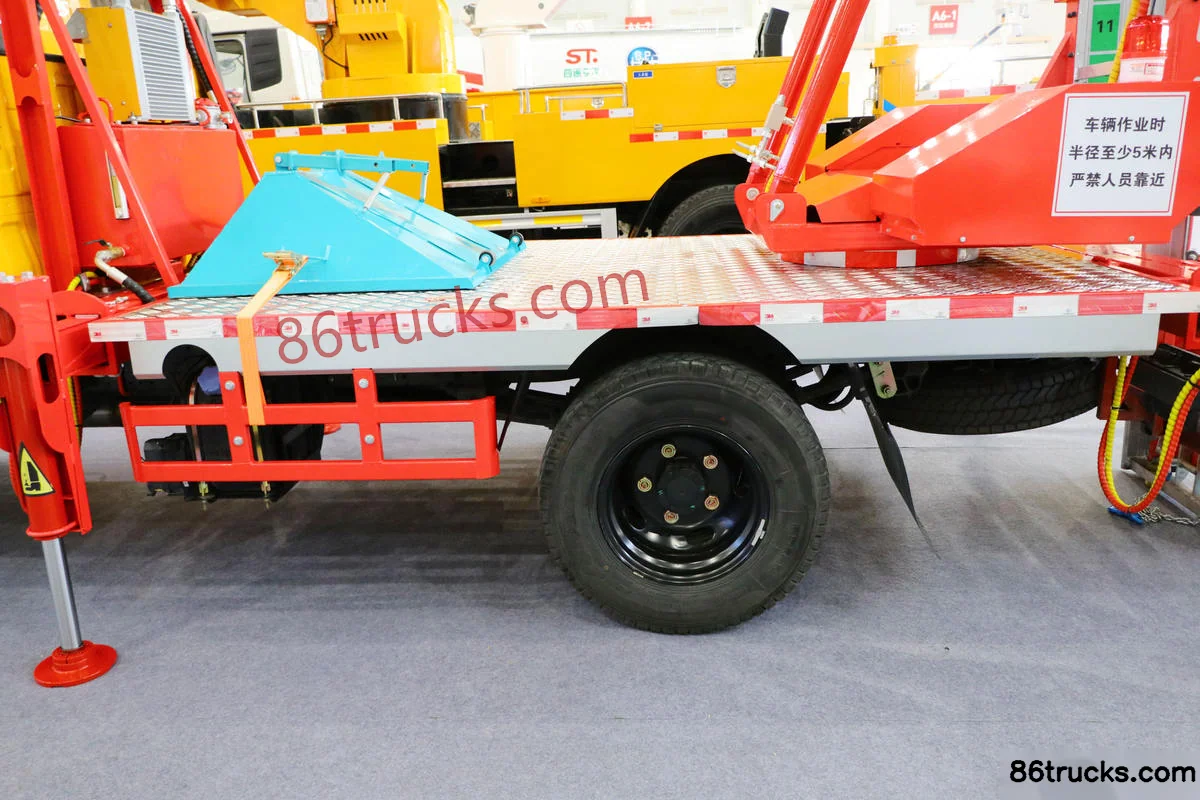

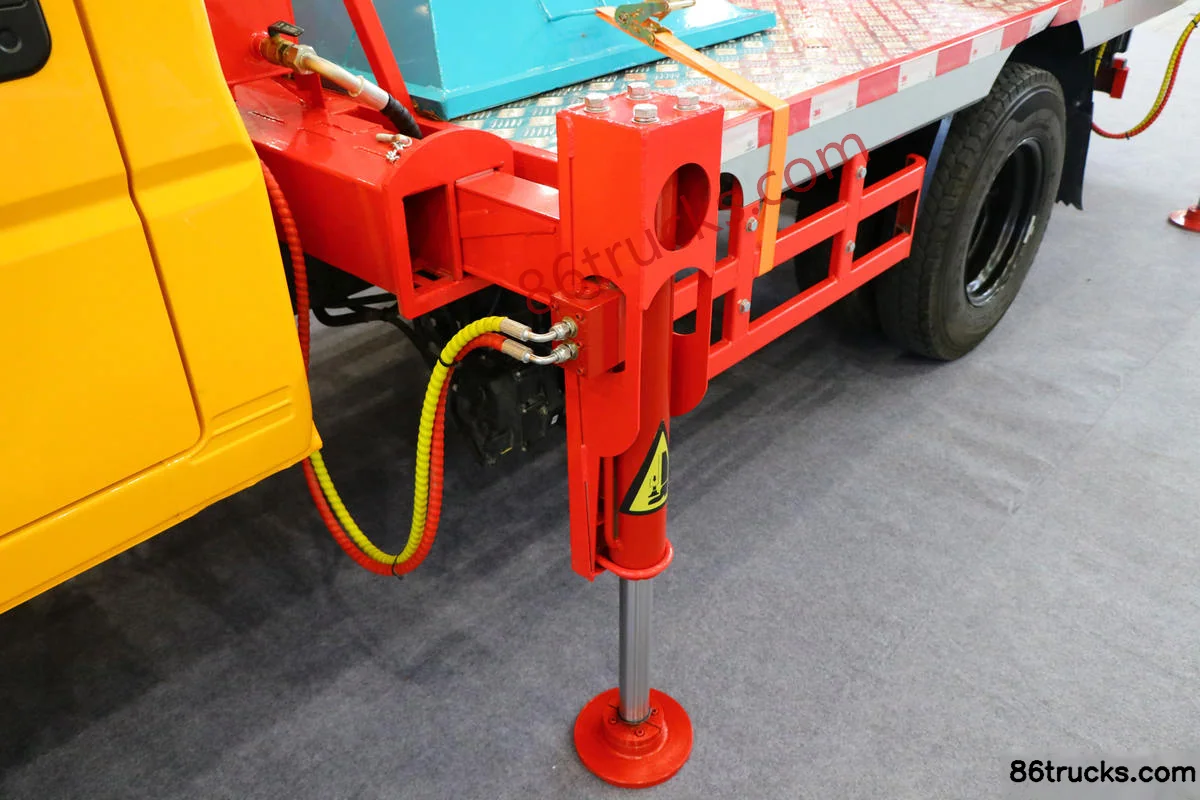

Body3

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Body (1) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Body (2) | 86Trucks JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand)?

Key specs of JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand): Drive: 4x2; Horsepower: 115 hp; Emission: China V. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) suited for?

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) is a aerial work truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) differ from other variants in the same series?

JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand) belongs to Runlizhi JMC Chassis (aerial work truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 115hp 4X2(6 wheels) Double Row Aerial Work Truck (Runzhixing Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
