Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck

Export reference
From $9,722
MSRP ¥7M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.565ton
Wheelbase:: 2850mm
Tire Size:: 6.50R16LT 10PR
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck is a Light Truck featuring 1.8t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and WLY transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1045V9JBA-57
Drive type: 4X2
Wheelbase: 2850mm
engine: QuanchaiQ23-115E60
transmission: WLY 5-speed
Rear Axle Ratio: 4.333
Cab length: 5.49m
Cab width: 1.92m
Cab height: 2.16m
Front track width: 1495mm
rear track: 1435mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.25m
Cargo box width: 1.81m
Cargo box height: 0.4m
Cab parameters
Cab: Sleeper cab
Cab width: 1695mm
Cab tilting: Manual
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1710kg
rear axle allowable load: 2785kg
Axle ratio: 4.333
Leaf spring count: 7/7+5
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

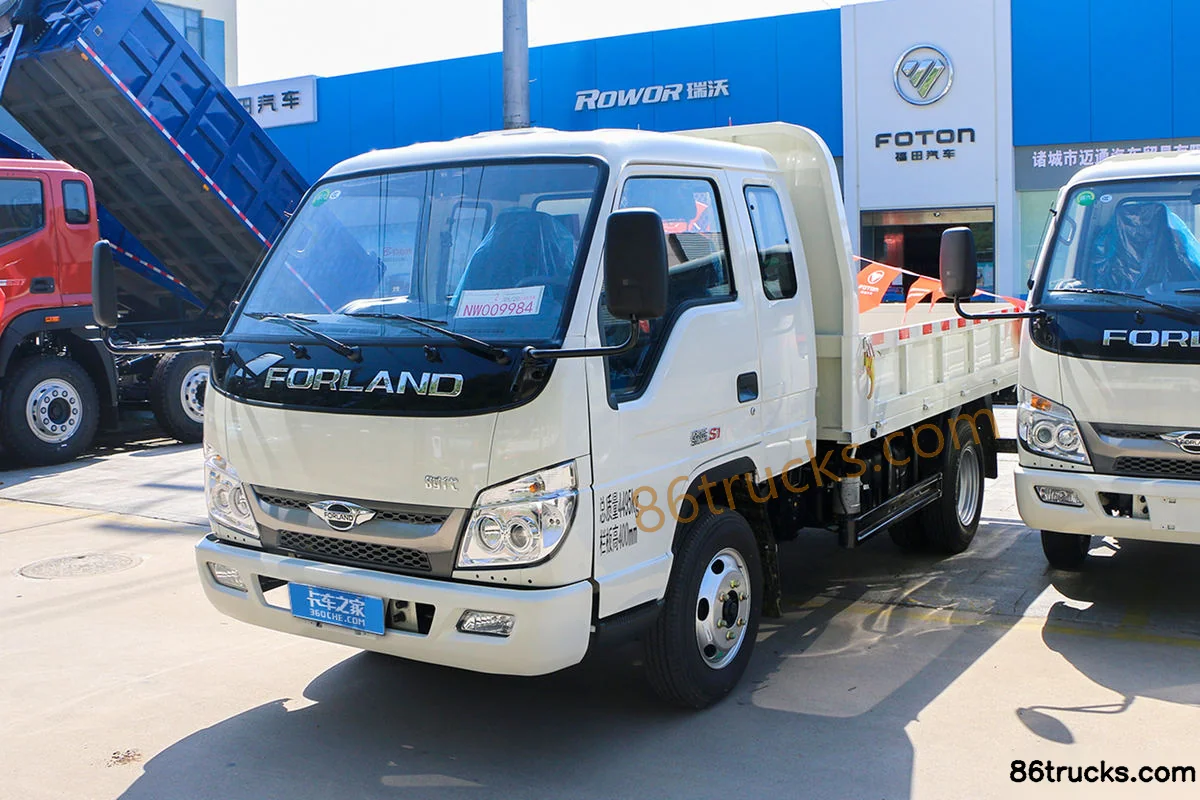

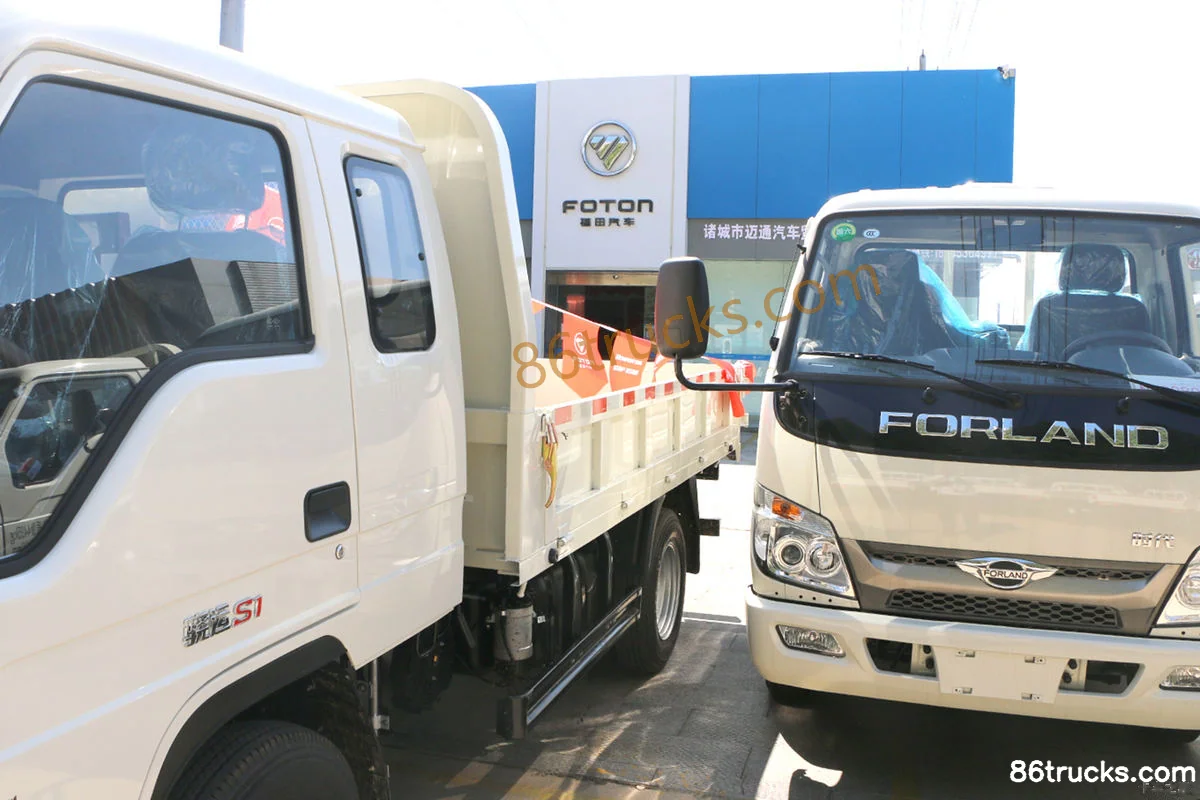

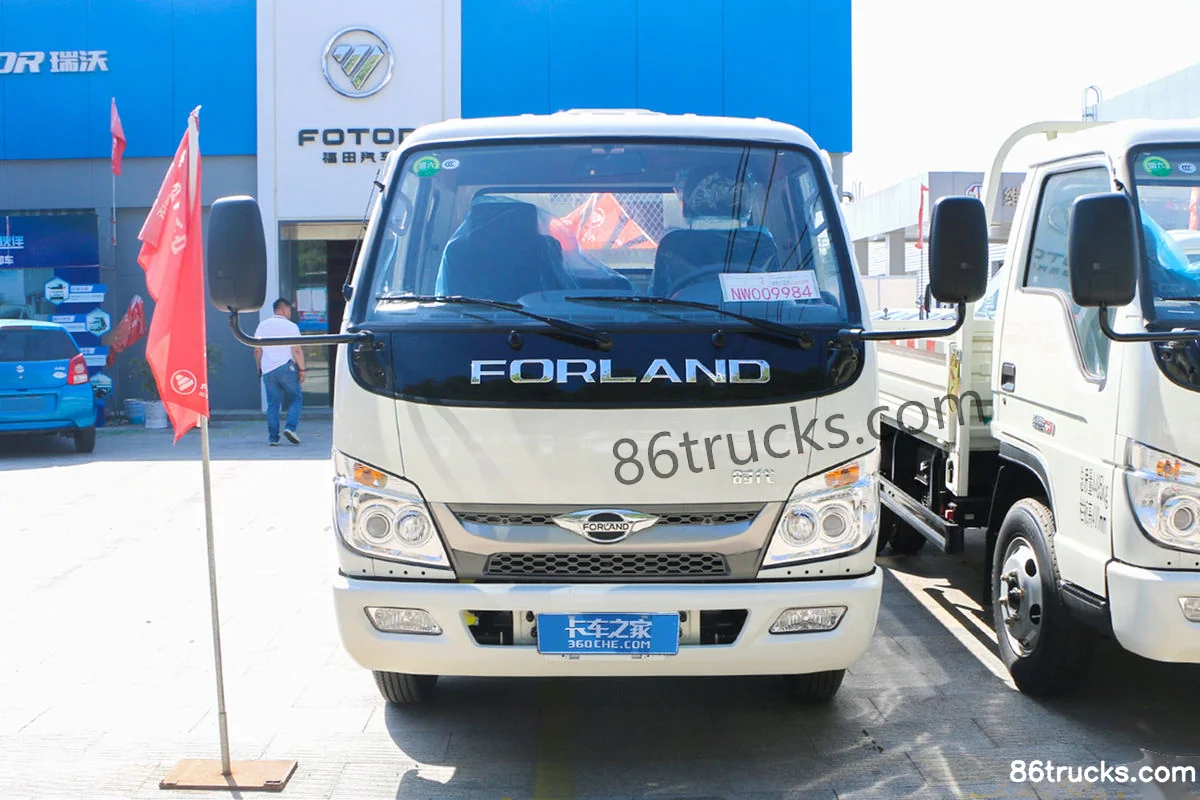

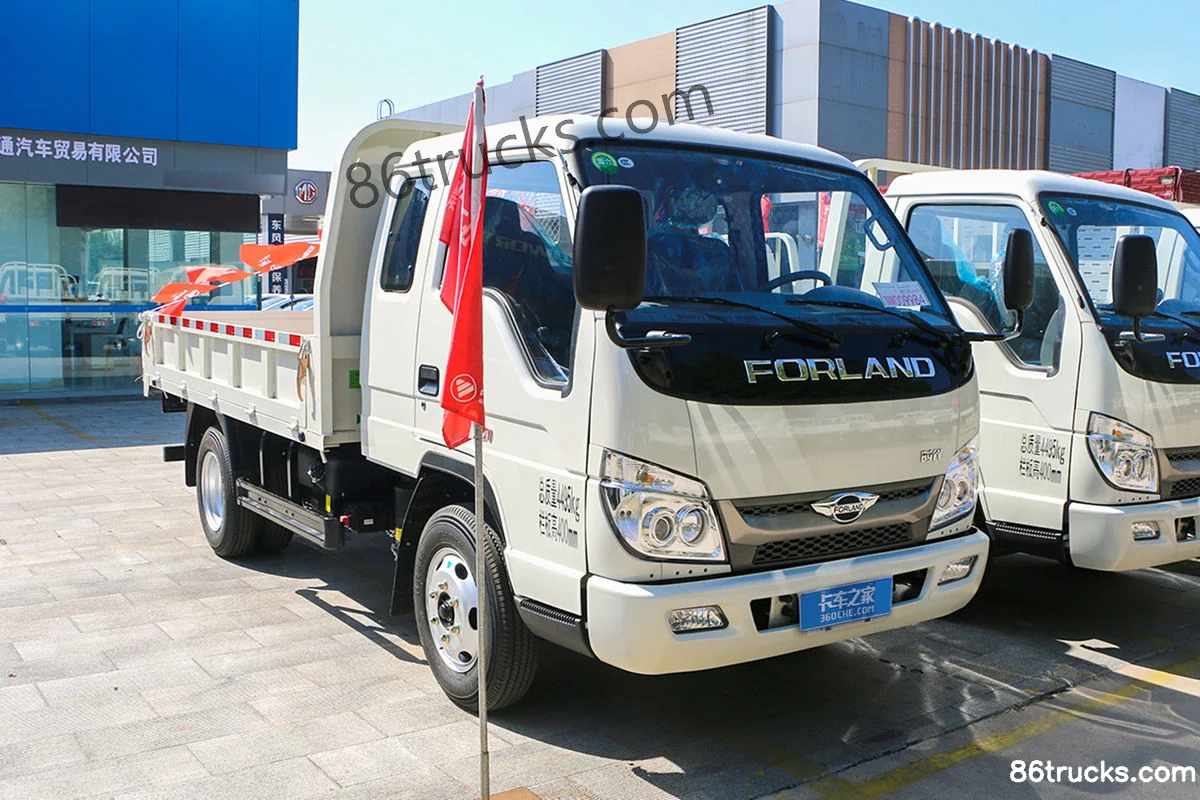

Exterior3

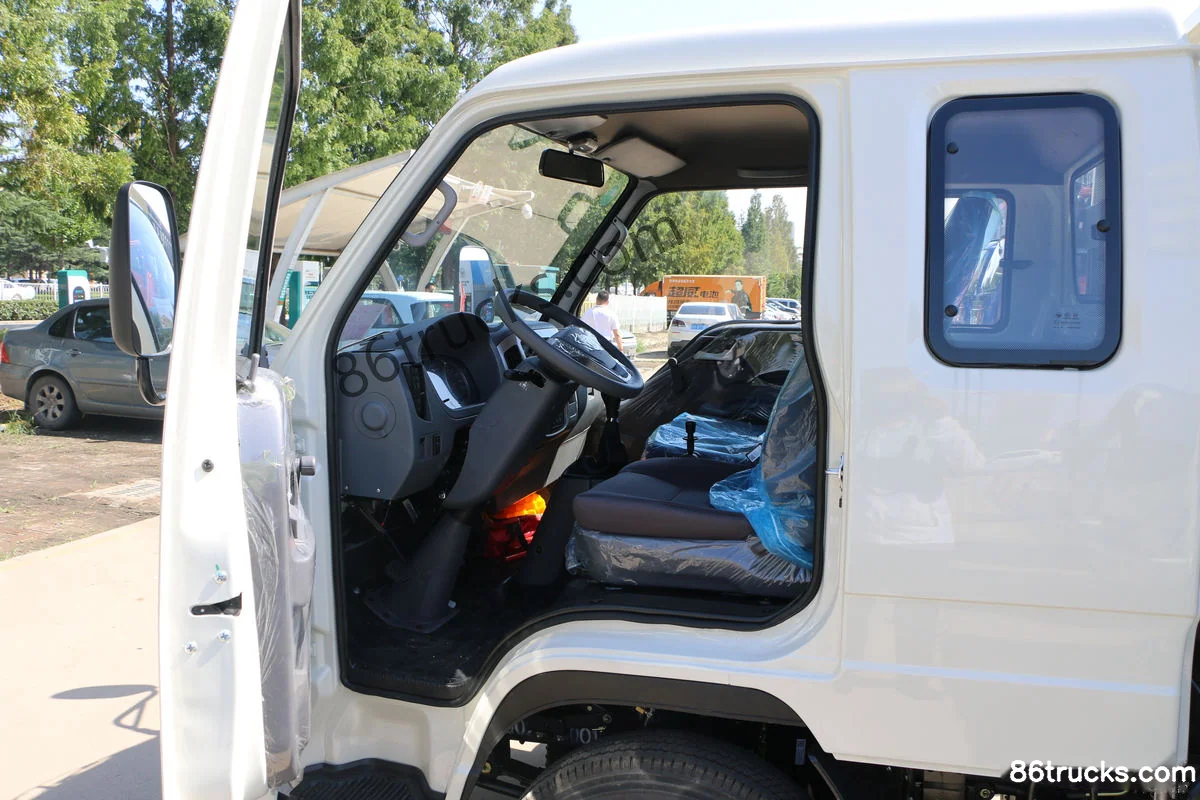

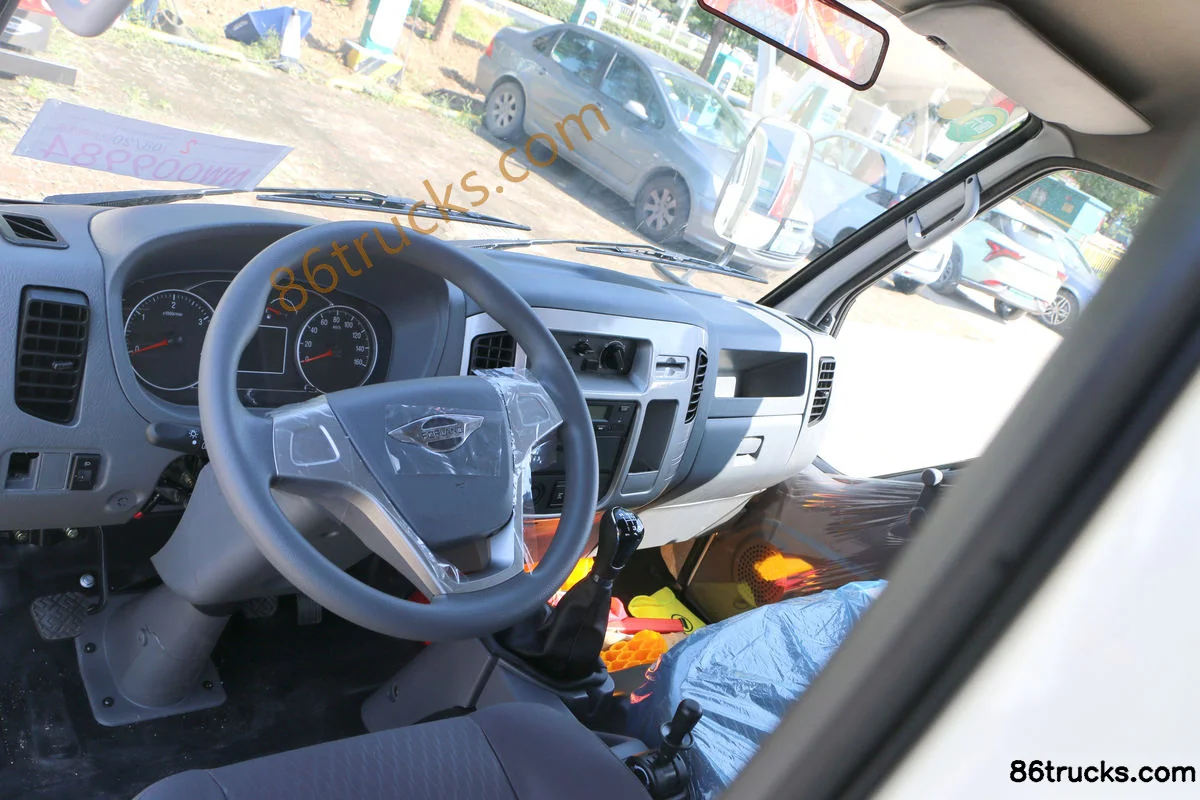

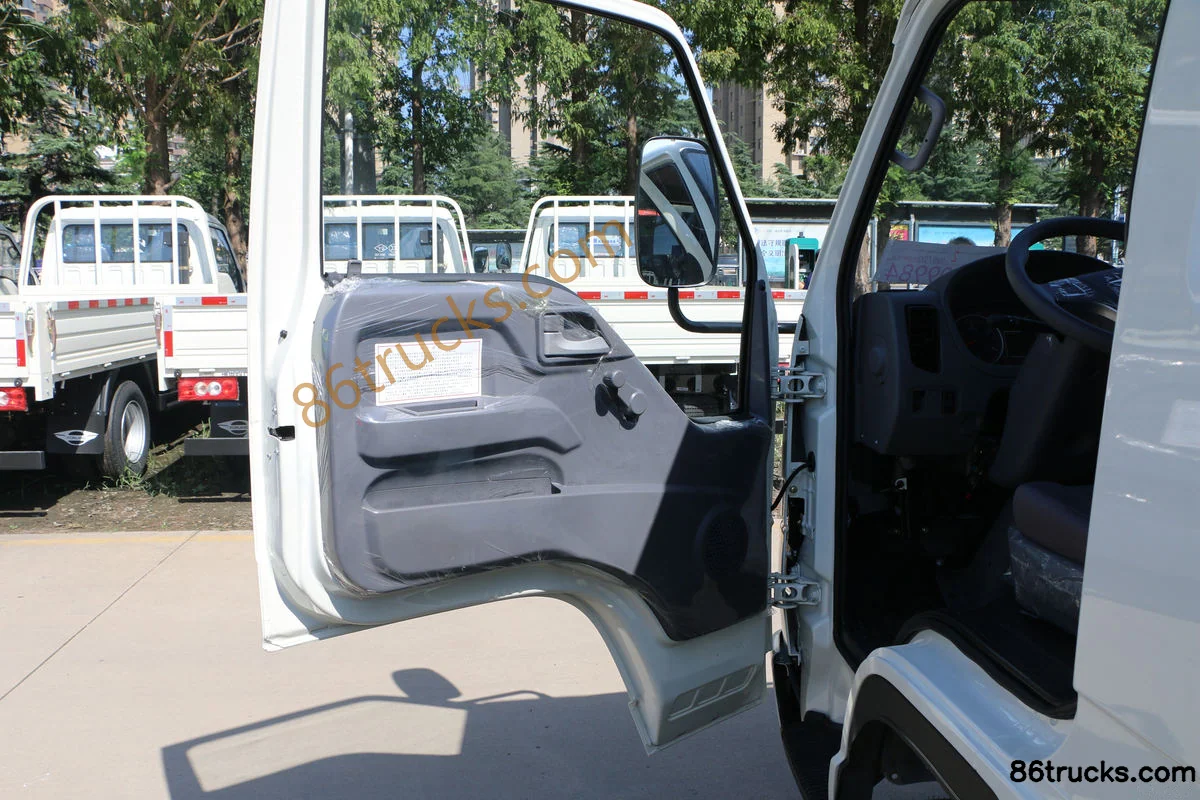

Cab3

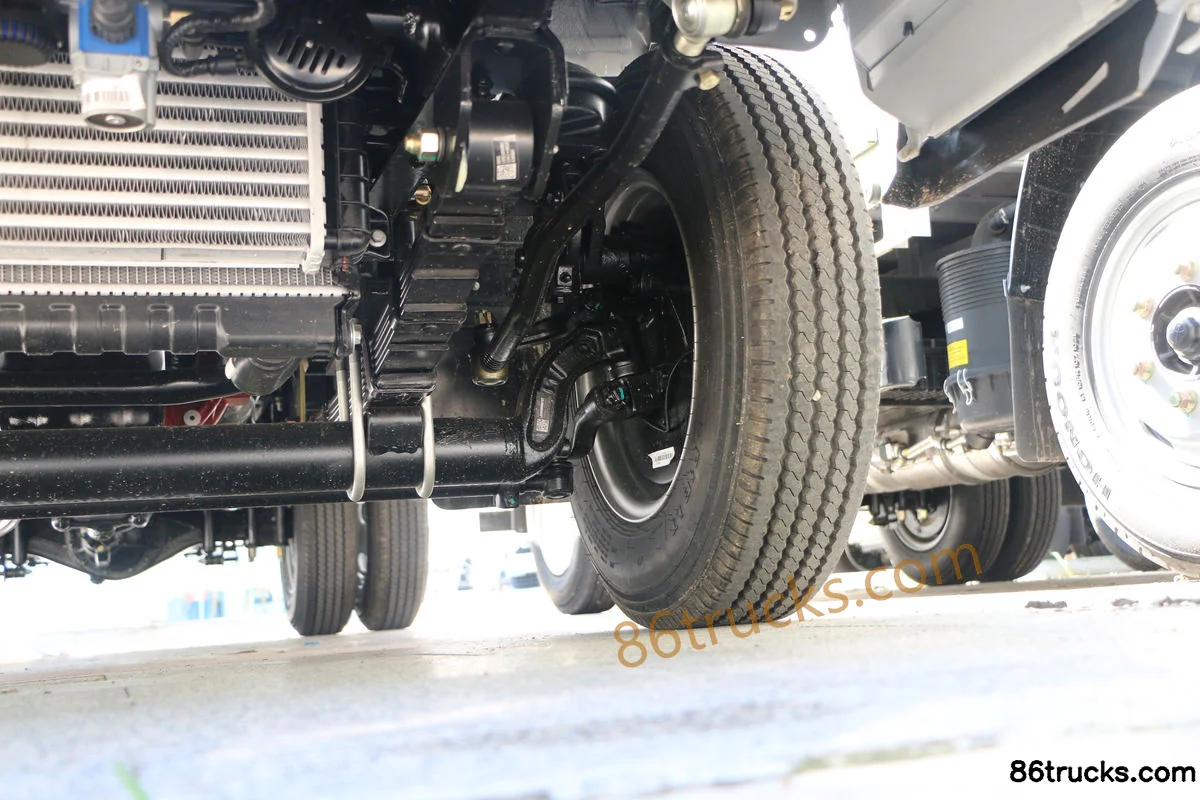

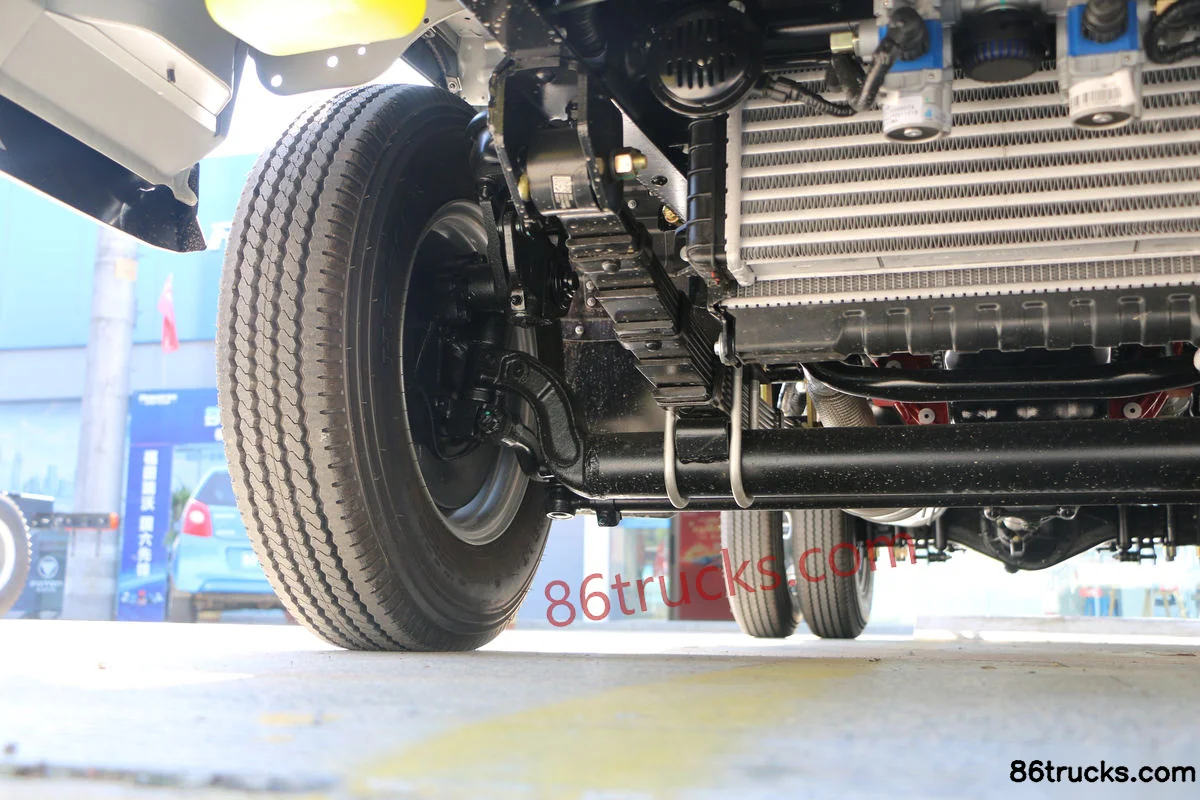

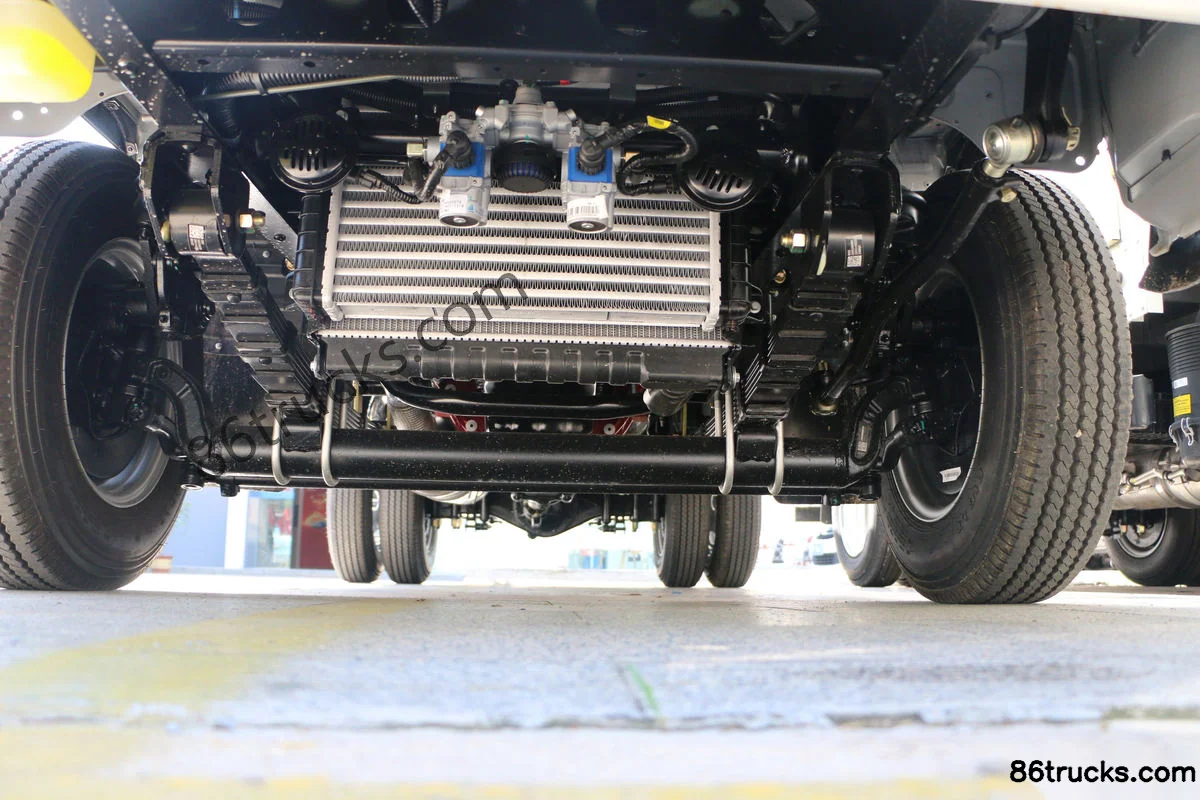

Chassis3

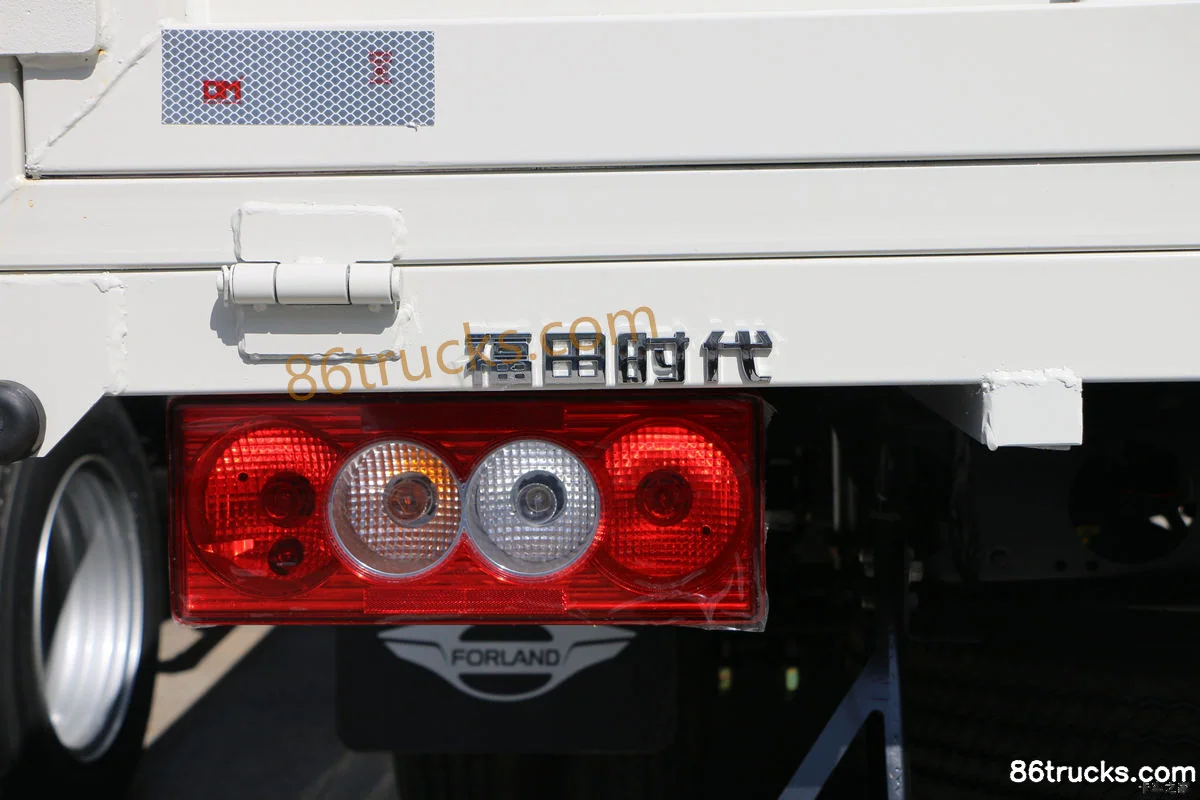

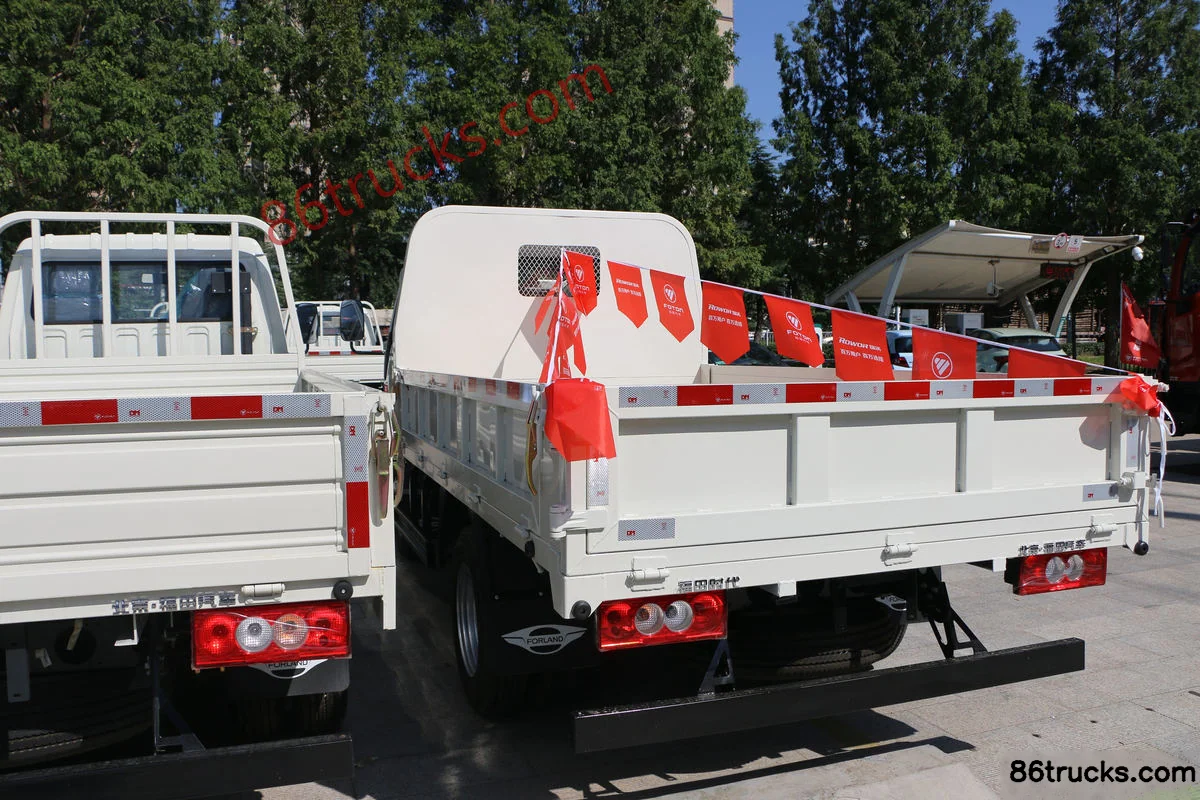

Body3

12 photos

FAQ

What is the export price of Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck, and what does it include?

Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck export reference is about From $9,722; MSRP is ¥7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck?

Key specs of Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck suited for?

Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck differ from other variants in the same series?

Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck belongs to Foton Xiaoyun S1 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaoyun S1 115 hp 4X2(6 wheels) 3.25m Cab-over Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
