Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 5.06ton
Wheelbase:: 5100mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Stake type
Horsepower 180

Overview

The Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and M31A cab. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ1166M3ABT
Type: Chassis
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 6.8m
engine: YuchaiYC6J180-50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 8.86m
Cab width: 2.47m
Cab height: 2.95m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 5.06ton
GVWR: 15.6ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 22,23°
departure angle: 12,12°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.34/2.42,1.445/2.315m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J180-50
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cab parameters
Cab: M31A
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat

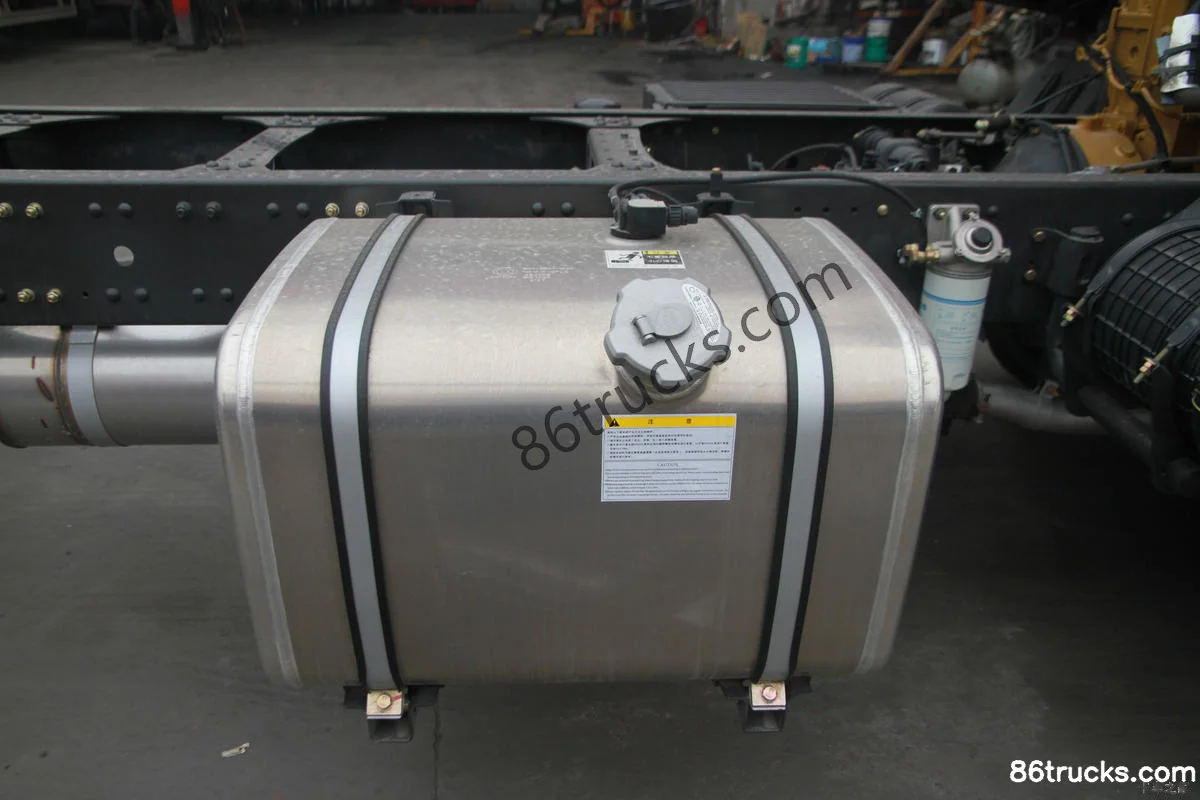

fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Axle ratio: 4.875
Leaf spring count: 11/12+9
clutch: Φ395
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

Photos

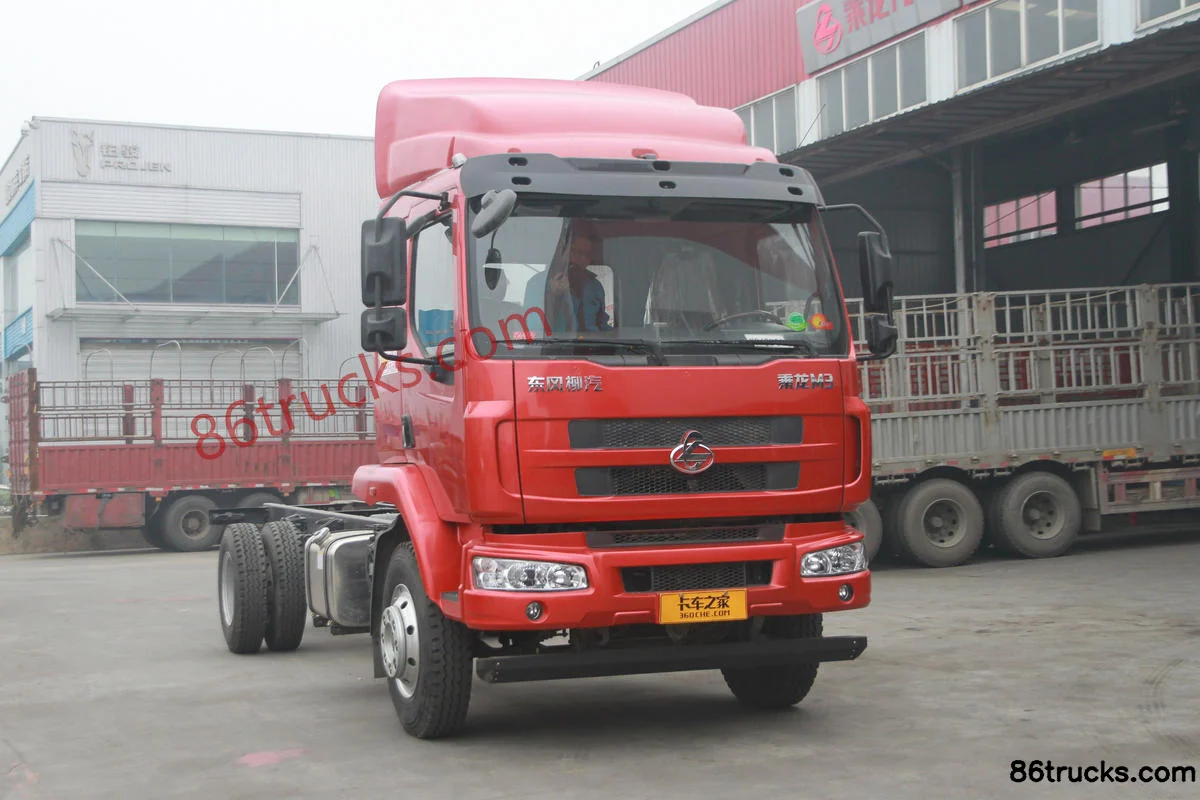

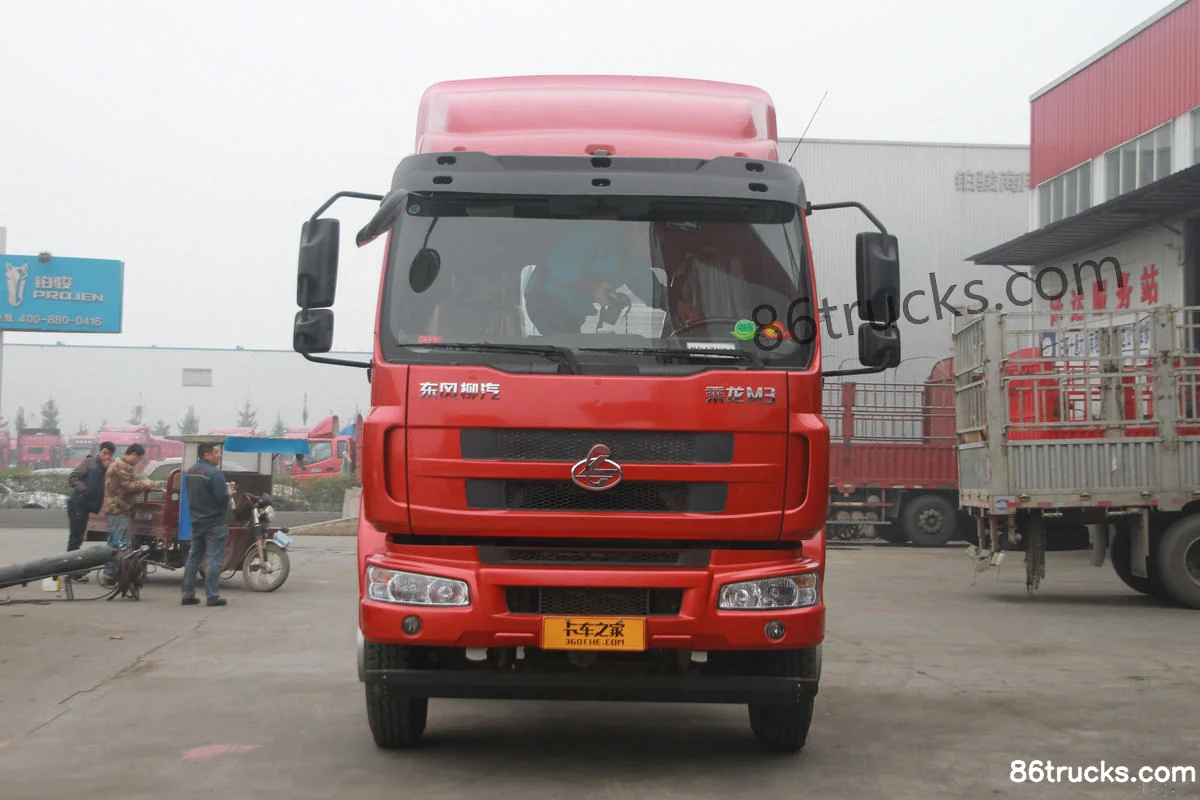

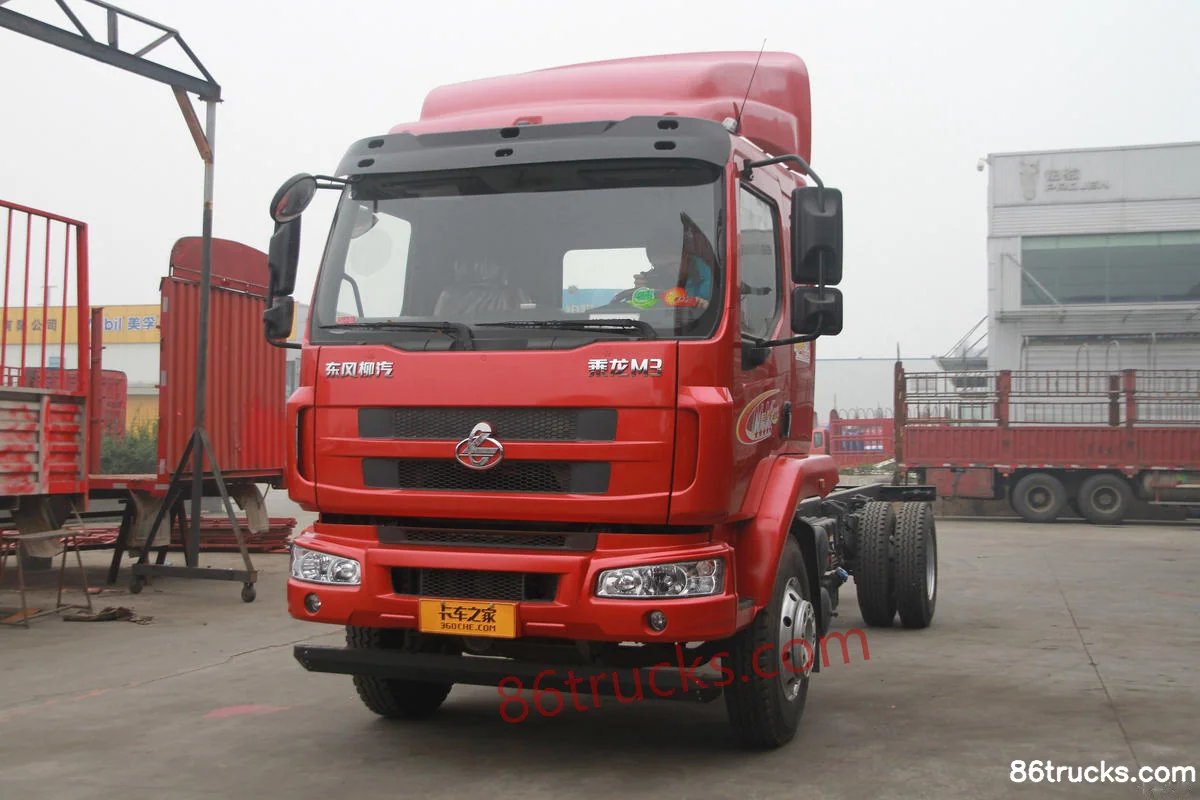

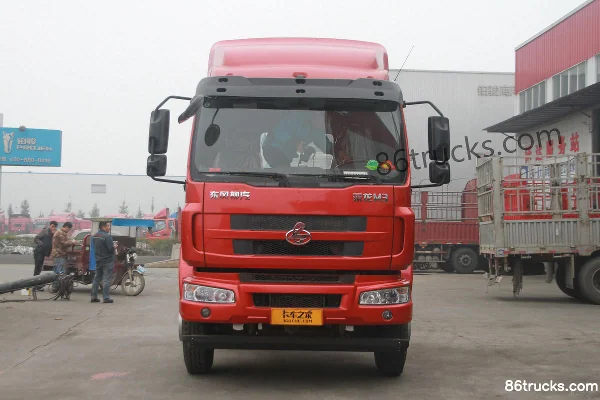

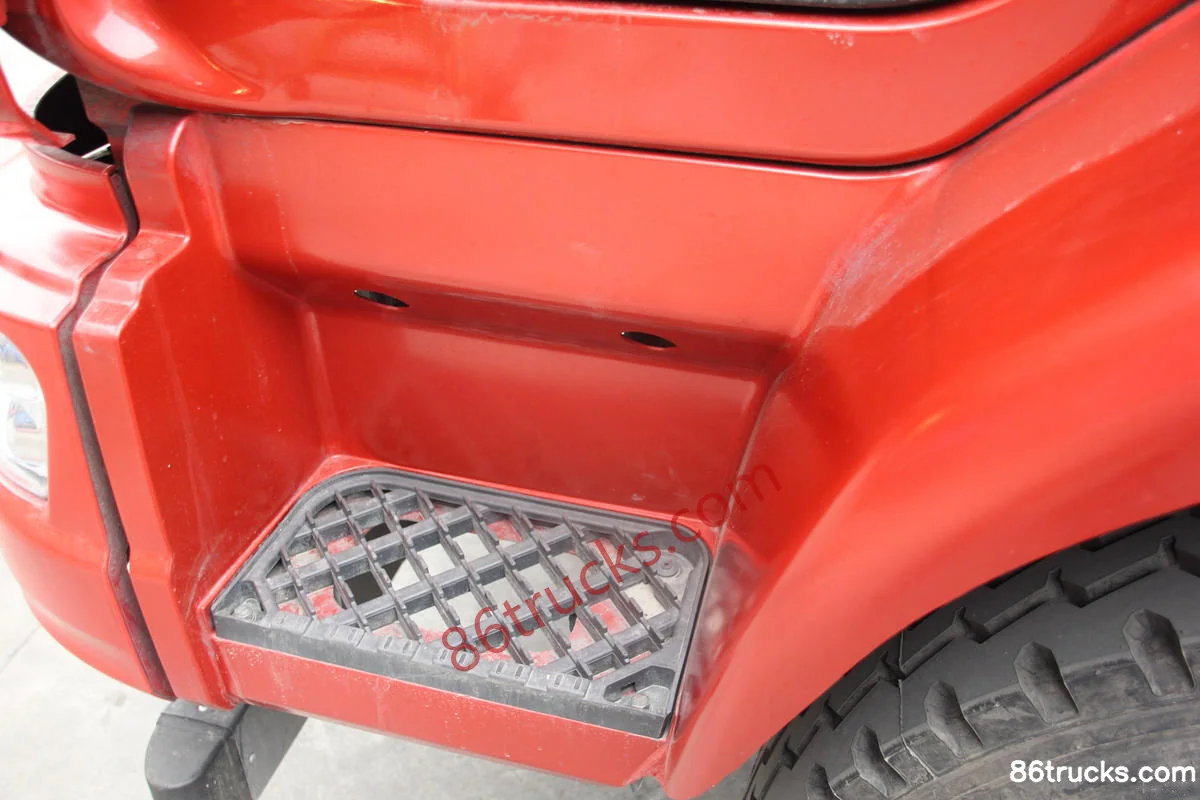

Exterior3

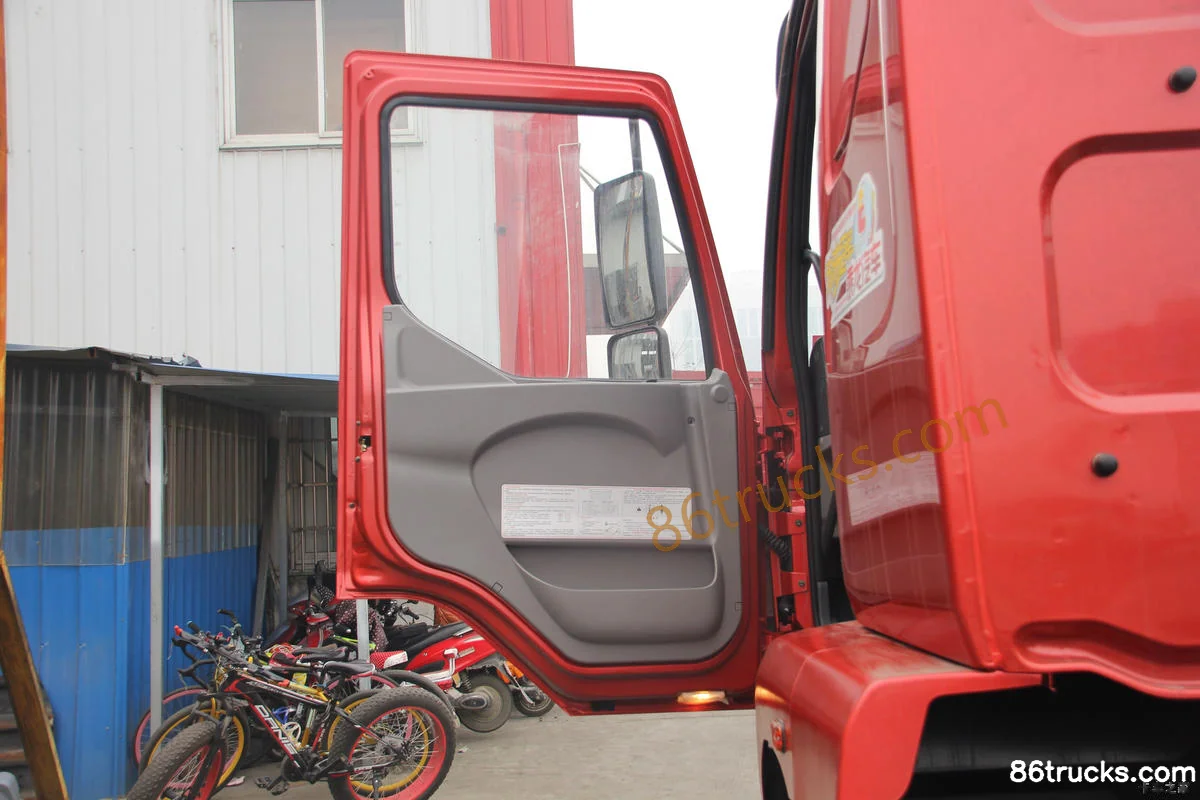

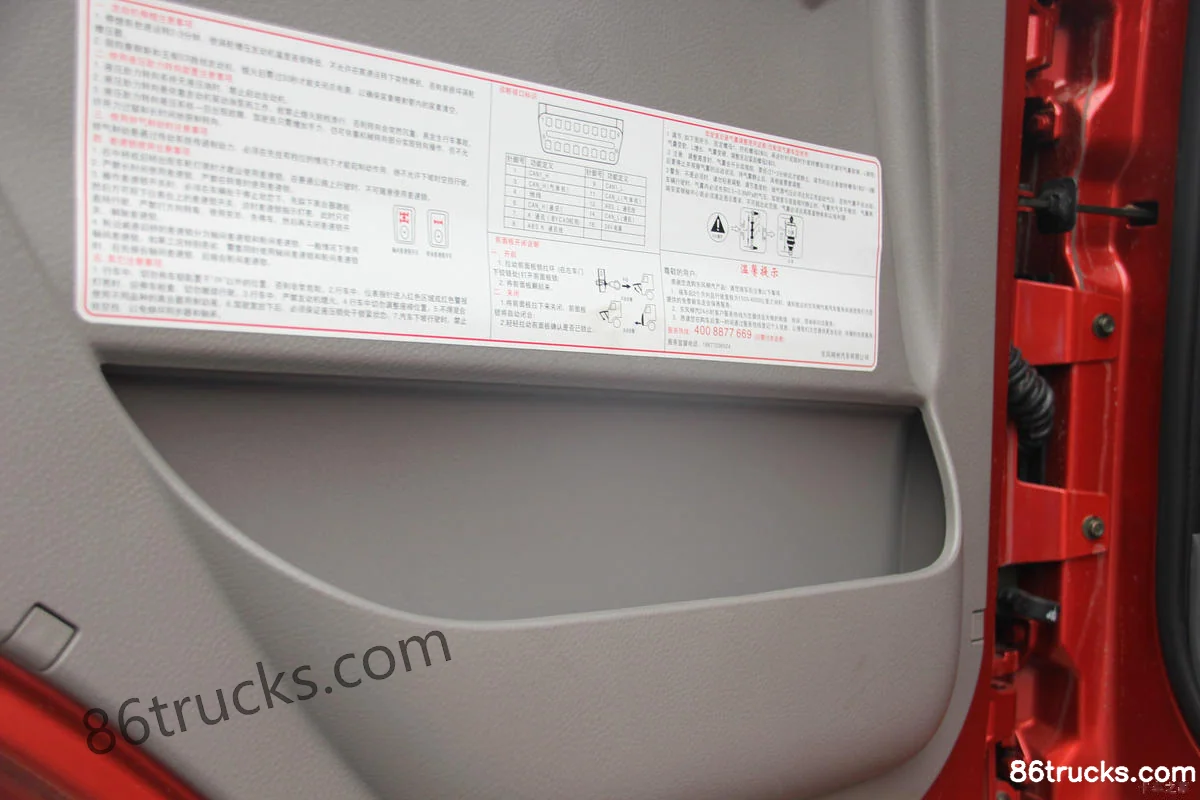

Cab3

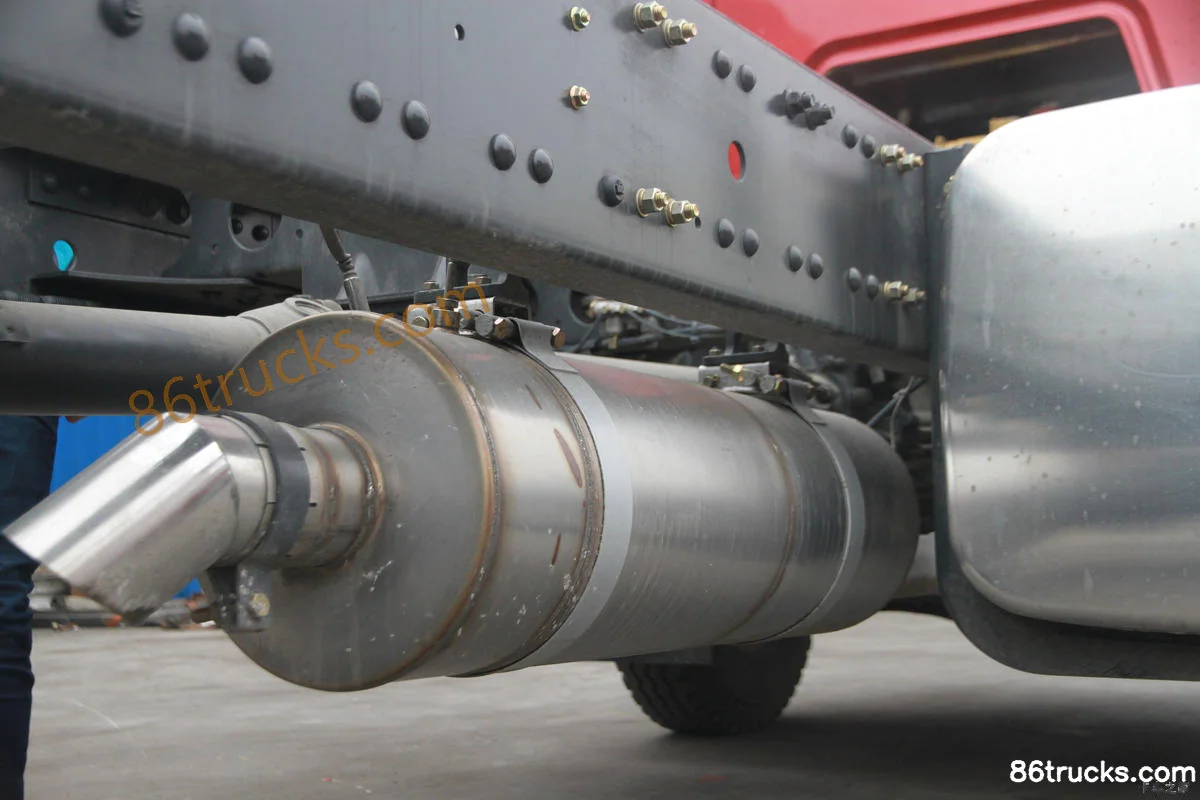

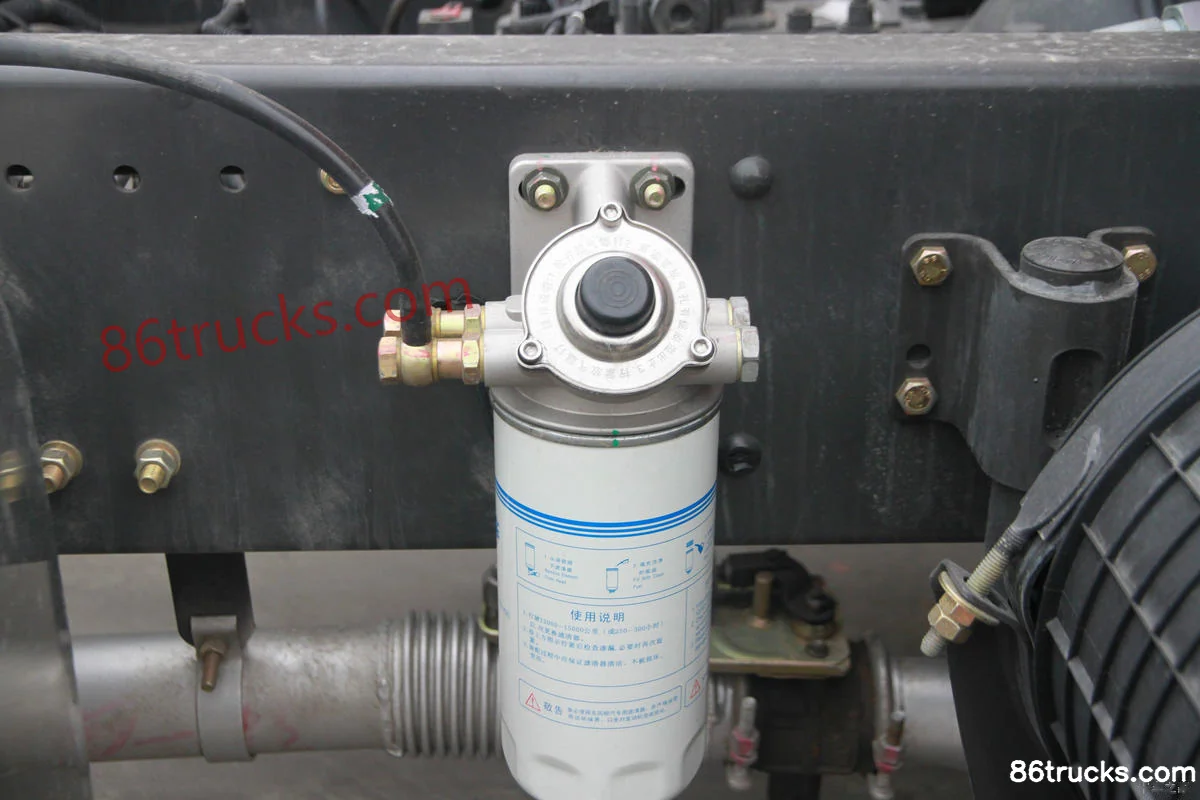

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis?

Key specs of Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis suited for?

Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis belongs to Dongfeng M3 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M3 Medium Truck 180 hp 4X2(6 wheels) 6.8m Stake Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
