FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 34.1ton
Wheelbase:: 5200mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 6500kg
Displacement:: 12.52L
Drive 4X2 (6 wheels)
Horsepower 500
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 500 hp, 18t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6SM6-A50E6N engine, FAW Jiefang transmission and LNG (liquefied natural gas) fuel.

China VI 500 LNG (liquefied natural gas) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4180P66M25E6
Drive type: 4X2
Wheelbase: 5200mm
engine: XichaiCA6SM6-A50E6N
transmission: FAW JiefangCA12TA300ART
Rear Axle Ratio: 3.417
Cab length: 7.45m
Cab width: 2.55m
Cab height: 3.76m
Front track width: 2050mm
Gross Trailer Weight: 34.1ton
rear track: 1852mm
Curb Weight: 7.705ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SM6-A50E6N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China VI
Max output power: 375kW
Max hp: 500Horsepower
Max torque: 2400N·m
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: CA12TA300ART
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Air tank capacity: 1500L
Cab parameters
Cab: low floor
Cab suspension: Four-point air suspension
Cab width: 2500mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 5t maintenance-free
Fifth wheel: ф50
Front axle allowable load: 6500kg
Frame Dimensions: 300×80×8mm
Steering gear: Domestic
rear axle description: New generation ф440 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 3.417
Leaf spring count: 2/-
clutch: Φ430
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

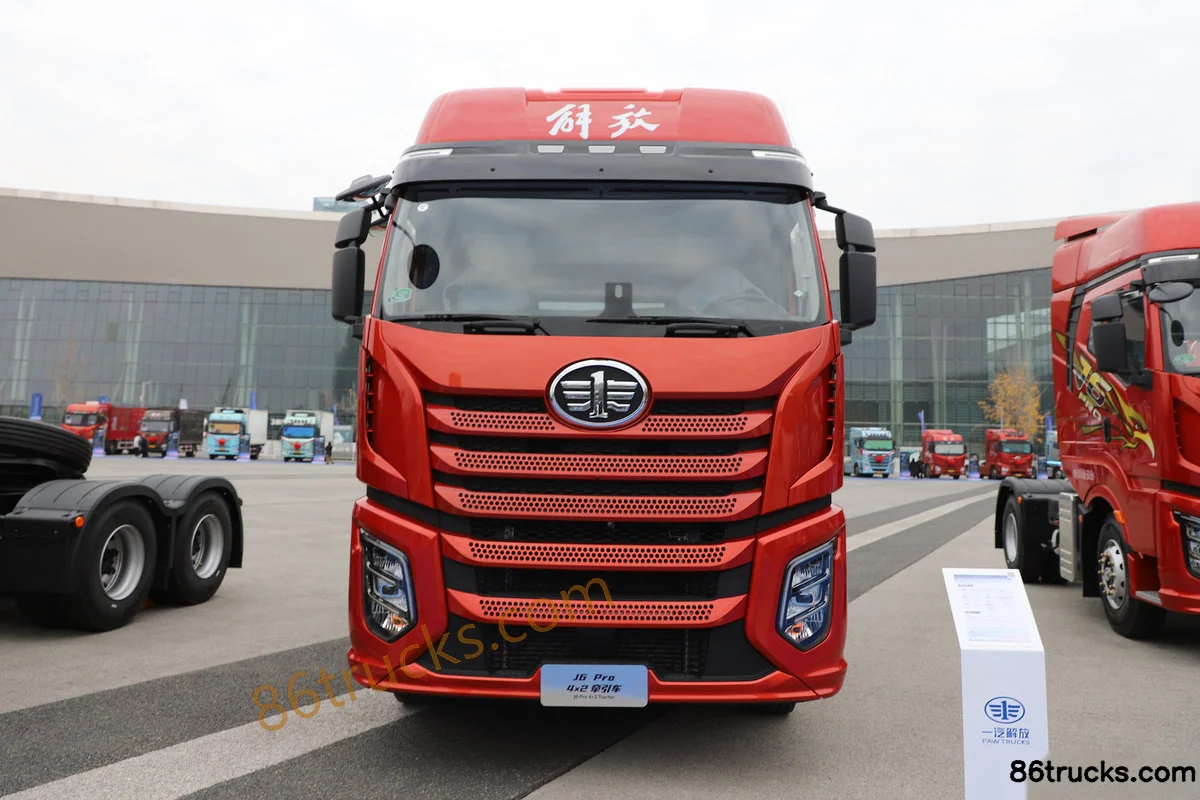

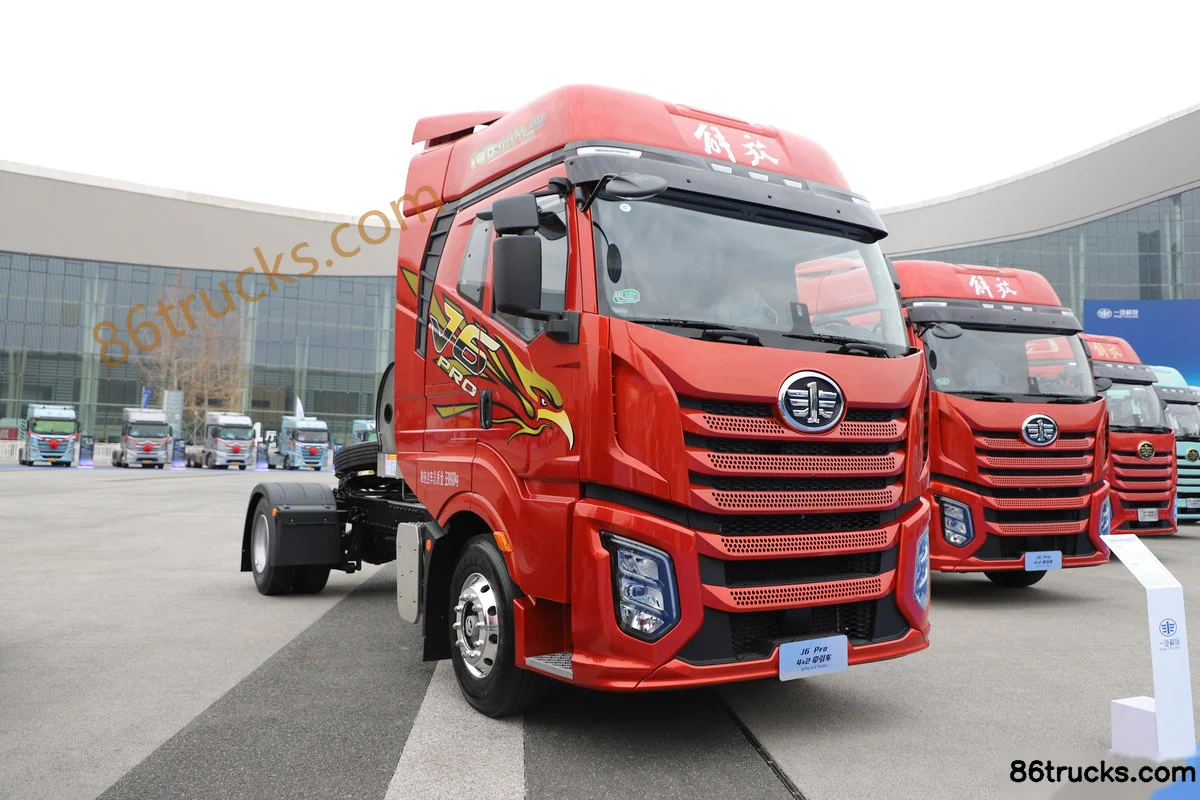

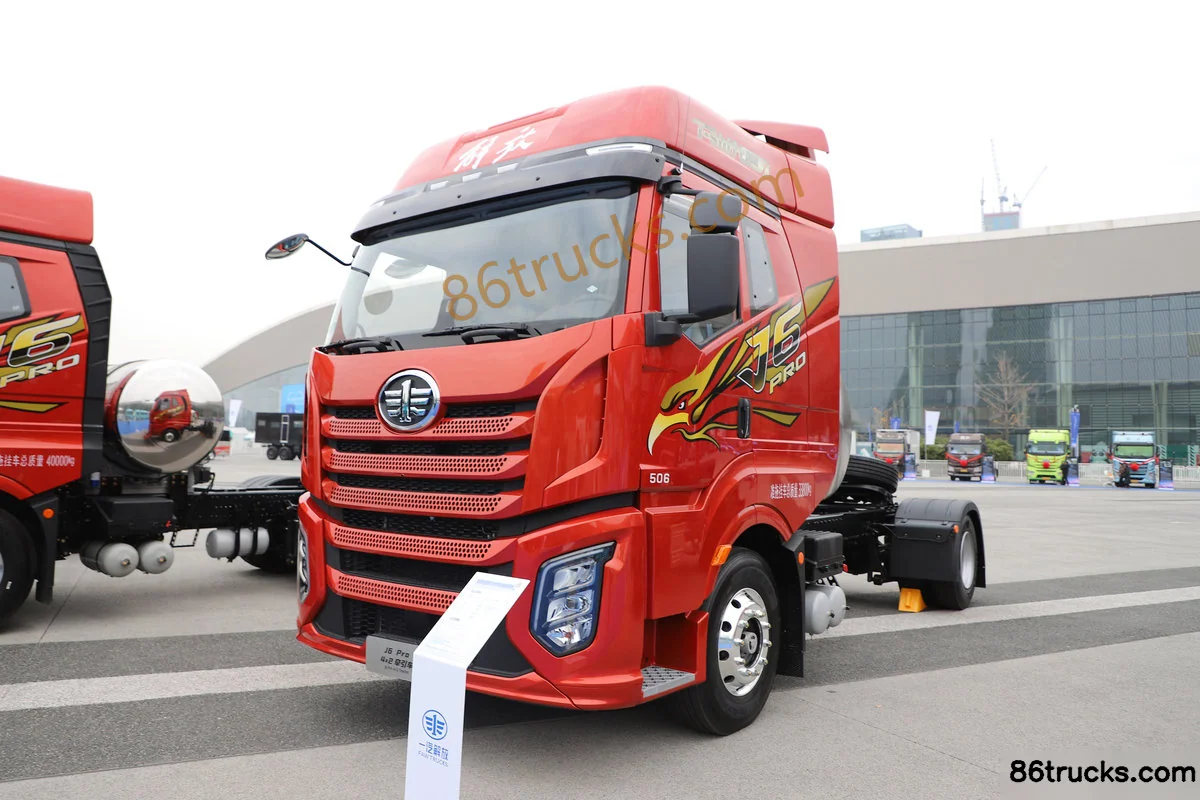

Exterior3

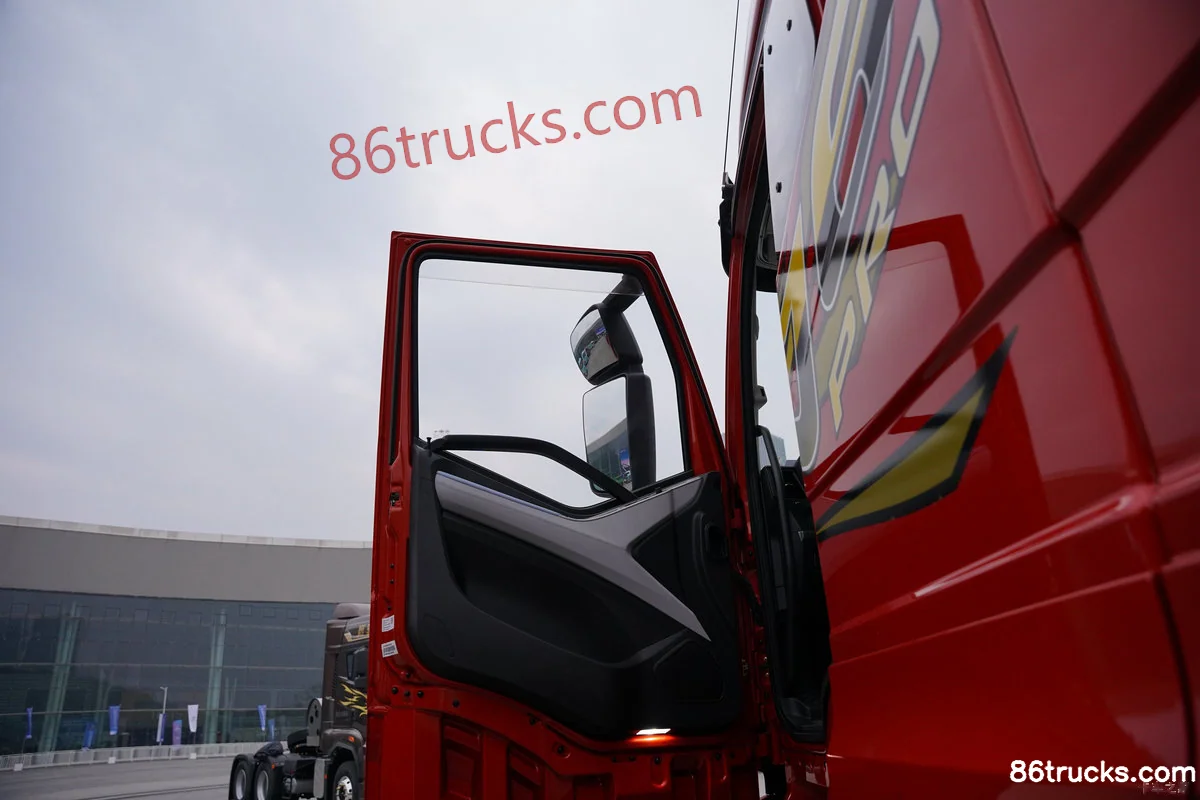

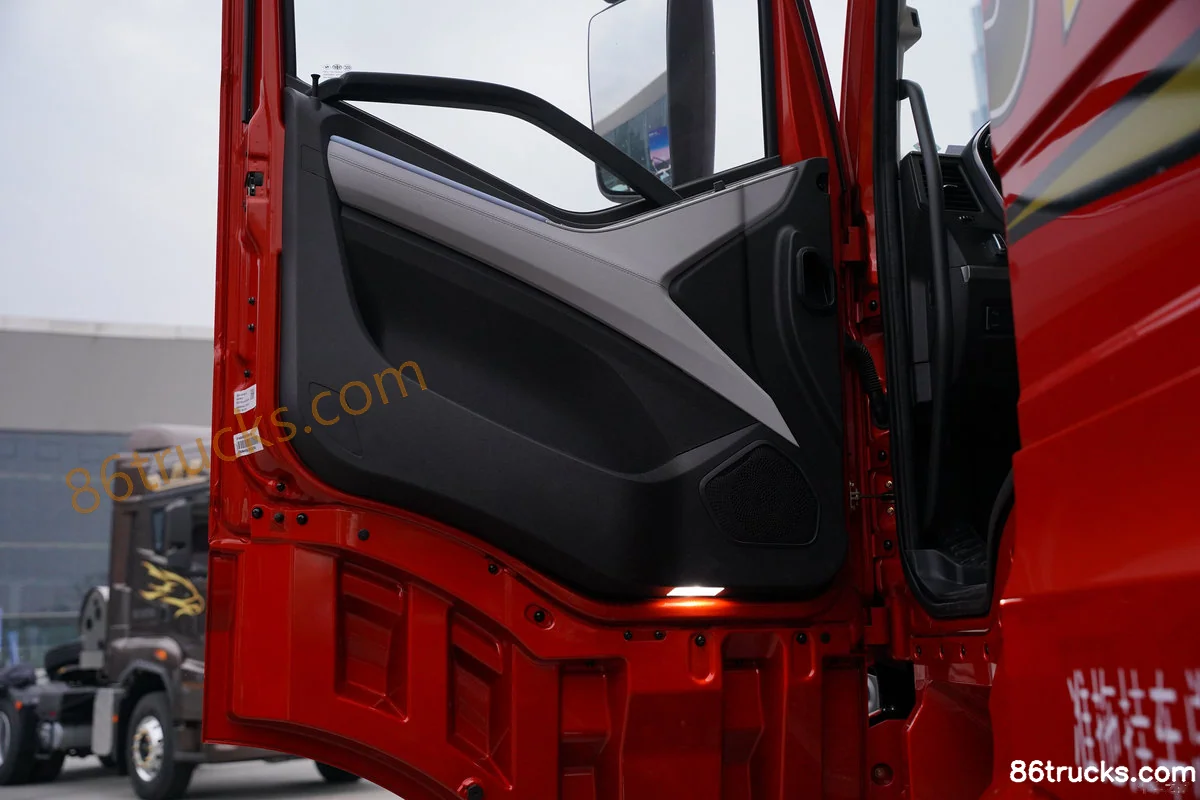

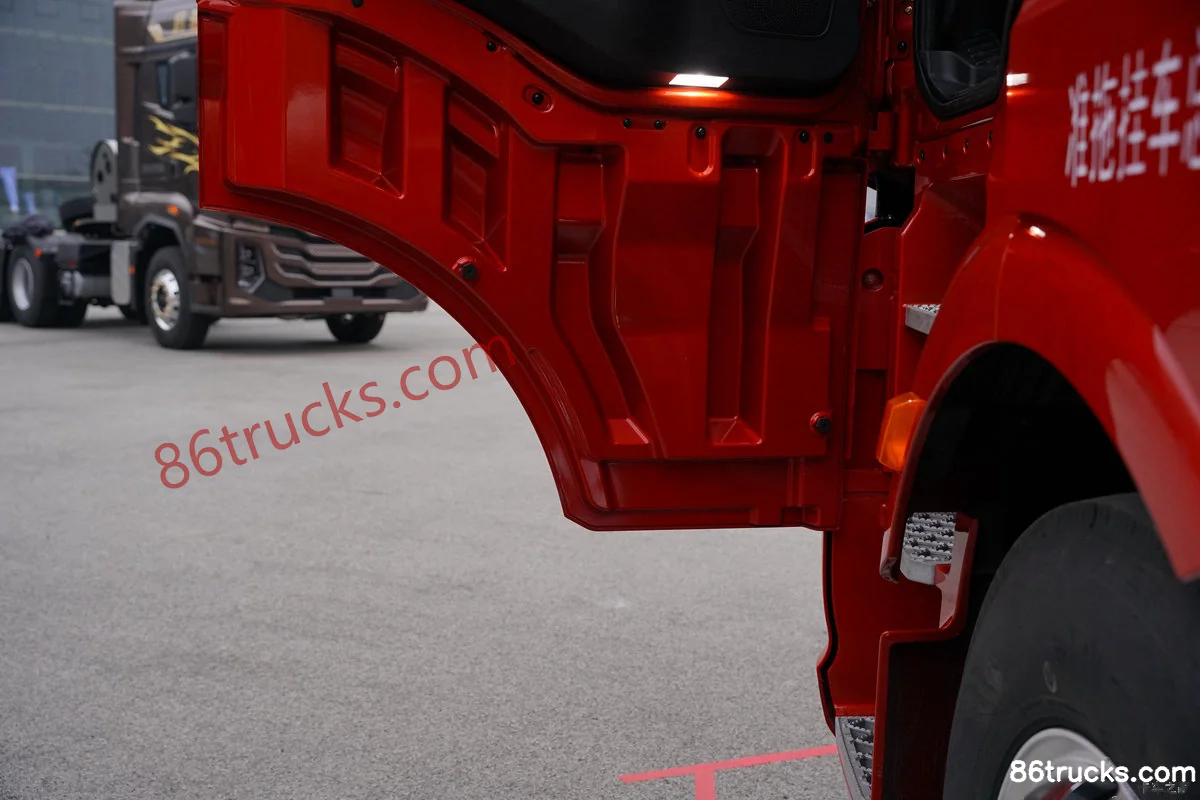

Cab3

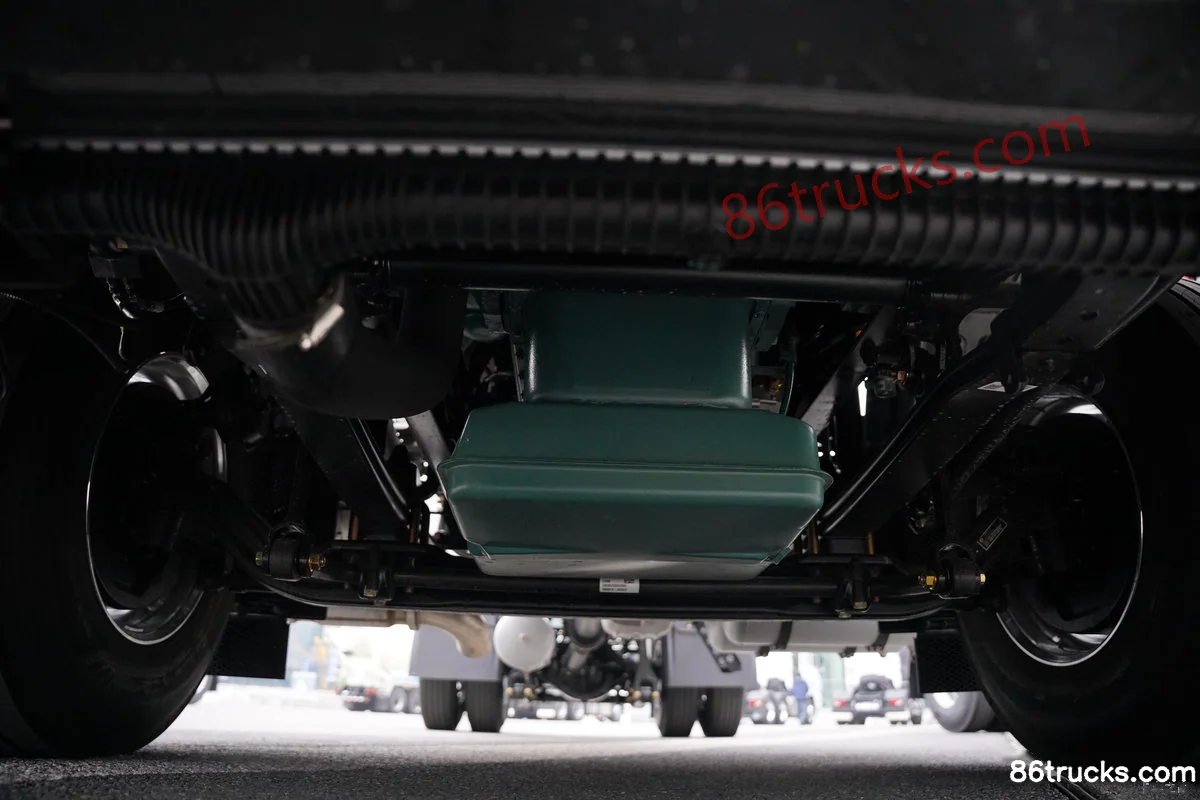

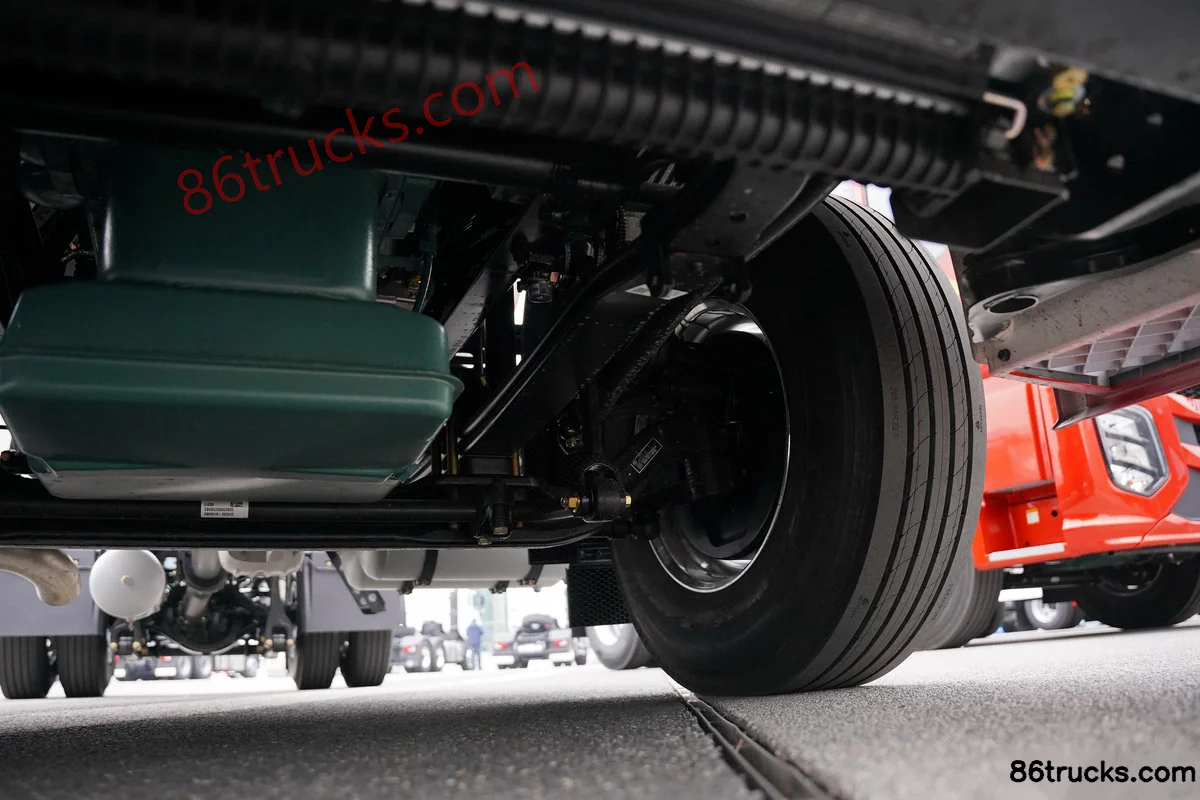

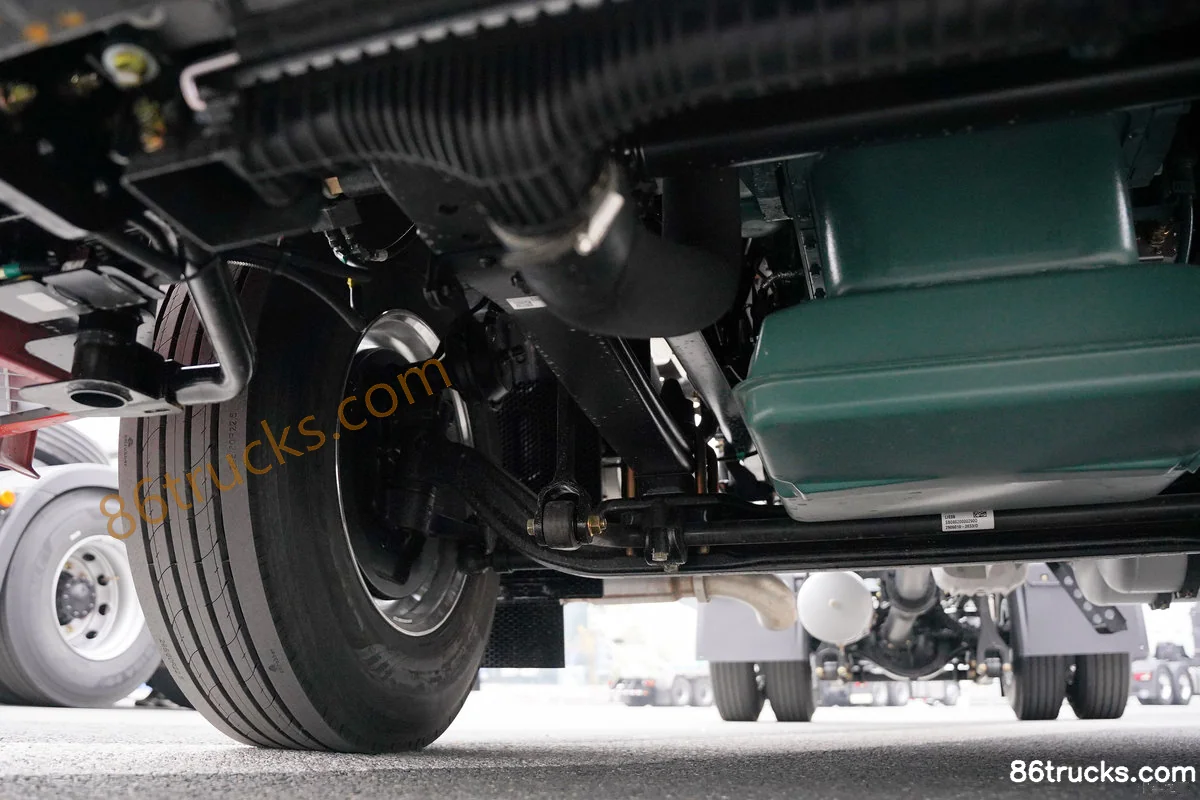

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Key specs of FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck: Drive: 4x2; Horsepower: 500 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck suited for?

FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck differ from other variants in the same series?

FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck belongs to FAW Jiefang J6 PRO Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6 PRO 12.5L LNG 500hp 4X2(6 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
