SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 2025+4375+1400mm
Cab dimensions:: 11.98×2.55×3.89m
Type:: Truck with crane
GVWR:: 31ton
Front/rear suspension:: 1.435/2.745m
Drive 8X4 (12 wheels)
Horsepower 350
Rated mass: 19.44ton
Emission China V

Overview

The SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane is a truck-mounted crane featuring 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain Hongyan engine, 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.98×2.55×3.89m
Type: Truck with crane
Drive type: 8X4
Wheelbase: 2025+4375+1400mm
Rated mass: 19.44ton
GVWR: 31ton
Front/rear suspension: 1.435/2.745m
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611B*L
fuel type: Diesel
Displacement: 8.709L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1500rpm
Rated speed: 2100rpm
Body Parameters
Vehicle certification code: CQ5316JSQHTVG466
Body Brand: SAIC Hongyan
Chassis Specs
Chassis Brand: SAIC Hongyan
Chassis Series: GENLYON
Chassis Model: CQ1316HTVG39-486
Frame Dimensions: 350×8+4mm
rear axle description: H6A
Axle ratio: 4.111
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160TA
Cab parameters
Cab: Flat roof cab
Tire

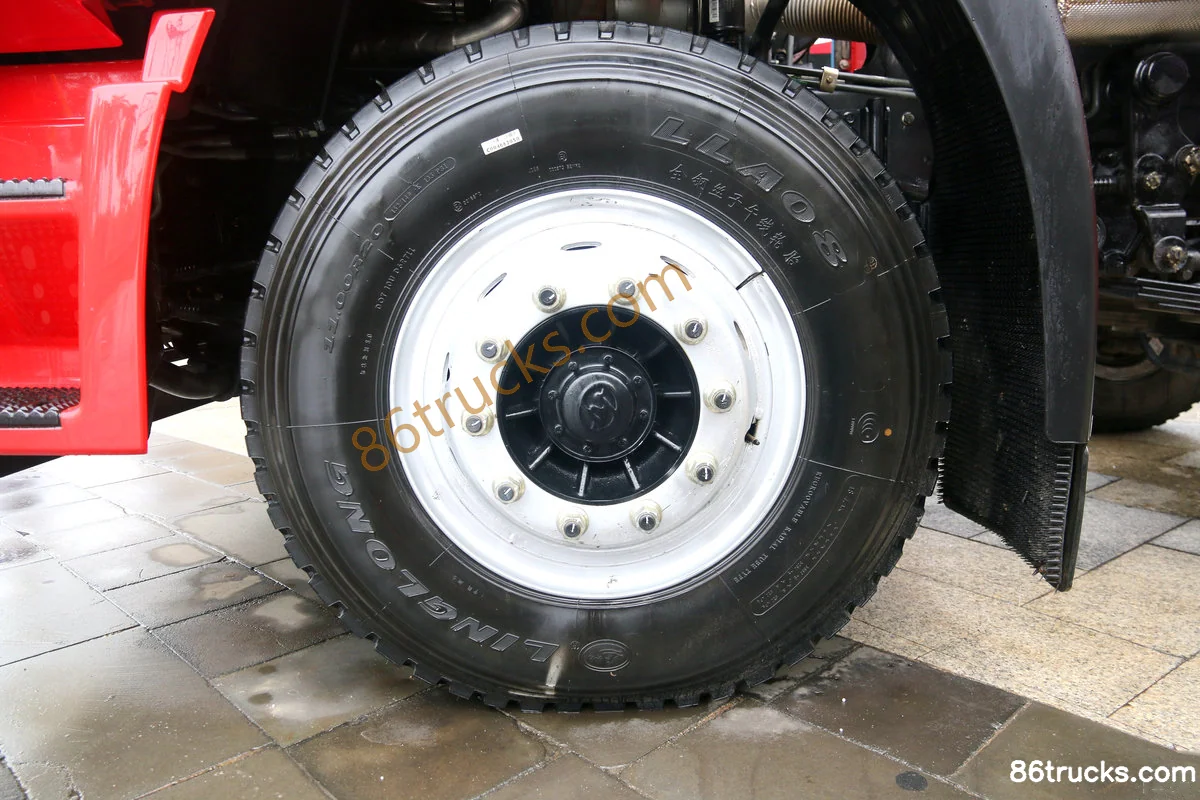

Tire Size: 11.00R20
Number of tires: 12pcs

Photos

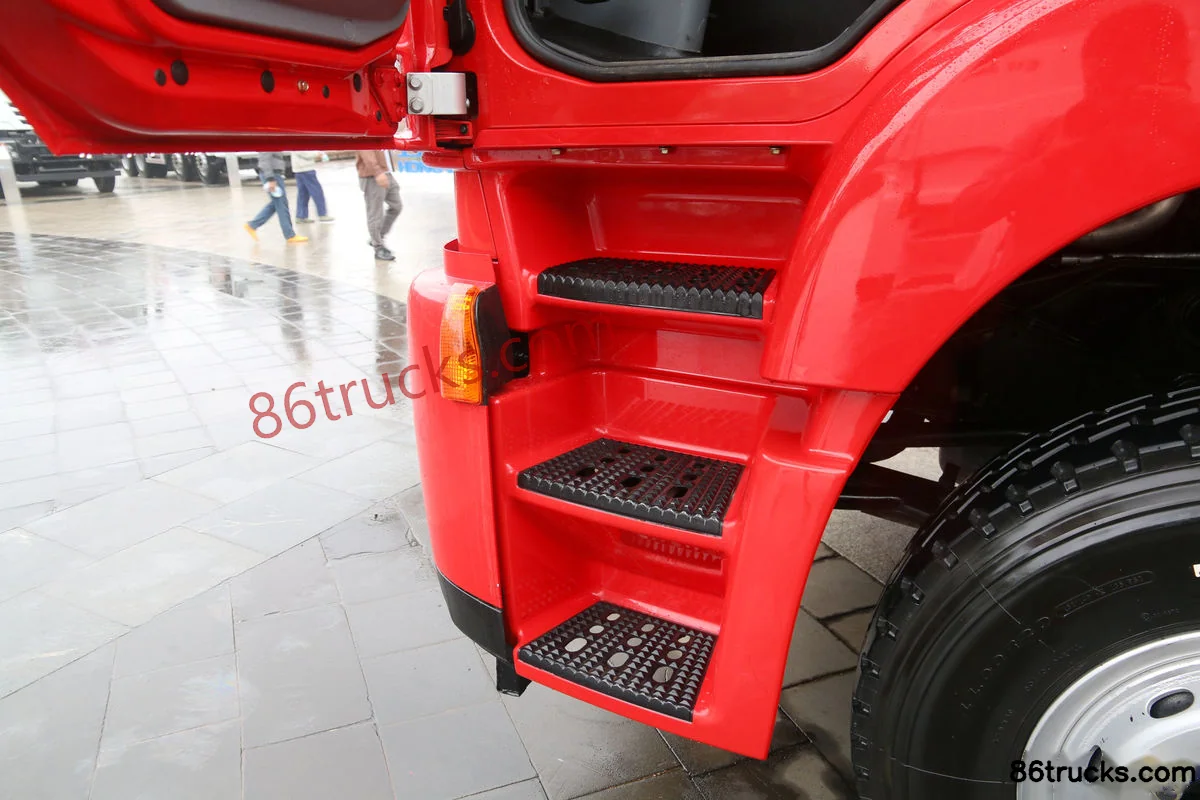

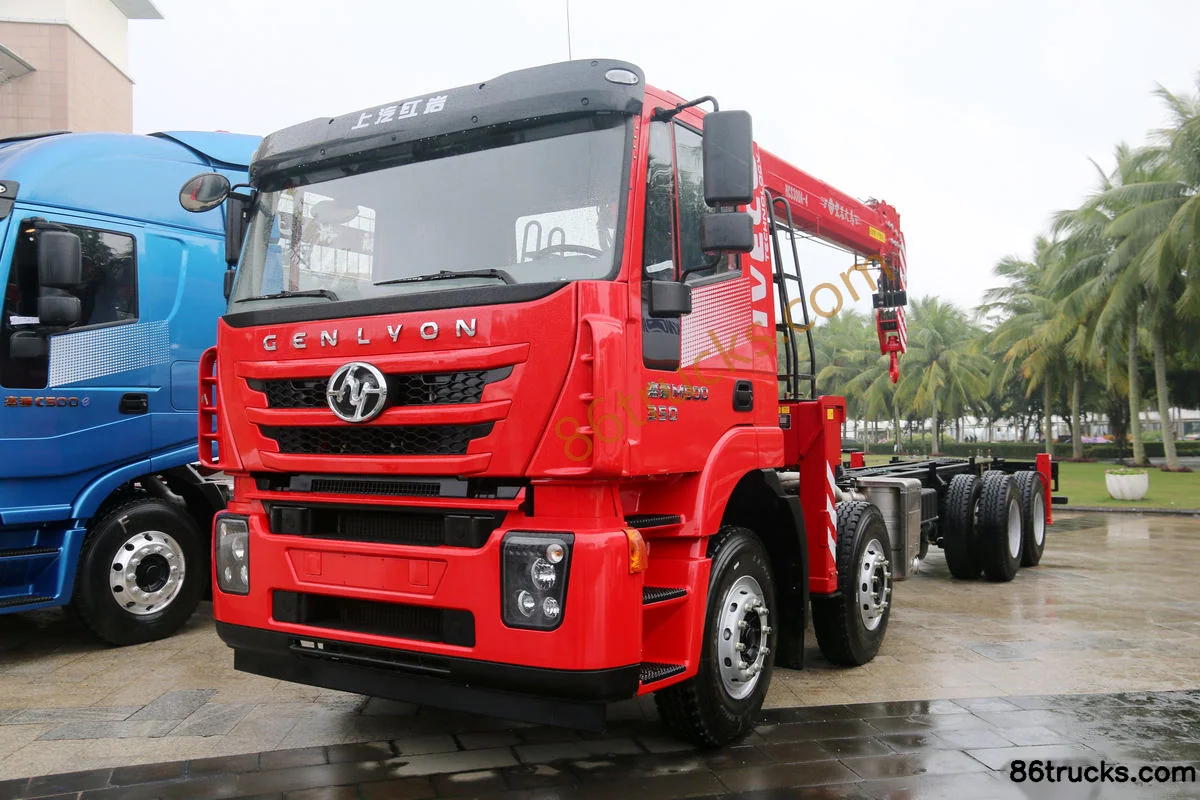

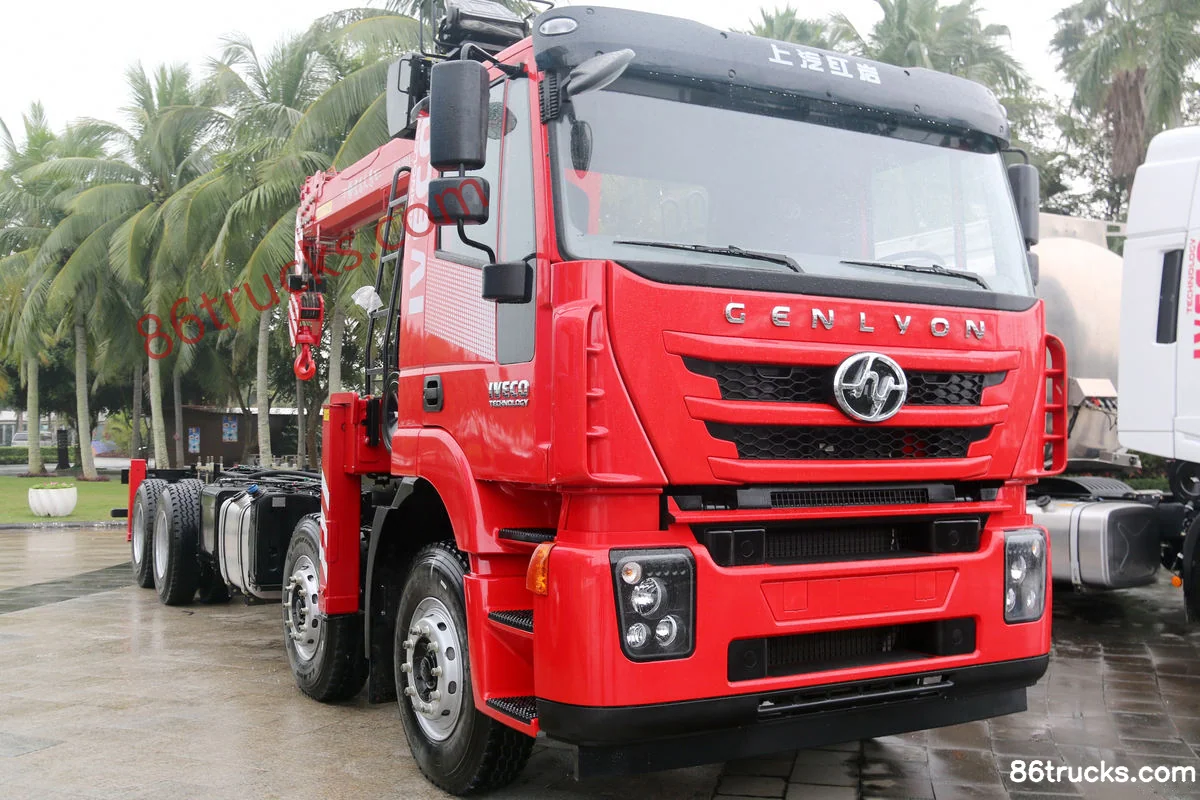

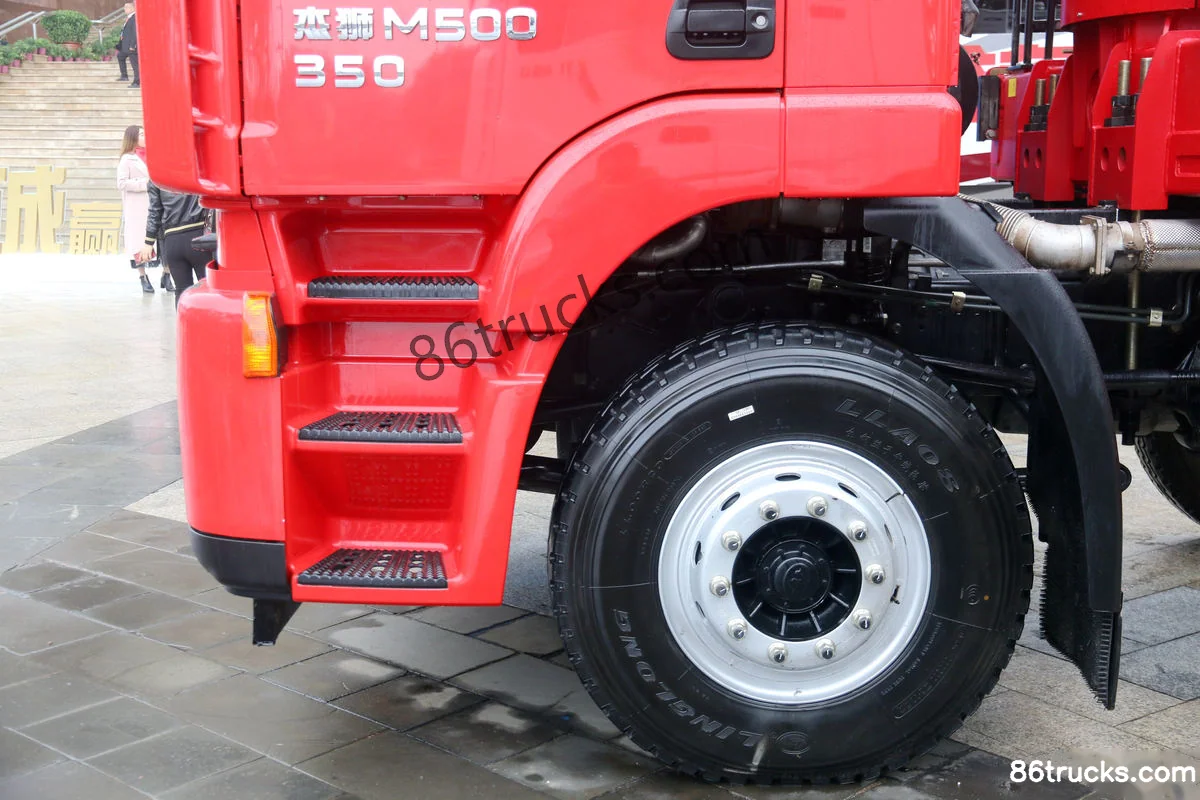

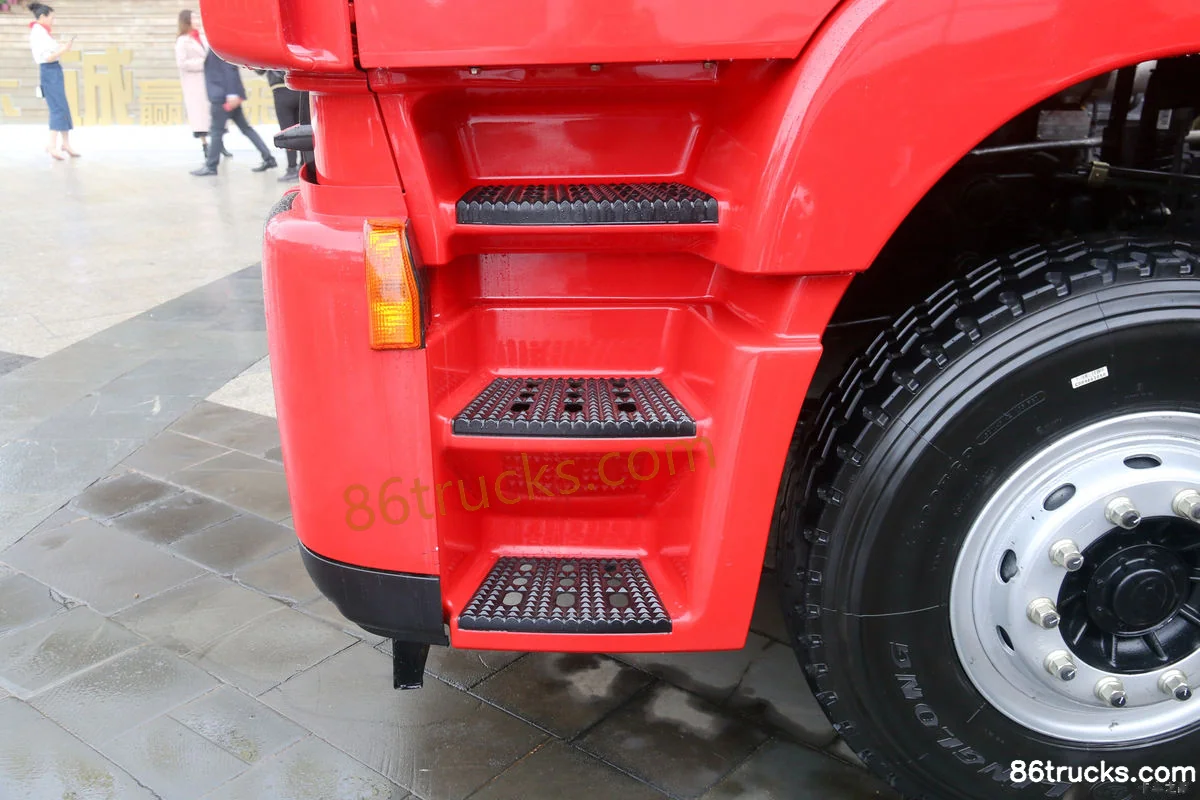

Exterior3

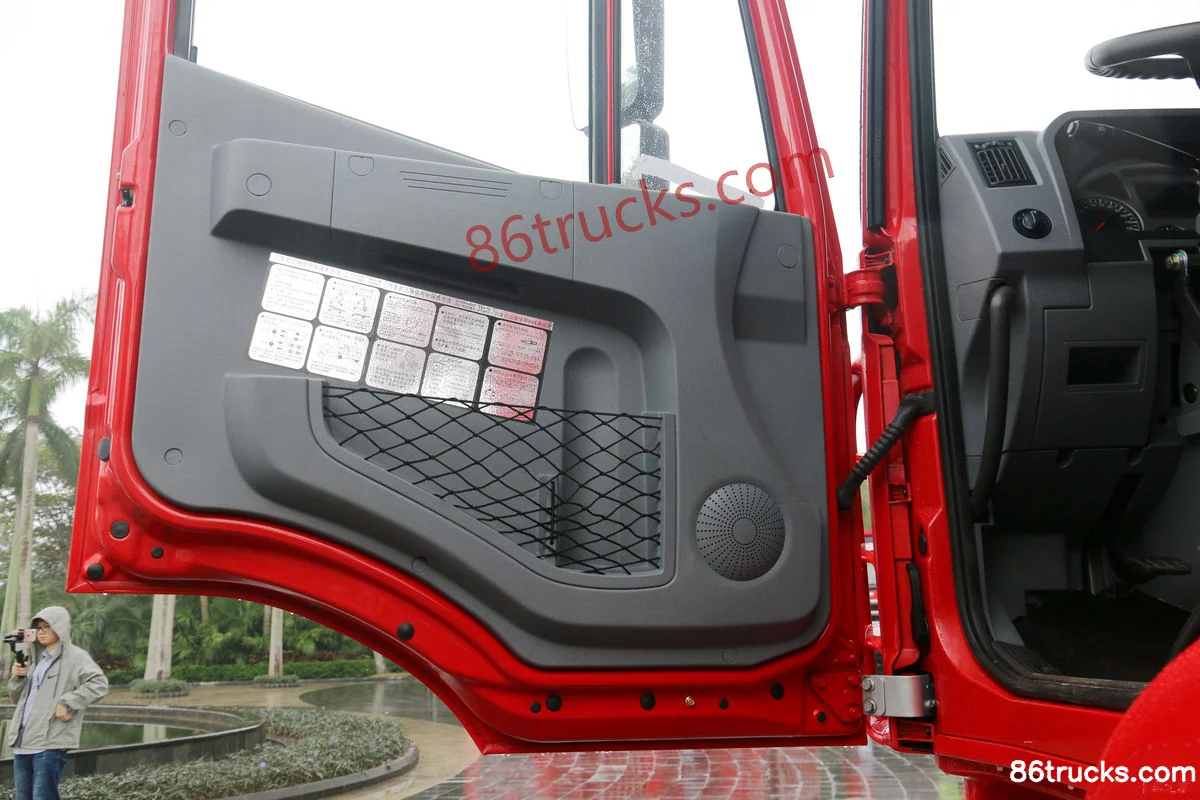

Cab3

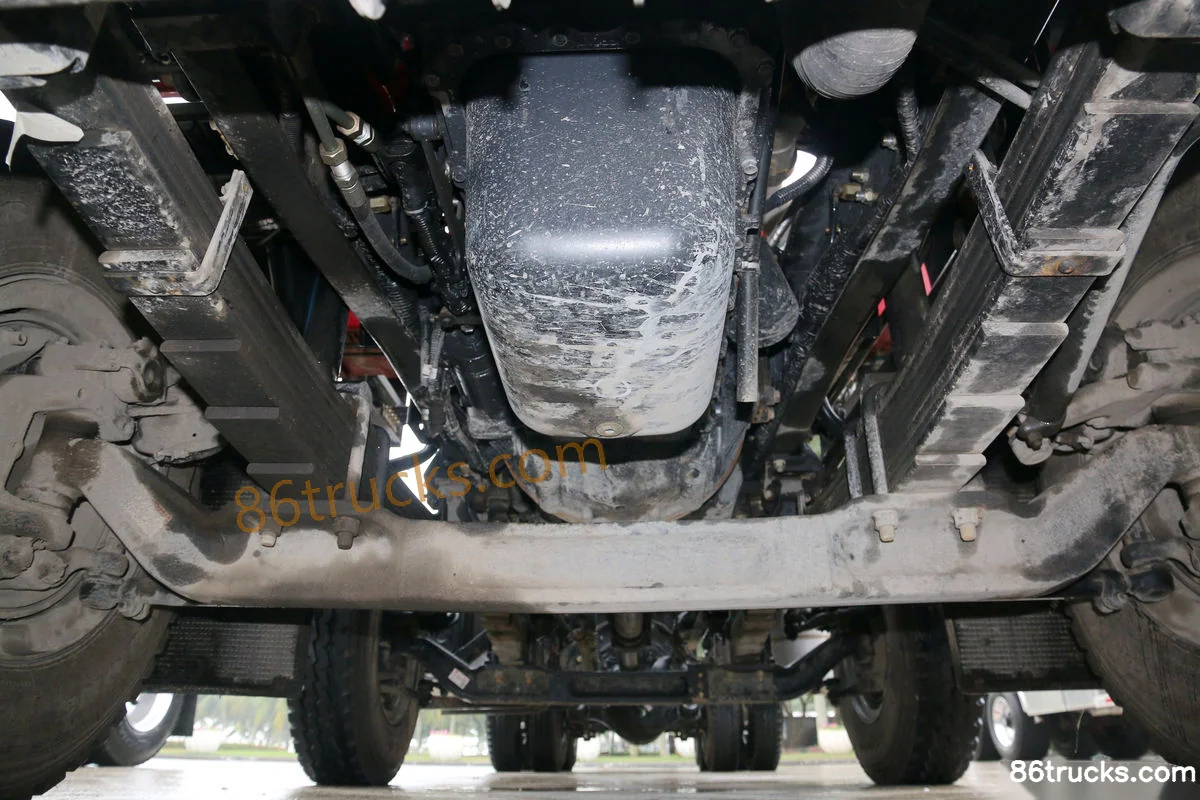

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane?

Key specs of SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane suited for?

SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane differ from other variants in the same series?

SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane belongs to SAIC Hongyan Genlyon Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M500 350hp 8X4(12 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
