Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 4000+1350mm
Cab length:: 7.54m
Max. speed:: 89km/h
Origin:: Xi'an, Shaanxi
tonnage class:: Heavy truck
Drive 6X4 (10 wheels)
battery swap support: Charging
Motor Type: Permanent magnet synchronous motor
Curb Weight: 11.3ton

Overview

The Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh is a Heavy truck featuring Charging battery/range, Permanent magnet synchronous motor motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Wheelbase: 4000+1350mm
Cab length: 7.54m
Cab width: 2.55m
Cab height: 3.9m
Curb Weight: 11.3ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
battery swap support: Charging
tonnage class: Heavy truck
Energy Type: Hydrogen
electric motor
Motor Type: Permanent magnet synchronous motor
total rated power: 475kW
Peak power: 660kW
total rated torque: 1950N·m
Battery/Charging
Battery capacity: 88kWh
Transmission Parameters
Transmission Model: 4-speed
shift method: AMT manual/auto
Forward gears: 4Gear
Number of Reverse Gears:
Cab parameters
Cab: Ta cab
seating capacity: 2Personnel

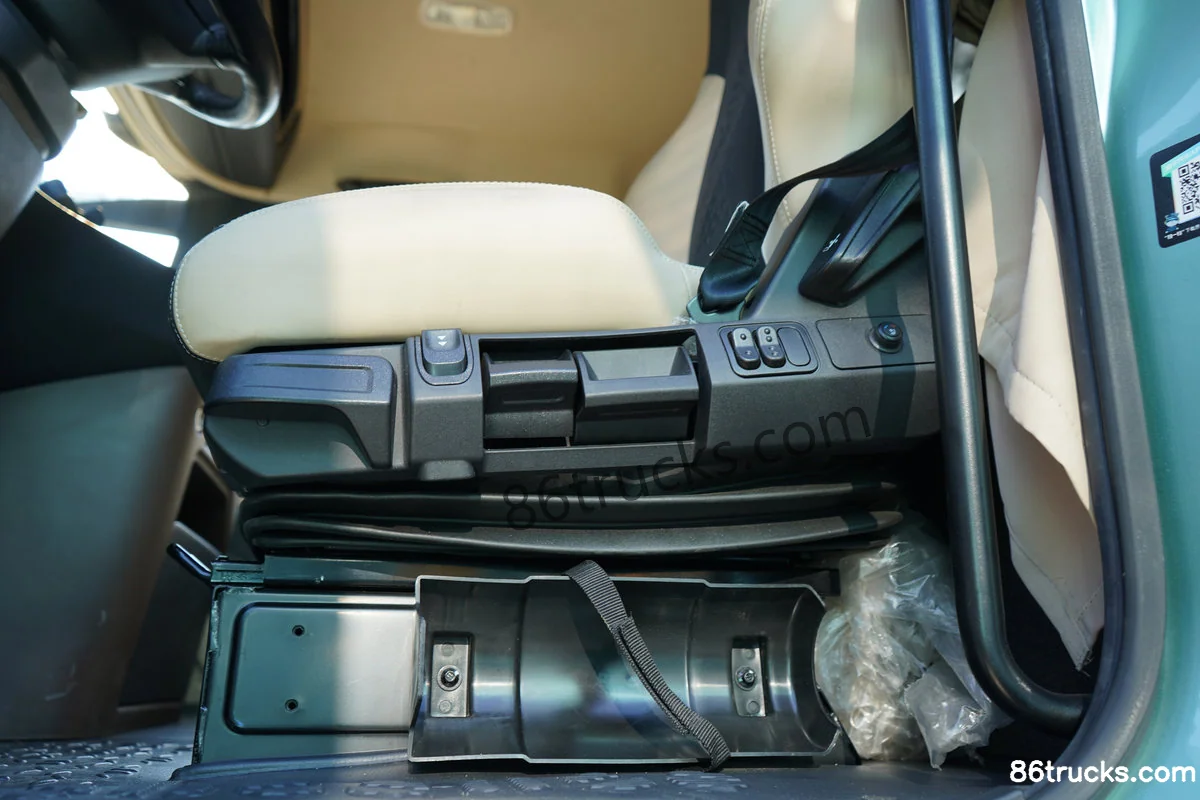

Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 7000kg
rear axle description: 11.5T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Tire Pressure Monitoring System (TPMS):

Photos

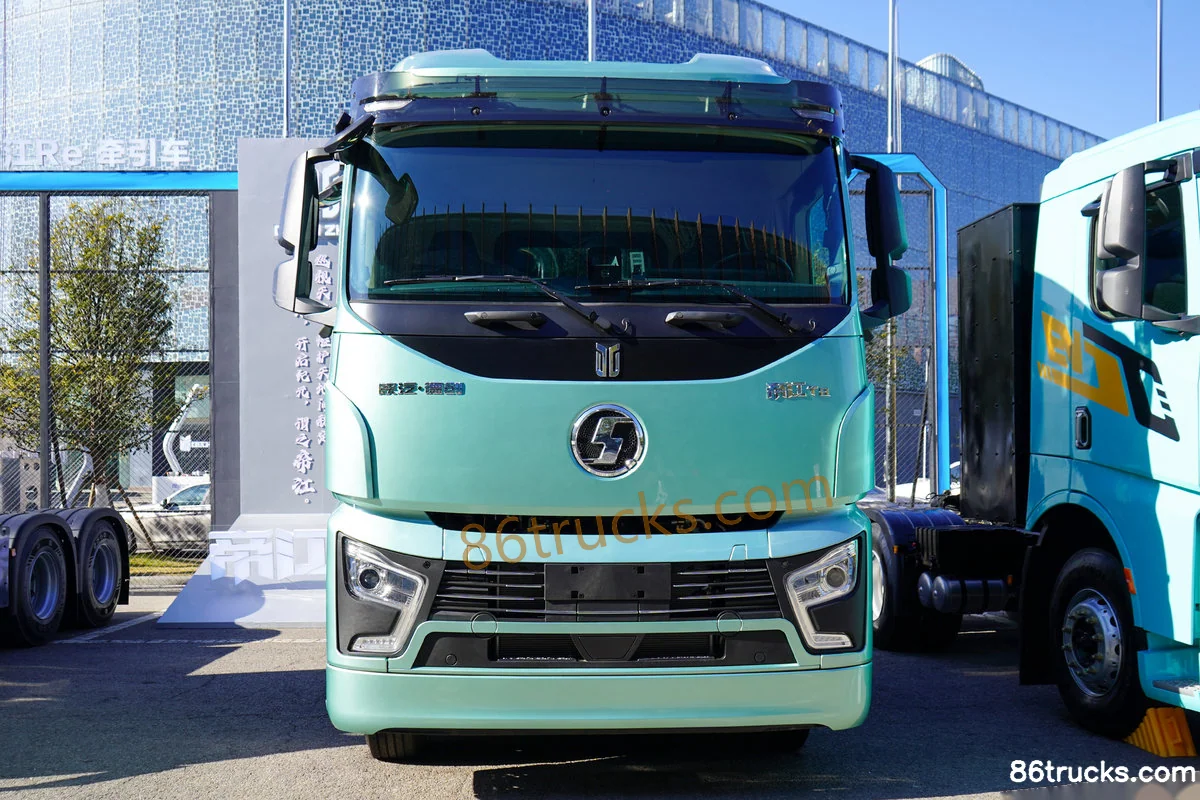

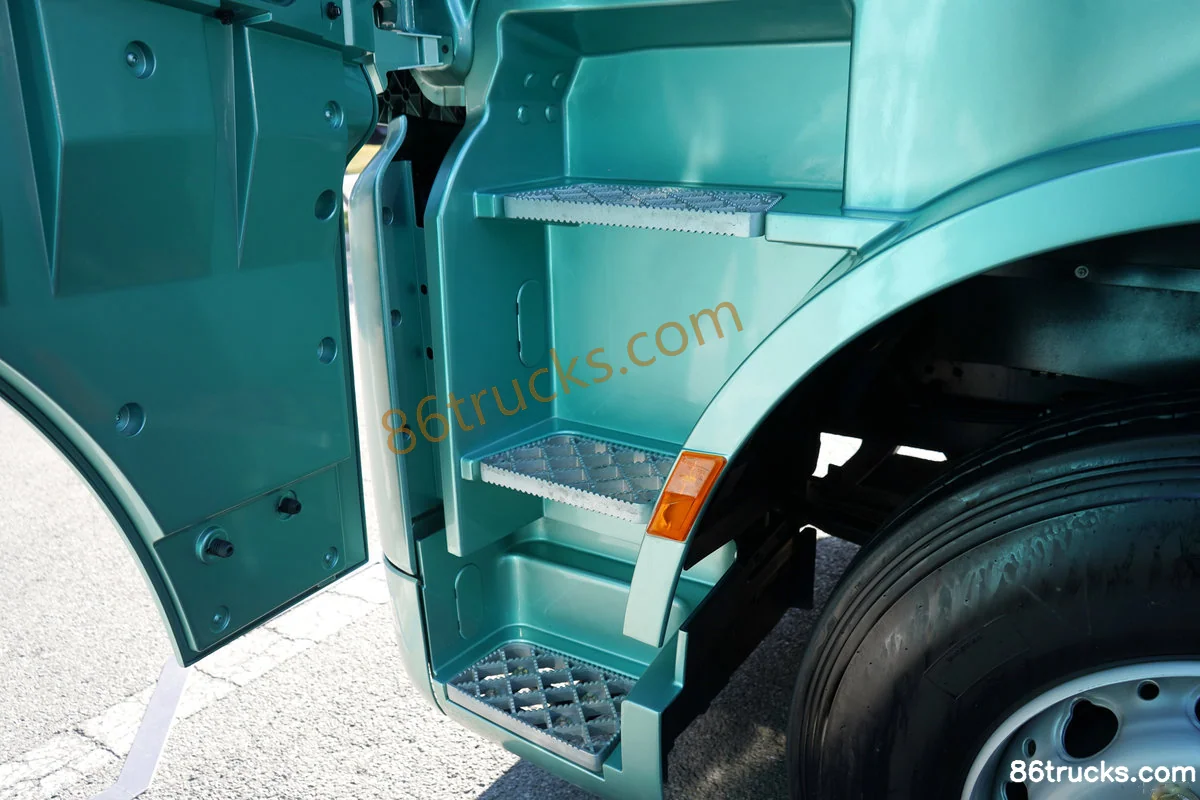

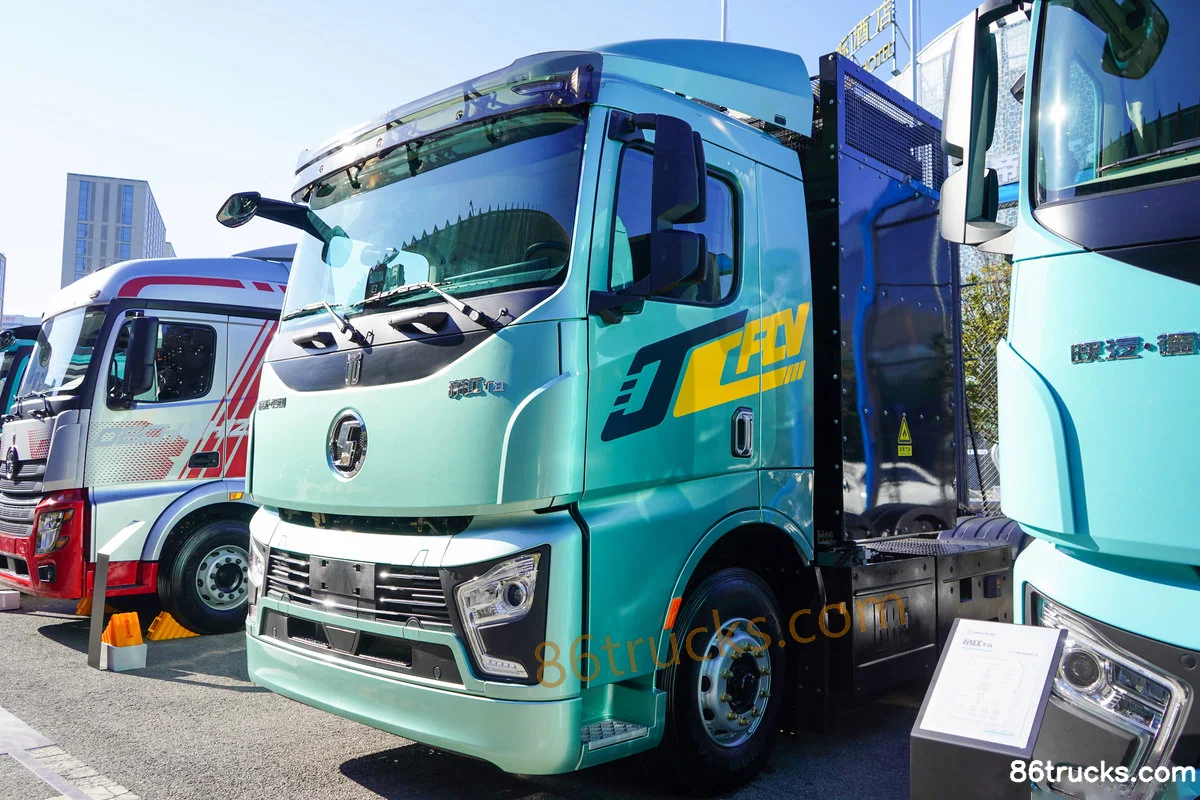

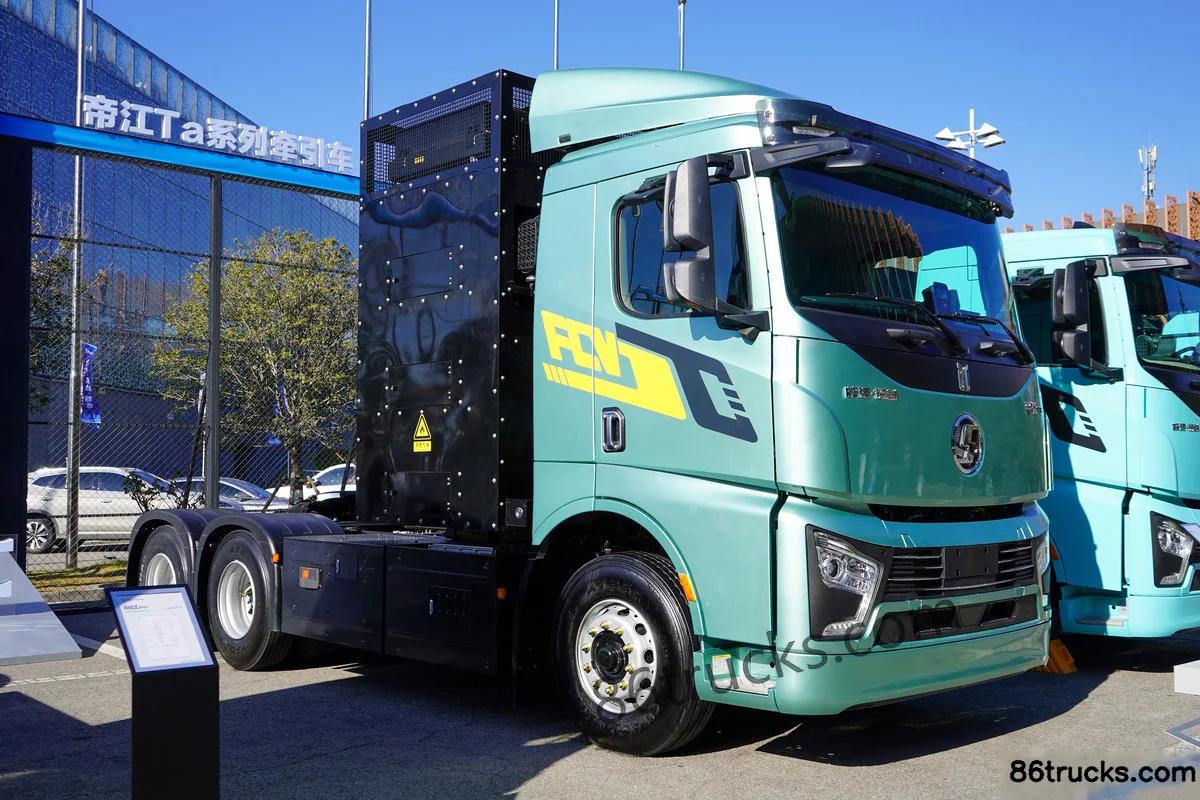

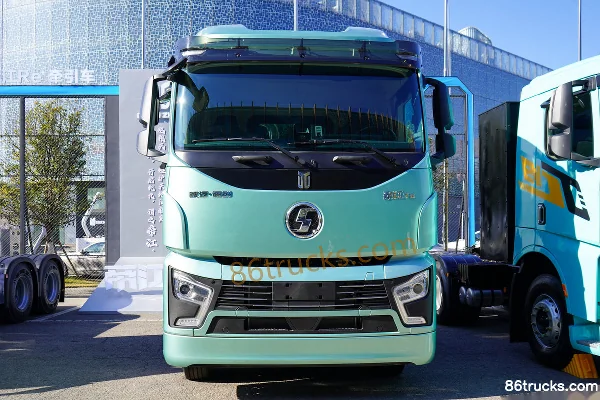

Exterior3

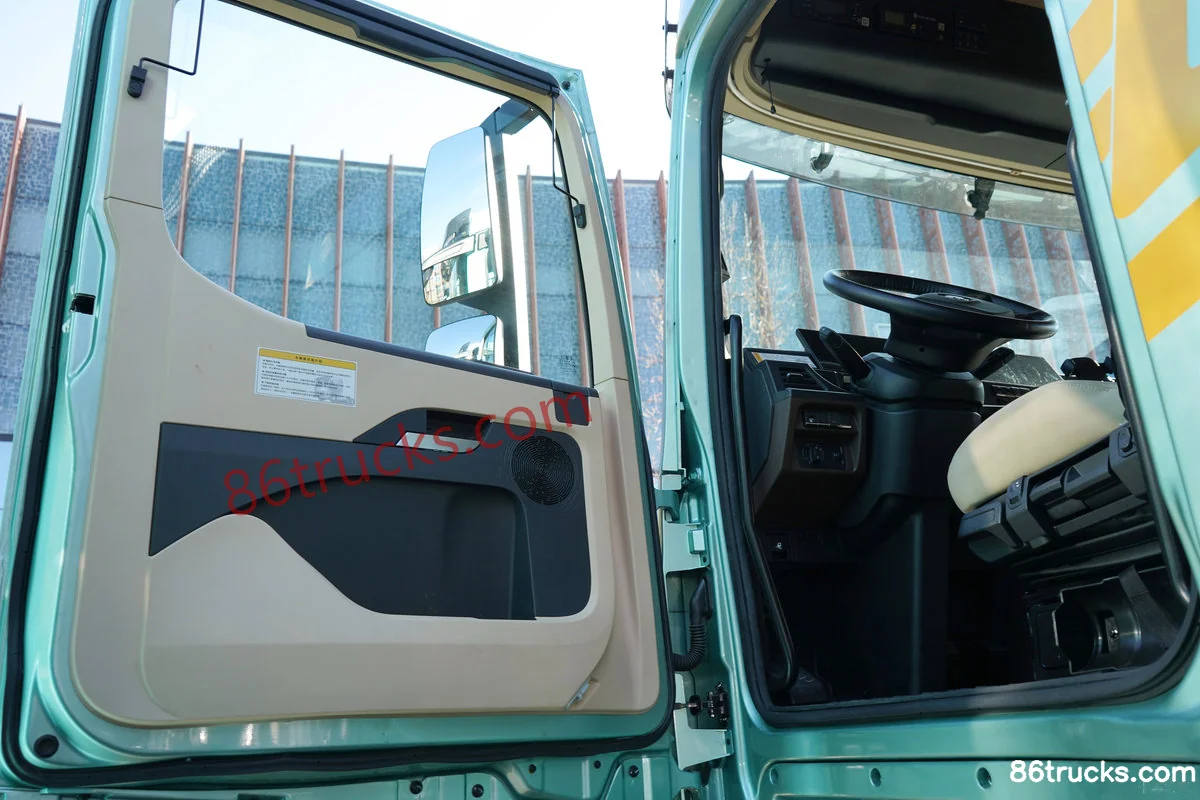

Cab3

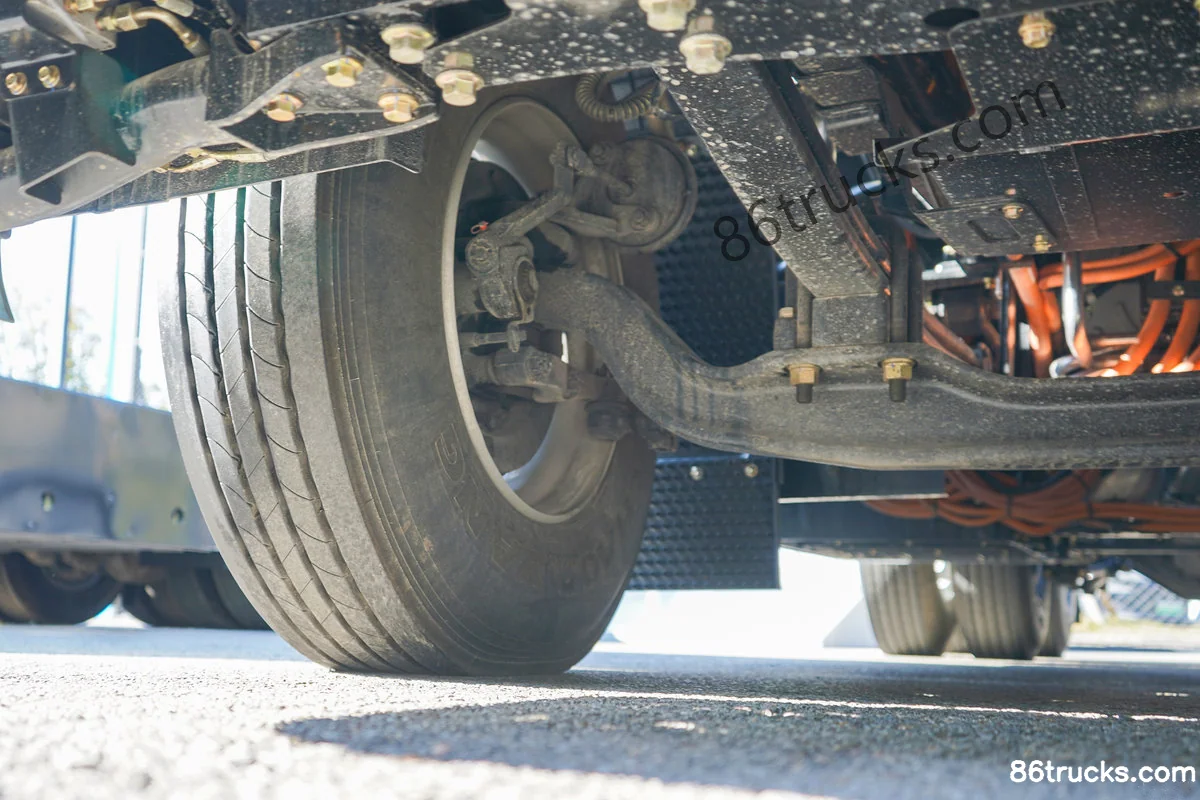

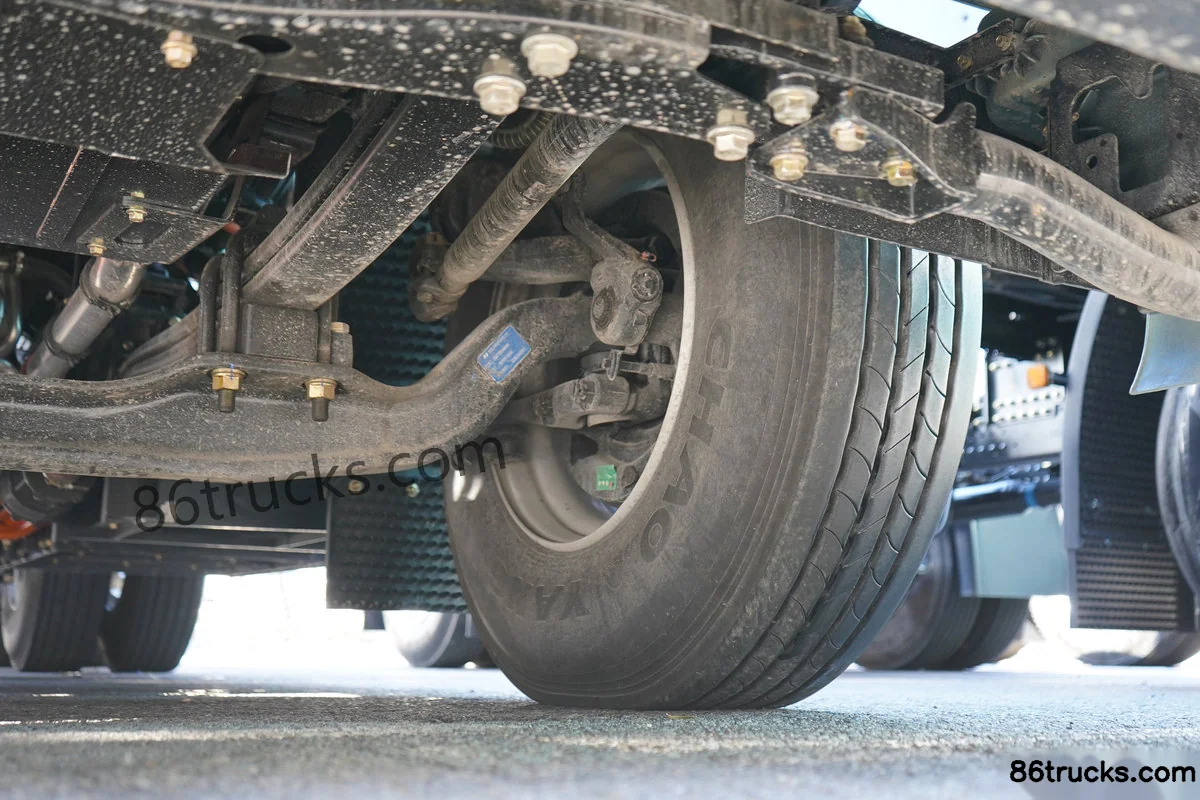

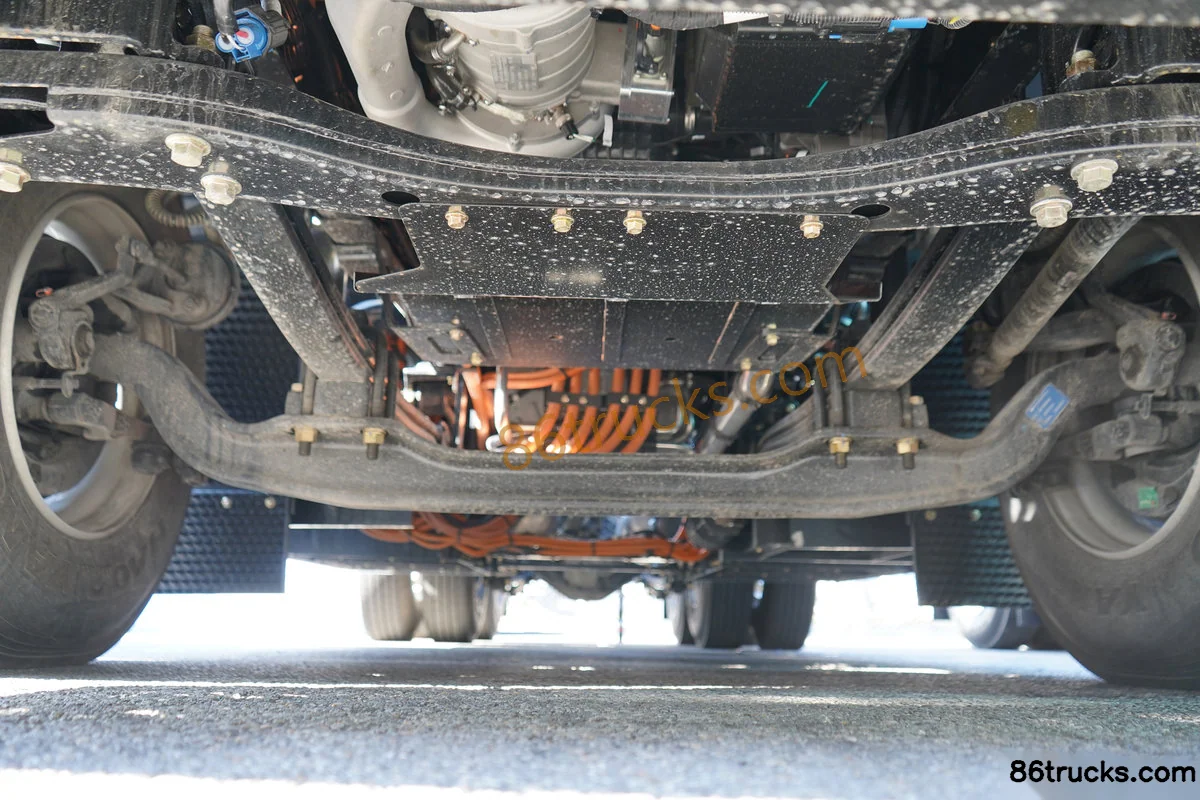

Chassis3

9 photos

FAQ

What are the key specs of Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh?

Key specs of Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh suited for?

Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh differ from other variants in the same series?

Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh belongs to Proton Auto Dijiang Ta Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Proton Auto Dijiang Ta 6X4(10 wheels) Fuel Cell Tractor Truck 88 kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
