FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 37.305ton
Wheelbase:: 3300+1350mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 6000kg
Displacement:: 12.52L
Drive 6X2R (8 wheels)
Horsepower 560
Emission China VI
Transmission ZF

Overview

The FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) is a Heavy truck featuring 6X2R (8 wheels) drive, 560 hp, 25t GVW and China VI emissions. Its segment focus covers Logistics, Coal Transport and Bulk Material, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DM3-56E6 engine, ZF transmission and Diesel fuel.

China VI 560 Diesel 6X2R

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P77K25T2E6
Drive type: 6X2R
Wheelbase: 3300+1350mm
engine: XichaiCA6DM3-56E6
transmission: ZFZF12TX2621TD
Rear Axle Ratio: 2.688
Cab length: 7.18m
Cab width: 2.55m
Cab height: 4m
Front track width: 2100mm
Gross Trailer Weight: 37.305ton
rear track: 1850/1850mm
Curb Weight: 8.5ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Logistics, Coal Transport, Bulk Material
Remarks: 220V onboard power supply, intelligent unload air compressor, fleet management system, with boarding ladder, northern version, optional level 4 package (330Ah battery, independent AC, fuel preheating)
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-56E6
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China VI
Max output power: 415kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 1100-1300rpm
Rated speed: 1800rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: ZFZF12TX2621TD
Transmission Brand: ZF
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 1100L
Chassis Specs
Front axle description: New F7N front axle
Fifth wheel: Ф90
Front axle allowable load: 6000kg
Frame Dimensions: 300×80×8mm
rear axle description: Φ498 stamped-welded axle
rear axle allowable load: 19000(two-axle group)kg
Axle ratio: 2.688
Leaf spring count: 2/-
Tire
Tire Size: 295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):

Photos

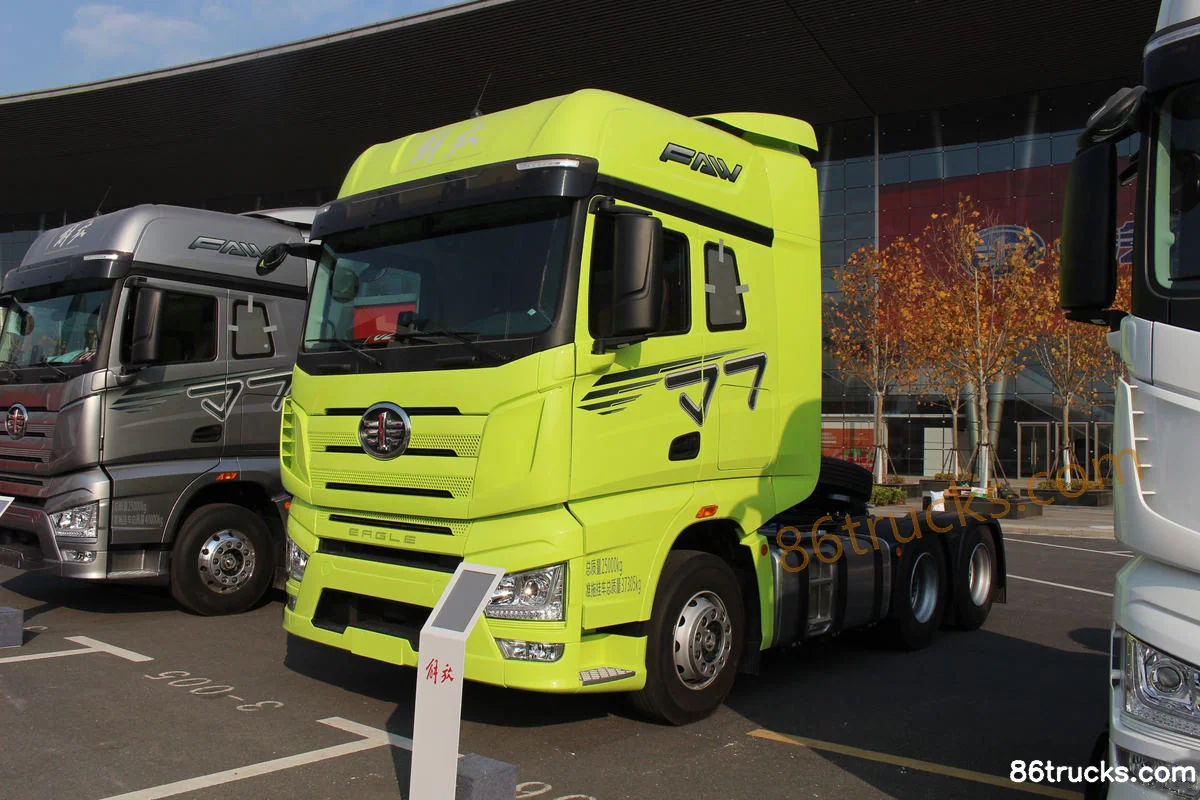

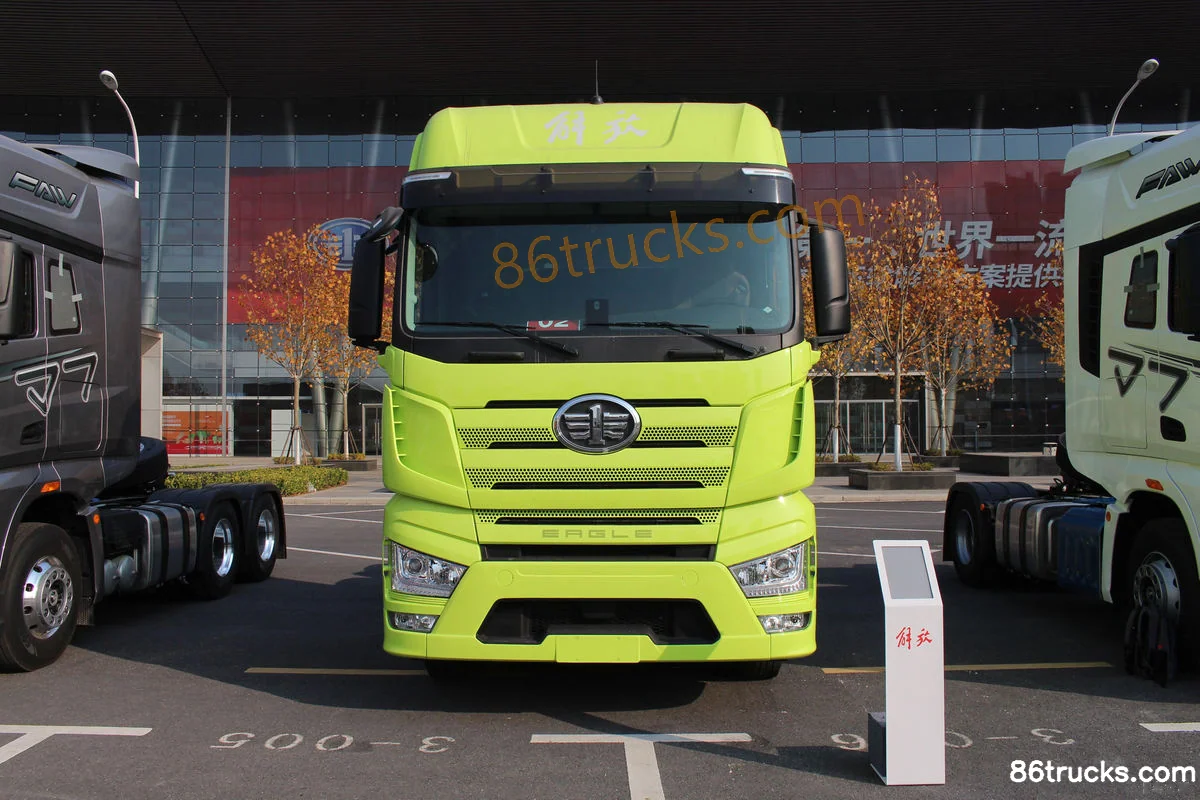

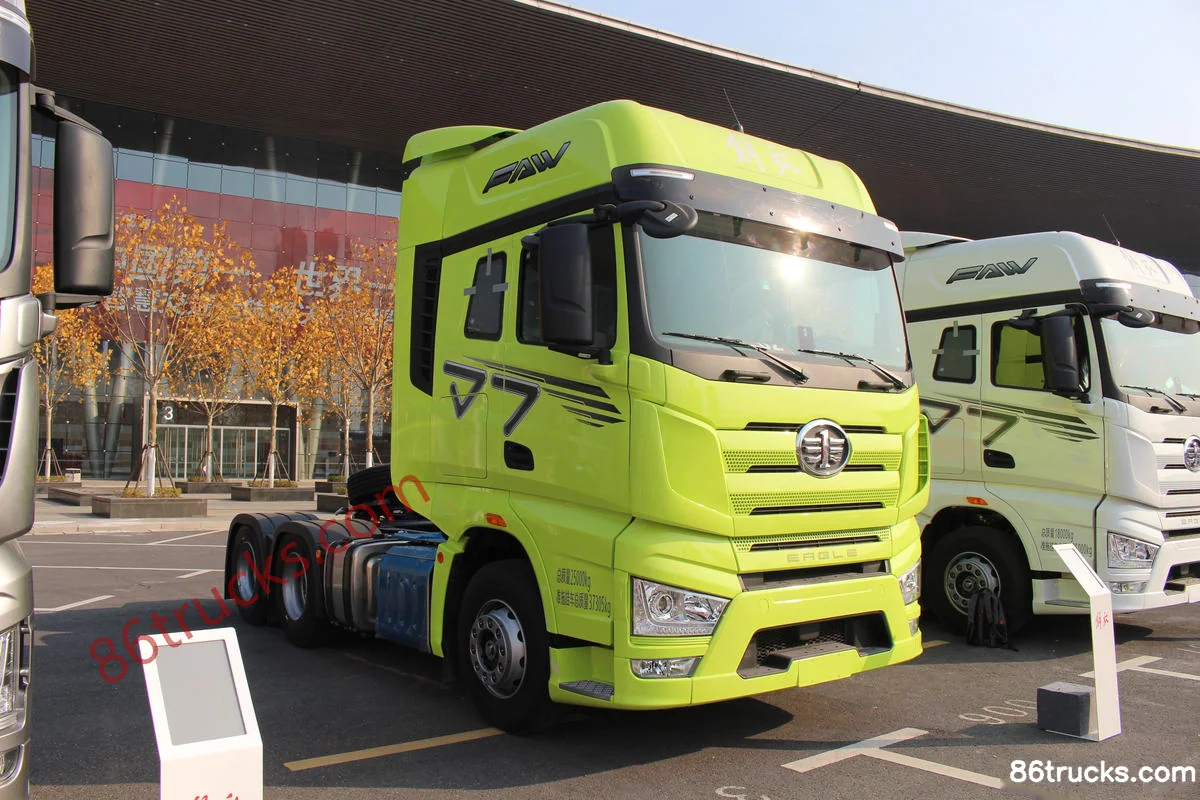

Exterior3

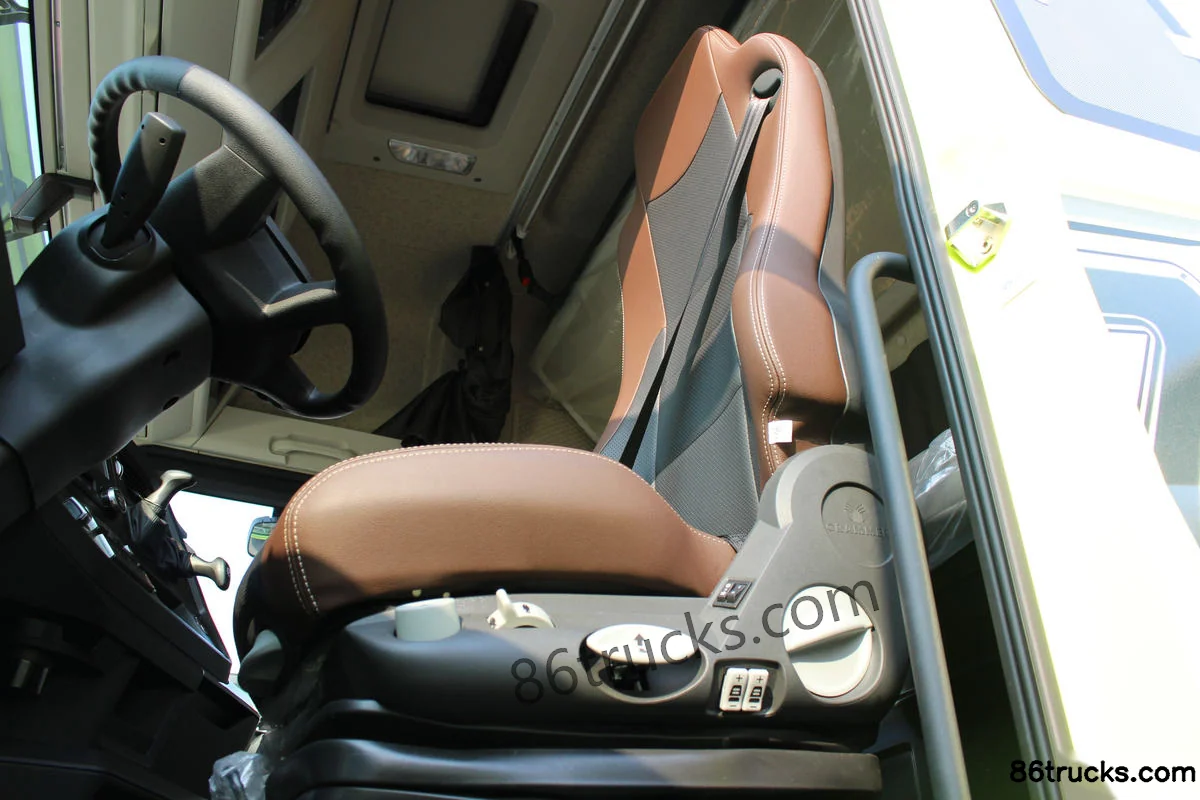

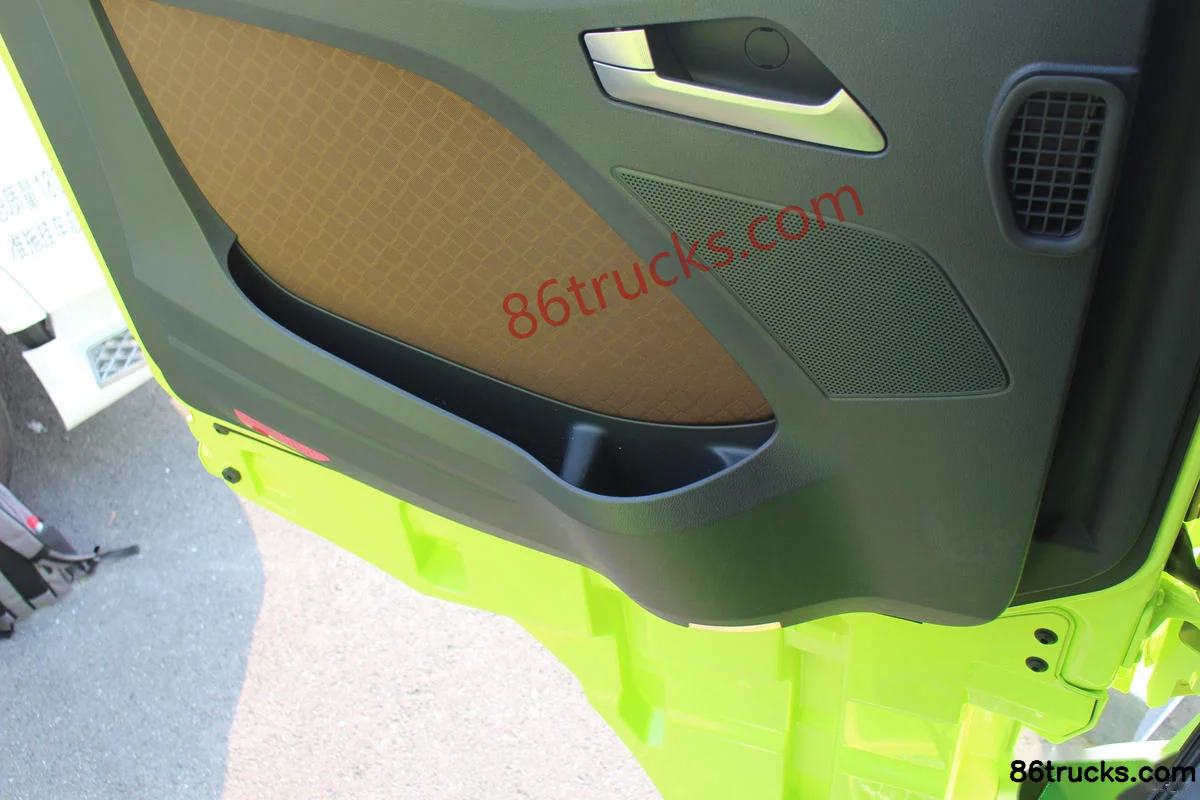

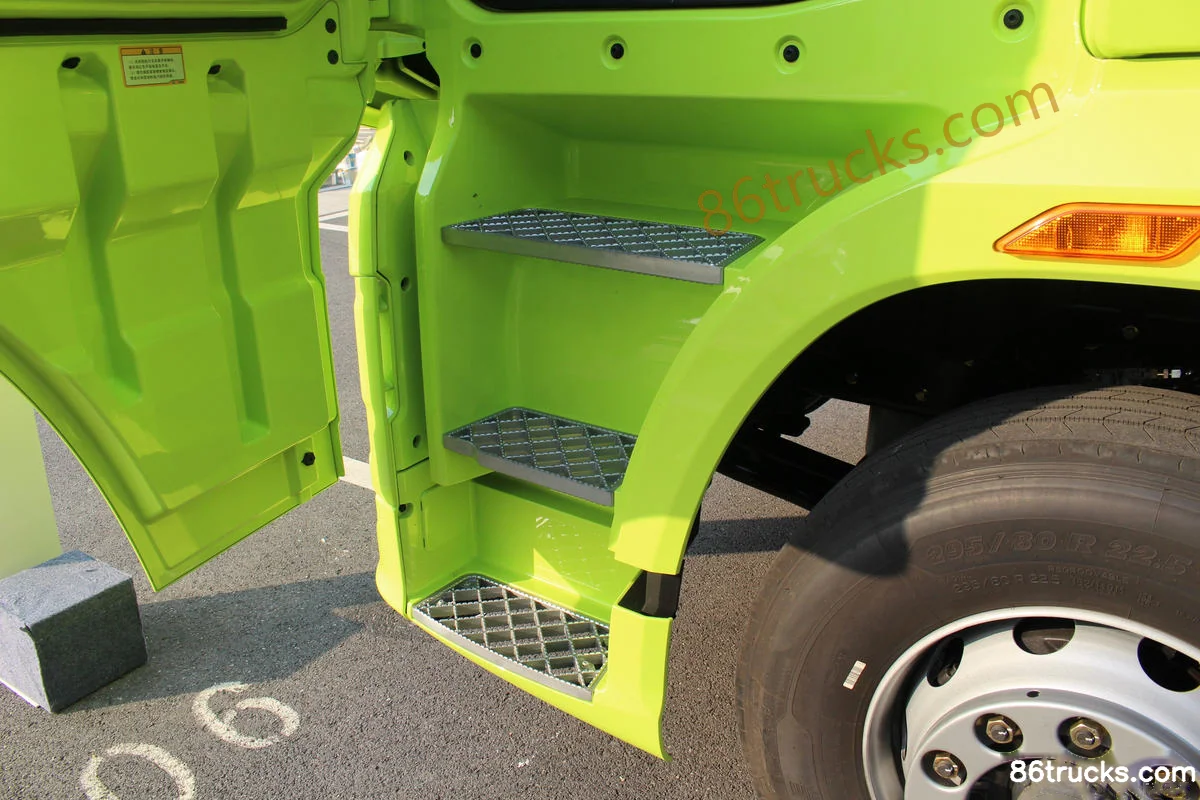

Cab3

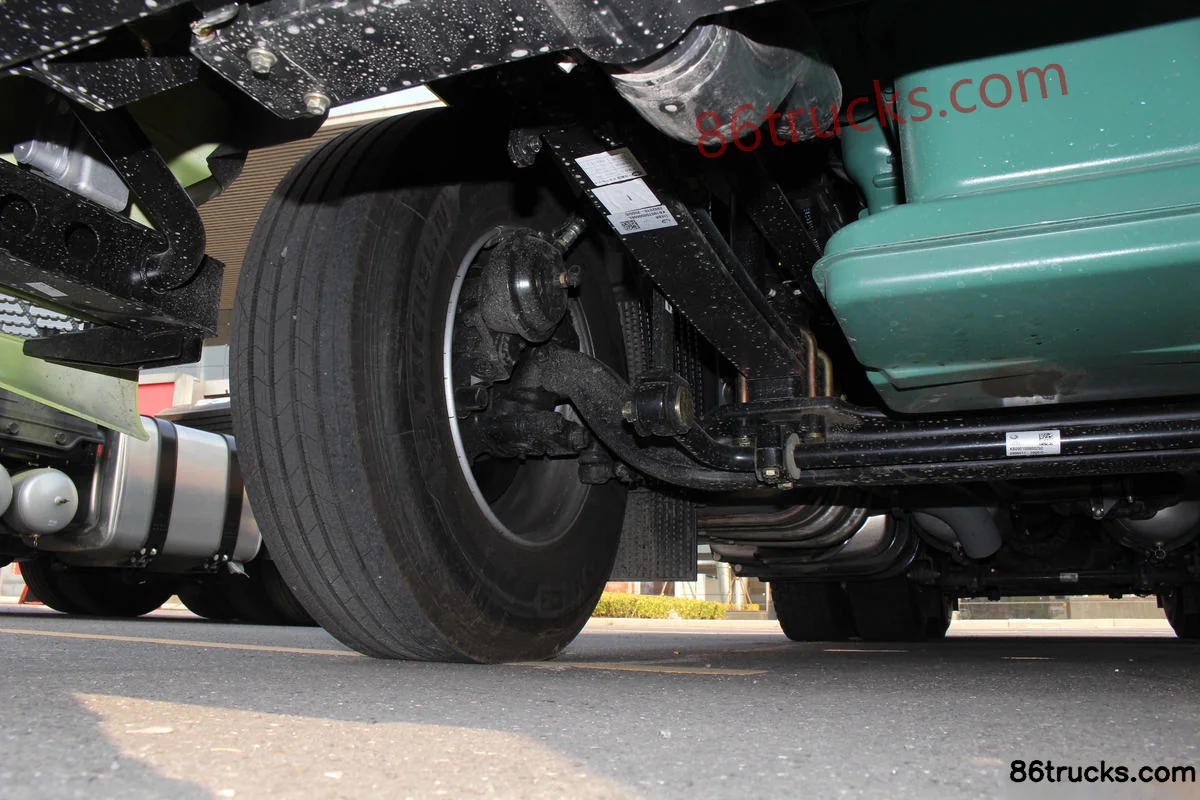

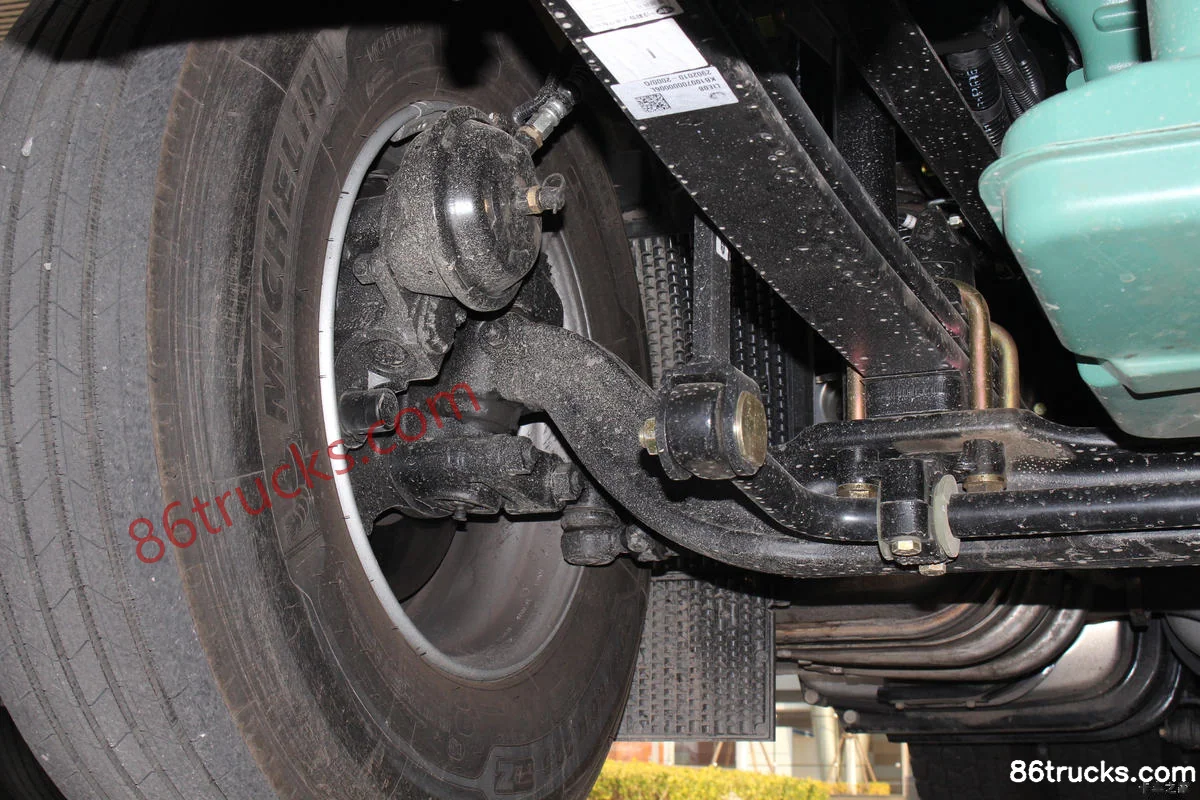

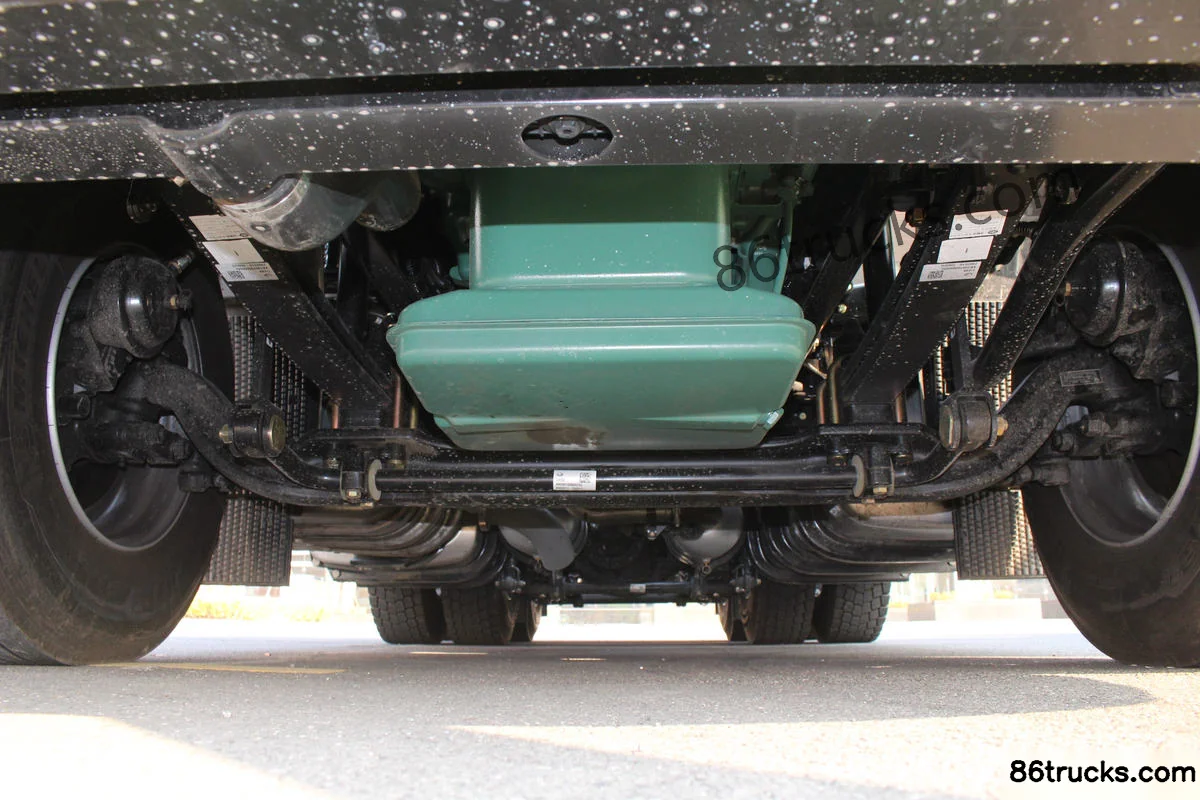

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift)?

Key specs of FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift): Drive: 6x2R; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) suited for?

FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) differ from other variants in the same series?

FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift) belongs to FAW Jiefang J7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J7 Heavy Truck 560hp 6X2R Tractor Truck (China VI) (Rear Axle Lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
