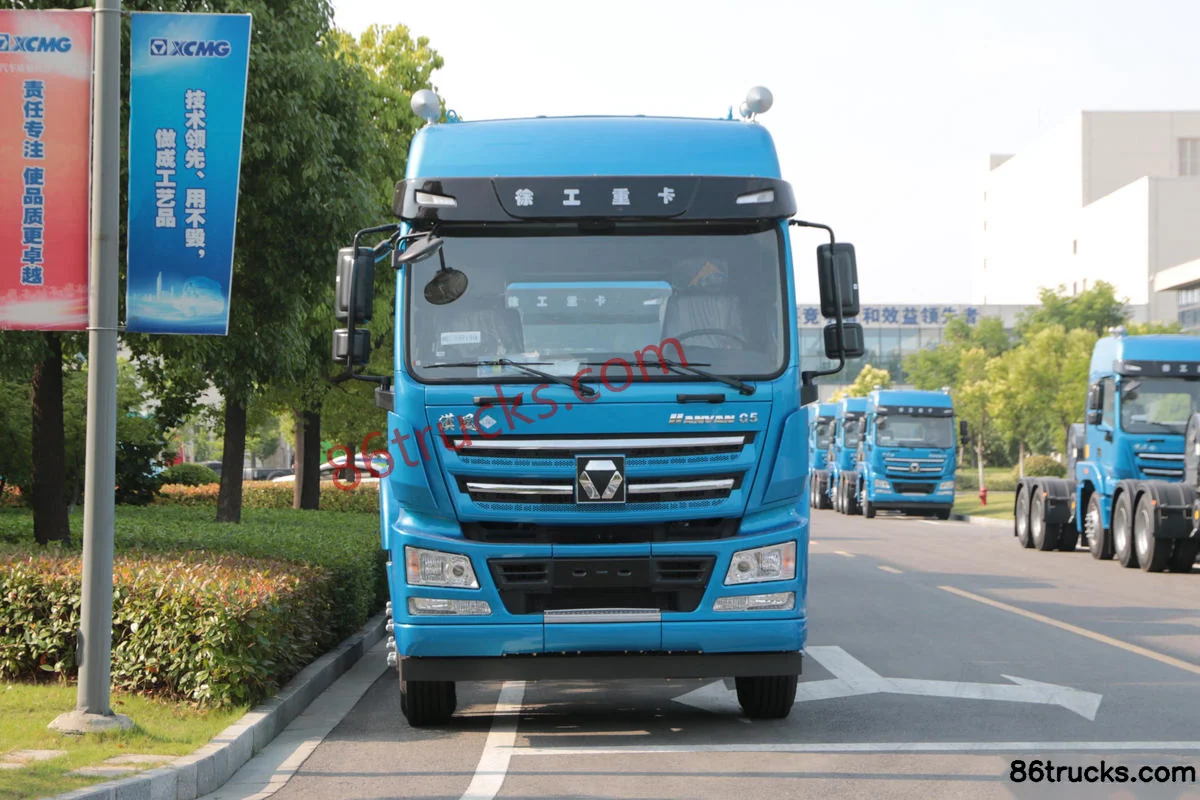

XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI)

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20 18PR ,12.00R20 16PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR
Front axle allowable load:: 7000kg
Displacement:: 12.54L
Drive 6X4 (10 wheels)
Horsepower 430
Emission China VI
Transmission Fast Gear

Overview

The XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 430 hp, 25t GVW and China VI emissions. Its segment focus covers Logistics and Coal Transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP13NG430E61 engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 430 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XGA4250N6NC
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP13NG430E61
transmission: Fast GearC12JSDQXL220TA
Rear Axle Ratio: 3.7
Cab length: 7.445m
Cab width: 2.55m
Cab height: 3.47m
Front track width: 2020mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.5ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xuzhou, Jiangsu
tonnage class: Heavy truck
market segment: Logistics, Coal Transport
Remarks: Optional ratio 4.11.
Version: Standard Load Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13NG430E61
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.54L
Emission standard: China VI
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2200N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Technology route: LNG
Transmission Parameters
Transmission Model: Fast GearC12JSDQXL220TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: Steel
Air tank capacity: 1000L
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 5.5t
Front axle allowable load: 7000kg
Frame Dimensions: 280×90×8mm
rear axle description: 11.5t single-reduction axle (maintenance-free)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3,2/4,3/4
Tire
Tire Size: 11.00R20 18PR ,12.00R20 16PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR/315/80R22.5 16PR
Number of tires: 10pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

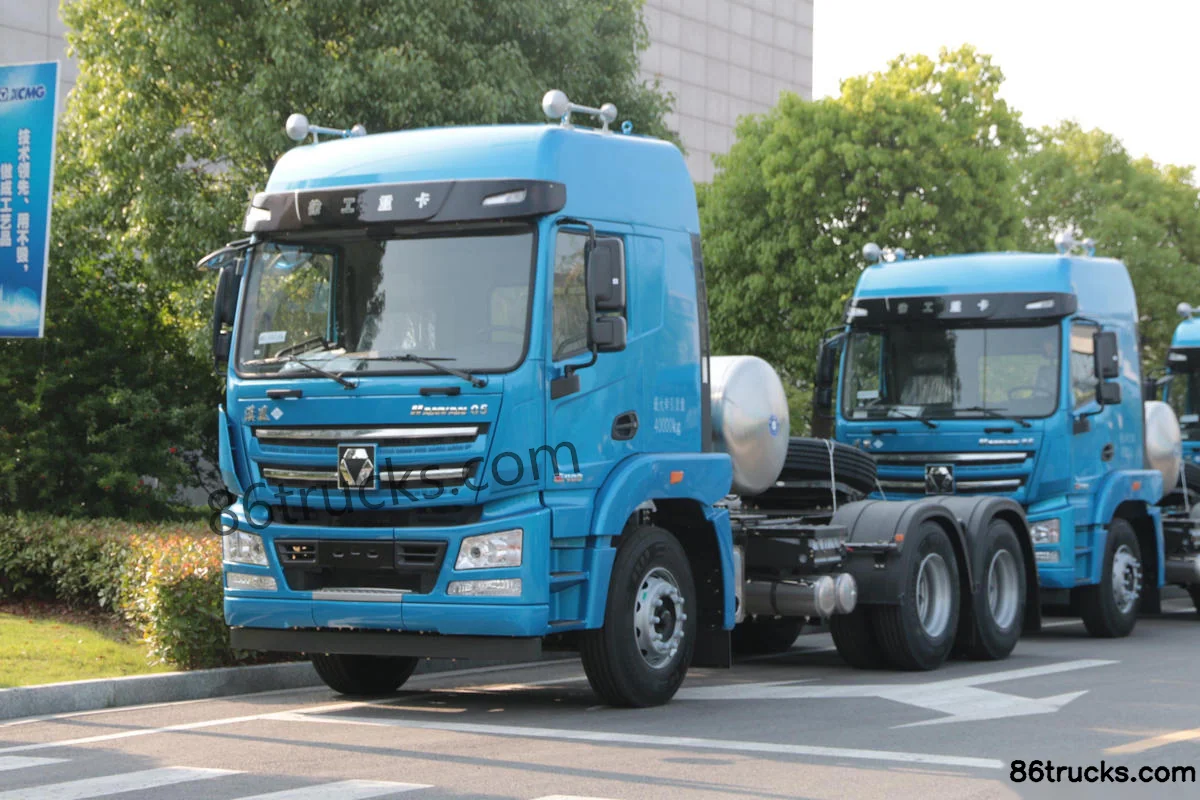

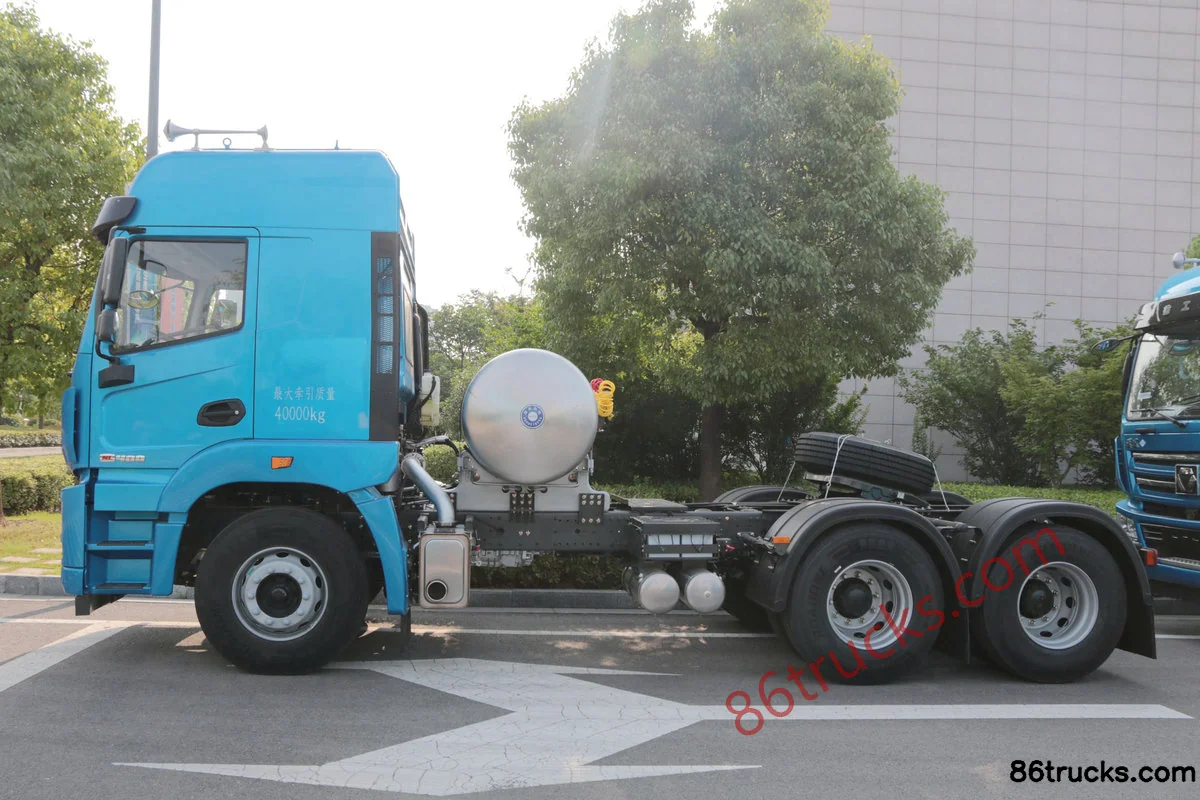

Exterior3

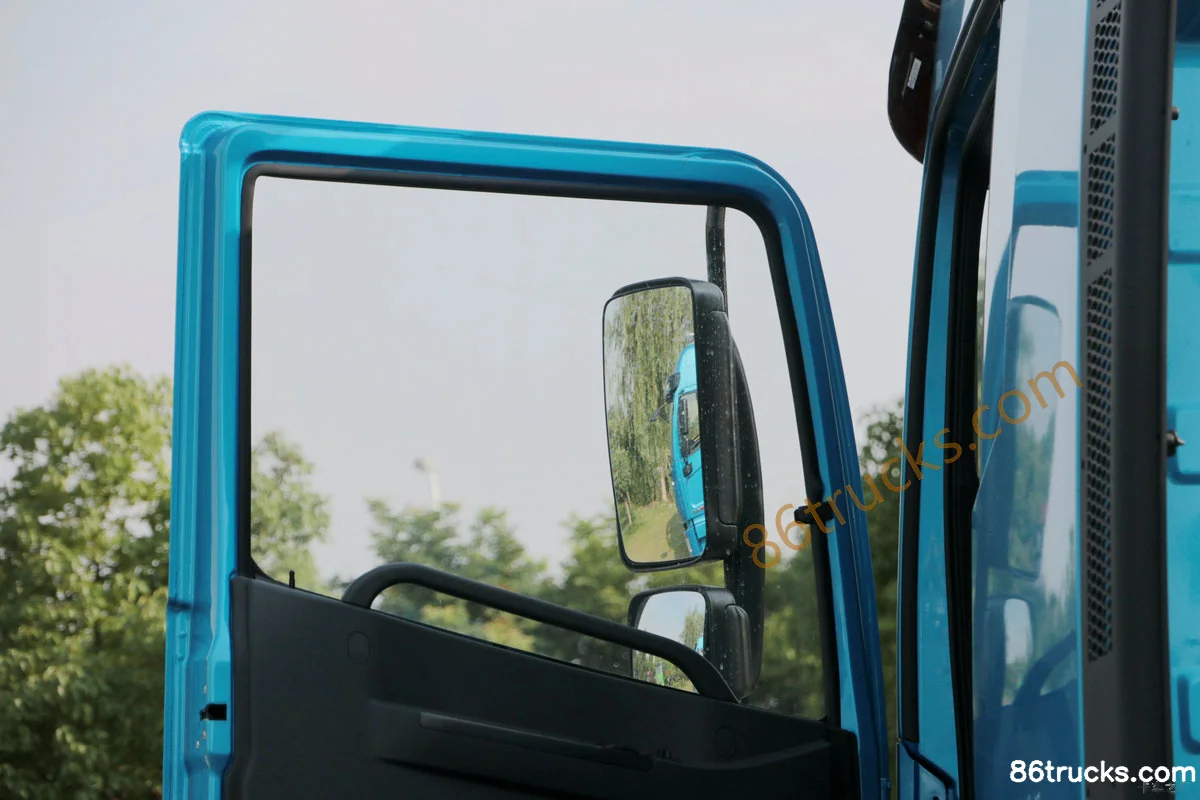

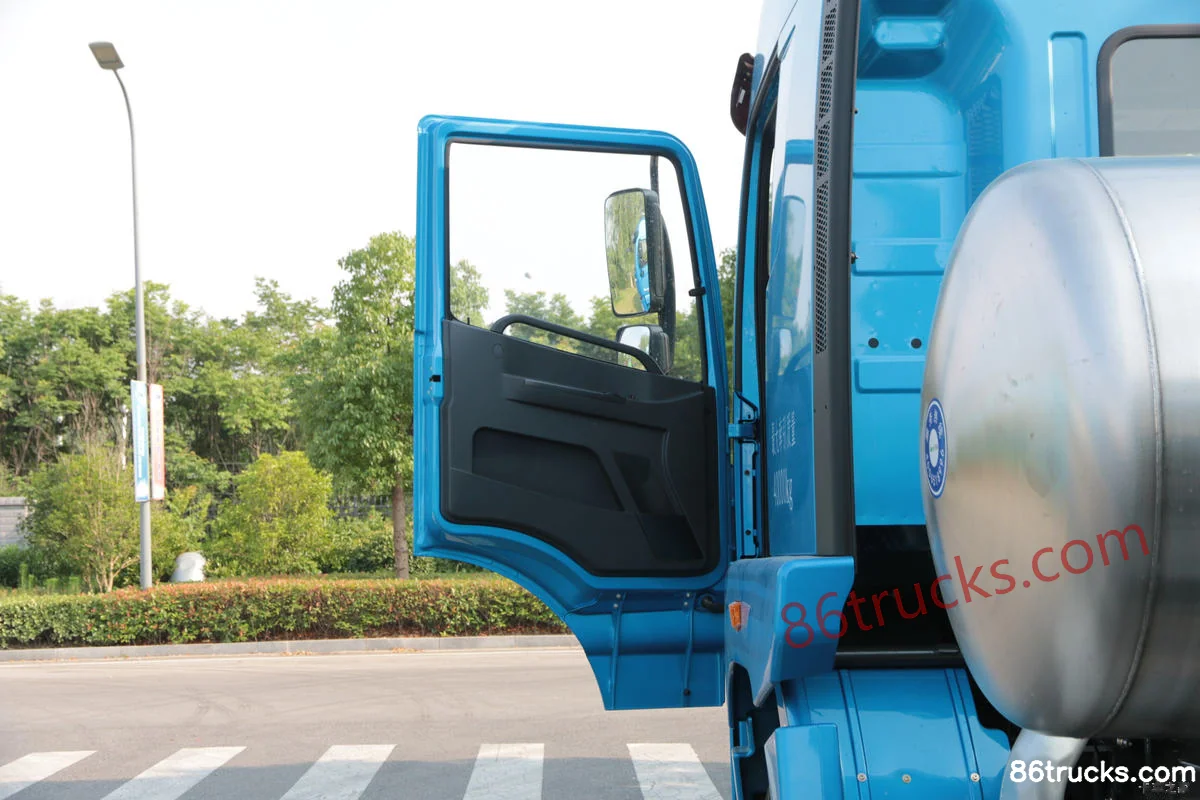

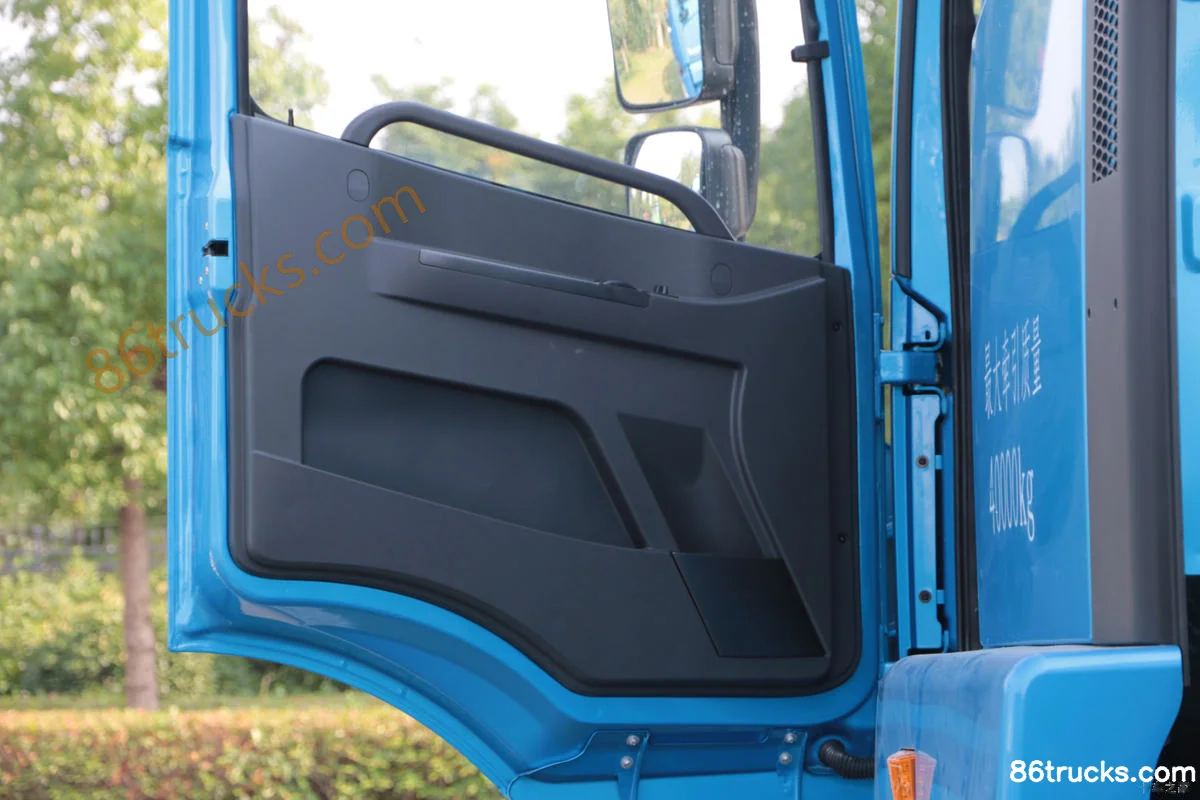

Cab3

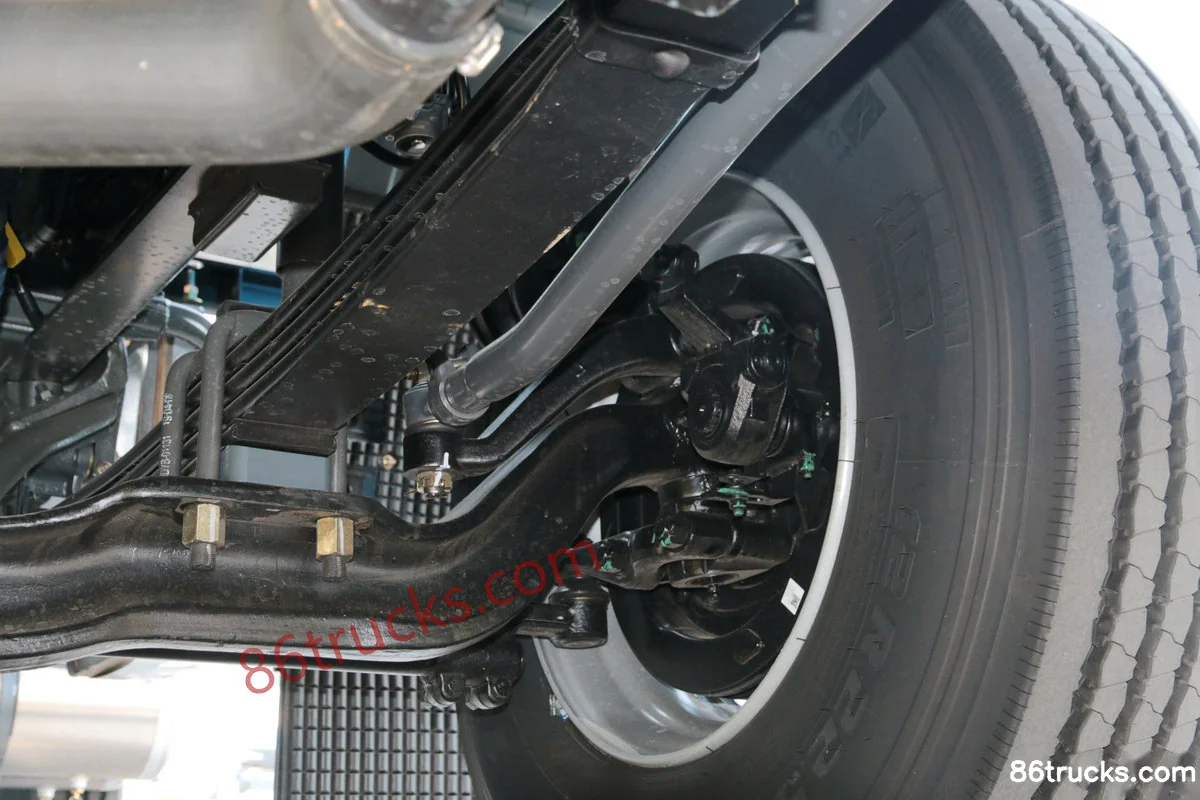

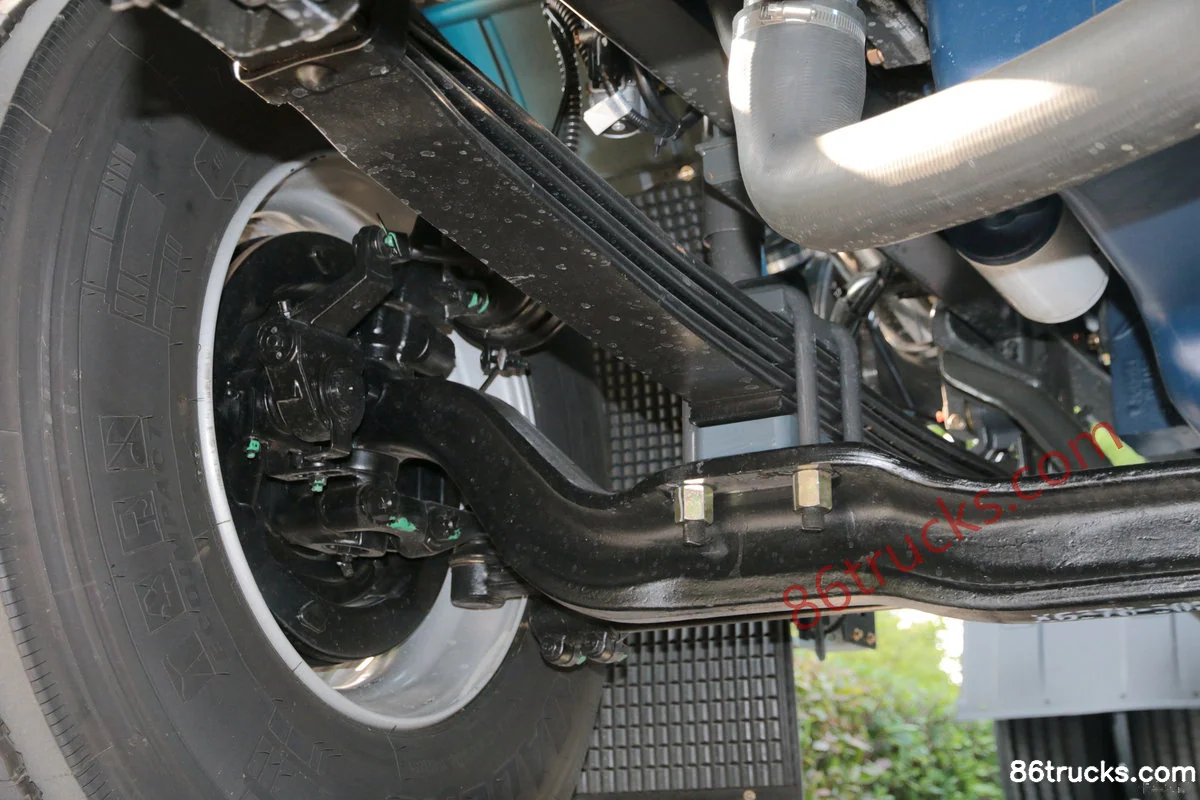

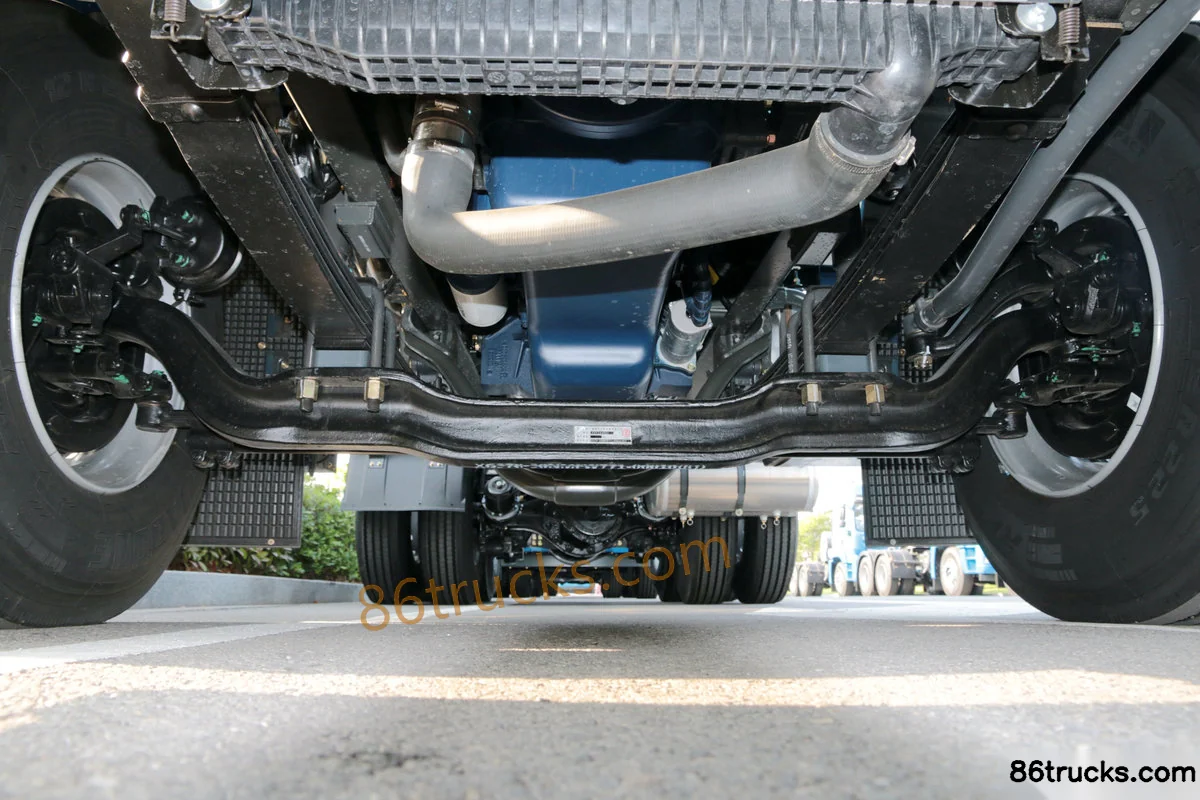

Chassis3

9 photos

FAQ

What emission standard does XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Key specs of XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI): Drive: 6x4; Horsepower: 430 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) suited for?

XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) differ from other variants in the same series?

XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI) belongs to XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5 Standard Load 430hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
