JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels)

Export reference
From $41,389
MSRP ¥29.8M CNY
Rated payload:: 1.22ton
Wheelbase:: 3365mm
Model code (announced):: HFC5043XTYEV1N
Truck Type:: electric garbage truck
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Jingjin
Curb Weight: 3.08ton

Overview

The JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) is a Electric Garbage Truck featuring CATL battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.22t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XTYEV1N
Drive type: 4X2
Truck Type: electric garbage truck
Wheelbase: 3365mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 2.095m
Curb Weight: 3.08ton
Rated payload: 1.22ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Suining, Sichuan
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XSA06
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 89.12kWh
Chassis Specs
Front axle load: 1950ton
Rear Axle Load: 2545ton
Chassis Series: JAC
Chassis Model: HFC1043EV1N
Leaf spring count: 4/4+3
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

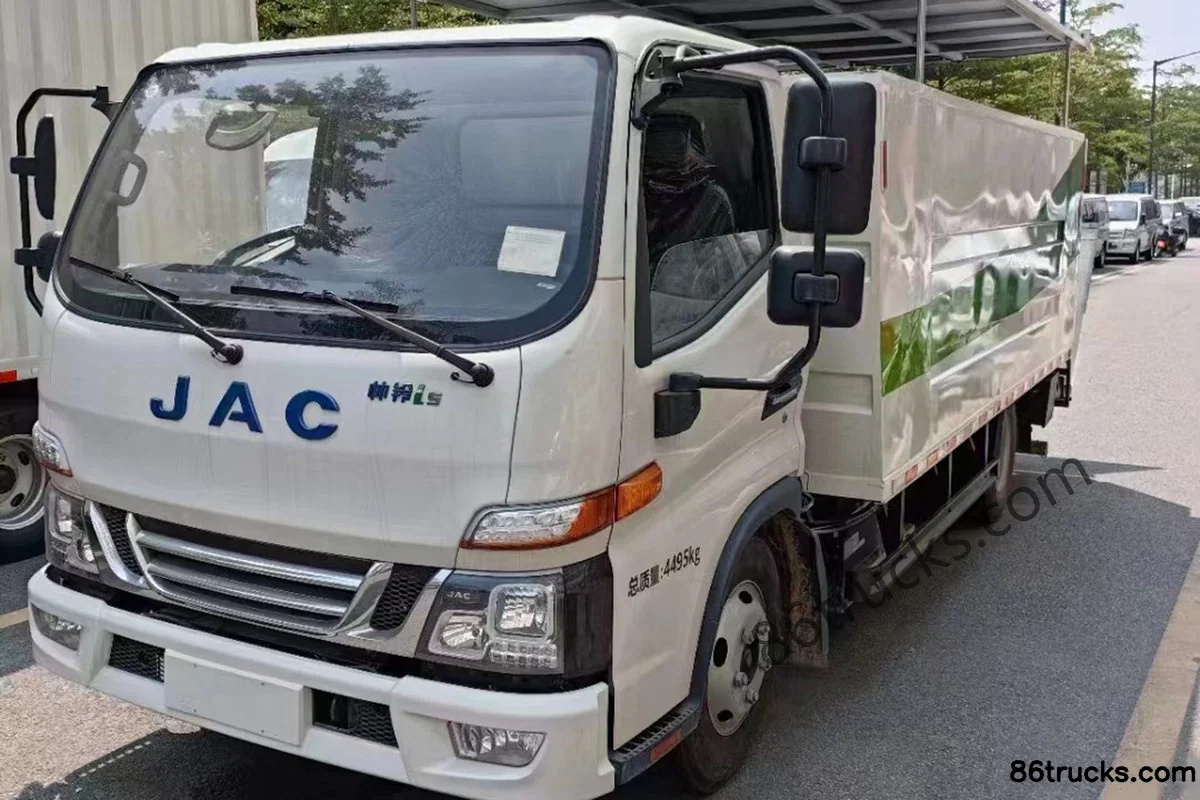

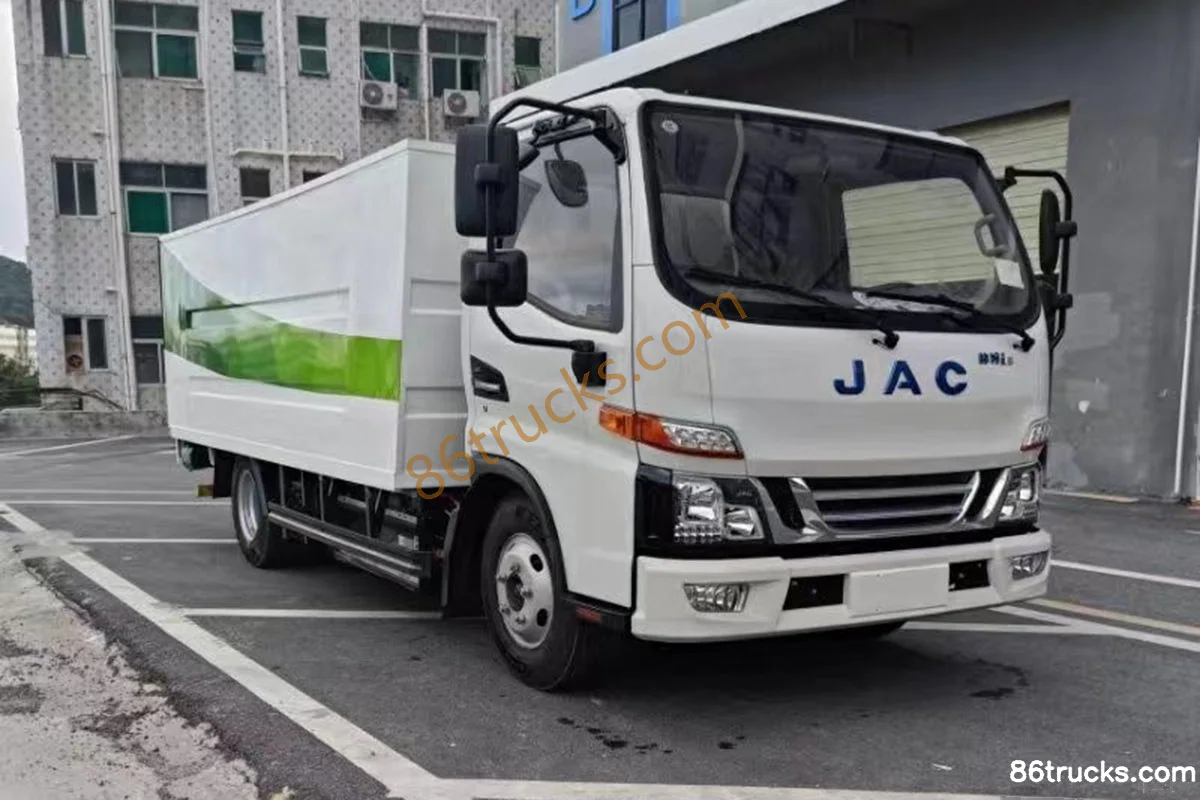

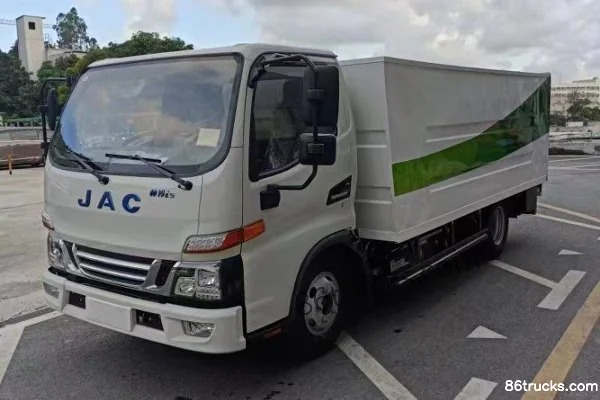

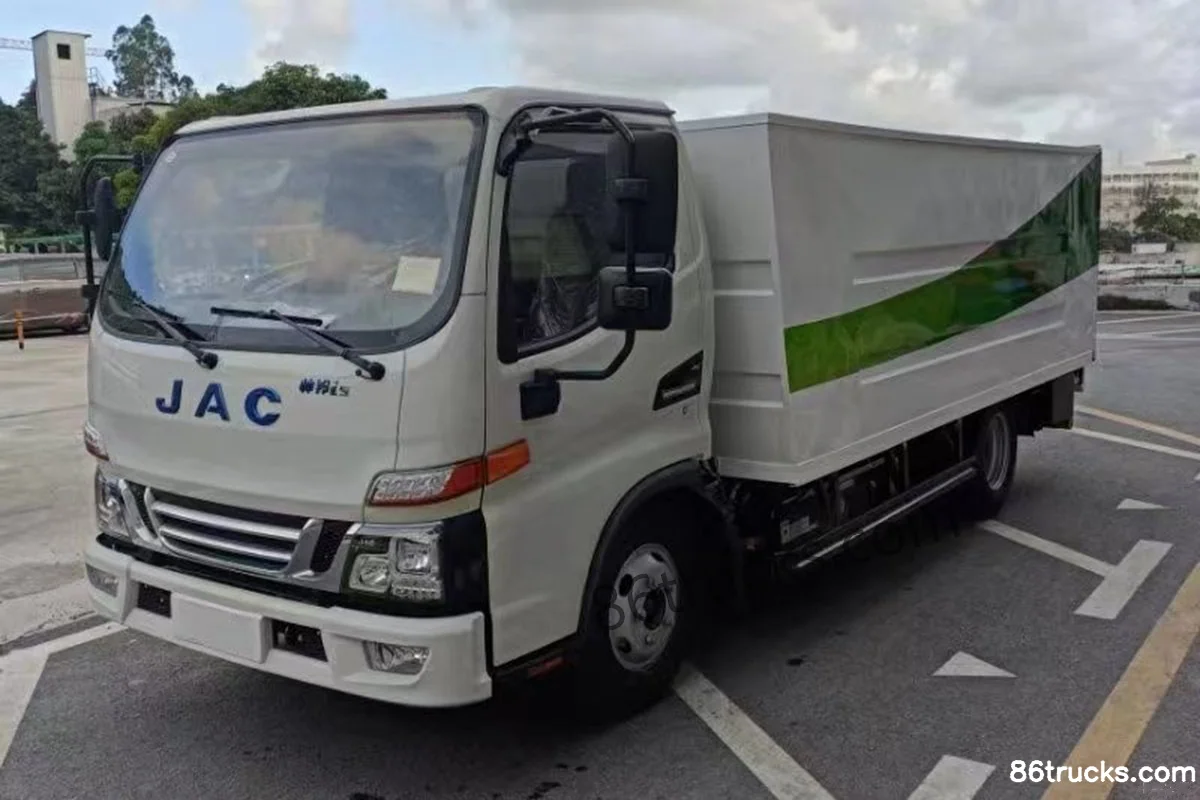

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels), and what does it include?

JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) export reference is about From $41,389; MSRP is ¥29.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) suited for?

JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels) belongs to JACEV5 (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i5 4.5T Electric Garbage Truck 89.12kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
