FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 4.3ton
Wheelbase:: 3900mm
Tire Size:: 245/70R19.5 16PR
Cab dimensions:: 6.995×2.58×3.45m
Rated payload: 7.5ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 5.16×2.2×2.2m
Horsepower 160

Overview

The FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck is a Refrigerated Truck featuring 5.16×2.2×2.2m cargo body, 7.5t payload, Single Row cab and 3900mm wheelbase. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.995×2.58×3.45m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Deyang, Sichuan; Liuzhou, Guangxi; Qingdao
Wheelbase: 3900mm
Front track width: 1726mm
rear track: 1740mm
Curb Weight: 4.3ton
Rated payload: 7.5ton
GVWR: 11.995ton
Max. speed: 95km/h
Front/rear suspension: 1.155/1.94m
Energy Type: Diesel
Engine parameters
Engine Model: WeichaiWP3NQ160E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Rated speed: 3000rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail
Cargo box parameters
Cargo box dimensions: 5.16×2.2×2.2m
Cargo box width: 2.2m
Cargo box height: 2.2m
Body Parameters
Vehicle certification code: CA5120XLCP40K42L3E6A84
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Hu VH
Chassis Model: CA1120P40K42L3BE6A84
Axle ratio: 4.333
Leaf spring count: 3/3+3,3/7+9,3/10+4,7/7+9,7/10+4
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed
Cab parameters
Cab: Single Row
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

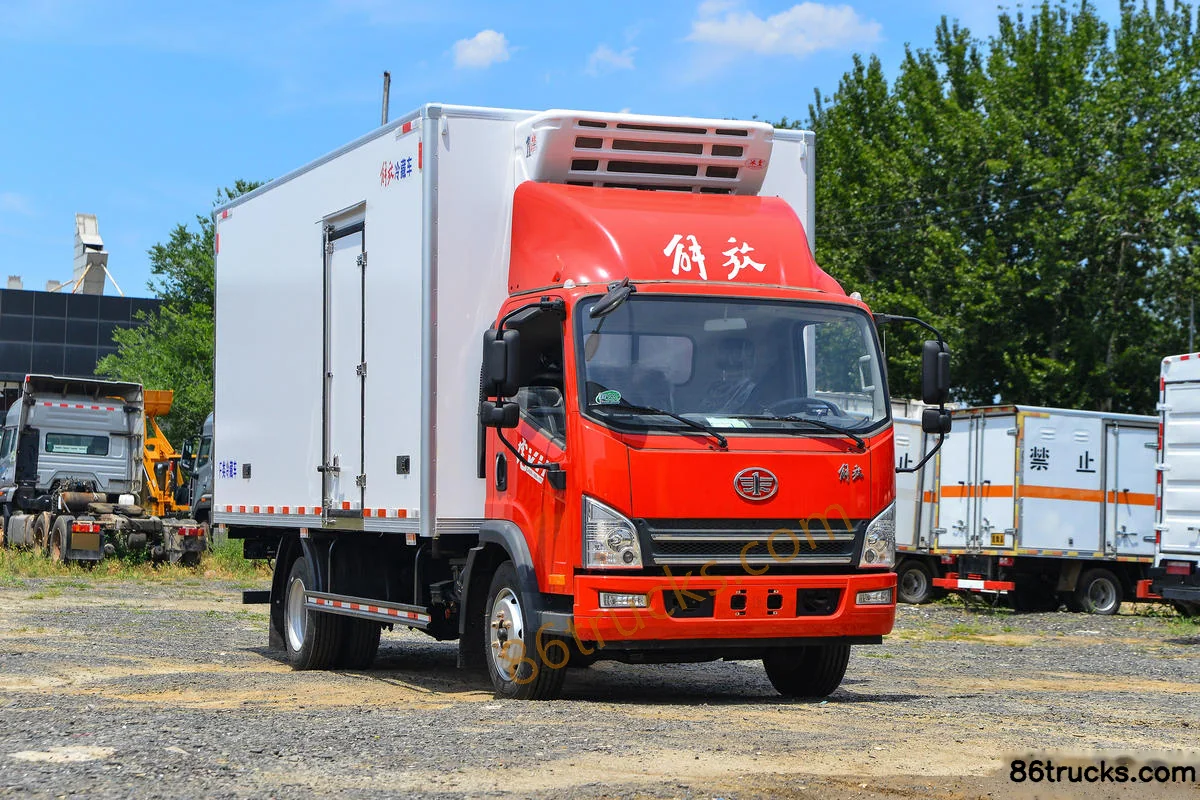

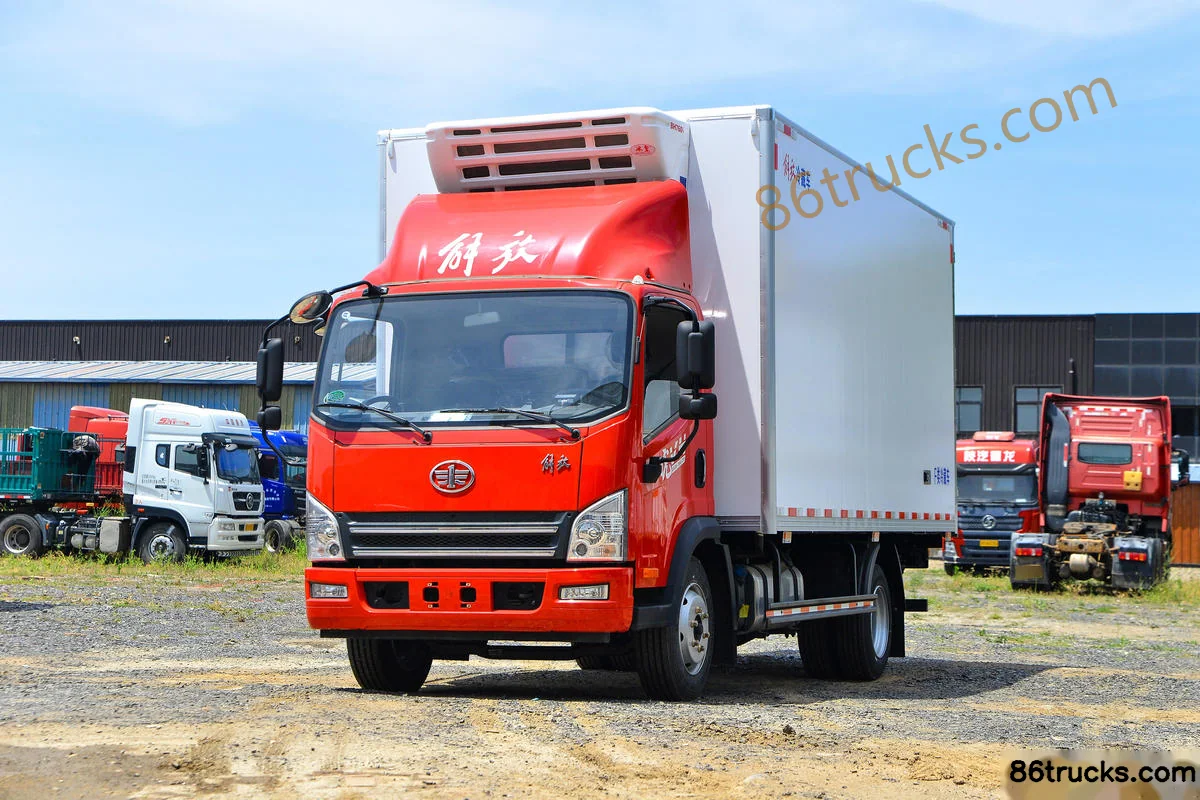

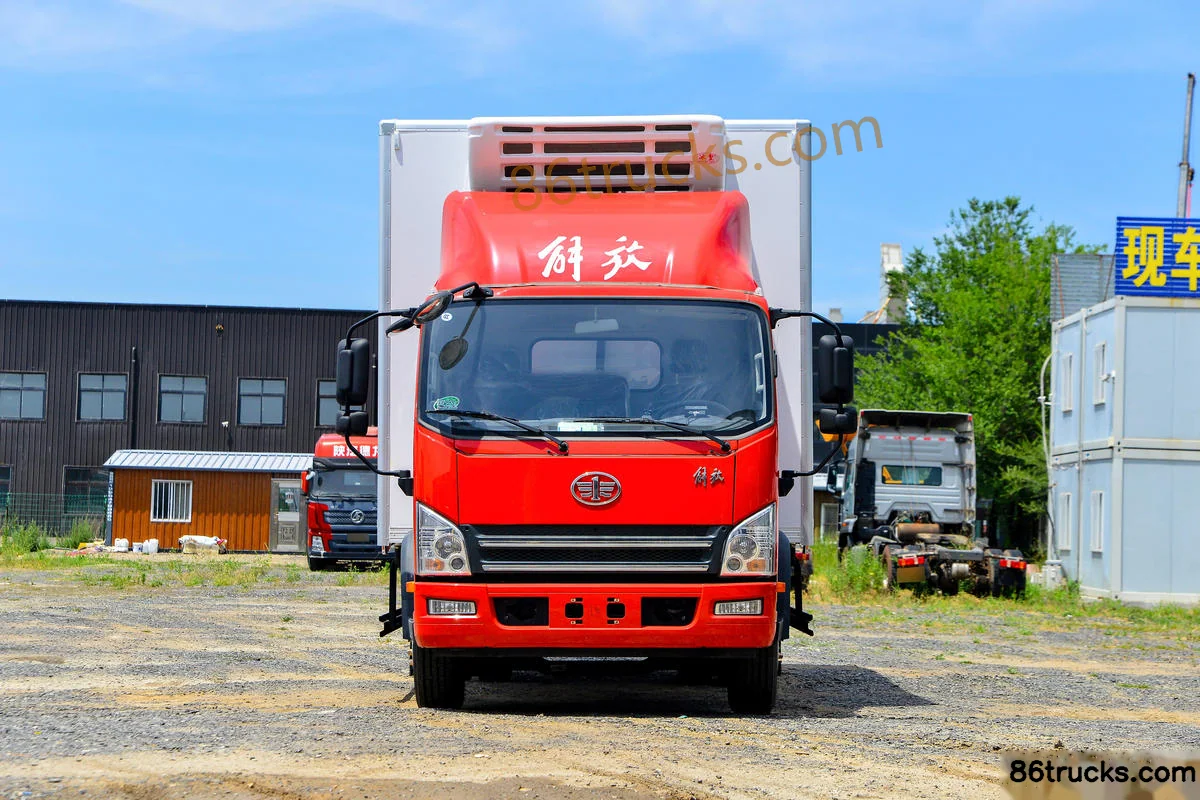

Exterior3

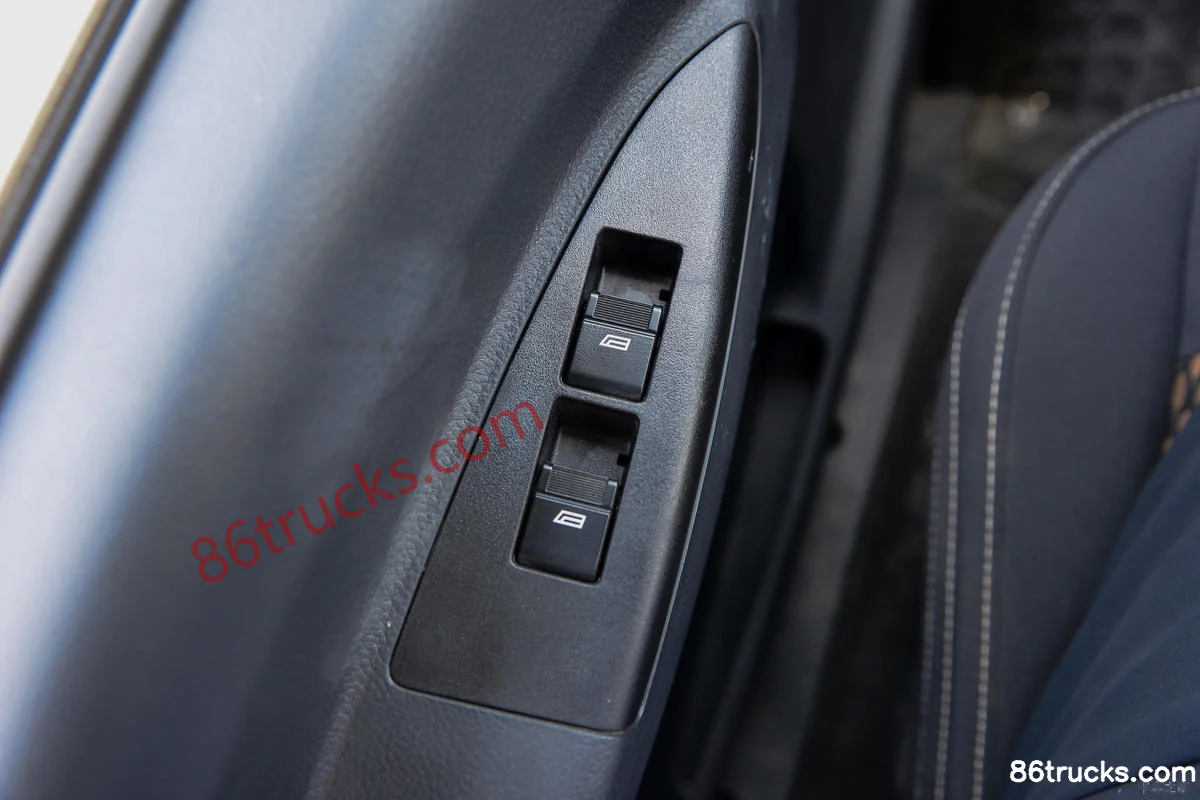

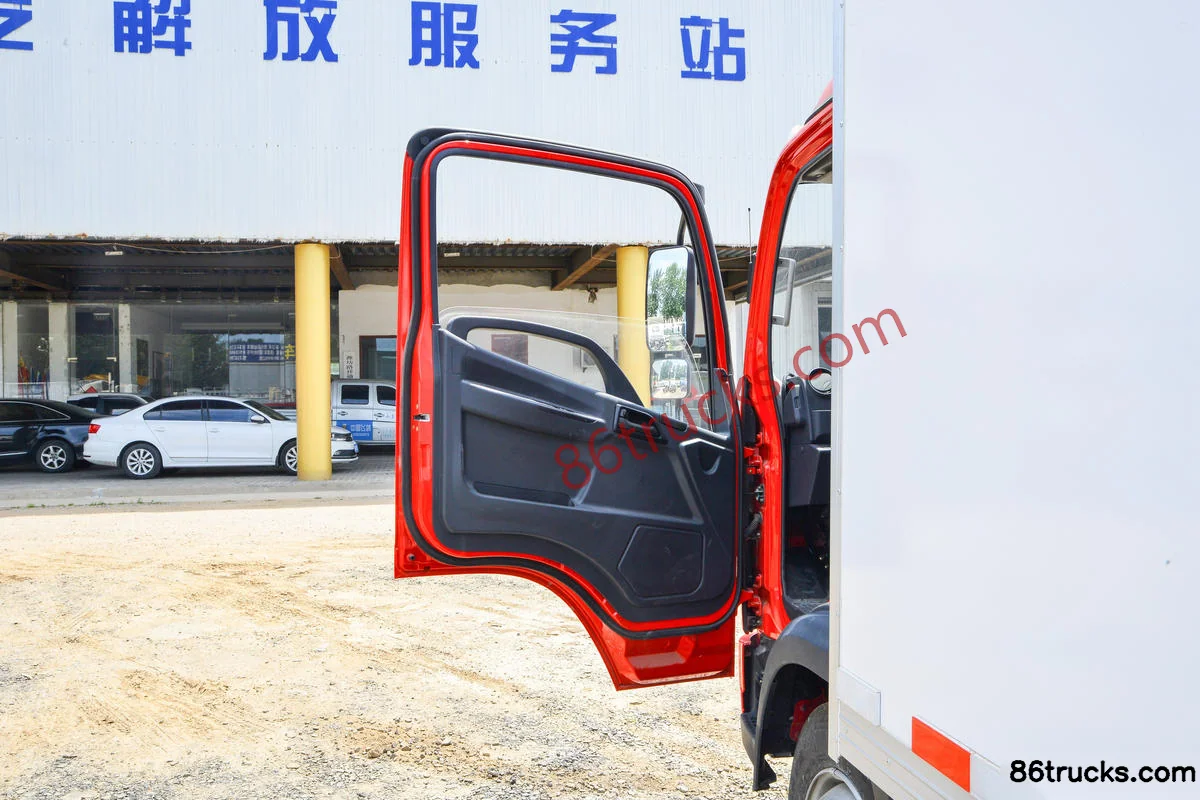

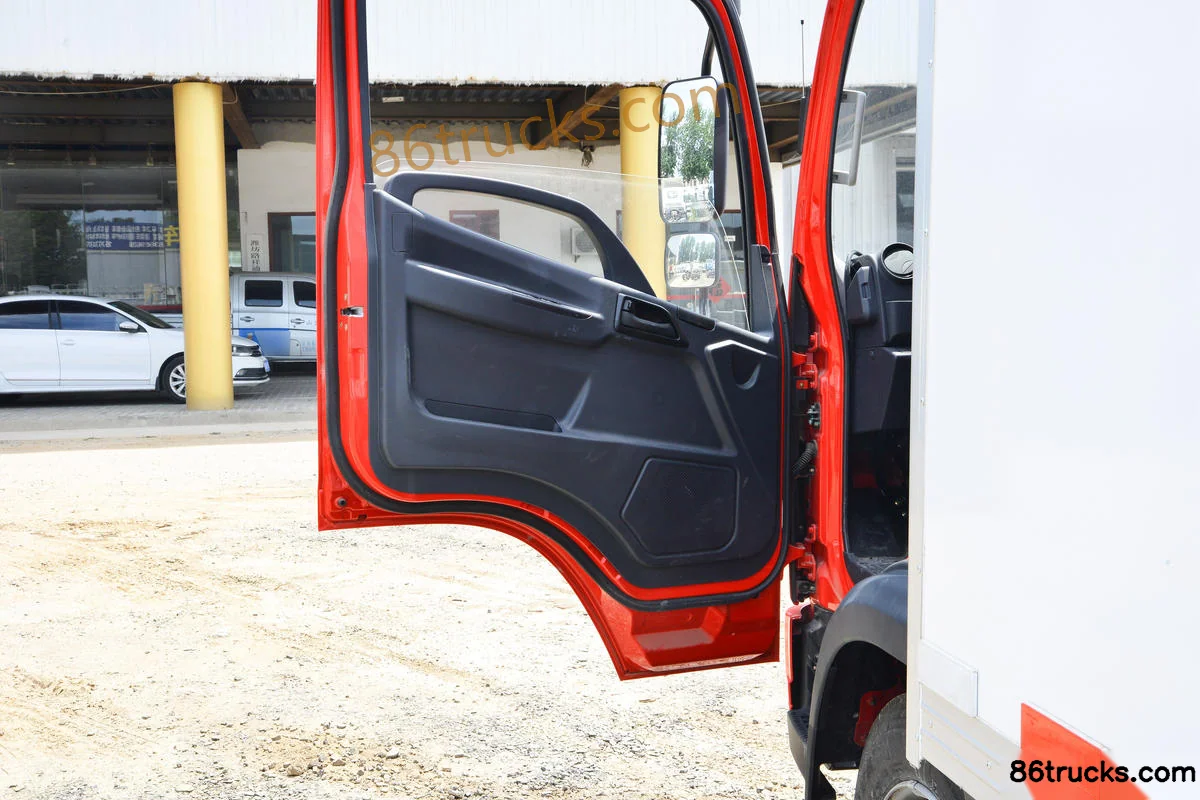

Cab3

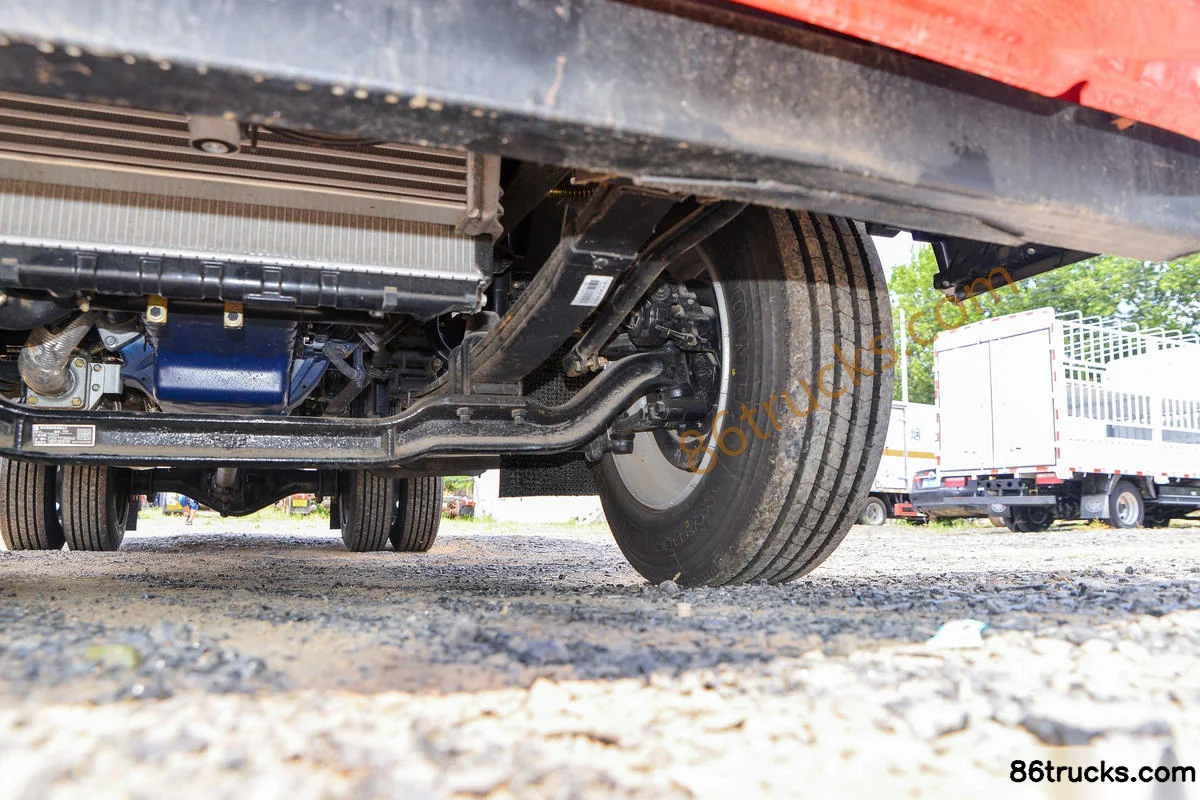

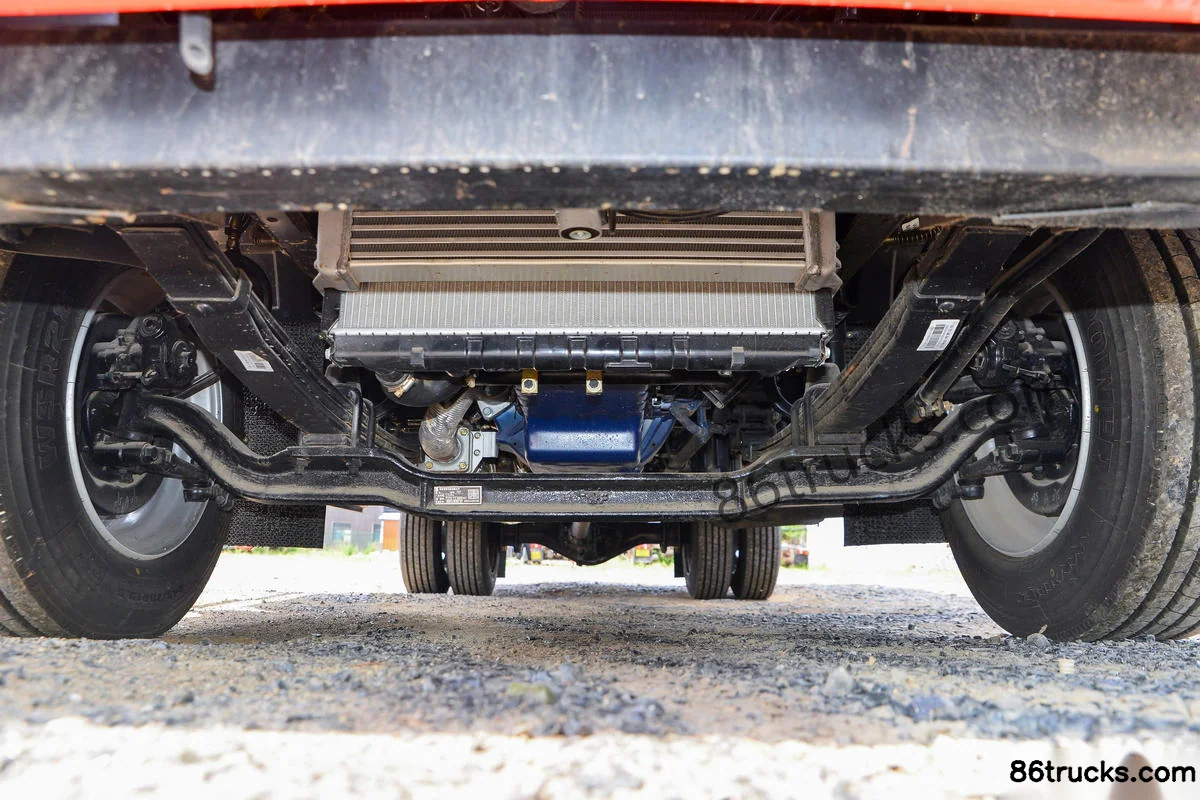

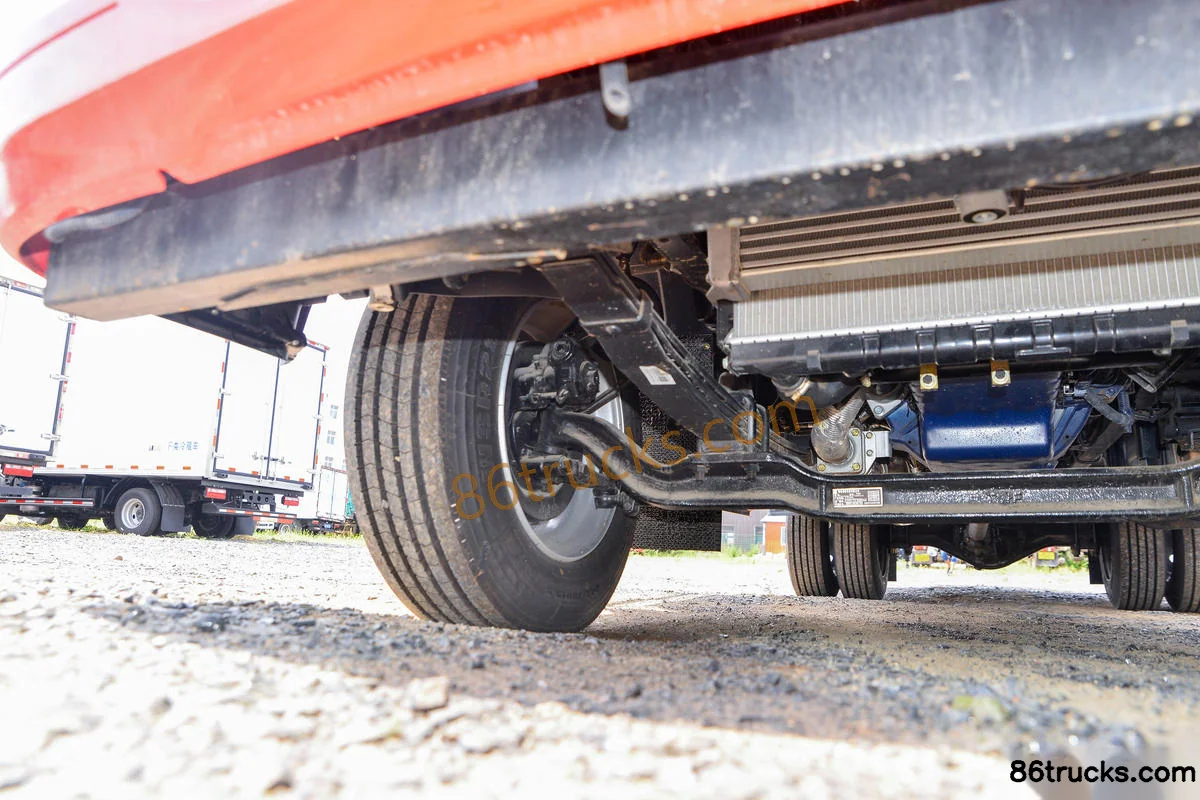

Chassis3

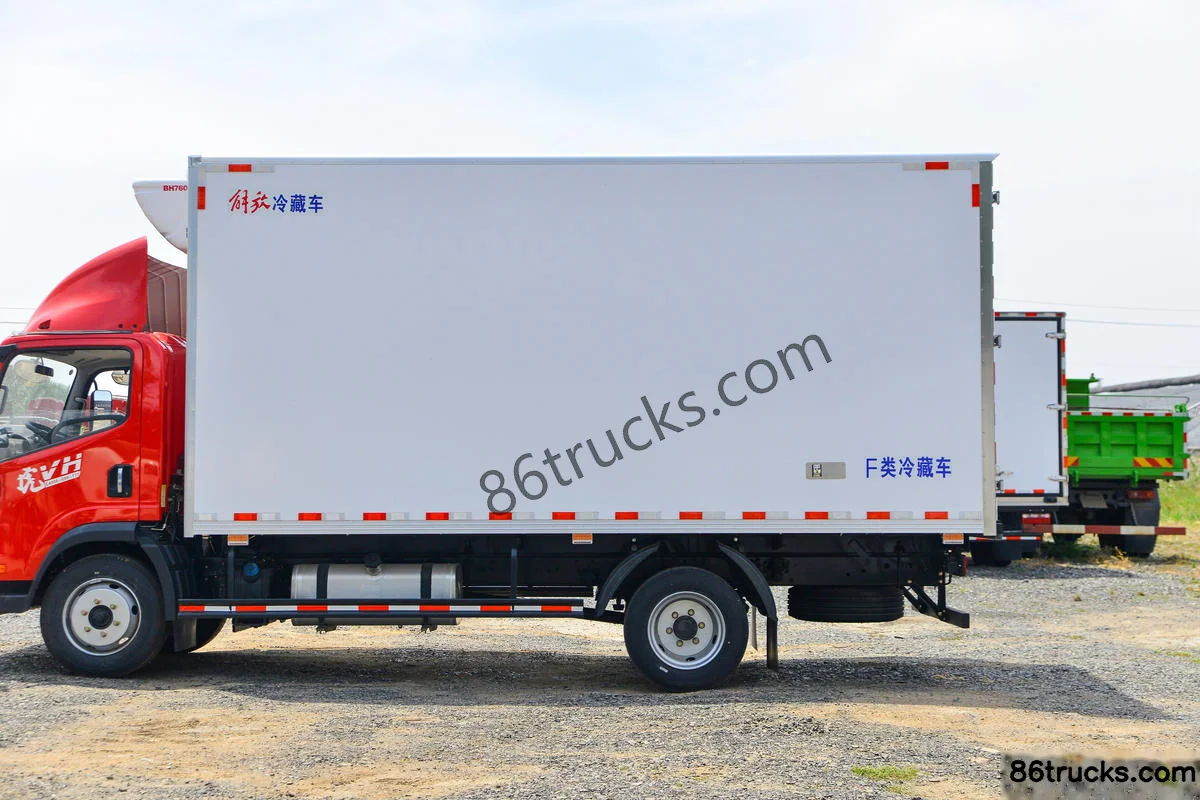

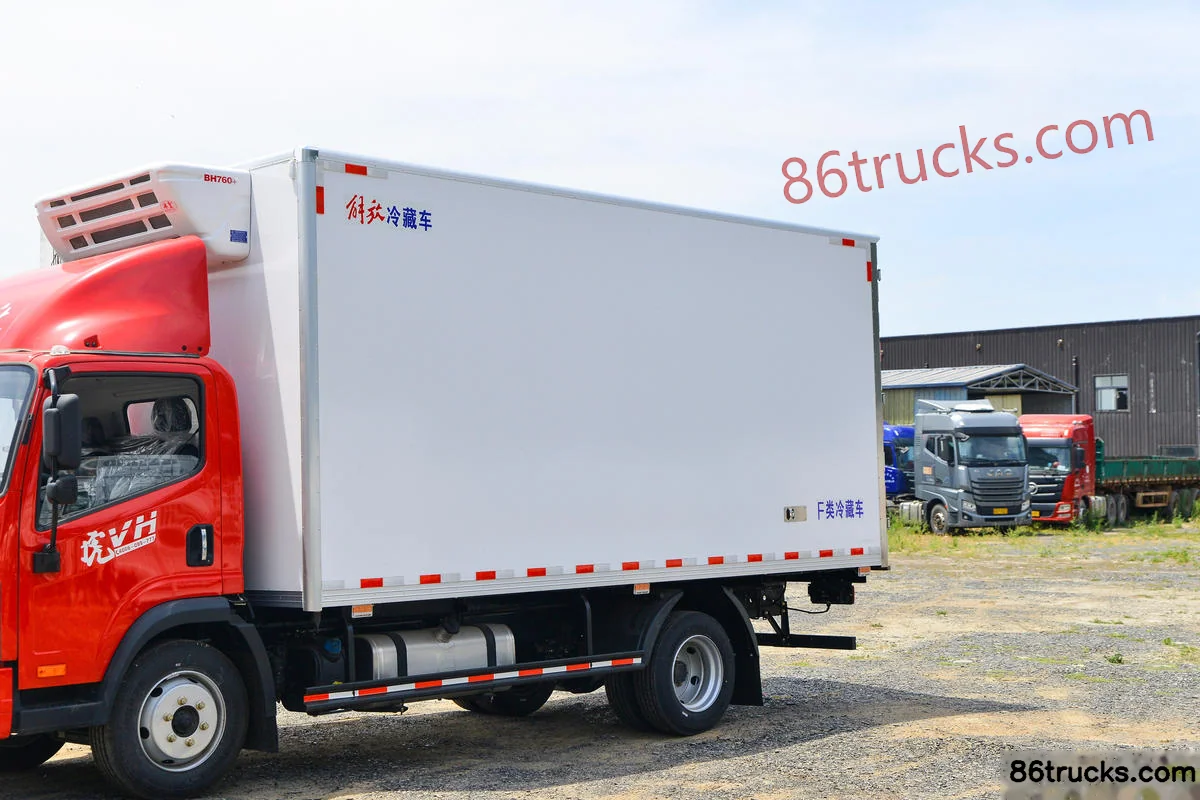

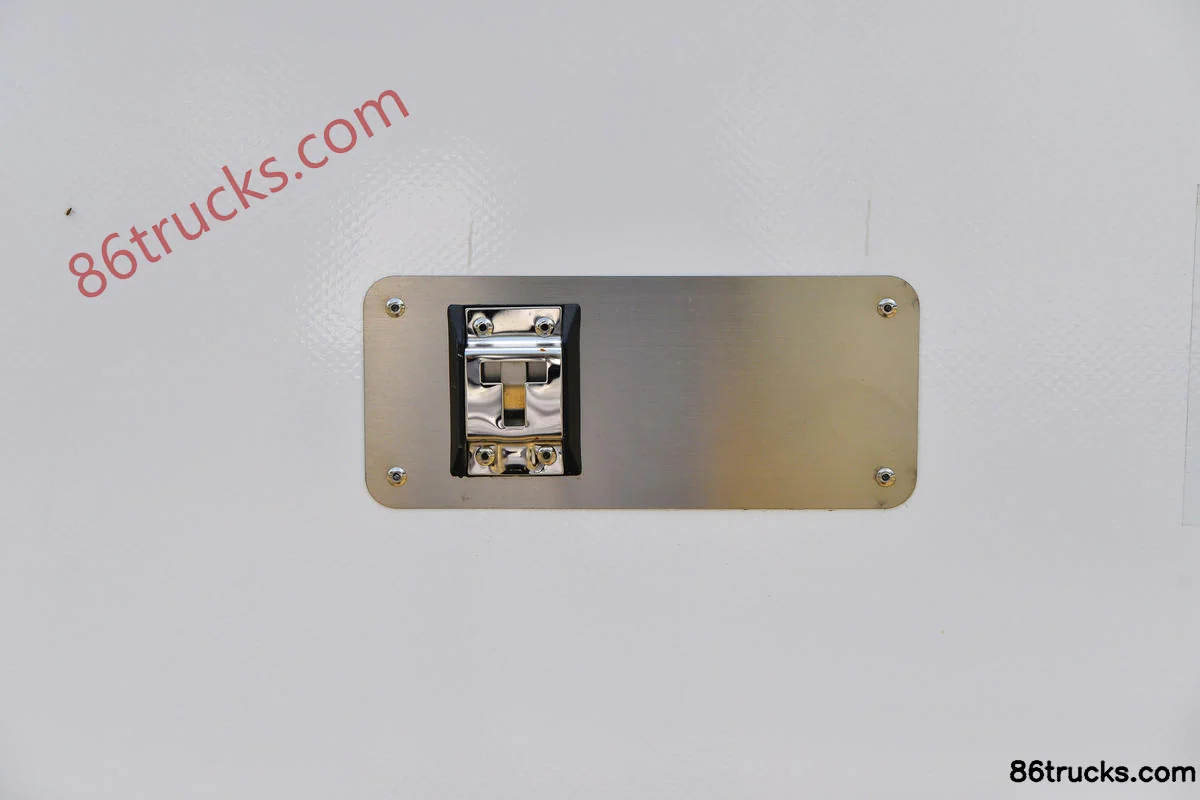

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck?

Key specs of FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck suited for?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck differ from other variants in the same series?

FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck belongs to FAW Jiefang Hu V Light-duty Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 160hp 4X2(6 wheels) 5.16m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
