Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 2150+5050mm
Cab dimensions:: 11.98×2.49 × 3.72m
Type:: As per crane.
GVWR:: 24.9ton
Front/rear suspension:: 1.25/3.53m
Lifting capacity: 10ton
Drive 6X2 (8 wheels)
Horsepower 190
Rated mass: 12.205ton

Overview

The Dongzheng (Yandi) Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) is a truck-mounted crane featuring 10ton tank capacity, 24.9t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 190 hp and China III / Euro III emissions.

China III / Euro III 190 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.98×2.49 × 3.72m
Type: As per crane.
Drive type: 6X2
Wheelbase: 2150+5050mm
Rated mass: 12.205ton
GVWR: 24.9ton
Front/rear suspension: 1.25/3.53m
Body Parameters
Other special notes: Equipped with SQ10S crane, self-weight 4200kg, lifting capacity 10000kg.
Crane model: SQ10S type
Lifting capacity: 10ton
crane self-weight: 4.2ton
Vehicle certification code: SZD5252JSQ
Body Brand: Yandi brand
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng B190 33
Displacement: 5.9L
Emission standard: China III / Euro III
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 640N·m
Max torque speed: 1500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Small Tri-axle Series
Chassis Model: EQ1252GFJ
rear axle description: Dongfeng
Leaf spring count: 10/10/12+9
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dachi
Tire
Tire Size: 10.00-20,10.00R20
Number of tires: 8pcs

Photos

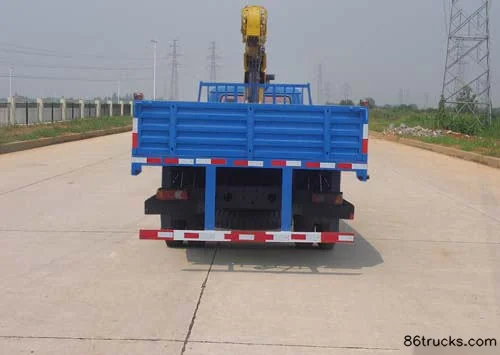

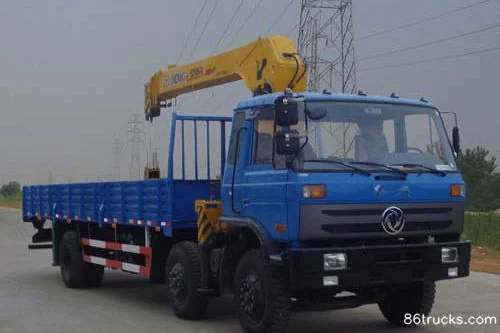

Exterior2

2 photos

FAQ

What emission standard does Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand)?

Key specs of Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand): Drive: 6x2; Horsepower: 190 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) suited for?

Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) differ from other variants in the same series?

Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand) belongs to Dongzheng (Yandi) Dongfeng Commercial Vehicle chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Small Three-Axle Series 190 hp 6X2(8 wheels) Truck-mounted Crane (Yandi Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
