Dongfeng Liuqi New Chenglong M3 18T 9.7m Half Row Electric Wing Opening Van Cargo Truck 246.67kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 9.2ton
Wheelbase:: 7100mm
Cargo box type:: Wing Van
Model code (announced):: LZ5180XYKH5AZBEV101
Type:: enclosed cargo truck
Box length class:: 9.7m
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Weiteng
Curb Weight: 8.67ton

Overview

The Dongfeng Liuqi New Chenglong M3 18T 9.7m Half Row Electric Wing Opening Van Cargo Truck 246.67kWh 4X2(6 wheels) is a Medium-duty truck featuring 220km battery/range, Weiteng motor, 4X2 (6 wheels) drive and 9.2t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5180XYKH5AZBEV101
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.7m
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
CLTC range: 220km
Curb Weight: 8.67ton
Rated payload: 9.2ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Weiteng
Motor 1 Model: TZ342XSSFY02
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 180kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 246.67kWh
Energy Density: 155.95
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.7m
Cargo box width: 2.46m
Cargo box height: 2.5m
Cab parameters
Cab width: 2150mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

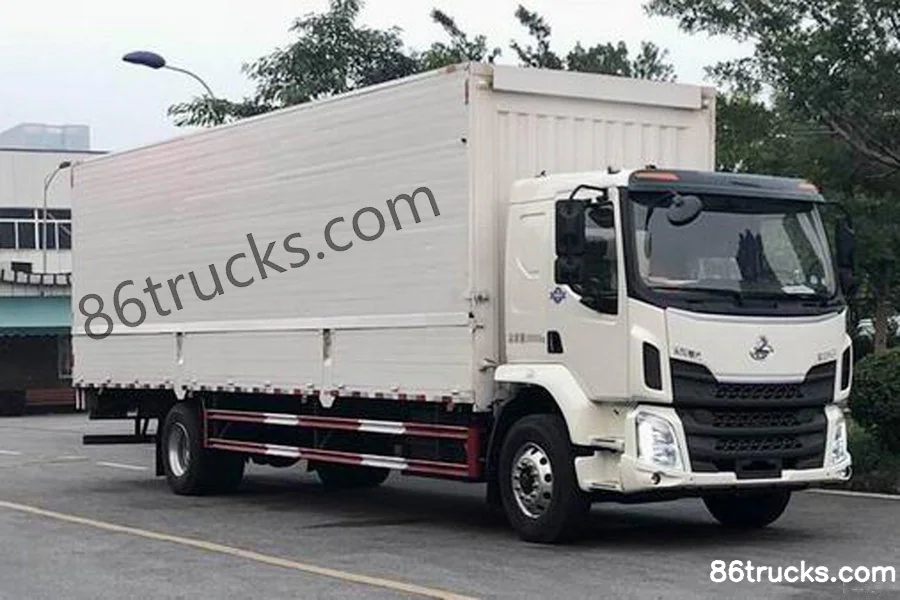

Exterior1
