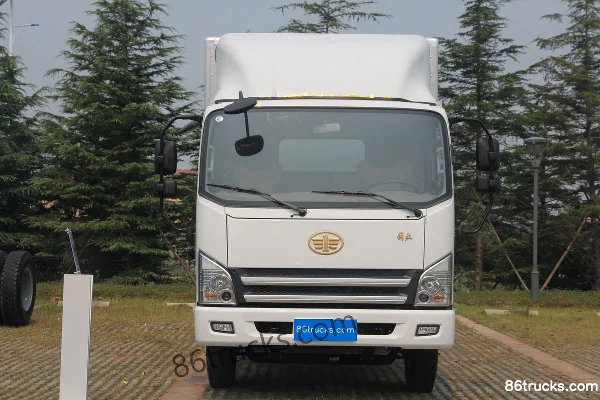

FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck

Export reference
From $12,083
MSRP ¥8.7M CNY
Horsepower: 95
Emission: China V
Fuel: Diesel
Engine: Quanchai490
Transmission: WLY
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck is a Light Truck featuring 3.85m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Quanchai490 engine, 95 hp, 4X2 (6 wheels) drive and China V emissions.

China V 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5047XXYP40K50L1E5A84-3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: Quanchai4B2-95C50
transmission: WLYWLY5T32
Rear Axle Ratio: 5.125
Cab length: 5.998m
Cab width: 2.06m
Cab height: 3.035m
Front track width: 1510mm
rear track: 1475mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Urban Distribution
Remarks: Φ275 clutch
Front/rear suspension: 1.15/1.548m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B2-95C50
Engine info: Quanchai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.545L
Emission standard: China V
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 240N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: WLYWLY5T32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.85m
Cargo box width: 1.91m
Cargo box height: 1.9m
*Cargo box interior width: 1.9099999666214
Cab parameters
Cab: Tiger VN flat roof cab with half-row seat (full interior)
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1950kg
Frame Dimensions: 180×65×5mm
rear axle description: D130 Fabricated Axle
rear axle allowable load: 2545kg
Axle ratio: 5.125
Leaf spring count: 7/7+3
Tire
Tire Size: 7.00R16
Tire Type: 12-ply rating (semi-steel)
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck, and what does it include?

FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck export reference is about From $12,083; MSRP is ¥8.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck?

Key specs of FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck: Drive: 4x2; Horsepower: 95 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck suited for?

FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck differ from other variants in the same series?

FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang HuVN 95hp 4X2(6 wheels) 3.85m semi-row van truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
