JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck

Export reference
From $14,833
MSRP ¥10.68M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: WeichaiVM494
Transmission: Lu'an
Curb Weight:: 3.6ton
seating capacity: 3Personnel
Rated payload: 4.48ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 4.48t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiVM494 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5080CCYP91K1C2V
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: WeichaiWP3Q130E50
transmission: Lu'an LC6T450M1
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.3m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 3.6ton
Rated payload: 4.48ton
GVWR: 8.275ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 19°
market segment: Agricultural product transport, green channel
Remarks: Optional A/C, cab tilt
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3Q130E50
Engine info: WeichaiVM494
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 350N·m
Max torque speed: 1400-1800rpm
Rated speed: 3000rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: Lu'an LC6T450M1
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.08m
Cargo box height: 2.2m
*Cargo box interior width: 2.0799999237061
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2980kg
rear axle allowable load: 5295kg
Leaf spring count: 12/8+6,8/7+6,13/8+6
Tire
Tire Size: 7.50-16 14PR,7.50R16 14PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

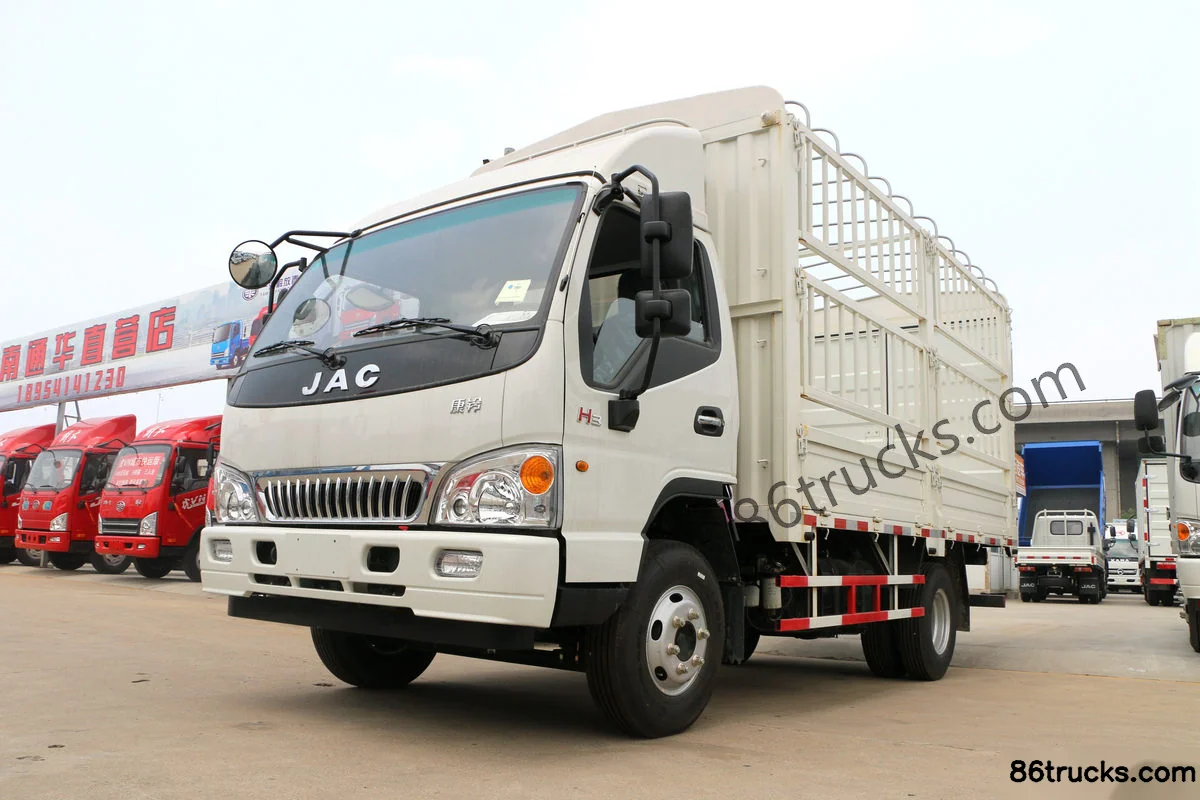

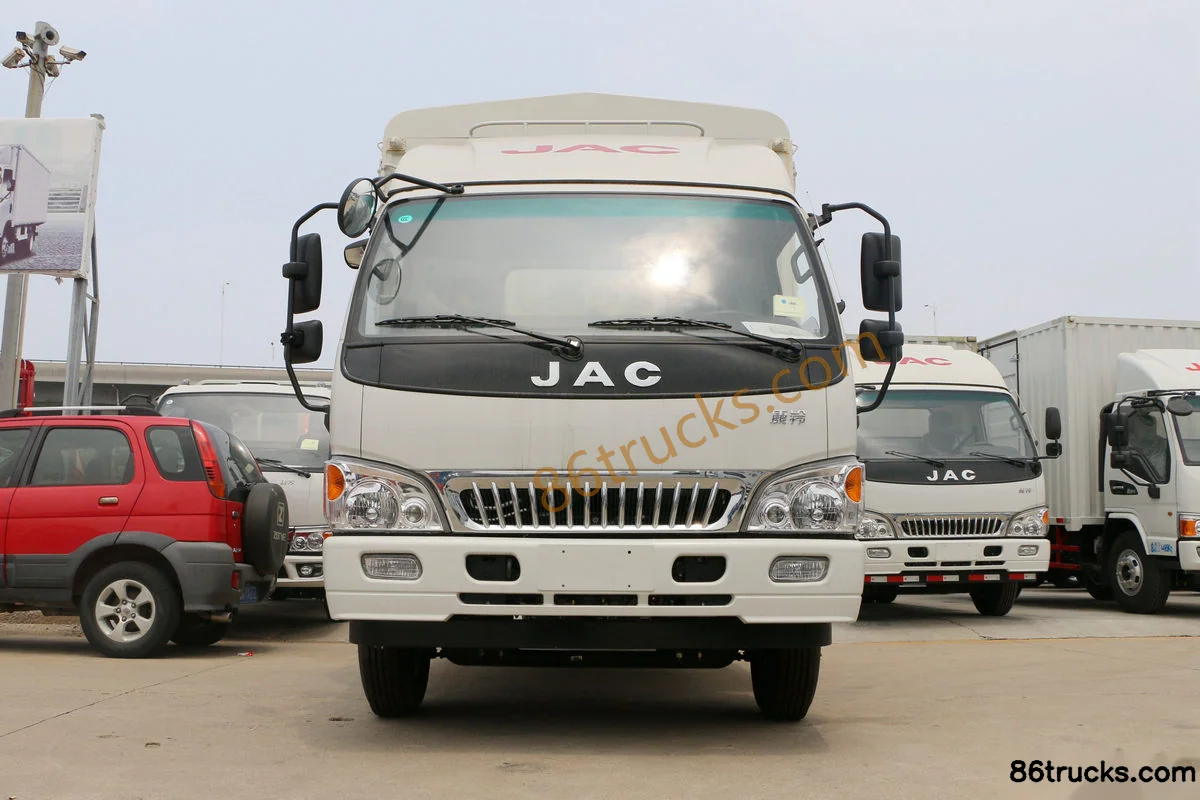

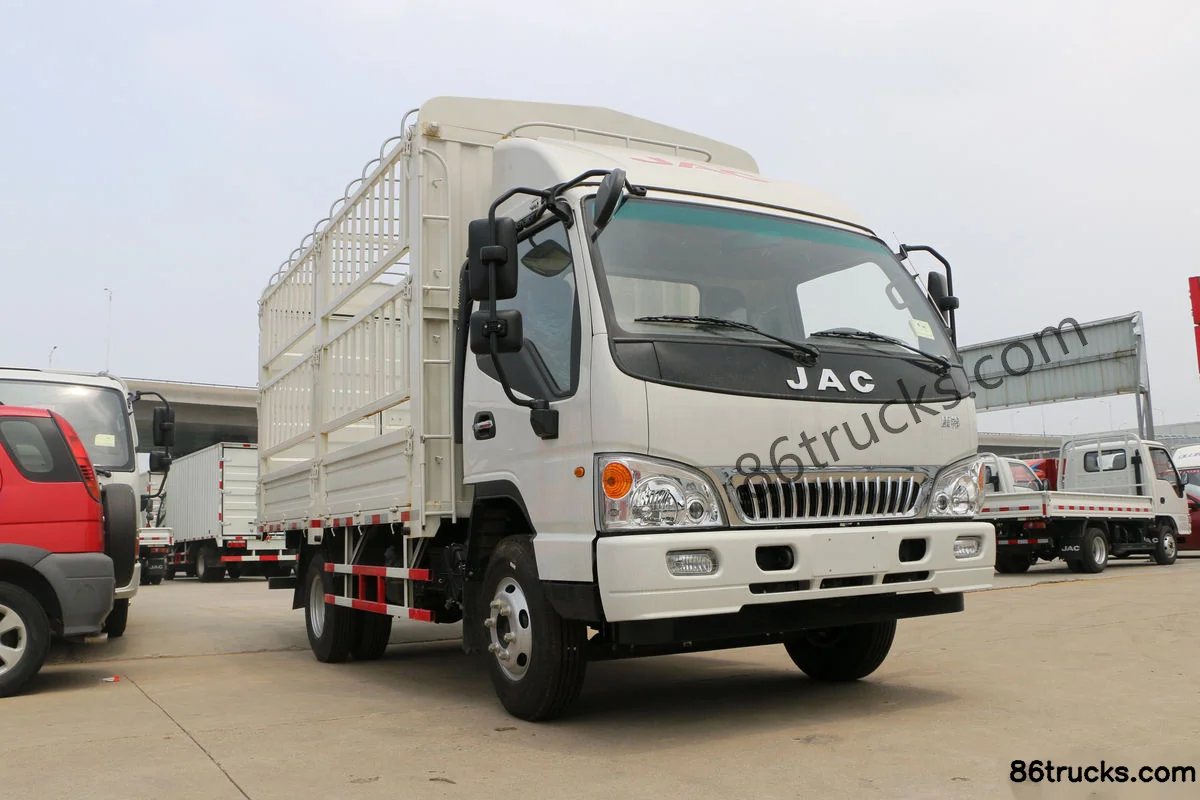

Exterior3

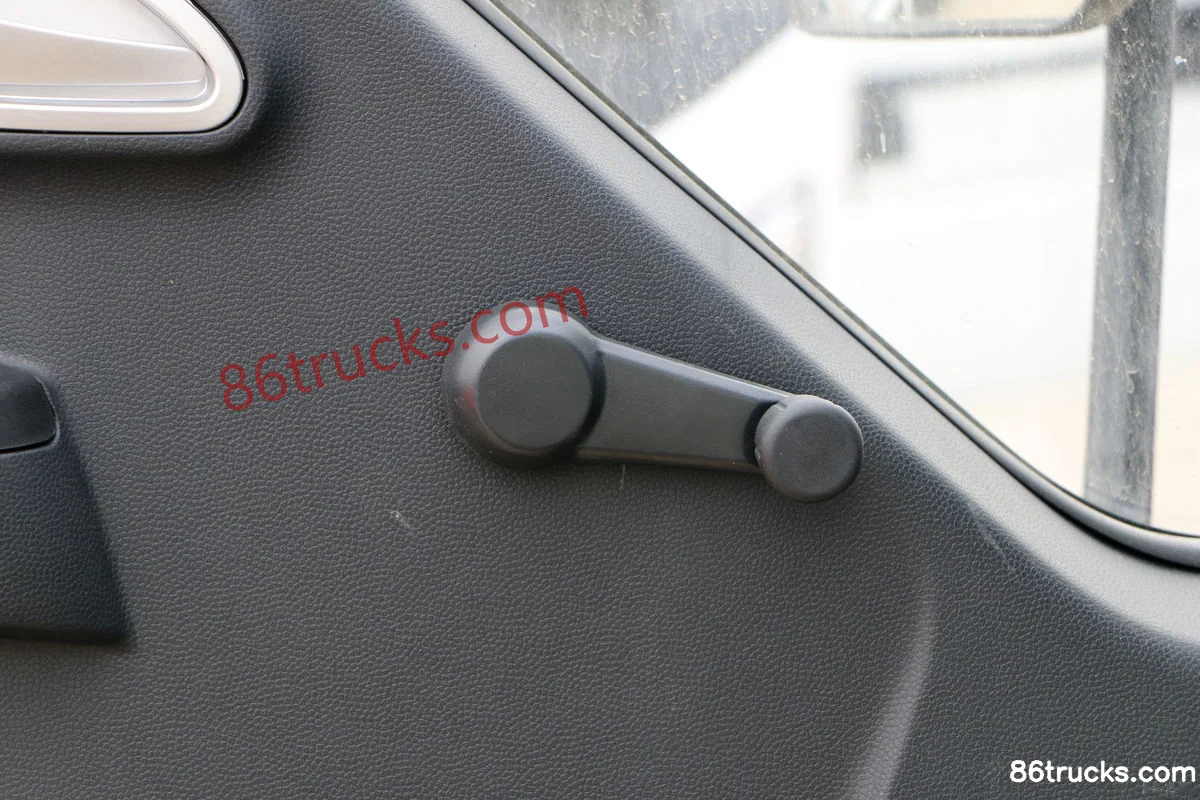

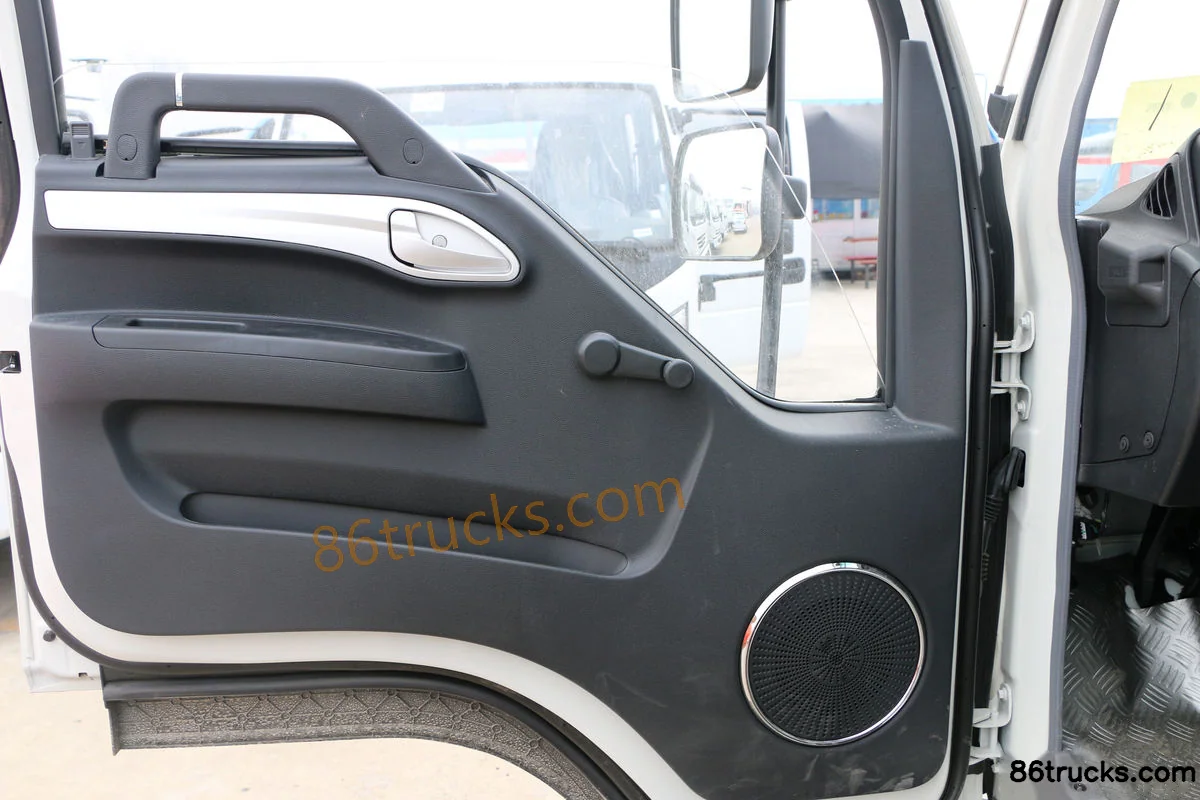

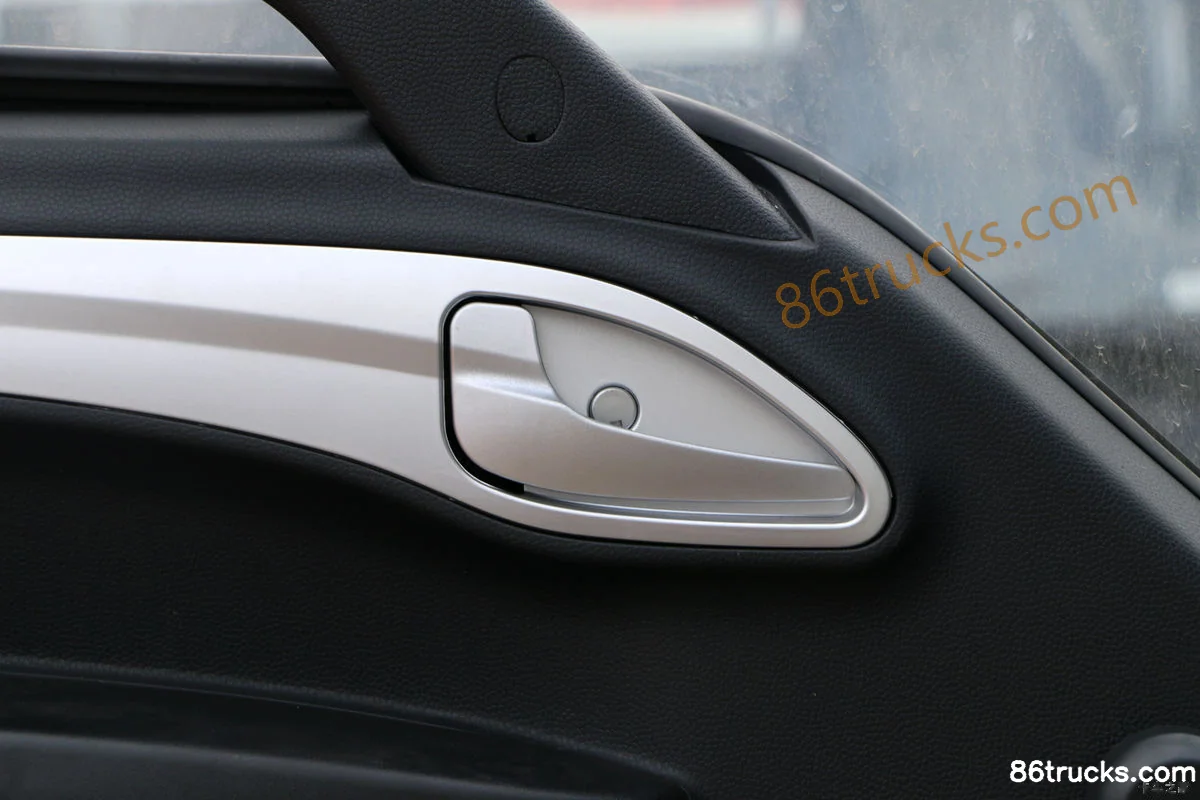

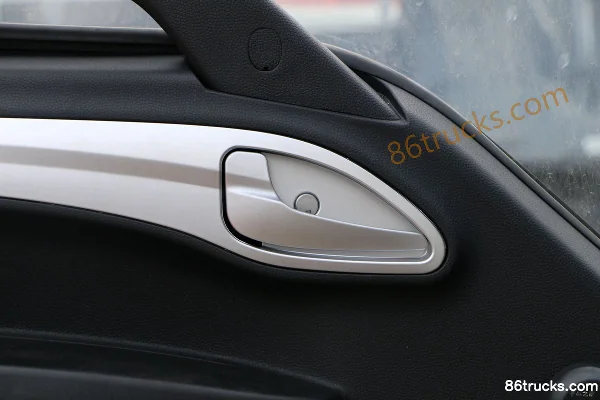

Cab3

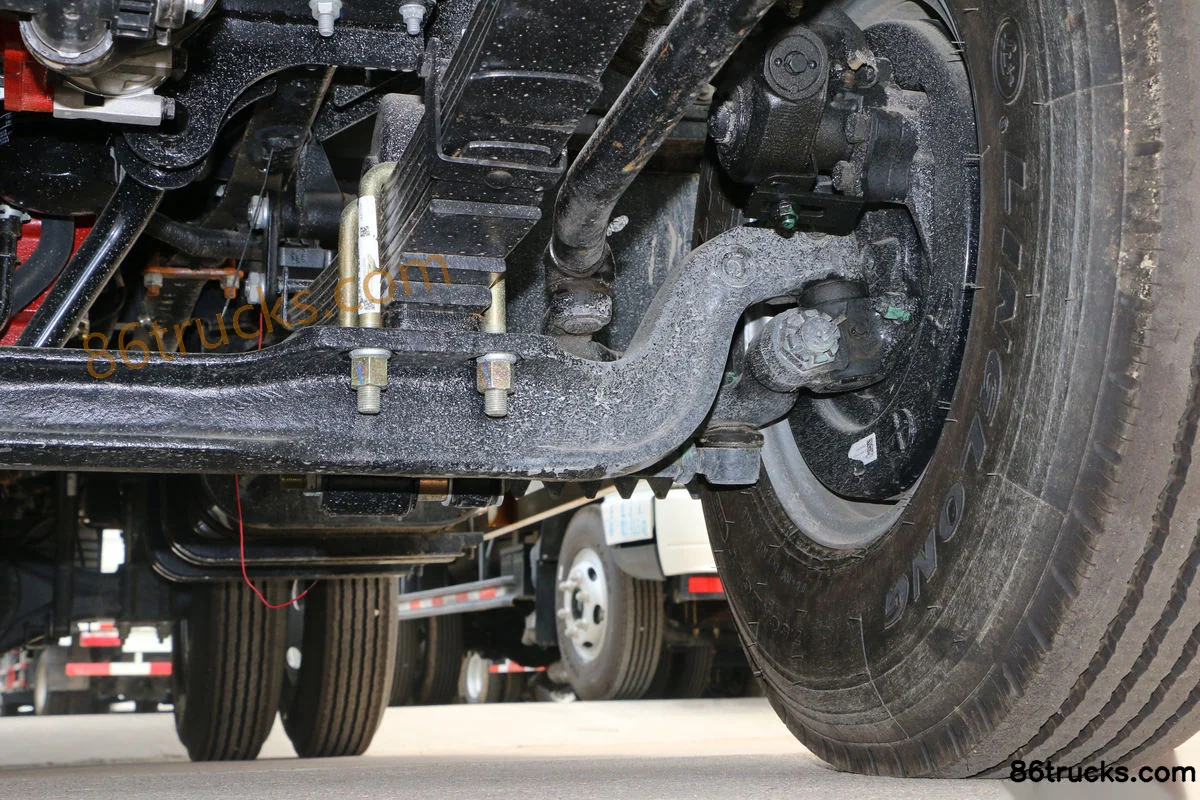

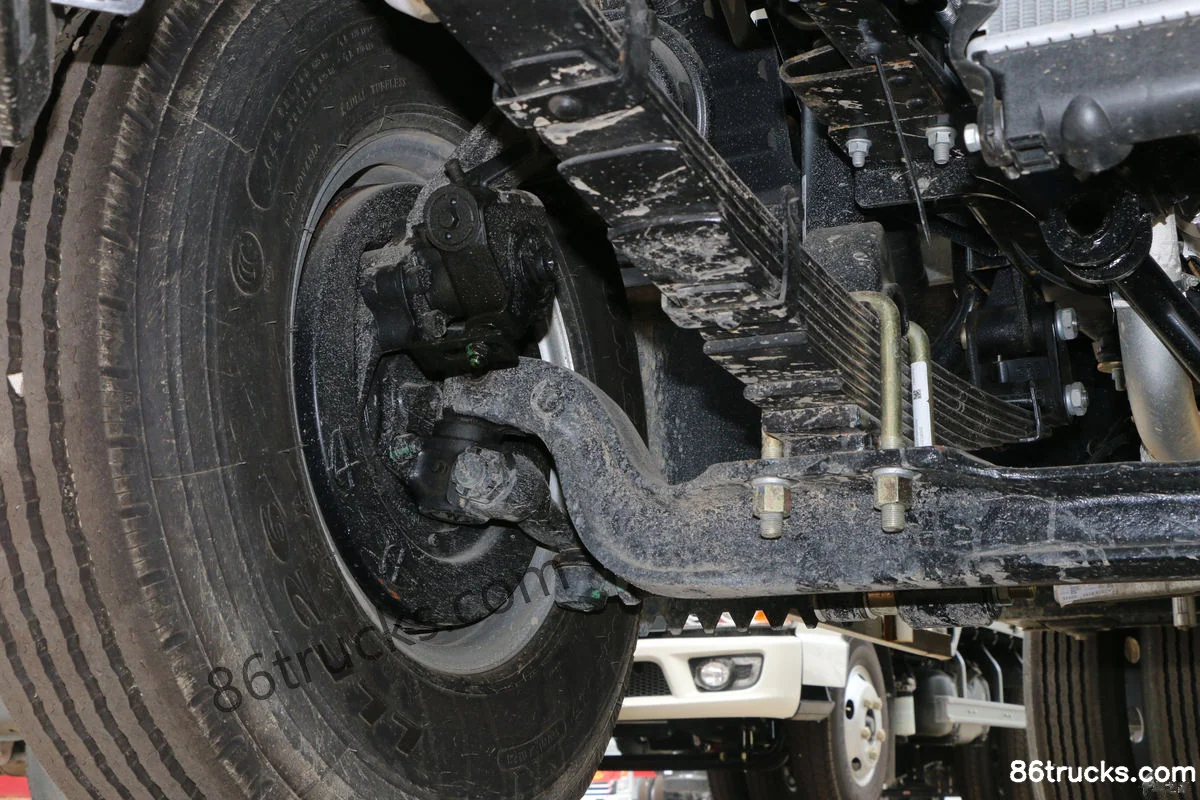

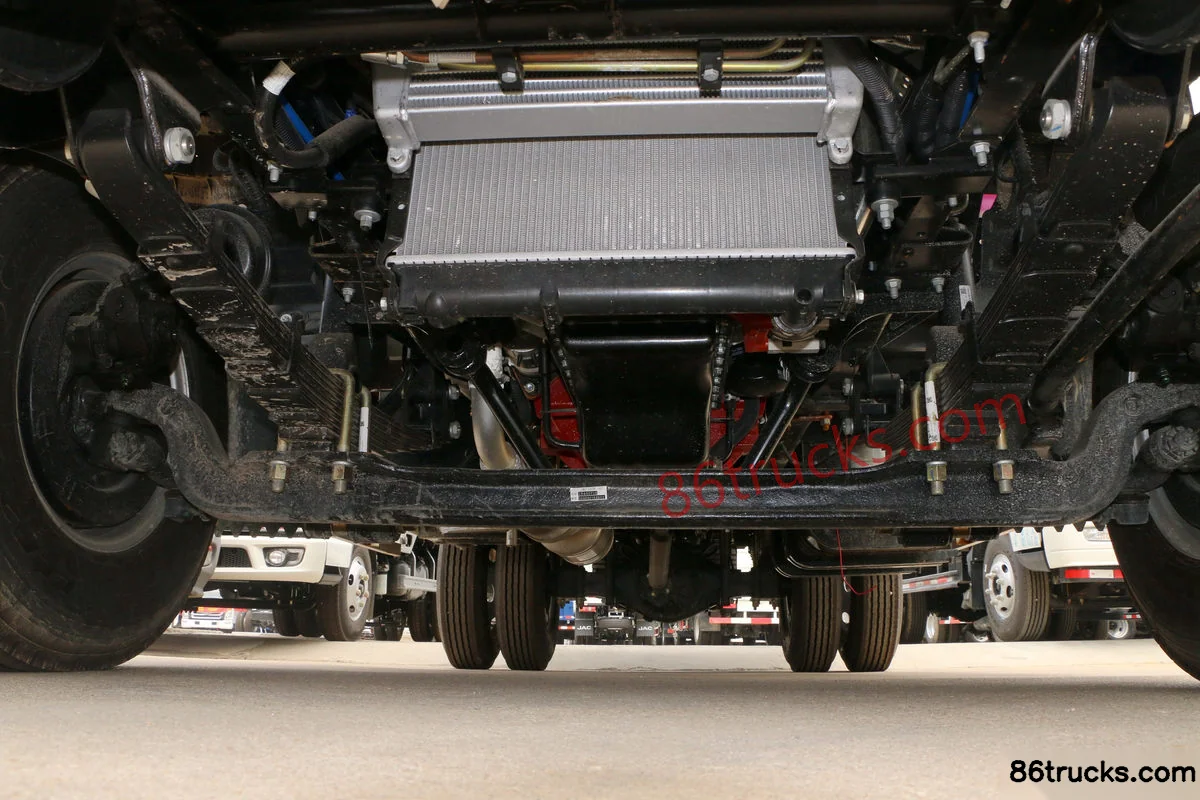

Chassis3

9 photos

FAQ

What is the export price of JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck, and what does it include?

JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck export reference is about From $14,833; MSRP is ¥10.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck?

Key specs of JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiVM494; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck suited for?

JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck differ from other variants in the same series?

JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 33 Wide Body 130 hp 4X2(6 wheels) 4.18m Single-row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
