SAIC Hongyan Genlyon H6 4X2(6 wheels) Fuel Cell Tractor Truck CATL 100.27kWh

Export reference
MSRP N/A
Front axle allowable load:: 6500kg
Wheelbase:: 4400mm
Model code (announced):: CQ4180FCEVSS441A
Front/rear track width:: Front track: 2020mm; Rear track: 1858mm
Cab length:: 6.91m
GVWR:: 18ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: CRRC Times
Gross Trailer Weight: 32.41ton

Overview

The SAIC Hongyan Genlyon H6 4X2(6 wheels) Fuel Cell Tractor Truck CATL 100.27kWh is a Heavy truck featuring CATL battery/range, CRRC Times motor, 4X2 (6 wheels) drive and 6500kg payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4180FCEVSS441A
Drive type: 4X2
Front/rear track width: Front track: 2020mm; Rear track: 1858mm
Wheelbase: 4400mm
Cab length: 6.91m
Cab width: 2.55m
Cab height: 3.785m
Gross Trailer Weight: 32.41ton
Curb Weight: 9.46ton
GVWR: 18ton
Max. speed: 85km/h
Origin: Chongqing
tonnage class: Heavy truck
Energy Type: Hydrogen
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ400XS035A
Motor Type: Permanent magnet synchronous motor
total rated power: 180kW
Peak power: 360kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.27kWh
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 6500kg
rear axle description: HY485 axle
rear axle allowable load: 11500kg
Tire
Tire Size: 315/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

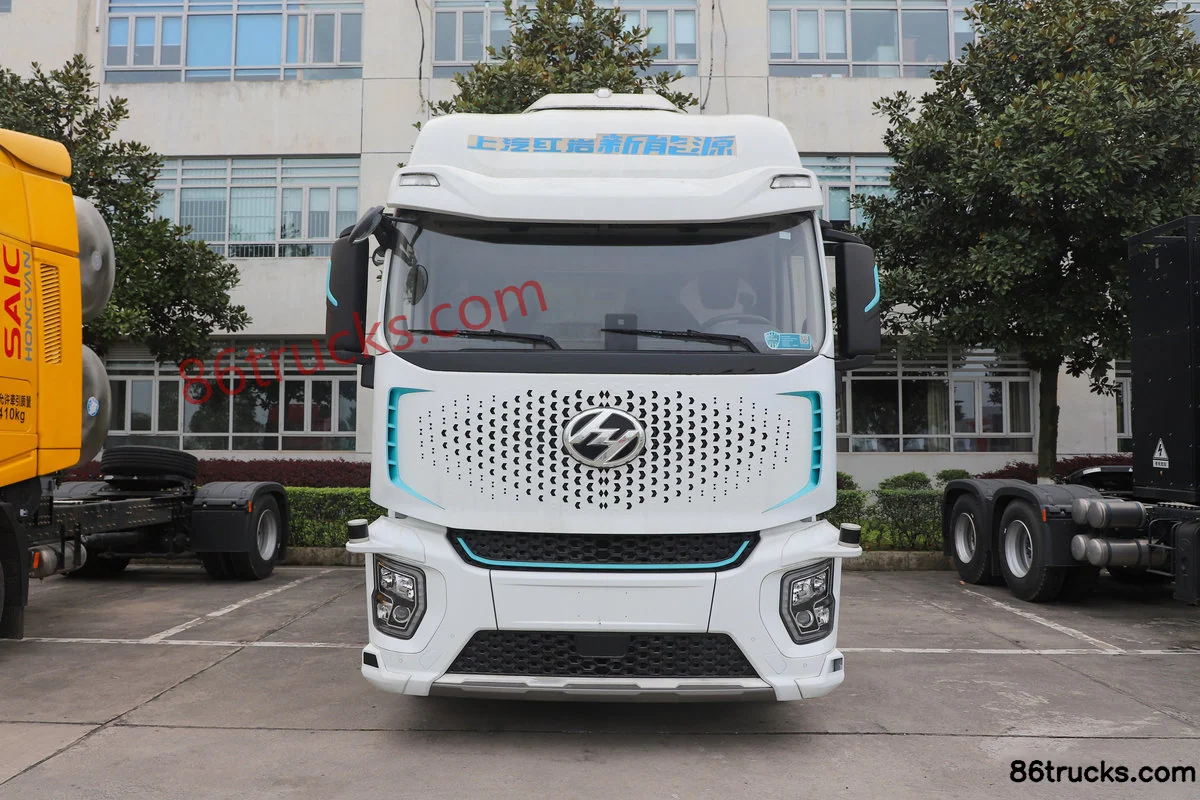

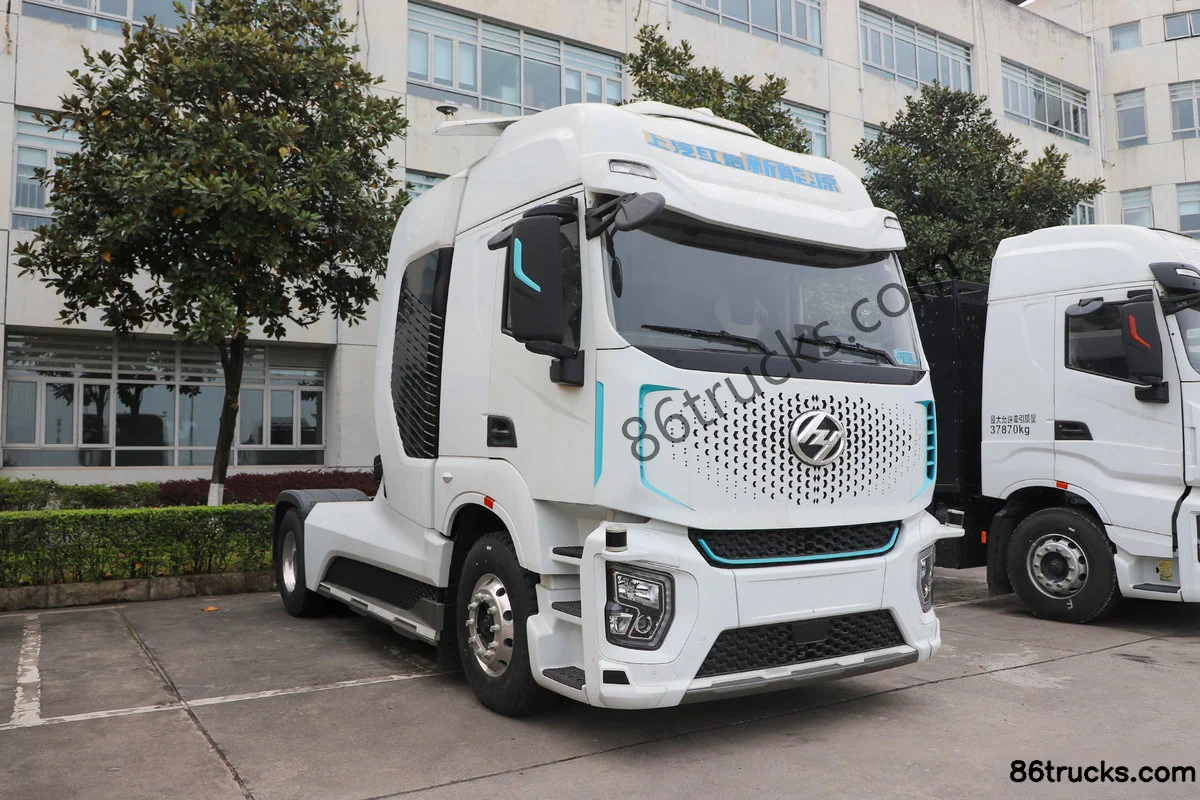

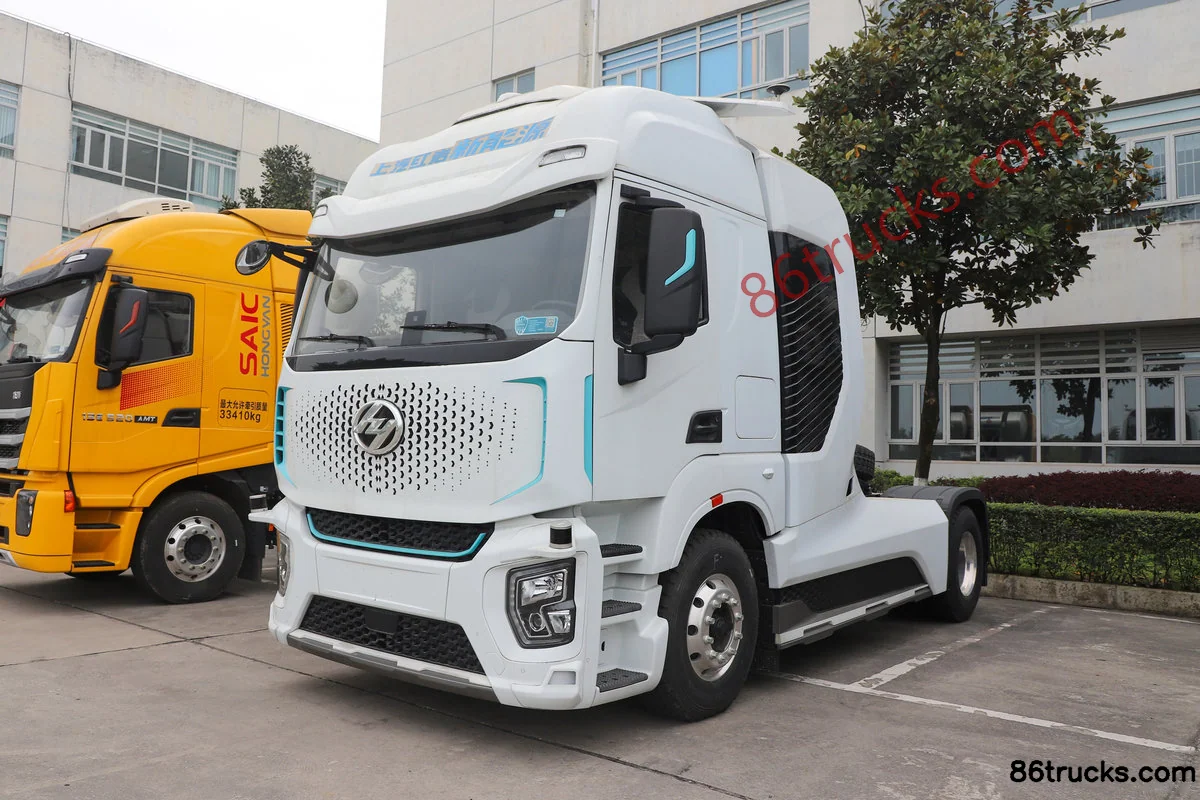

Exterior3

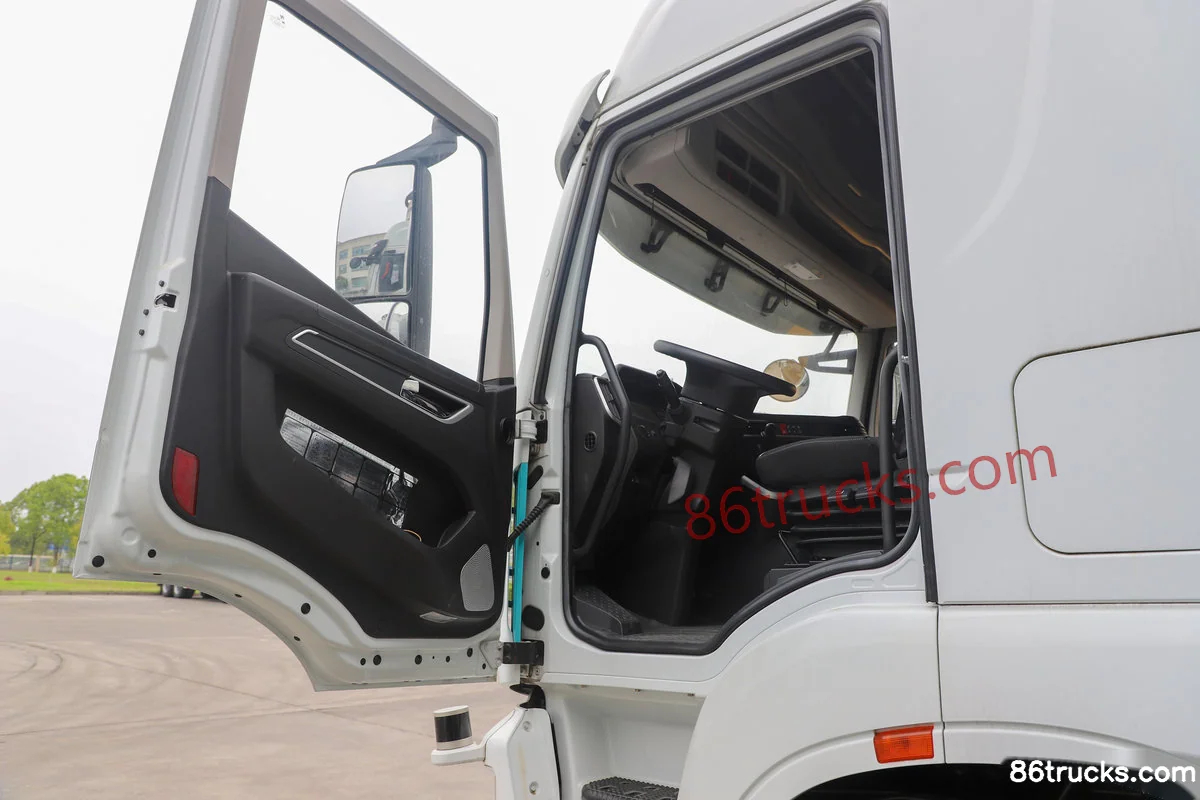

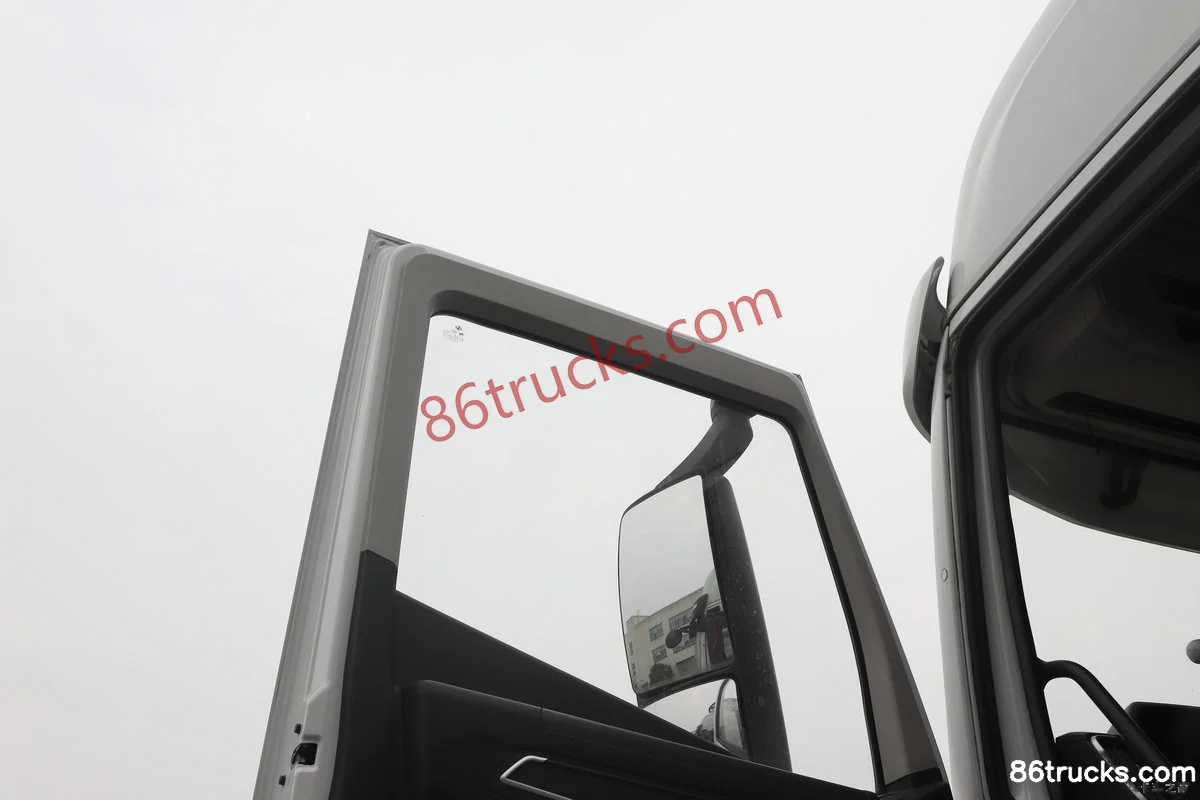

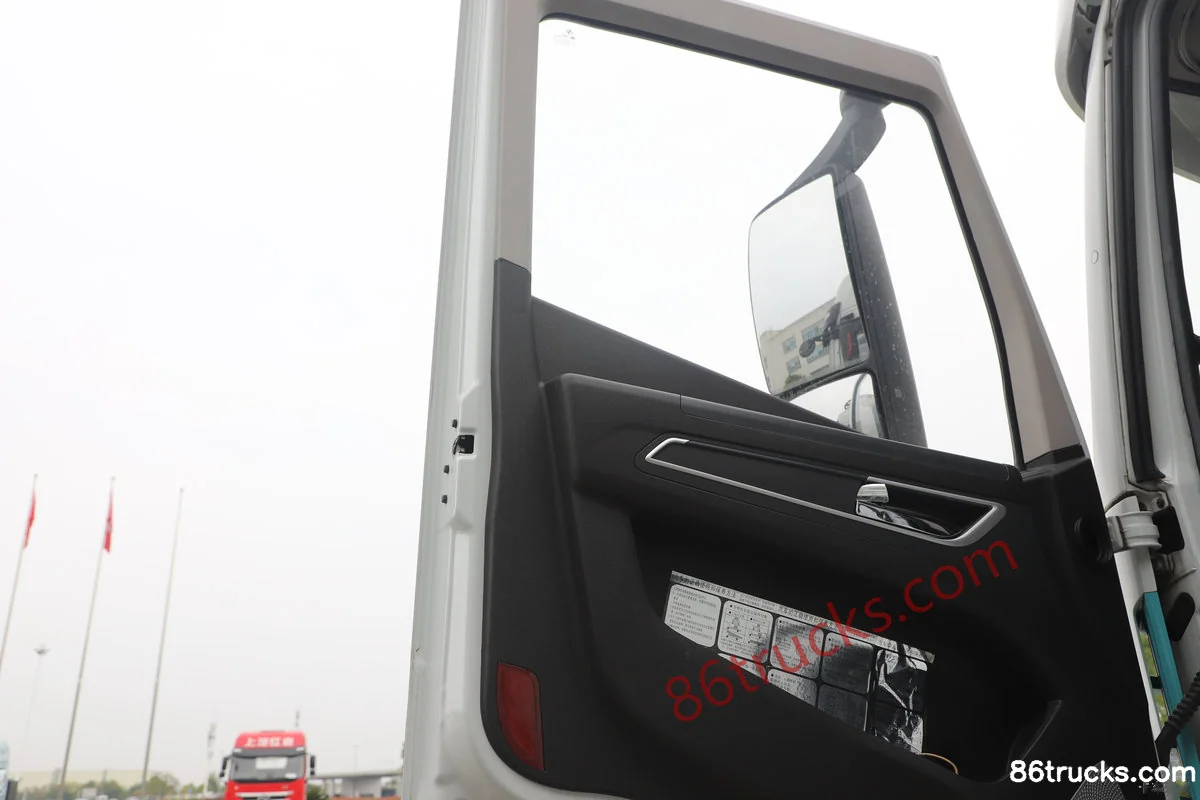

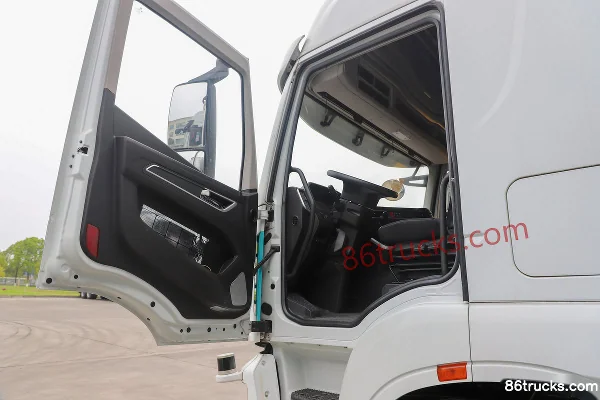

Cab3

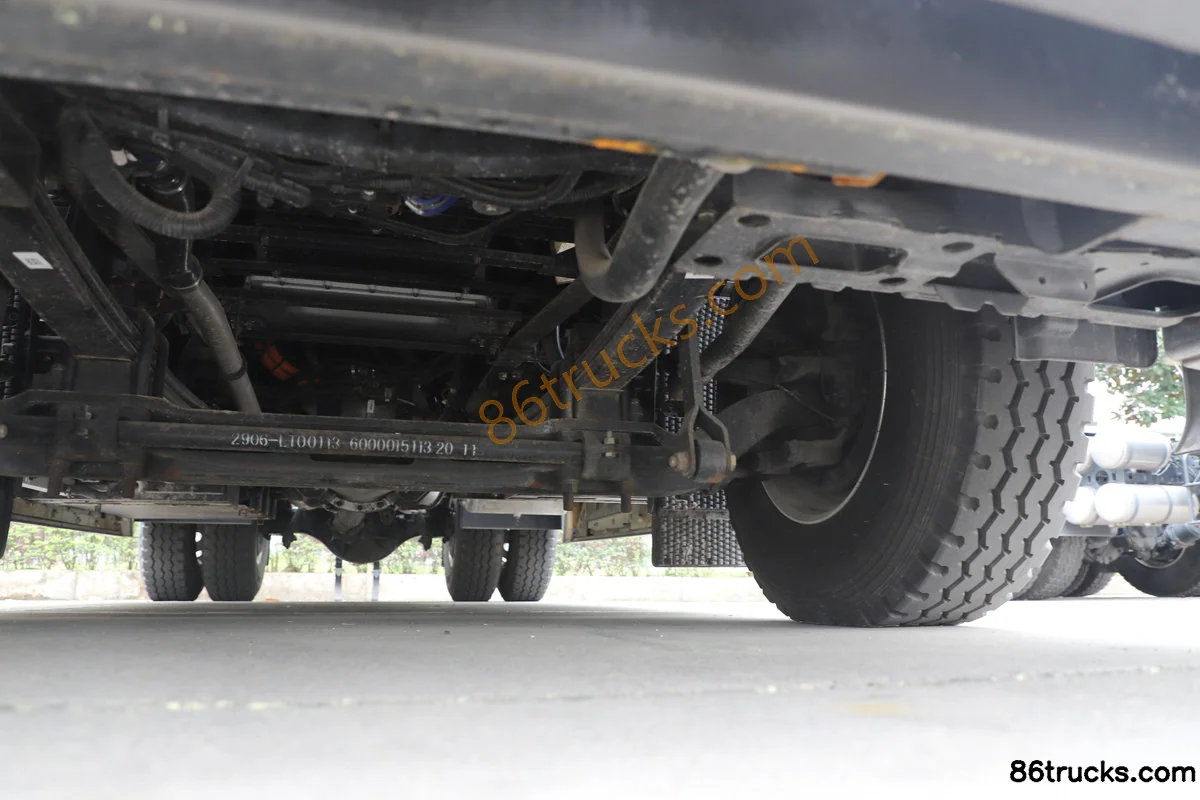

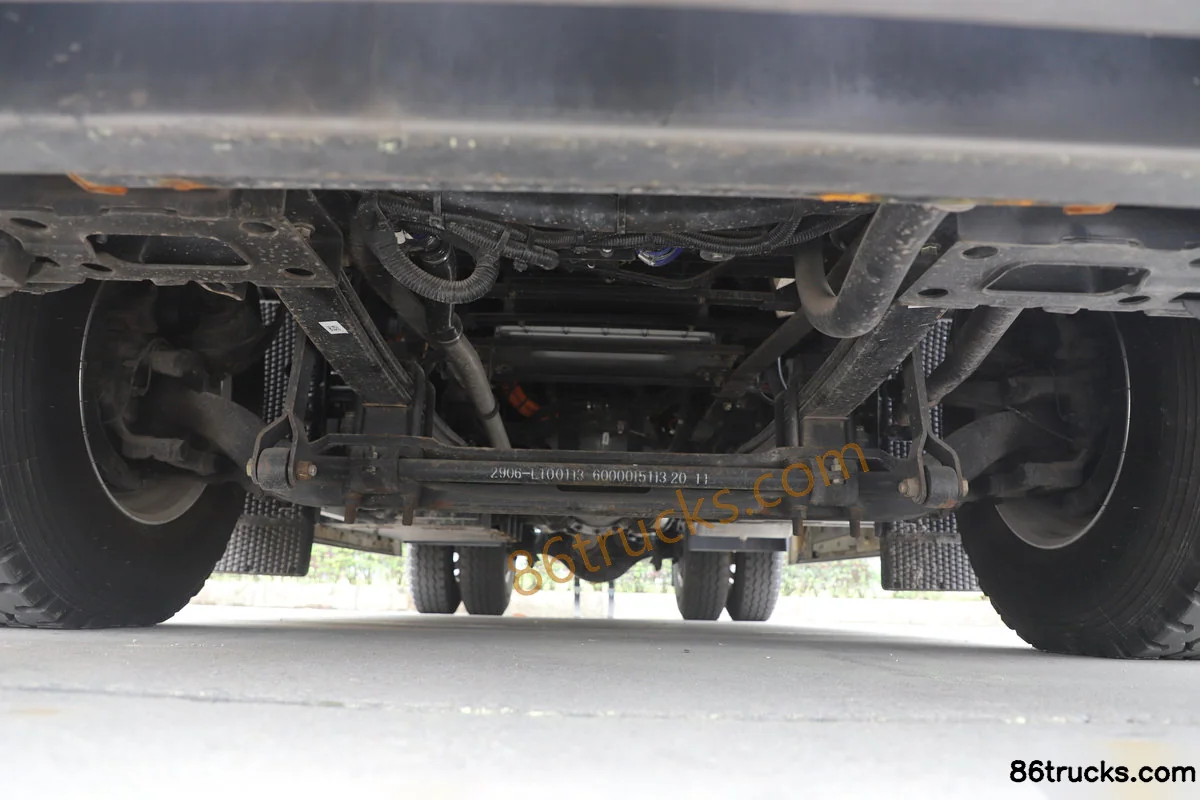

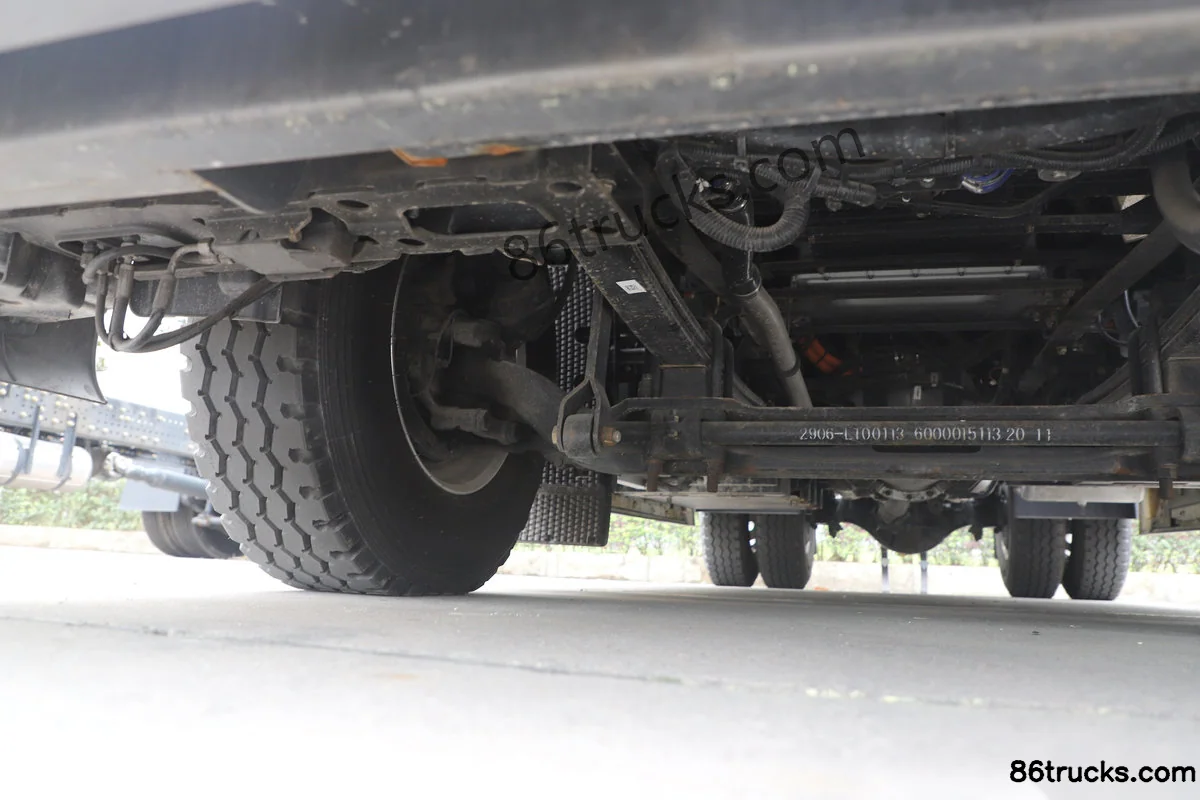

Chassis3
