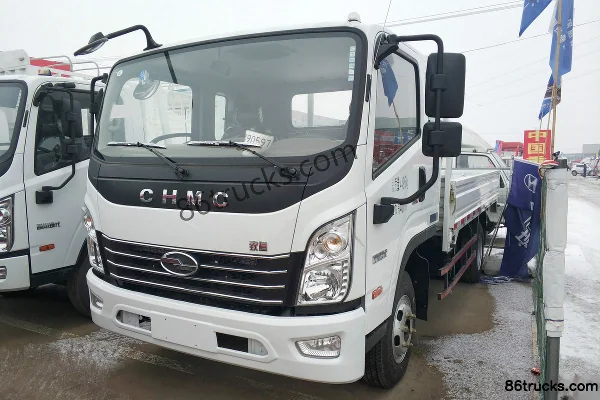

Hyundai Commercial Vehicle Zhidao 500M 130 hp 4X2(6 wheels) 3.835m Flatbed Light Truck with Side Panels (Liuan)

Export reference
From $14,861
MSRP ¥10.7M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: Yuchai496
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Hyundai Commercial Vehicle Zhidao 500M 130 hp 4X2(6 wheels) 3.835m Flatbed Light Truck with Side Panels (Liuan) is a Light Truck featuring 3.835m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai496 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ1041QDA33V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: YuchaiYC4FA130-50
transmission: Lu'an LC5T35
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.22m
Cab height: 2.42m
Front track width: 1755mm
rear track: 1604mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.12/1.575m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA130-50
Engine info: Yuchai496
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.982L
Emission standard: China V
Max output power: 95kW
Max hp: 130Horsepower
Max torque: 340N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Lu'an LC5T35
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.835m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: Flat Roof Wide Body Cab
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Axle ratio: 4.875
Leaf spring count: 3/9+7,9/11+8
Tire
Tire Size: 7.00R16 10PR
Number of tires: 6pcs
Control configuration
ABS:
